Almera Tino V10 (2003 year). Manual - part 194

SEL723Y

Component Inspection

=NLEL0677

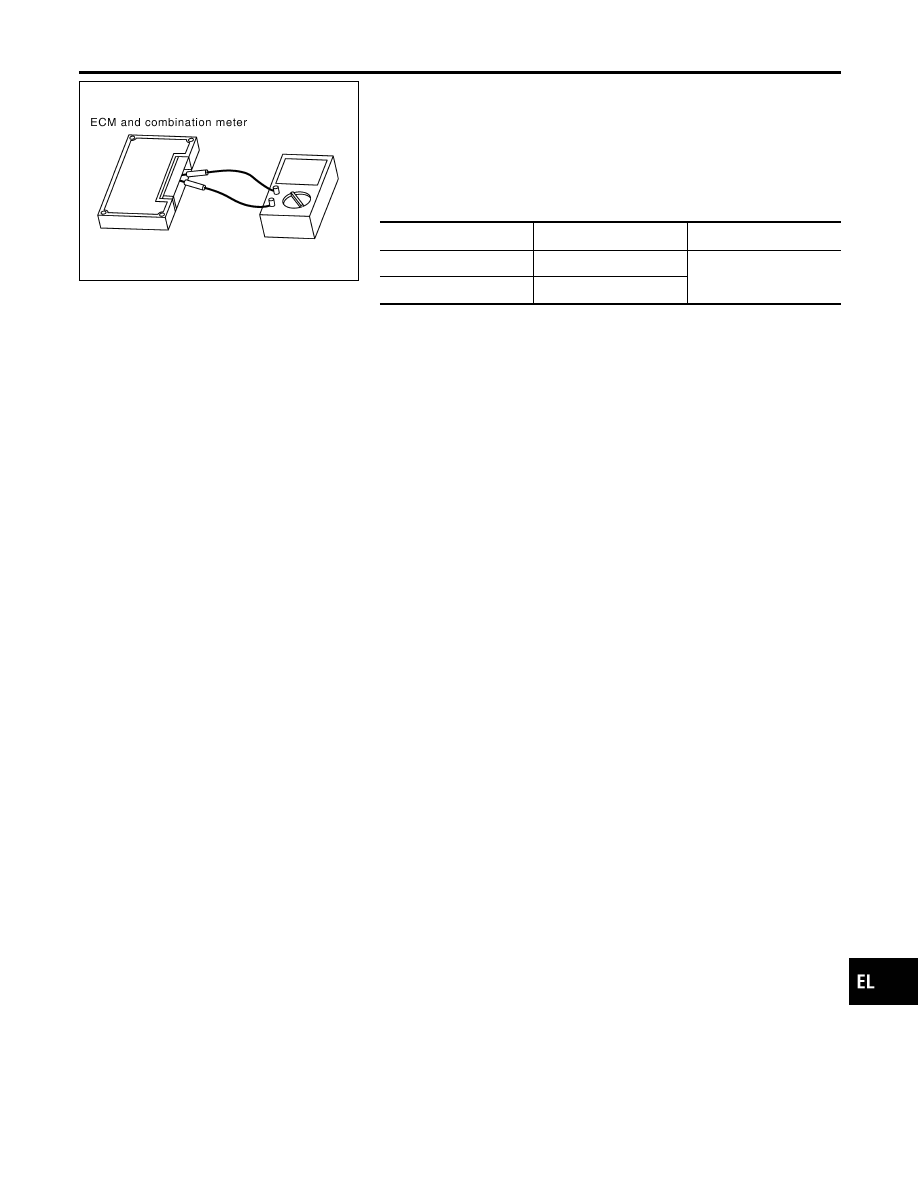

ECM/COMBINATION METER INTERNAL CIRCUIT
INSPECTION

NLEL0677S01

I

Remove ECM and combination meter from vehicle.

I

Check resistance between ECM terminals 95 and 87.

I

Check resistance between combination meter terminals 39
and 40.

Unit

Terminal

Resistance value (

Ω

)

ECM

95 - 87

Approx. 108 - 132

Combination meter

39 - 40

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

CAN SYSTEM (TYPE 6)

Component Inspection

EL-593

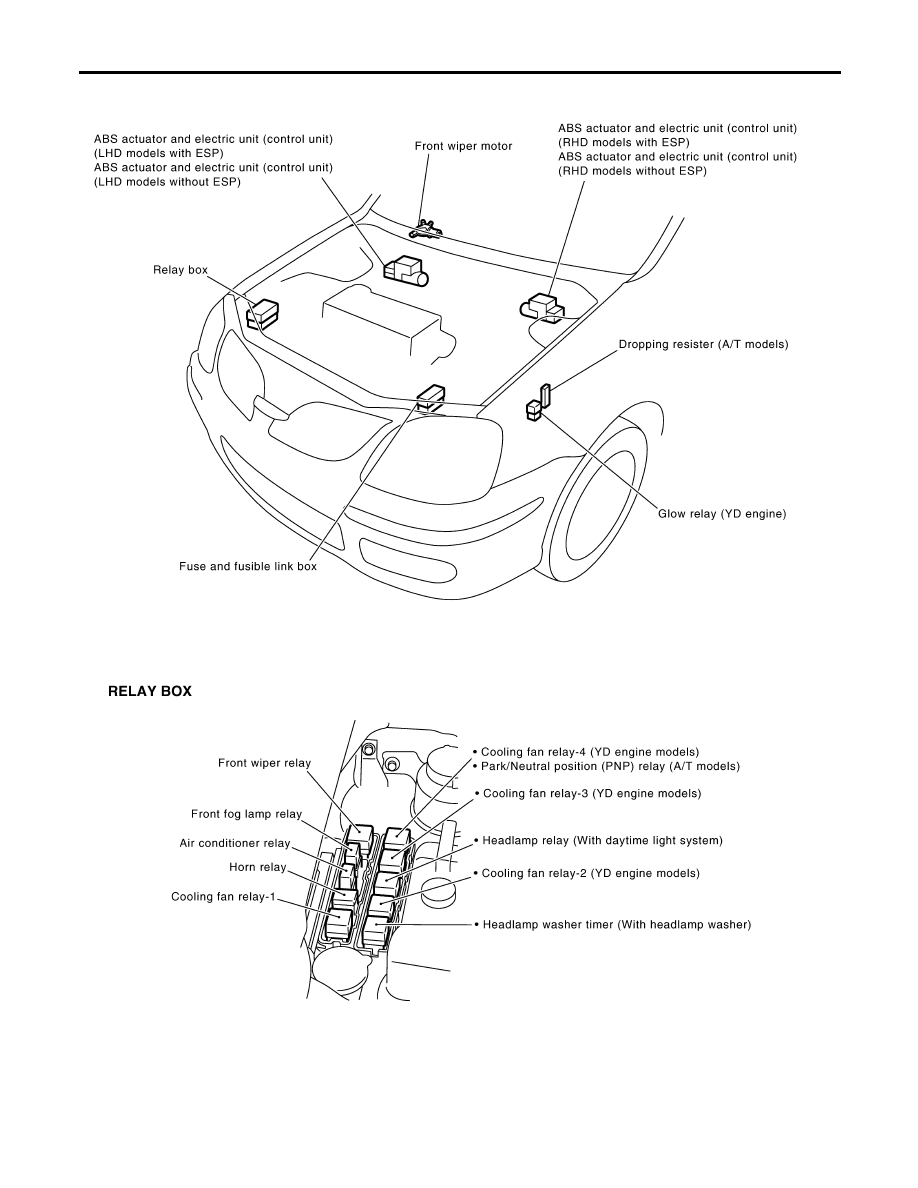

Engine Compartment

NLEL0129

YEL119E

ELECTRICAL UNITS LOCATION

Engine Compartment

EL-594

NOTE:

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

ELECTRICAL UNITS LOCATION

Engine Compartment (Cont’d)

EL-595

Passenger Compartment

NLEL0130

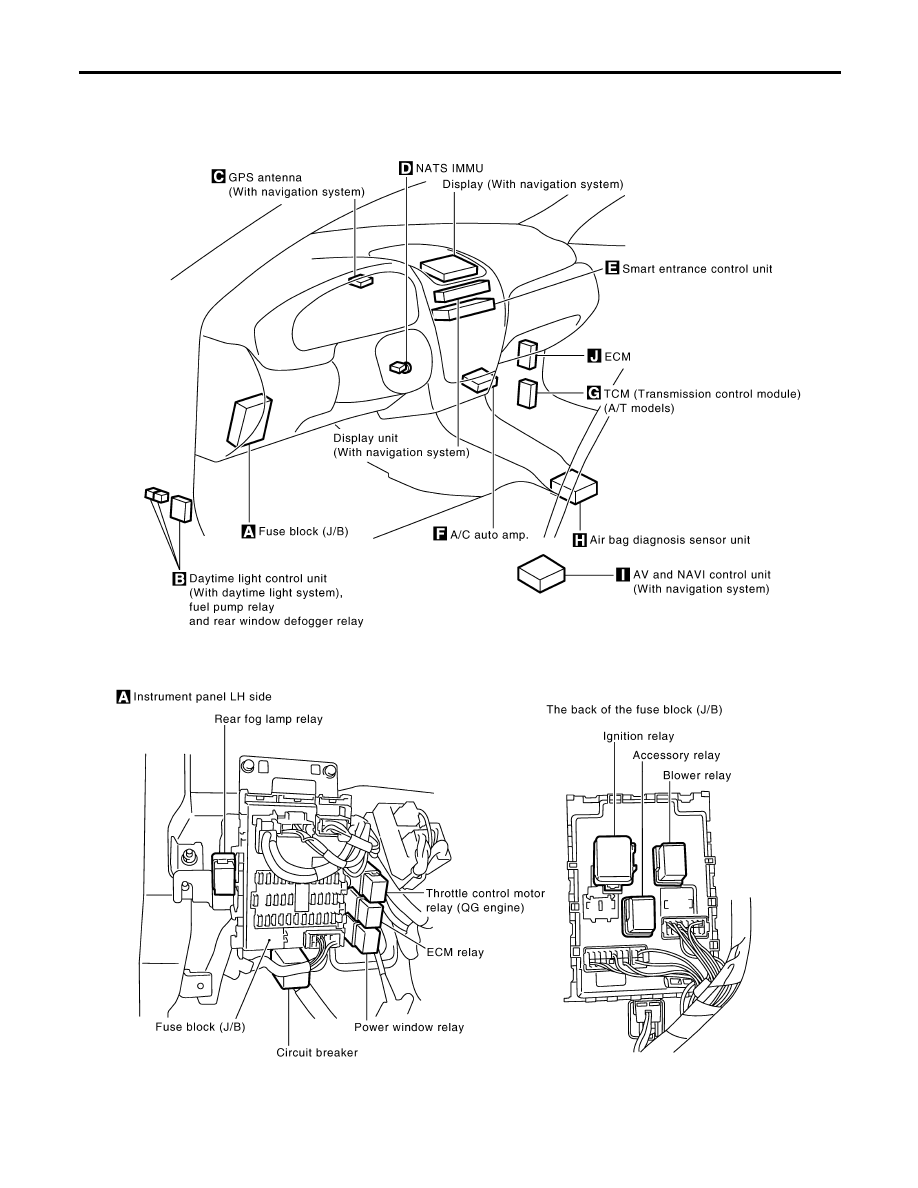

LHD MODELS

NLEL0130S07

YEL120E

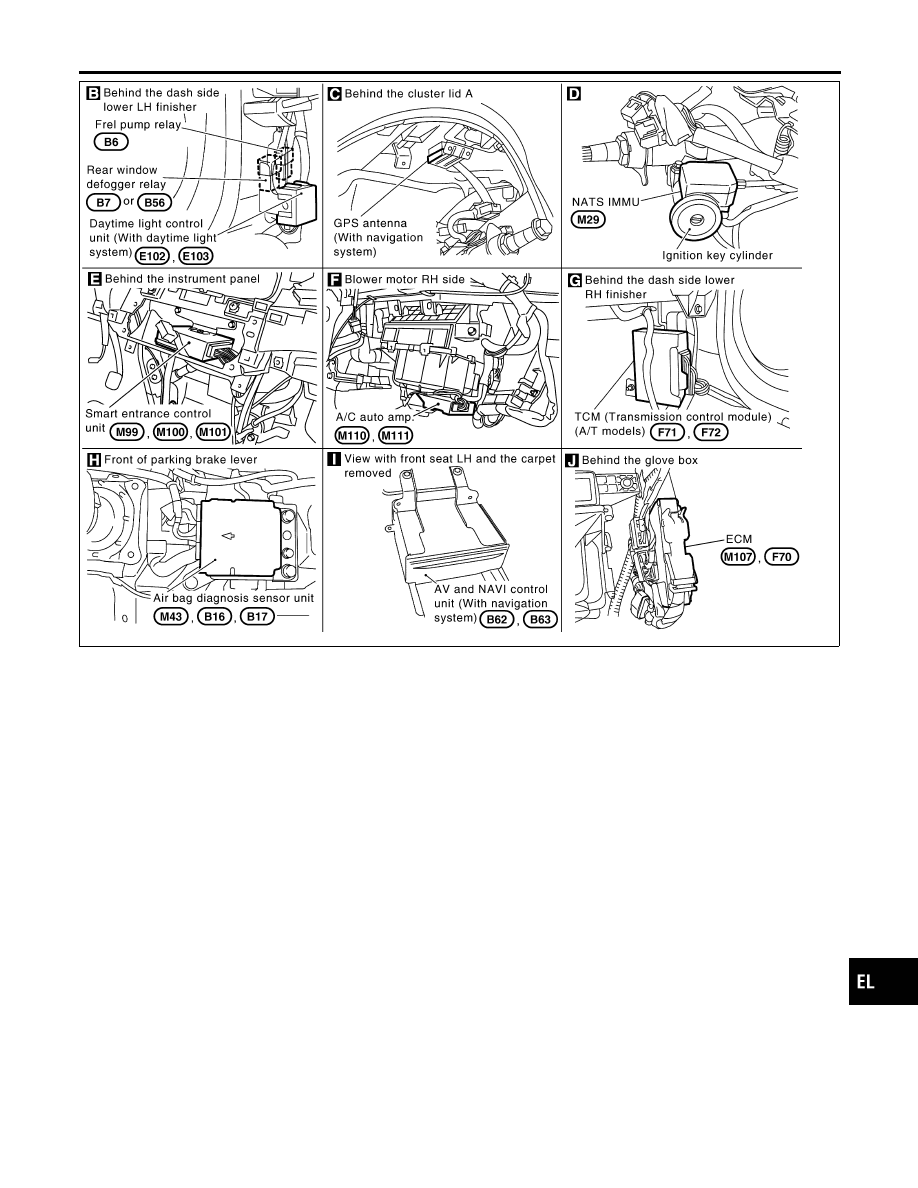

ELECTRICAL UNITS LOCATION

Passenger Compartment

EL-596

YEL121E

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

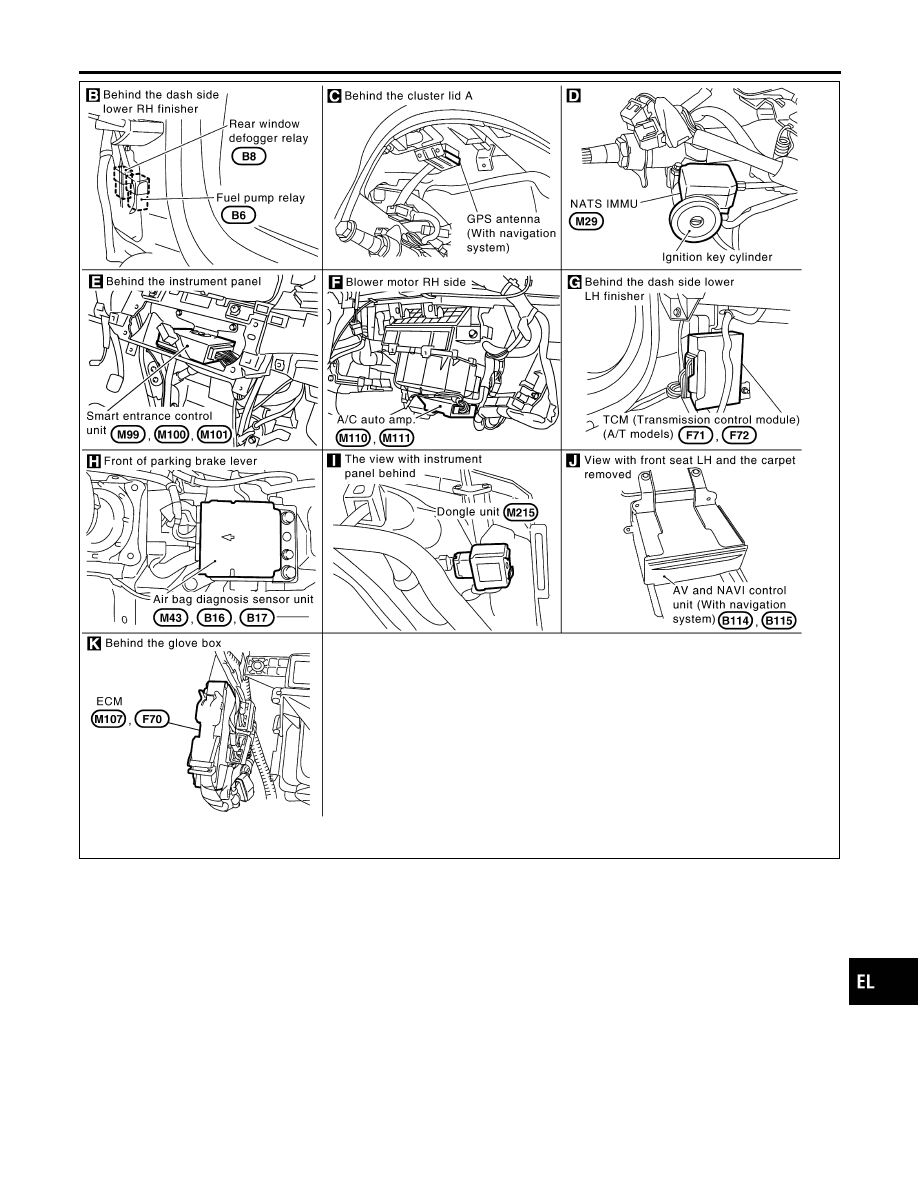

ELECTRICAL UNITS LOCATION

Passenger Compartment (Cont’d)

EL-597

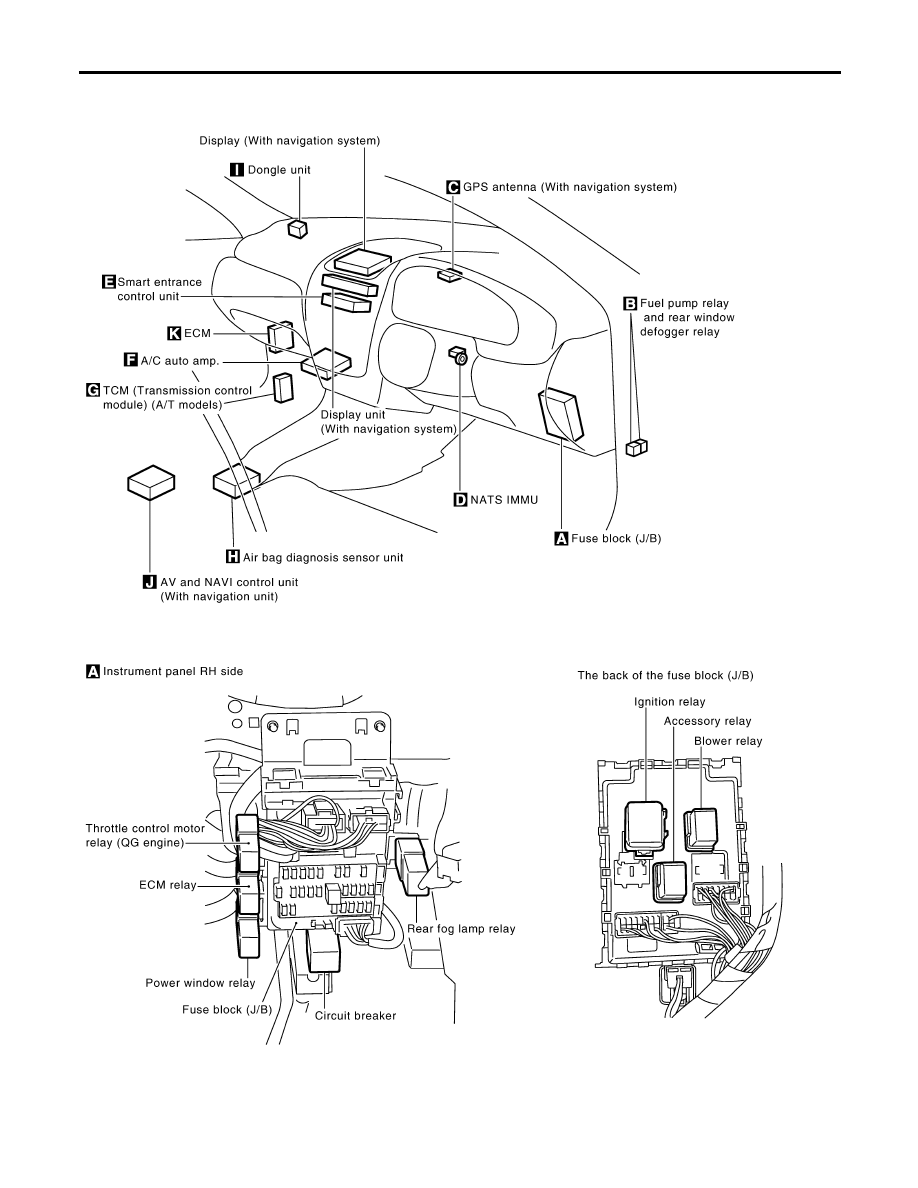

RHD MODELS

NLEL0130S08

YEL122E

ELECTRICAL UNITS LOCATION

Passenger Compartment (Cont’d)

EL-598

YEL123E

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

ELECTRICAL UNITS LOCATION

Passenger Compartment (Cont’d)

EL-599

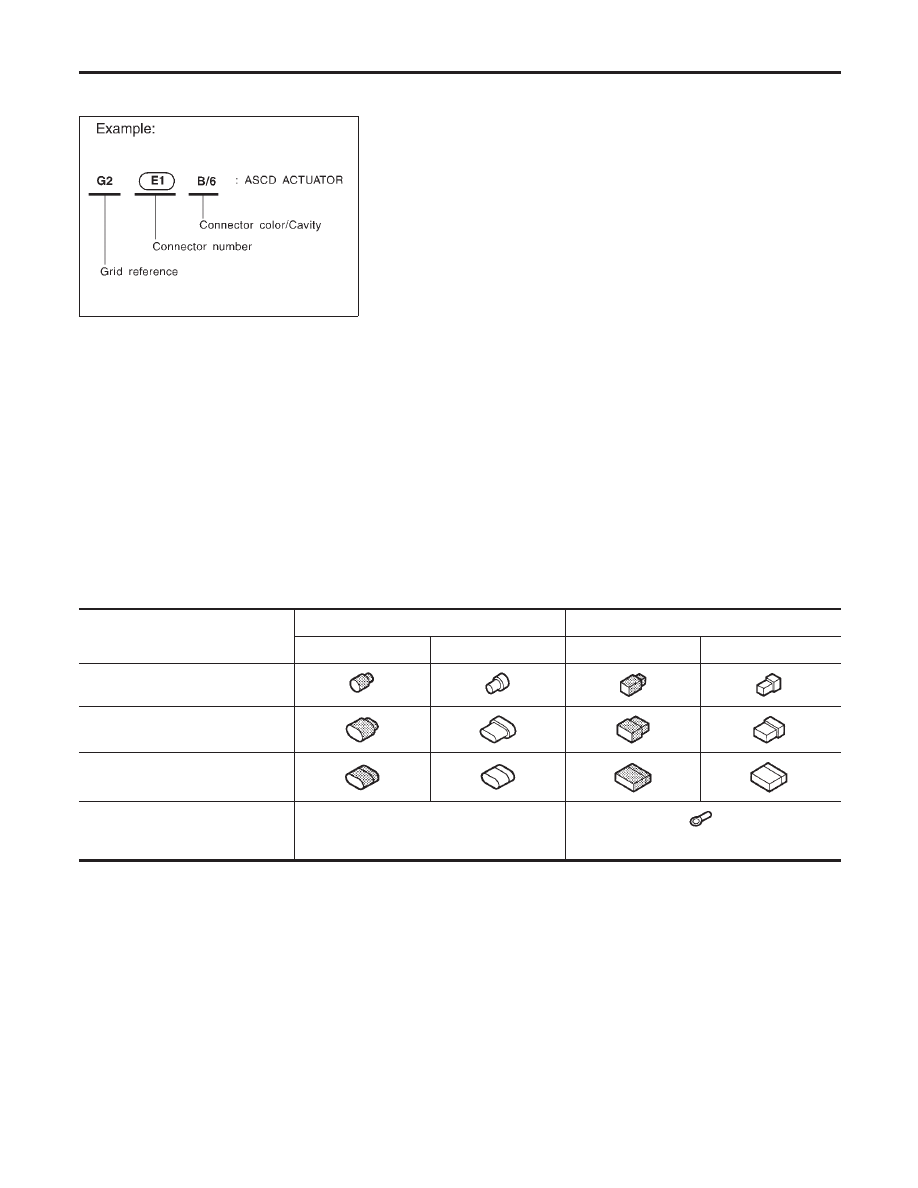

How to Read Harness Layout

NLEL0131

SEL252V

The following Harness Layouts use a map style grid to help locate connectors on the drawings:

I

Main Harness

I

Engine Room Harness (Engine Compartment)

I

Engine Control Harness

I

Body Harness

TO USE THE GRID REFERENCE

NLEL0131S01

1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.

CONNECTOR SYMBOL

NLEL0131S02

Main symbols of connector (in Harness Layout) are indicated in the below.

Connector type

Water proof type

Standard type

Male

Female

Male

Female

I

Cavity: Less than 4

I

Relay connector

I

Cavity: From 5 to 8

I

Cavity: More than 9

I

Ground terminal etc.

—

HARNESS LAYOUT

How to Read Harness Layout

EL-600

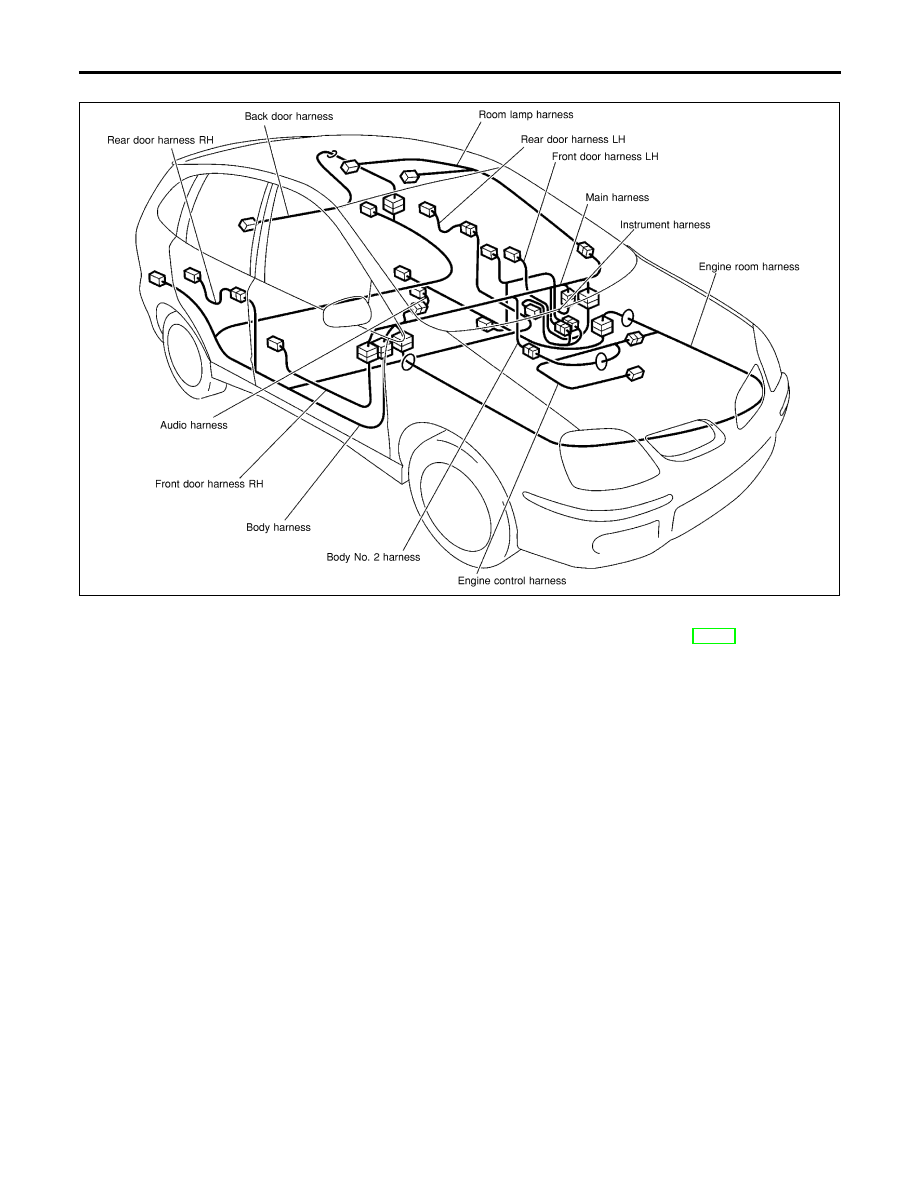

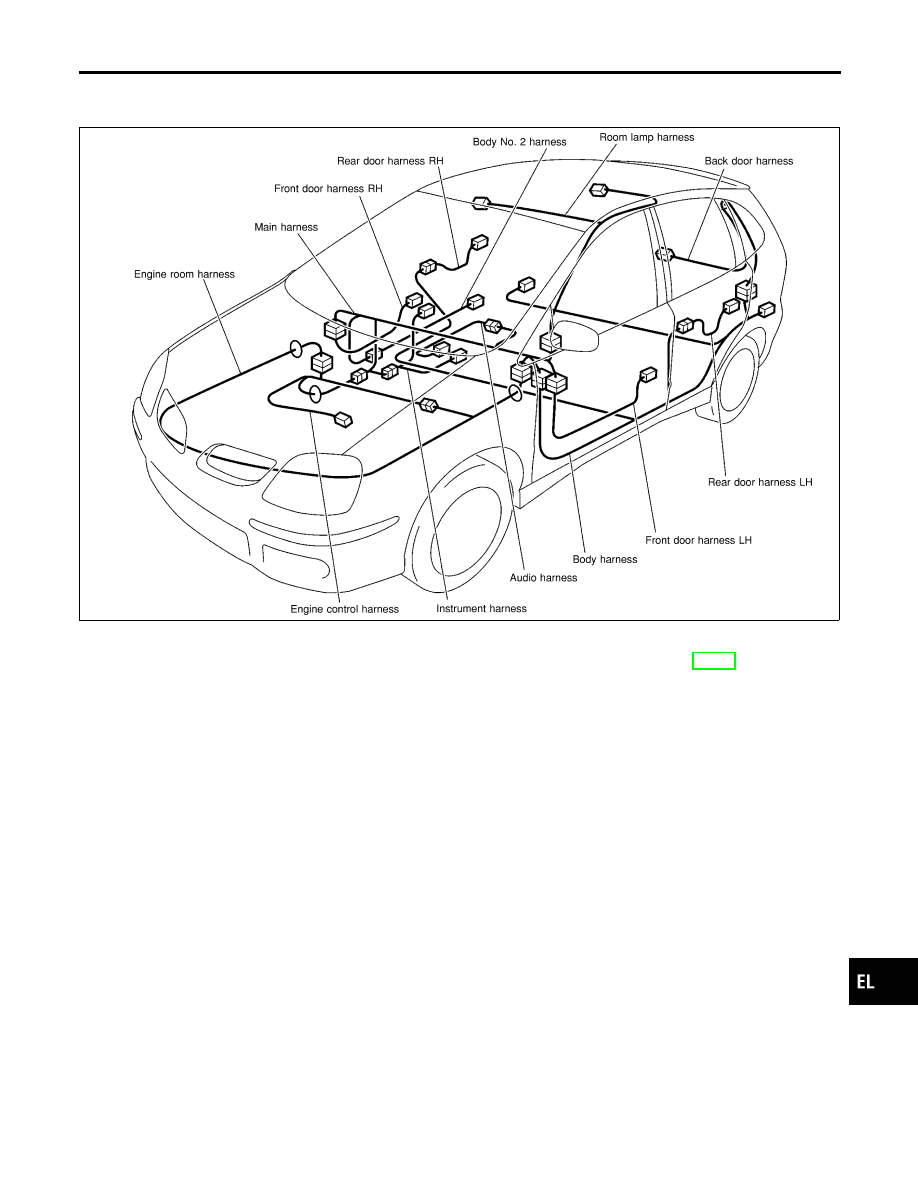

Outline

NLEL0491

LHD MODELS

NLEL0491S01

YEL010C

NOTE:
For detailed ground distribution information, refer to “Ground Distribution”, “GROUND”, EL-23.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

HARNESS LAYOUT

Outline

EL-601

RHD MODELS

NLEL0491S02

YEL011C

NOTE:
For detailed ground distribution information, refer to “Ground Distribution”, “GROUND”, EL-23.

HARNESS LAYOUT

Outline (Cont’d)

EL-602

NOTE:

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

HARNESS LAYOUT

Outline (Cont’d)

EL-603

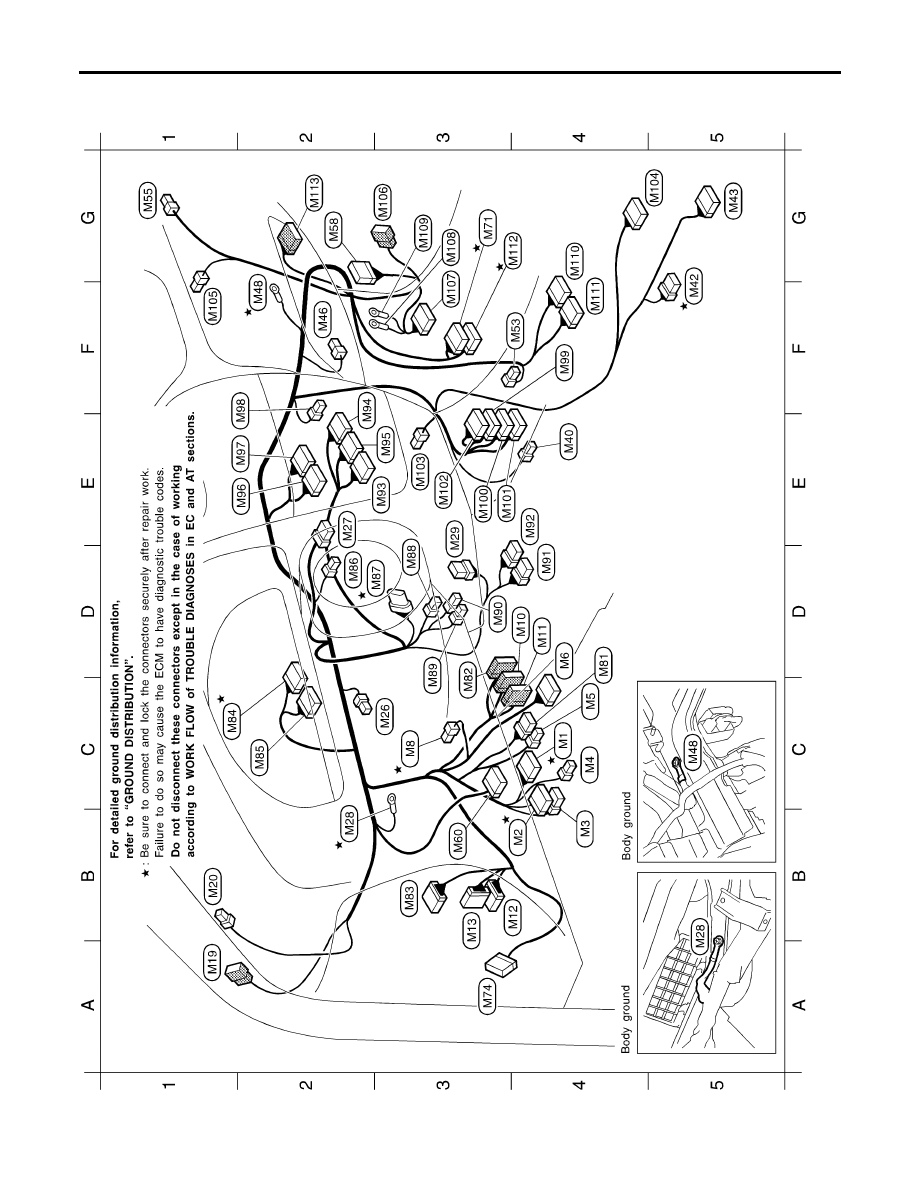

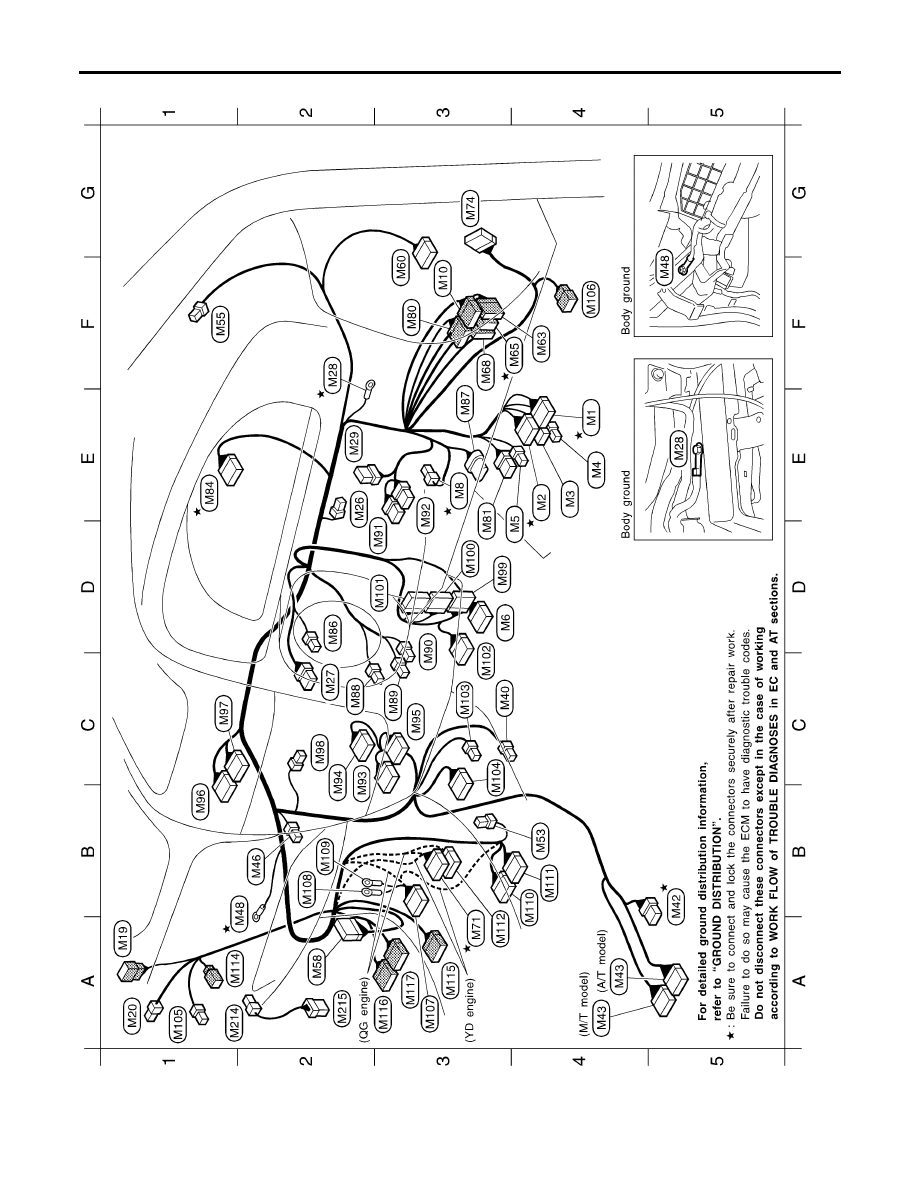

Main Harness

NLEL0347

LHD MODELS

NLEL0347S01

YEL056E

HARNESS LAYOUT

Main Harness

EL-604

YEL057E

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

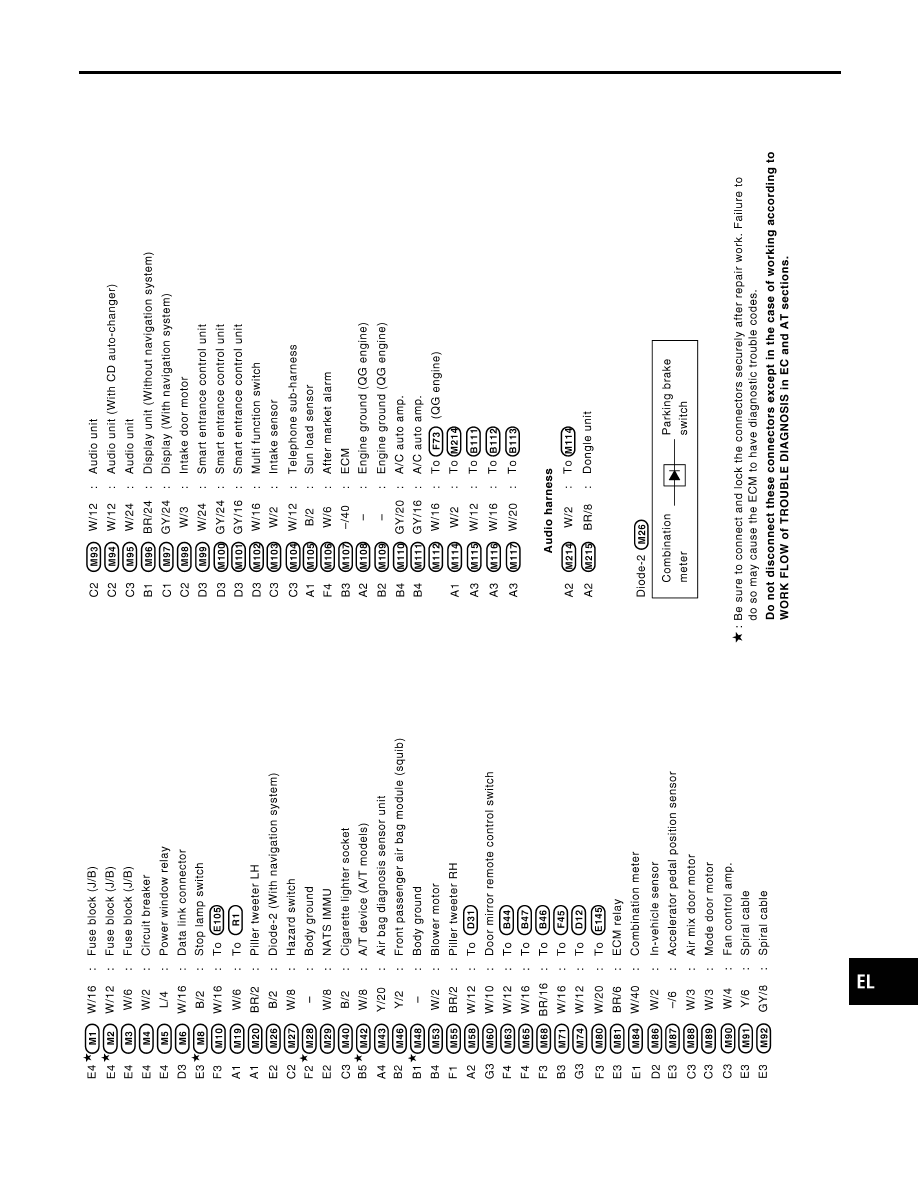

HARNESS LAYOUT

Main Harness (Cont’d)

EL-605

RHD MODELS

NLEL0347S02

YEL058E

HARNESS LAYOUT

Main Harness (Cont’d)

EL-606

YEL059E

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

HARNESS LAYOUT

Main Harness (Cont’d)

EL-607

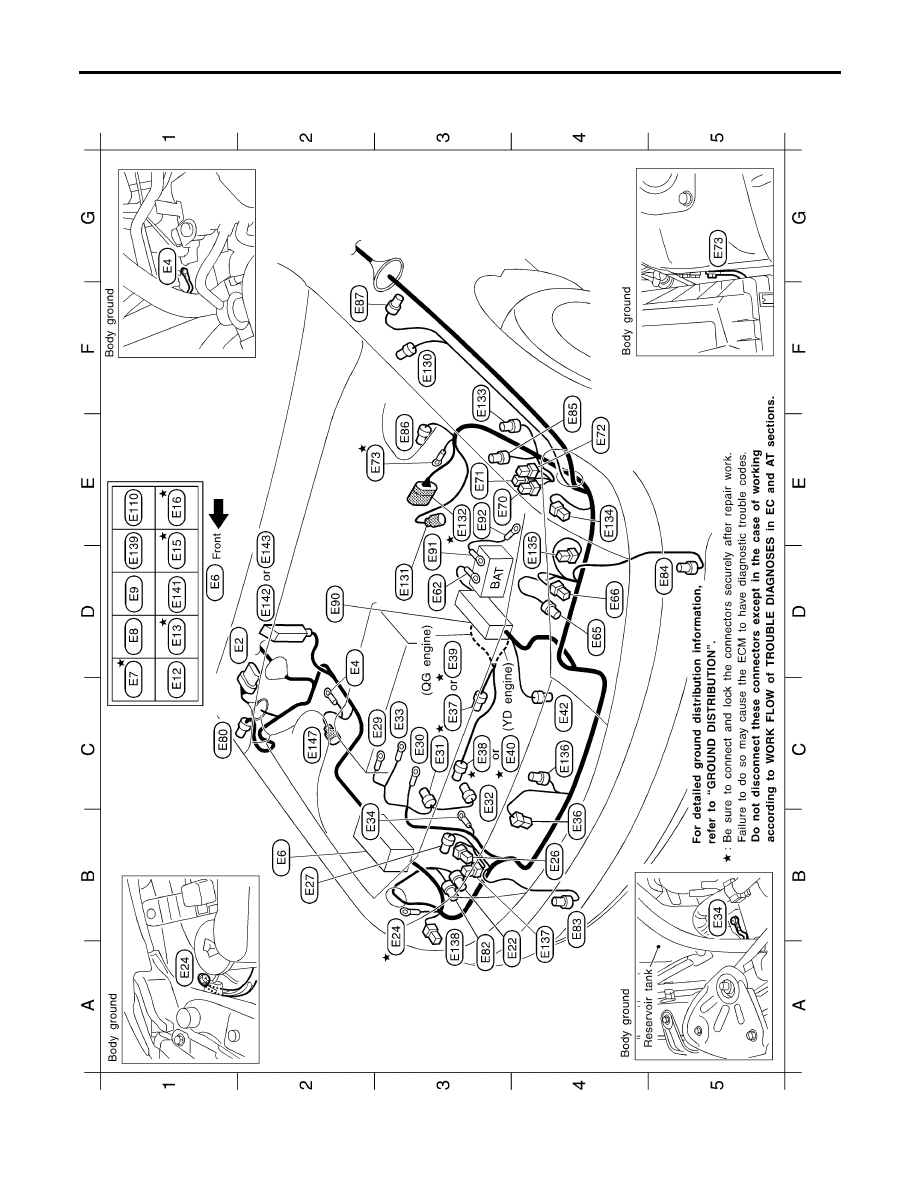

Engine Room Harness

NLEL0342

ENGINE COMPARTMENT — LHD MODELS

NLEL0342S01

YEL060E

HARNESS LAYOUT

Engine Room Harness

EL-608
