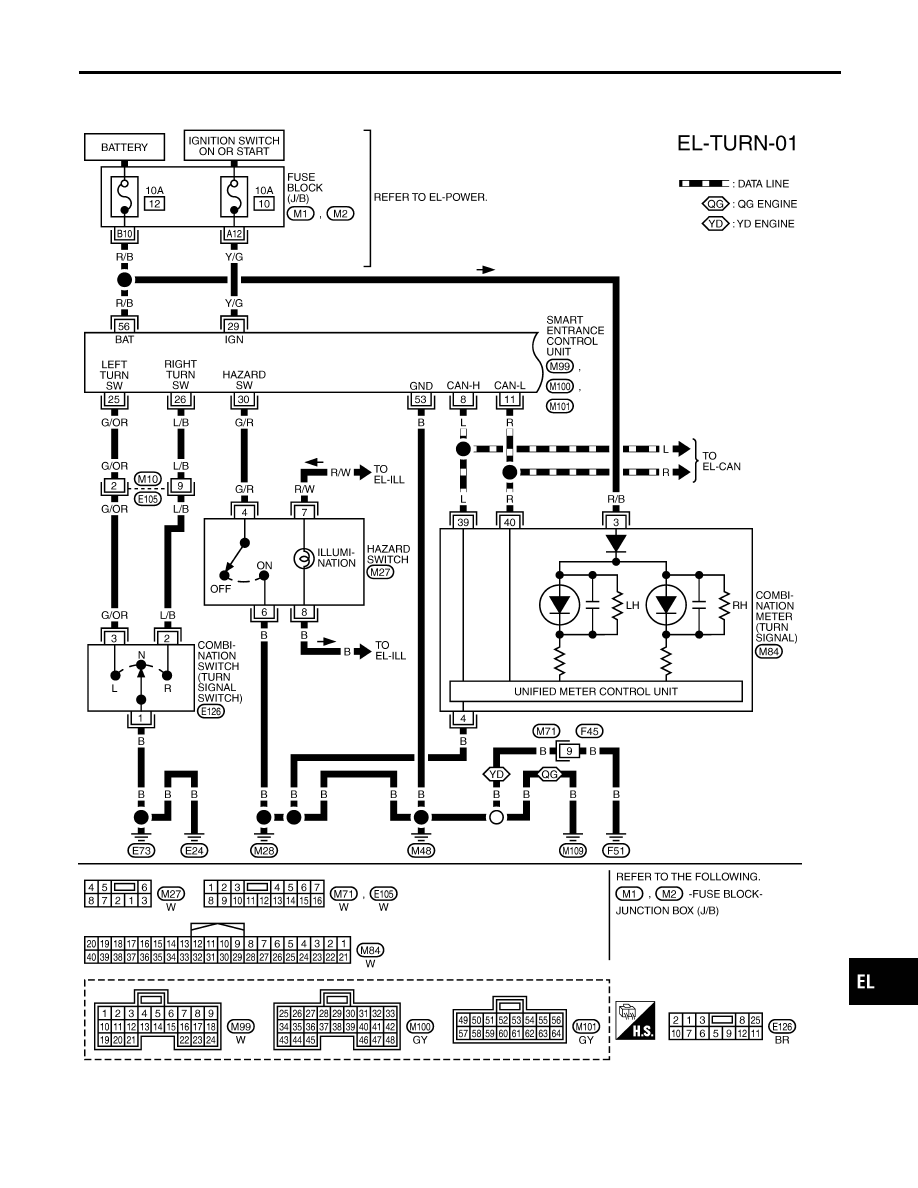

Wiring Diagram — TURN —

NLEL0431

LHD MODELS

NLEL0431S01

YEL940D

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

TURN SIGNAL AND HAZARD WARNING LAMPS

Wiring Diagram — TURN —

EL-65

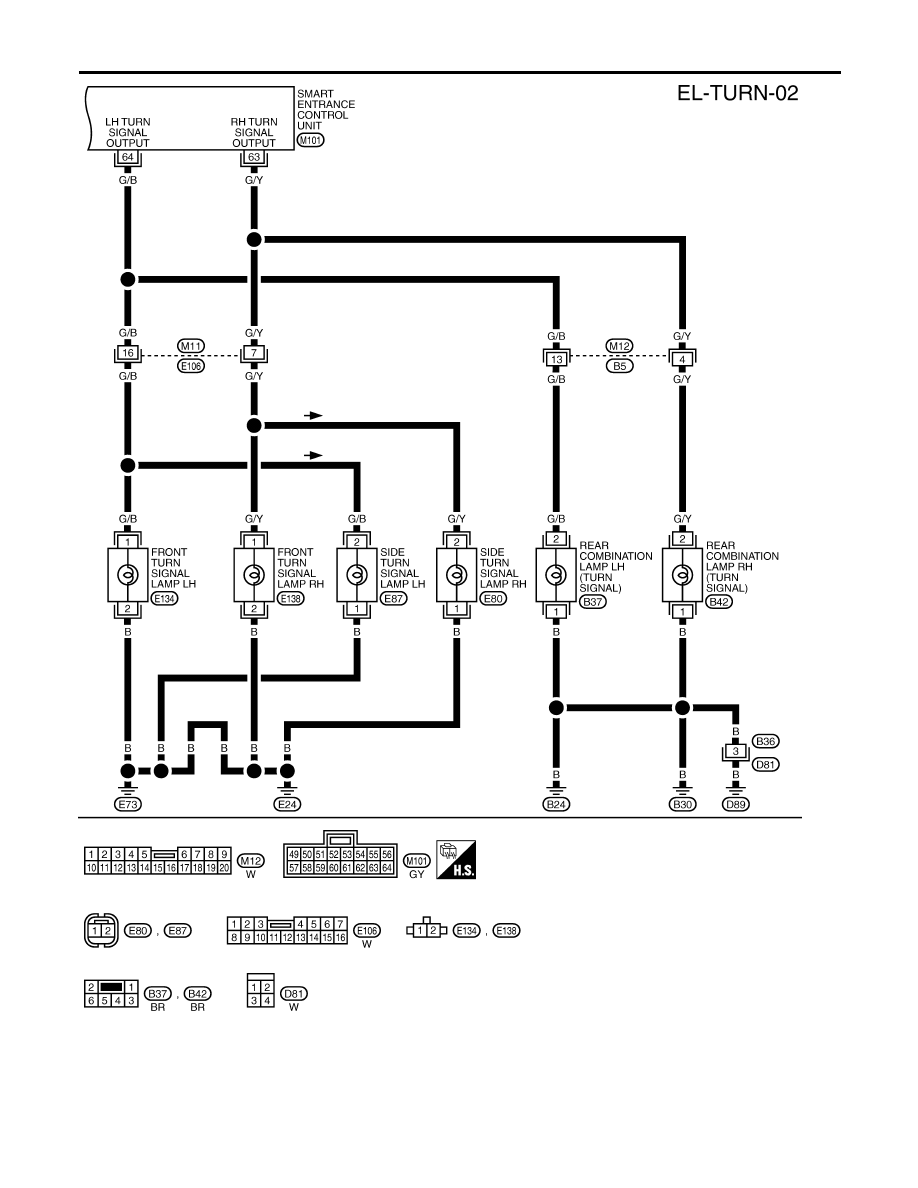

YEL941D

TURN SIGNAL AND HAZARD WARNING LAMPS

Wiring Diagram — TURN — (Cont’d)

EL-66

RHD MODELS

NLEL0431S02

YEL045E

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

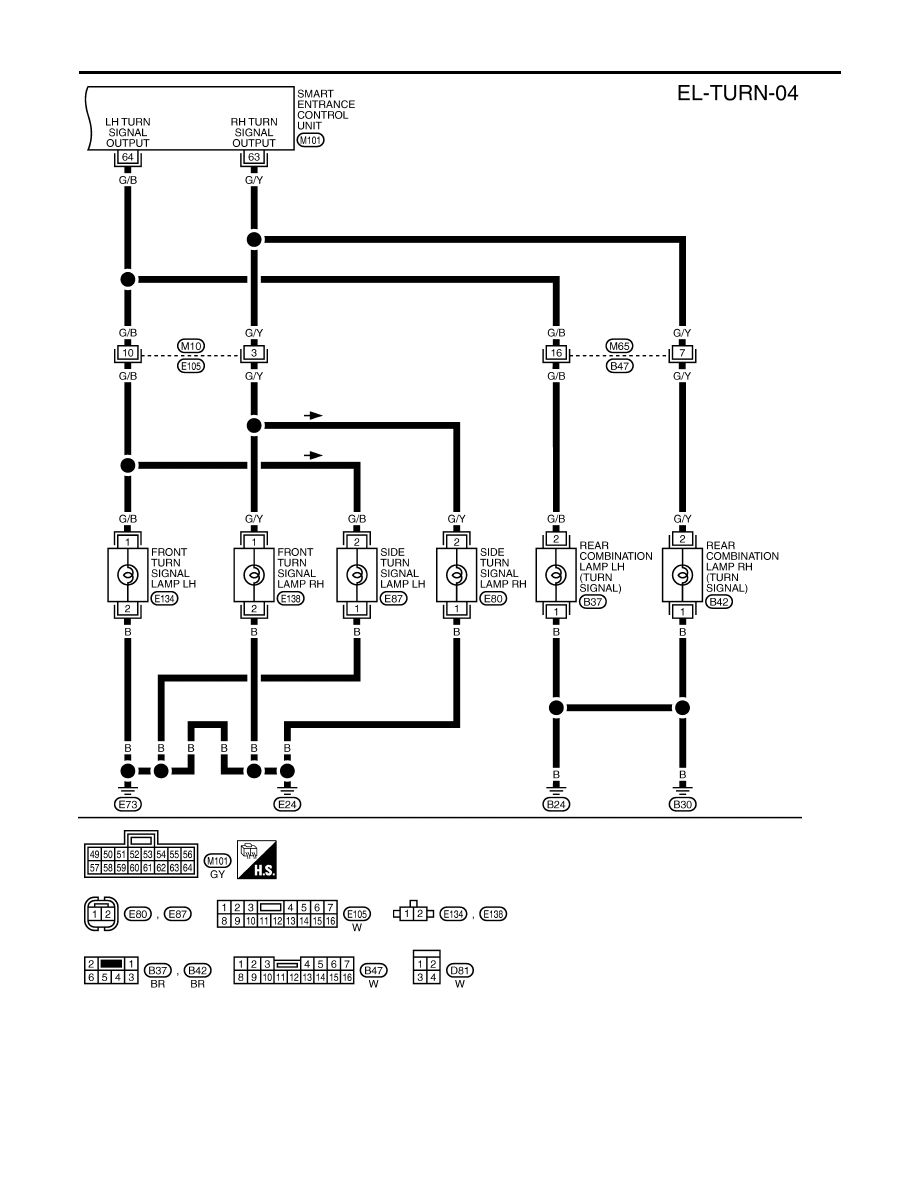

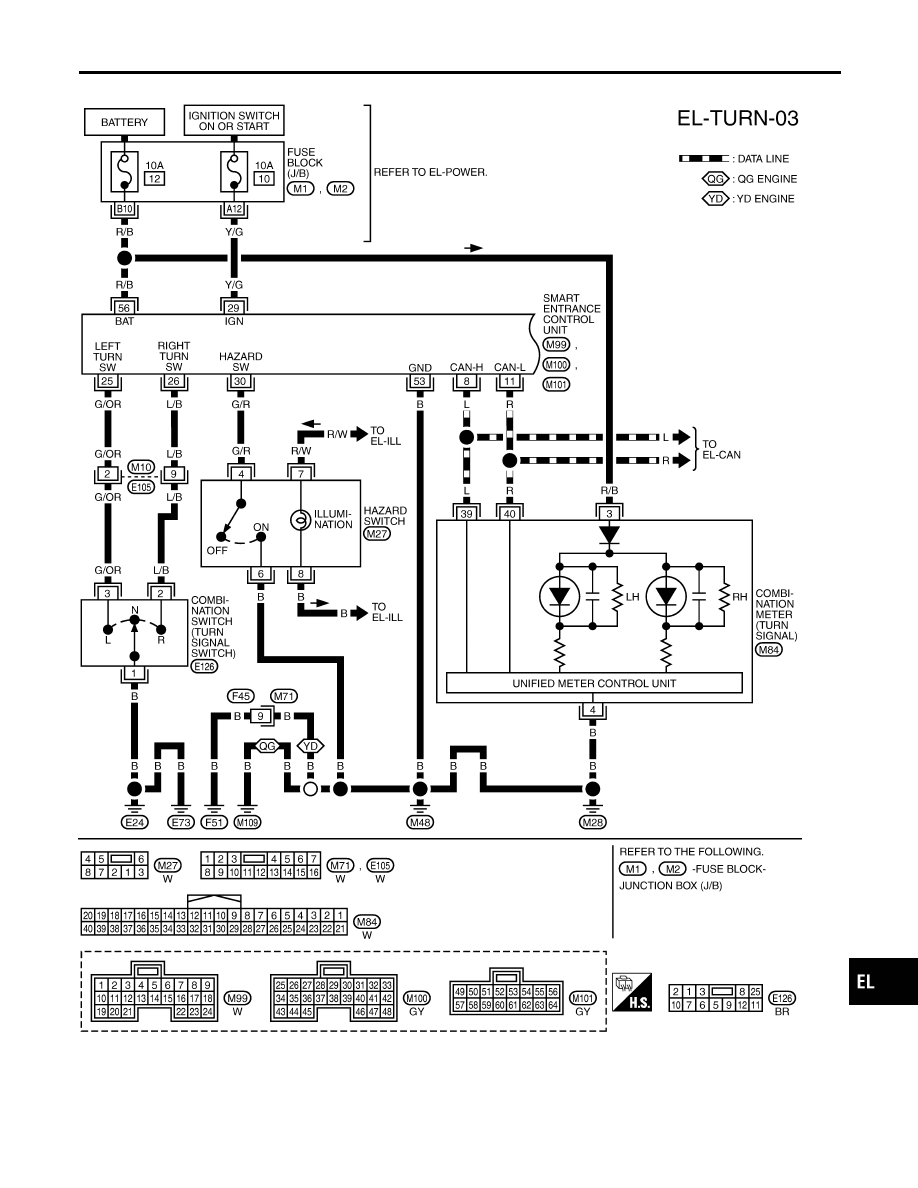

TURN SIGNAL AND HAZARD WARNING LAMPS

Wiring Diagram — TURN — (Cont’d)

EL-67

YEL571E

TURN SIGNAL AND HAZARD WARNING LAMPS

Wiring Diagram — TURN — (Cont’d)

EL-68

Trouble Diagnoses

NLEL0432

Symptom

Possible cause

Repair order

Turn signal and hazard warning
lamps do not operate.

1. Smart entrance control unit
2. Smart entrance control unit cir-

cuit

1. Check power door lock operation.
2. Check power supply and ground circuit for smart

entrance control unit.

Turn signal lamps do not operate
but hazard warning lamps operate.

1. Turn signal switch
2. Open in turn signal switch cir-

cuit

1. Check turn signal switch.
2. Check turn signal switch ground for open circuit.

Hazard warning lamps do not
operate but turn signal lamps
operate.

1. Hazard switch
2. Open in hazard switch circuit

1. Check hazard switch.
2. Check the following.

I

Harness for open or short between smart entrance
control unit and ground

I

Hazard switch ground for open circuit

Front turn signal lamp LH or RH
does not operate.

1. Bulb
2. Open in front turn signal lamp

circuit

1. Check bulb.
2. Check power supply and ground circuit for front turn

signal lamp.

Side turn signal lamp LH or RH
does not operate.

1. Bulb
2. Open in side turn signal lamp

circuit

1. Check bulb.
2. Check power supply and ground circuit for side turn

signal lamp.

Rear combination lamp LH or RH
does not operate.

1. Bulb
2. Open in rear combination lamp

circuit

1. Check bulb.
2. Check grounds check power supply and ground circuit

for rear combination lamp.

LH and RH turn indicators do not
operate.

1. Ground

1. Check grounds E24, E73, B30 or D89 (LHD models)
2. Perform self-diagnosis for smart entrance control unit

with CONSULT-II.

I

If self-diagnosis result is OK, replace combination
meter.

I

If self-diagnosis result is NG, refer to EL-351, “CAN
Communication Line Check”.

LH or RH turn indicator does not
operate.

1. Bulb

1. Check bulb in combination meter.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

TURN SIGNAL AND HAZARD WARNING LAMPS

Trouble Diagnoses

EL-69

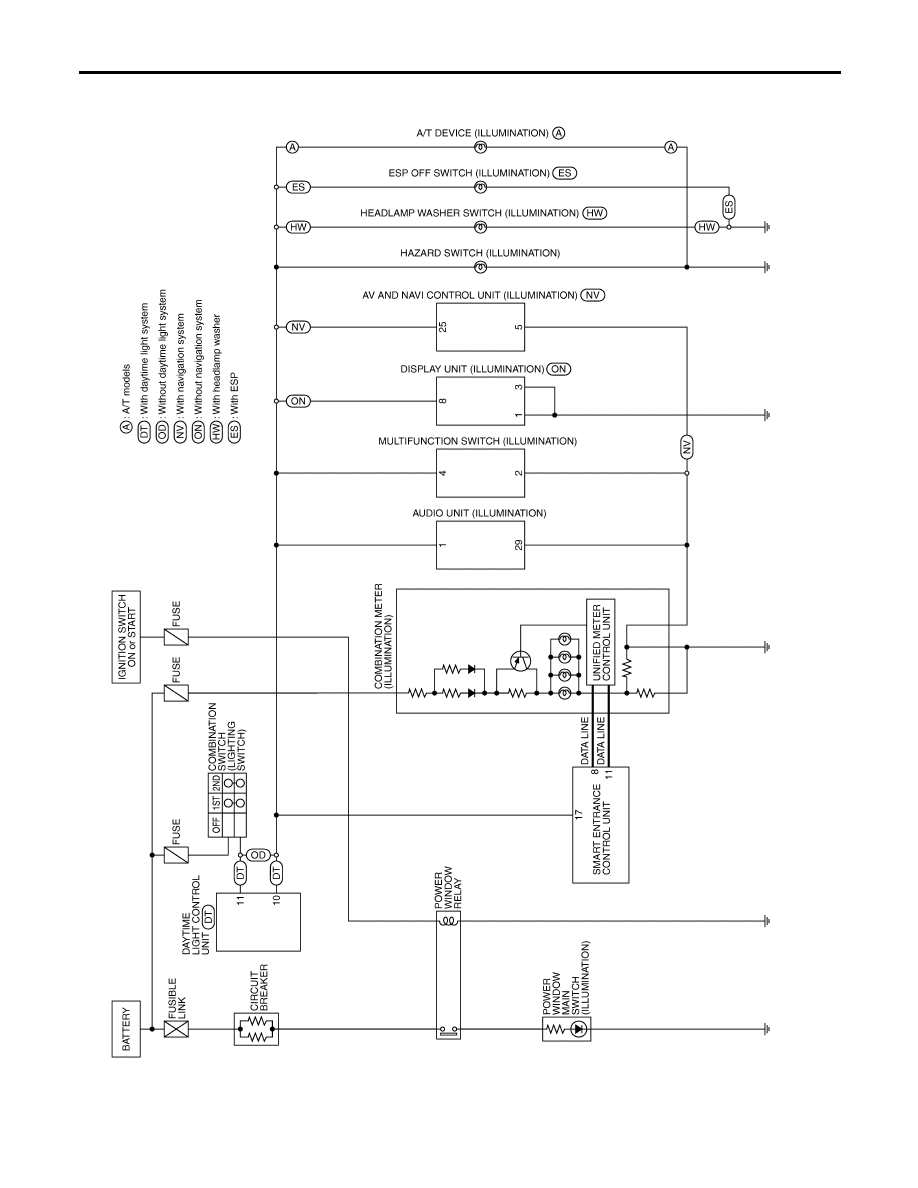

Schematic

NLEL0433

YEL942D

ILLUMINATION

Schematic

EL-70

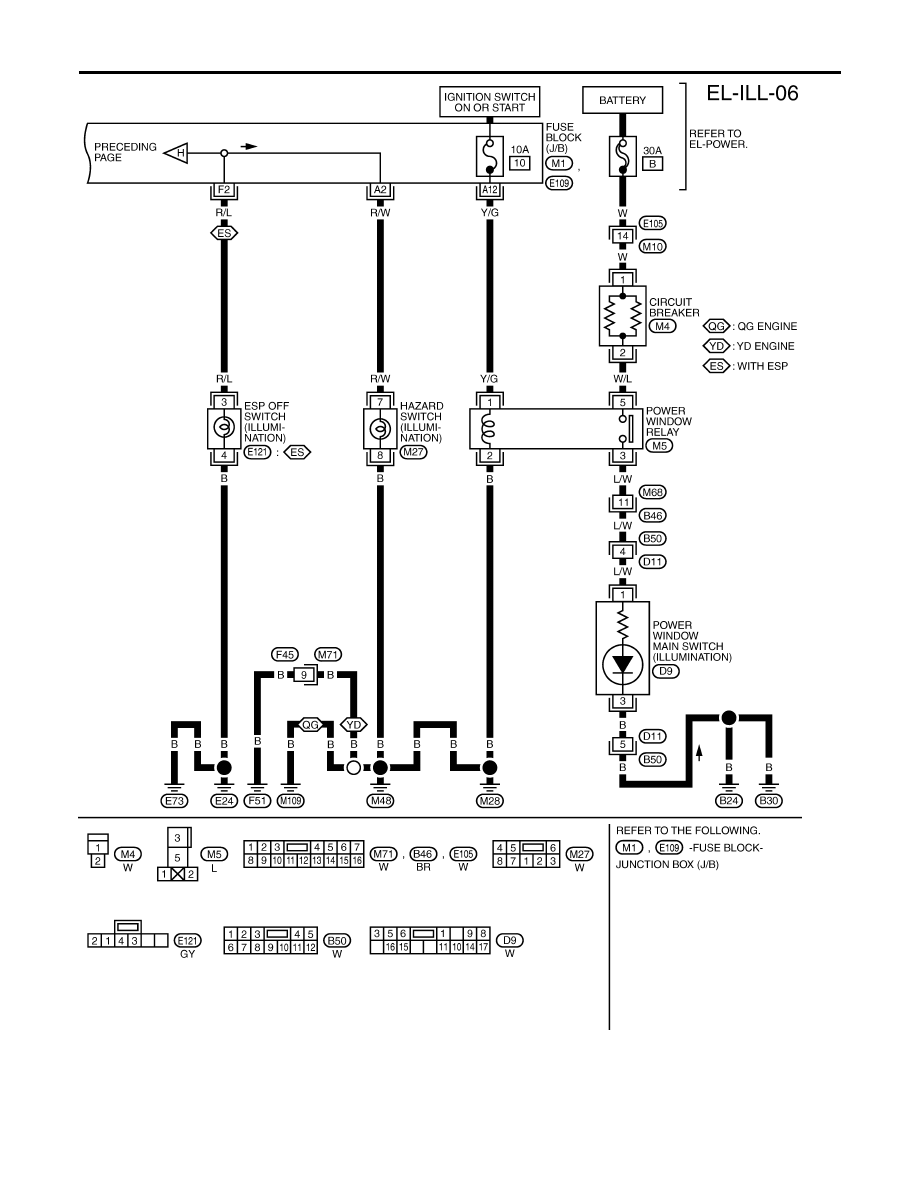

Wiring Diagram — ILL —

NLEL0434

YEL943D

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

ILLUMINATION

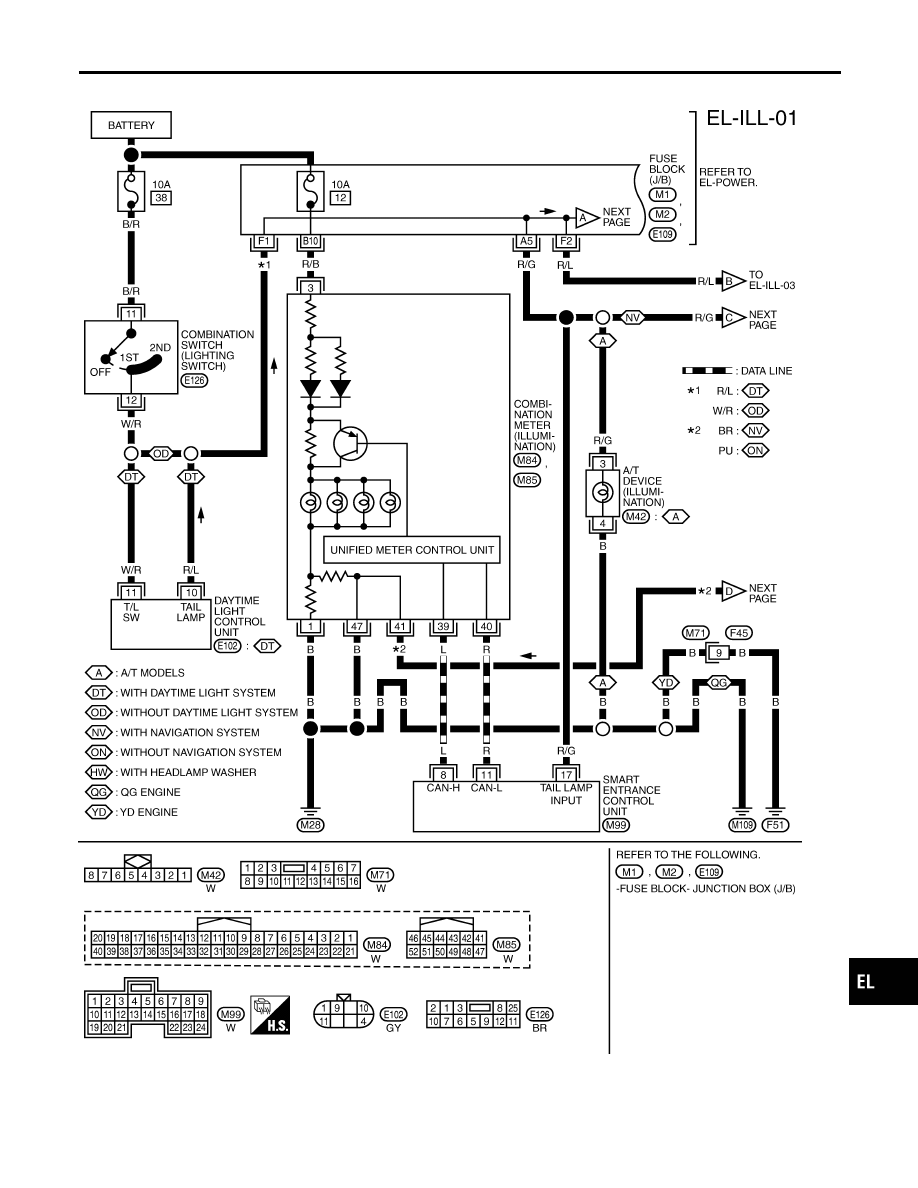

Wiring Diagram — ILL —

EL-71

YEL944D

ILLUMINATION

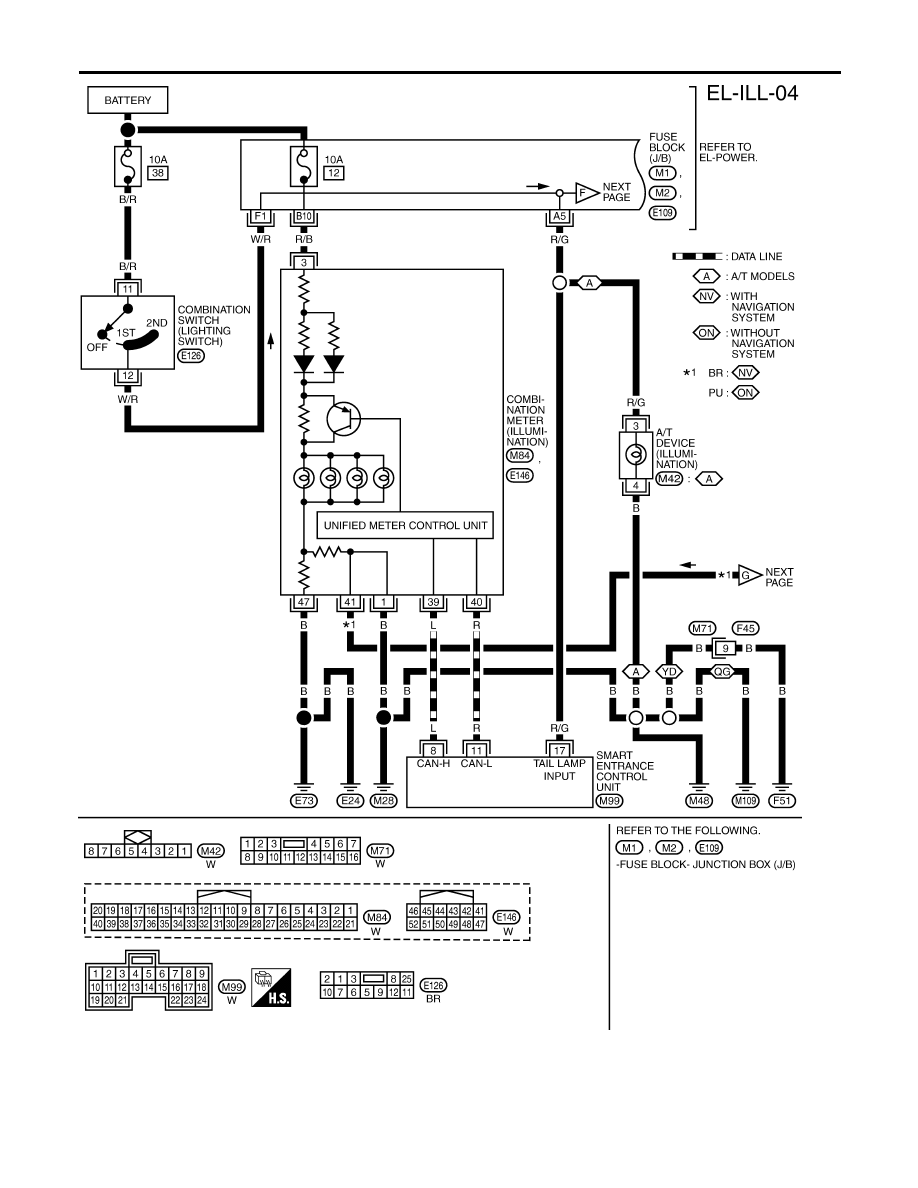

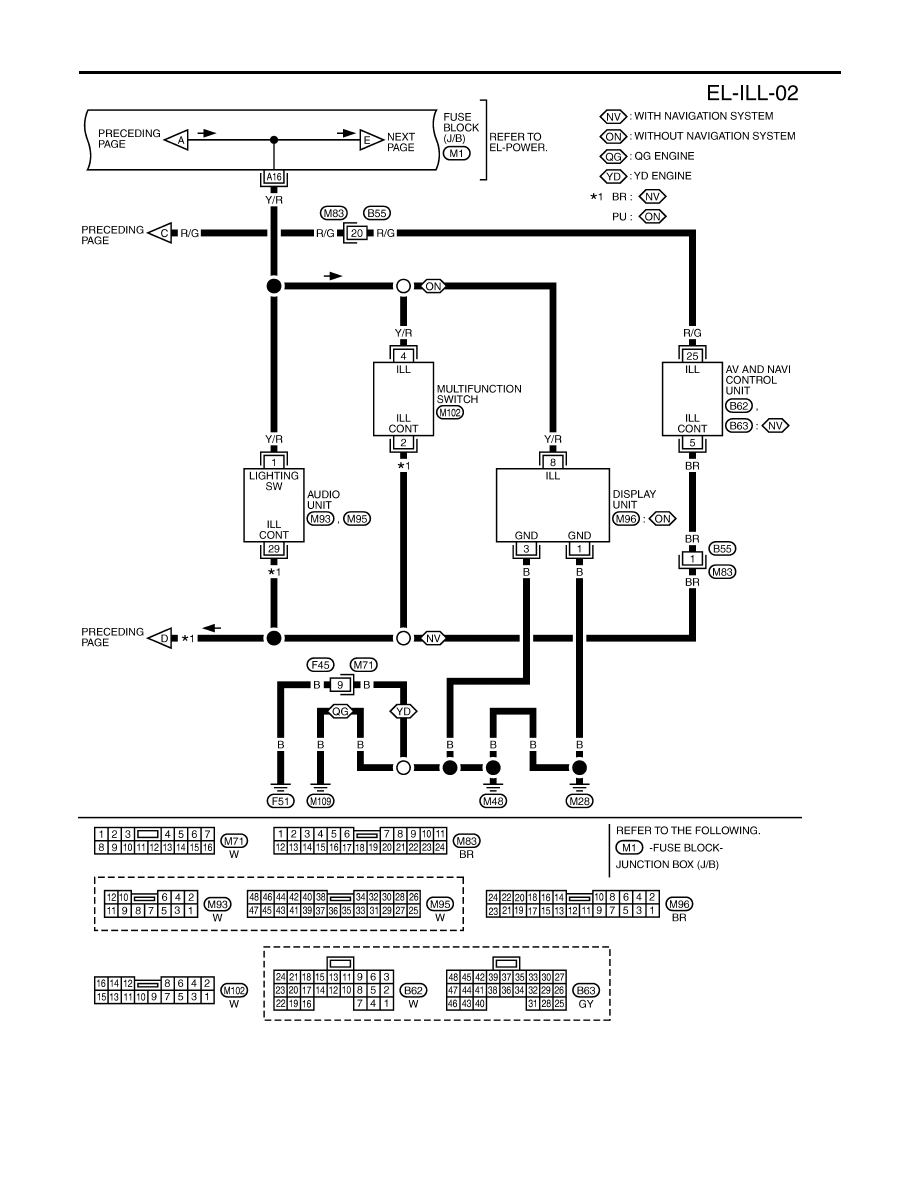

Wiring Diagram — ILL — (Cont’d)

EL-72

YEL945D

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

ILLUMINATION

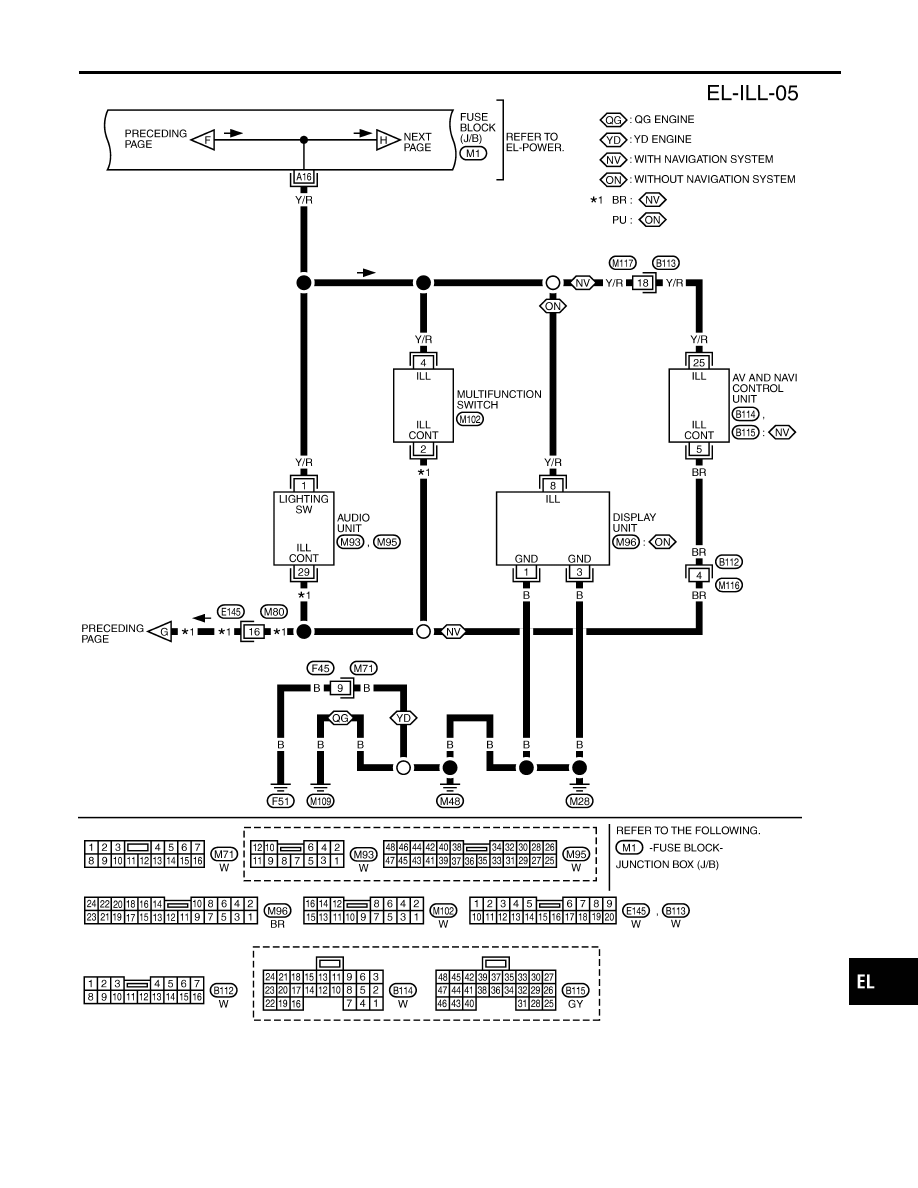

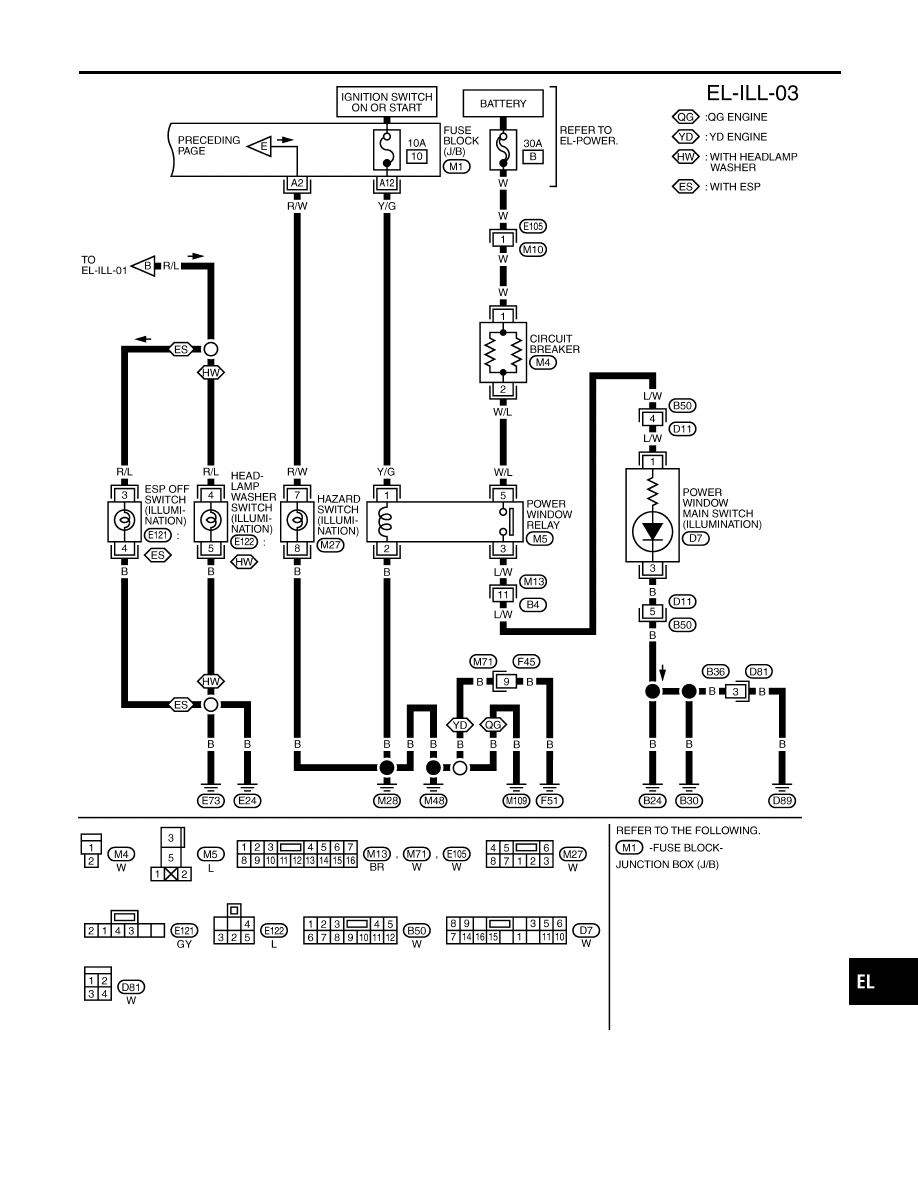

Wiring Diagram — ILL — (Cont’d)

EL-73

YEL946D

ILLUMINATION

Wiring Diagram — ILL — (Cont’d)

EL-74

YEL947D

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

ILLUMINATION

Wiring Diagram — ILL — (Cont’d)

EL-75

YEL948D

ILLUMINATION

Wiring Diagram — ILL — (Cont’d)

EL-76

System Description

NLEL0435

POWER SUPPLY AND GROUND

NLEL0435S01

Power is supplied at all times:

I

through 15A fuse [No. 5, located in the fuse block (J/B)]

I

to smart entrance control unit terminal 56,

I

through 10A fuse [No. 13, located in the fuse block (J/B)]

I

to spot lamp terminal 1,

I

to interior room lamp terminal 1 (with sunroof),

I

to interior room lamp terminal 5 (without sunroof), or

I

to rear reading lamp terminal 5 (with rear reading lamp).

I

through 10A fuse [No. 12, located in the fuse block (J/B)]

I

to key switch terminal 1 (for RHD models).

When the key is removed from ignition key cylinder, power is interrupted:

I

through key switch terminal 2

I

to smart entrance control unit terminal 5.

With the ignition key switch in the ON or START position, power is supplied:

I

through 10A fuse [No. 10, located in the fuse block (J/B)]

I

to smart entrance control unit terminal 29.

Ground is supplied:

I

through body grounds terminals M28, M48 and M109 (QG engine models) or F51 (YD engine models).

I

to smart entrance control unit terminal 53

When the driver side door is opened, ground is supplied:

I

through body grounds B24 and B30 or D89 (for LHD models)

I

to door switch driver side terminal 3

I

from door switch driver side terminal 2

I

to smart entrance control unit terminal 43.

When any door is opened, ground is supplied:

I

through case ground of each door switch

I

to each door switch terminal 1

I

to smart entrance control unit terminal 44.

When the driver side door is unlocked by the door lock/unlock switch, the smart entrance control unit receives
a ground signal:

I

through body grounds B24 and B30, or D89 (for LHD models)

I

to power window main switch terminal 3

I

from power window main switch terminal 7

I

to smart entrance control unit terminal 14.

When the driver side door is locked by the door lock/unlock switch, the smart entrance control unit receives
a ground signal:

I

through body grounds B24 and B30, or D89 (for LHD models)

I

to power window main switch terminal 3

I

from power window main switch terminal 14

I

to smart entrance control unit terminal 13.

When a signal, or combination of signals is received by the smart entrance control unit, ground is supplied:

I

through smart entrance control unit terminal 28

I

to interior room lamp terminal 5.

With power and ground supplied, the interior room lamp illuminates when the lamp switch is in “DOOR” posi-
tion.

SWITCH OPERATION

NLEL0435S02

When interior room lamp switch is in “ON” position, ground is supplied:

I

through body grounds M28, M48, M109 (QG engine) or F51 (YD engine)

I

to interior room lamp terminal 3.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

INTERIOR ROOM LAMP

System Description

EL-77

When spot lamp (LH or RH) is ON, ground is supplied:

I

through body grounds M28, M48, M109 (QG engine models) or F51 (YD engine models)

I

to spot lamp terminal 2.

When rear reading lamp (LH or RH) is ON, ground is supplied:

I

through body grounds M28, M48, M109 (QG engine models) or F51 (YD engine models)

I

to rear reading lamp terminal 6.

With power and ground supplied, the interior room lamp, spot lamp or rear reading lamp illuminates.

INTERIOR ROOM LAMP TIMER OPERATION

NLEL0435S03

When interior room lamp switch is in the “DOOR” position, the smart entrance control unit keeps the interior
room lamp illuminated for about 30 seconds when:

I

unlock signal is supplied from door lock/unlock switch while all doors are closed

I

unlock signal is supplied from remote controller or door key cylinder while all doors are closed

I

key is removed from ignition key cylinder while all doors are closed (with super lock system)

I

driver’s door is opened and then closed

The timer is canceled when:

I

driver’s door is locked,

I

driver’s door is opened, or

I

ignition switch is turned ON.

ON-OFF CONTROL

NLEL0435S04

When the driver side door, front passenger door, rear LH or RH door is opened, the interior room lamp turns
on while the interior room lamp switch is in the “DOOR” position.

BATTERY SAVER

NLEL0435S11

The interior room lamp is turned OFF automatically with the lamp switch in the “DOOR” position after about
30 minutes, if the lamp remains lit by the door switch open signal.

INTERIOR ROOM LAMP

System Description (Cont’d)

EL-78

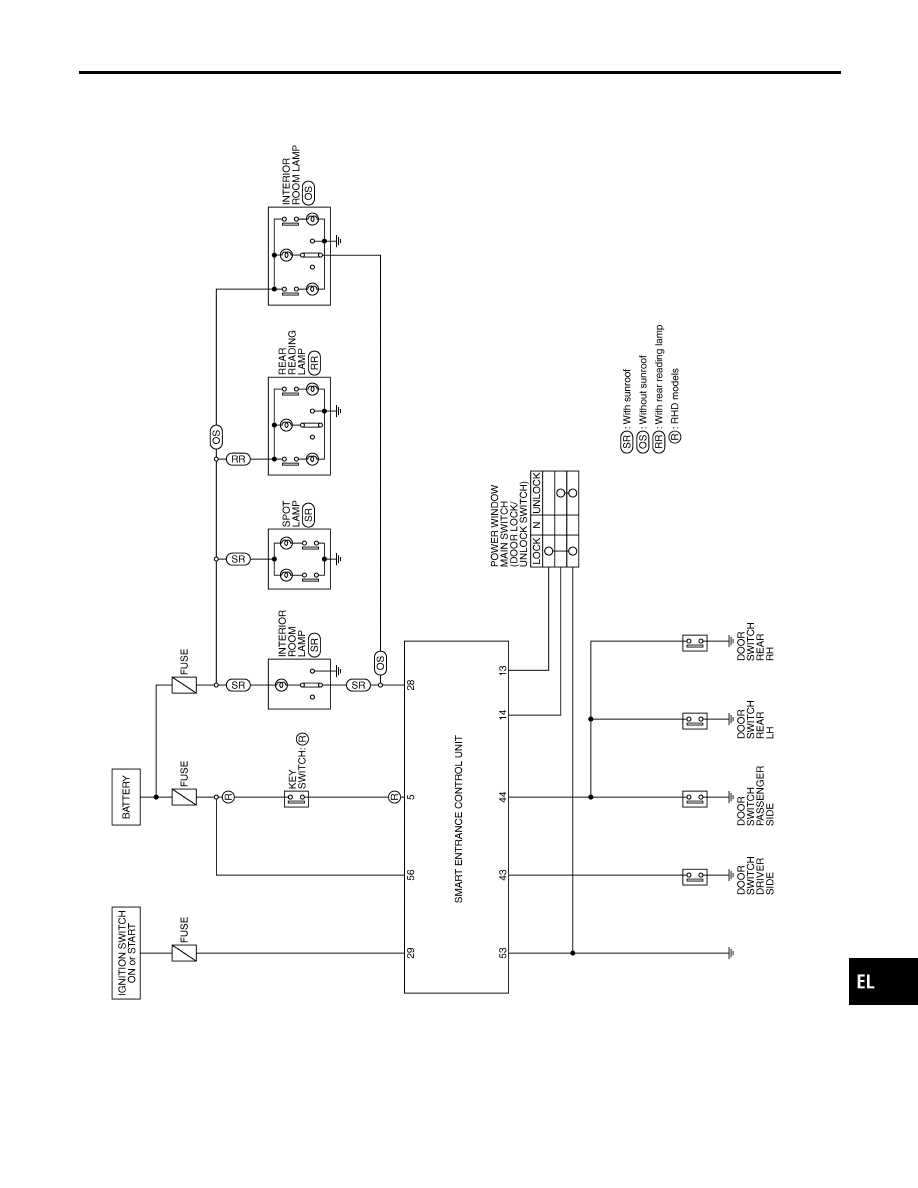

Schematic

NLEL0637

YEL949D

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

INTERIOR ROOM LAMP

Schematic

EL-79

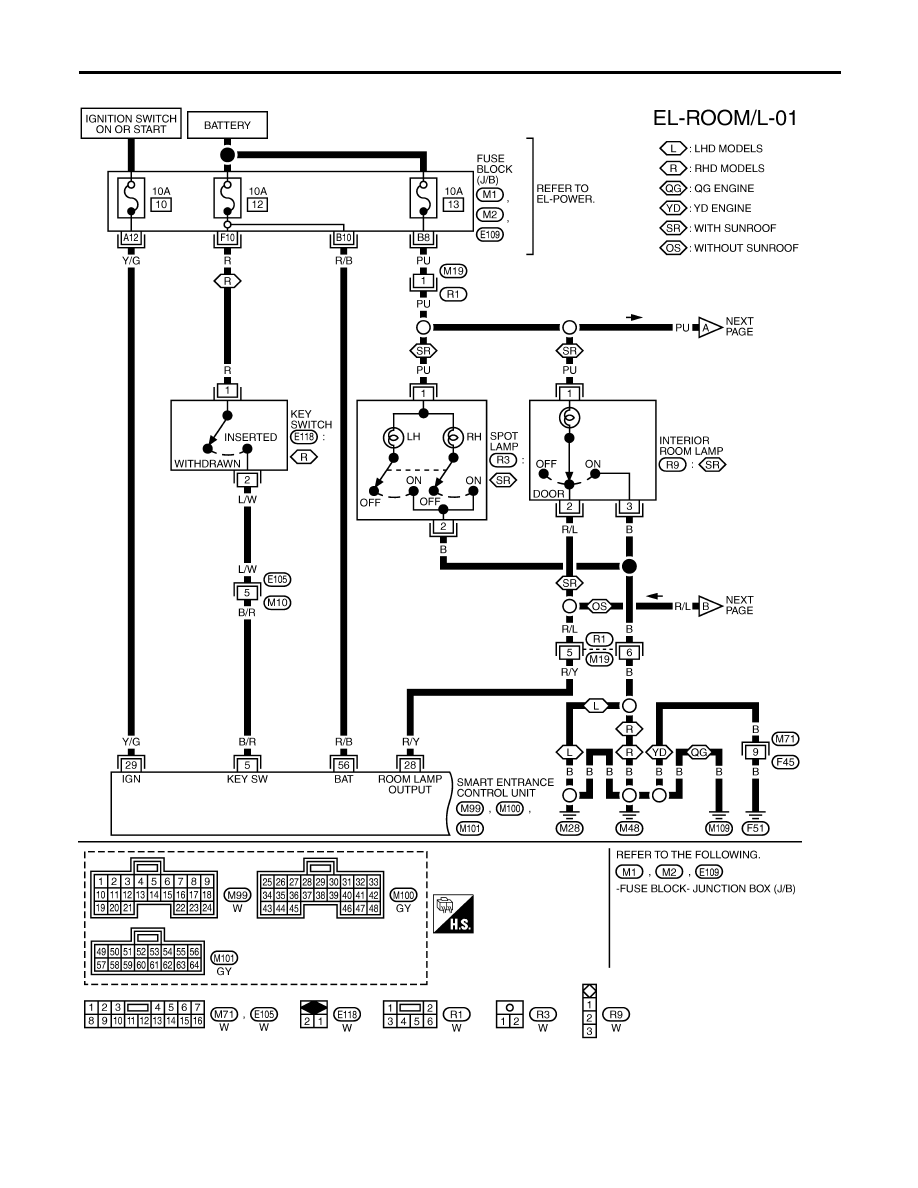

Wiring Diagram — ROOM/L —

NLEL0436

YEL950D

INTERIOR ROOM LAMP

Wiring Diagram — ROOM/L —

EL-80
