Almera Tino V10 (2003 year). Manual - part 158





YEL114E

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

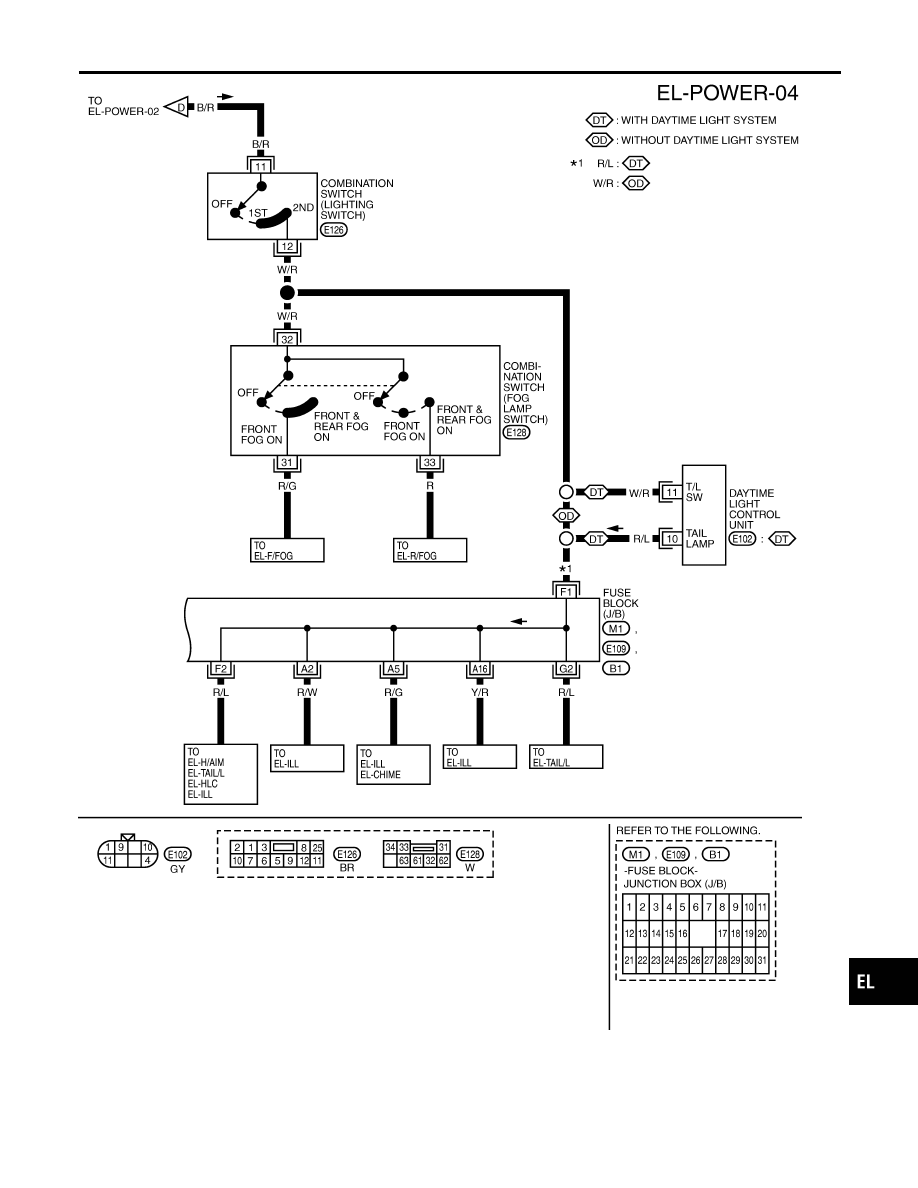

POWER SUPPLY ROUTING

Wiring Diagram — POWER — (Cont’d)

EL-17

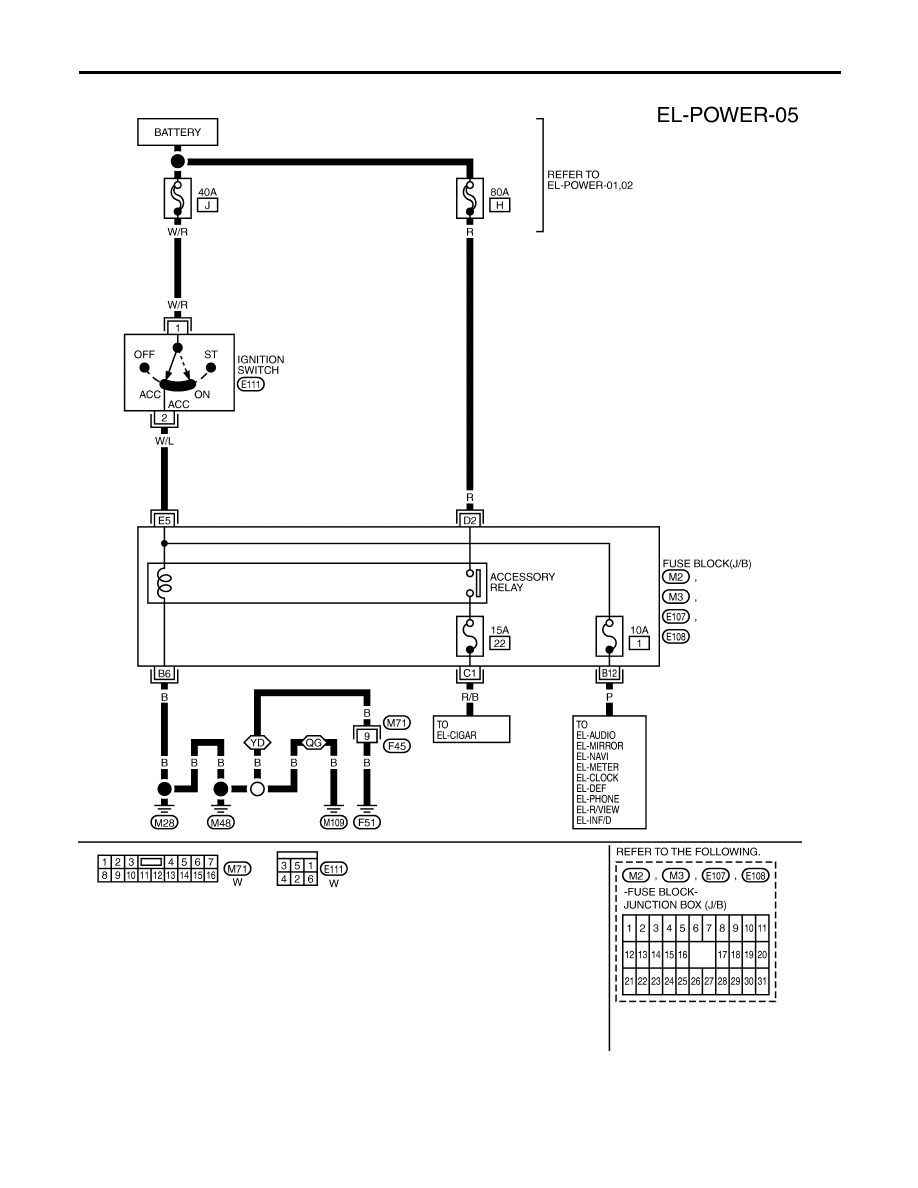

ACCESSORY POWER SUPPLY — IGNITION SWITCH IN “ACC” OR “ON”

NLEL0419S04

YEL115E

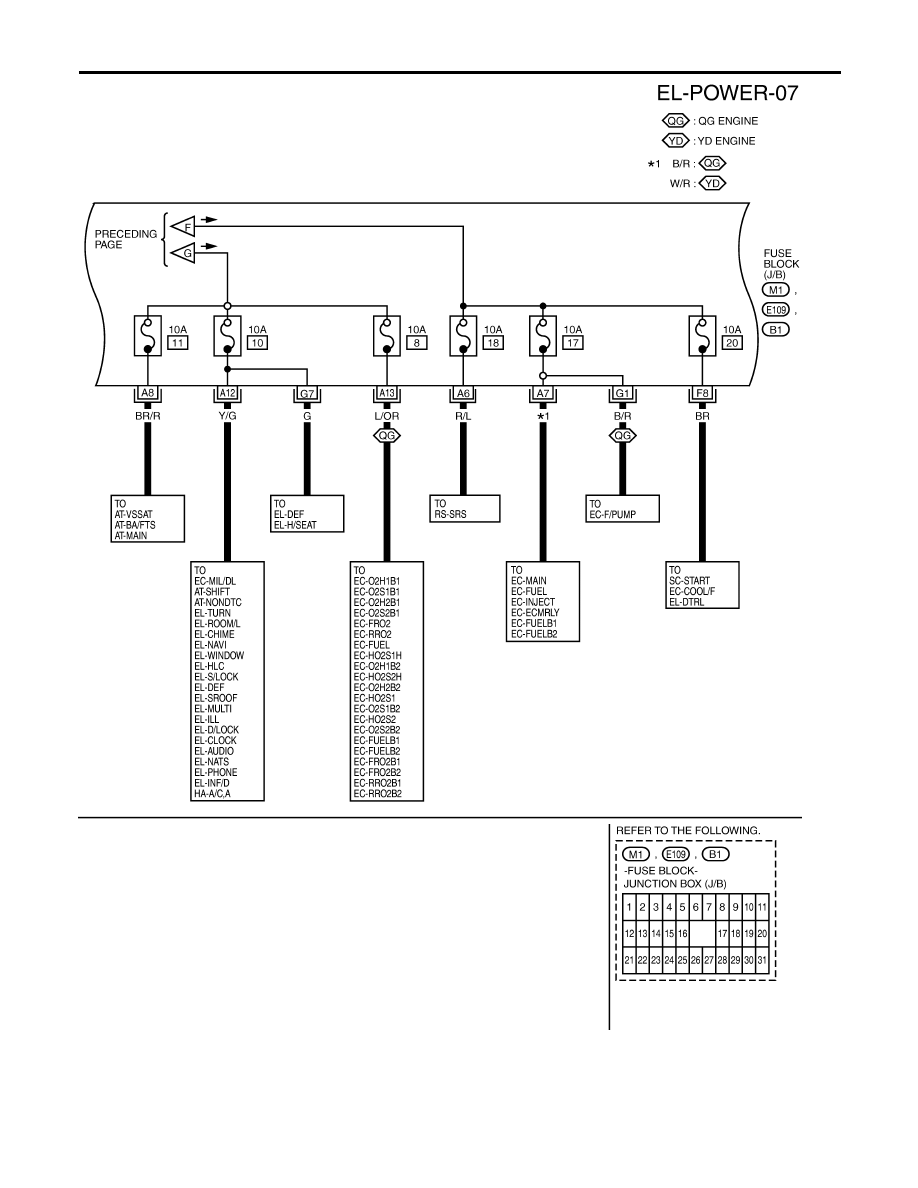

POWER SUPPLY ROUTING

Wiring Diagram — POWER — (Cont’d)

EL-18

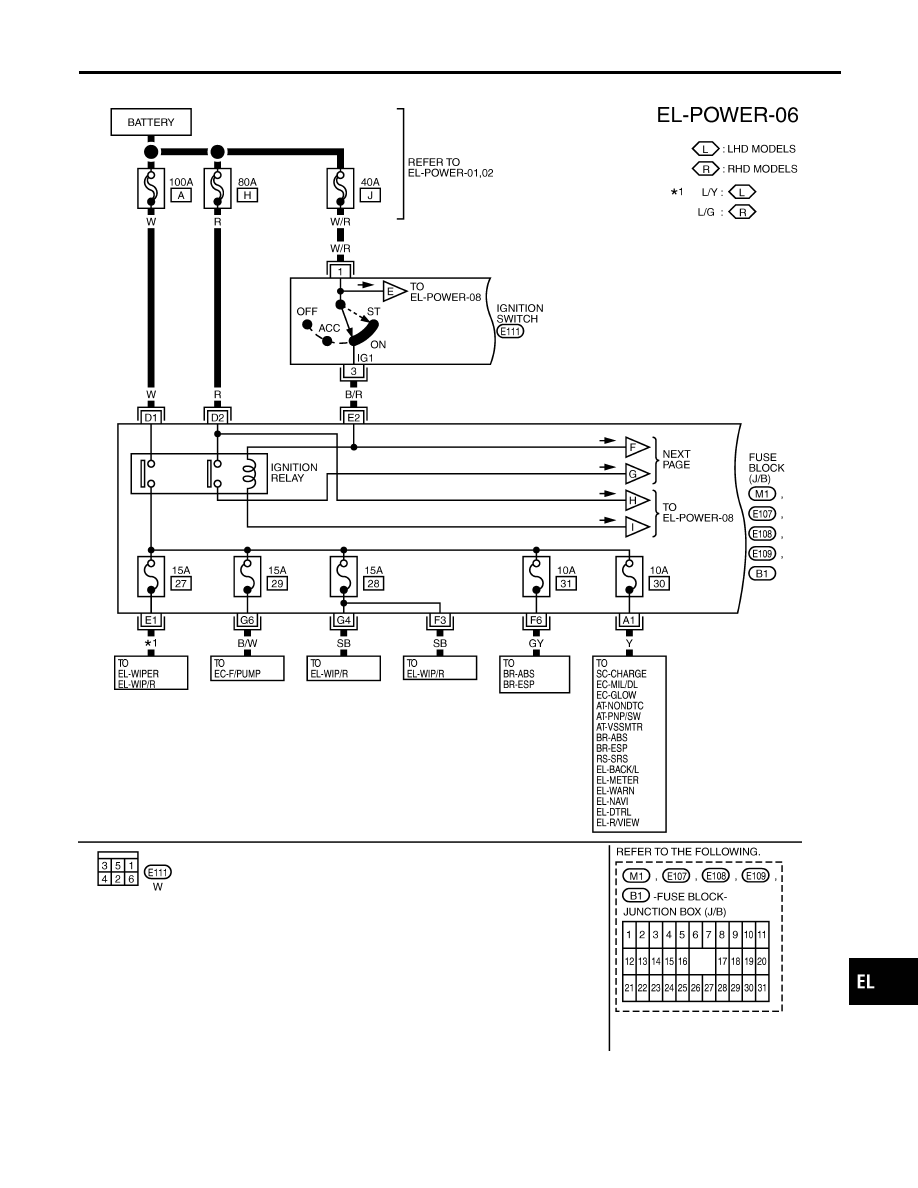

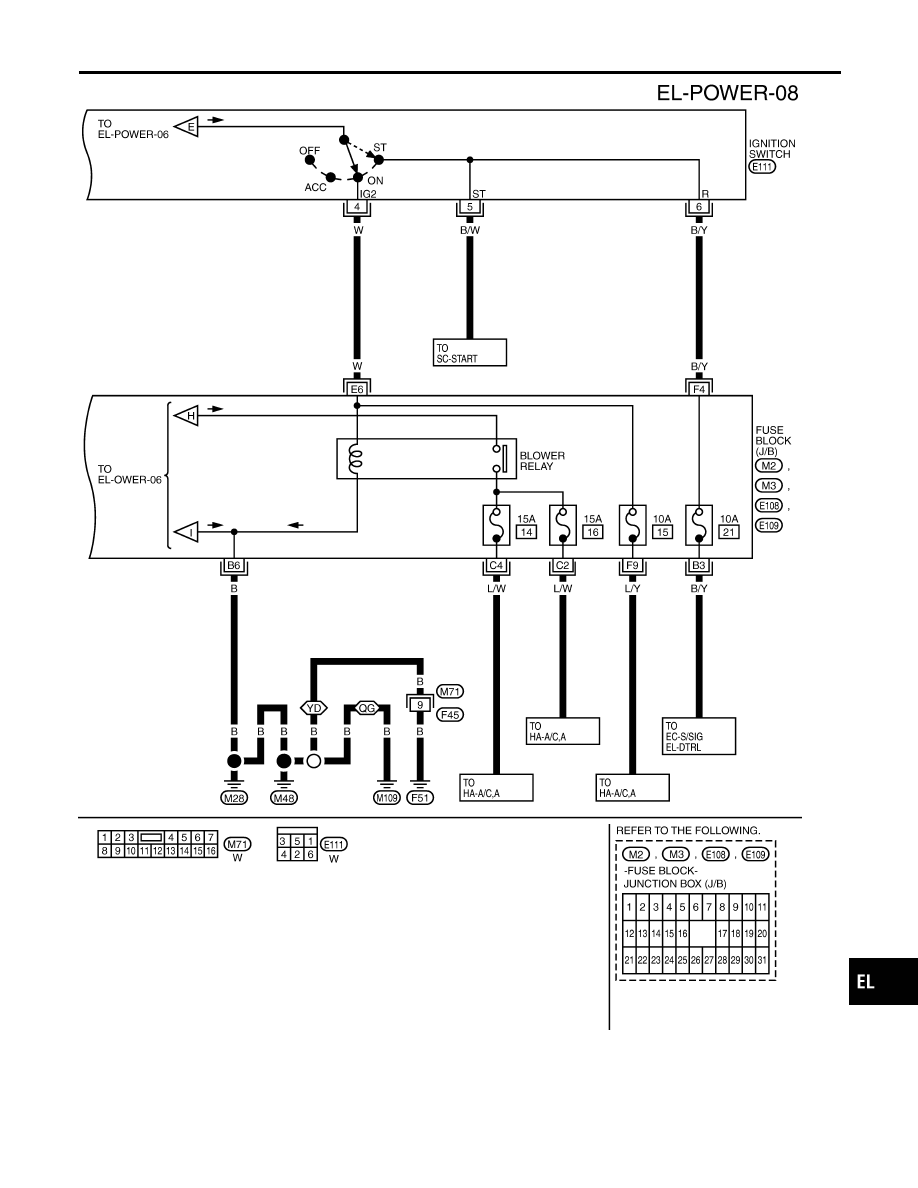

IGNITION POWER SUPPLY — IGNITION SW. IN “ON” AND/OR “START”

NLEL0419S05

YEL116E

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

POWER SUPPLY ROUTING

Wiring Diagram — POWER — (Cont’d)

EL-19

YEL117E

POWER SUPPLY ROUTING

Wiring Diagram — POWER — (Cont’d)

EL-20

YEL118E

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

POWER SUPPLY ROUTING

Wiring Diagram — POWER — (Cont’d)

EL-21

CEL083

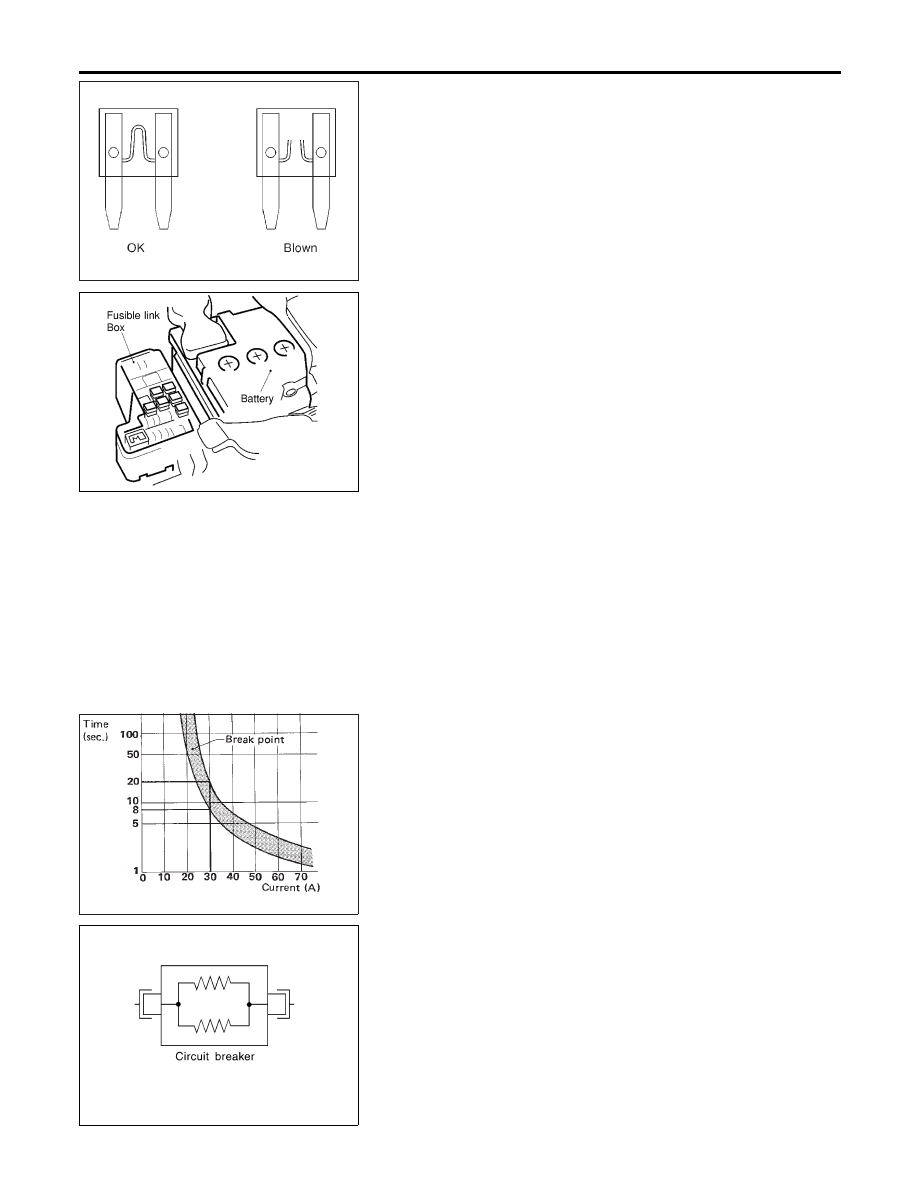

Inspection

NLEL0007

FUSE

NLEL0007S01

I

If fuse is blown, be sure to eliminate cause of problem
before installing new fuse.

I

Use fuse of specified rating. Never use fuse of more than
specified rating.

I

Do not partially install fuse; always insert it into fuse
holder properly.

I

Remove fuse for “ELECTRICAL PARTS (BAT)” if vehicle is
not used for a long period of time.

NEL712

FUSIBLE LINK

NLEL0007S02

A melted fusible link can be detected either by visual inspection or
by feeling with finger tip. If its condition is questionable, use circuit
tester or test lamp.

CAUTION:

I

If fusible link should melt, it is possible that critical circuit
(power supply or large current carrying circuit) is shorted.
In such a case, carefully check and eliminate cause of
problem.

I

Never wrap outside of fusible link with vinyl tape. Impor-
tant: Never let fusible link touch any other wiring harness,
vinyl or rubber parts.

SBF284E

CIRCUIT BREAKER

NLEL0007S03

For example, when current is 30A, the circuit is broken within 8 to
20 seconds.

SEL109W

CIRCUIT BREAKER (PTC THERMISTOR TYPE)

NLEL0007S04

The PTC thermister generates heat in response to current flow.
The temperature (and resistance) of the thermister element varies
with current flow. Excessive current flow will cause the element’s
temperature to rise. When the temperature reaches a specified
level, the electrical resistance will rise sharply to control the circuit
current.
Reduced current flow will cause the element to cool. Resistance
falls accordingly and normal circuit current flow is allowed to
resume.

POWER SUPPLY ROUTING

Inspection

EL-22

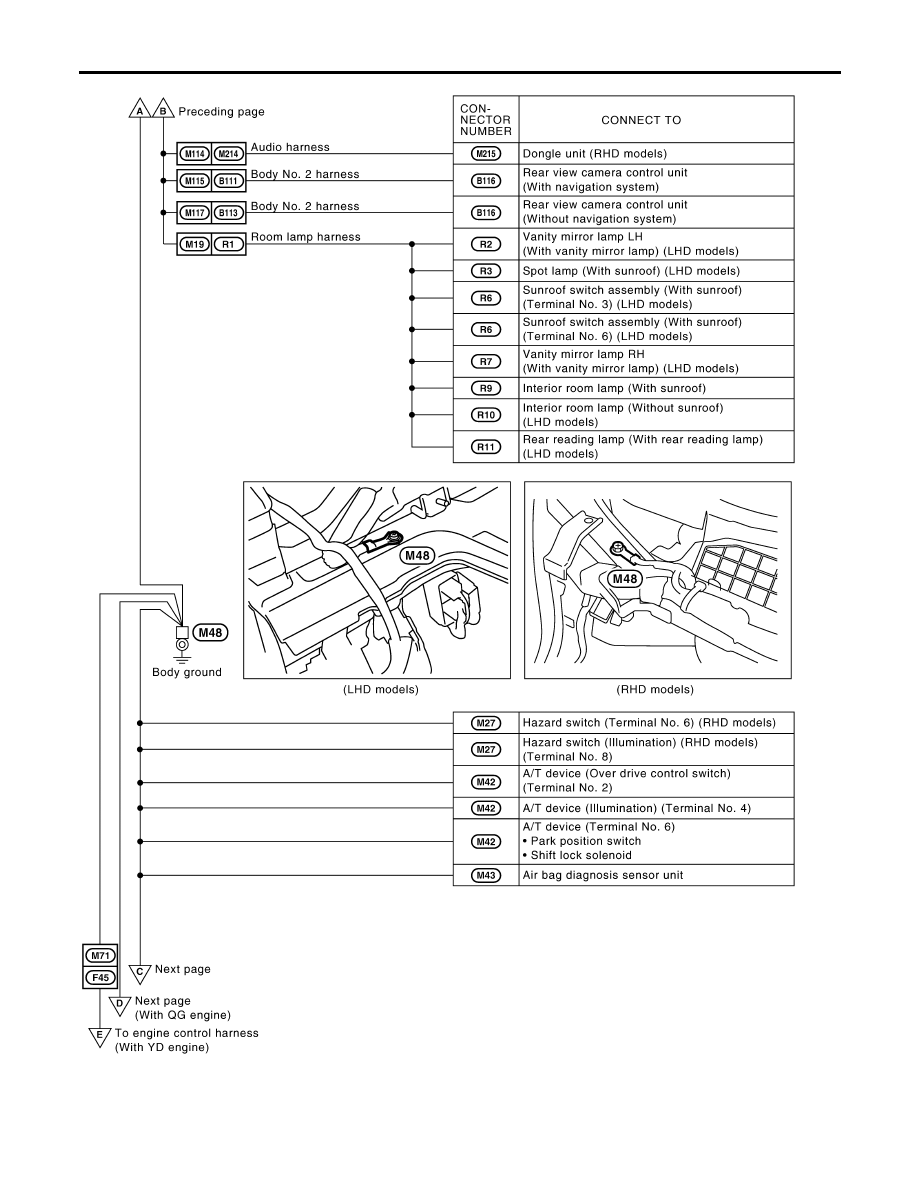

Ground Distribution

NLEL0008

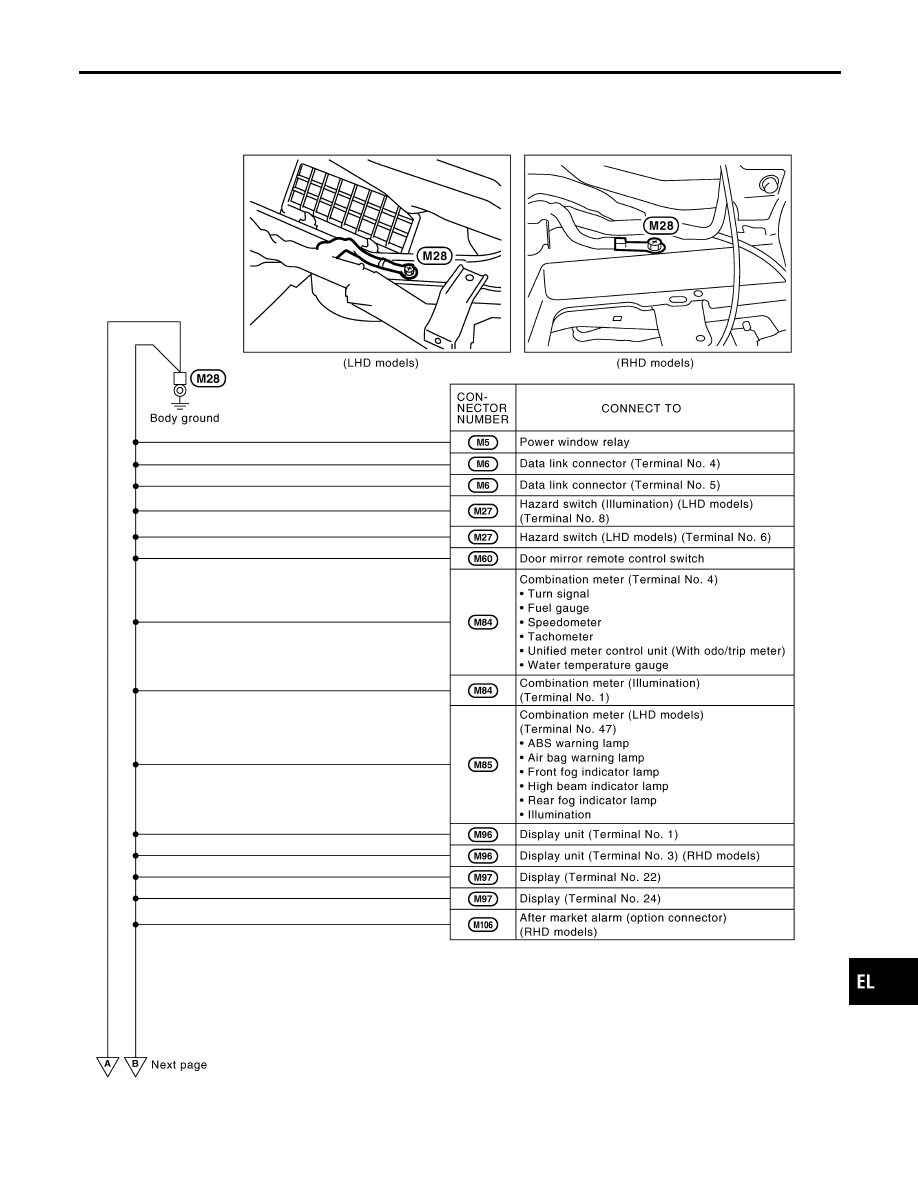

MAIN HARNESS

NLEL0008S01

YEL093E

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

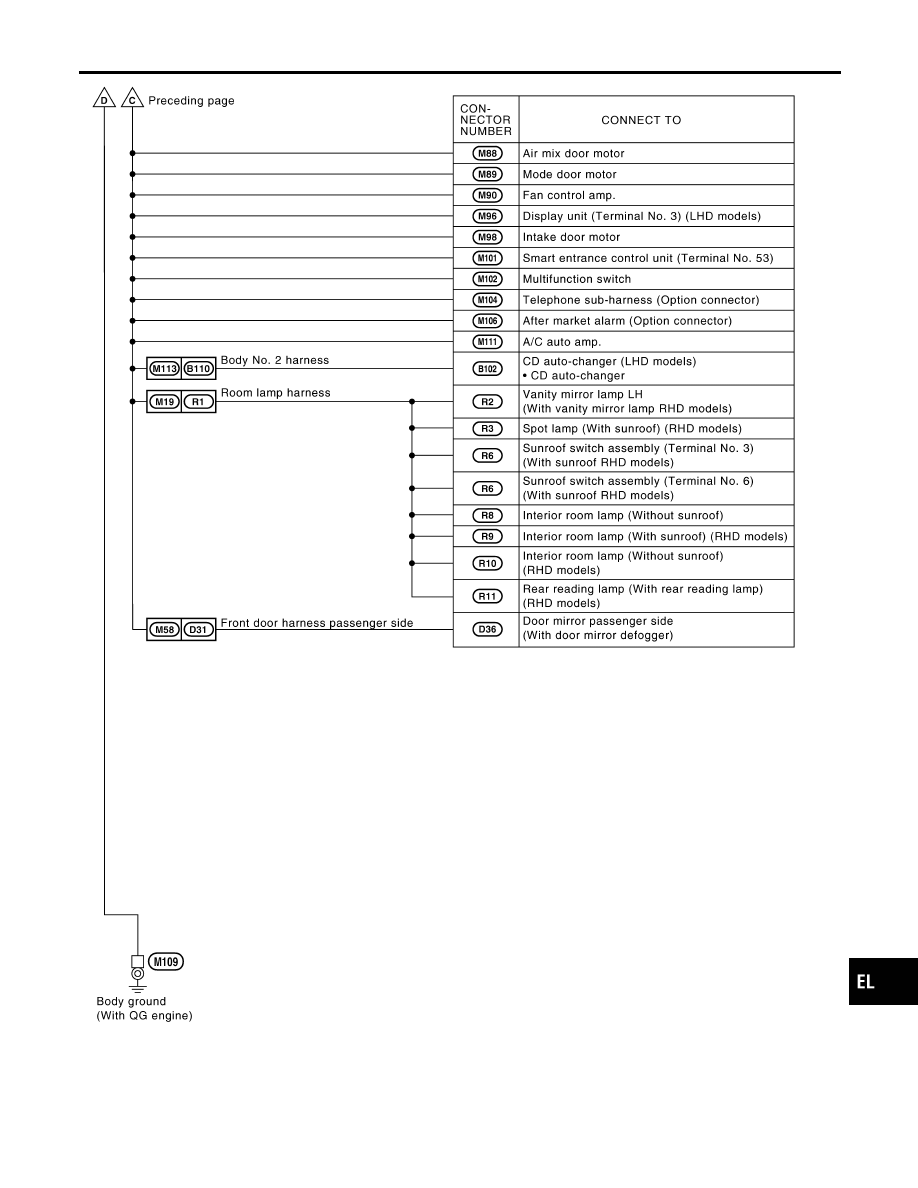

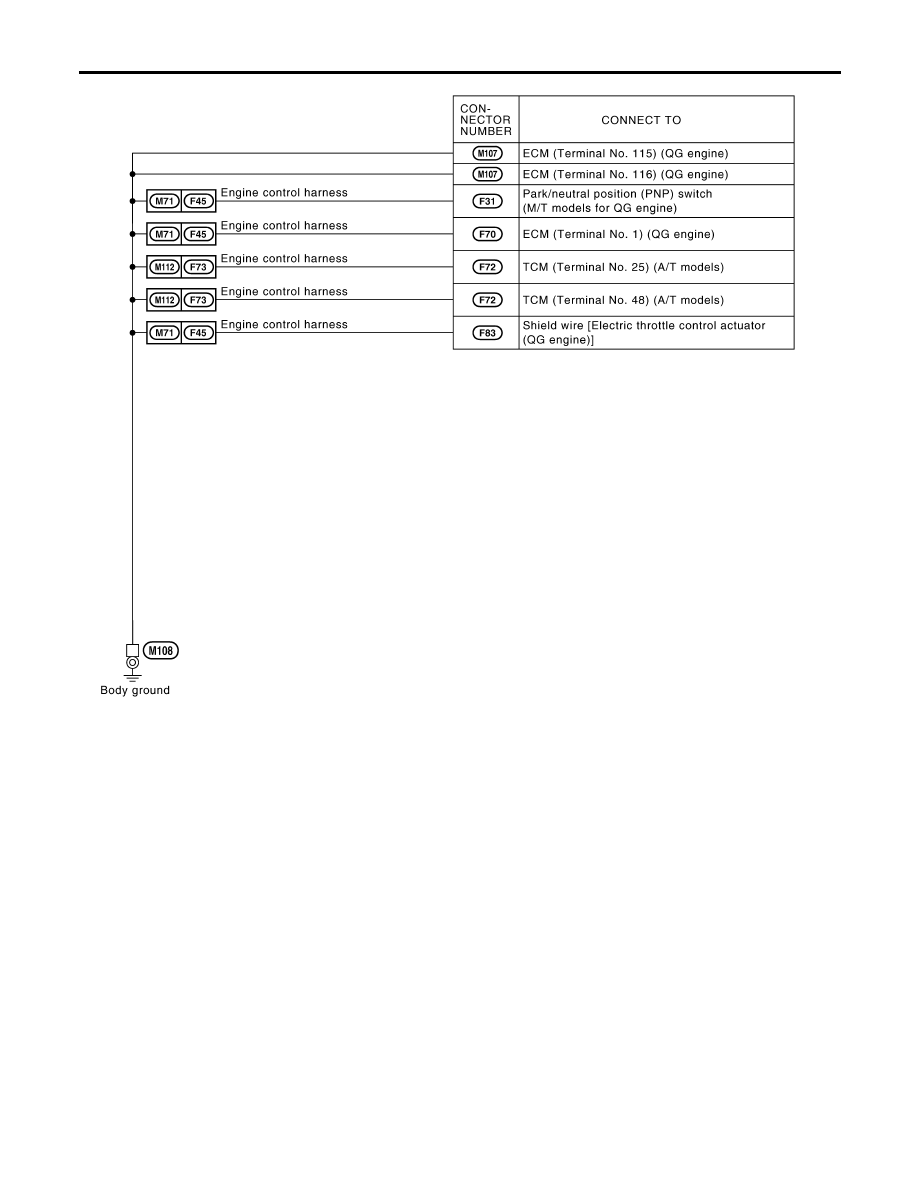

GROUND

Ground Distribution

EL-23

YEL094E

GROUND

Ground Distribution (Cont’d)

EL-24

YEL095E

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

GROUND

Ground Distribution (Cont’d)

EL-25

YEL096E

GROUND

Ground Distribution (Cont’d)

EL-26

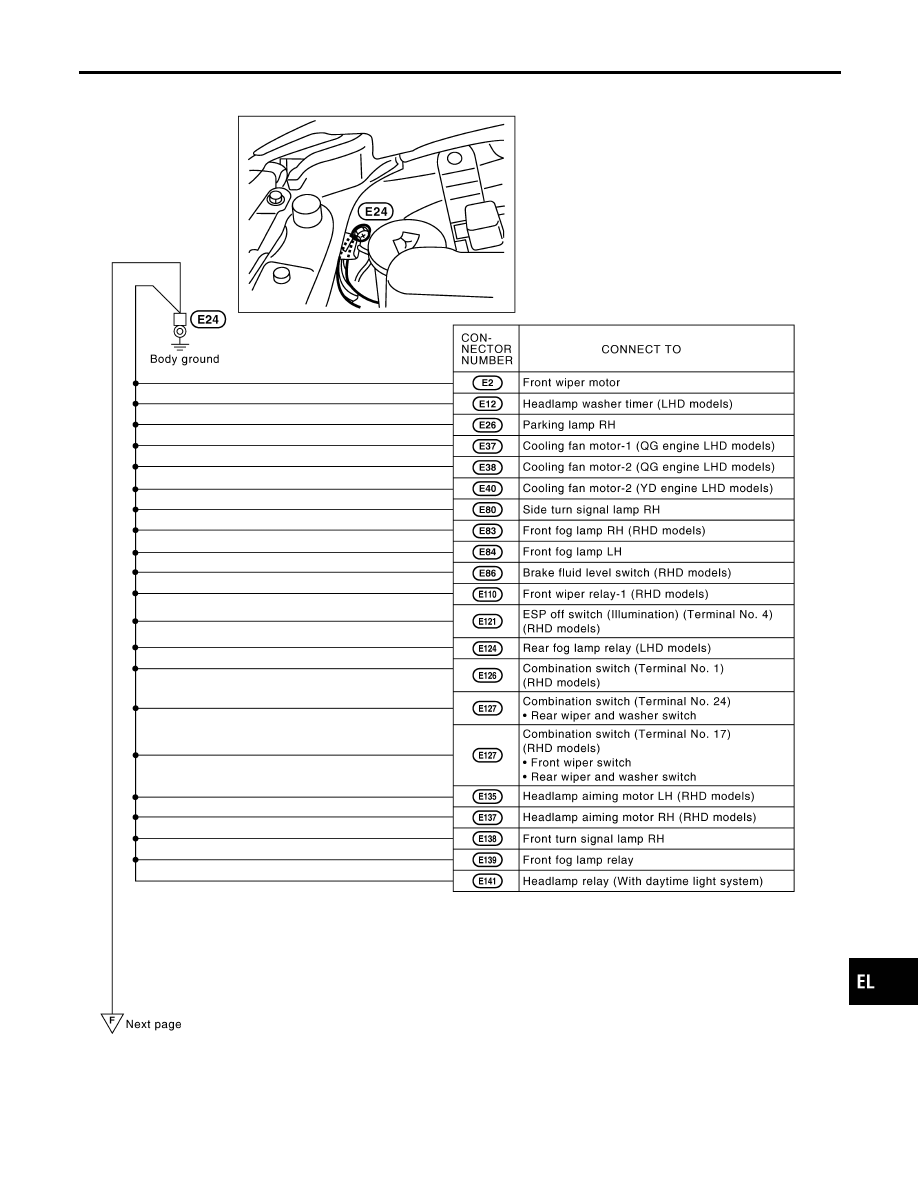

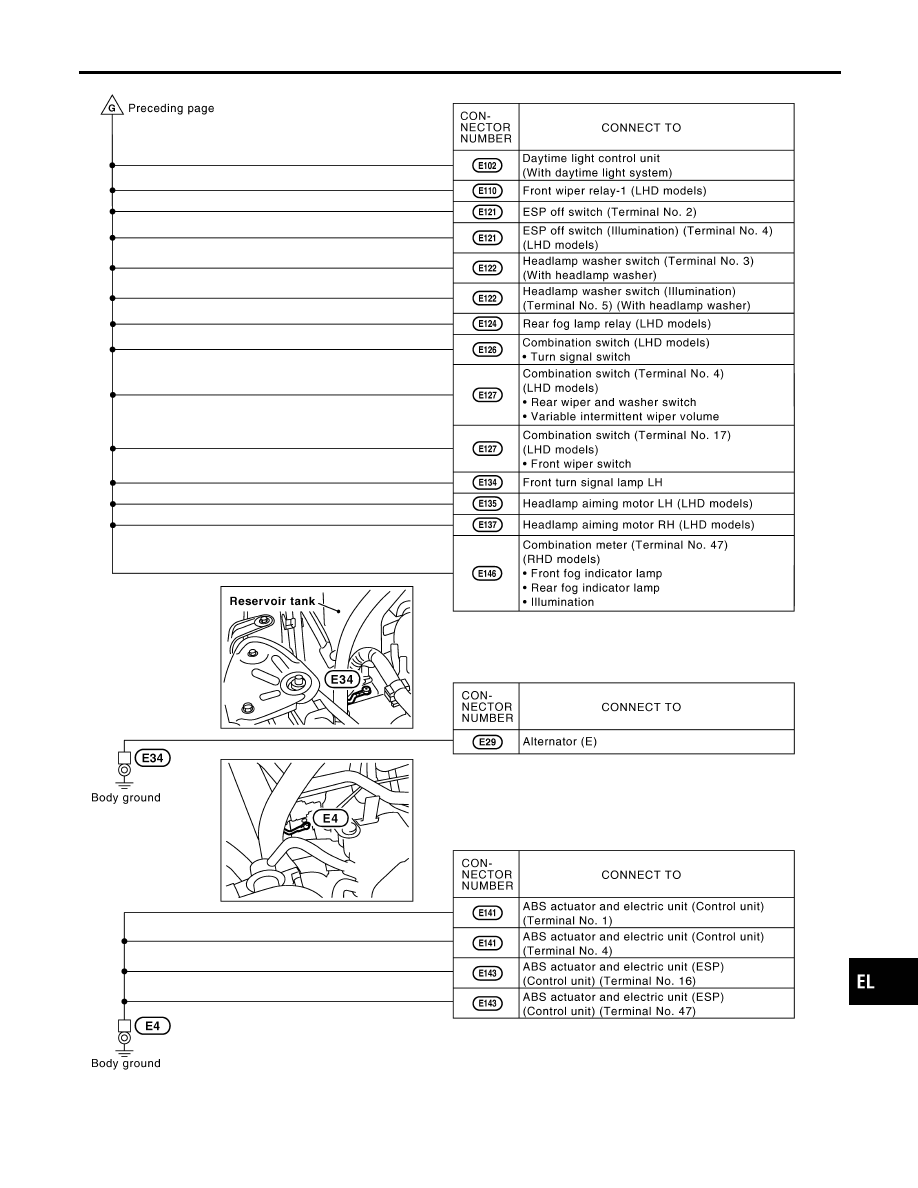

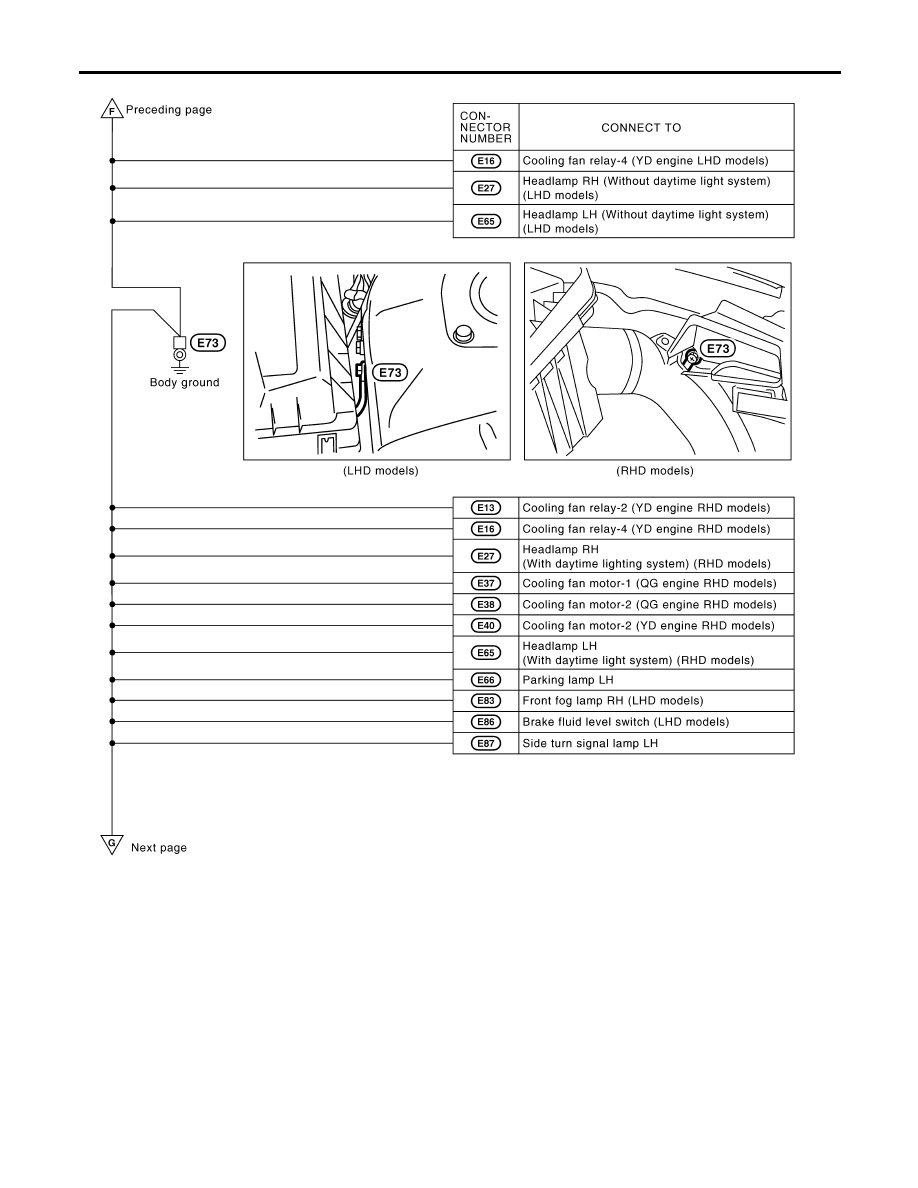

ENGINE ROOM HARNESS

NLEL0008S02

YEL097E

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

GROUND

Ground Distribution (Cont’d)

EL-27

YEL098E

GROUND

Ground Distribution (Cont’d)

EL-28

YEL099E

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

GROUND

Ground Distribution (Cont’d)

EL-29

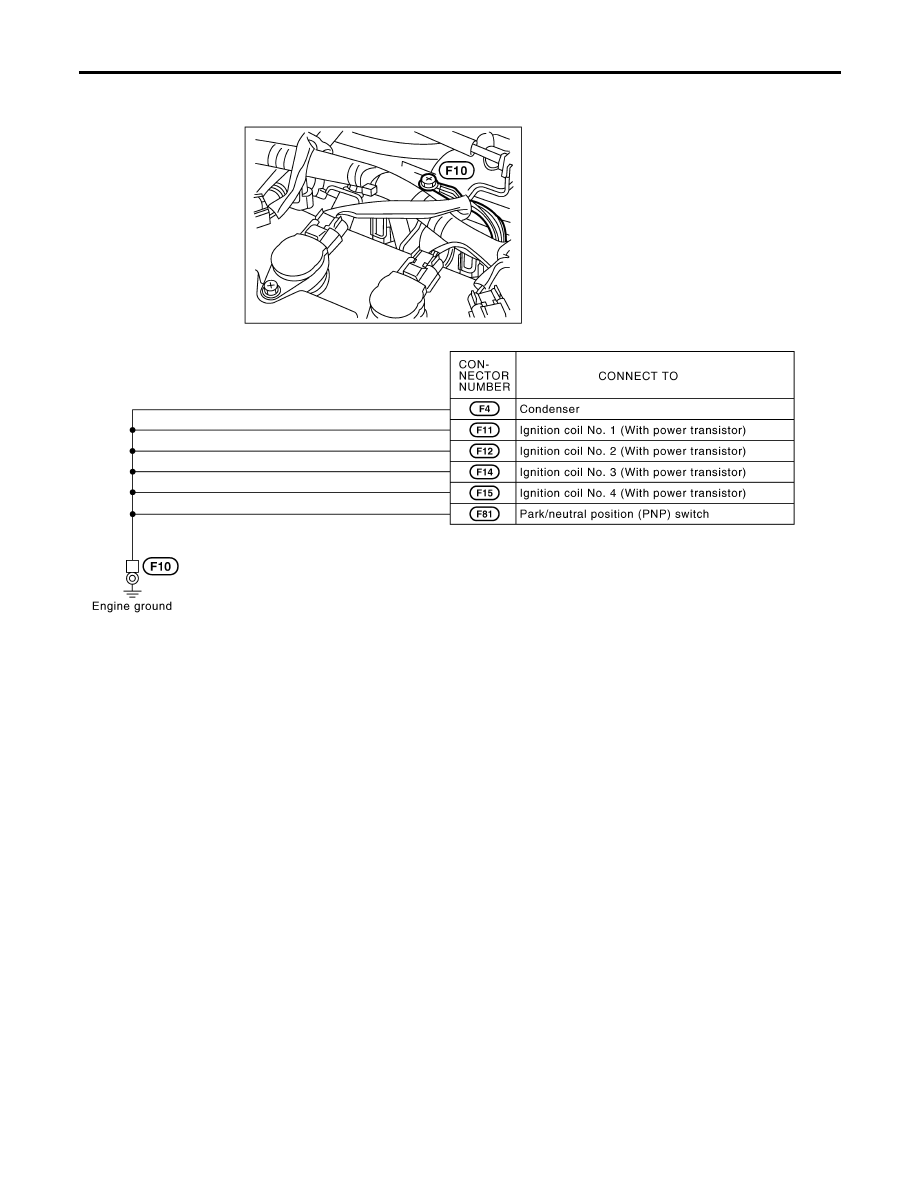

ENGINE CONTROL HARNESS/QG ENGINE MODELS

NLEL0008S03

YEL100E

GROUND

Ground Distribution (Cont’d)

EL-30

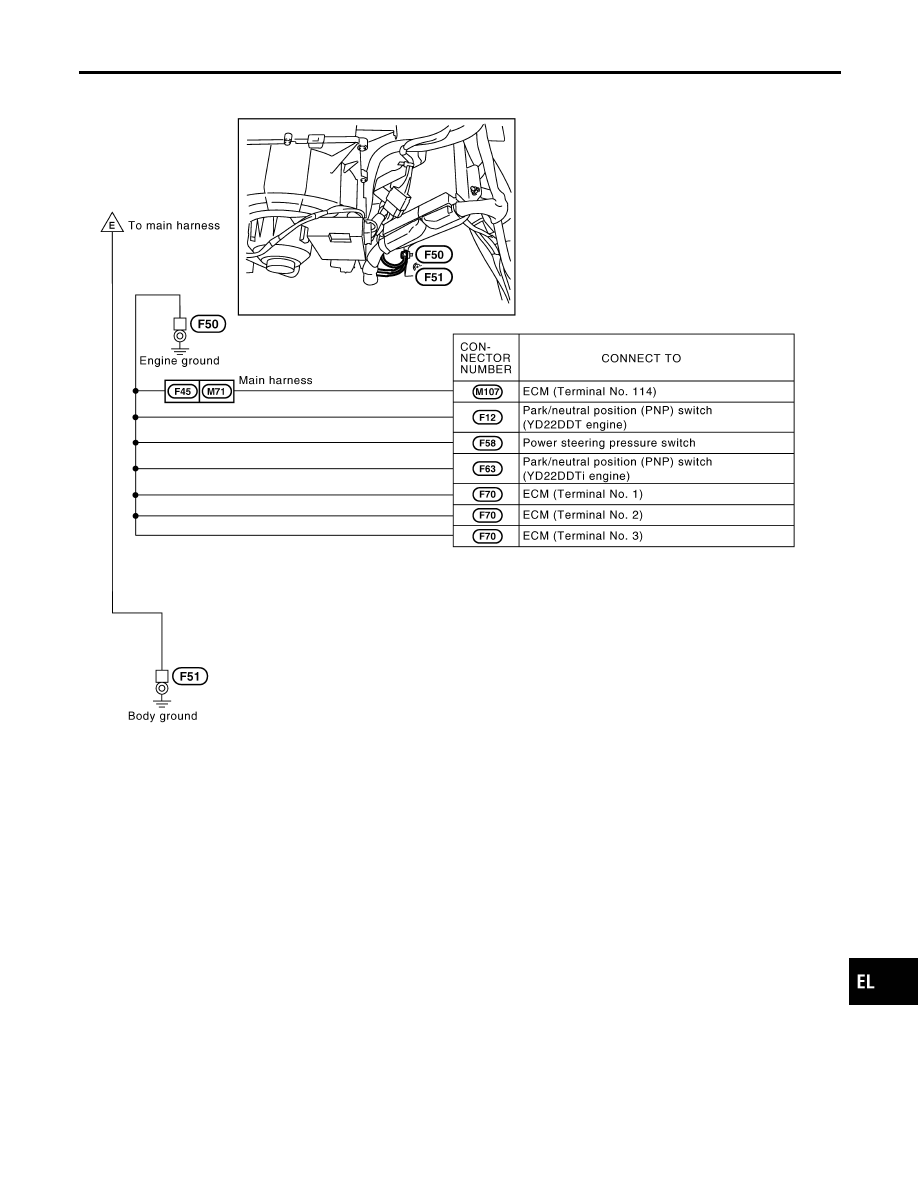

ENGINE CONTROL HARNESS/YD ENGINE MODELS

NLEL0008S09

YEL101E

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

GROUND

Ground Distribution (Cont’d)

EL-31

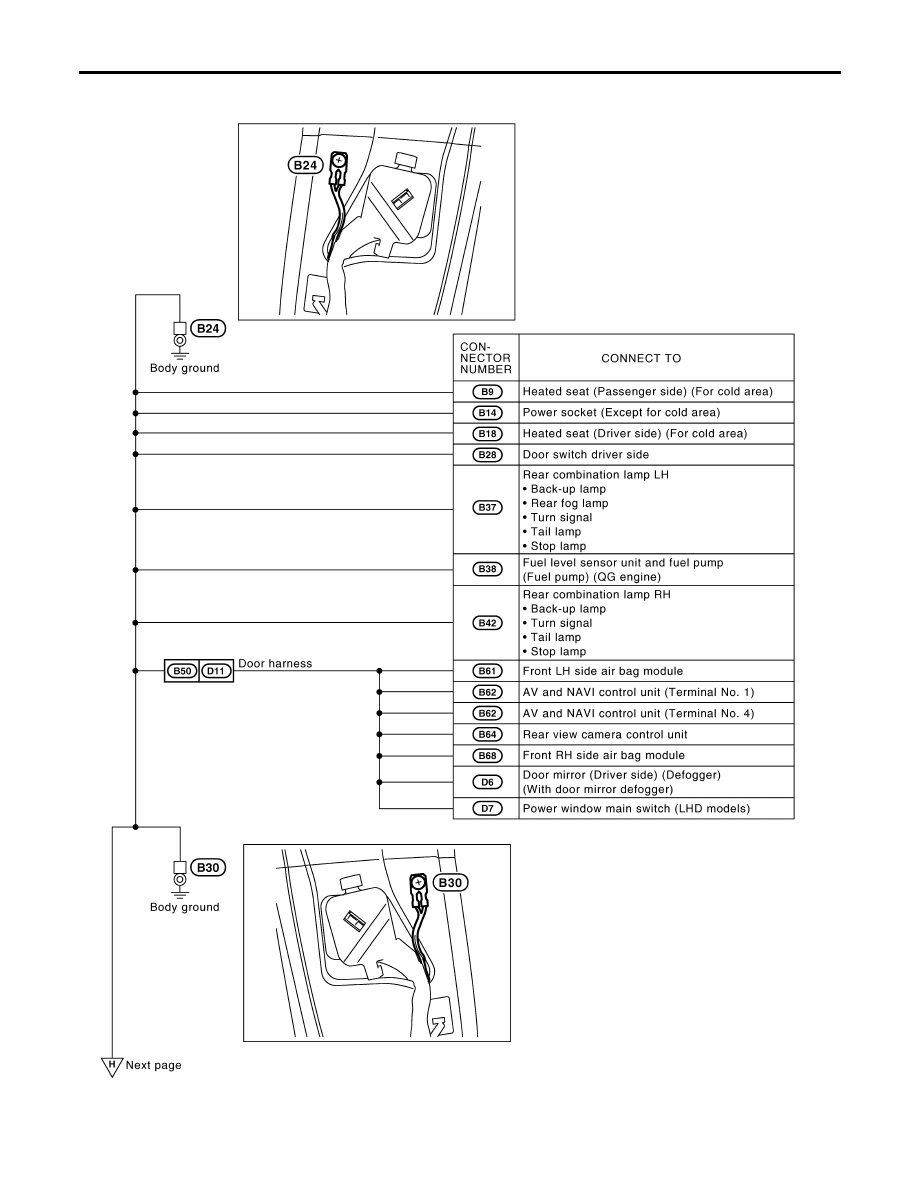

BODY HARNESS/LHD MODELS

NLEL0008S04

YEL102E

GROUND

Ground Distribution (Cont’d)

EL-32
