DTC P0221 TP SENSOR

EC-715

[QG (WITHOUT EURO-OBD)]

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

Replace the electric throttle control actuator.

Perform

EC-576, "Throttle Valve Closed Position Learning"

Perform

EC-576, "Idle Air Volume Learning"

>> INSPECTION END

CHECK INTERMITTENT INCIDENT

Refer to

EC-644, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

>> INSPECTION END

Component Inspection

EBS00QXT

THROTTLE POSITION SENSOR

Reconnect all harness connectors disconnected.

Perform

EC-576, "Throttle Valve Closed Position Learning"

Turn ignition switch “ON”.

Set selector lever to “D” position (A/T models) or “1st” position (M/T models).

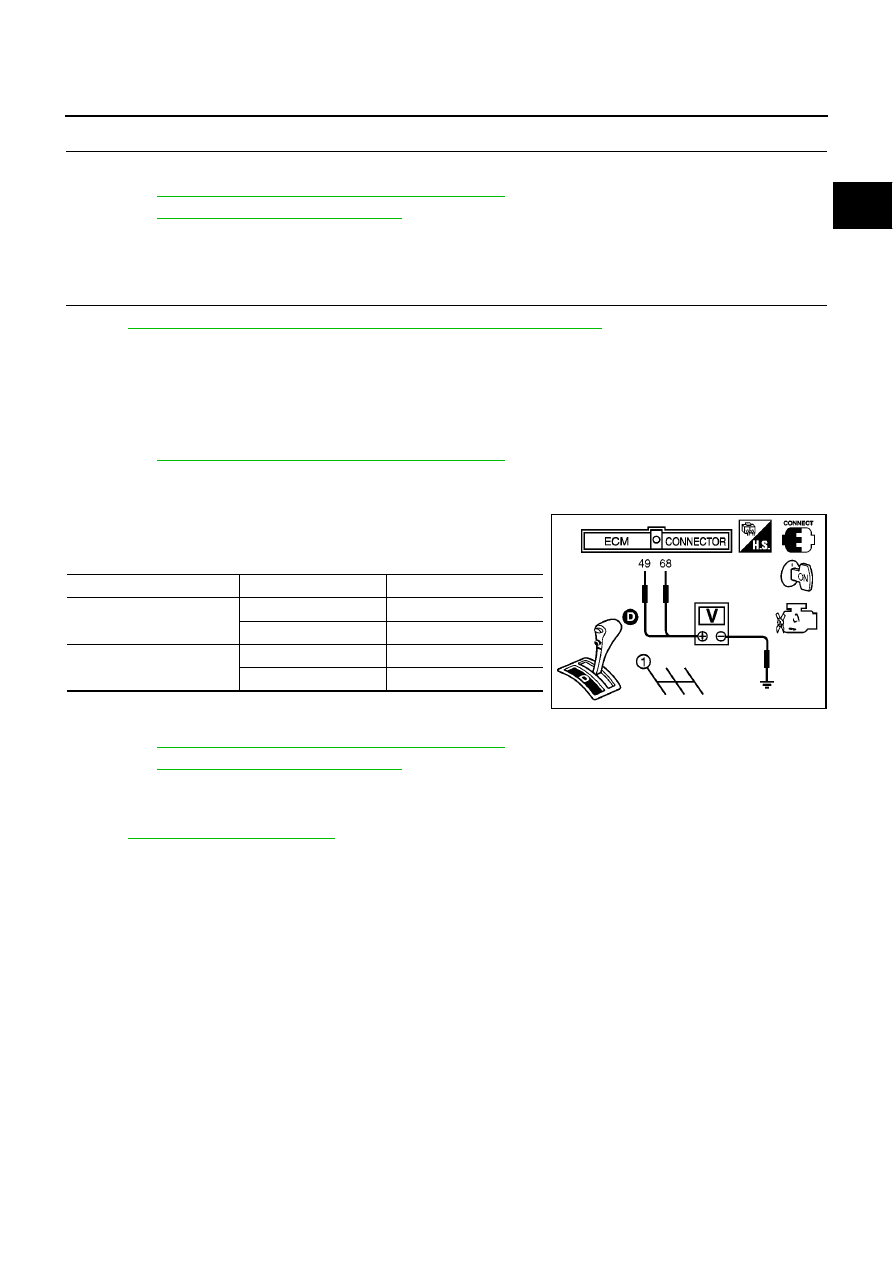

Check voltage between ECM terminals 49 (TP sensor 1 signal),
68 (TP sensor 2 signal) and engine ground under the following
conditions.

If NG, replace electric throttle control actuator and go to the next
step.

Perform

EC-576, "Throttle Valve Closed Position Learning"

Perform

EC-576, "Idle Air Volume Learning"

Remove and Installation

EBS00QXU

ELECTRIC THROTTLE CONTROL ACTUATOR

Refer to

EM-18, "INTAKE MANIFOLD"

Terminal

Accelerator pedal

Voltage

49
(Throttle position sensor 1)

Fully released

More than 0.36V

Fully depressed

Less than 4.75V

(Throttle position sensor 2)

Fully released

Less than 4.75V

Fully depressed

More than 0.36V

MBIB0022E

EC-716

[QG (WITHOUT EURO-OBD)]

DTC P0222, P0223 TP SENSOR

PFP:16119

Component Description

EBS00QXV

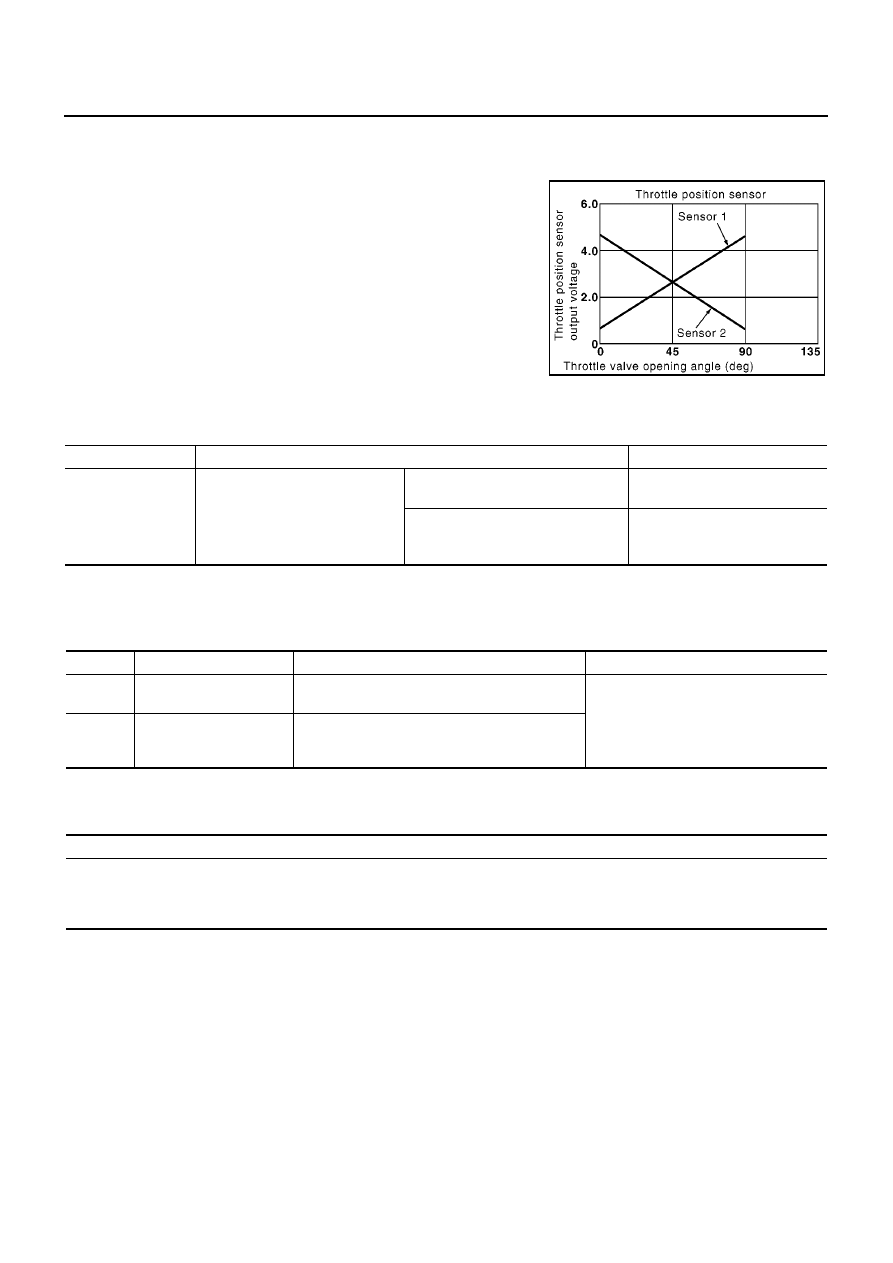

Electric Throttle Control Actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.

CONSULT-II Reference Value in Data Monitor Mode

EBS00QXW

Specification data are reference values.

*: Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.

On Board Diagnosis Logic

EBS00QXX

These self-diagnoses have the one trip detection logic.

FAIL-SAFE MODE

When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.

DTC Confirmation Procedure

EBS00QXY

NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.

PBIB0145E

MONITOR ITEM

CONDITION

SPECIFICATION

THRTL SEN1
THRTL SEN2*

●

Ignition switch: ON
(Engine stopped)

Accelerator pedal: Fully released

More than 0.36V

●

Shift lever:
D (A/T models)
1st (M/T models)

Accelerator pedal: Fully depressed

Less than 4.75V

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0222
0222

Throttle position sensor 1
circuit low input

An excessively low voltage from the TP sensor 1
is sent to ECM.

●

Harness or connectors
(The TP sensor 1 circuit is open or
shorted.)

●

Electric throttle control actuator
(TP sensor 1)

P0223
0223

Throttle position sensor 1
circuit high input

An excessively high voltage from the TP sensor 1
is sent to ECM.

Engine operation condition in fail-safe mode

The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.

DTC P0222, P0223 TP SENSOR

EC-717

[QG (WITHOUT EURO-OBD)]

WITH CONSULT-II

Turn ignition switch “ON”.

Select “DATA MONITOR” mode with CONSULT-II.

Start engine and let it idle for 1 second.

If DTC is detected, go to

EC-719, "Diagnostic Procedure"

WITHOUT CONSULT-II

Start engine and let it idle for 1 second.

Turn ignition switch “OFF”, wait at least 10 seconds and then turn “ON”.

Perform “Diagnostic Test Mode II (Self-diagnostic results)” with ECM.

If DTC is detected, go to

EC-719, "Diagnostic Procedure"

SEF058Y

DTC P0222, P0223 TP SENSOR

EC-719

[QG (WITHOUT EURO-OBD)]

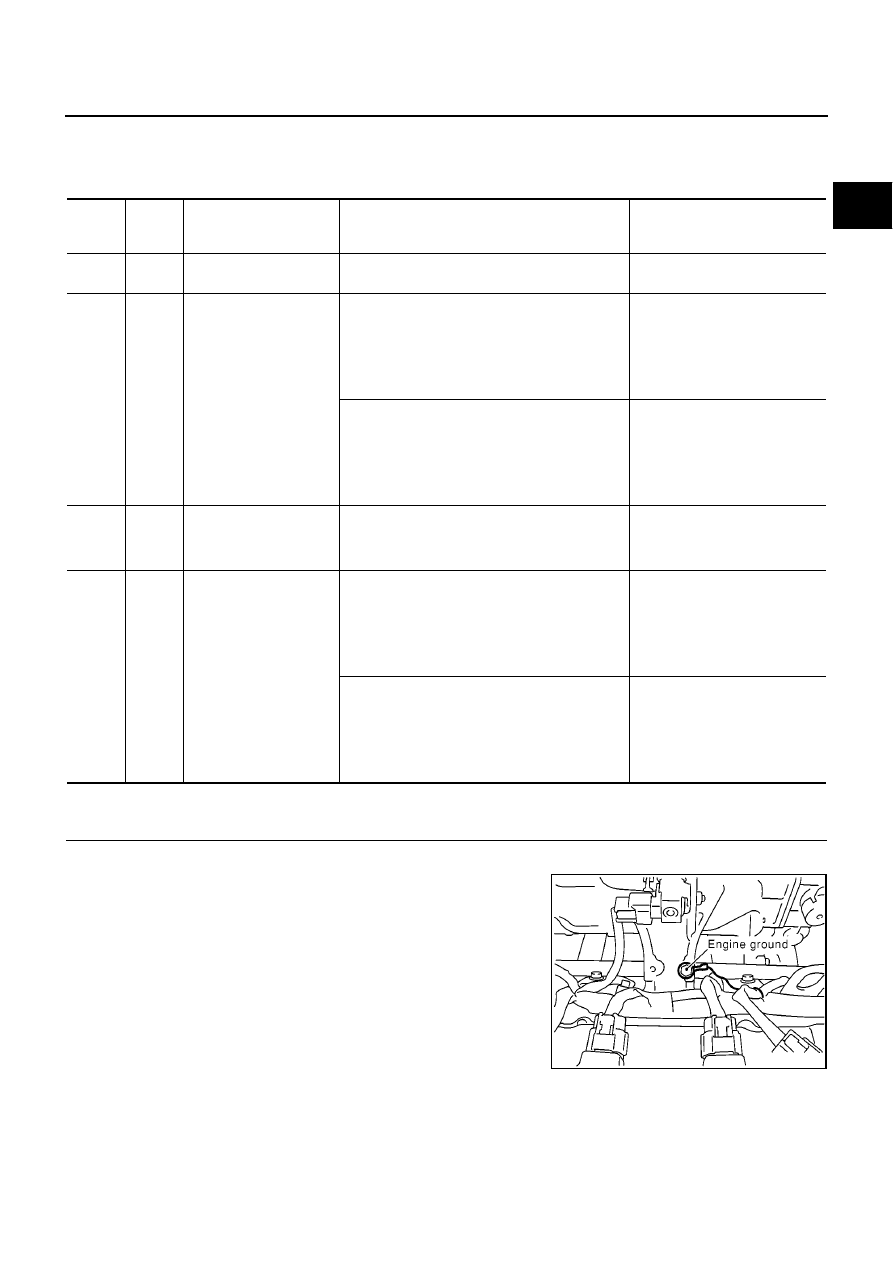

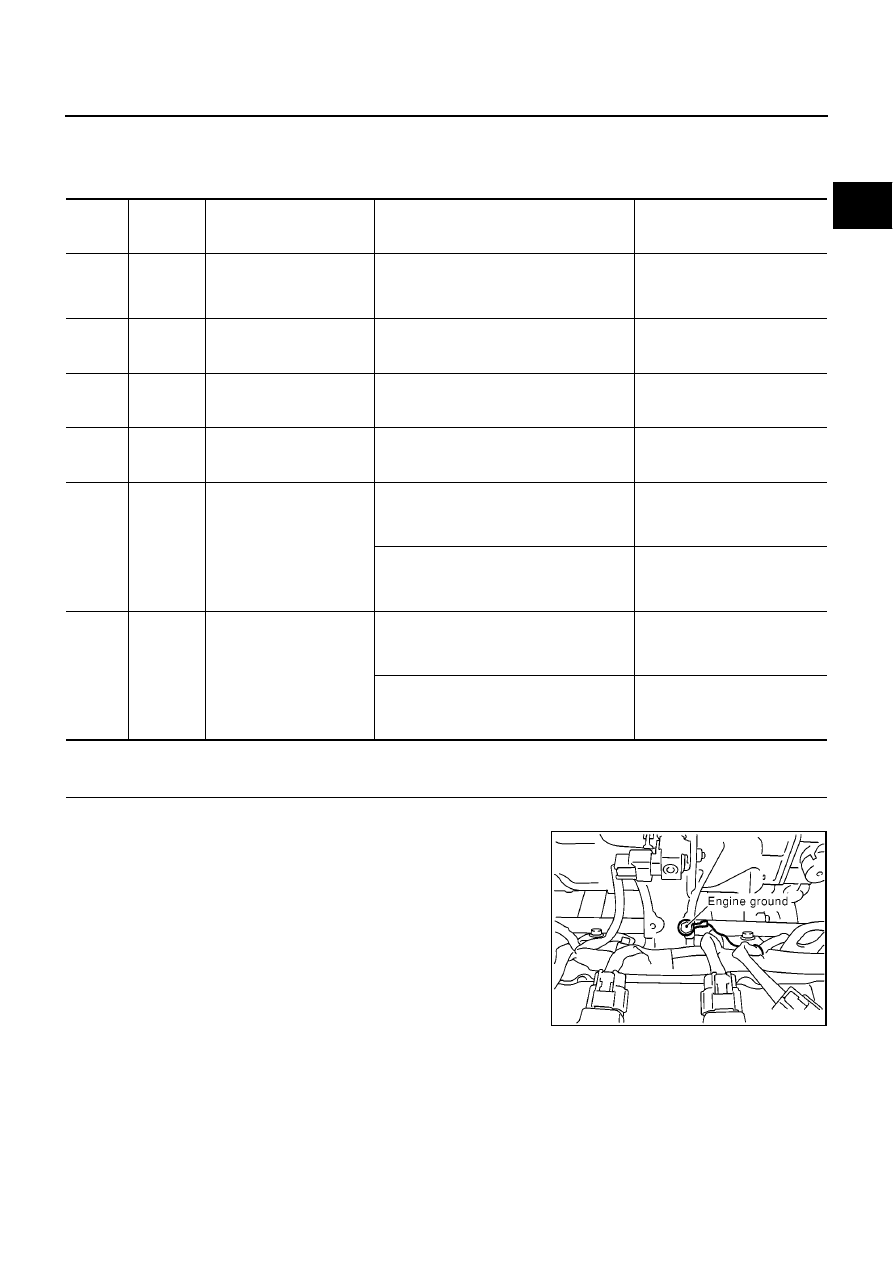

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

Diagnostic Procedure

EBS00QY0

RETIGHTEN GROUND SCREWS

Turn ignition switch “OFF”.

Loosen and retighten engine ground screws.

>> GO TO 2.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

Throttle position sensor
power supply

[Ignition switch “ON”]

Approximately 5V

Throttle position sensor 1

[Ignition switch “ON”]

●

Engine stopped

●

Shift lever position is “D” (A/T models)

●

Shift lever position is “1st” (M/T models)

●

Accelerator pedal fully released

More than 0.36V

[Ignition switch “ON”]

●

Engine stopped

●

Shift lever position is “D” (A/T models)

●

Shift lever position is “1st” (M/T models)

●

Accelerator pedal fully depressed

Less than 4.75V

Throttle position sensor
ground

[Engine is running]

●

Warm-up condition

●

Idle speed

Approximately 0V

Throttle position sensor 2

[Ignition switch “ON”]

●

Engine stopped

●

Shift lever position is “D” (A/T models)

●

Shift lever position is “1st” (M/T models)

●

Accelerator pedal fully released

Less than 4.75V

[Ignition switch “ON”]

●

Engine stopped

●

Shift lever position is “D” (A/T models)

●

Shift lever position is “1st” (M/T models)

●

Accelerator pedal fully depressed

More than 0.36V

MBIB0095E

EC-720

[QG (WITHOUT EURO-OBD)]

DTC P0222, P0223 TP SENSOR

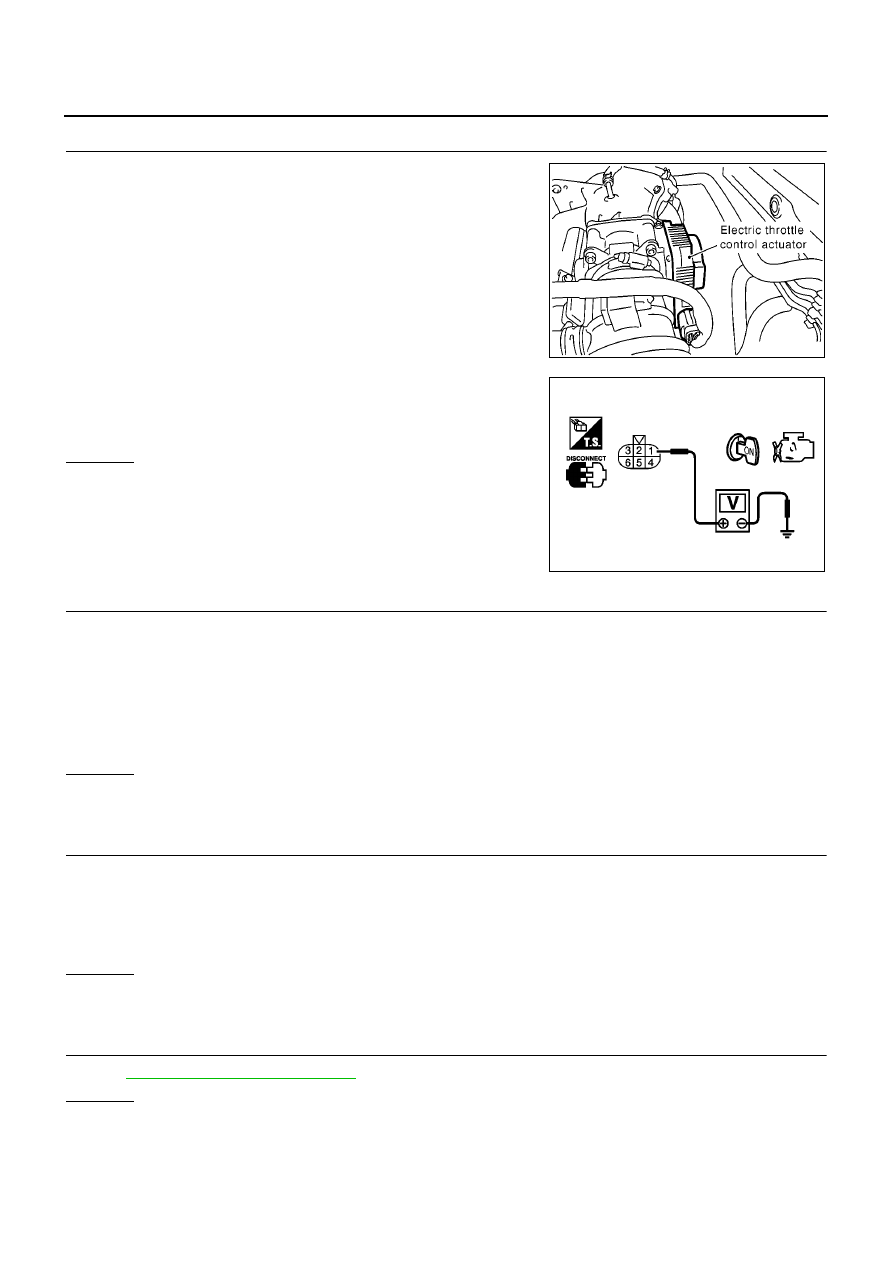

CHECK THROTTLE POSITION SENSOR 1 POWER SUPPLY CIRCUIT

Disconnect electric throttle control actuator harness connector.

Turn ignition switch “ON”.

Check voltage between electric throttle control actuator terminal
1 and ground with CONSULT-II or tester.

OK or NG

>> GO TO 3.

>> Repair open circuit or short to ground or short to power

in harness or connectors.

CHECK THROTTLE POSITION SENSOR 1 GROUND CIRCUIT FOR OPEN AND SHORT

Turn ignition switch “OFF”.

Disconnect ECM harness connector.

Check harness continuity between ECM terminal 66 and electric throttle control actuator terminal 5.

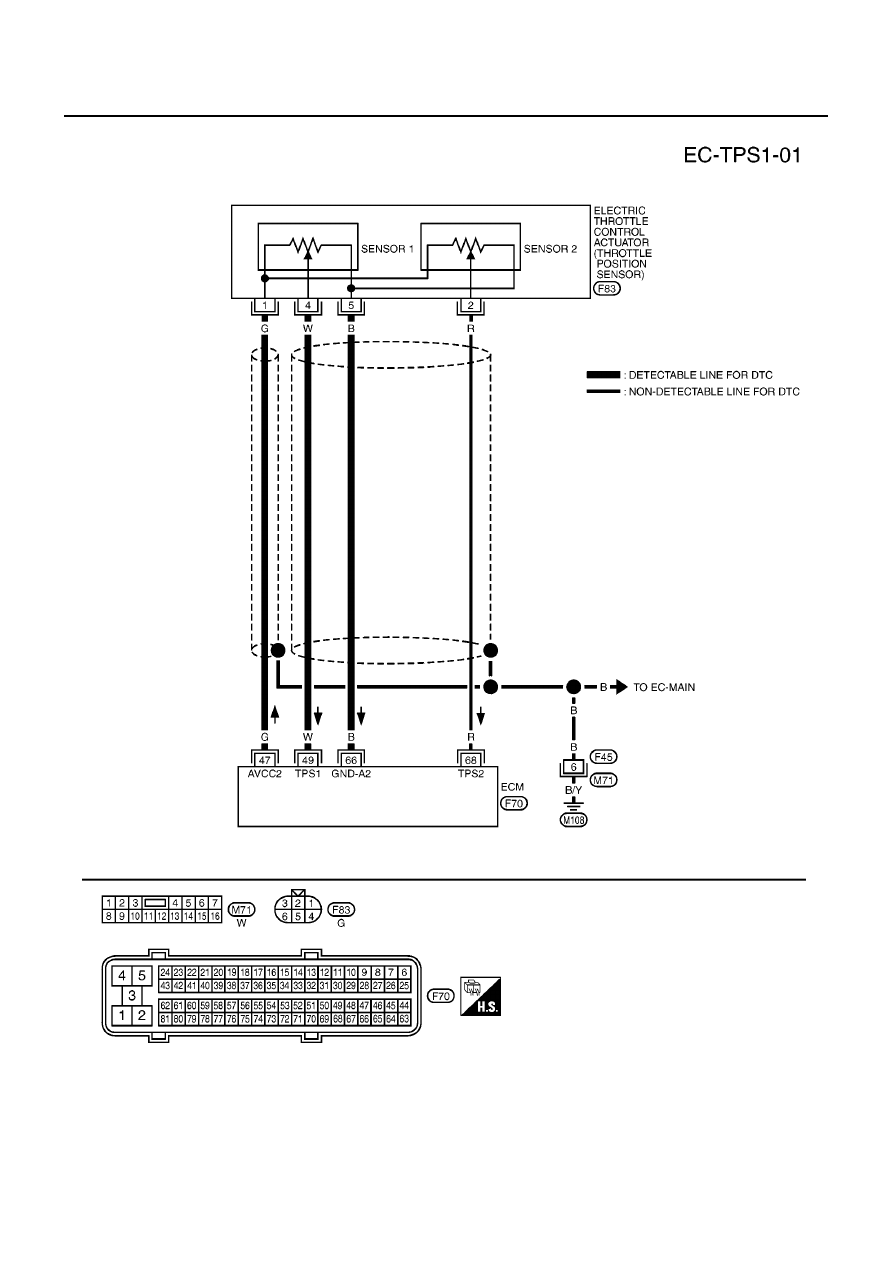

Refer to Wiring Diagram.

Also check harness for short to ground and short to power.

OK or NG

>> GO TO 4.

>> Repair open circuit or short to ground or short to power in harness or connectors.

CHECK THROTTLE POSITION SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

Check harness continuity between ECM terminal 49 and electric throttle control actuator terminal 4.
Refer to Wiring Diagram.

Also check harness for short to ground and short to power.

OK or NG

>> GO TO 5.

>> Repair open circuit or short to ground or short to power in harness or connectors.

CHECK THROTTLE POSITION SENSOR

Refer to

EC-721, "Component Inspection"

OK or NG

>> GO TO 7.

>> GO TO 6.

MBIB0100E

Voltage: Approximately 5V

PBIB0082E

Continuity should exist.

DTC P0222, P0223 TP SENSOR

EC-721

[QG (WITHOUT EURO-OBD)]

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

Replace the electric throttle control actuator.

Perform

EC-576, "Throttle Valve Closed Position Learning"

Perform

EC-576, "Idle Air Volume Learning"

>> INSPECTION END

CHECK INTERMITTENT INCIDENT

Refer to

EC-644, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

>> INSPECTION END

Component Inspection

EBS00QY1

THROTTLE POSITION SENSOR

Reconnect all harness connectors disconnected.

Perform

EC-576, "Throttle Valve Closed Position Learning"

Turn ignition switch “ON”.

Set selector lever to “D” position (A/T models) or “1st” position (M/T models).

Check voltage between ECM terminals 49 (TP sensor 1 signal),
68 (TP sensor 2 signal) and engine ground under the following
conditions.

If NG, replace electric throttle control actuator and go to the next
step.

Perform

EC-576, "Throttle Valve Closed Position Learning"

Perform

EC-576, "Idle Air Volume Learning"

Remove and Installation

EBS00QY2

ELECTRIC THROTTLE CONTROL ACTUATOR

Refer to

EM-18, "INTAKE MANIFOLD"

Terminal

Accelerator pedal

Voltage

49
(Throttle position sensor 1)

Fully released

More than 0.36V

Fully depressed

Less than 4.75V

(Throttle position sensor 2)

Fully released

Less than 4.75V

Fully depressed

More than 0.36V

MBIB0022E

EC-722

[QG (WITHOUT EURO-OBD)]

DTC P0226 APP SENSOR

PFP:18002

Component Description

EBS00QY3

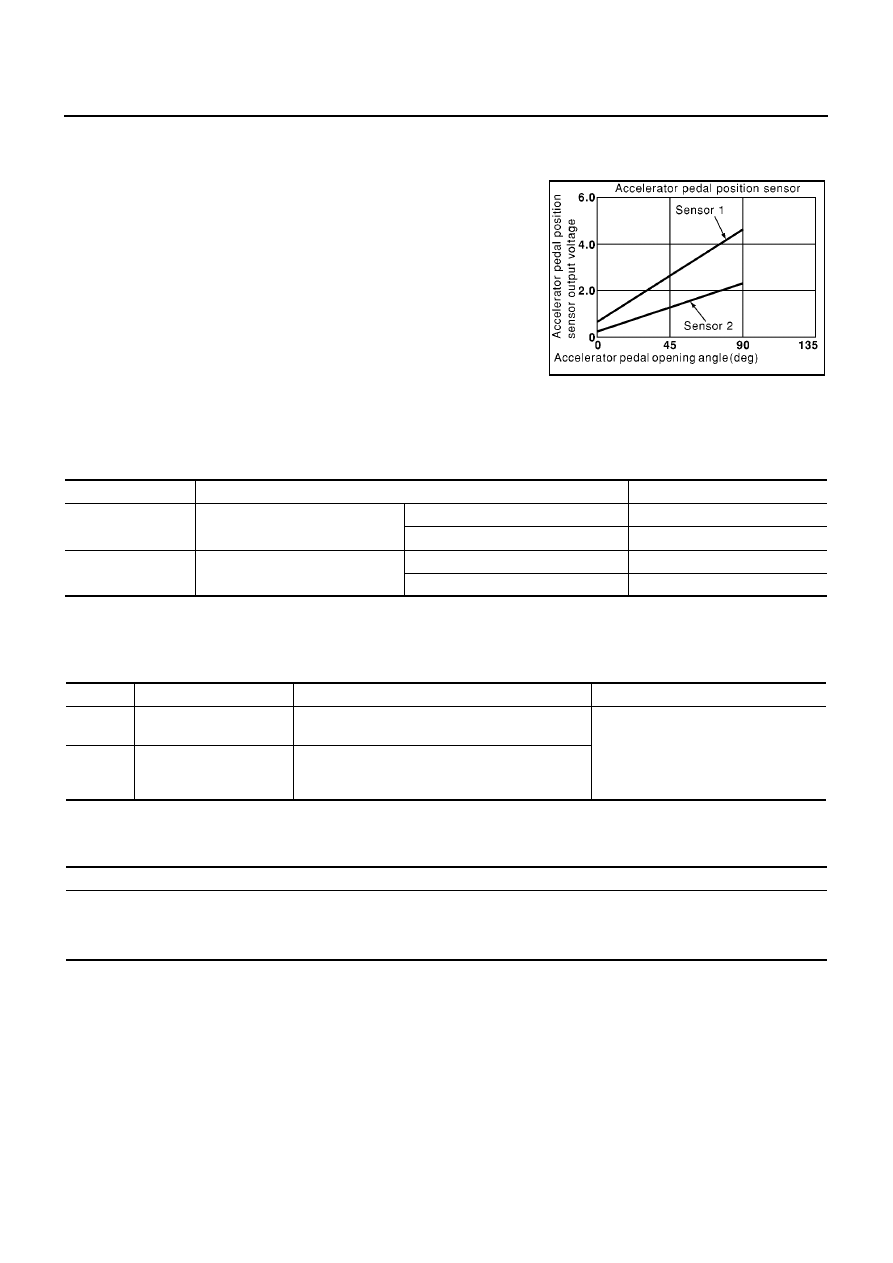

The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometers which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the accelerator pedal and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the accelerator pedal from
these signals and controls the throttle control motor based on these
signals.
Idle position of the accelerator pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The ECM uses this signal for the engine oper-
ation such as fuel cut.

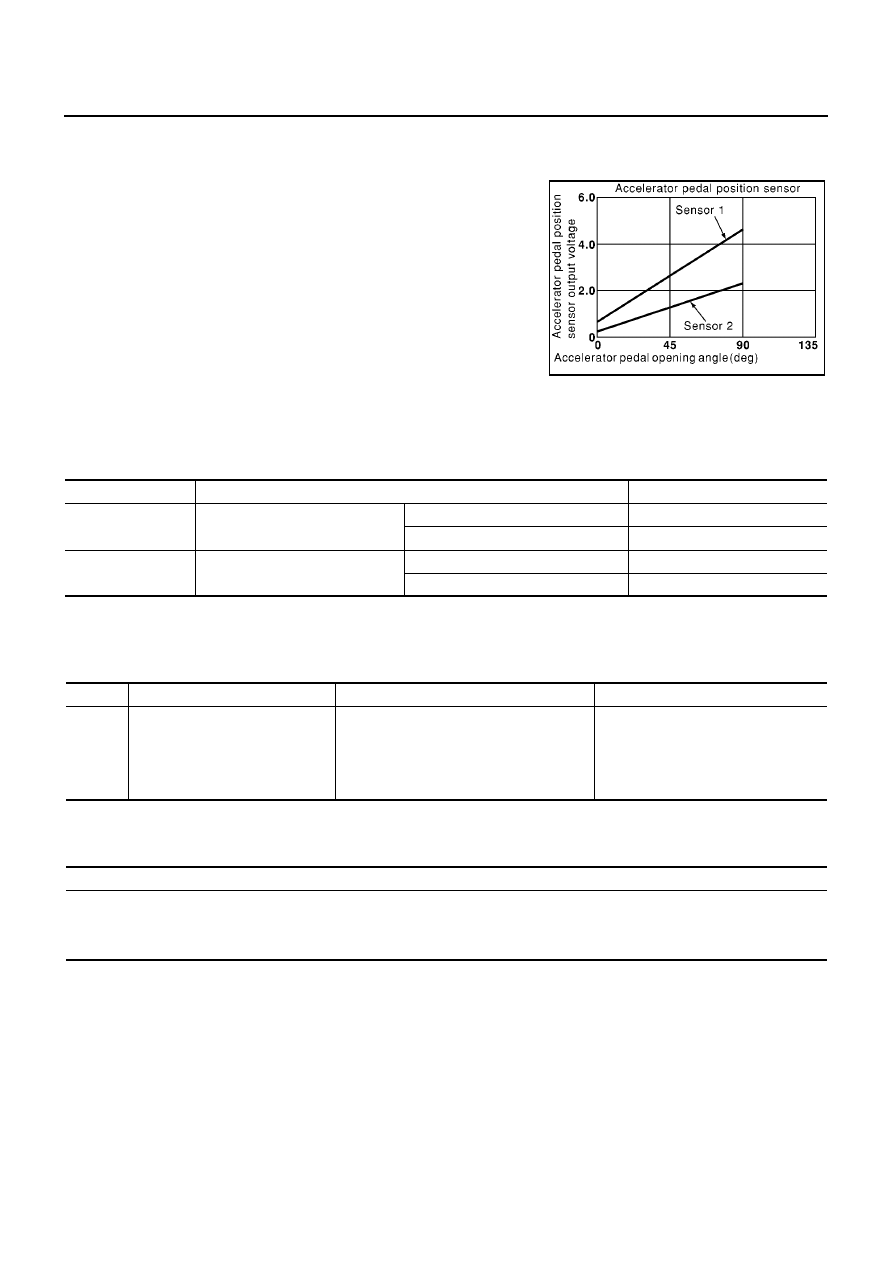

CONSULT-II Reference Value in Data Monitor Mode

EBS00QY4

Specification data are reference values.

*: Accelerator pedal position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.

On Board Diagnosis Logic

EBS00QY5

This self-diagnosis has the one trip detection logic.

FAIL-SAFE MODE

When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.

DTC Confirmation Procedure

EBS00QY6

PBIB0146E

MONITOR ITEM

CONDITION

SPECIFICATION

ACCEL SEN1
ACCEL SEN2*

●

Ignition switch: ON
(engine stopped)

Accelerator pedal: Fully released

0.35 - 0.67V

Accelerator pedal: Fully depressed

More than 3.9V

CLSD THL POS

●

Ignition switch: ON

Accelerator pedal: Fully released

Accelerator pedal: Slightly depressed

OFF

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0226
0226

Accelerator pedal position sensor
circuit range/performance problem

Rationally incorrect voltage is sent to ECM
compared with the signals from APP sensor
1 and APP sensor 2.

●

Harness or connector
(The APP sensor 1 and 2 circuit is
open or shorted.)

●

Accelerator pedal position sensor 1
and 2

Engine operating condition in fail-safe mode

The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of throttle valve to be slower than the normal condition.
So, the acceleration will be poor.

DTC P0226 APP SENSOR

EC-723

[QG (WITHOUT EURO-OBD)]

WITH CONSULT-II

Turn ignition switch “ON”.

Select “DATA MONITOR” mode with CONSULT-II.

Start engine and let it idle for 1 second.

If DTC is detected, go to

EC-725, "Diagnostic Procedure"

WITHOUT CONSULT-II

Start engine and let it idle for 1 second.

Turn ignition switch “OFF”, wait at least 10 seconds and then turn “ON”.

Perform “Diagnostic Test Mode II (Self-diagnostic results)” with ECM.

If DTC is detected, go to

EC-725, "Diagnostic Procedure"

SEF058Y

DTC P0226 APP SENSOR

EC-725

[QG (WITHOUT EURO-OBD)]

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

Diagnostic Procedure

EBS00QY8

RETIGHTEN GROUND SCREWS

Turn ignition switch “OFF”.

Loosen and retighten engine ground screws.

>> GO TO 2.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

Sensor ground
(Accelerator pedal position
sensor 1)

[Engine is running]

●

Warm-up condition

●

Idle speed

Approximately 0V

Sensor ground
(Accelerator pedal position
sensor 2)

[Ignition switch “ON”]

Approximately 0V

Sensor power supply
(Accelerator pedal position
sensor 1)

[Ignition switch “ON”]

Approximately 5V

Sensor power supply
(Accelerator pedal position
sensor 2)

[Ignition switch “ON”]

Approximately 5V

Accelerator pedal position
sensor 2

[Ignition switch “ON”]

●

Engine stopped

●

Accelerator pedal fully released

0.17 - 0.34V

[Ignition switch “ON”]

●

Engine stopped

●

Accelerator pedal fully depressed

More than 1.95V

106

Accelerator pedal position
sensor 1

[Ignition switch “ON”]

●

Engine stopped

●

Accelerator pedal fully released

0.35 - 0.67V

[Ignition switch “ON”]

●

Engine stopped

●

Accelerator pedal fully depressed

More than 3.9V

MBIB0095E

EC-726

[QG (WITHOUT EURO-OBD)]

DTC P0226 APP SENSOR

CHECK APP SENSOR POWER SUPPLY CIRCUIT

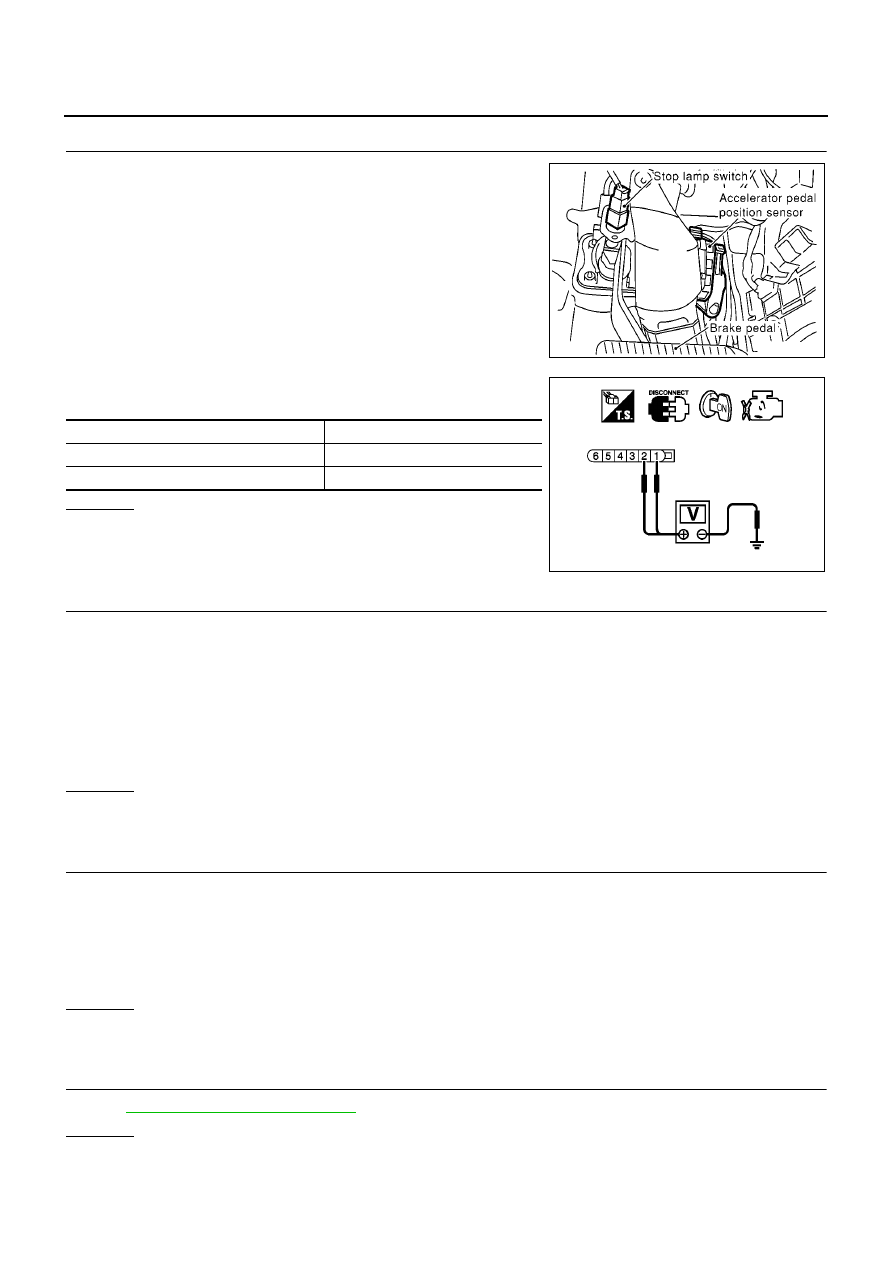

Disconnect accelerator pedal position (APP) sensor harness
connector.

Turn ignition switch “ON”.

Check voltage between APP sensor terminals 1, 2 and ground
with CONSULT-II or tester.

OK or NG

>> GO TO 3.

>> Repair open circuit or short to ground or short to power

in harness or connectors.

CHECK APP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

Turn ignition switch “OFF”.

Disconnect ECM harness connector.

Check harness continuity between ECM terminal 82 and APP sensor terminal 4, ECM terminal 83 and
APP sensor terminal 5.

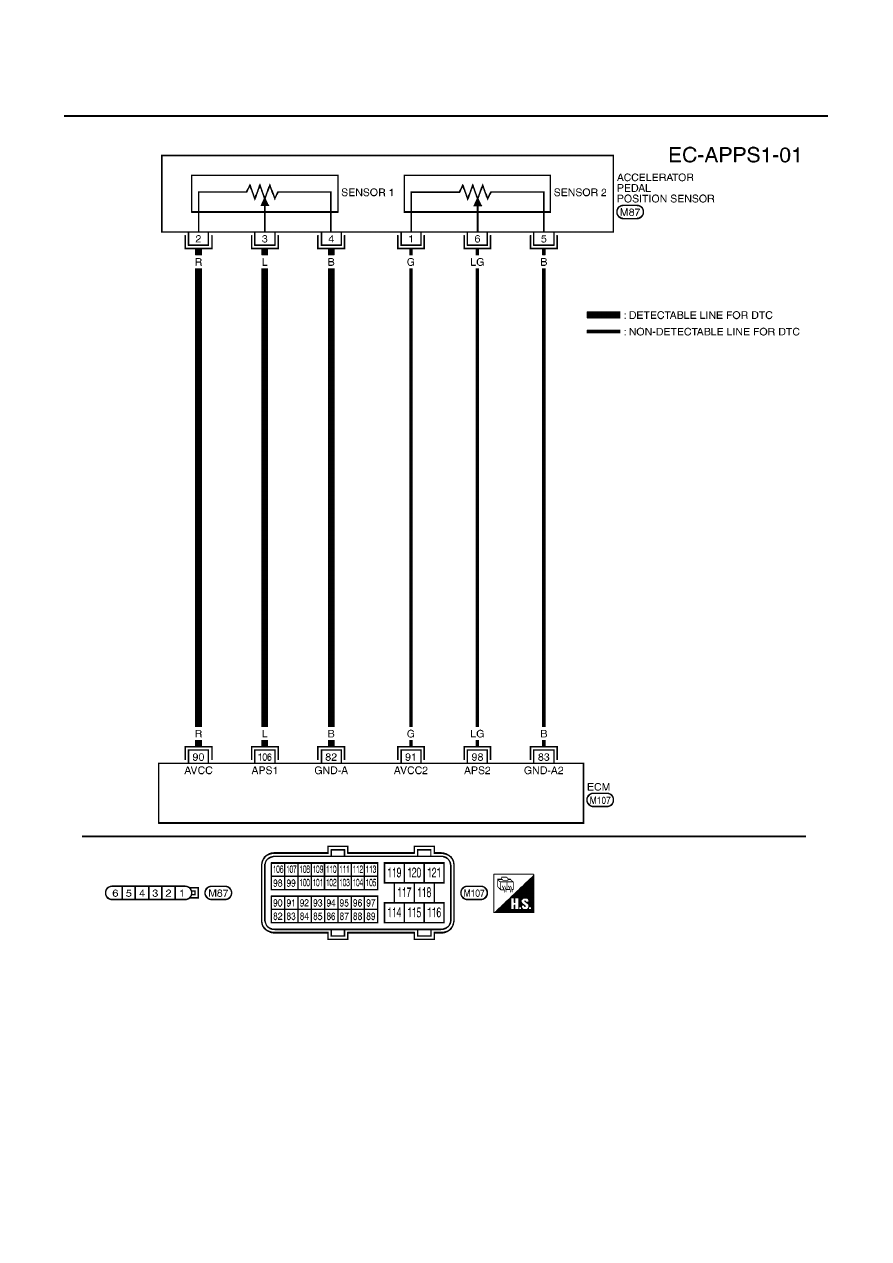

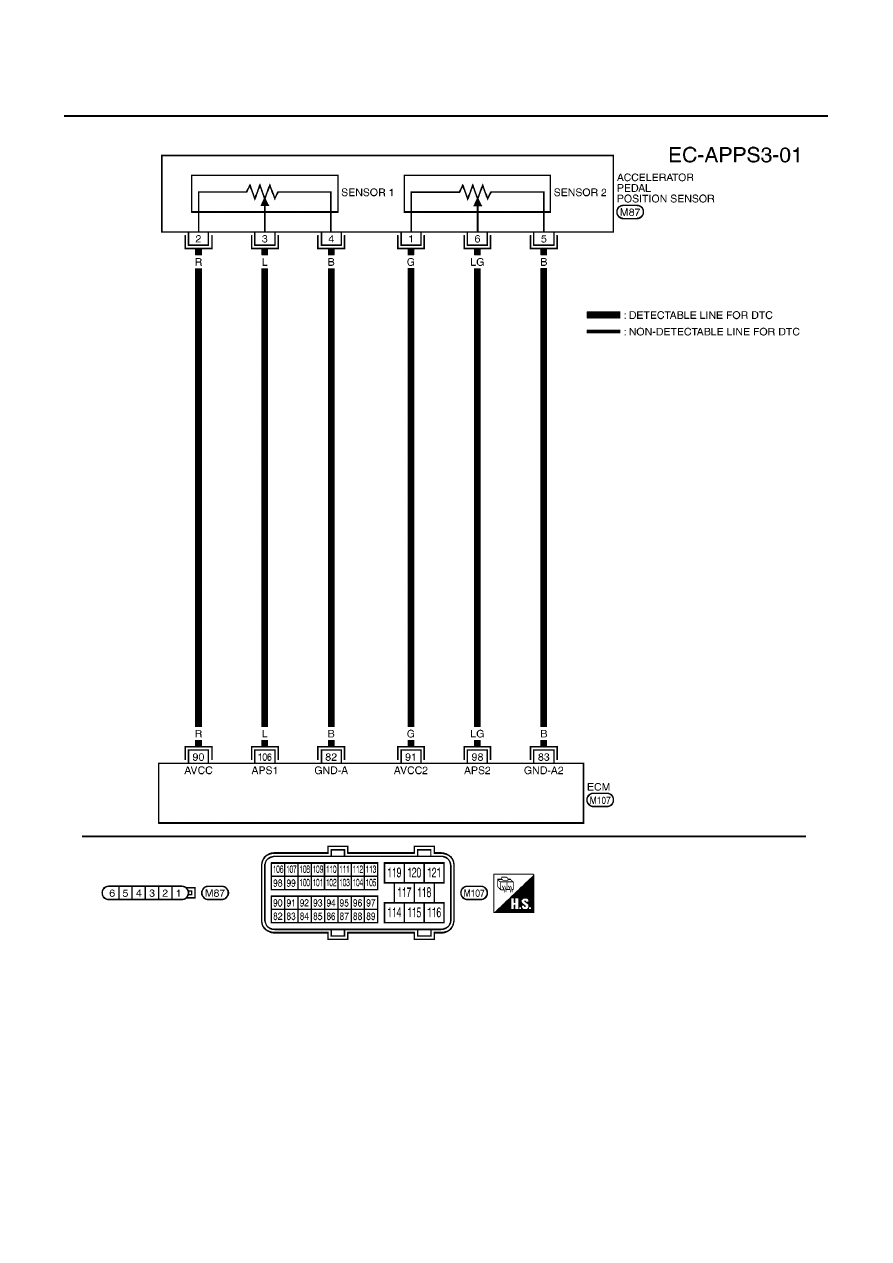

Refer to Wiring Diagram.

Also check harness for short to ground and short to power.

OK or NG

>> GO TO 4.

>> Repair open circuit or short to ground or short to power in harness or connectors.

CHECK APP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

Check harness continuity between ECM terminal 106 and APP sensor terminal 3, ECM terminal 98 and
APP sensor terminal 6.
Refer to Wiring Diagram.

Also check harness for short to ground and short to power.

OK or NG

>> GO TO 5.

>> Repair open circuit or short to ground or short to power in harness or connectors.

CHECK APP SENSOR

Refer to

EC-727, "Component Inspection"

OK or NG

>> GO TO 7.

>> GO TO 6.

MBIB0152E

APP sensor terminal

Voltage (V)

Approximately 2.5

Approximately 5

PBIB0782E

Continuity should exist.

DTC P0226 APP SENSOR

EC-727

[QG (WITHOUT EURO-OBD)]

REPLACE APP SENSOR

Replace the accelerator pedal position sensor.

Perform

EC-576, "Accelerator Pedal Released Position Learning"

Perform

EC-576, "Throttle Valve Closed Position Learning"

Perform

EC-576, "Idle Air Volume Learning"

>> INSPECTION END

CHECK INTERMITTENT INCIDENT

Refer to

EC-644, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

>> INSPECTION END

Component Inspection

EBS00QY9

ACCELERATOR PEDAL POSITION SENSOR

Reconnect all harness connectors disconnected.

Turn ignition switch “ON”.

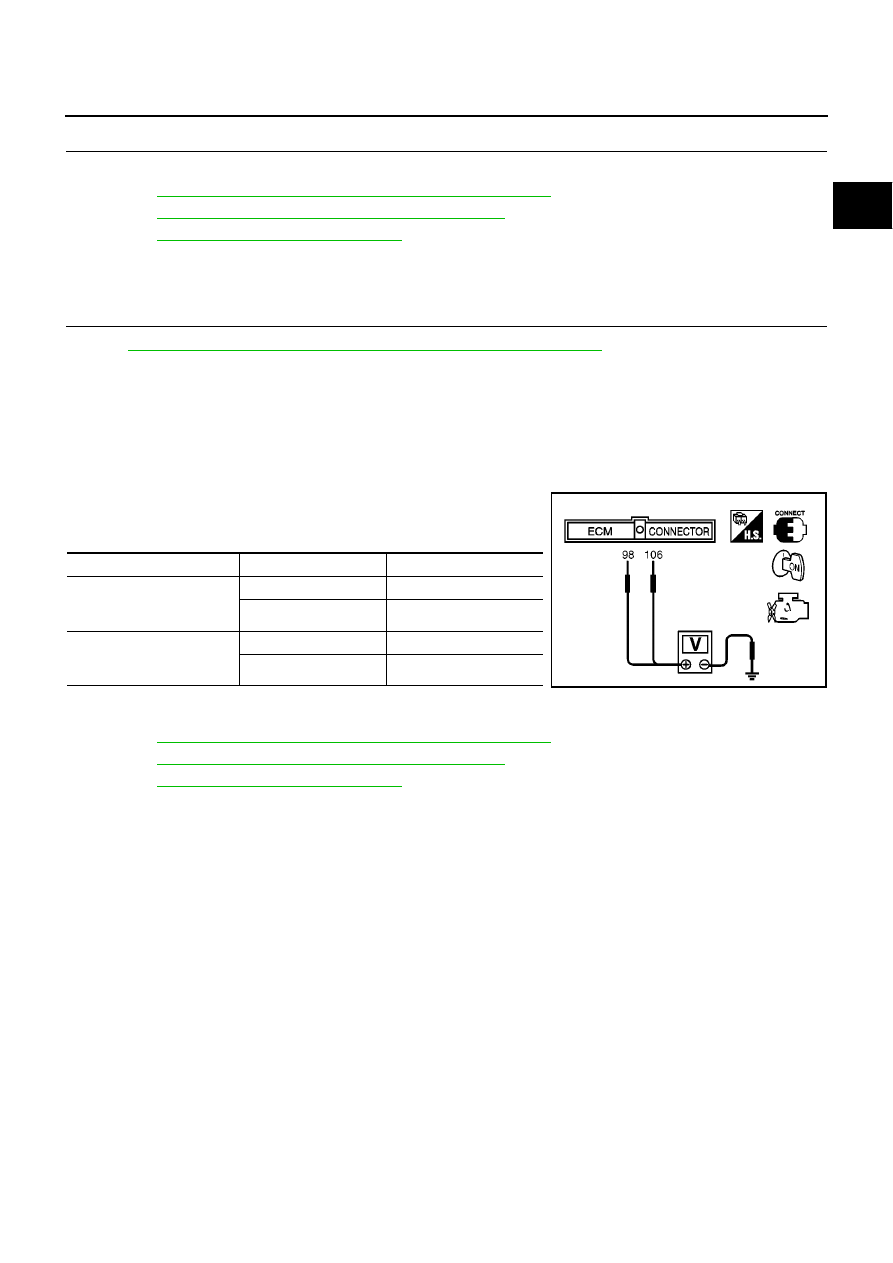

Check voltage between ECM terminals 106 (APP sensor 1 sig-
nal), 98 (APP sensor 2 signal) and engine ground under the fol-
lowing conditions.

If NG, replace accelerator pedal assembly and go to the next
step.

Perform

EC-576, "Accelerator Pedal Released Position Learning"

Perform

EC-576, "Throttle Valve Closed Position Learning"

Perform

EC-576, "Idle Air Volume Learning"

Remove and Installation

EBS00QYA

ACCELERATOR PEDAL

Refer to “ACCELERATOR CONTROL SYSTEM”, FE-3.

Terminal

Accelerator pedal

Voltage

106

(Accelerator pedal position

sensor 1)

Fully released

0.35 - 0.67V

Fully depressed

More than 3.9V

98
(Accelerator pedal position
sensor 2)

Fully released

0.17 - 0.34V

Fully depressed

More than 1.95V

MBIB0023E

EC-728

[QG (WITHOUT EURO-OBD)]

DTC P0227, P0228 APP SENSOR

PFP:18002

Component Description

EBS00QYB

CONSULT-II Reference Value in Data Monitor Mode

EBS00QYC

Specification data are reference values.

*: Accelerator pedal position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.

On Board Diagnosis Logic

EBS00QYD

These self-diagnoses have the one trip detection logic.

FAIL-SAFE MODE

When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.

DTC Confirmation Procedure

EBS00QYE

PBIB0146E

MONITOR ITEM

CONDITION

SPECIFICATION

ACCEL SEN1
ACCEL SEN2*

●

Ignition switch: ON
(engine stopped)

Accelerator pedal: Fully released

0.35 - 0.67V

Accelerator pedal: Fully depressed

More than 3.9V

CLSD THL POS

●

Ignition switch: ON

Accelerator pedal: Fully released

Accelerator pedal: Slightly depressed

OFF

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0227
0227

Accelerator pedal position
sensor 1 circuit low input

An excessively low voltage from the APP sensor 1
is sent to ECM.

●

Harness or connectors
(The APP sensor 1 circuit is open or
shorted.)

●

Accelerator pedal position sensor
(Accelerator pedal position sensor 1)

P0228
0228

Accelerator pedal position
sensor 1 circuit high input

An excessively high voltage from the APP sensor 1
is sent to ECM.

Engine operating condition in fail-safe mode

The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of throttle valve to be slower than the normal condition.
So, the acceleration will be poor.

DTC P0227, P0228 APP SENSOR

EC-729

[QG (WITHOUT EURO-OBD)]

WITH CONSULT-II

Turn ignition switch “ON”.

Select “DATA MONITOR” mode with CONSULT-II.

Start engine and let it idle for 1 second.

If DTC is detected, go to

EC-731, "Diagnostic Procedure"

WITHOUT CONSULT-II

Start engine and let it idle for 1 second.

Turn ignition switch “OFF”, wait at least 10 seconds and then turn “ON”.

Perform “Diagnostic Test Mode II (Self-diagnostic results)” with ECM.

If DTC is detected, go to

EC-731, "Diagnostic Procedure"

SEF058Y

Almera Tino V10 (2003 year). Manual - part 106
