General Specifications

NLEC0788

Unit: rpm

Engine

YD22DDT

Idle speed

750

Maximum engine speed

4,900

Injection Nozzle

NLEC0790

Unit: kPa (bar, kg/cm

, psi)

Initial injection pressure

New

21,476 - 22,457 (214.7 - 224.5, 219 - 229, 3,114 - 3,256)

Limit

18,275 (182.7, 186, 2,650)

Engine Coolant Temperature Sensor

NLEC0791

Temperature °C (°F)

Resistance k

Ω

20 (68)

2.1 - 2.9

50 (122)

0.68 - 1.00

90 (194)

0.236 - 0.260

Crankshaft Position Sensor (TDC)

NLEC0792

Resistance [at 20°C (68°F)]

Ω

495 - 605

Glow Plug

NLEC0793

Resistance [at 25°C (77°F)]

Ω

0.8

Accelerator Position Sensor

NLEC0794

Throttle valve conditions

Resistance between terminals 2 and 4 k

Ω

[at 25°C (77°F)]

Completely closed

0.9 - 1.3

Partially open

0.9 - 2.1

Completely open

1.7 - 2.1

EGR Volume Control Valve

NLEC0795

Resistance [at 25°C (77°F)]

Ω

13 - 17

SERVICE DATA AND SPECIFICATIONS (SDS)

YD22DDTI

General Specifications

EC-1305

SERVICE DATA AND SPECIFICATIONS (SDS)

YD22DDTI

EGR Volume Control Valve (Cont’d)

EC-1306

ELECTRICAL SYSTEM

SECTION

CONTENTS

PRECAUTIONS

...............................................................4

Supplemental Restraint System (SRS)

SEAT BELT PRE-TENSIONER

″

...............4

Wiring Diagrams and Trouble Diagnosis.....................4

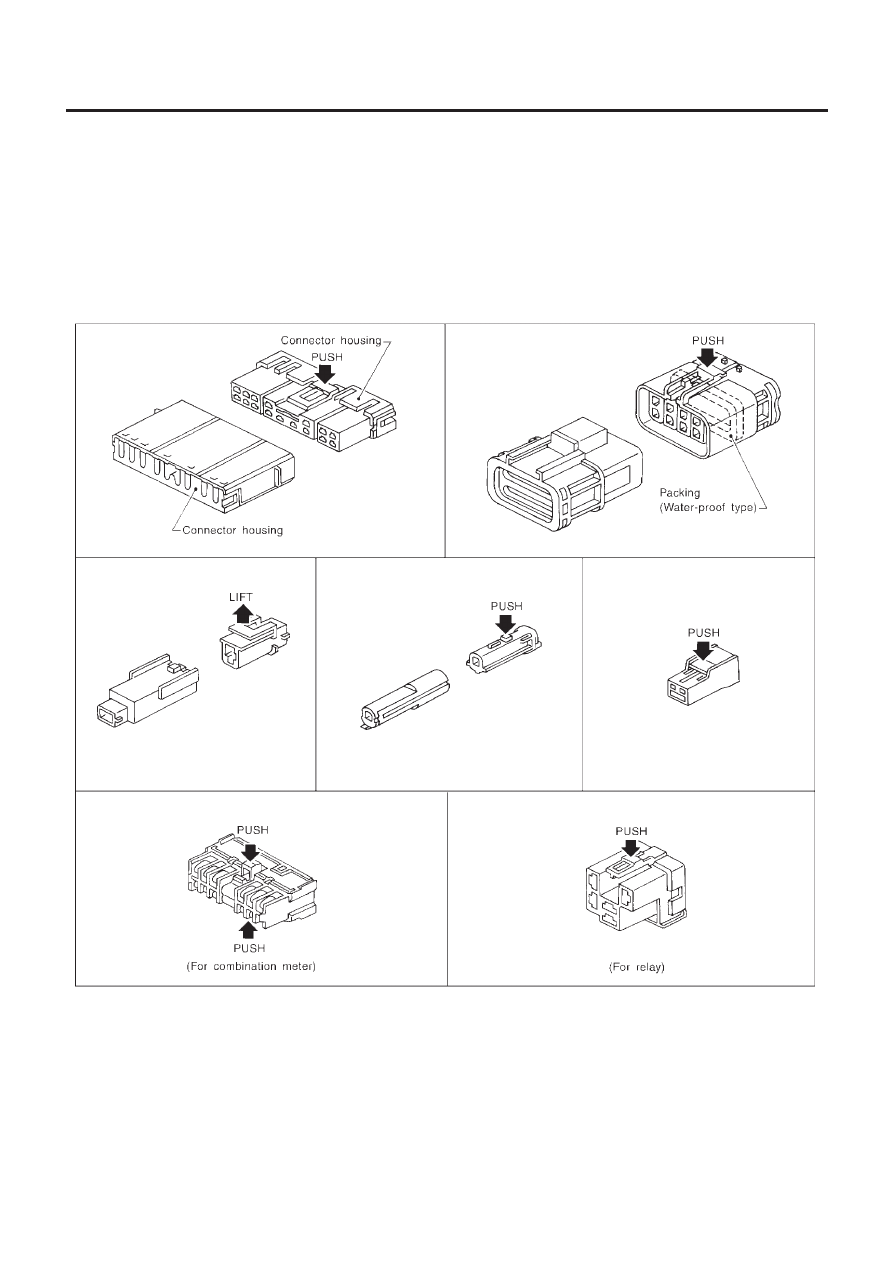

HARNESS CONNECTOR

................................................5

Description ...................................................................5

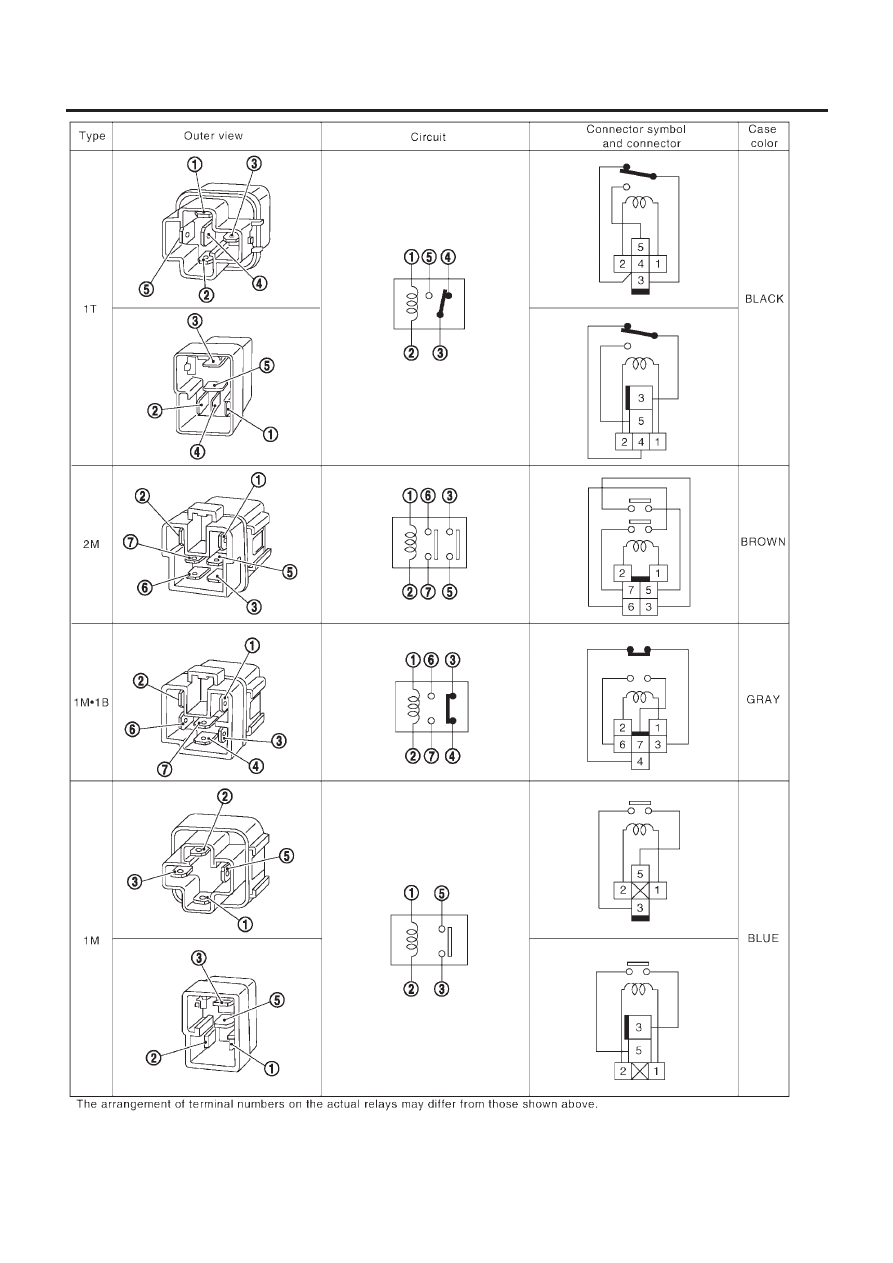

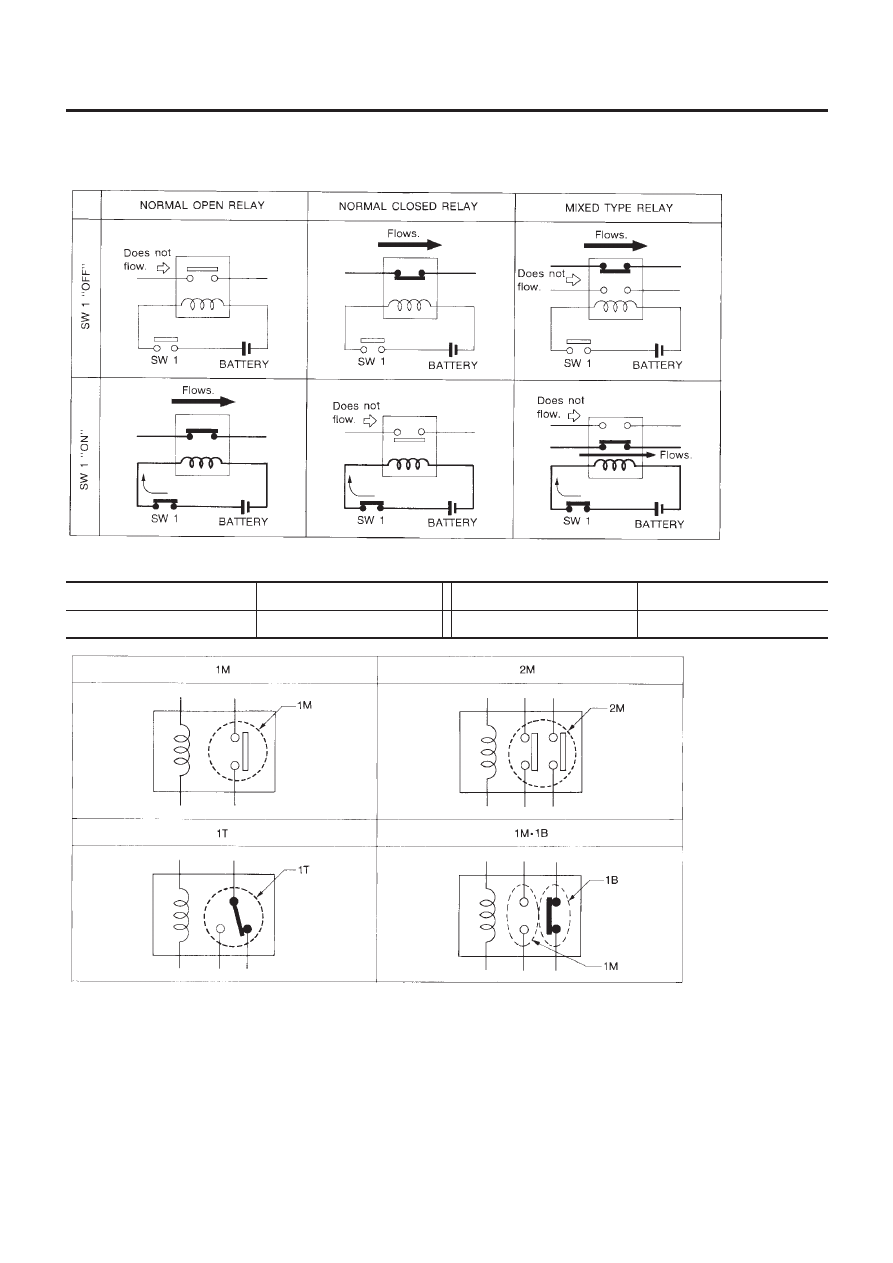

STANDARDIZED RELAY

................................................7

Description ...................................................................7

POWER SUPPLY ROUTING

...........................................9

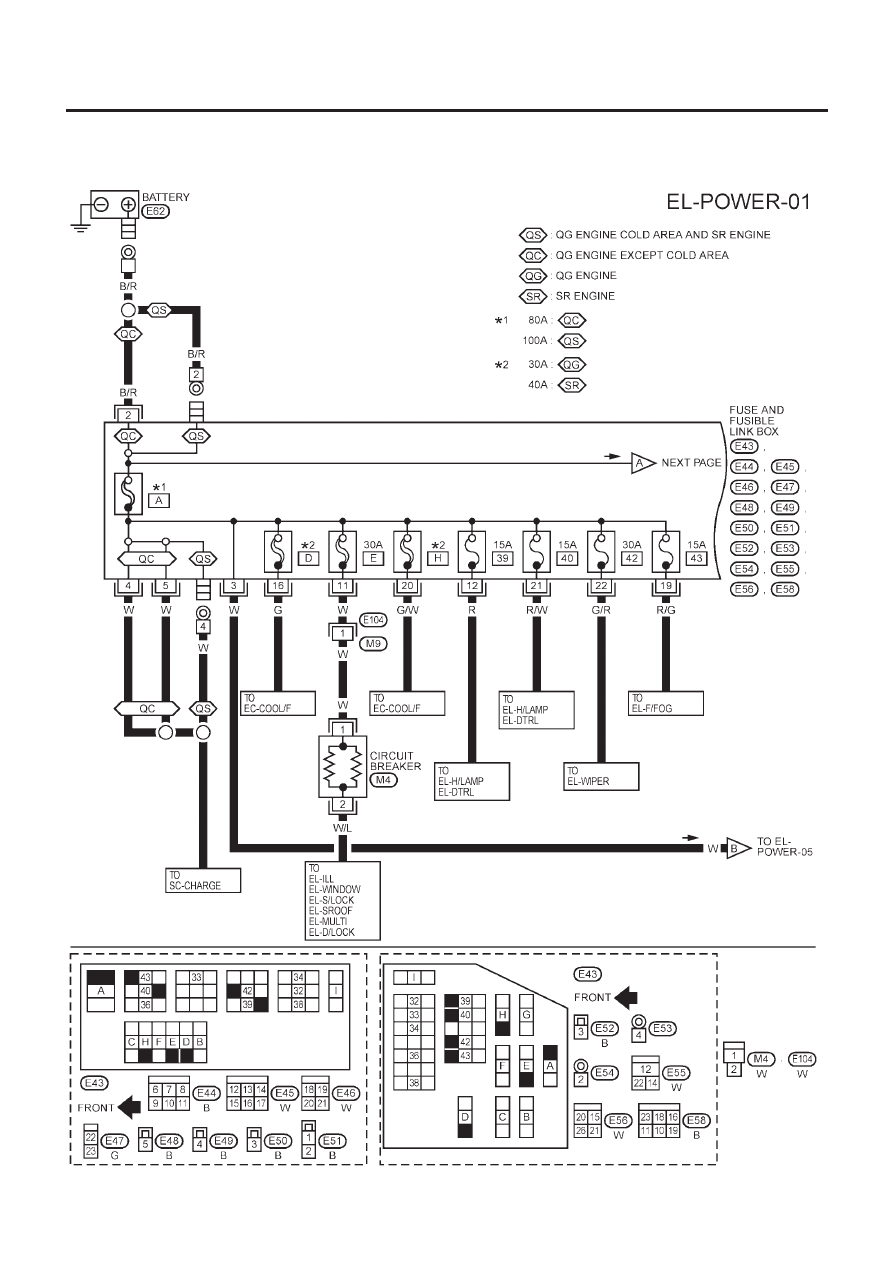

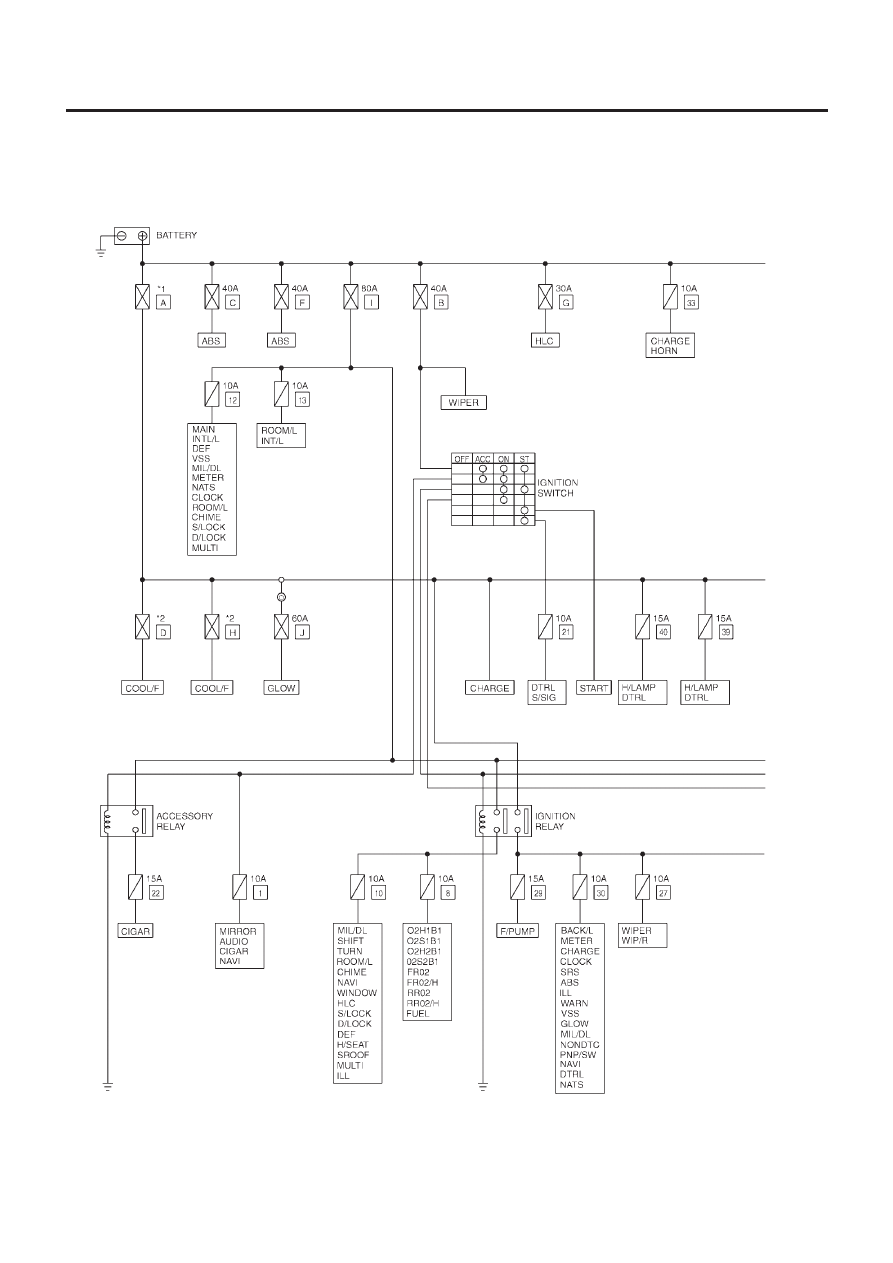

Schematic ..................................................................10
Wiring Diagram - POWER - (Models with fuse
and fusible link box E43) ...........................................14
Wiring Diagram - POWER - (Models with fuse
and fusible link box E90) ...........................................24
Inspection...................................................................32

GROUND

........................................................................33

Ground Distribution (Models with fuse and fusible
link box E43)..............................................................33
Ground Distribution (Models with fuse and fusible
link box E90)..............................................................48

COMBINATION SWITCH

..............................................64

Check.........................................................................64
Replacement..............................................................66

STEERING SWITCH

......................................................67

Check.........................................................................67

HEADLAMP

...................................................................69

Wiring Diagram - H/LAMP -.......................................69
Trouble Diagnoses.....................................................71
Bulb Replacement .....................................................71
Aiming Adjustment .....................................................72

HEADLAMP - DAYTIME LIGHT SYSTEM -

.................73

System Description....................................................73
Schematic ..................................................................74
Wiring Diagram - DTRL -...........................................75
Trouble Diagnoses.....................................................81
Bulb Replacement .....................................................81
Aiming Adjustment .....................................................82

HEADLAMP - HEADLAMP AIMING CONTROL -

........83

Wiring Diagram - H/AIM - ..........................................83

PARKING, LICENSE AND TAIL LAMPS

.....................87

Wiring Diagram - TAIL/L -..........................................87

STOP LAMP

..................................................................91

Wiring Diagram - STOP/L - .......................................91

BACK-UP LAMP

............................................................93

Wiring Diagram - BACK/L - .......................................93

FRONT FOG LAMP

.......................................................95

Wiring Diagram - F/FOG - .........................................95
Bulb Replacement .....................................................97
Aiming Adjustment .....................................................98

REAR FOG LAMP

.........................................................99

Wiring Diagram - R/FOG -.........................................99

TURN SIGNAL AND HAZARD WARNING LAMPS

...101

System Description..................................................101
Wiring Diagram - TURN - ........................................102
Trouble Diagnoses...................................................106

ILLUMINATION

............................................................107

Schematic ................................................................107
Wiring Diagram - ILL - .............................................109

INTERIOR ROOM LAMP

............................................. 116

System Description.................................................. 116
Wiring Diagram - ROOM/L - .................................... 118
Trouble Diagnoses...................................................122

VANITY MIRROR AND LUGGAGE ROOM LAMPS

..129

Wiring Diagram - INT/L - .........................................129

METERS AND GAUGES

.............................................130

Component Parts and Harness Connector
Location ...................................................................130
System Description..................................................130
Combination Meter ..................................................132
Schematic ................................................................134
Construction.............................................................136
Wiring Diagram - METER - .....................................137
Combination Meter Self-Diagnosis ..........................141
Trouble Diagnoses...................................................144
Electrical Components Inspection ...........................153

WARNING LAMPS

......................................................155

Schematic ................................................................155
Wiring Diagram - WARN - .......................................156

Electrical Components Inspection ...........................164

WARNING CHIME

.......................................................165

Component Parts and Harness Connector
Location ...................................................................165
System Description..................................................165
Wiring Diagram - CHIME - ......................................166
Trouble Diagnoses...................................................170

FRONT WIPER AND WASHER

..................................176

System Description..................................................176
Wiring Diagram - WIPER - ......................................178
Removal and Installation .........................................182
Washer Nozzle Adjustment .....................................183
Washer Tube Layout ...............................................183

REAR WIPER AND WASHER

....................................184

Wiring Diagram - WIP/R -........................................184
Removal and Installation .........................................188
Washer Nozzle Adjustment .....................................188
Washer Tube Layout ...............................................189

HEADLAMP WASHER

................................................190

Wiring Diagram - HLC -...........................................190
Washer Tube Layout ...............................................192

HORN

...........................................................................193

Wiring Diagram - HORN - .......................................193

CIGARETTE LIGHTER

................................................195

Wiring Diagram - CIGAR -.......................................195

CLOCK

.........................................................................196

Wiring Diagram - CLOCK -......................................196

REAR WINDOW DEFOGGER

.....................................198

System Description..................................................198
Wiring Diagram - DEF -...........................................199
Trouble Diagnoses...................................................203
Electrical Components Inspection ...........................205
Filament Check........................................................206
Filament Repair .......................................................207

AUDIO

..........................................................................208

System Description..................................................208
Schematic ................................................................210
Wiring Diagram - AUDIO -.......................................212
Trouble Diagnoses...................................................230
Inspection.................................................................232

AUDIO ANTENNA

.......................................................233

Location of Antenna.................................................233
Antenna Rod Replacement .....................................233

HEATED SEAT

............................................................234

Wiring Diagram - H/SEAT - .....................................234

POWER SUNROOF

.....................................................238

Wiring Diagram - SROOF - .....................................238
Trouble Diagnoses...................................................240

DOOR MIRROR

...........................................................241

Wiring Diagram - MIRROR - ...................................241

POWER WINDOW

.......................................................245

System Description..................................................245

Schematic ................................................................247
Wiring Diagram - WINDOW - ..................................248
Trouble Diagnoses...................................................256

POWER DOOR LOCK

.................................................257

Component Parts and Harness Connector
Location/LHD Models ..............................................257
System Description/LHD Models.............................257
Schematic/LHD Models ...........................................258
Wiring Diagram - D/LOCK -/LHD Models................260
Trouble Diagnoses/LHD Models..............................272

POWER DOOR LOCK - SUPER LOCK -

...................281

System Description/RHD Models ............................281
Schematic/RHD Models...........................................284
Wiring Diagram - S/LOCK -/RHD Models ...............286
Trouble Diagnoses/RHD Models .............................300

MULTI-REMOTE CONTROL SYSTEM

.......................314

System Description..................................................314
Wiring Diagram - MULTI - .......................................315
Trouble Diagnoses...................................................319
ID Code Entry Procedure ........................................324
Remote Controller Battery Replacement.................325

TIME CONTROL UNIT

................................................326

Description ...............................................................326
Trouble Diagnoses...................................................327
Schematic ................................................................330

NATS (NISSAN ANTI-THEFT SYSTEM)

.....................334

Component Parts and Harness Connector
Location ...................................................................334
System Description..................................................334
System Composition................................................335
Schematic ................................................................336
Wiring Diagram - NATS -.........................................338
CONSULT-II .............................................................346
Trouble Diagnoses...................................................349
How to Replace NATS IMMU..................................369

NAVIGATION SYSTEM

...............................................370

Precautions ..............................................................370
Component Parts Location ......................................370
System Description..................................................370
Schematic ................................................................379
Wiring Diagram - NAVI -..........................................381
Self-diagnosis Mode ................................................401
Confirmation/Adjustment Mode ...............................404
Control Panel Mode.................................................416
Guide Volume Setting..............................................423
Anti-theft System .....................................................424
CONSULT-II .............................................................425
Trouble Diagnoses...................................................426
This Condition Is Not Abnormal...............................432
Program Loading .....................................................441

ELECTRICAL UNITS LOCATION

...............................442

Engine Compartment...............................................442

CONTENTS

(Cont’d)

EL-2

Passenger Compartment/LHD Models....................444
Passenger Compartment/RHD Models ...................448

HARNESS LAYOUT

....................................................452

Body Harness ..........................................................504
Room Lamp Harness...............................................512
Front Door Harness/LHD Models ............................513
Front Door Harness/RHD Models ...........................517
Rear Door Harness..................................................521
Back Door Harness .................................................523

BULB SPECIFICATIONS

............................................524

Headlamp.................................................................524
Exterior Lamp ..........................................................524
Interior Lamp............................................................524

WIRING DIAGRAM CODES (CELL CODES)

.............525

CONTENTS

(Cont’d)

EL-3

Supplemental Restraint System (SRS) “AIR
BAG” and “SEAT BELT PRE-TENSIONER”

NLEL0001

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER” used along with
a seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of
collision. The SRS system composition which is available to NISSAN MODEL V10 is as follows (The compo-
sition varies according to the destination and optional equipment.):

For a frontal collision
The Supplemental Restraint System consists of driver air bag module (located in the center of the steer-
ing wheel), front passenger air bag module (located on the instrument panel on passenger side), front seat
belt pre-tensioners, a diagnosis sensor unit, warning lamp, wiring harness and spiral cable.

For a side collision
The Supplemental Restraint System consists of front side air bag module (located in the outer side of front
seat), side air bag (satellite) sensor, diagnosis sensor unit (one of components of air bags for a frontal
collision), wiring harness, warning lamp (one of components of air bags for a frontal collision).

Information necessary to service the system safely is included in the RS section of this Service Manual.

WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance should be per-
formed by an authorized NISSAN dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the RS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. Spiral cable and wiring harnesses covered with yellow insulation tape either just
before the harness connectors or for the complete harness are related to the SRS.

Wiring Diagrams and Trouble Diagnosis

NLEL0002

When you read wiring diagrams, refer to the following:

Refer to GI-11, “HOW TO READ WIRING DIAGRAMS”

Refer to EL-10, “POWER SUPPLY ROUTING” for power distribution circuit

When you perform trouble diagnosis, refer to the following:

Refer to GI-32, “HOW TO FOLLOW TEST GROUP IN TROUBLE DIAGNOSIS”

Refer to GI-21, “HOW TO PERFORM EFFICIENT DIAGNOSIS FOR AN ELECTRICAL INCIDENT”

Check for any Service bulletins before servicing the vehicle.

PRECAUTIONS

Supplemental Restraint System (SRS) “AIR BAG” and “SEAT BELT PRE-TENSIONER”

EL-4

Description

NLEL0003

HARNESS CONNECTOR (TAB-LOCKING TYPE)

NLEL0003S01

The tab-locking type connectors help prevent accidental looseness or disconnection.

The tab-locking type connectors are disconnected by pushing or lifting the locking tab(s). Refer to the
illustration below.

Refer to the next page for description of the slide-locking type connector.

CAUTION:

Do not pull the harness or wires when disconnecting the connector.
[Example]

SEL769DA

HARNESS CONNECTOR

Description

EL-5

HARNESS CONNECTOR (SLIDE-LOCKING TYPE)

=NLEL0003S02

A new style slide-locking type connector is used on certain systems and components, especially those
related to OBD.

The slide-locking type connectors help prevent incomplete locking and accidental looseness or disconnec-
tion.

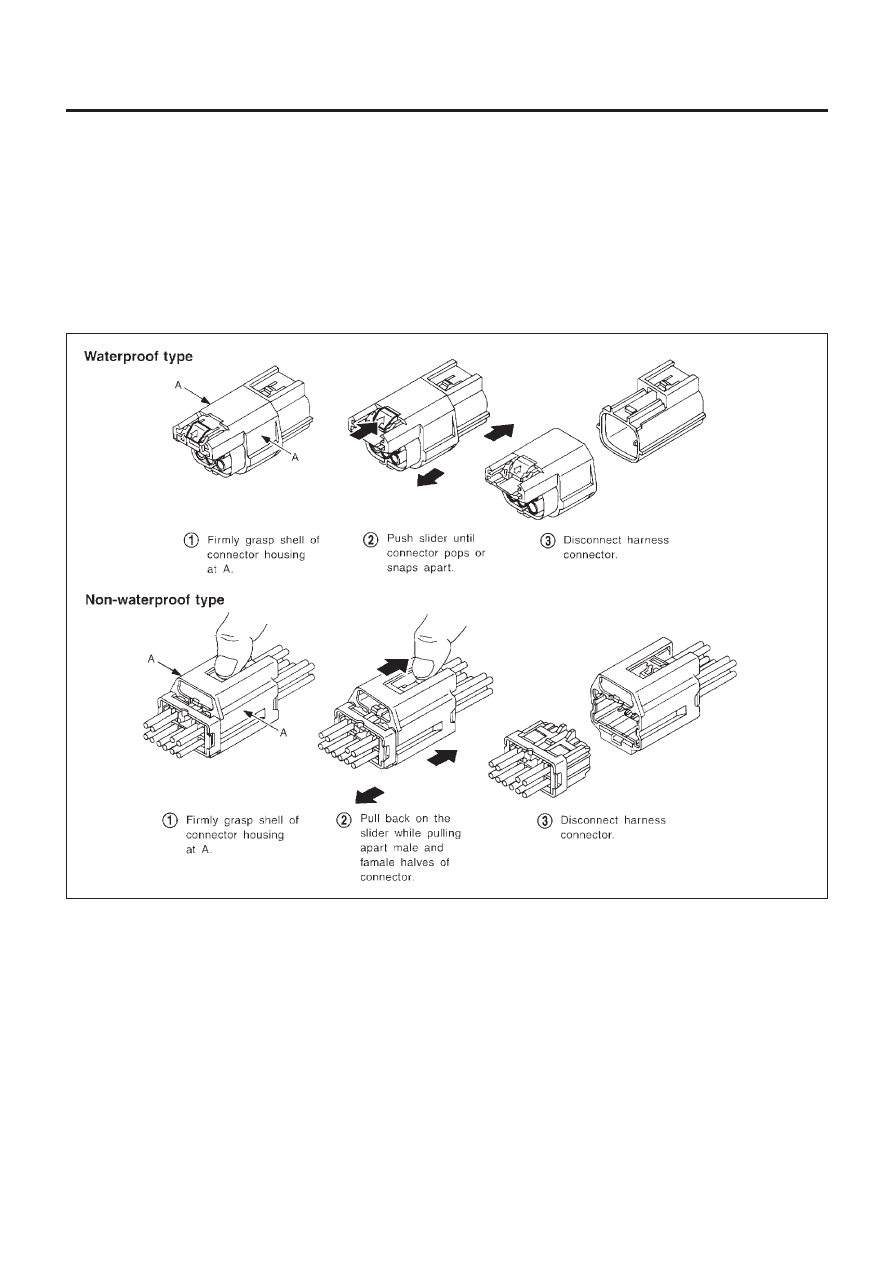

The slide-locking type connectors are disconnected by pushing or pulling the slider. Refer to the illustra-
tion below.

CAUTION:

Do not pull the harness or wires when disconnecting the connector.

Be careful not to damage the connector support bracket when disconnecting the connector.

[Example]

SEL769V

HARNESS CONNECTOR

Description (Cont’d)

EL-6

Description

NLEL0004

NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS

NLEL0004S01

Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.

SEL881H

TYPE OF STANDARDIZED RELAYS

NLEL0004S02

1 Make

2 Make

1 Transfer

1M·1B

1 Make 1 Break

SEL882H

STANDARDIZED RELAY

Description

EL-7

GEL264

STANDARDIZED RELAY

Description (Cont’d)

EL-8

NOTE:

POWER SUPPLY ROUTING

EL-9

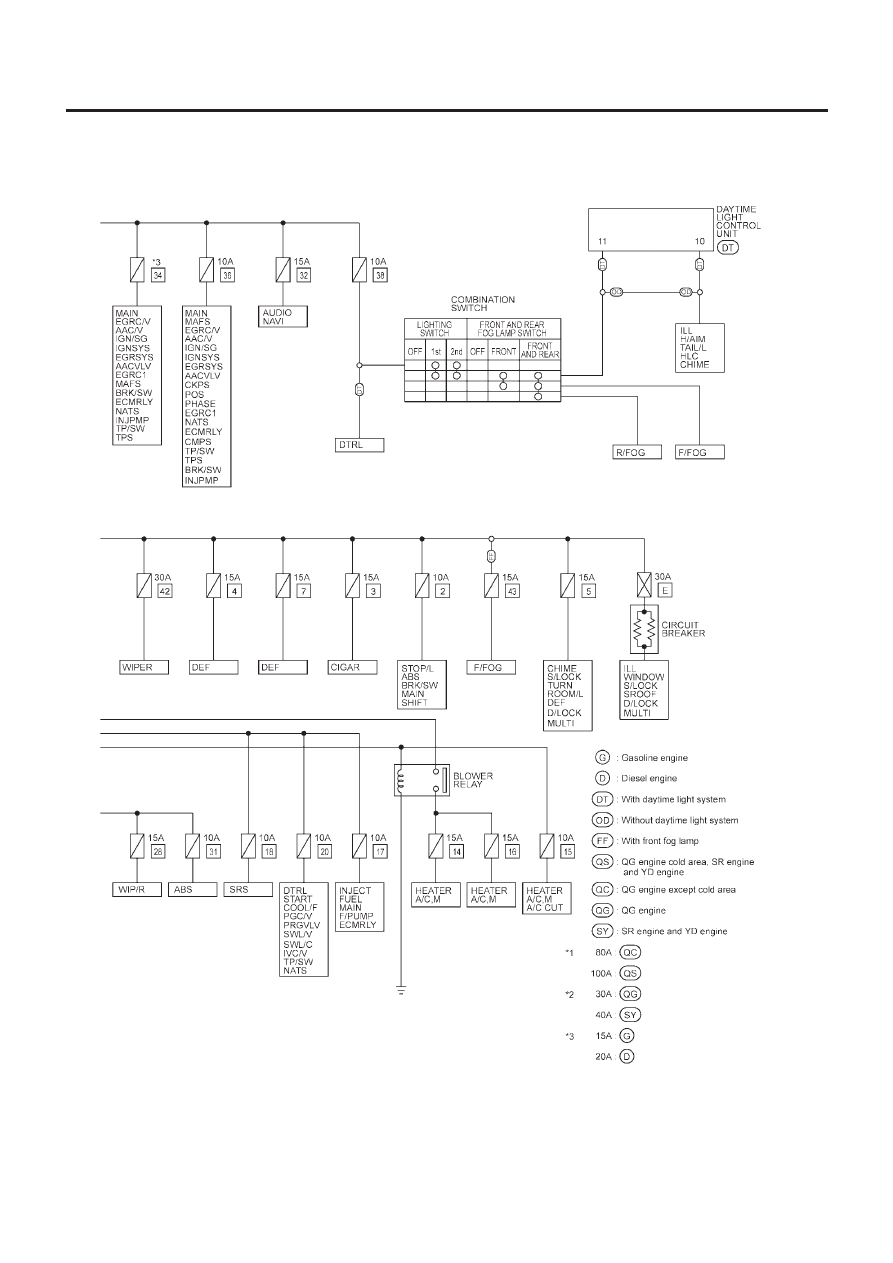

Schematic

NLEL0418

MODELS WITH FUSE AND FUSIBLE LINK BOX E43

NLEL0418S01

YEL860B

POWER SUPPLY ROUTING

Schematic

EL-10

YEL861B

POWER SUPPLY ROUTING

Schematic (Cont’d)

EL-11

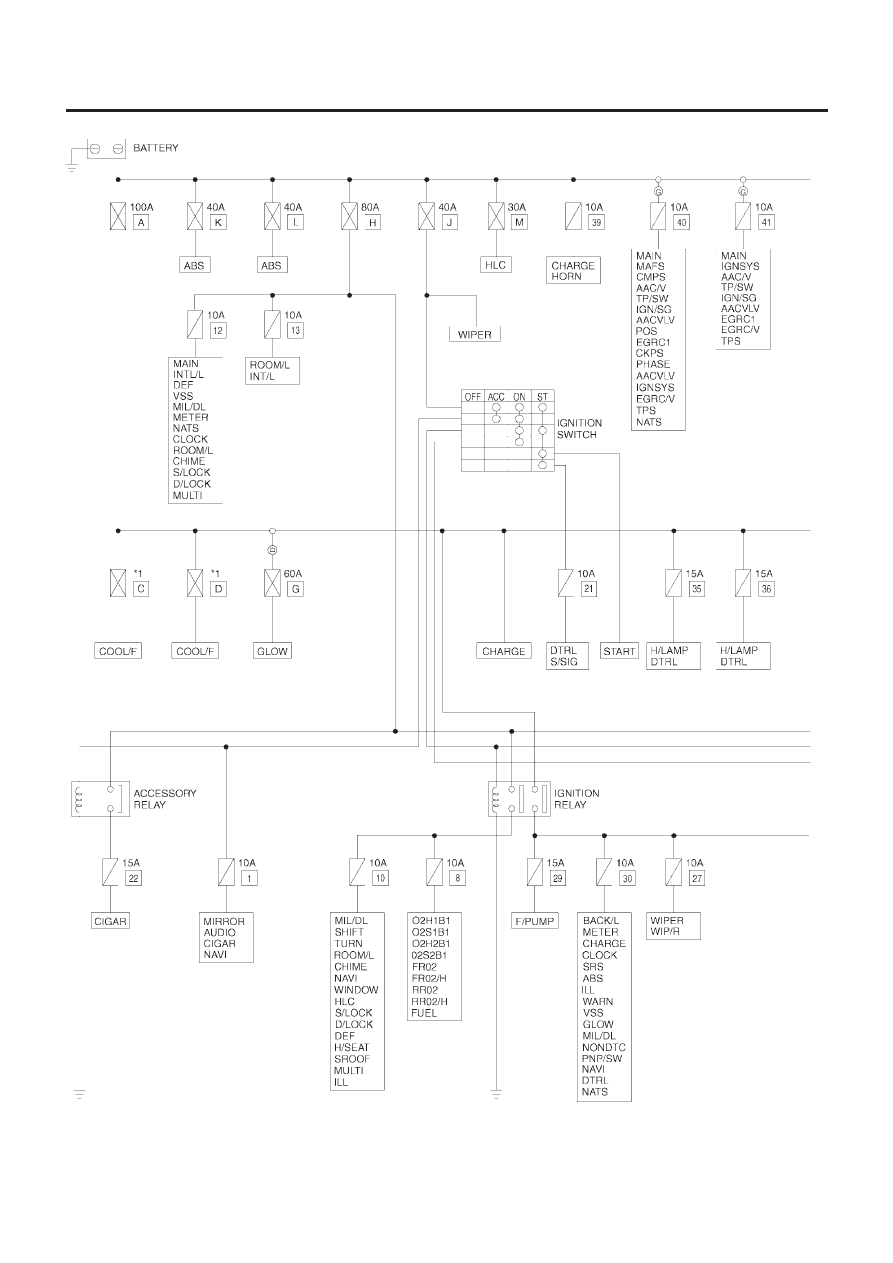

MODELS WITH FUSE AND FUSIBLE LINK BOX E90

NLEL0418S04

YEL390C

POWER SUPPLY ROUTING

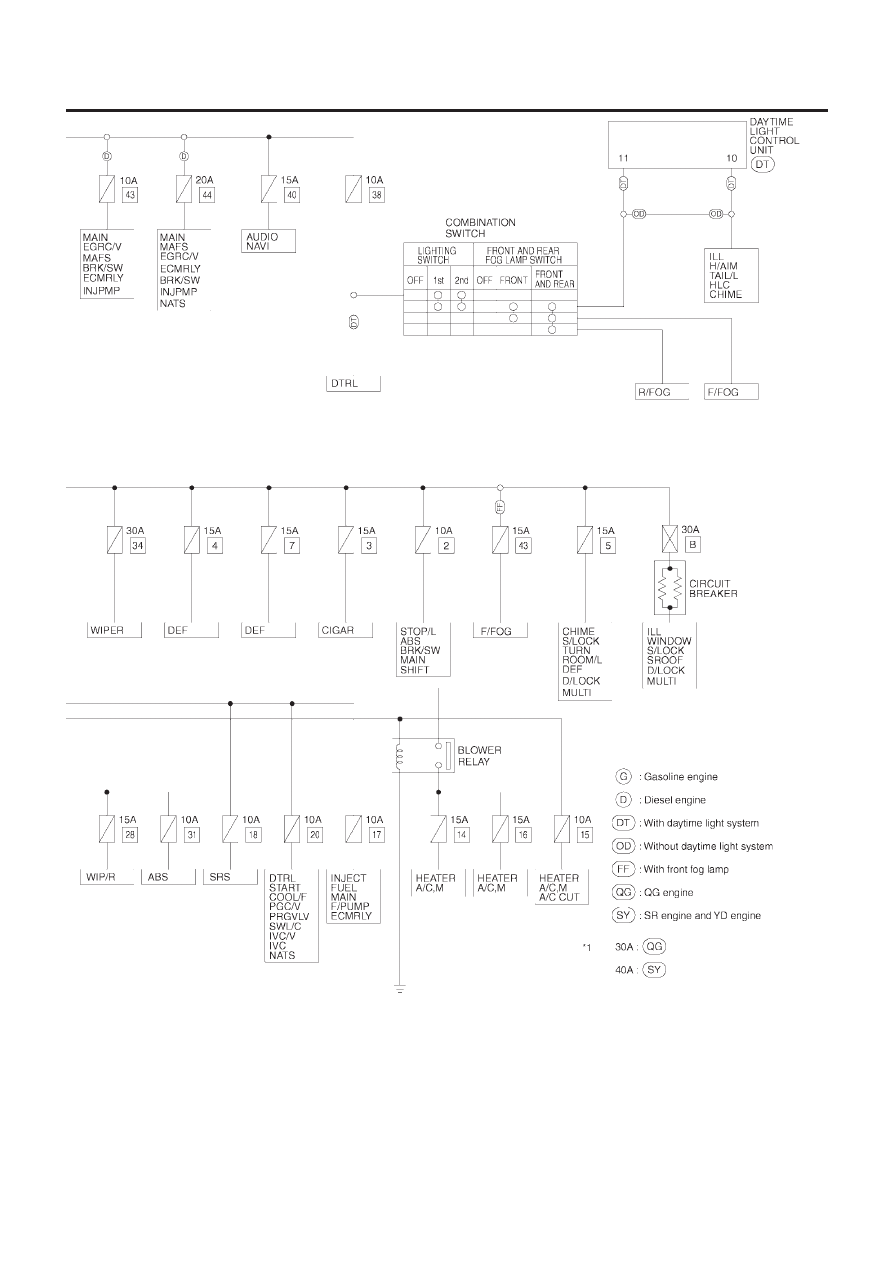

Schematic (Cont’d)

EL-12

YEL391C

POWER SUPPLY ROUTING

Schematic (Cont’d)

EL-13

Wiring Diagram — POWER — (Models with
fuse and fusible link box E43)

NLEL0419

BATTERY POWER SUPPLY — IGNITION SW. IN ANY POSITION

NLEL0419S01

YEL862B

POWER SUPPLY ROUTING

Wiring Diagram — POWER — (Models with fuse and fusible link box E43)

EL-14

Content .. 107 108 109 110 ..
