Nissan Almera Tino V10. Manual

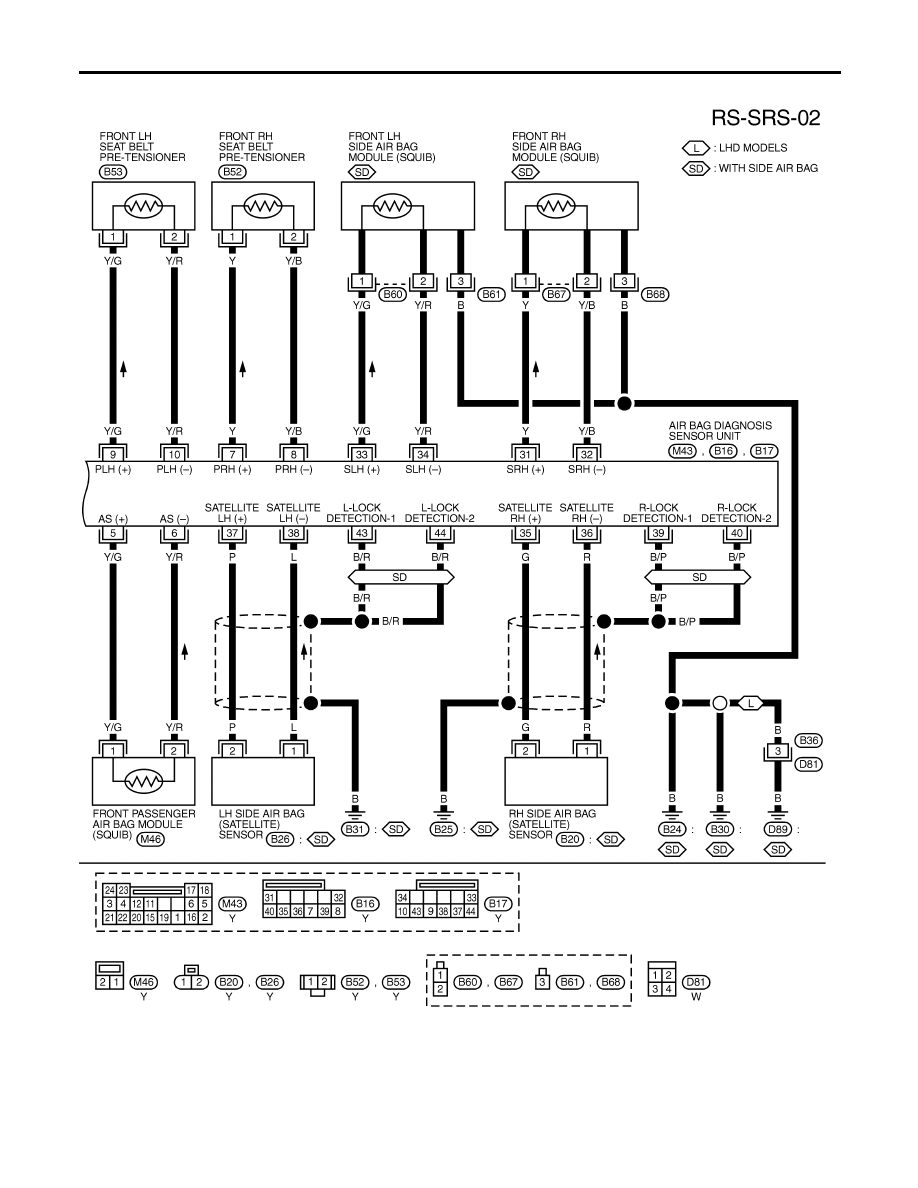

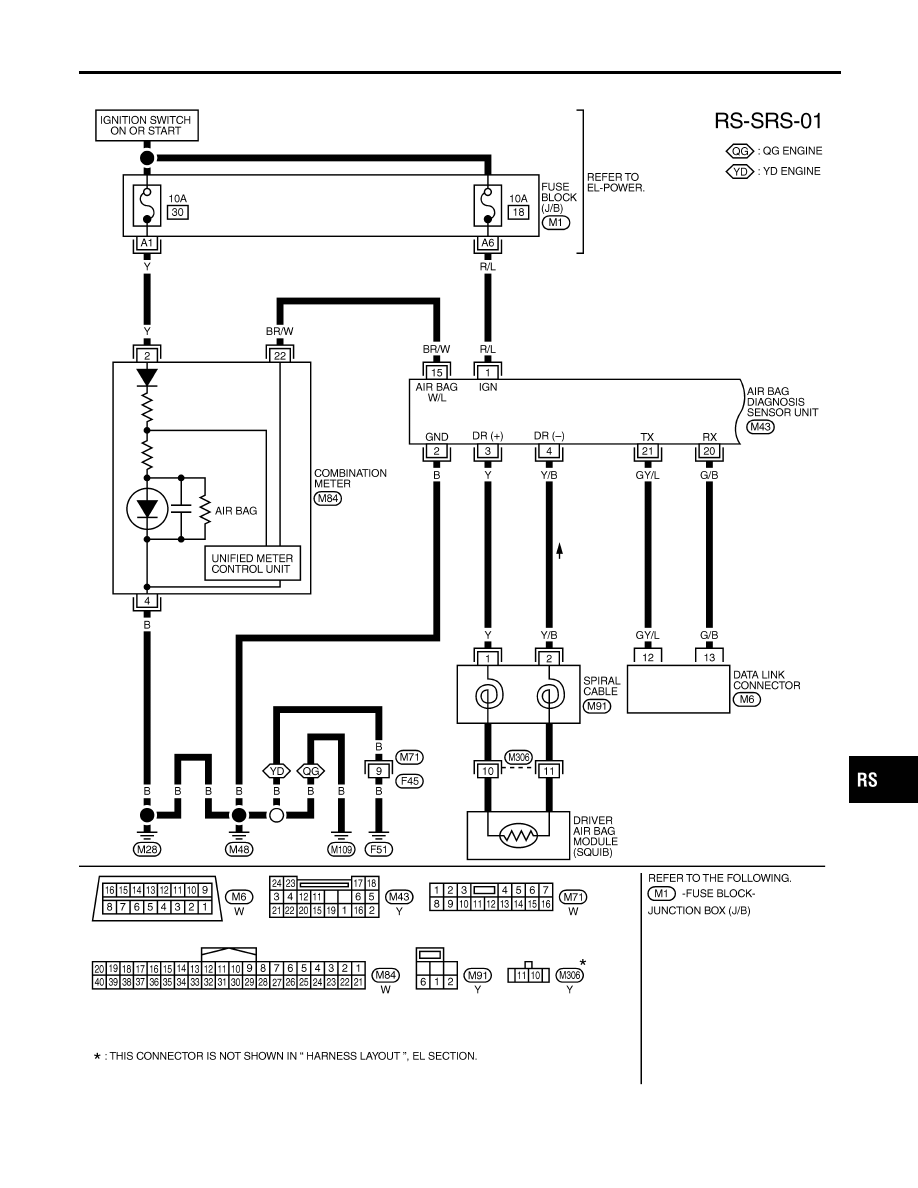

Wiring Diagram — SRS —

NLRS0061

YRS103A

IDX

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Wiring Diagram — SRS —

RS-41

SRS800

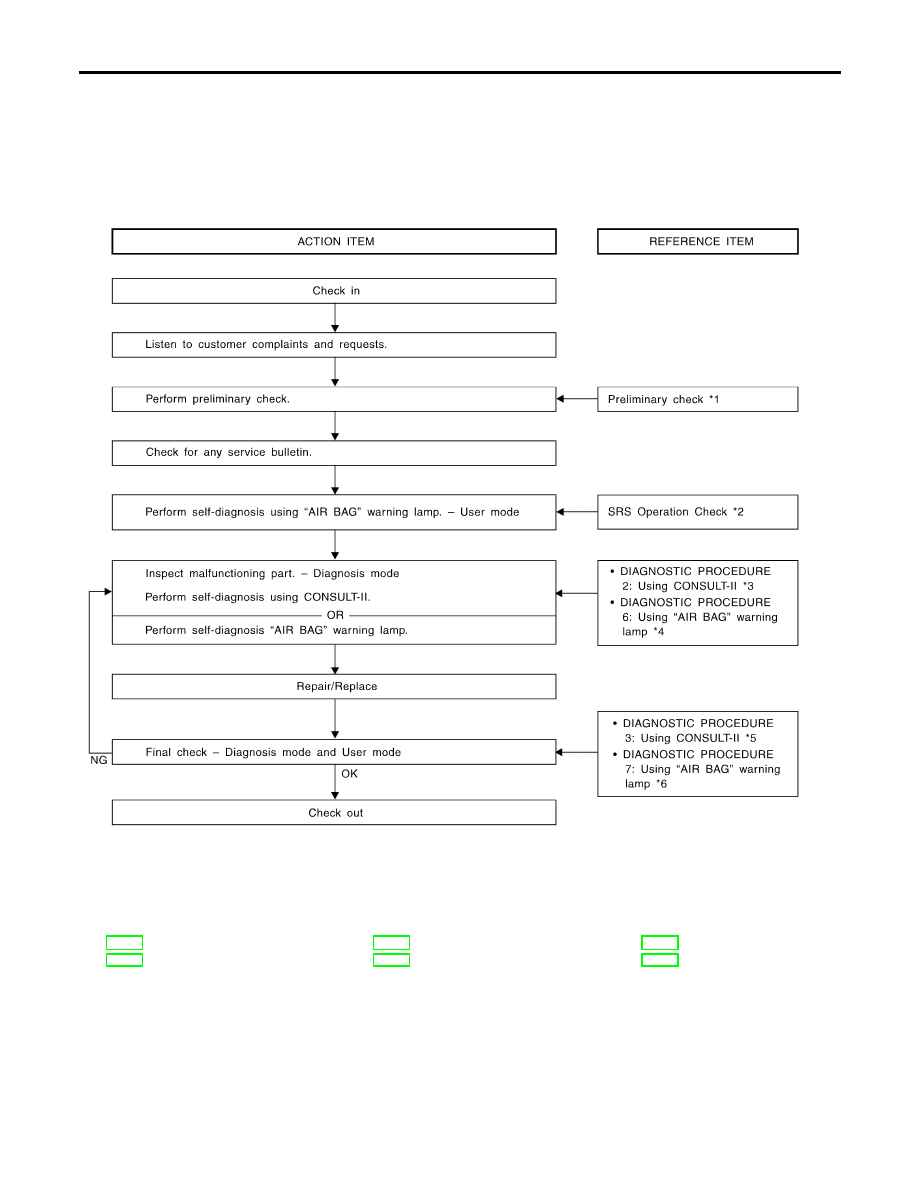

SRS Operation Check

NLRS0047

DIAGNOSTIC PROCEDURE 1

NLRS0047S01

Checking Air Bag Operation by Using “AIR BAG”
Warning Lamp — User Mode

NLRS0047S0101

After turning ignition switch from “OFF” to “ON”, “AIR BAG”
warning lamp operates.

Compare “AIR BAG” warning lamp operation to the chart
below.

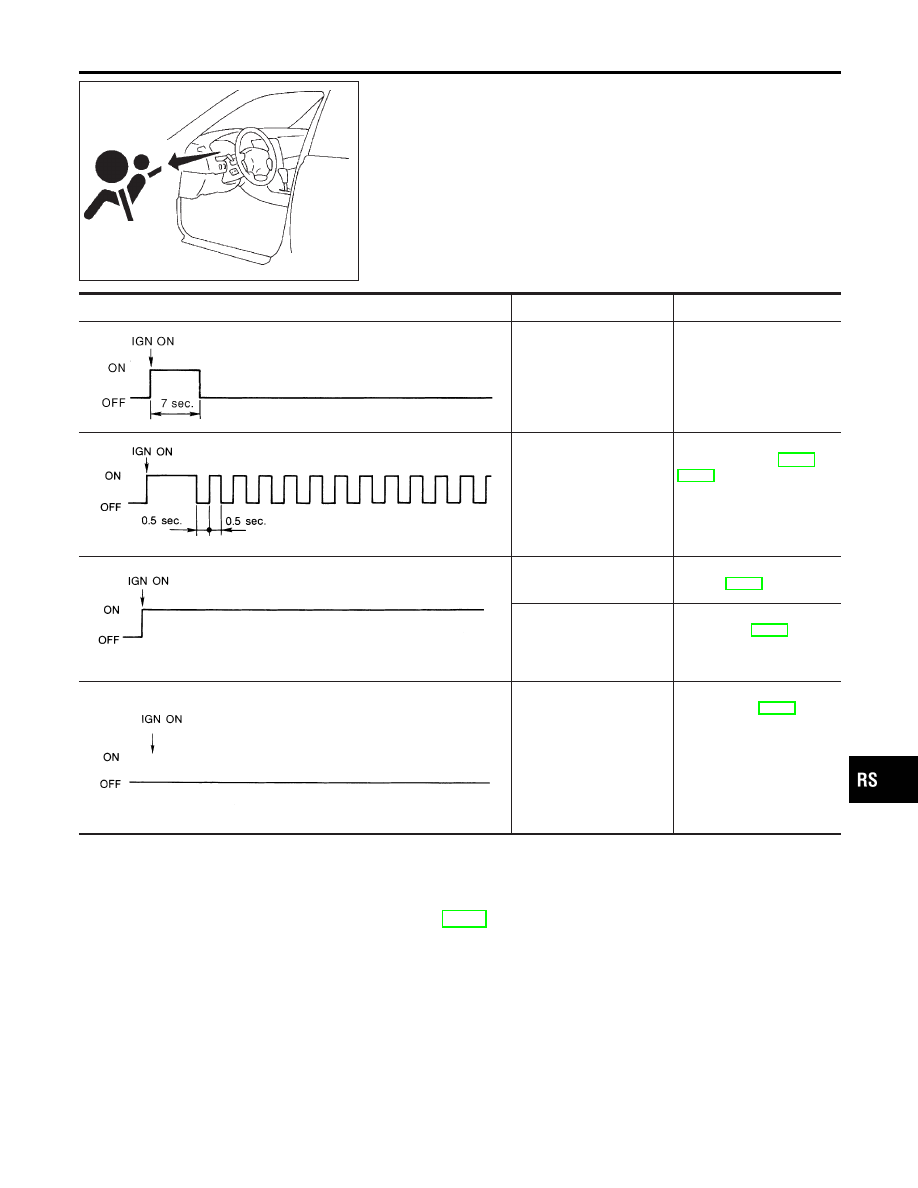

“AIR BAG” warning lamp operation — User mode —

SRS condition

Reference item

MRS095A

No malfunction is
detected. No further action
is necessary.

—

MRS096A

The system is malfunction-
ing and needs to be
repaired as indicated.

Go to DIAGNOSTIC PRO-
CEDURE 2 or 6 (RS-44 or
RS-53).

MRS097A

Air bag or/and seat belt
pre-tensioner is deployed.

Go to COLLISION DIAG-
NOSIS (RS-64).

Air bag fuse, diagnosis
sensor unit or harness is
malfunctioning and needs
to be repaired.

Go to DIAGNOSTIC PRO-
CEDURE 9 (RS-61).

MRS098A

One of the following has
occurred and needs to be
repaired.

Meter fuse is blown.

“AIR BAG” warning
lamp circuit has open or
short.

Diagnosis sensor unit is
malfunctioning.

Go to DIAGNOSTIC PRO-
CEDURE 10 (RS-63).

NOTE:
If “AIR BAG” warning lamp operates differently from the
operations shown above, refer to “AIR BAG” warning lamp
operation — Diagnosis mode —, DIAGNOSTIC PROCEDURE 6
(step 4), RS-53.

IDX

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

SRS Operation Check

RS-43
