Nissan Almera Tino V10. Manual - part 949





NRS099

SEAT BELTS

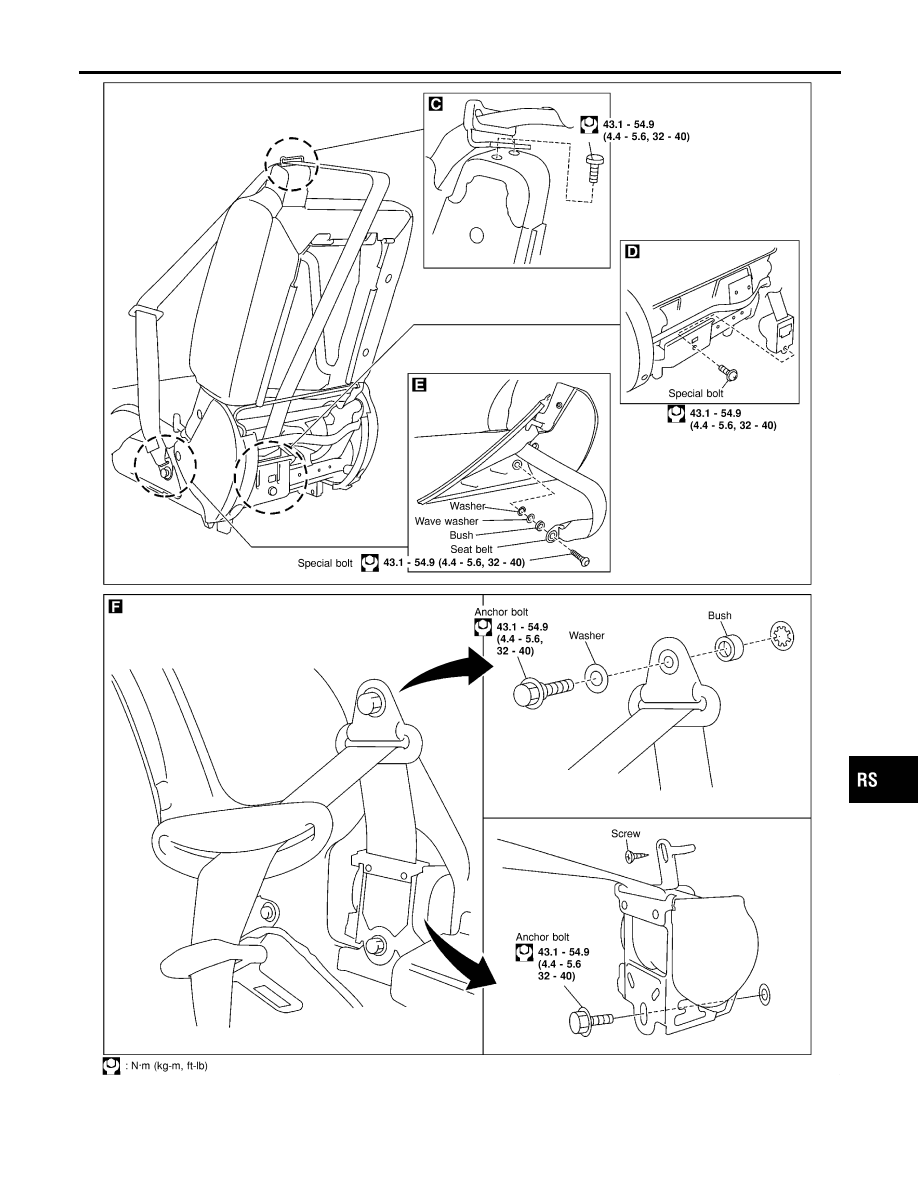

Rear Seat Belt (Cont’d)

RS-8

NRS100

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

BT

HA

SC

EL

IDX

SEAT BELTS

Rear Seat Belt (Cont’d)

RS-9

REMOVAL AND INSTALLATION (MODELS WITH ROOF SEAT BELT)

=NLRS0063

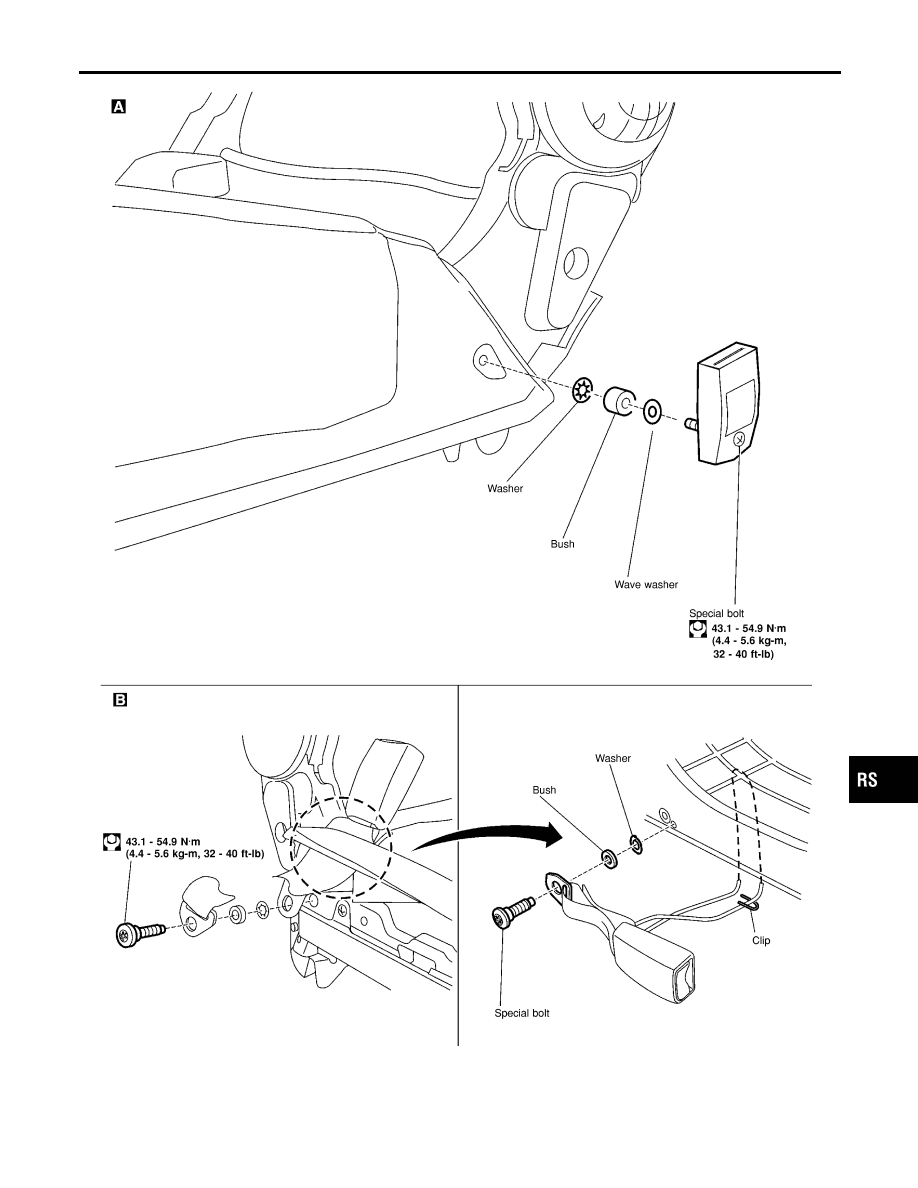

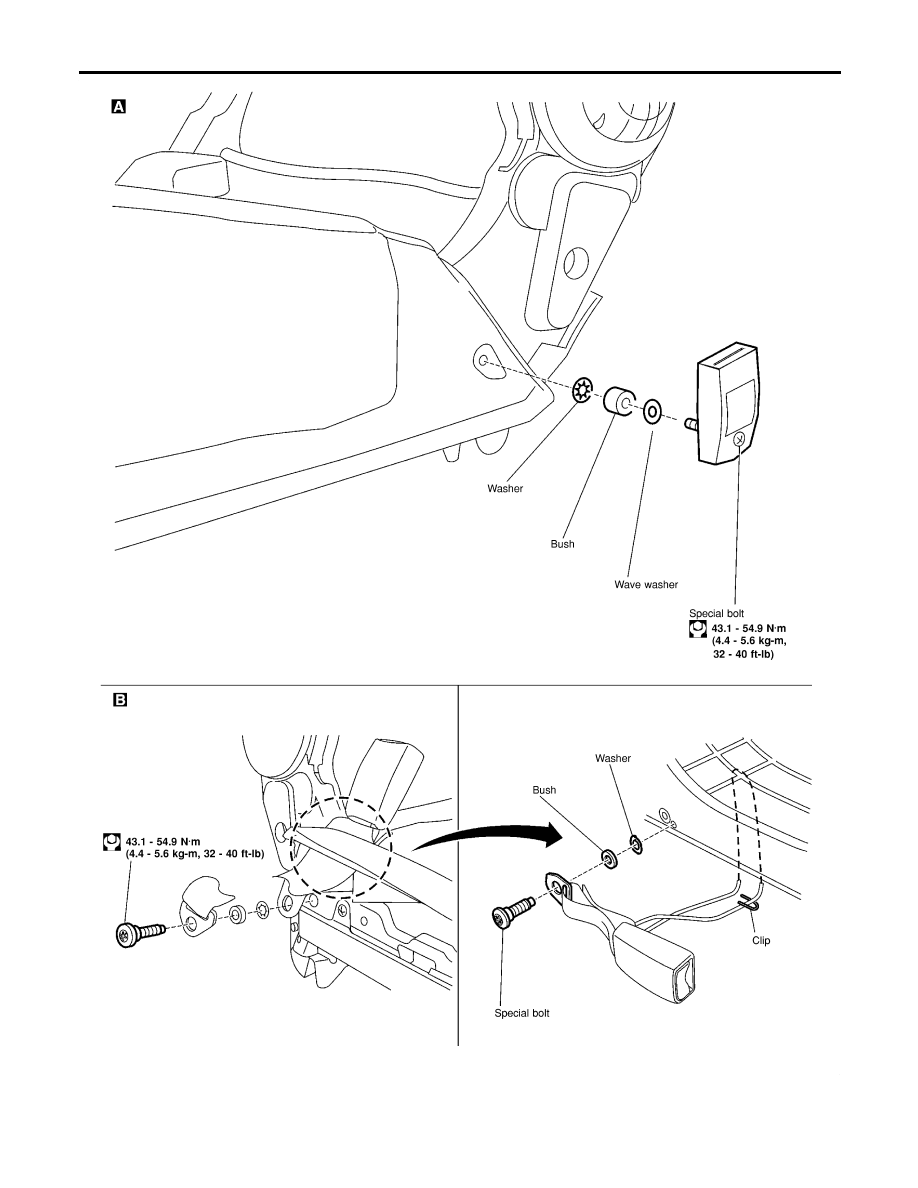

1. Remove the outer rear seats. Refer to BT-48, “REAR SEAT” for details.
2. Remove lower seat trim.
3. Remove the special bolts, using the TAMPER RESISTANT TORX (Size T50) and seat belt buckles can

be removed.

4. Remove the center seat. Refer to BT-48, “REAR SEAT” for details.
5. Remove lower seat trim.
6. Remove the special bolts, using the TAMPER RESISTANT TORX (Size T50) and the seat belt - bracket,

and - buckle can be removed.

7. Remove cover garnish at headlining. Refer to BT-27, “SIDE AND FLOOR TRIM” for details. Then remove

seat belt retractor.

8. Remove rear side garnish. Refer to BT-27, “SIDE AND FLOOR TRIM” for details.
9. Remove bolts securing rear seat belt retractor, then remove seat belt and seat belt retractor.

NRS128

SEAT BELTS

Rear Seat Belt (Cont’d)

RS-10

NRS099

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

BT

HA

SC

EL

IDX

SEAT BELTS

Rear Seat Belt (Cont’d)

RS-11
