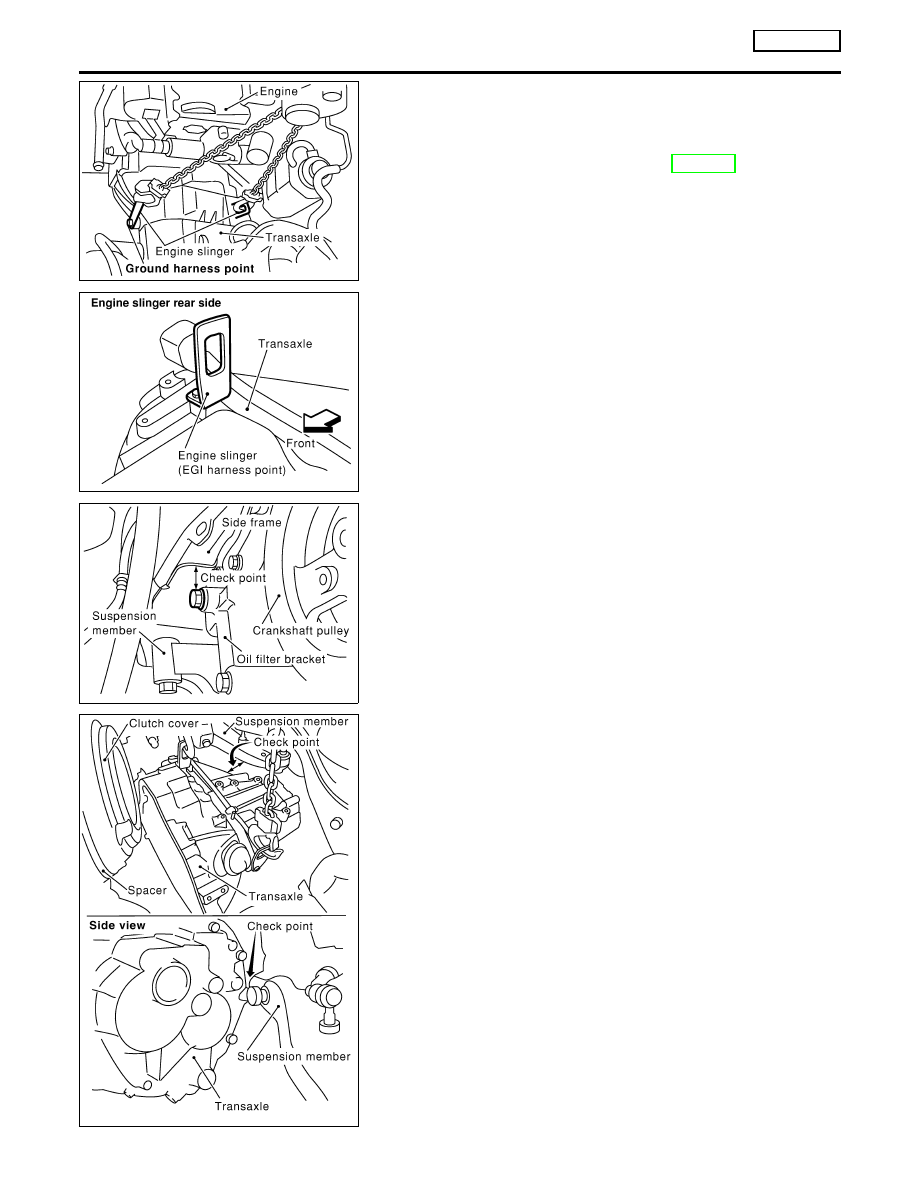

22. Pick up EGI harness clamp and install engine slinger. Next, set

chain block.

23. Jack up the air compressor engine bracket.
24. Remove engine front mounting.
25. Remove LH side mounting. Refer to EM-197, “Removal and

Installation”.

SMT952D

26. Jack up until engine oil filter bracket bolts are just about to

touch the side frame.

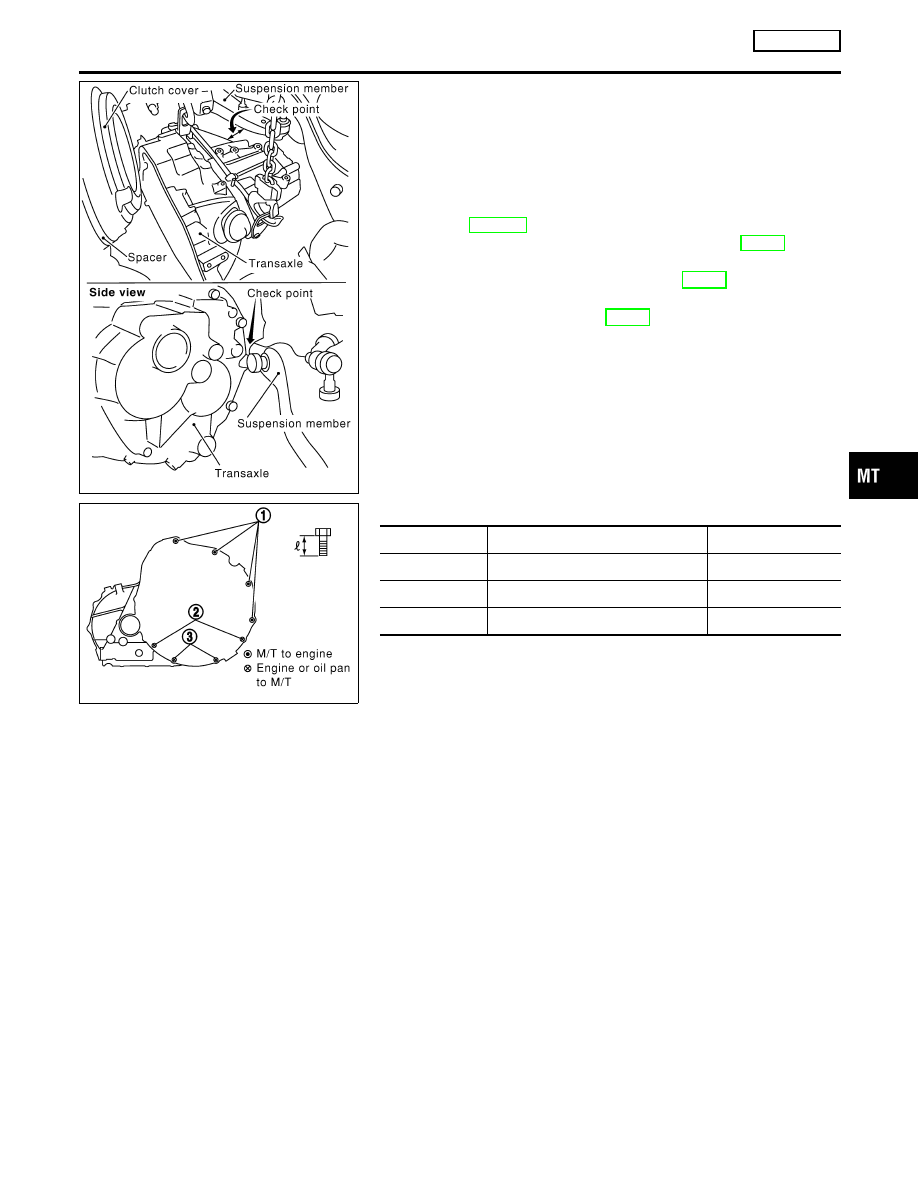

SMT941D

27. Remove bolts securing transaxle.
28. While the transaxle is suspended, withdraw the transaxle case

from the engine without hitting suspension member.

I

Open the front of the transaxle when the clutch cover
appears. Then, lower the transaxle pulling it toward the
right front.

I

The spacer between the engine and transaxle should be
left at the engine side.

29. Remove spacer.

REMOVAL AND INSTALLATION

RS5F50A

Removal (Cont’d)

MT-22

SMT941D

Installation

NLMT0090S02

1.

Put transaxle under the engine compartment.

2.

Set chain block on transaxle and hang.

3.

Lift up transaxle case so as not to hit against the side frame
and suspension member.

4.

Assemble transaxle to engine.

I

Tighten LH mount, rear side mount and center member bolts.
Refer to EM-197, “Removal and Installation”.

I

Tighten clutch operating cylinder bolts. Refer to CL-15, “Instal-
lation”.

I

Tighten starter motor bolts. Refer to SC-19, “Removal and
Installation”.

I

Install drive shafts. Refer to AX-11, “Installation”.

I

Tighten all transaxle bolts and any part removed.

SMT932D

MODEL YD ENGINE

NLMT0090S0201

Bolt No.

Tightening torque

N·m (kg-m, ft-lb)



mm (in)

1

40 - 49 (4.0 - 5.0, 29 - 36)

70 (2.76)

2

30.4 - 36.3 (3.1 - 3.7, 23 - 26)

60 (2.36)

3

30.4 - 36.3 (3.1 - 3.7, 23 - 26)

55 (2.17)

GI

MA

EM

LC

EC

FE

CL

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REMOVAL AND INSTALLATION

RS5F50A

Installation

MT-23

NLMT0038

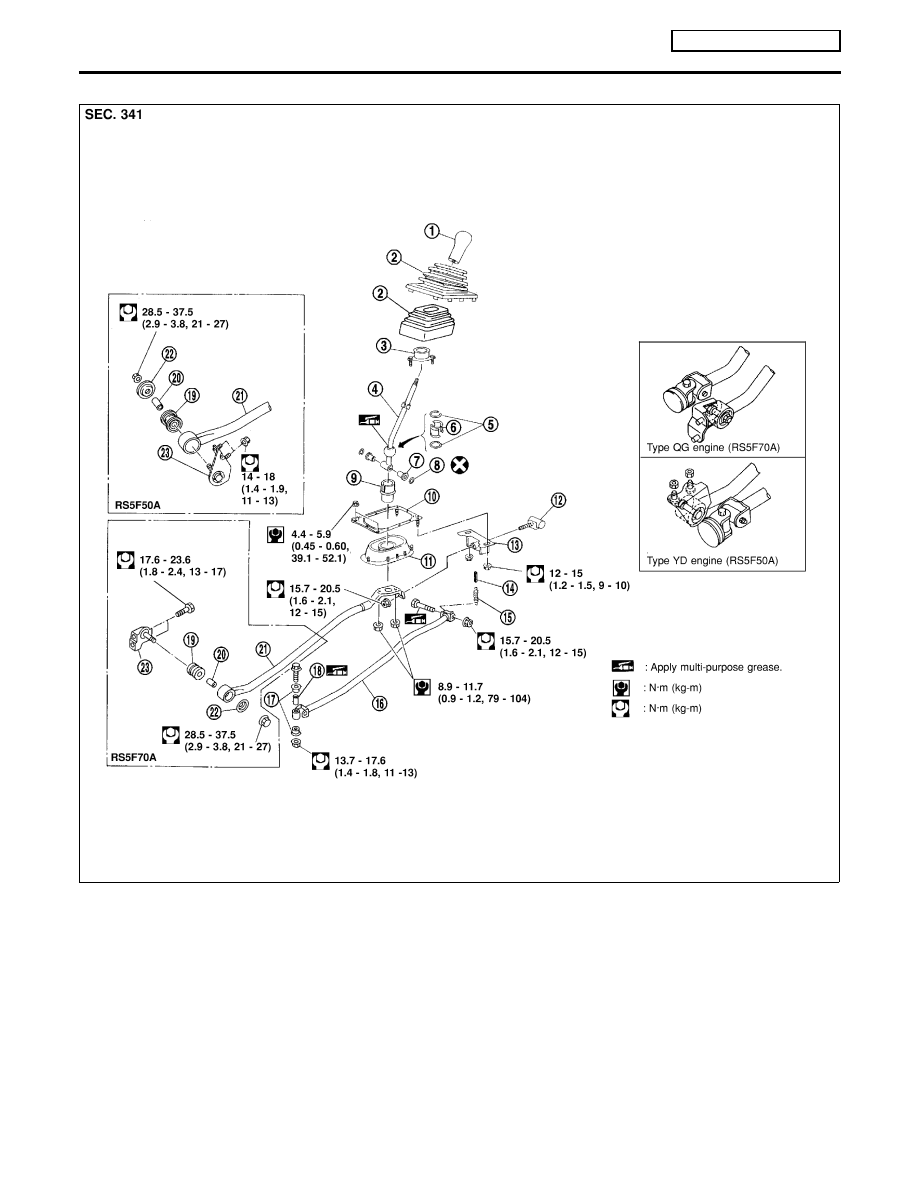

Components

NLMT0038S01

NMT133

1.

Control lever knob

2.

Boot

3.

Control lever socket

4.

Control lever

5.

Bearing seat spring

6.

Seat

7.

Bushing

8.

O-ring

9.

Hand lever socket

10. Plate bolt
11. Transaxle hole cover
12. Mass damper
13. Holder bracket
14. Return spring rubber
15. Return spring
16. Control rod

17. Bushing
18. Collar
19. Bushing
20. Collar
21. Support rod
22. Plate
23. Support rod bracket

TRANSAXLE GEAR CONTROL

RS5F70A, RS5F50A

Components

MT-24

NLMT0054

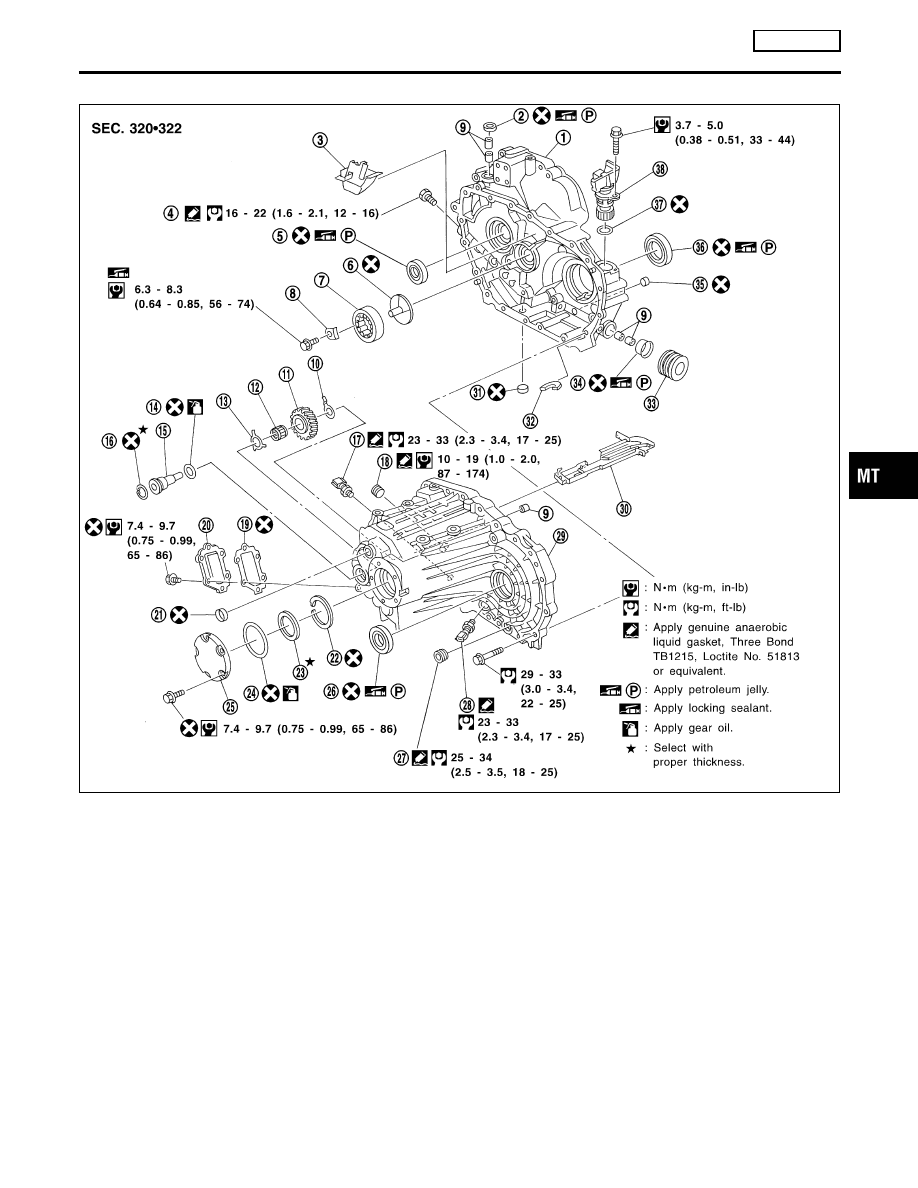

Case Components

NLMT0054S02

SMT942D

1.

Clutch housing

2.

Dust seal

3.

Oil pocket

4.

Check plug

5.

Input shaft oil seal

6.

Oil channel

7.

Mainshaft front bearing

8.

Bearing retainer

9.

Bushing

10. Reverse idler gear front thrust

washer

11. Reverse idler gear
12. Reverse idler gear bearing
13. Reverse idler gear rear thrust

washer

14. O-ring
15. Reverse idler gear shaft
16. Snap ring
17. Reverse switch
18. Filler plug
19. Side cover gasket
20. Side cover
21. Welch plug
22. Mainshaft bearing snap ring
23. Mainshaft rear bearing adjusting

shim

24. O-ring
25. Rear cover

26. Differential oil seal
27. Drain plug
28. PNP switch
29. Transmission case
30. Oil gutter
31. Welch plug
32. Magnet
33. Boot
34. Striking rod oil seal
35. Welch plug
36. Differential oil seal
37. O-ring
