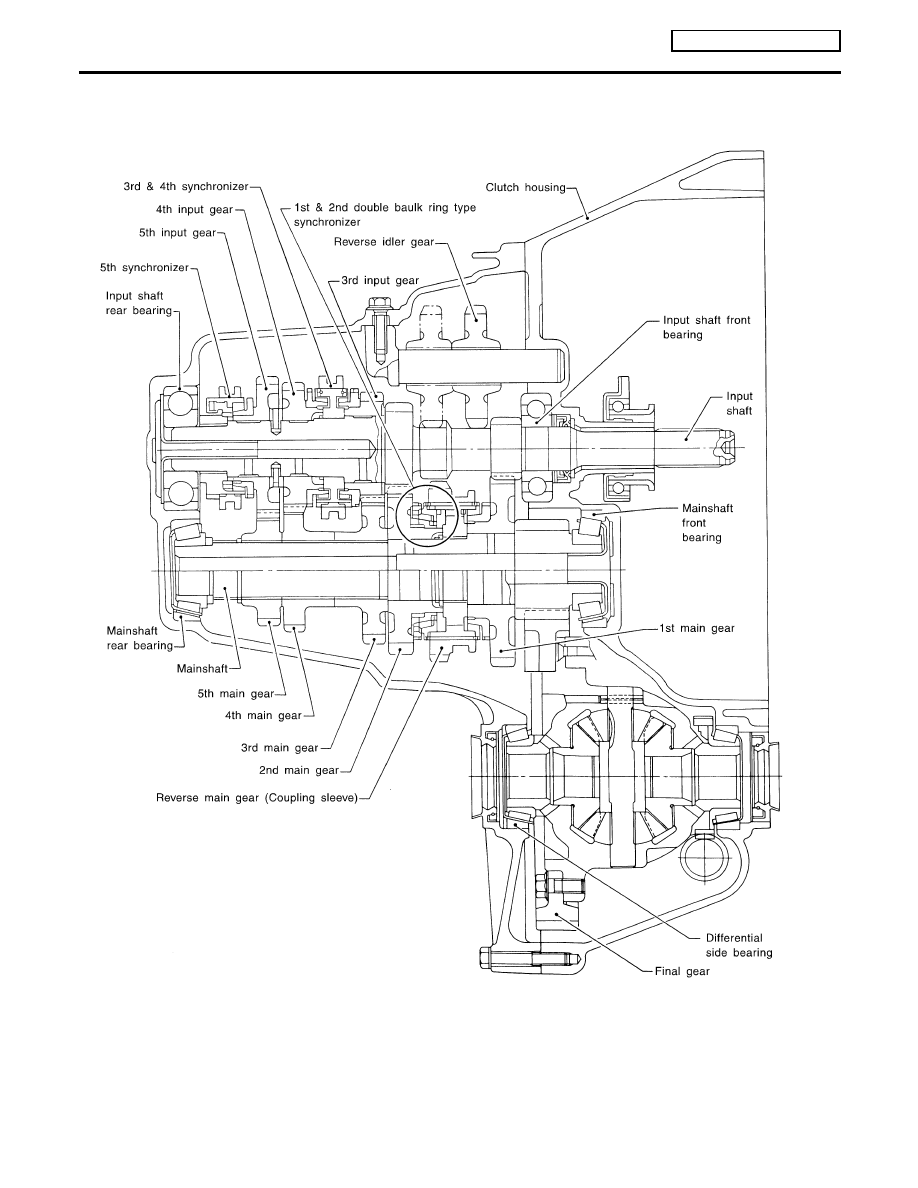

Cross-sectional View — RS5F50A

NLMT0034S04

SMT196DA

DESCRIPTION

RS5F70A, RS5F50A

Cross-sectional View — RS5F50A

MT-14

SMT837DA

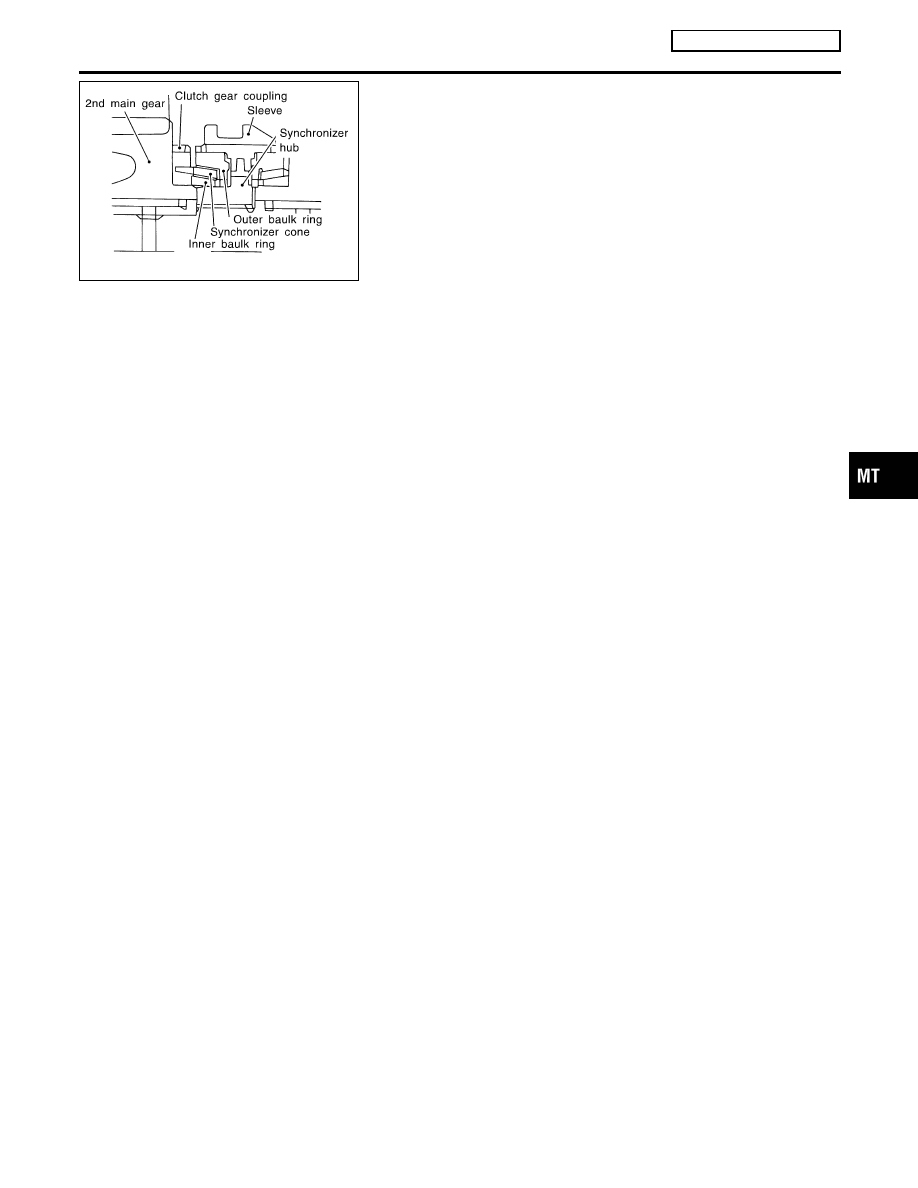

DOUBLE-CONE SYNCHRONIZER

NLMT0034S0403

— RS5F70A and RS5F50A —
Double-cone synchronizer is adopted for 1st and 2nd gears to
reduce operating force of the shift lever.

GI

MA

EM

LC

EC

FE

CL

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DESCRIPTION

RS5F70A, RS5F50A

Cross-sectional View — RS5F50A (Cont’d)

MT-15

SMT563AA

Replacing Oil Seal

NLMT0035

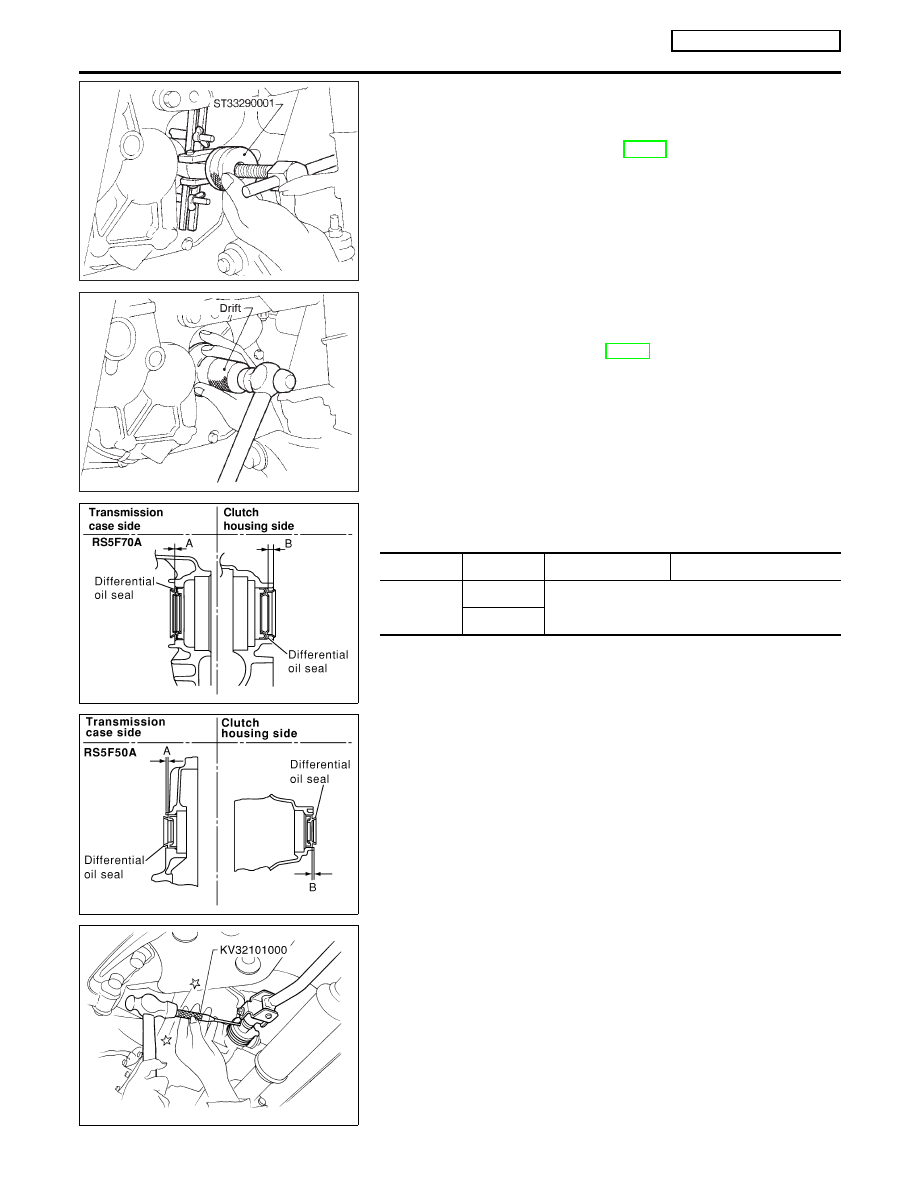

DIFFERENTIAL OIL SEAL

NLMT0035S01

1.

Drain gear oil from transaxle.

2.

Remove drive shafts. Refer to AX-11, “Removal”.

3.

Remove differential oil seal.

SMT564AB

4.

Install differential oil seal.

I

Apply multi-purpose grease to seal lip of oil seal before
installing.

5.

Install drive shafts. Refer to AX-11, “Installation”.

SMT926DA

SMT927D

I

Install differential oil seal so that dimension “A” and “B”
are within specifications.

Unit: mm (in)

Item

Model

A

B

Dimension

RS5F70A

−0.5 (−0.020) to 0.5 (0.020)

RS5F50A

SMT143DC

STRIKING ROD OIL SEAL

NLMT0035S02

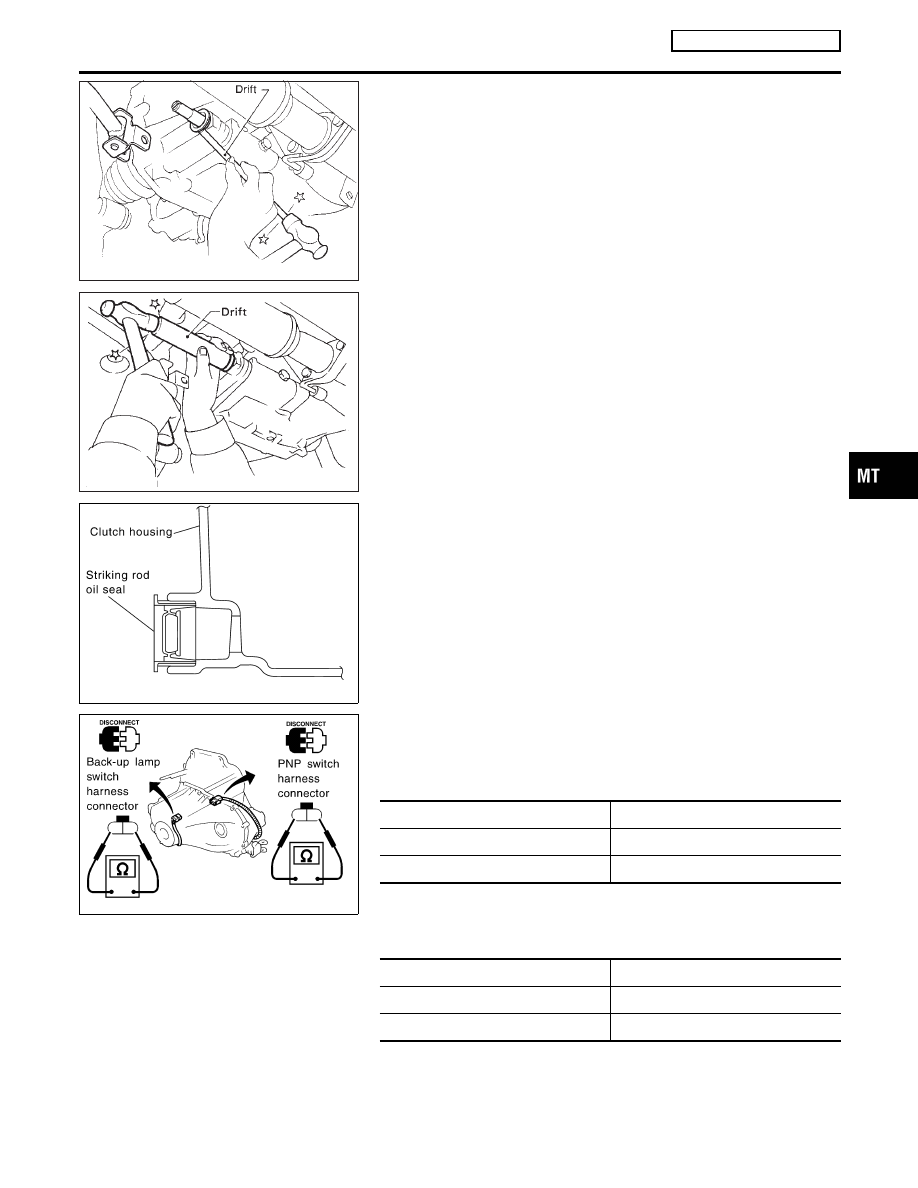

1.

Remove transaxle control rod from yoke.

2.

Remove retaining pin of yoke.

I

Be careful not to damage boot.

ON-VEHICLE SERVICE

RS5F70A, RS5F50A

Replacing Oil Seal

MT-16

SMT566A

3.

Remove striking rod oil seal.

SMT570A

4.

Install striking rod oil seal.

I

Apply multi-purpose grease to seal lip of oil seal before
installing.

SMT876D

I

Drive it in as far as it will go.

SMT715BD

Position Switch Check

NLMT0036

BACK-UP LAMP SWITCH

NLMT0036S01

— RS5F70A —

NLMT0036S0101

I

Check continuity.

Gear position

Continuity

Reverse

Yes

Except reverse

No

PNP SWITCH

NLMT0036S02

— RS5F70A —

NLMT0036S0201

I

Check continuity.

Gear position

Continuity

Neutral

Yes

Except neutral

No
