Nissan Almera Tino V10. Manual - part 895





LIQUID GASKET APPLICATION PROCEDURE

..........32

Preparation ................................................................32

SPECIAL SERVICE TOOLS

......................................32

Cooling Circuit ...........................................................33
System Check............................................................34

CHECKING COOLING SYSTEM HOSES

...................34

CHECKING RADIATOR

............................................34

CHECKING RADIATOR CAP

....................................34

CHECKING COOLING SYSTEM FOR LEAKS

............35

Water Pump ...............................................................35

REMOVAL AND INSTALLATION

...............................35

REMOVAL

...............................................................36

INSPECTION

...........................................................36

INSTALLATION

........................................................36

Thermostat.................................................................37

REMOVAL AND INSTALLATION

...............................37

INSPECTION

...........................................................38

Radiator .....................................................................39

COMPONENTS

.......................................................39

REMOVAL AND INSTALLATION

...............................39

Cooling Fan ...............................................................40

COMPONENTS

.......................................................40

CONTROL SYSTEM

................................................40

Changing Engine Coolant..........................................40

- DRAINING ENGINE COOLANT -

............................40

- REFILLING ENGINE COOLANT -

...........................41

- FLUSHING COOLING SYSTEM -

............................41

Overheating Cause Analysis .....................................42
Service Data and Specifications (SDS).....................43

THERMOSTAT

........................................................43

RADIATOR

..............................................................43

ENGINE COOLANT CAPACITY

................................43

CONTENTS

(Cont’d)

LC-2

SEM164F

AEM080

Precautions

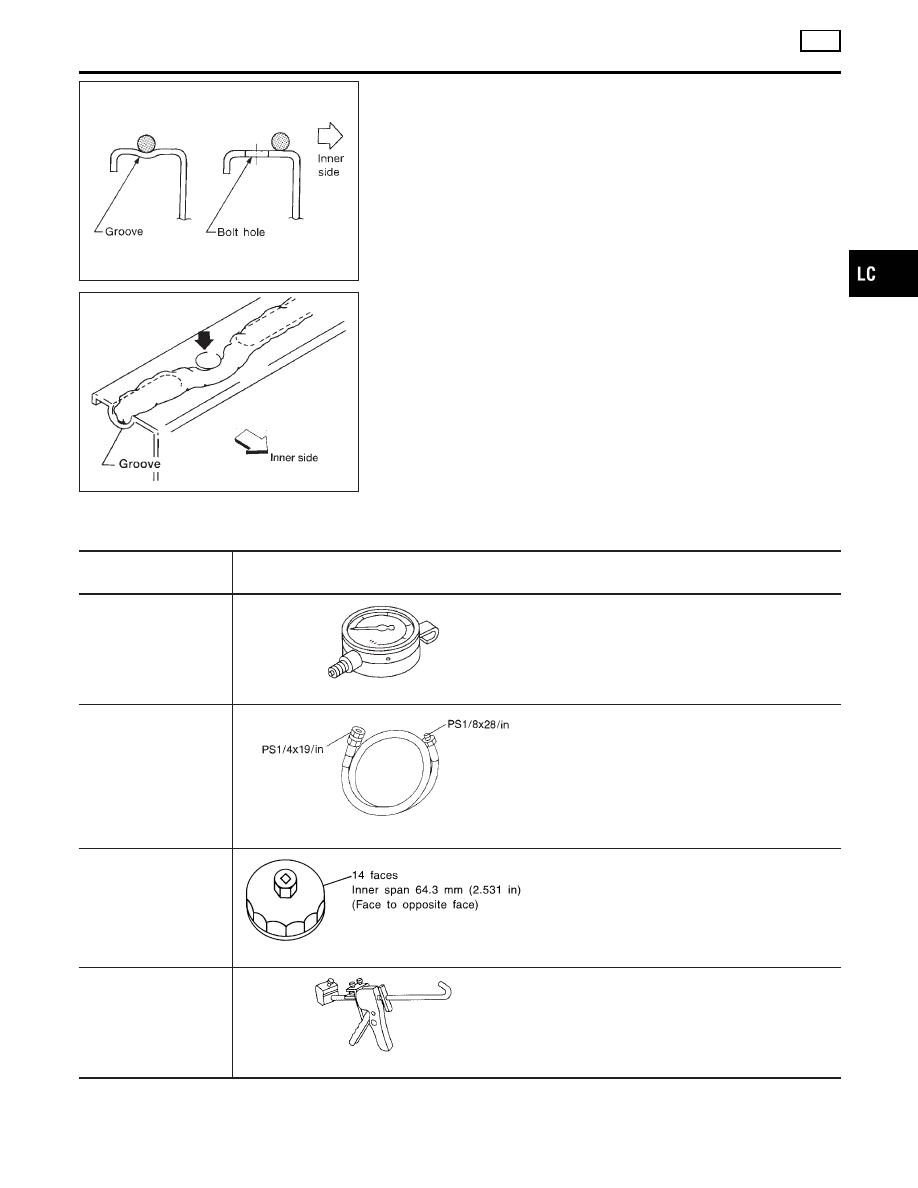

LIQUID GASKET APPLICATION PROCEDURE

NLLC0001

1.

Use a scraper to remove all traces of old liquid gasket from
mating surfaces and grooves. Also, completely clean any oil
from these areas.

2.

Apply a continuous bead of liquid gasket to mating surfaces.
(Use Genuine Liquid Gasket or equivalent.)

I

For oil pan, be sure liquid gasket diameter is 3.5 to 4.5 mm
(0.138 to 0.177 in).

I

For areas except oil pan, be sure liquid gasket diameter is 2.0
to 3.0 mm (0.079 to 0.118 in).

3.

Apply liquid gasket around the inner side of bolt holes (unless
otherwise specified).

4.

Assembly should be done within 5 minutes after coating.

5.

Wait at least 30 minutes before refilling engine oil and engine
coolant.

Preparation

SPECIAL SERVICE TOOLS

NLLC0002

Tool number
Tool name

Description

ST25051001
Oil pressure gauge

NT050

Measuring oil pressure

ST25052000
Hose

NT559

Adapting oil pressure gauge to cylinder block

KV10115801
Oil filter wrench

NT772

Removing oil filter

WS39930000
Tube presser

NT052

Pressing the tube of liquid gasket

GI

MA

EM

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ENGINE LUBRICATION SYSTEM

QG

Precautions

LC-3

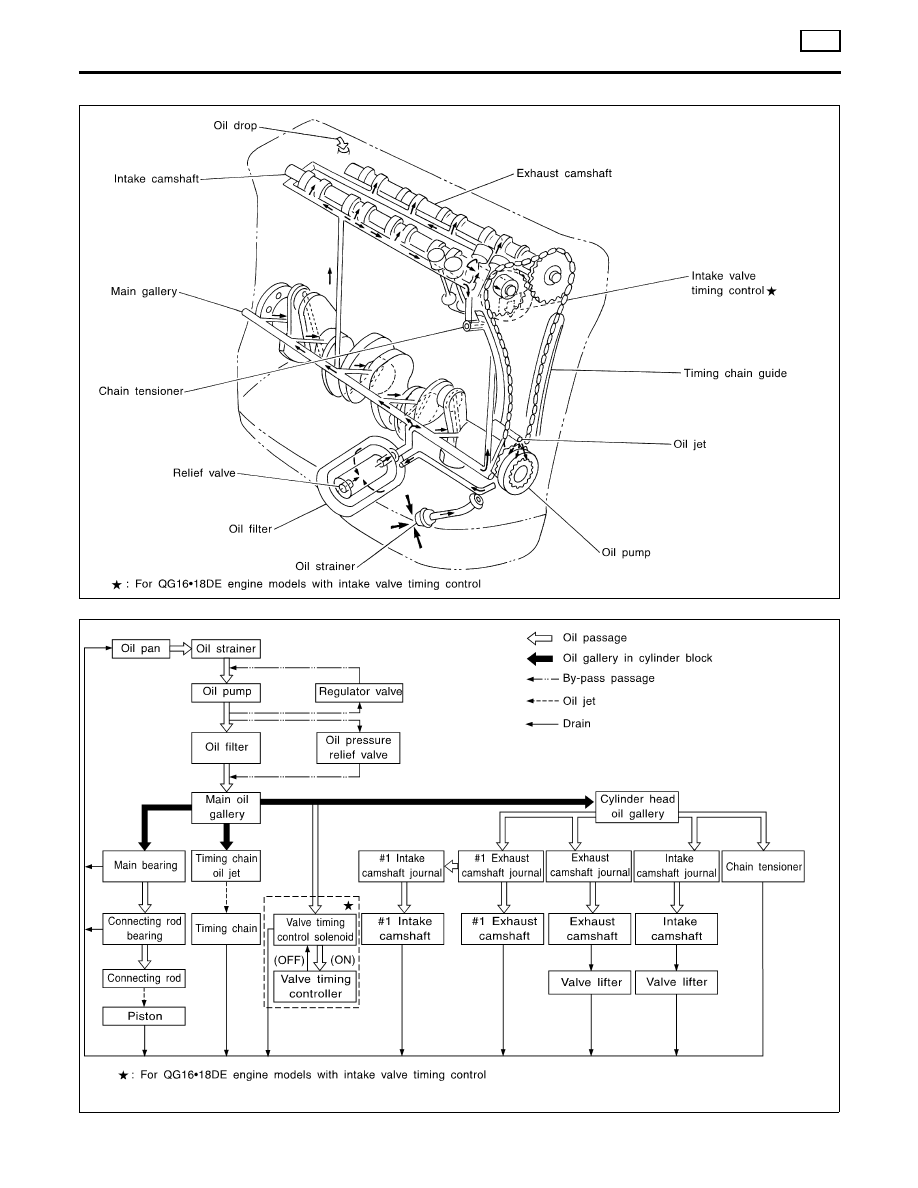

Lubrication Circuit

NLLC0003

SEM852FB

SLC339B

ENGINE LUBRICATION SYSTEM

QG

Lubrication Circuit

LC-4

SEM853F

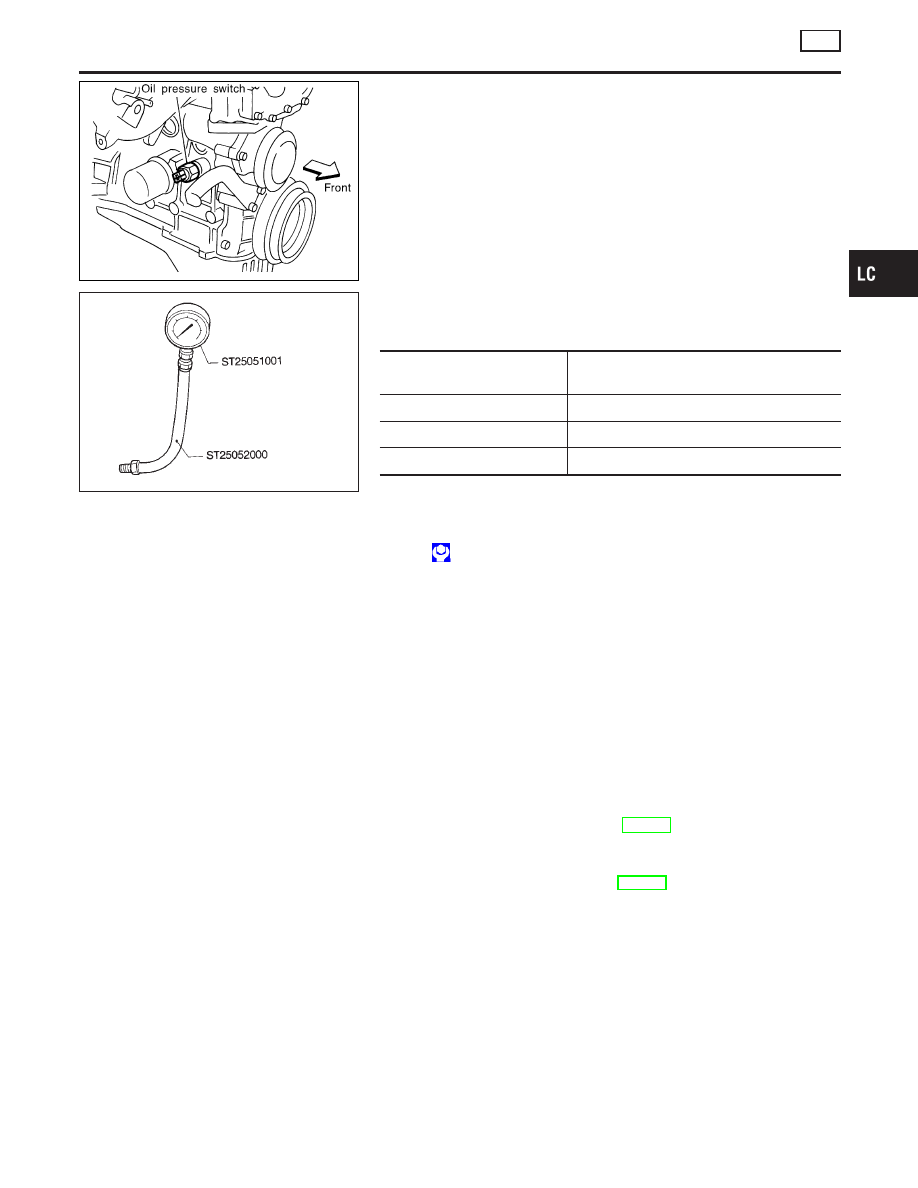

Oil Pressure Check

NLLC0004

WARNING:

I

Be careful not to burn yourself, as the engine and oil may
be hot.

I

For M/T models, put gearshift lever in Neutral “N” posi-
tion.

1.

Check oil level.

2.

Remove oil pressure switch.

SLC926-A

3.

Install pressure gauge.

4.

Start engine and warm it up to normal operating temperature.

5.

Check oil pressure with engine running under no-load.

Engine speed

rpm

Approximate discharge pressure

kPa (bar, kg/cm

2

, psi)

600

More than 98 (0.98, 1.0, 14)

2,000

More than 294 (2.94, 3.0, 43)

6,000

More than 392 (3.92, 4.0, 57)

I

If difference is extreme, check oil passage and oil pump
for oil leaks.

6.

Install oil pressure switch with sealant.

: 13 - 17 N·m (1.25 - 1.75 kg-m, 9 - 12 ft-lb)

Oil Pump

REMOVAL AND INSTALLATION

NLLC0005

I

Make sure that O-ring is fitted properly.

1.

Drain engine oil.

2.

Remove drive belts.

3.

Remove oil pan. Refer to EM-25, “OIL PAN AND OIL
STRAINER”.

4.

Remove oil strainer.

5.

Remove front cover. Refer to EM-50, “TIMING CHAIN”.

6.

Install front cover.

7.

Reinstall parts in reverse order of removal.

GI

MA

EM

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ENGINE LUBRICATION SYSTEM

QG

Oil Pressure Check

LC-5
