EM-116

[YD]

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

Use the Chart Below to Help You Find the Cause of the Symptom.

EBS00QF7

1.

Locate the area where noise occurs.

2.

Confirm the type of noise.

3.

Specify the operating condition of engine.

4.

Check specified noise source.

If necessary, repair or replace these parts.

A: Closely related

B: Related

C: Sometimes related

—: Not related

Location

of noise

Type of

noise

Operating condition of engine

Source of

noise

Check item

Refer-

ence page

Before

warm-

up

After

warm-

up

When

start-

ing

When

idling

When

racing

While

driving

Top of
engine
Rocker
cover
Cylinder
head

Ticking or
clicking

C

A

A

B

Tappet
noise

Valve clearance

EM-167

Rattle

C

A

A

B

C

Camshaft
bearing
noise

Camshaft oil clearance
Camshaft runout

EM-164
EM-163

Crank-
shaft pul-
ley
Cylinder
block
(Side of
engine)
Oil pan

Slap or
knock

A

B

B

Piston pin
noise

Piston to piston pin
clearance
Connecting rod bush-
ing oil clearance (Small
end)

EM-214
EM-216

Slap or
rap

A

B

B

A

Piston
slap noise

Piston to cylinder bore
clearance
Piston ring side clear-
ance
Piston ring end gap
Connecting rod bend
and torsion

EM-217
EM-214
EM-215
EM-215

Knock

A

B

C

B

B

B

Connect-
ing rod
bearing
noise

Connecting rod bush-
ing oil clearance (Small
end)
Connecting rod bear-
ing oil clearance (Big
end)

EM-216
EM-219

Knock

A

B

A

B

C

Main
bearing
noise

Main bearing oil clear-
ance
Crankshaft runout

EM-220
EM-219

Front of
engine
Timing
chain
cover

Tapping or
ticking

A

A

B

B

B

Timing
chain and
chain
tensioner
noise

Timing chain cracks
and wear
Timing chain tensioner
operation

EM-171
EM-176

Front of
engine

Squeak-
ing or fizz-
ing

A

B

B

C

Drive belts
(Sticking
or slip-
ping)

Drive belts deflection

EM-117

Creaking

A

B

A

B

A

B

Drive belts
(Slipping)

Idler pulley bearing
operation

Squall
Creak

A

B

B

A

B

Water
pump
noise

Water pump operation

LC-35

DRIVE BELTS

EM-117

[YD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

DRIVE BELTS

PFP:02117

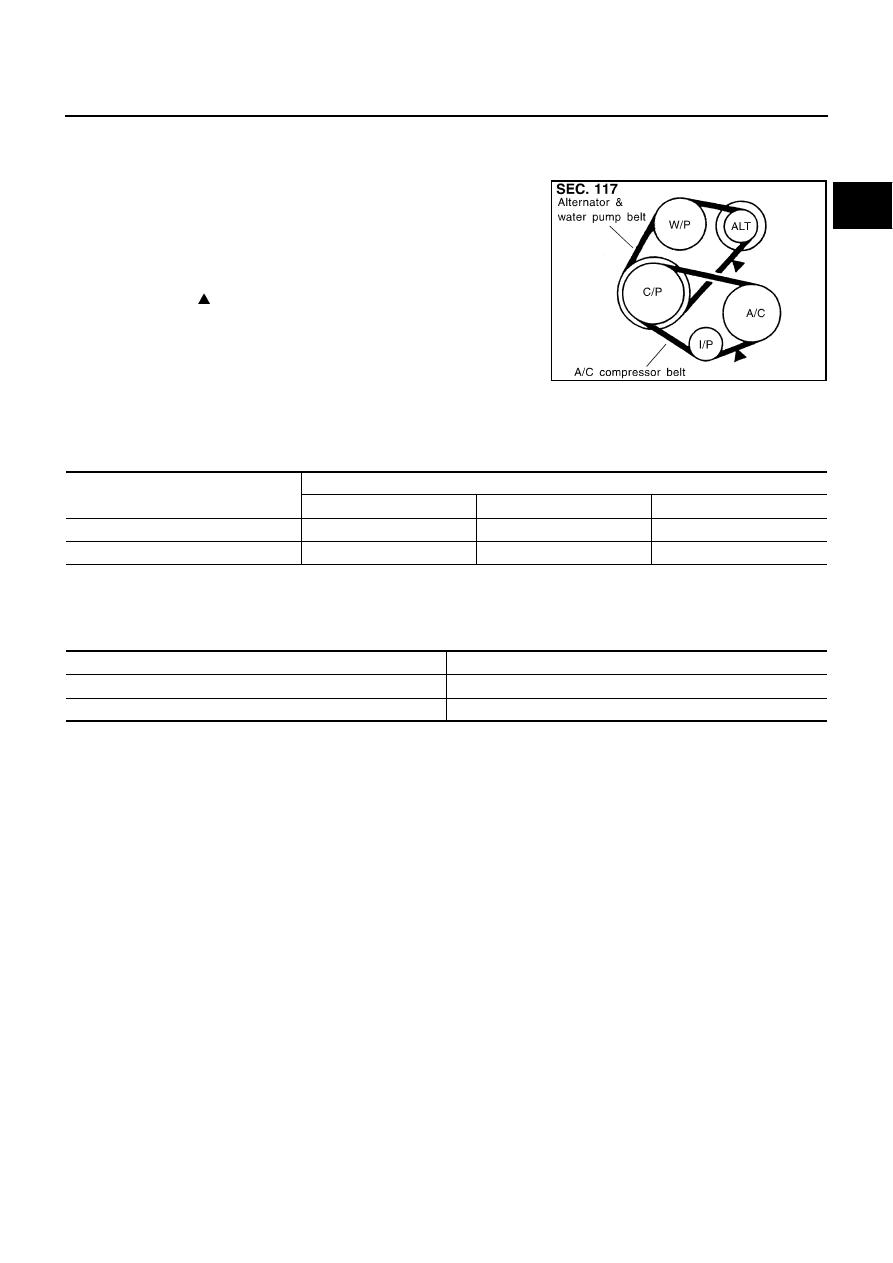

Checking Drive Belts

EBS00QF8

Before inspecting the engine, make sure the engine has cooled
down; wait approximately 30 minutes after the engine has been
stopped.

Visually inspect all belts for wear, damage or cracks on contact-
ing surfaces and edge areas.

When measuring deflection, apply 98 N (10 kg, 22 lb) at the
marked point ( ).

CAUTION:

When checking belt deflection immediately after installa-
tion, first adjust it to the specified value. Then, after turn-
ing the crankshaft two turns or more, re-adjust to the
specified value to avoid variation in deflection between
pulleys.

Tighten idler pulley lock nut by hand and measure deflection without looseness.

Belt Deflection:

*: When engine is cold.

Tension Adjustment

EBS00QF9

Adjust belts with the parts shown below.

CAUTION:

When a new belt is installed as a replacement, adjust it to the value specified under “New” value
because of insufficient adaptability with pulley grooves.

If the belt deflection of the current belt is out of the “Limit for re-adjusting”, adjust to the
“Adjusted” value.

When checking belt deflection immediately after installation, first adjust it to the specified value.
Then, after turning crankshaft two turns or more, re-adjust it to the specified value to avoid vari-
ation in deflection between pulleys.

Make sure the belts are fully fitted into the pulley grooves during installation.

Handle with care to avoid smearing the belts with oil or cooling water etc.

Do not twist or bend the belts with strong force.

JEM249G

Applied belt

Belt deflection with 98 N (10 kg, 22 lb) force applied* mm (in)

New

Adjusted

Limit for re-adjusting

Air conditioner compressor belt

4 - 5 (0.16 - 0.20)

6 - 7 (0.24 - 0.28)

8.5 (0.335)

Alternator and water pump belt

9.0 - 10.5 (0.354 - 0.413)

11.0 - 12.5 (0.433 - 0.492)

16.5 (0.650)

Applied belt

Belt adjustment method

Air conditioner compressor belt

Adjusting bolt on idler pulley

Alternator water pump belt

Adjusting bolt on alternator

EM-118

[YD]

DRIVE BELTS

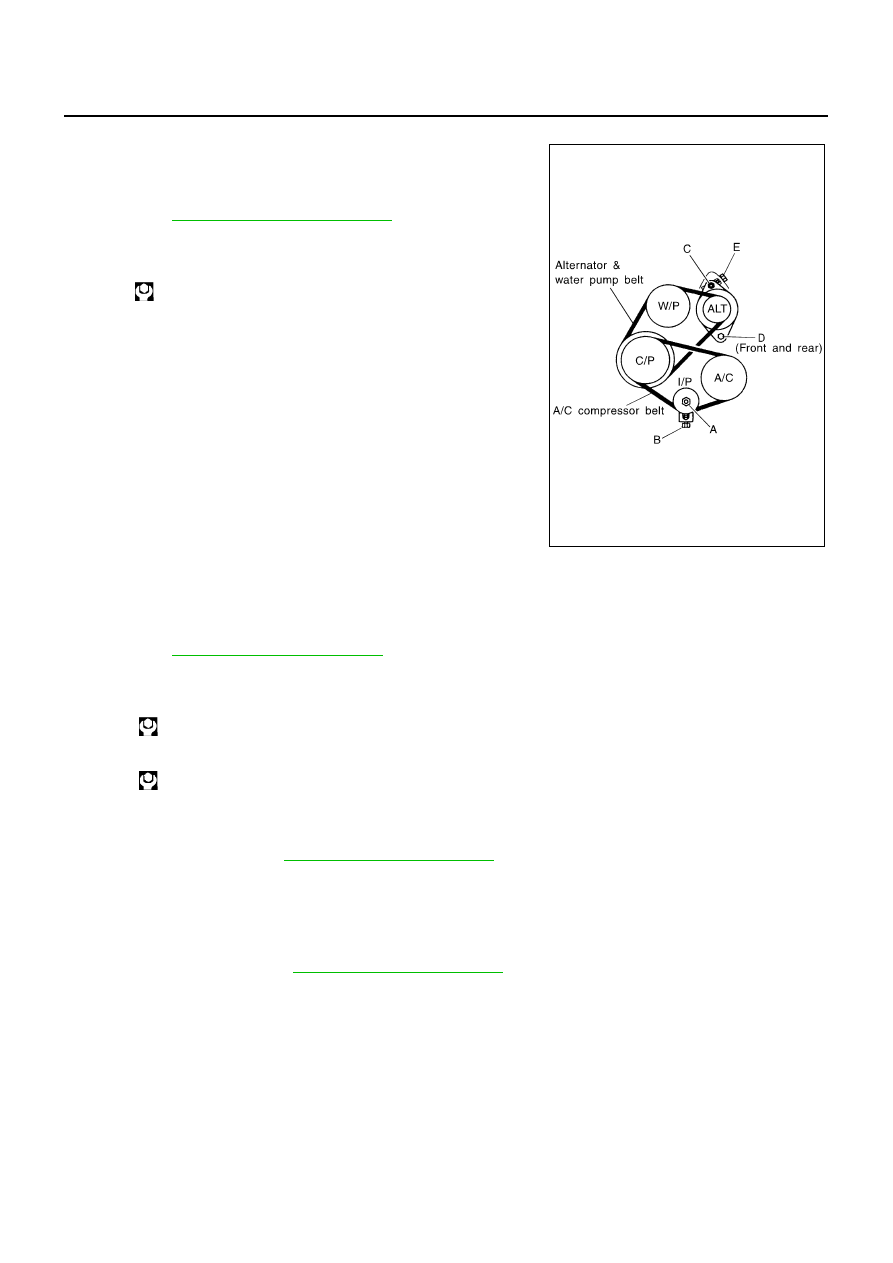

AIR CONDITIONER COMPRESSOR BELT

1.

Remove RH splash cover (with undercover attached).

2.

Loosen idler pulley lock nut (A).

3.

Turn adjusting bolt (B) to adjust.

Refer to

EM-117, "Checking Drive Belts"

.

4.

Tighten lock nut (A).

ALTERNATOR AND WATER PUMP BELT

1.

Loosen adjusting lock nut (C).

2.

Loosen alternator fixing bolts (D) (each on front and rear).

3.

Turn adjusting bolt (E) to adjust.

Refer to

EM-117, "Tension Adjustment"

.

4.

Tighten nut (C) and bolt (D) in this order.

Removal and Installation

EBS00QFA

REMOVAL

1.

Loosen each belt. Refer to

EM-117, "Tension Adjustment"

.

2.

Remove air conditioner compressor belt.

3.

Remove alternator and water pump belt.

INSTALLATION

1.

Install each belt on pulley in reverse order of removal.

2.

Adjust belt tension. Refer to

EM-117, "Tension Adjustment"

.

3.

Tighten nuts and bolts provided for adjustment to the specified torque.

4.

Check again that each belt tension is as specified.

Nut A:

: 31 - 39 N·m (3.1 - 4.0 kg-m, 23 - 28 ft-lb)

JEM251G

Nut C:

: 19 - 24 N·m (1.9 - 2.5 kg-m, 14 - 18 ft-lb)

Bolt D:

: 44 - 57 N·m (4.4 - 5.9 kg-m, 32 - 42 ft-lb)

AIR CLEANER AND AIR DUCT

EM-119

[YD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

AIR CLEANER AND AIR DUCT

PFP:16500

Removal and Installation

EBS00QFB

REMOVAL

1.

Remove mass air flow sensor harness clamp.

2.

Remove harness connector from mass air flow sensor.

3.

Remove air duct, air cleaner case/ mass air flow sensor.

Add marks as necessary for easier installation.

4.

Remove mass air flow sensor from air cleaner case.

CAUTION:

Handle mass air flow sensor with following cares.

Do not shock it.

Do not disassemble it.

Do not touch its sensor.

INSTALLATION

1.

Attach each joint aligning marks put at removal. Screw clamps firmly.

2.

Install in the reverse order of removal.

CHANGING AIR CLEANER ELEMENT

1.

Remove air cleaner case.

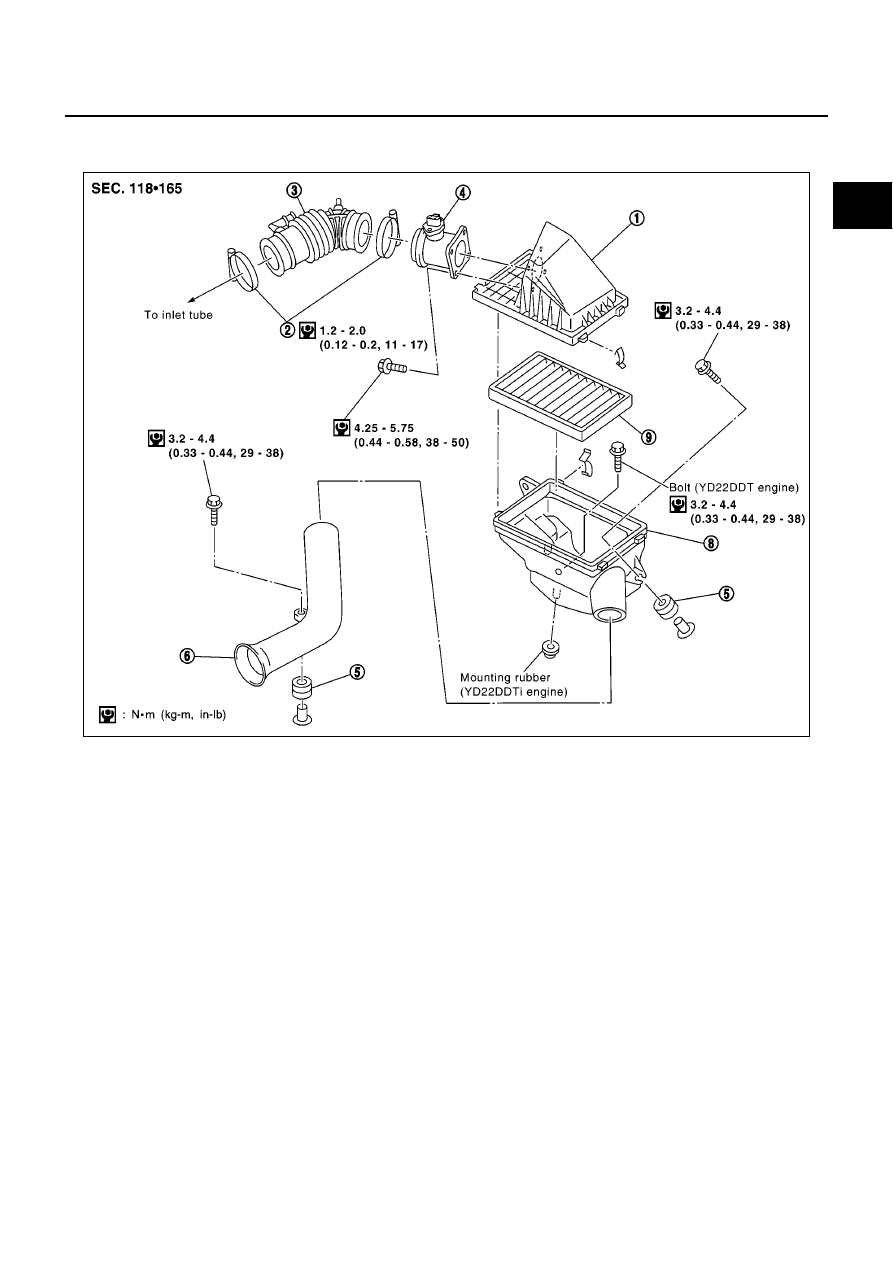

MBIA0032E

1.

Air cleaner case (upper)

2.

Clamp

3.

Air duct

4.

Mass air flow sensor

5.

Grommet

6.

Air duct side

7.

Air cleaner case (lower)

8.

Air cleaner element
