How to Read Harness Layout
NLEL0131
SEL252V
The following Harness Layouts use a map style grid to help locate connectors on the drawings:
I
Main Harness
I
Engine Room Harness (Engine Compartment)
I
Engine Control Harness
I
Body Harness

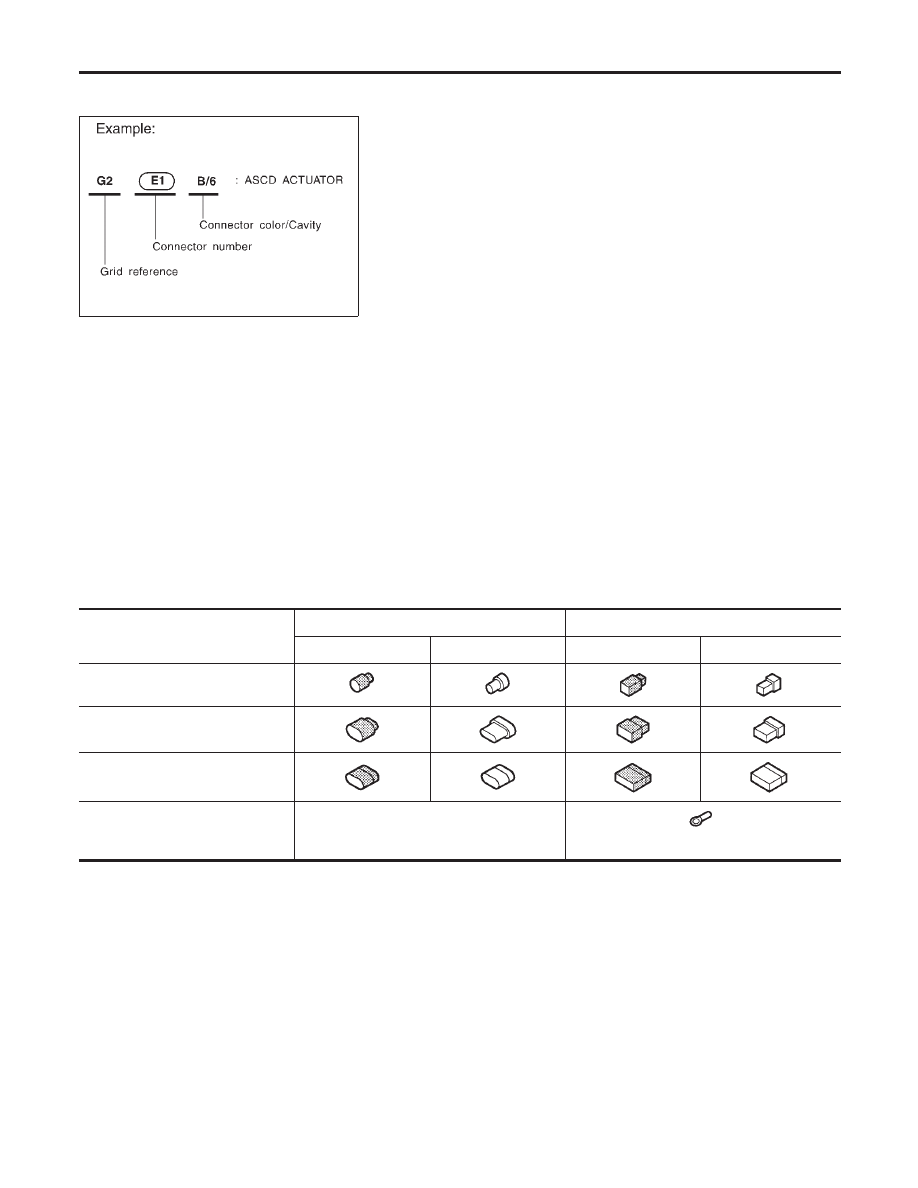

TO USE THE GRID REFERENCE
NLEL0131S01
1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.
CONNECTOR SYMBOL
NLEL0131S02
Main symbols of connector (in Harness Layout) are indicated in the below.
Connector type
Water proof type
Standard type
Male
Female
Male
Female
I
Cavity: Less than 4
I
Relay connector
I
Cavity: From 5 to 8
I
Cavity: More than 9
I
Ground terminal etc.
—

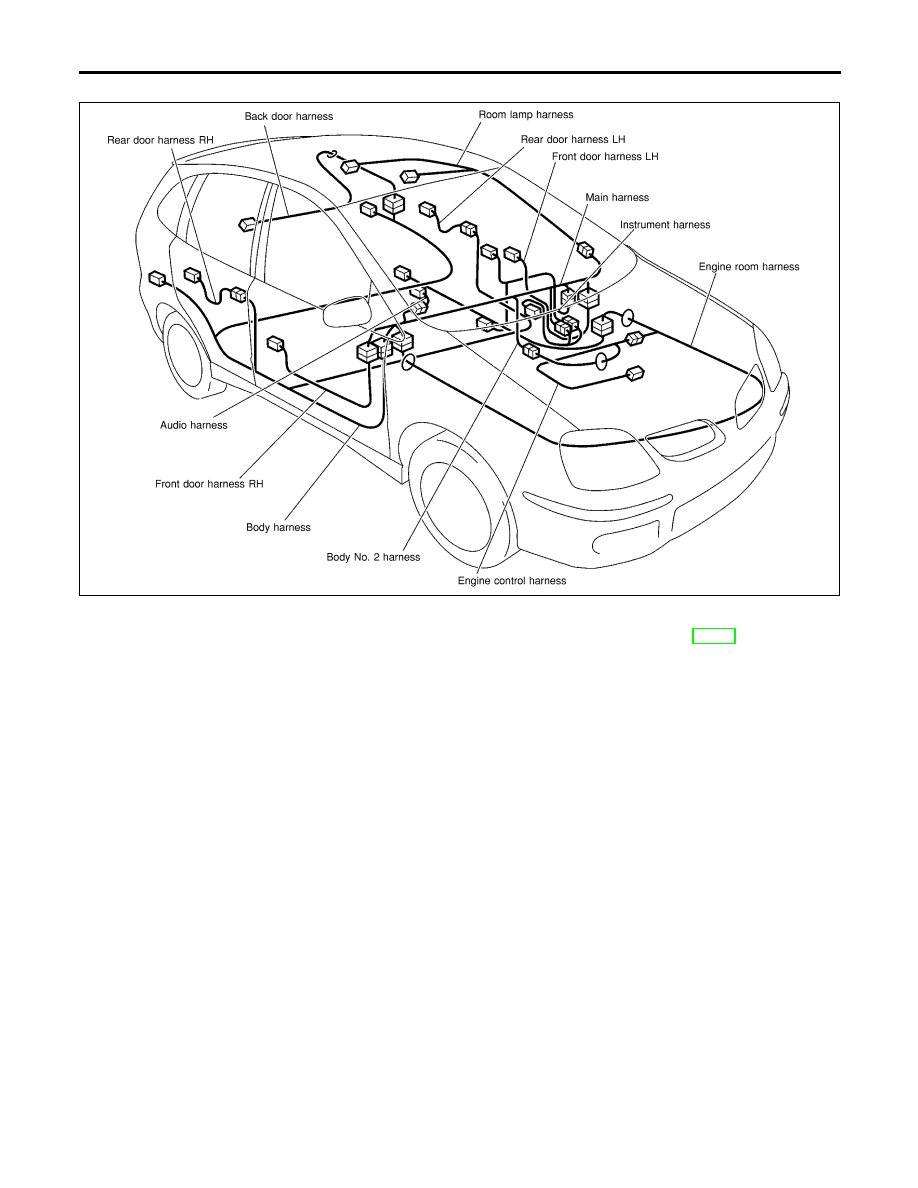

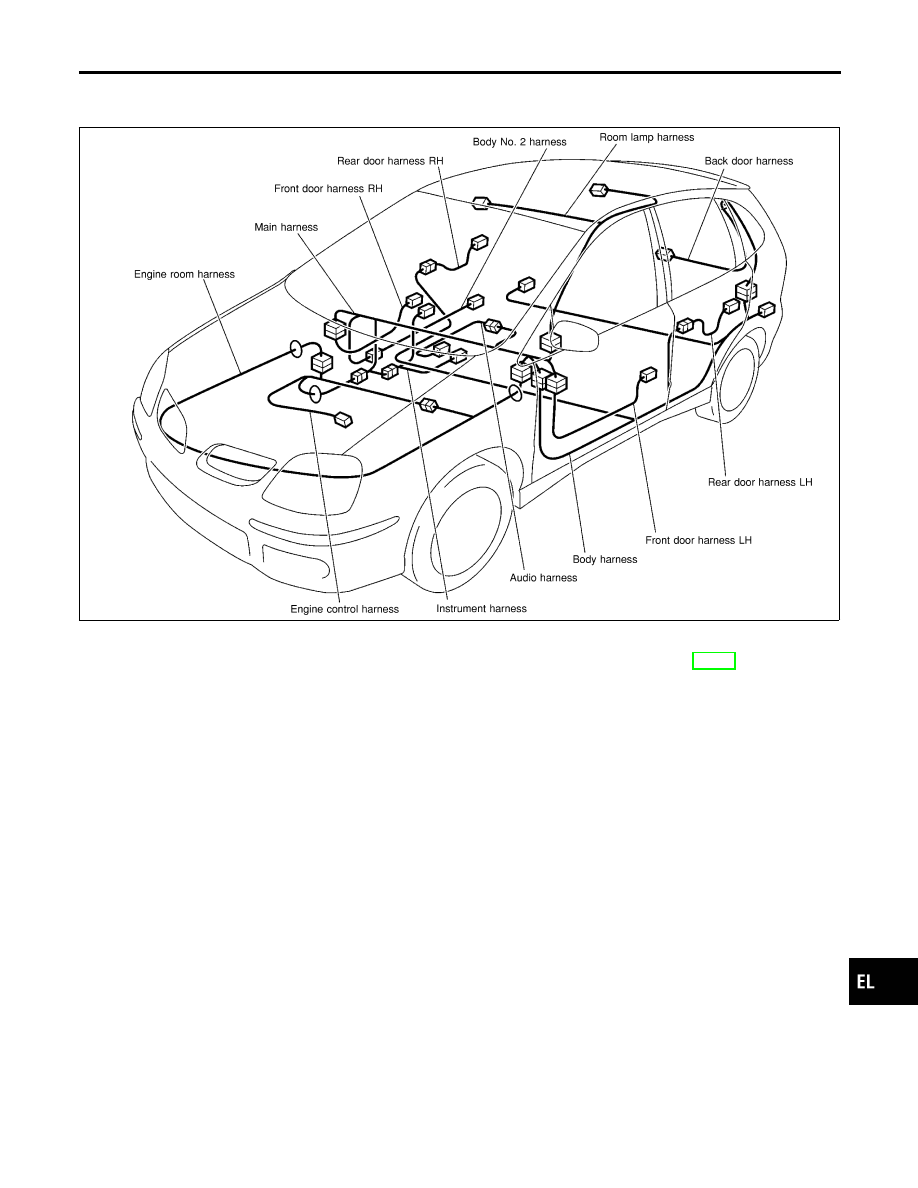

HARNESS LAYOUT
How to Read Harness Layout
EL-600
