7

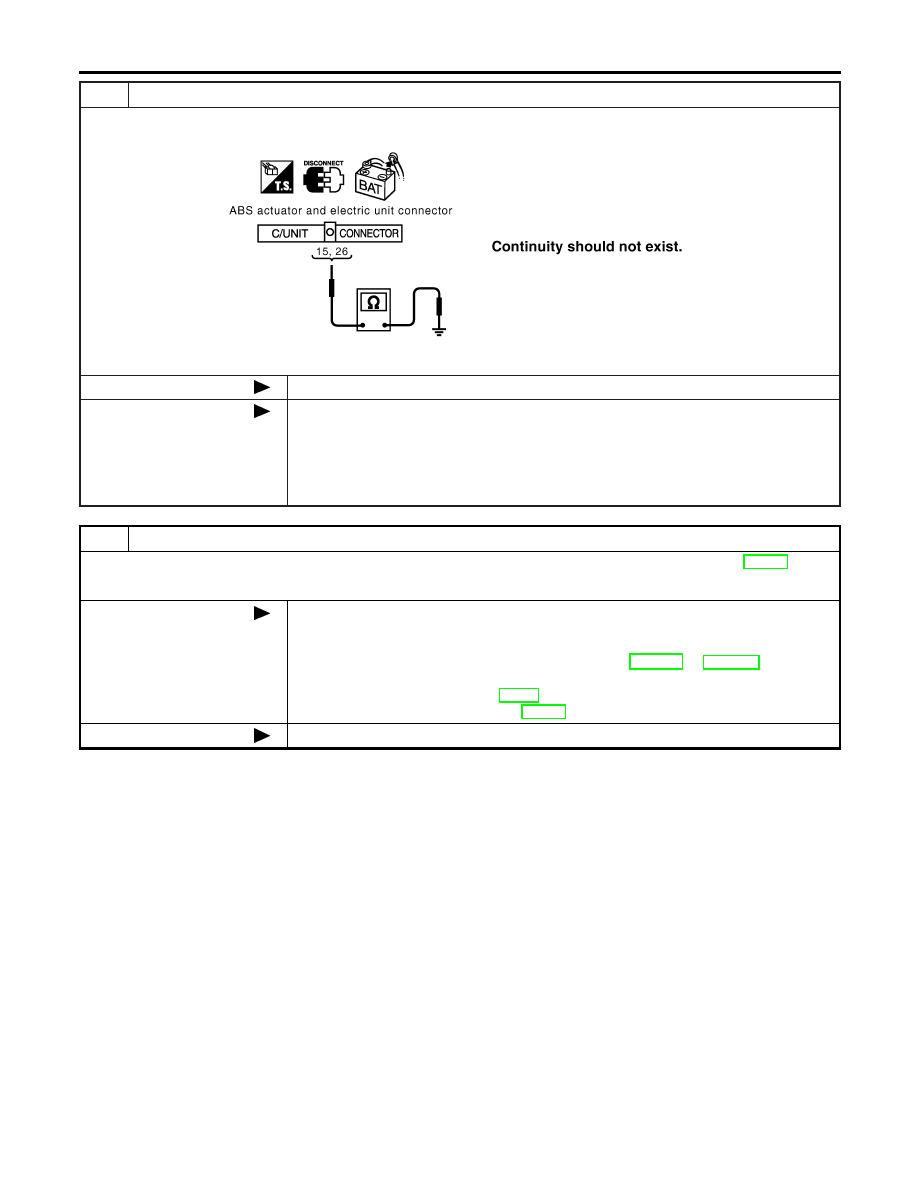

CHECK HARNESS FOR SHORT CIRCUIT

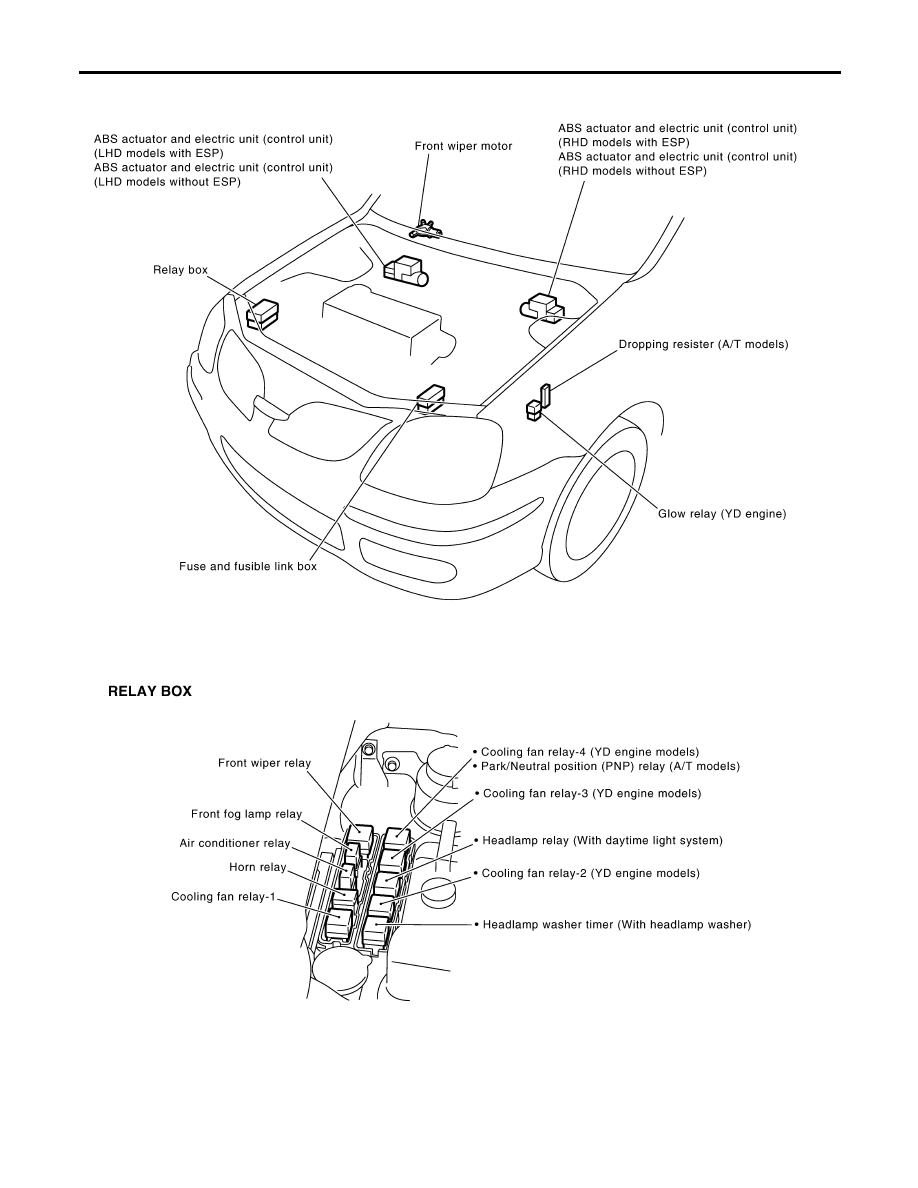

Check continuity between ABS actuator and electric unit (control unit) harness connector E142 terminals 26 (L) , 15 (R)
and ground.
YEL456E
OK or NG
OK
GO TO 8.
NG
‰
Repair harness between ABS actuator and electric unit (control unit) and harness con-
nector E125. (LHD models)
‰
Repair harness between ABS actuator and electric unit (control unit) and harness con-
nector E106. (LHD models)
‰
Repair harness between ABS actuator and electric unit (control unit) and harness con-
nector E145. (RHD models)
8

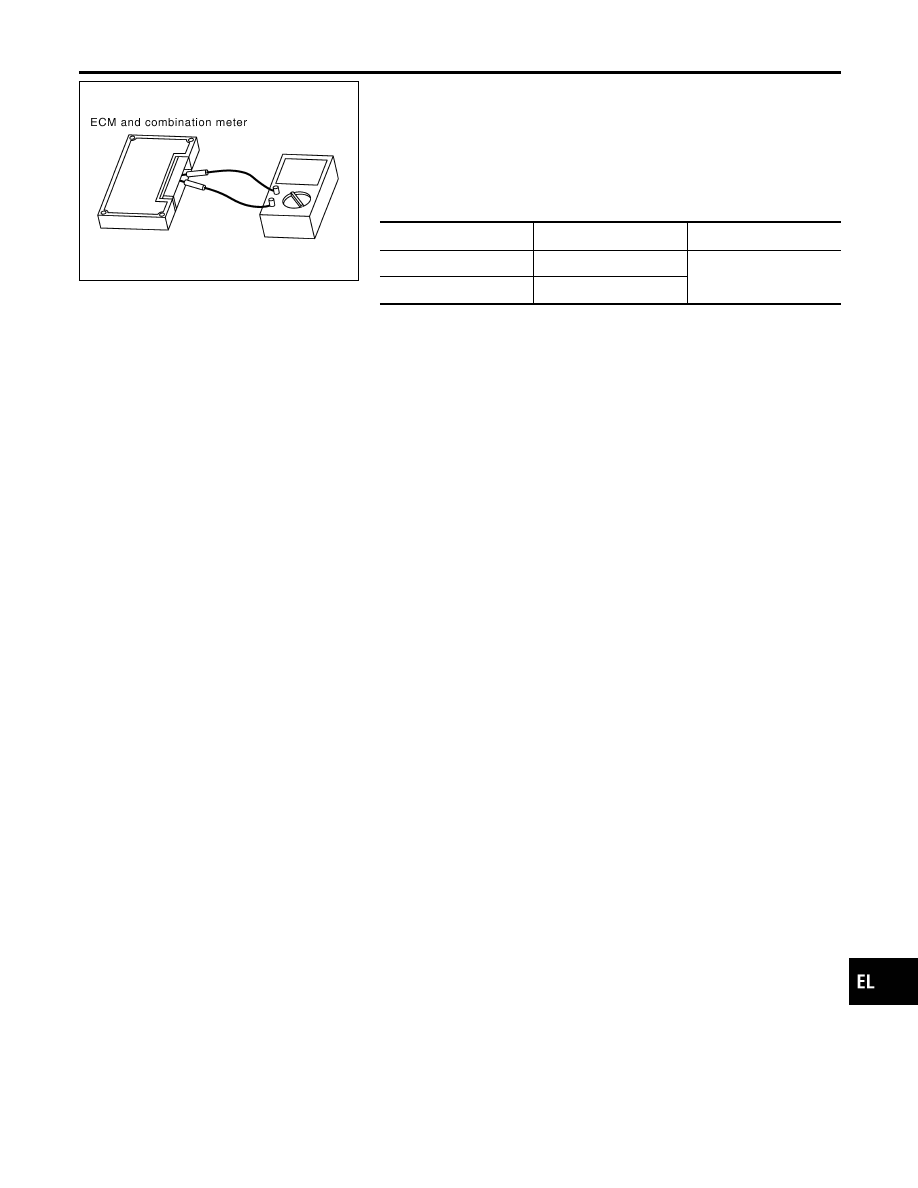

ECM/COMBINATION METER INTERNAL CIRCUIT INSPECTION
Check components inspection. Refer to “ECM/COMBINATION METER INTERNAL CIRCUIT INSPECTION” (EL-593).
OK or NG
OK
Reconnect all connectors to perform “SELF-DIAG RESULTS” and “DATA MONITOR” for
“ENGINE”, “ABS” and “SMART ENTRANCE” displayed on CONSULT-II. Refer to the fol-
lowing.
‰
“DTC U1000, U1001 CAN COMMUNICATION LINE” (EC-1011 or EC-1318) for
“ENGINE”
‰
“CAN Communication System” (BR-73) for “ABS”
‰
“CAN Communication Line Check” (EL-351) for “SMART ENTRANCE”
NG
Replace ECM and/or combination meter.
CAN SYSTEM (TYPE 6)
Trouble Diagnoses (Cont’d)
EL-592
