Nissan Almera Tino V10. Manual - part 820

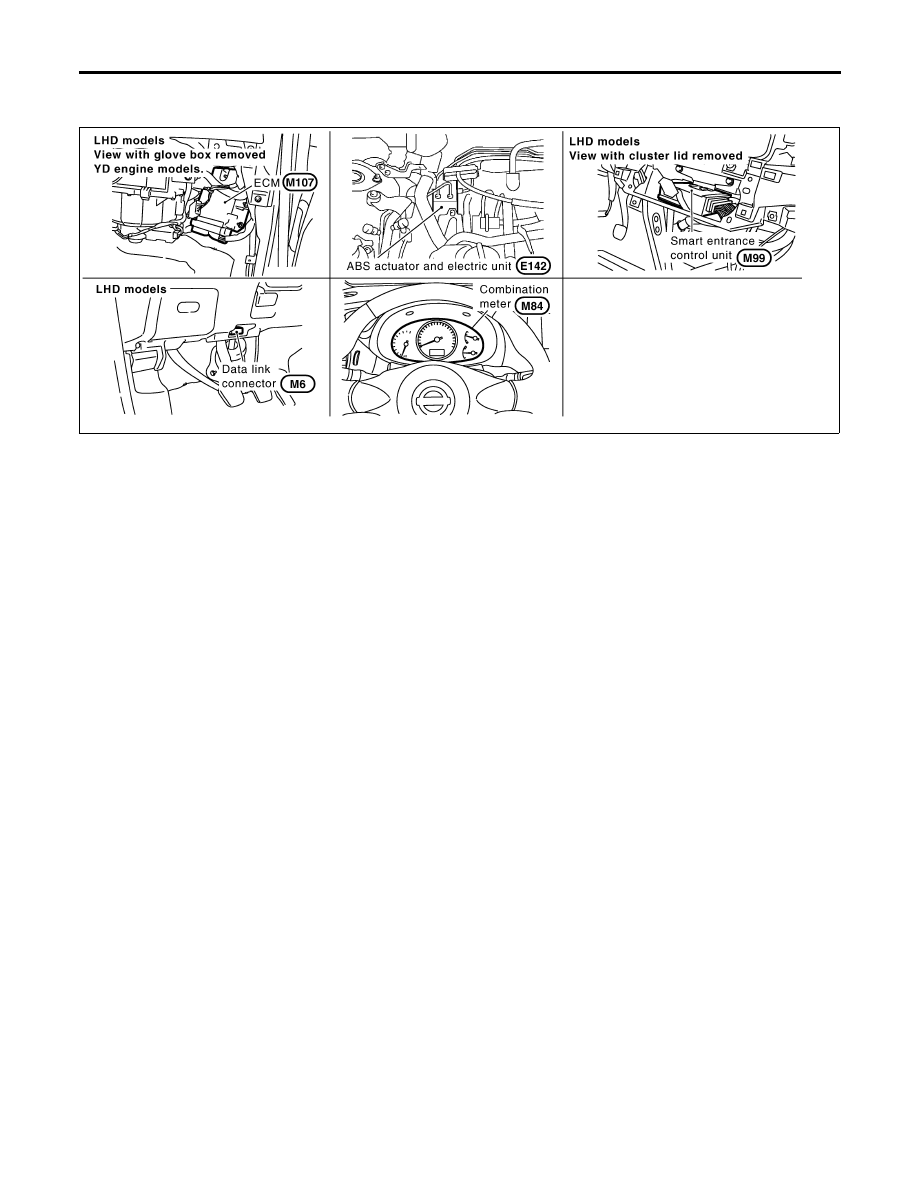

Component Parts and Harness Connector
Location

NLEL0673

YEL461E

System Description

NLEL0674

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many
electonic control units are equipped onto a vehicle, and each control unit shares information and links with
other control units during operation (not independent). In CAN communication, control units are connected with
2 communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wir-
ing. Each control unit transmits/receives data but selectively reads required data only.

CAN SYSTEM (TYPE 6)

Component Parts and Harness Connector Location

EL-576

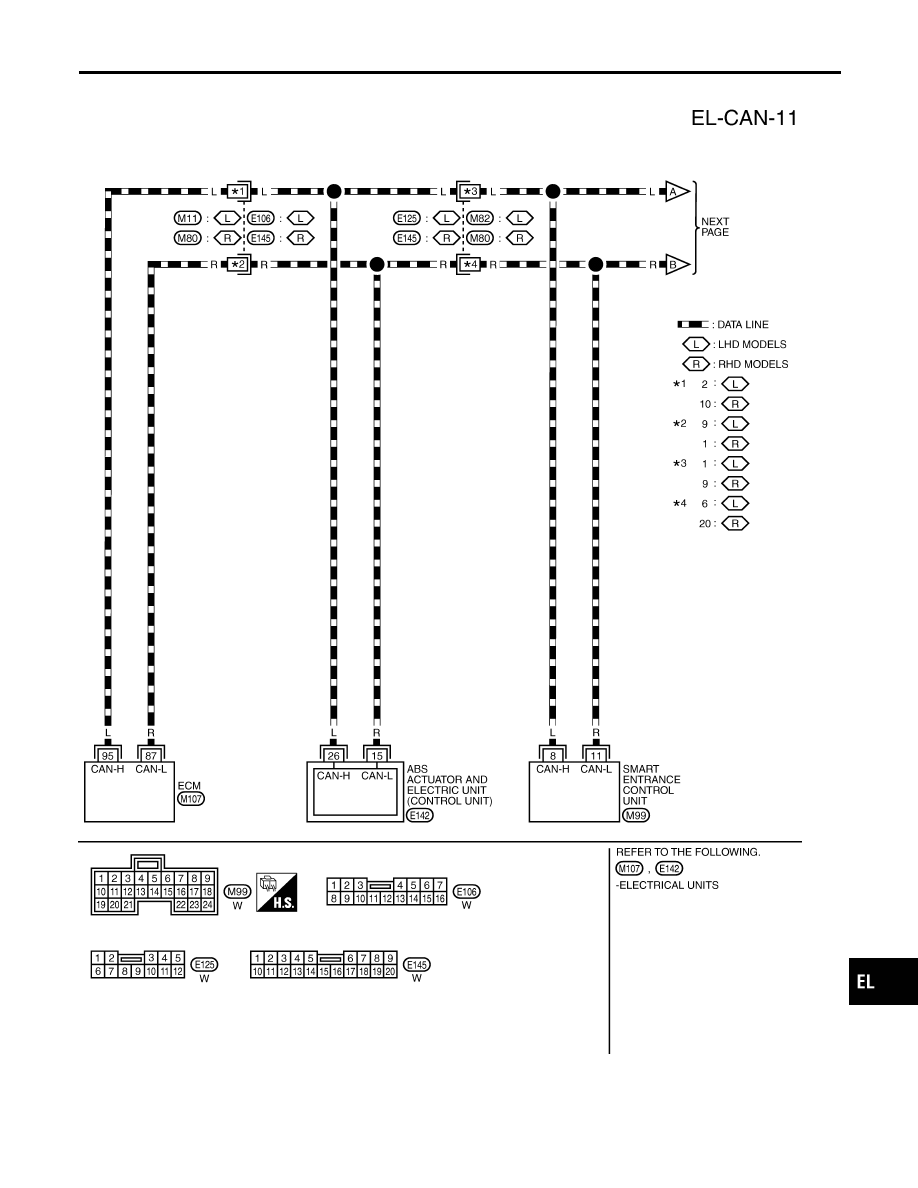

Wiring Diagram — CAN —

NLEL0675

YEL131E

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

CAN SYSTEM (TYPE 6)

Wiring Diagram — CAN —

EL-577

YEL132E

CAN SYSTEM (TYPE 6)

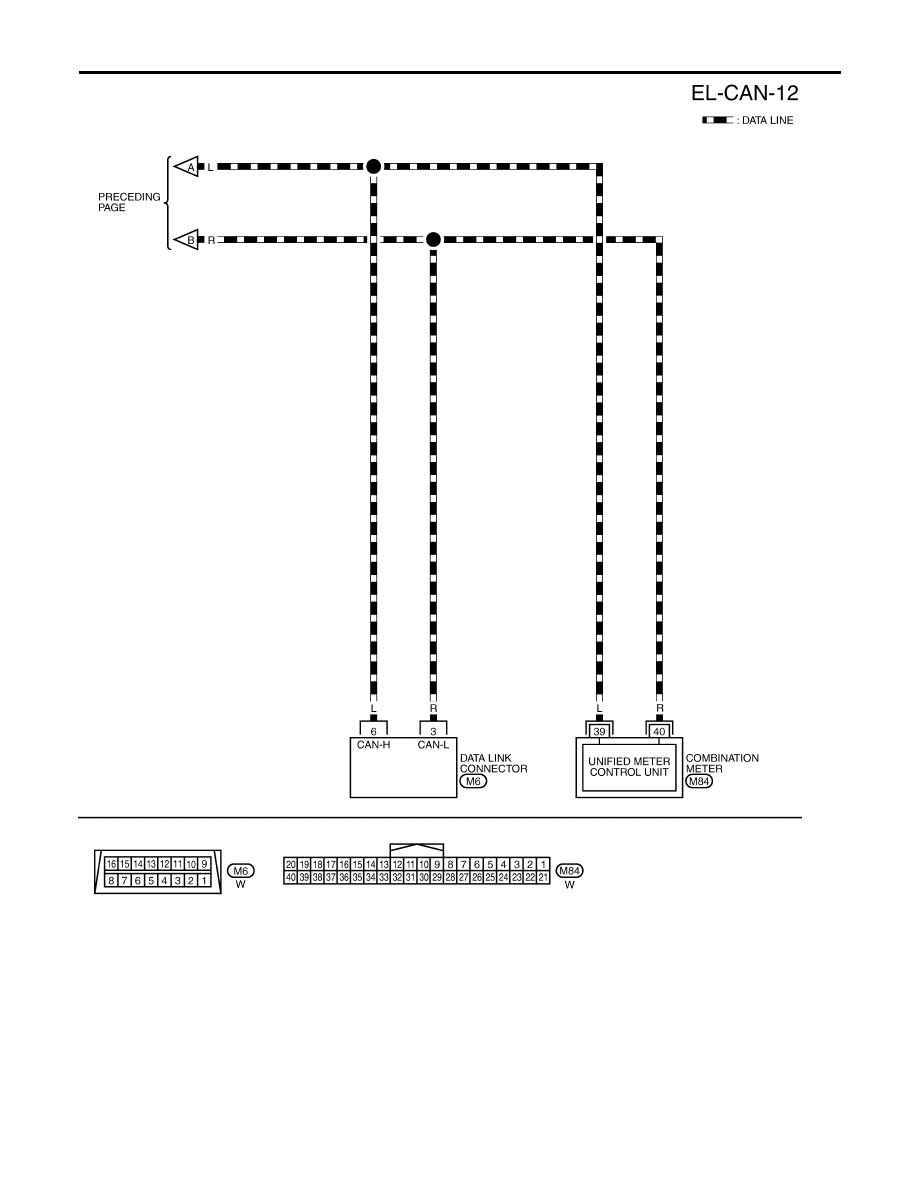

Wiring Diagram — CAN — (Cont’d)

EL-578

Trouble Diagnoses

NLEL0676

WORK FLOW

NLEL0676S01

1. Print all the data of “SELF-DIAG RESULTS” and “DATA MONITOR” for “ENGINE”, “ABS” and “SMART

ENTRANCE” displayed on CONSULT-II. Refer to the following.

“DTC U1000, U1001 CAN COMMUNICATION LINE” (EC-1011 or EC-1318) for “ENGINE”

“CAN Communication System” (BR-73) for “ABS”

“CAN Communication Line Check” (EL-351) for “SMART ENTRANCE”

2. Attach the printed sheet of “SELF-DIAG RESULTS” and “DATA MONITOR” onto the check sheet. Refer

to “CHECK SHEET” (EL-580).

3. Based on the data monitor results, put “v” marks onto the items with “UNKWN” or “NG” in the check sheet

table. Refer to “CHECK SHEET“ (EL-580).

NOTE:
If “NG” is displayed on “CAN COMM” for the diagnosed control unit, replace the control unit.
4. According to the check sheet results (example), start inspection. Refer to “CHECK SHEET RESULTS

(EXAMPLE)” (EL-581).

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

CAN SYSTEM (TYPE 6)

Trouble Diagnoses

EL-579
