Terminals and Reference Value

NLEL0688

TERMINALS

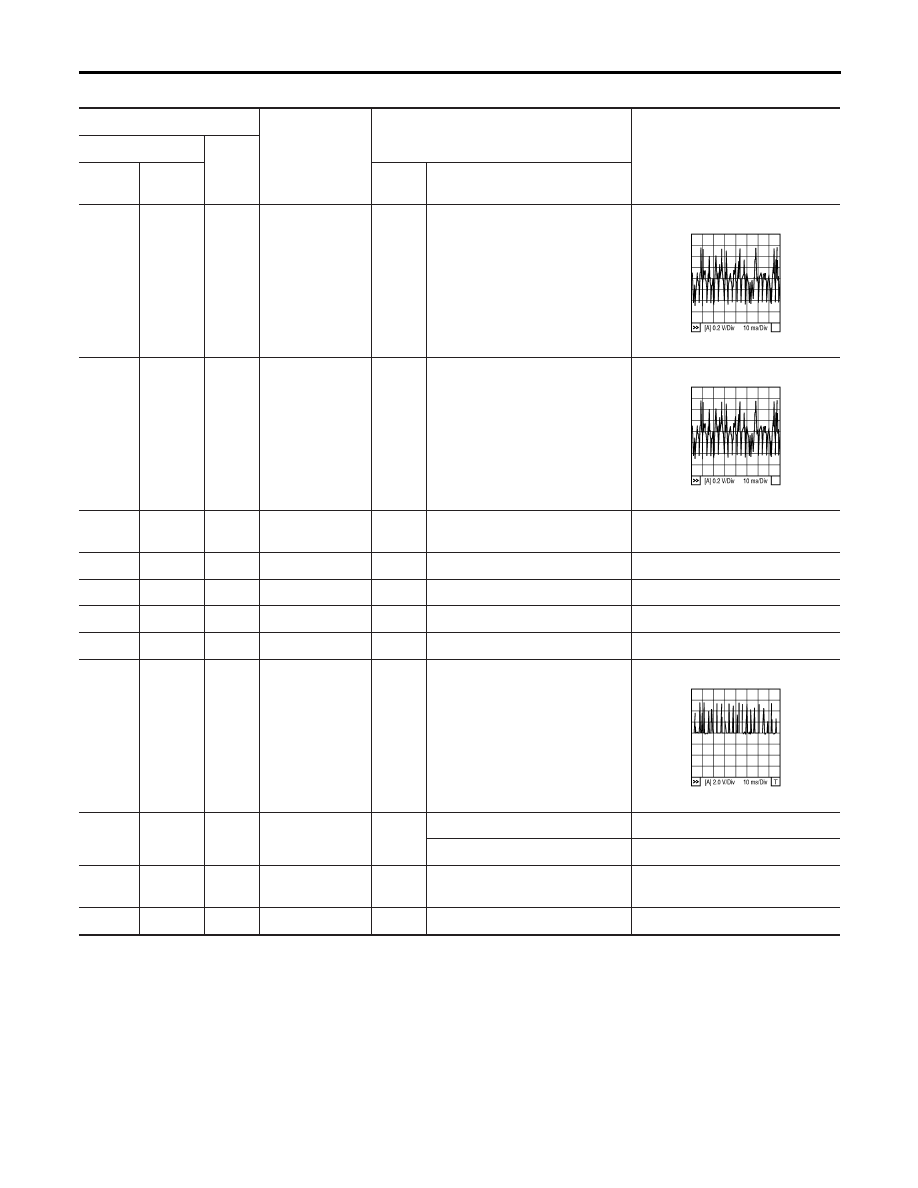

ITEM

CONDITION

Voltage [V]

(+)

(–)

TERMI-

NAL

WIRE

COLOR

Ignition

switch

Operation

2

R

Ground

Image signal
(output

ON

Gear position: “R” position

Approximately 0V

MKIB0189E

3

W

Ground

Camera image
signal (input)

ON

Gear position “R” position

Approximately 0V

MKIB0189E

5

PU

Ground

Camera power
output

ON

Gear position: R-position

Approximately 6.5V

6

P

Ground ACC power

ACC

Battery voltage

7

Y

Ground Battery power

OFF

Battery voltage

9

B

Ground Shield ground

ON

10

B

Ground Shield ground

ON

13

L

Ground

Image synchro-
nous signal (out-
put)

ON

Gear position: R-position

Approximately 5V

MKIB0190E

14

G/W

Ground

Reverse signal
input

ON

Gear position: “R” position

Battery voltage

Gear position: Other position

Approximately 0V

15

PU/W

Ground

Connected recog-
nition signal

ON

Approximately 0V

16

B

Ground Ground

ON

REARVIEW MONITOR

Terminals and Reference Value

EL-168

Trouble Diagnosis

NLEL0541

POWER SUPPLY AND GROUND CIRCUIT CHECK

NLEL0541S02

1

CHECK THE FUSES

I

Check that the fuses for rearview camera control unit are blown.

MTBL1644

OK or NG

OK

©

GO TO 2.

NG

©

If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse.
Refer to EL-12.

2

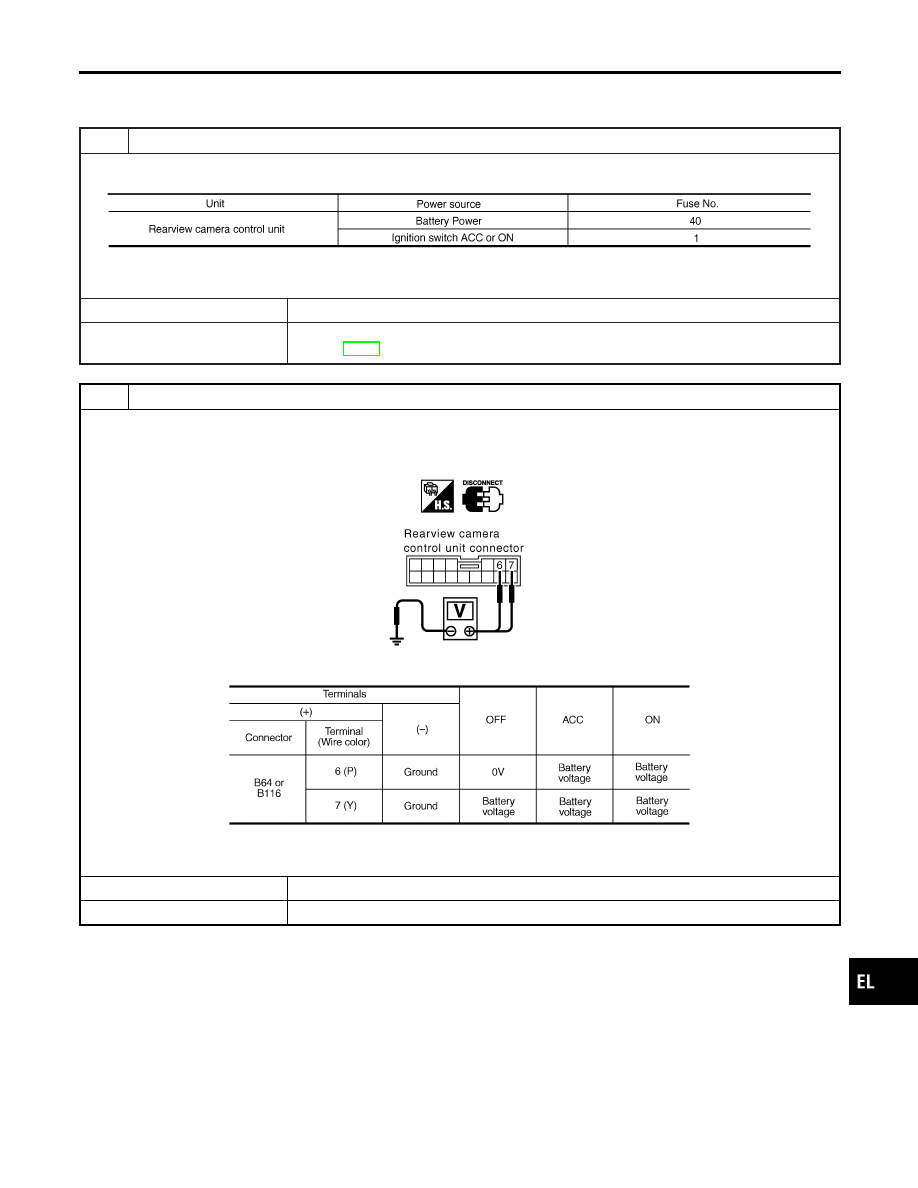

POWER SUPPLY CIRCUIT CHECK

1. Disconnect camera controller connector.
2. Check voltage rearview camera control unit B64 (LHD models) or B116 (RHD models) terminal 6 (P) and 7(Y), and

ground.

YEL604E

MTBL1645

OK or NG

OK

©

GO TO 3.

NG

©

Check harness for open or short between rearview camera control unit and fuse.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

REARVIEW MONITOR

Trouble Diagnosis

EL-169

3

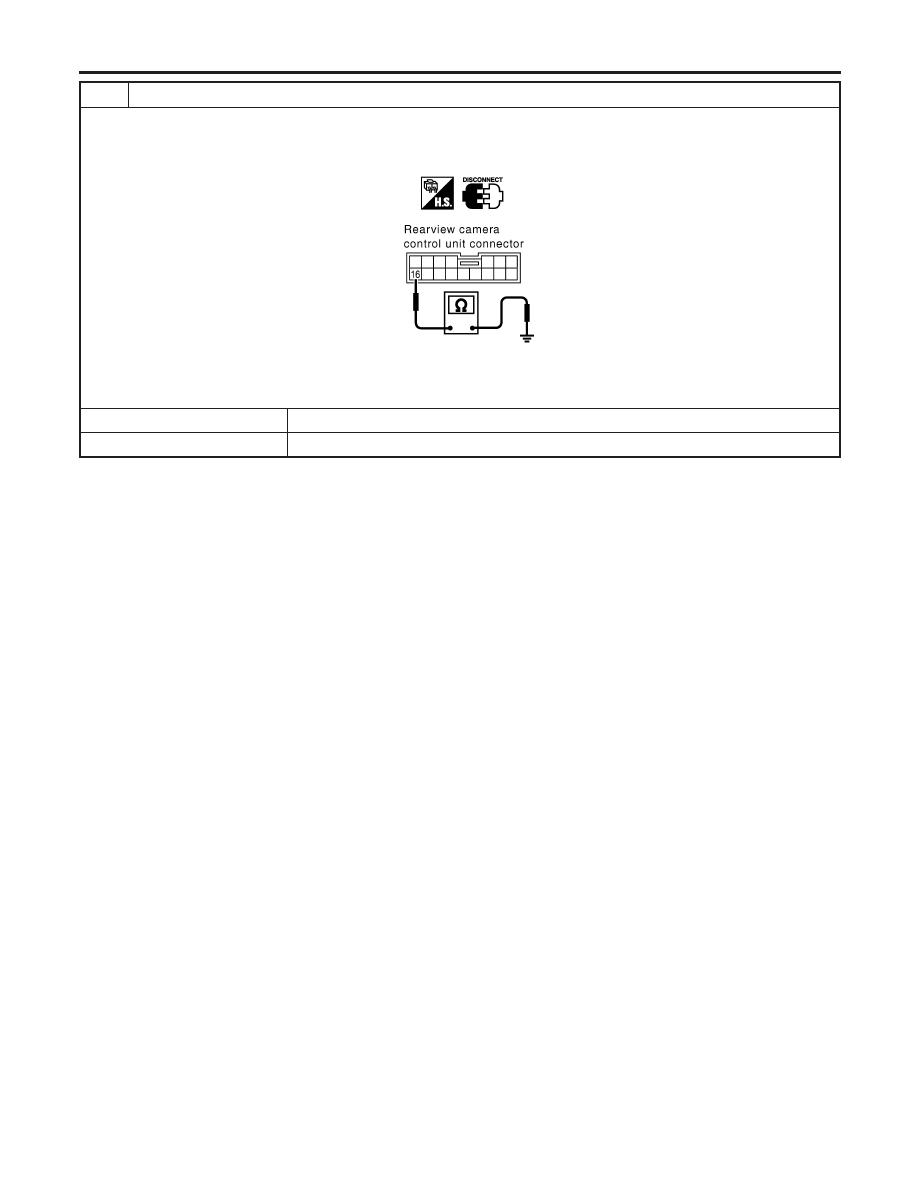

GROUND CIRCUIT CHECK

Check the following.

I

Continuity between rearview camera control unit harness connector B64 (LHD models) or B116 (RHD models) terminal
16 (B) and ground.

YEL606E

Continuity should exist.

OK or NG

OK

©

INSPECTION END

NG

©

Check ground harness.

REARVIEW MONITOR

Trouble Diagnosis (Cont’d)

EL-170

REARVIEW IS NOT DISPLAYED WITH THE SELECTOR
LEVER IN R-POSITION.

=NLEL0541S03

1

BACKUP LAMP INSPECTION

1. Turn ignition switch ON position.
2. Shift the selector lever to R-position.

Does backup lamp illuminate?

Yes

©

GO TO 2.

No

©

Check backup lamp system.

2

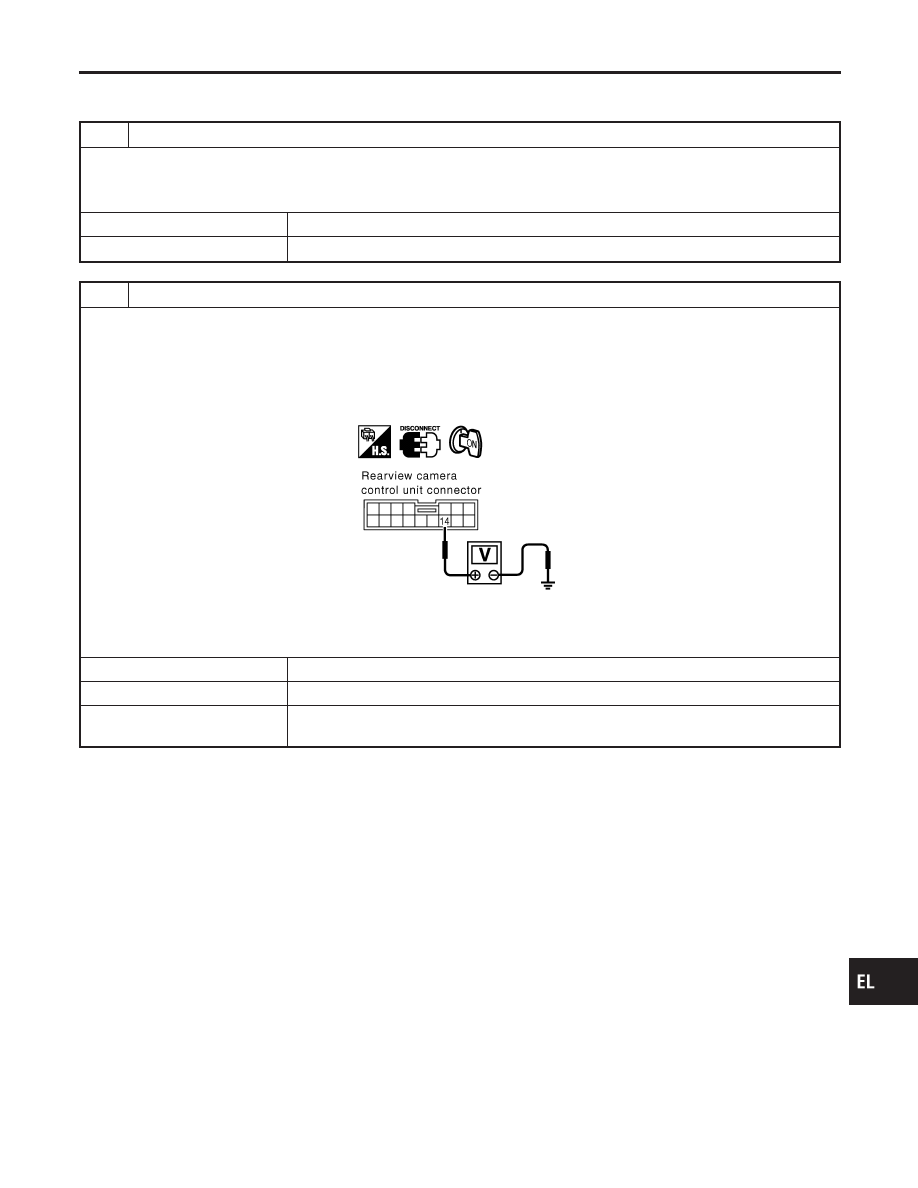

CHECK REVERSE POSITION INPUT SIGNAL I

1. Turn ignition switch OFF.
2. Disconnect rearview camera control unit connector.
3. Turn ignition switch ON.
4. Shift the selector lever to R-position.
5. Check voltage between rearview camera control unit harness connector B64 (LHD models) or B116 (RHD models) ter-

minal 14 (G/W) and ground.

YEL603E

Battery voltage should exist.

OK or NG

OK

©

GO TO 3.

(With navigation system)

OK

©

GO TO 4.

(Without navigation system)

NG

©

Check harness for open or short between rearview camera control unit and backup lamp
switch (M/T models) or park/neutral position switch (A/T models).

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

REARVIEW MONITOR
