Nissan Almera Tino V10. Manual - part 699





8

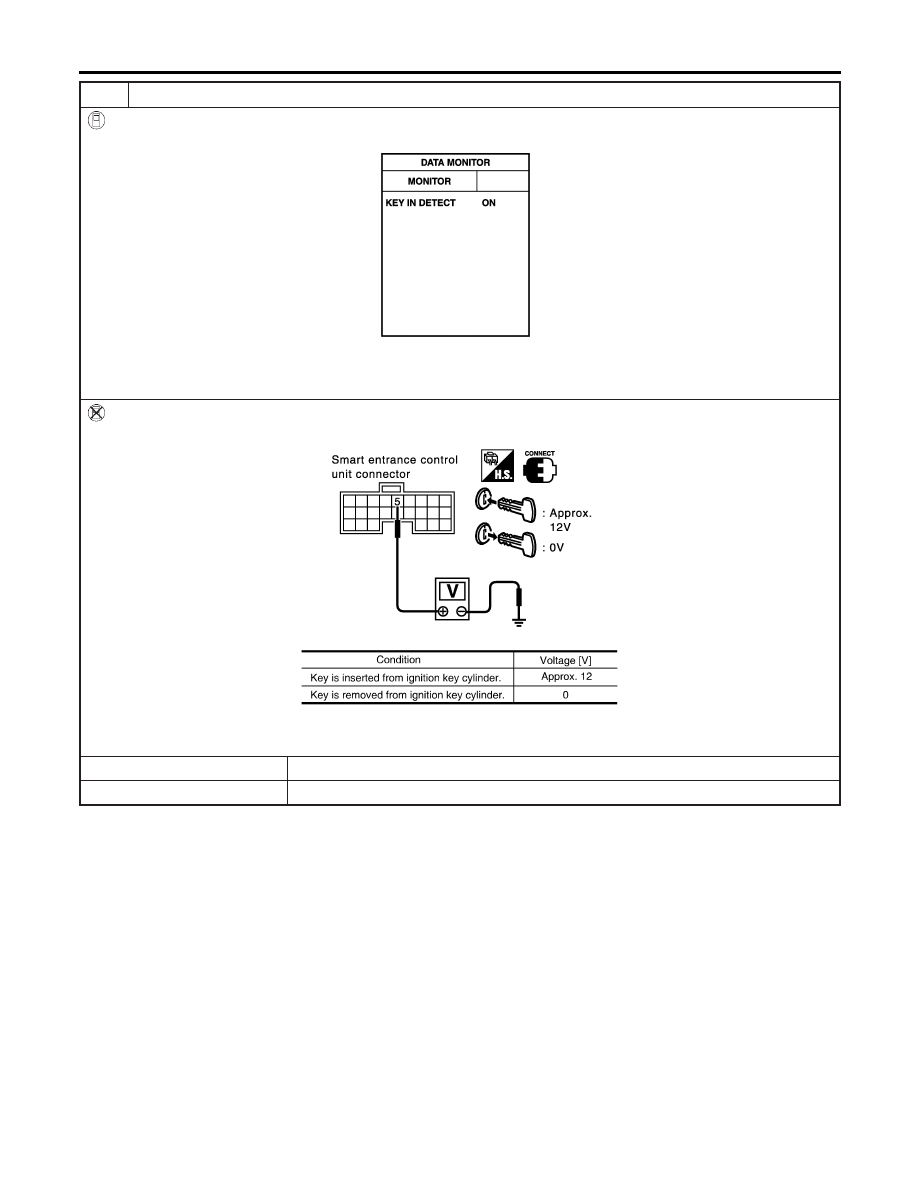

CHECK KEY SWITCH INPUT SIGNAL

WITH CONSULT-II

Check key switch signal (“KEY IN DETECT”) in “DATA MONITOR” mode with CONSULT-II.

MKIB0200E

When key is inserted: KEY IN DETECT ON
When key is removed: KEY IN DETECT OFF

WITHOUT CONSULT-II

Check voltage between smart entrance control unit harness connector M193 terminal 5 (L/W) and ground.

MKIB0079E

MTBL1430

OK or NG

OK

©

Replace smart entrance control unit.

NG

©

GO TO 9.

INTERIOR ROOM LAMP

Trouble Diagnoses (Cont’d)

EL-92

9

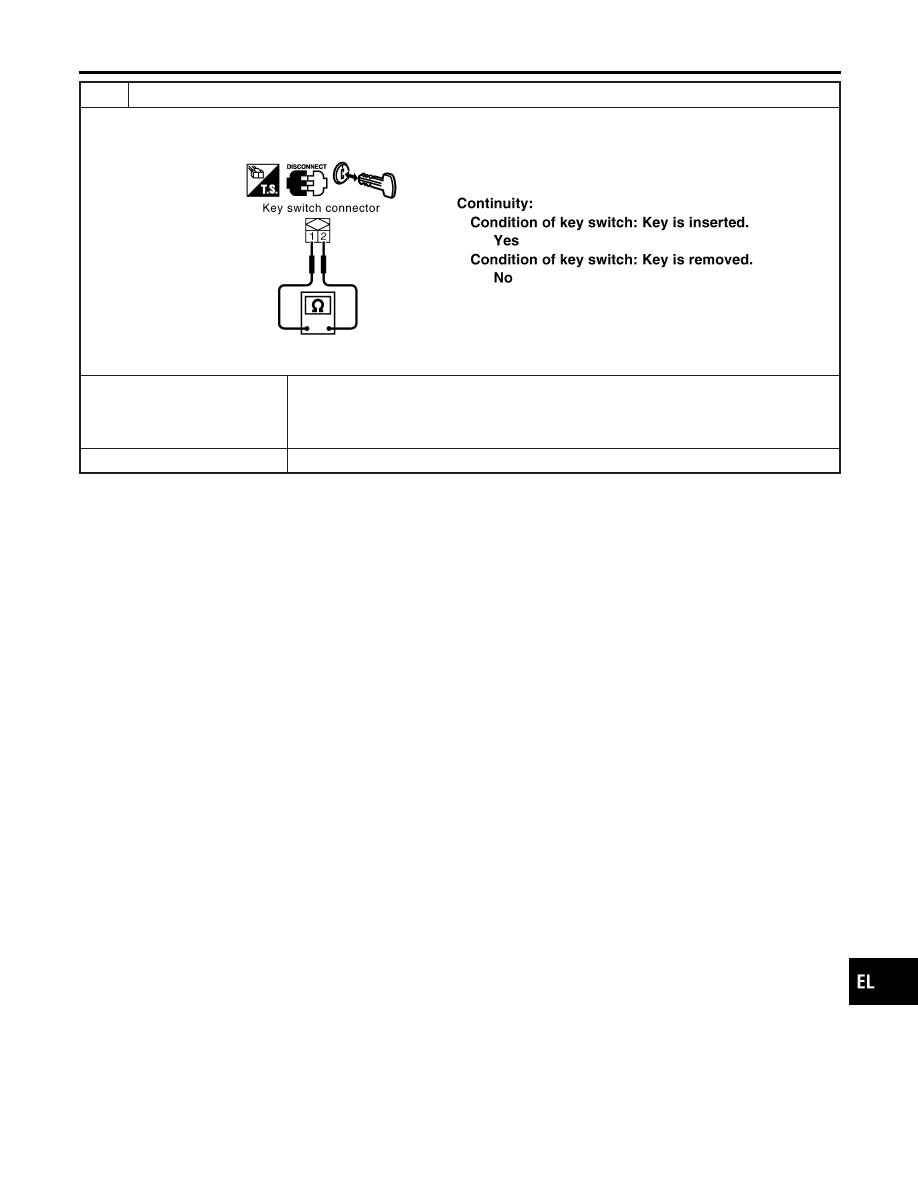

CHECK KEY SWITCH (INSERT)

1. Disconnect key switch connector.
2. Check continuity between 1 and 2.

YEL574E

OK or NG

OK

©

Check the following.

I

10A fuse [No. 12, located in fuse block (J/B)]

I

Harness for open or short between key switch and fuse

I

Harness for open or short between smart entrance control unit and key switch

NG

©

Replace key switch.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

INTERIOR ROOM LAMP

Trouble Diagnoses (Cont’d)

EL-93

DIAGNOSTIC PROCEDURE 2

=NLEL0533S05

Symptom: Interior room lamp timer does not cancel

NLEL0533S0501

1

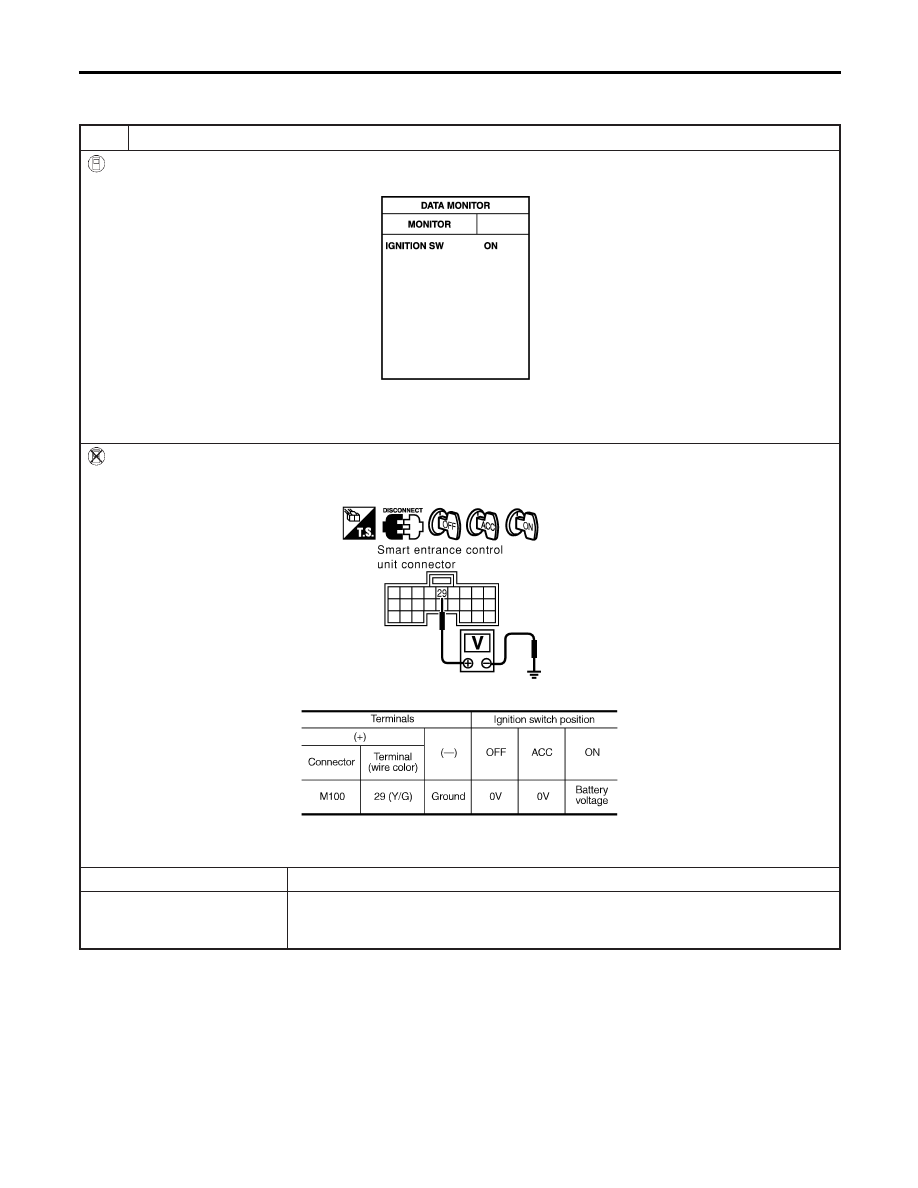

CHECK IGNITION ON SIGNAL

WITH CONSULT-II

Check ignition switch ON signal (“IGNITION SW”) in “DATA MONITOR” mode with CONSULT-II.

MKIB0196E

When ignition switch is ON: IGNITION SW ON
When ignition switch is OFF: IGNITION SW OFF

WITHOUT CONSULT-II

1. Disconnect smart entrance control unit connector.
2. Check voltage between smart entrance control unit harness connector M100 terminal 29 (Y/G) and ground.

MKIB0072E

MTBL1638

OK or NG

OK

©

GO TO 2.

NG

©

Check the following.

I

10A fuse [No. 10, located in fuse block (J/B)]

I

Harness for open or short between smart entrance control unit and fuse

INTERIOR ROOM LAMP

Trouble Diagnoses (Cont’d)

EL-94

2

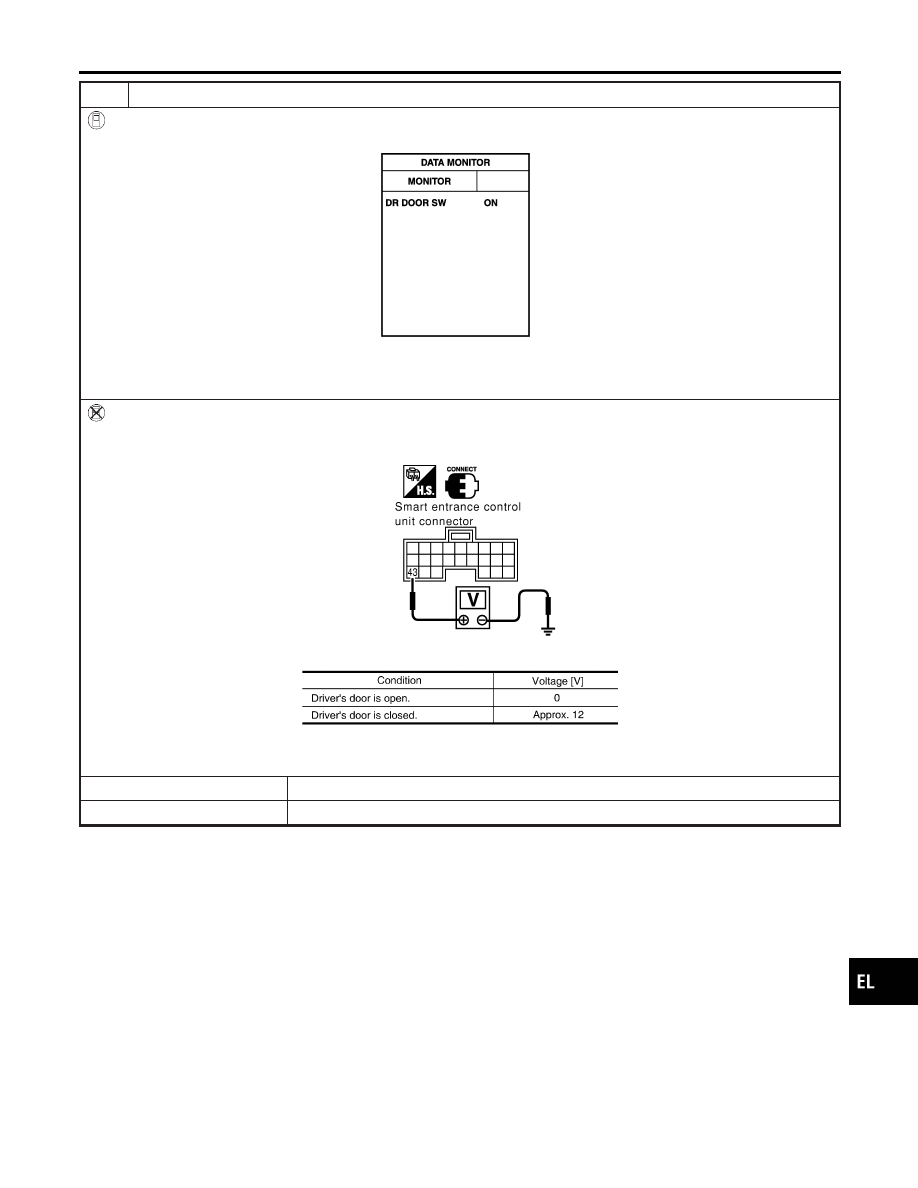

CHECK DOOR SWITCH INPUT SIGNAL

WITH CONSULT-II

Check driver door switch signal (“DR DOOR SW”) in “DATA MONITOR” mode with CONSULT-II.

MKIB0197E

When driver’s door switch is open: DR DOOR SW ON
When driver’s door switch is closed: DR DOOR SW OFF

WITHOUT CONSULT-II

1. Connect smart entrance control unit connector.
2. Check voltage between smart entrance control unit harness connector M100 terminal 43 (R/W) and ground.

MKIB0073E

MTBL1433

OK or NG

OK

©

GO TO 4.

NG

©

GO TO 3.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

INTERIOR ROOM LAMP

Trouble Diagnoses (Cont’d)

EL-95
