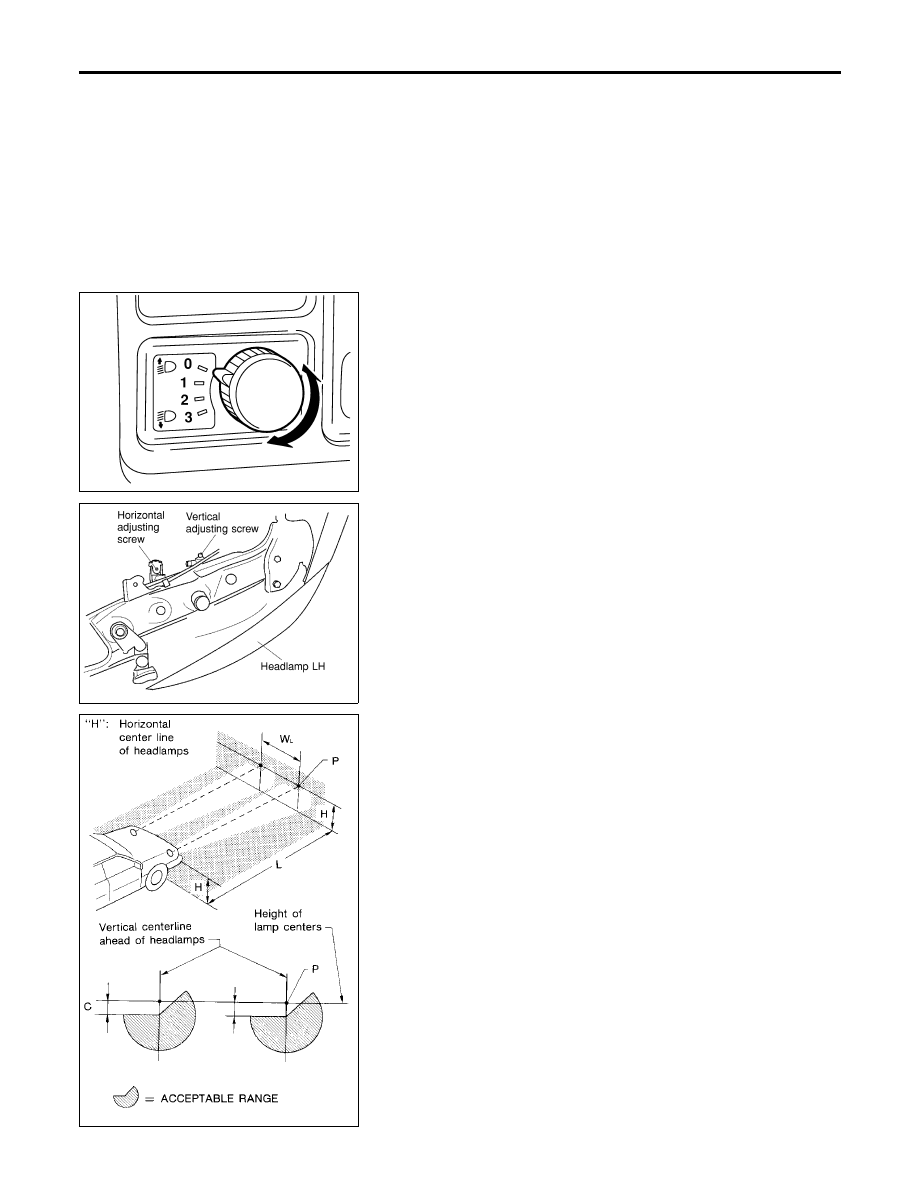

Aiming Adjustment

NLEL0016

For details, refer to the regulations in your own country.
Before performing aiming adjustment, check the following.
1)

Keep all tires inflated to correct pressures.

2)

Place vehicle on flat surface.

3)

See that there is no-load in vehicle (coolant, engine oil filled up
to correct level and full fuel tank) other than the driver (or
equivalent weight placed in driver’s position).

SEL984W

CAUTION:

Be sure aiming switch is set to “0” when performing aiming
adjustment on vehicles equipped with headlamp aiming con-
trol.

NEL734

LOW BEAM

NLEL0016S02

1.

Turn headlamp low beam on.

2.

Use adjusting screws to perform aiming adjustment.

I

First tighten the adjusting screw all the way and then
make adjustment by loosening the screw.

SEL254I

I

Adjust headlamps so that main axis of light is parallel to
center line of body and is aligned with point P shown in
illustration.

I

Figure to the left shows headlamp aiming pattern for driv-
ing on right side of road; for driving on left side of road,
aiming pattern is reversed.

I

Dotted lines to point P in illustration show center of head-
lamp.
“H”: Horizontal center line of headlamps
“W

L

”: Distance between each headlamp center

“L”: 5,000 mm (196.85 in)
“C”: 65 mm (2.56 in)

HEADLAMP

Aiming Adjustment

EL-44

System Description

NLEL0351

The headlamp system on vehicles for North Europe contains a daytime light unit. The unit activates the fol-
lowing whenever the engine is running with the lighting switch in the OFF position:

I

Low beam headlamps

I

Parking, license, tail and illumination lamps

Power is supplied at all times

I

through 10A fuse (No. 38, located in the fuse and fusible link box)

I

to daytime light unit terminal 1 and

I

to lighting switch terminal 11.

Power is also supplied at all times

I

through 15A fuse (No. 36, located in the fuse and fusible link box)

I

to daytime light unit terminal 3 and

I

to lighting switch terminal 5.

Power is also supplied at all times

I

through 15A fuse (No. 35, located in the fuse and fusible link box)

I

to daytime light unit terminal 2 and

I

to lighting switch terminal 8.

With the ignition switch in the ON or START position, power is supplied

I

through 10A fuse [No. 20, located in the fuse block (J/B)]

I

to daytime light unit terminal 7.

With the ignition switch in the START position, power is supplied

I

through 10A fuse [No. 21, located in the fuse block (J/B)]

I

to daytime light unit terminal 6.

Ground is supplied to daytime light unit terminal 9 through body grounds E24 and E73.

HEADLAMP OPERATION (DAYTIME LIGHT CANCEL OPERATION)

NLEL0351S01

When the lighting switch is turned to the 1st or 2nd position, power is supplied

I

through lighting switch terminal 12,

I

to daytime light unit terminal 11.

Then daytime light will be canceled. And the lighting system operation will be the same as no daytime light
system.

DAYTIME LIGHT OPERATION

NLEL0351S02

With the engine running and the lighting switch in the OFF position, power is supplied

I

from alternator terminal 3

I

to daytime light unit terminal 8,

I

through daytime light unit terminal 5

I

to terminal 3 of headlamp LH,

I

through daytime light unit terminal 4

I

to terminal 3 of headlamp RH and

I

through daytime light unit terminal 10

I

to tail lamp and illumination.

Ground is supplied to terminal 2 of each headlamp through body grounds E24 and E73.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

HEADLAMP — DAYTIME LIGHT SYSTEM —

System Description

EL-45

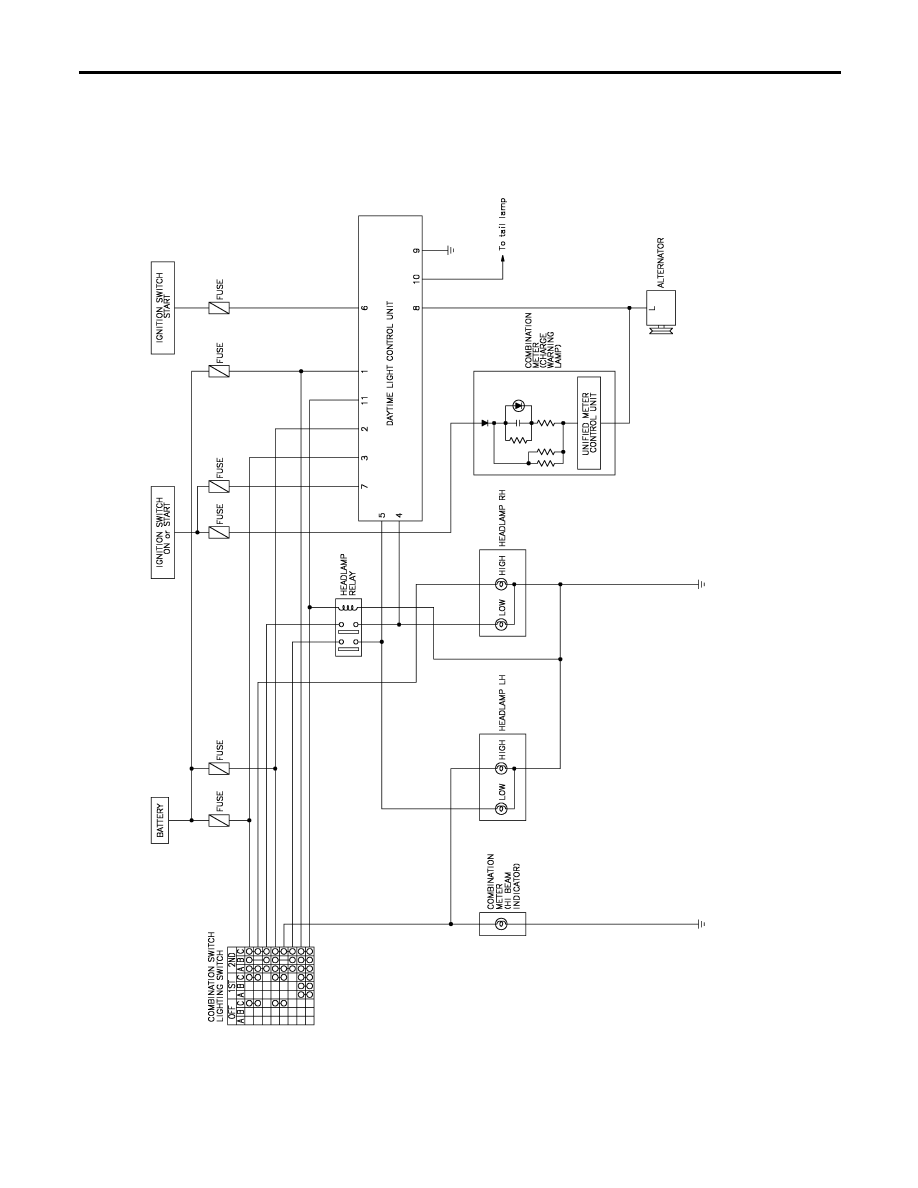

Schematic

NLEL0421

YEL927D

HEADLAMP — DAYTIME LIGHT SYSTEM —

Schematic

EL-46

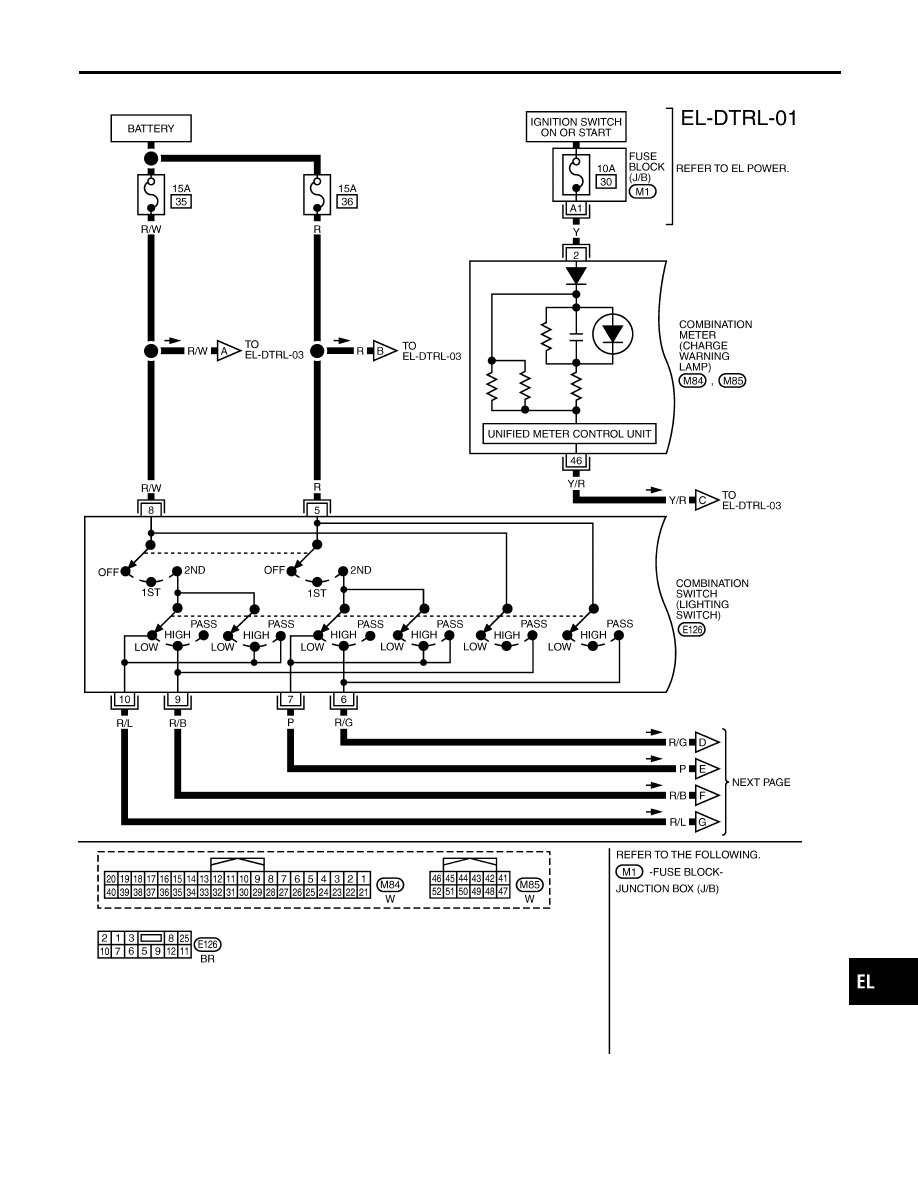

Wiring Diagram — DTRL —

NLEL0422

YEL928D

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

HEADLAMP — DAYTIME LIGHT SYSTEM —

Wiring Diagram — DTRL —

EL-47
