Nissan Almera Tino V10. Manual - part 639





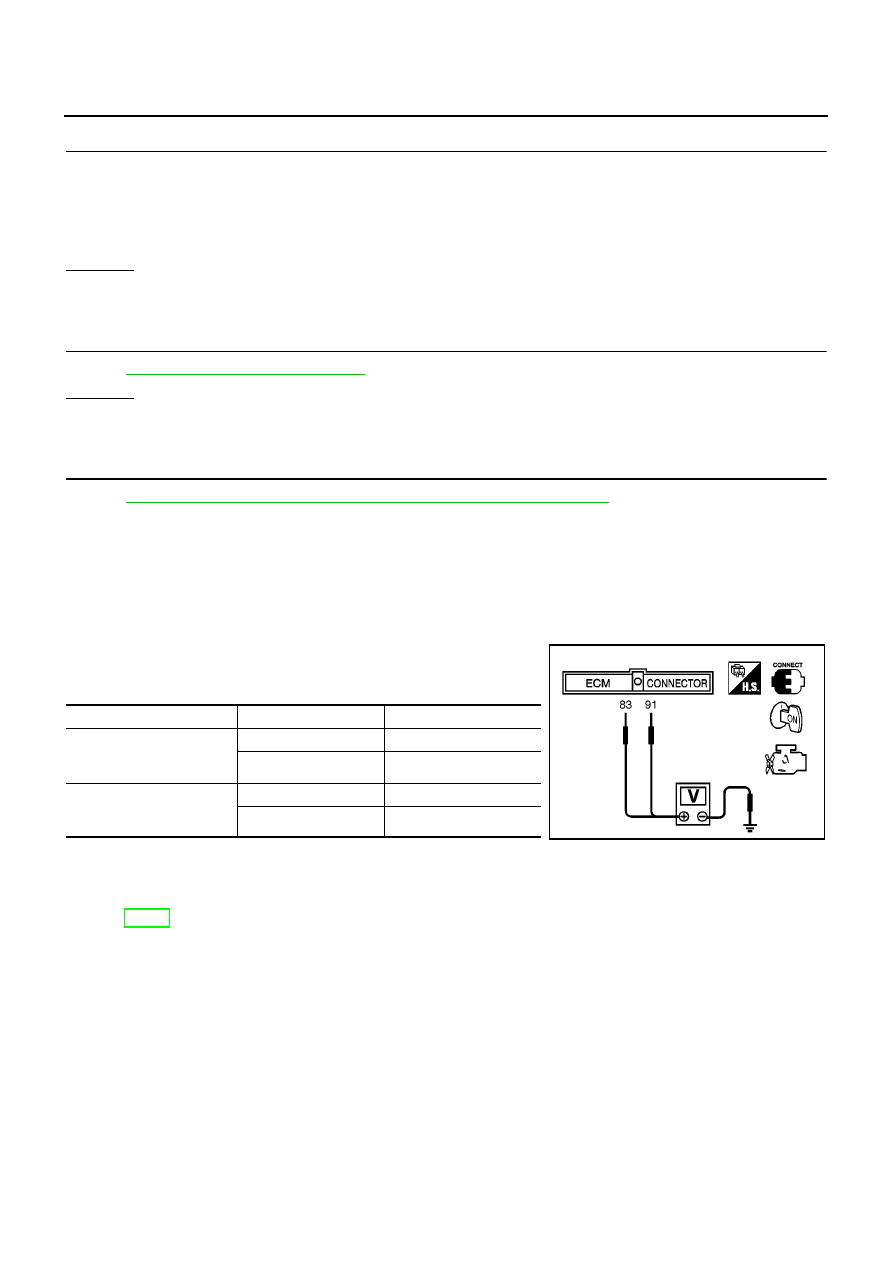

EC-1382

[YD (WITHOUT EURO-OBD)]

DTC P0222, P0223 APP SENSOR

4.

CHECK APP SENSOR 2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Check harness continuity between ECM terminal 91 and APP sensor terminal 6.
Refer to Wiring Diagram.

2.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 5.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK APP SENSOR

Refer to

EC-1382, "Component Inspection"

.

OK or NG

OK

>> GO TO 6.

NG

>> Replace accelerator pedal assembly.

6.

CHECK INTERMITTENT INCIDENT

Refer to

EC-1309, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

.

>> INSPECTION END

Component Inspection

EBS014W0

ACCELERATOR PEDAL POSITION SENSOR

1.

Reconnect all harness connectors disconnected.

2.

Turn ignition switch ON.

3.

Check voltage between ECM terminals 83 (APP sensor 1 sig-
nal), 91 (APP sensor 2 signal) and body ground under the fol-
lowing conditions.

4.

If NG, replace accelerator pedal assembly.

Removal and Installation

EBS014W1

ACCELERATOR PEDAL

Refer to FE-16, “ACCELERATOR CONTROL SYSTEM”.

Continuity should exist.

Terminal

Accelerator pedal

Voltage

83

(Accelerator pedal position

sensor 1)

Fully released

0.5 - 1.0V

Fully depressed

4.2 - 5.3V

91
(Accelerator pedal position
sensor 2)

Fully released

0.4 - 0.7V

Fully depressed

2.2 - 2.7V

MBIB0615E

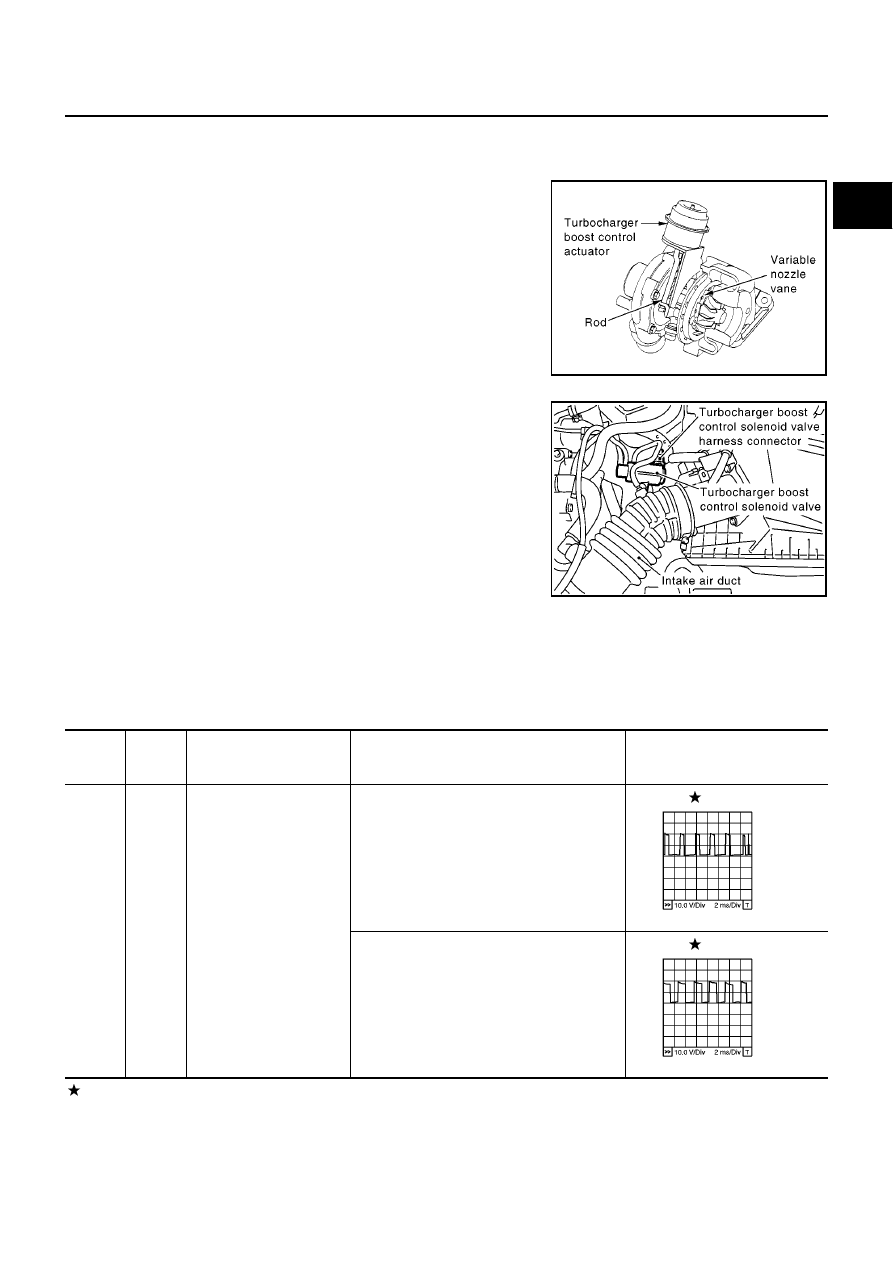

DTC P0234 TC SYSTEM

EC-1383

[YD (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

DTC P0234 TC SYSTEM

PFP:14411

Description(YD22DDTi Engine Models)

EBS014W2

The load from the turbocharger boost control solenoid valve controls
the actuator. By changing the variable nozzle vane opening through
the rods, the intake air volume is adjusted.

The turbocharger boost control solenoid valve is moved by ON/OFF
pulse from the ECM. The longer the ON pulse, the charge air pres-
sure rises.

ECM Terminals and Reference Value(YD22DDTi Engine Models)

EBS014W3

Specification data are reference valves, and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may damage the
ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

*: For YD22DDTi engine models

MBIB0626E

MBIB0921E

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC Voltage and Pulse Signal)

6

L

Turbocharger boost control
solenoid valve*

[Ignition switch ON]

Warm-up condition

Idle speed

0 - 12.5V

[Ignition switch ON]

Warm-up condition

Engine speed is 2,000 rpm

0 - 12.5V

MBIB0889E

MBIB0890E

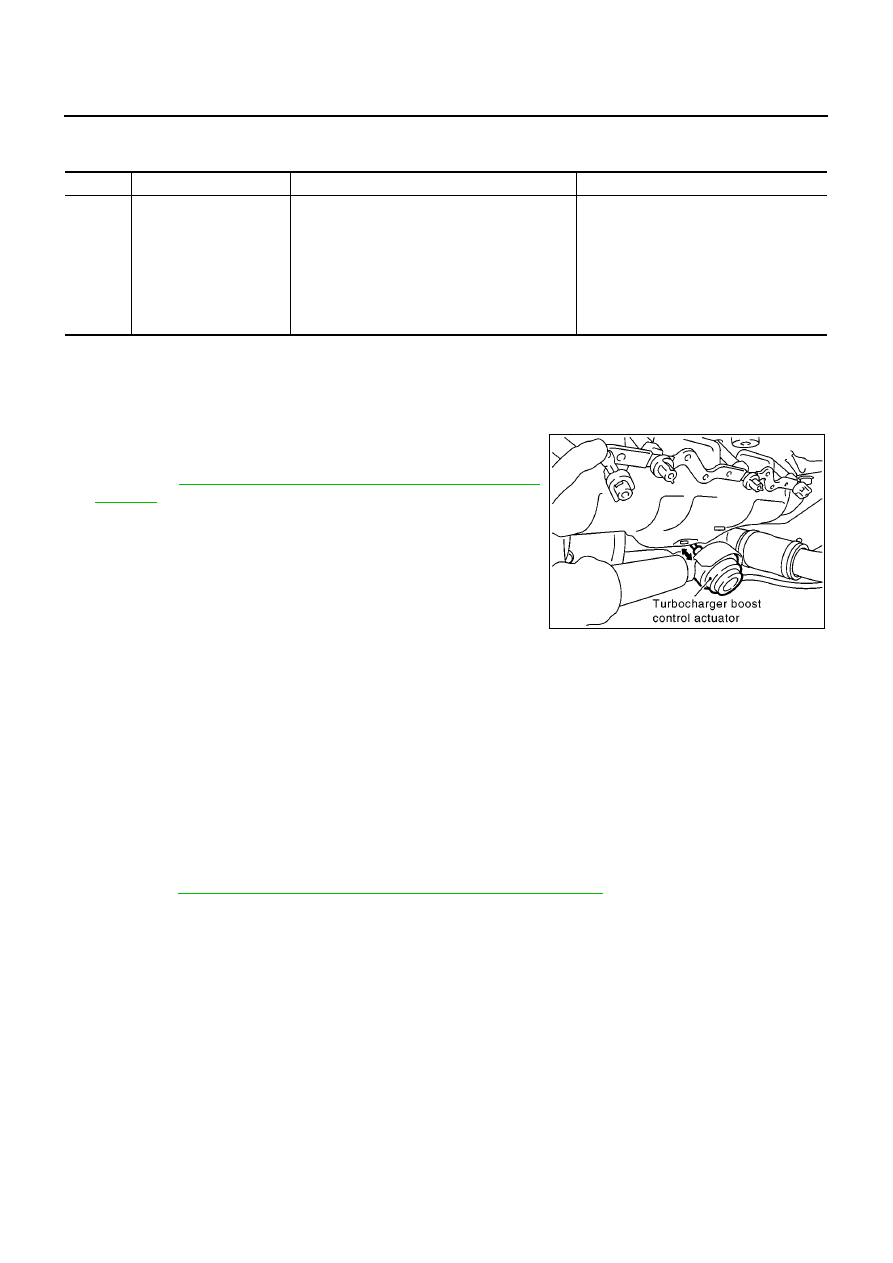

EC-1384

[YD (WITHOUT EURO-OBD)]

DTC P0234 TC SYSTEM

On Board Diagnosis Logic

EBS014W4

The MI will not light up for this self-diagnosis.

Overall Function Check(YD22DDTi Engine Models)

EBS014W5

Use this procedure to check the overall function of the turbocharger. During this check, a DTC might not be
confirmed.

1.

Start engine and let it idle.

2.

Make sure that turbocharger control actuator rod moves slightly
when engine is started.

3.

If NG, go to

EC-1386, "Diagnostic Procedure(YD22DDTi Engine

Models)"

.

Overall Function Check(YD22DDT Engine Models)

EBS016LJ

Use this procedure to check the overall function of the turbocharger. During this check, a DTC might not be
confirmed.

1.

Connect the handy pump to the actuator, and check that the rod strokes smoothly in compliance with the
following pressure.
Pressure to be applied at actuator part to move rod end as follows:

2.

If NG, go to

EC-1386, "Diagnostic Procedure(YD22DDTi Engine Models)"

.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0234

Turbocharger overboost
condition

ECM detects turbocharger boost pressure is
excessively high. (YD22DDTi engine models)

ECM detects intake air flow volume is exces-
sively high. (YD22DDT engine models)

Turbocharger

Vacuum pump

Turbocharger boost sensor (YD22DDTi
engine models)

Turbocharger boost control solenoid
valve (YD22DDTi engine models)

MAF sensor (YD22DDT engine models)

MBIB0638E

Standard (Pressure/rod stroke amount):

131.24 - 136.56 kPa (1,312 - 1,366 mbar, 984.4 - 1024.3
mmHg, 38.7 - 40.3 inHg)/ 0.38 mm (0.0150 in)

155.44 - 164.76 kPa (1,554 - 1,648 mbar, 1,166 - 1,236
mmHg, 45.9 - 48.7 inHg)/4.0 mm (0.157 in)

DTC P0234 TC SYSTEM

EC-1385

[YD (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

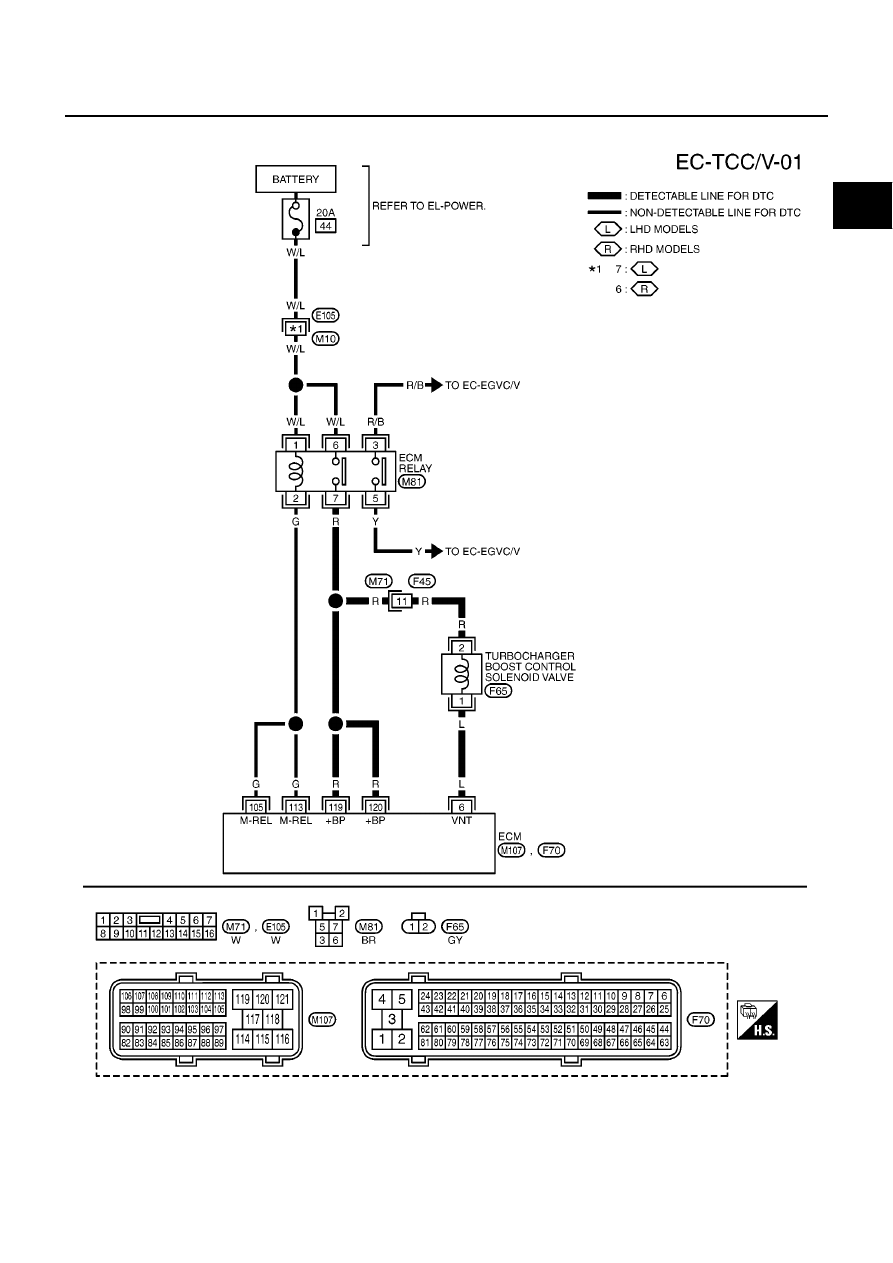

Wiring Diagram(YD22DDTi Engine Models)

EBS014W6

MBWA0623E
