DTC P0201 - P0204 FUEL INJECTOR

PFP:16600

Component Description

EBS014VC

The fuel injector is a small, precise solenoid valve. When the ECM
supplies a ground to the fuel injector circuit, the coil in the fuel injec-
tor is energized. The energized coil pulls the needle valve back and
allows fuel to flow through the fuel injector into the intake cylinder.
The amount of fuel injected depends upon the injection pulse dura-
tion. Pulse duration is the length of time the fuel injector remains
open. The ECM controls the injection pulse duration based on
engine fuel needs.

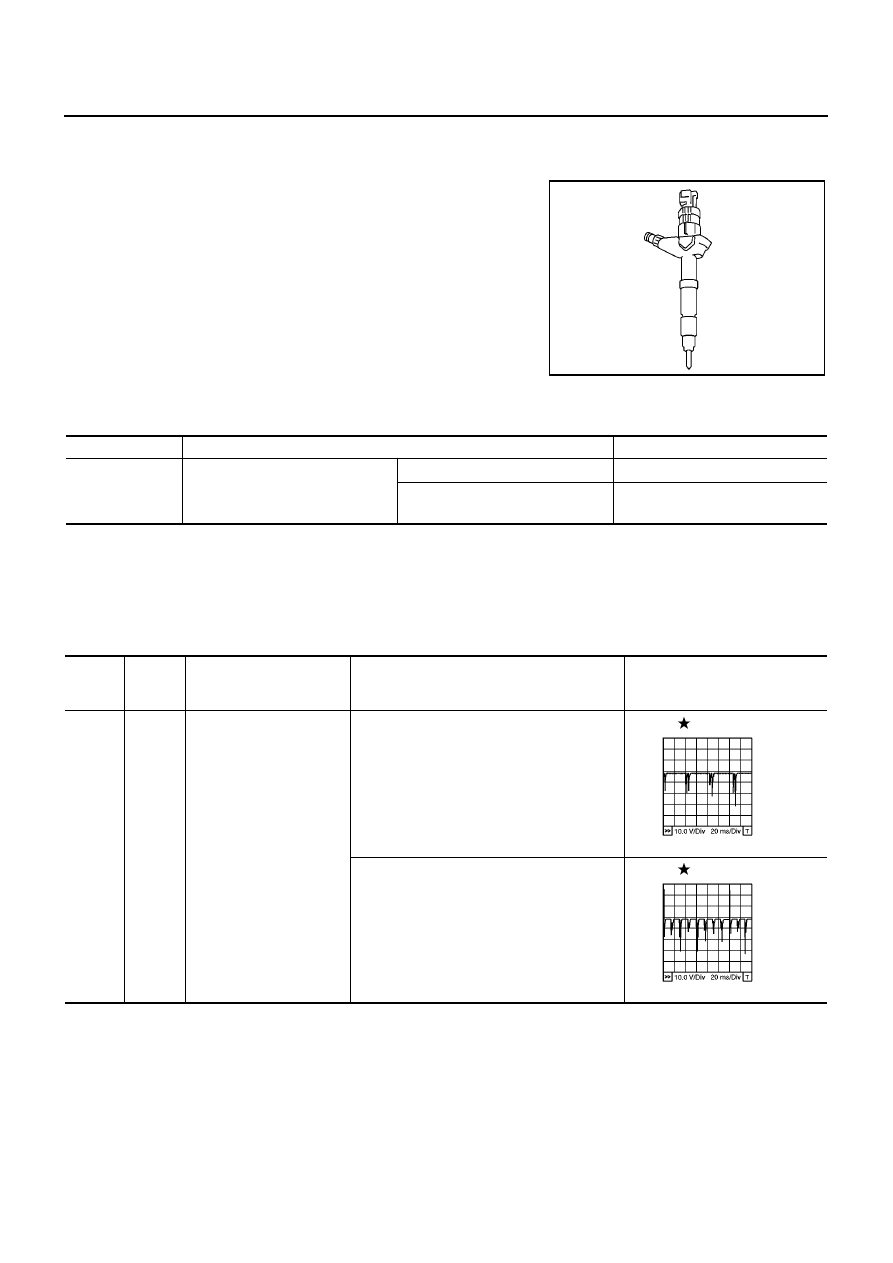

CONSULT-II Reference Value in Data Monitor Mode

EBS014VD

Specification data are reference values.

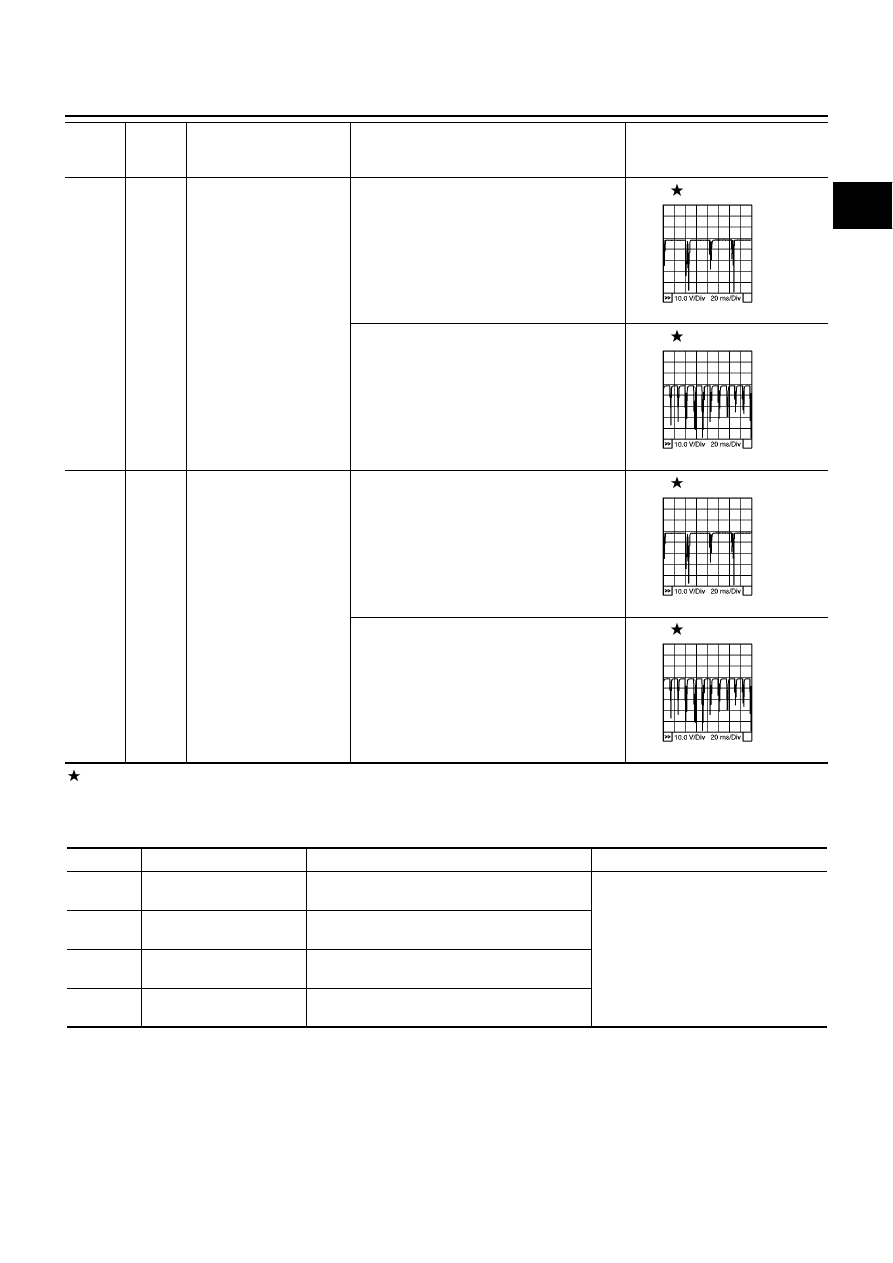

ECM Terminals and Reference Value

EBS014VE

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

PBIB0465E

MONITOR ITEM

CONDITION

SPECIFICATION

MAIN INJ WID

●

Engine: After warming up

●

Shift lever: Neutral position

●

Idle speed

No-load

0.68 - 0.78 msec

Blower fan switch: ON
Rear window defogger switch: ON

0.78 - 0.88 msec

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC Voltage and Pulse Signal)

O/B

Fuel injector power supply
(For cylinder No. 1 and 4)
Fuel injector power supply
(For cylinder No. 2 and 3)

[Engine is running]

●

Warm-up condition

●

Idle speed

5 - 10V

[Engine is running]

●

Warm-up condition

●

Engine speed is 2,000 rpm

5 - 10V

MBIB0883E

MBIB0884E

DTC P0201 - P0204 FUEL INJECTOR

EC-1359

[YD (WITHOUT EURO-OBD)]

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

On Board Diagnosis Logic

EBS014VF

The MI will not light up for these self-diagnoses.

21
22
23
24

L
PU/W
L
PU/W

Fuel injector No. 2
Fuel injector No. 2
Fuel injector No. 3
Fuel injector No. 3

[Engine is running]

●

Warm-up condition

●

Idle speed

0 - 9V

[Engine is running]

●

Warm-up condition

●

Engine speed is 2,000 rpm

0 - 9V

40
41
42
43

B/P
PU/W
B/P
PU/W

Fuel injector No. 4
Fuel injector No. 4
Fuel injector No. 1
Fuel injector No. 1

[Engine is running]

●

Warm-up condition

●

Idle speed

0 - 9V

[Engine is running]

●

Warm-up condition

●

Engine speed is 2,000 rpm

0 - 9V

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC Voltage and Pulse Signal)

MBIB0881E

MBIB0882E

MBIB0881E

MBIB0882E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0201

No. 1 cylinder fuel injector
circuit open

An improper voltage signal is sent to ECM
through No. 1 cylinder fuel injector.

●

Harness or connectors
(The fuel injector circuit is open.)

●

Fuel injector

P0202

No. 2 cylinder fuel injector
circuit open

An improper voltage signal is sent to ECM
through No. 2 cylinder fuel injector.

P0203

No. 3 cylinder fuel injector
circuit open

An improper voltage signal is sent to ECM
through No. 3 cylinder fuel injector.

P0204

No. 4 cylinder fuel injector
circuit open

An improper voltage signal is sent to ECM
through No. 4 cylinder fuel injector.

EC-1360

[YD (WITHOUT EURO-OBD)]

DTC P0201 - P0204 FUEL INJECTOR

DTC Confirmation Procedure

EBS014VG

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION
Before performing the following procedure, confirm the ambient temperature is more than -20

C (-4

F).

WITH CONSULT-II

Turn ignition switch ON.

Select “DATA MONITOR” mode with CONSULT-II.

Start engine and let it idle for at least 5 seconds.

If DTC is detected, go to

EC-1362, "Diagnostic Procedure"

SEF817Y

DTC P0201 - P0204 FUEL INJECTOR

EC-1361

[YD (WITHOUT EURO-OBD)]

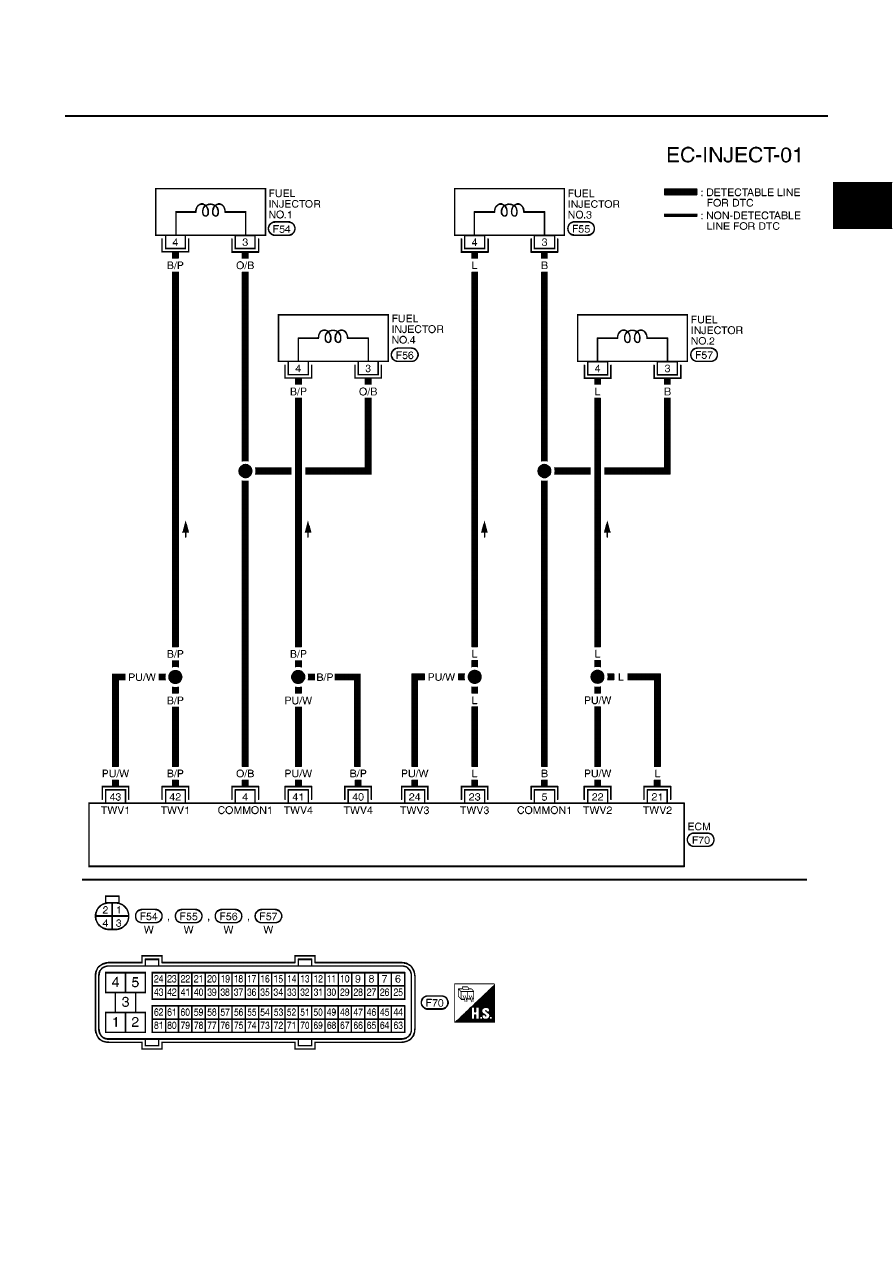

Wiring Diagram

EBS014VH

MBWA0633E
