EC-1262

[YD (WITHOUT EURO-OBD)]

ENGINE CONTROL SYSTEM

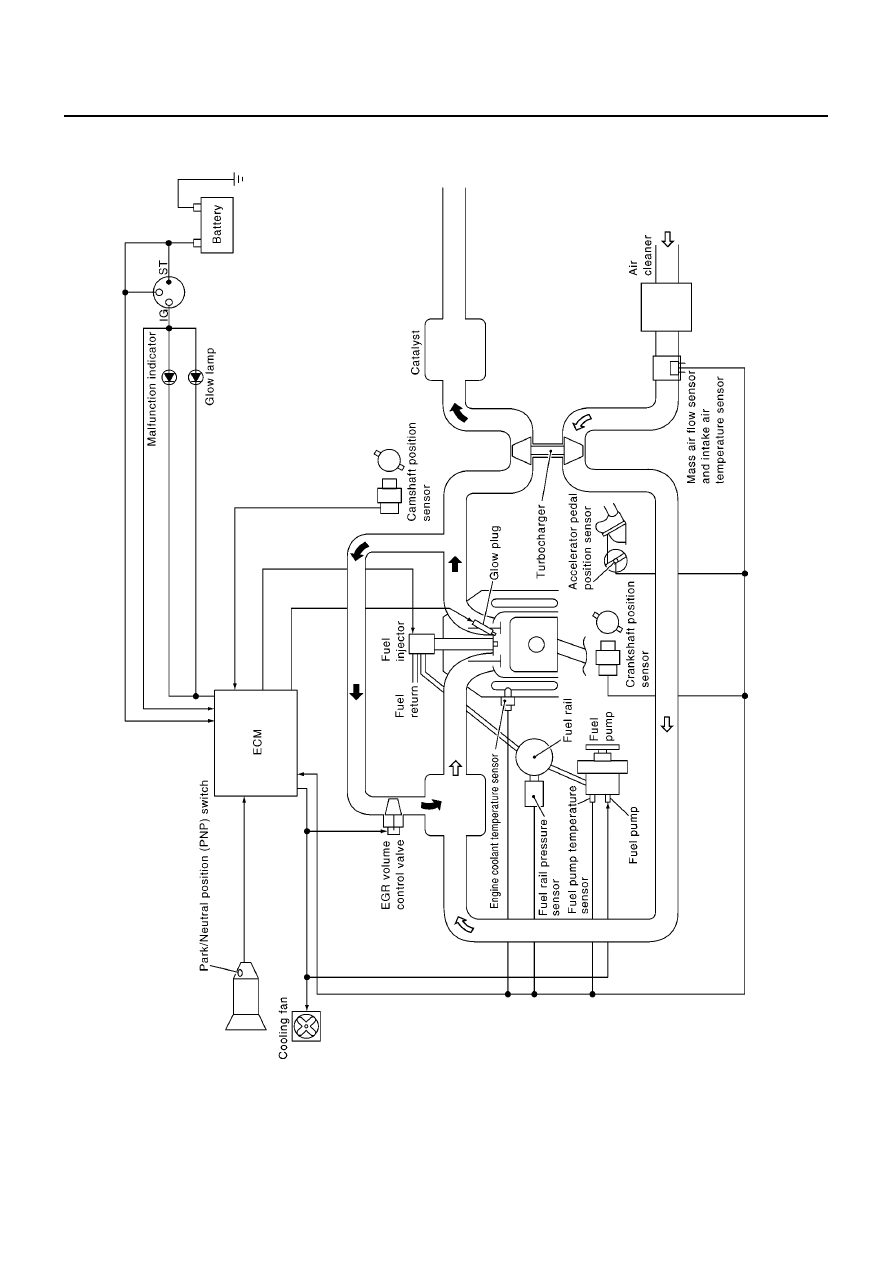

System Diagram(YD22DDT Engine Models)

EBS016LI

MBIB0620E

ENGINE CONTROL SYSTEM

EC-1263

[YD (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

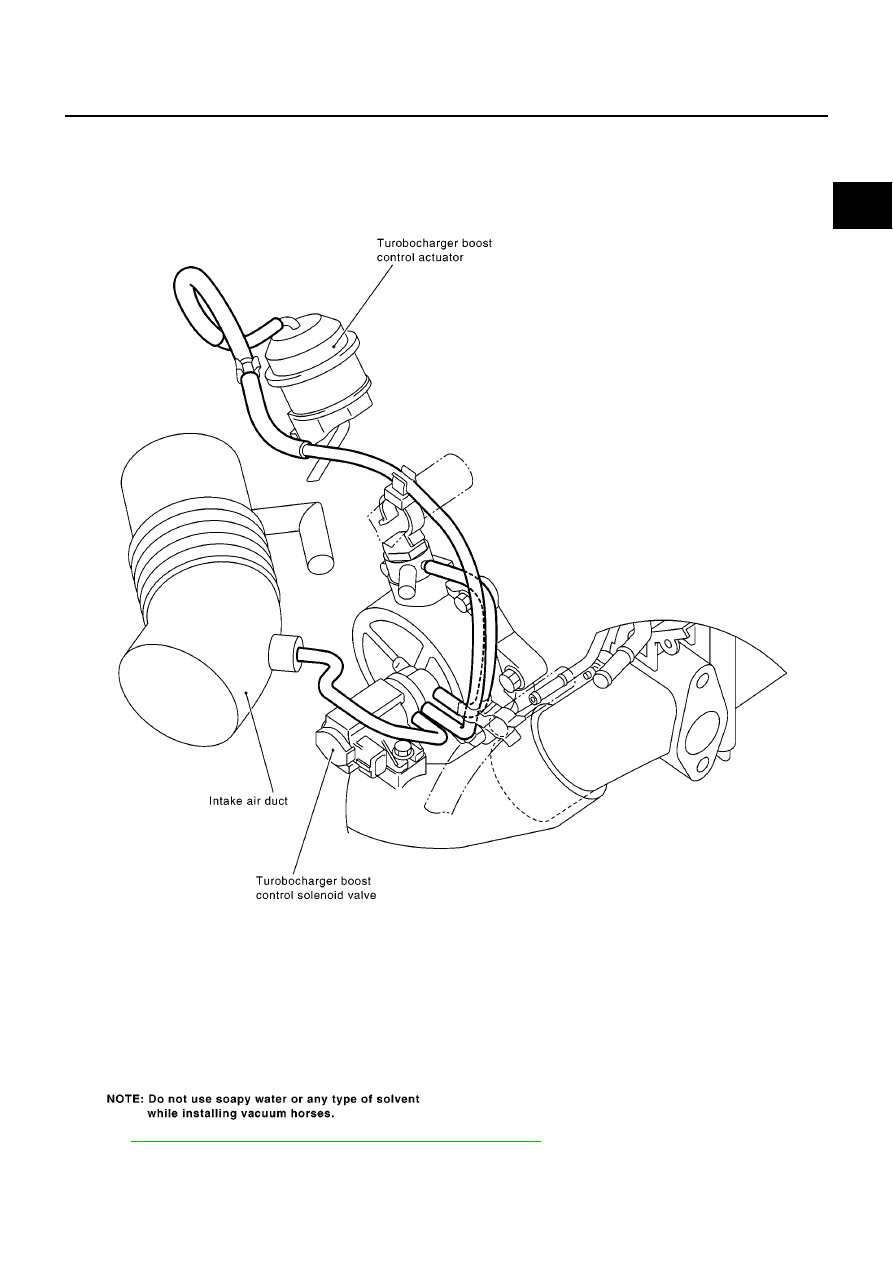

Vacuum Hose Drawing(YD22DDTi Engine Models)

EBS014SD

Refer to

EC-1261, "System Diagram(YD22DDTi Engine Models)"

for Vacuum Control System.

MBIB0609E

EC-1264

[YD (WITHOUT EURO-OBD)]

ENGINE CONTROL SYSTEM

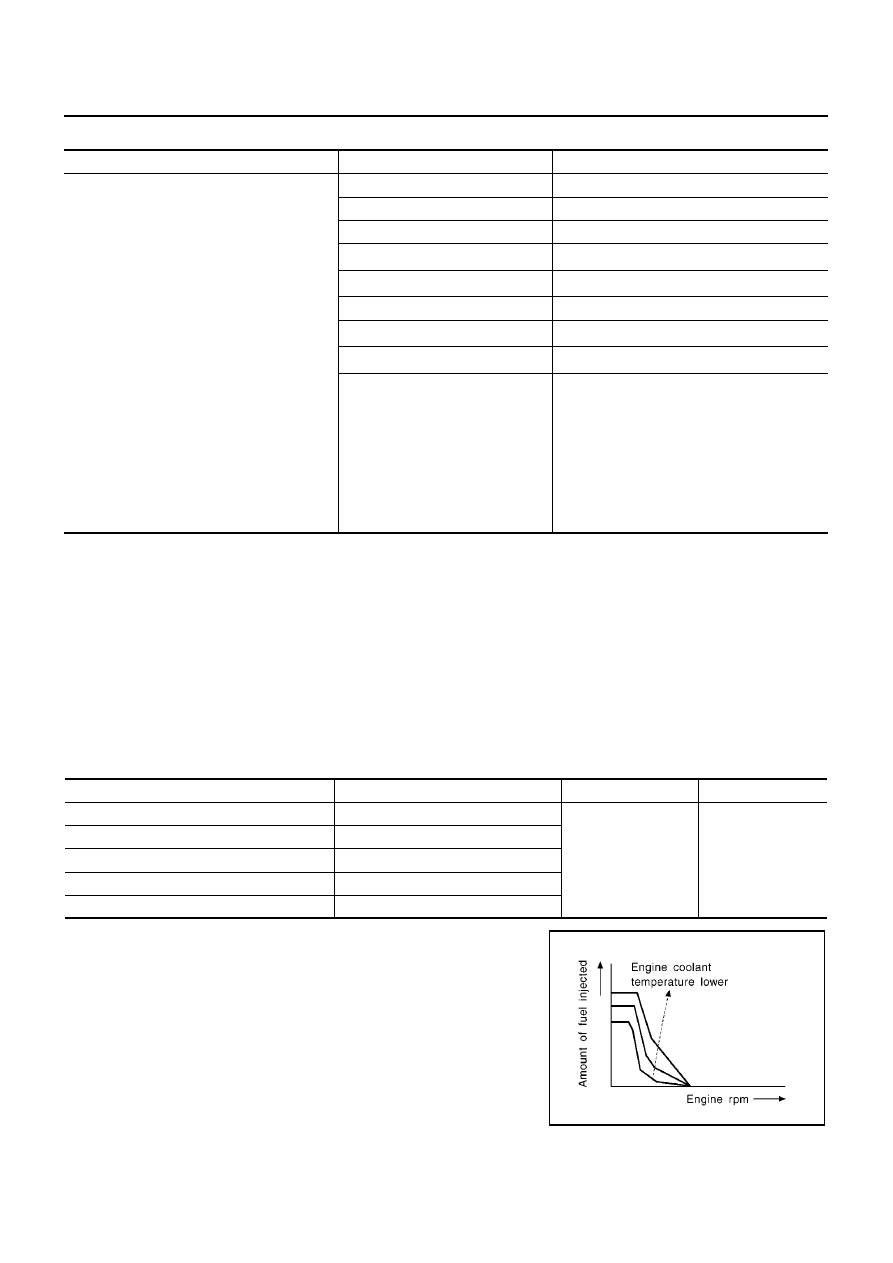

System Chart

EBS014SE

*1: The input signal is sent to the ECM through CAN communication line.
*2: The output signal is sent from the ECM through CAN communication line.
*3: For YD22DDTi engine models

Fuel Injection Control System

EBS014SF

SYSTEM DESCRIPTION

Three types of fuel injection control are provided to accommodate engine operating conditions; normal control,
idle control and start control. The ECM determines the appropriate fuel injection control. Under each control,
the amount of fuel injected is adjusted to improve engine performance.
Pulse signals are sent to fuel injectors according to the input signals to adjust the amount of fuel injected to
preset value.

START CONTROL
Input/Output Signal Chart

When the ECM receives a start signal from the ignition switch, the
ECM adapts the fuel injection system for the start control. The
amount of fuel injected at engine starting is a preset program value
in the ECM. The program is determined by the engine speed, engine
coolant temperature and fuel rail pressure.
For better startability under cool engine conditions, the lower the
coolant temperature becomes, the greater the amount of fuel
injected. The ECM ends the start control when the engine speed
reaches the specific value, and shifts the control to the normal or idle
control.

Input (Sensor)

ECM Function

Output (Actuator)

Accelerator pedal position sensor

Fuel rail pressure sensor

Fuel pump temperature sensor

Engine coolant temperature sensor

Mass air flow sensor

Intake air temperature sensor

Crankshaft position sensor

Camshaft position sensor

Turbocharger boost sensor*

3

Vehicle speed sensor*

1

ESP/TCS/ABS control unit*

1

Ignition switch

Stop lamp switch

Air conditioner switch*

1

Park/neutral position switch

Battery voltage

Power steering pressure switch

Fuel injection control

Fuel injector and Fuel pump

Fuel injection timing control

Fuel injector and Fuel pump

Fuel cut control

Fuel injector and Fuel pump

Glow control system

Glow relay and glow indicator lamp*

2

On board diagnostic system

Malfunction indicator (MI)*

2

EGR volume control

EGR volume control valve

Cooling fan control

Cooling fan relay*

2

Turbocharger boost control*

3

Turbocharger boost control solenoid valve*

3

Air conditioning cut control

Air conditioner relay*

2

Sensor

Input Signal to ECM

ECM Function

Actuator

Engine coolant temperature sensor

Engine coolant temperature

Fuel injection control
(start control)

Fuel injector
Fuel pump

Crankshaft position sensor

Engine speed

Camshaft position sensor

Piston position

Ignition switch

Start signal

Fuel rail pressure sensor

Fuel rail pressure

SEF648S

ENGINE CONTROL SYSTEM

EC-1265

[YD (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

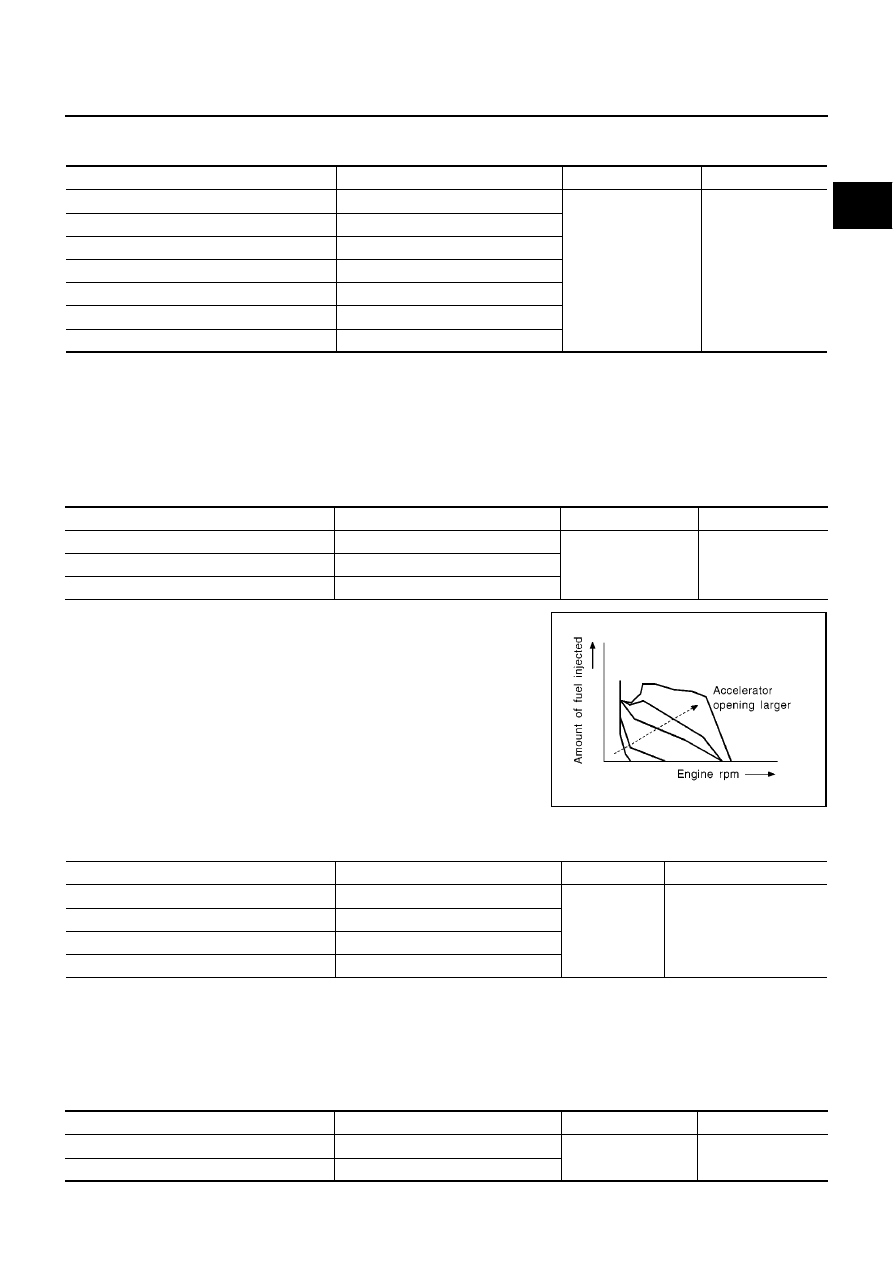

IDLE CONTROL
Input/Output Signal Chart

*: The input signal is sent to the ECM through CAN communication line.

When the ECM determines that the engine speed is at idle, the fuel injection system is adapted for the idle
control. The ECM regulates the amount of fuel injected corresponding to changes in load applied to the engine
to keep engine speed constant. The ECM also provides the system with a fast idle control in response to the
engine coolant temperature signal.

NORMAL CONTROL
Input/Output Signal Chart

The amount of fuel injected under normal driving conditions is deter-
mined according to sensor signals. The crankshaft position sensor
detects engine speed, the accelerator pedal position sensor detects
accelerator pedal position and fuel rail pressure sensor detects fuel
rail pressure. These sensors send signals to the ECM.
The fuel injection data, predetermined by correlation between vari-
ous engine speeds, accelerator pedal positions and fuel rail pres-
sure are stored in the ECM memory, forming a map. The ECM
determines the optimal amount of fuel to be injected using the sen-
sor signals in comparison with the map.

MAXIMUM AMOUNT CONTROL
Input/Output Signal Chart

The maximum injection amount is controlled to an optimum by the engine speed, intake air amount, engine
coolant temperature, and accelerator opening in accordance with the driving conditions.
This prevents the oversupply of the injection amount caused by decreased air density at a high altitude or dur-
ing a system failure.

DECELERATION CONTROL
Input/Output Signal Chart

Sensor

Input Signal to ECM

ECM Function

Actuator

Engine coolant temperature sensor

Engine coolant temperature

Fuel injection control
(Idle control)

Fuel injector
Fuel pump

Crankshaft position sensor

Engine speed

Battery

Battery voltage

Accelerator pedal position sensor

Accelerator pedal position

Fuel rail pressure sensor

Fuel rail pressure

Vehicle speed sensor*

Vehicle speed

Air conditioner switch*

Air conditioner signal

Sensor

Input Signal to ECM

ECM Function

Actuator

Crankshaft position sensor

Engine speed

Fuel injection control
(Normal control)

Fuel injector
Fuel pump

Accelerator pedal position sensor

Accelerator position

Fuel rail pressure sensor

Fuel rail pressure

SEF649S

Sensor

Input Signal to ECM

ECM Function

Actuator

Mass air flow sensor

Amount of intake air

Fuel injection
control (Maxi-
mum amount
control)

Fuel Injector

Engine coolant temperature sensor

Engine coolant temperature

Crankshaft position sensor

Engine speed

Accelerator pedal position sensor

Accelerator pedal position

Sensor

Input Signal to ECM

ECM Function

Actuator

Accelerator pedal position sensor

Accelerator pedal position

Fuel injection control
(Deceleration control)

Fuel injector
Fuel pump

Crankshaft position sensor

Engine speed
