EC-1222

[YD (WITH EURO-OBD)]

DTC P2147, P2148 FUEL INJECTOR CIRCUIT

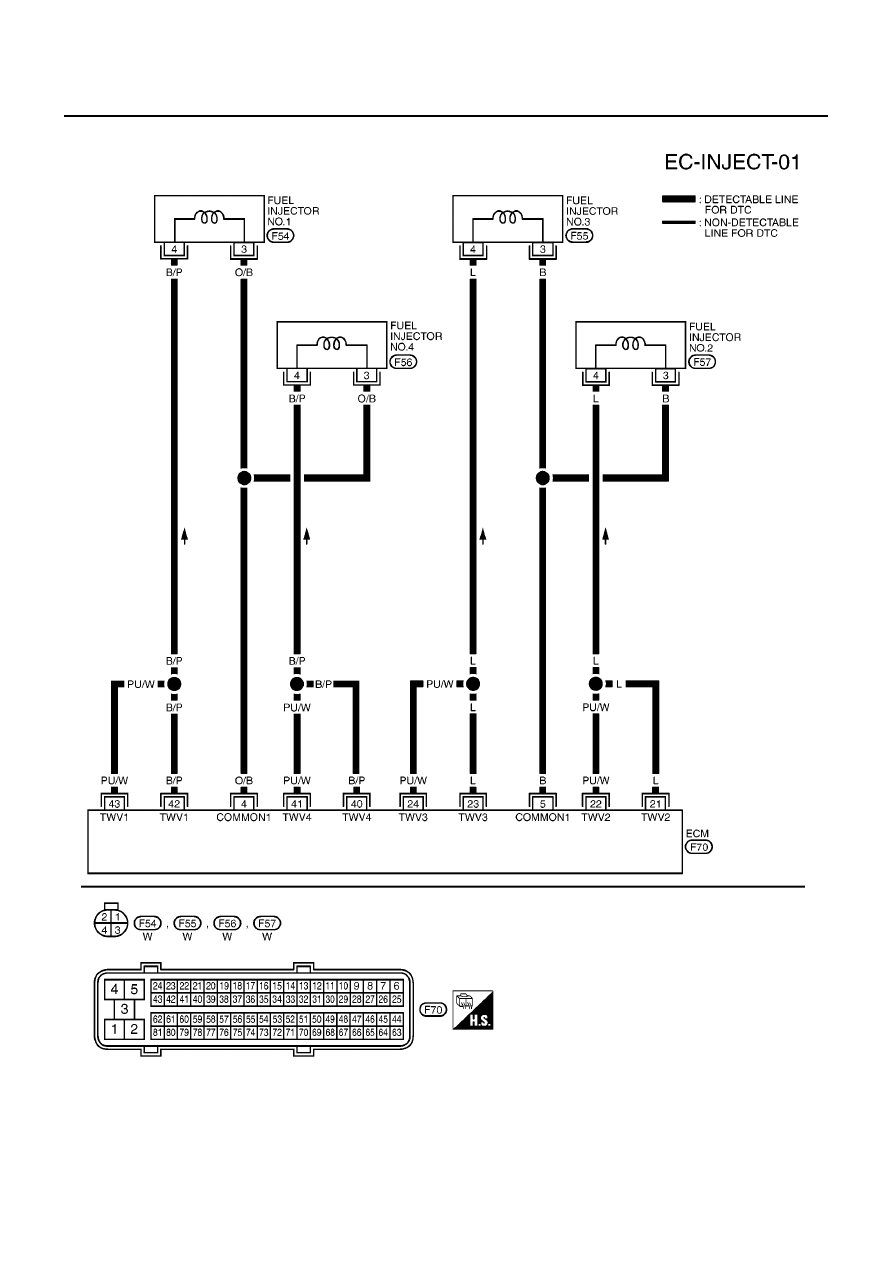

Wiring Diagram

EBS013HH

MBWA0633E

DTC P2147, P2148 FUEL INJECTOR CIRCUIT

EC-1223

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

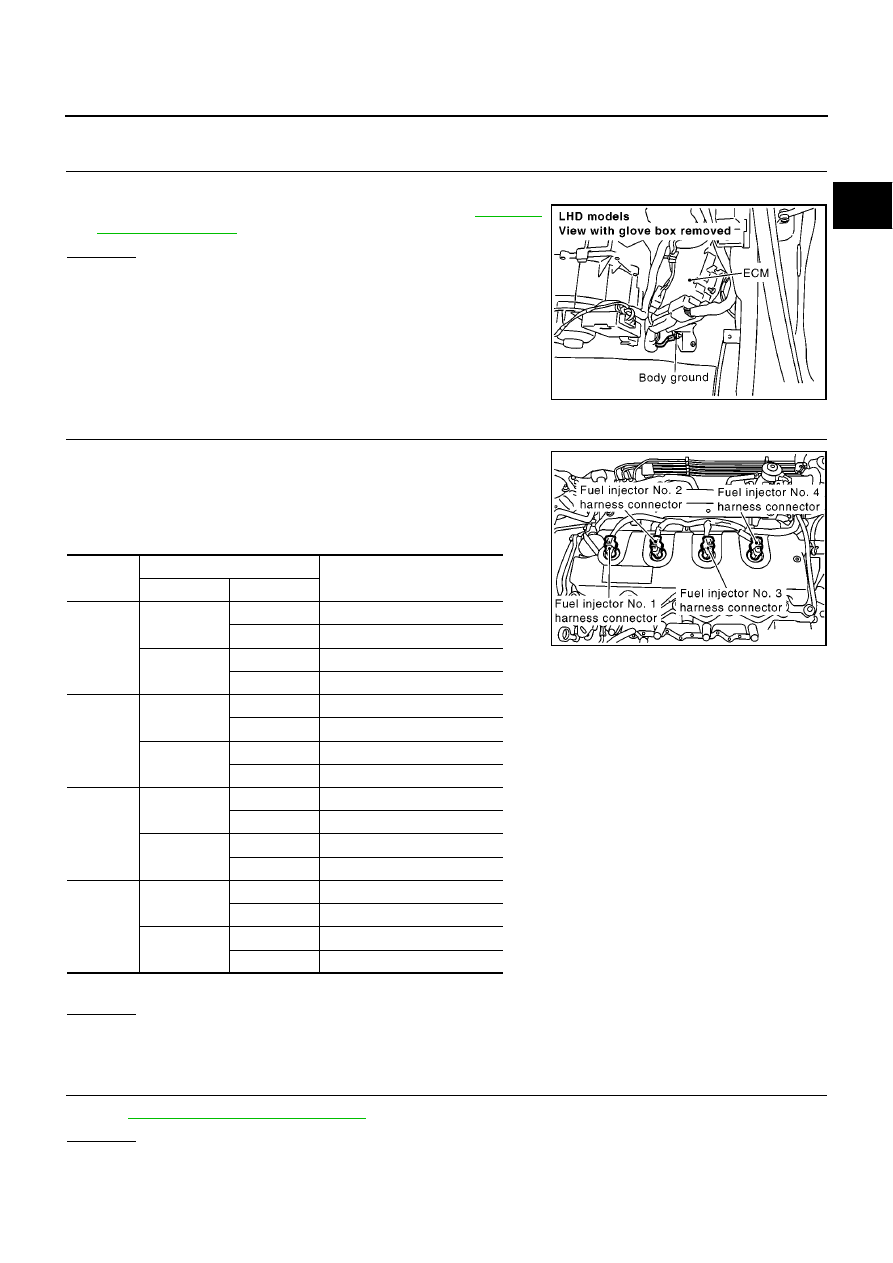

Diagnostic Procedure

EBS013HI

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten body ground screw. Refer to

EC-1010,

"Ground Inspection"

.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connection.

2.

CHECK ECM OUTPUT SIGNAL CIRCUIT FOR OPEN OR SHORT

1.

Disconnect fuel injector harness connector.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between the following terminals corre-
sponding to the malfunctioning cylinder.
Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace.

3.

CHECK FUEL INJECTOR

Refer to

EC-1224, "Component Inspection"

.

OK or NG

OK

>> GO TO 4.

NG

>> Replace fuel injector.

MBIB0915E

Cylinder

Terminal

Continuity

Fuel injector

ECM

No.1

3

42, 43

Should not exist

4

Should exist

4

42,43

Should exist

4

Should not exist

No.2

3

21, 22

Should not exist

5

Should exist

4

21, 22

Should exist

5

Should not exist

No.3

3

23, 24

Should not exist

5

Should exist

4

23, 24

Should exist

5

Should not exist

No.4

3

40, 41

Should not exist

4

Should exist

4

40, 41

Should exist

4

Should not exist

MBIB0635E

EC-1224

[YD (WITH EURO-OBD)]

DTC P2147, P2148 FUEL INJECTOR CIRCUIT

4.

CHECK INTERMITTENT INCIDENT

Refer to

EC-1002, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

.

>> INSPECTION END

Component Inspection

EBS013HJ

FUEL INJECTOR

1.

Disconnect fuel injector.

2.

Check continuity between terminals as shown in the figure.

3.

If NG, replace fuel injector.

Removal and Installation

EBS013HK

FUEL INJECTOR

Refer to

EM-147, "INJECTION TUBE AND FUEL INJECTOR"

.

Continuity should exist.

PBIB0406E

DTC P2228, P2229 BARO SENSOR

EC-1225

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

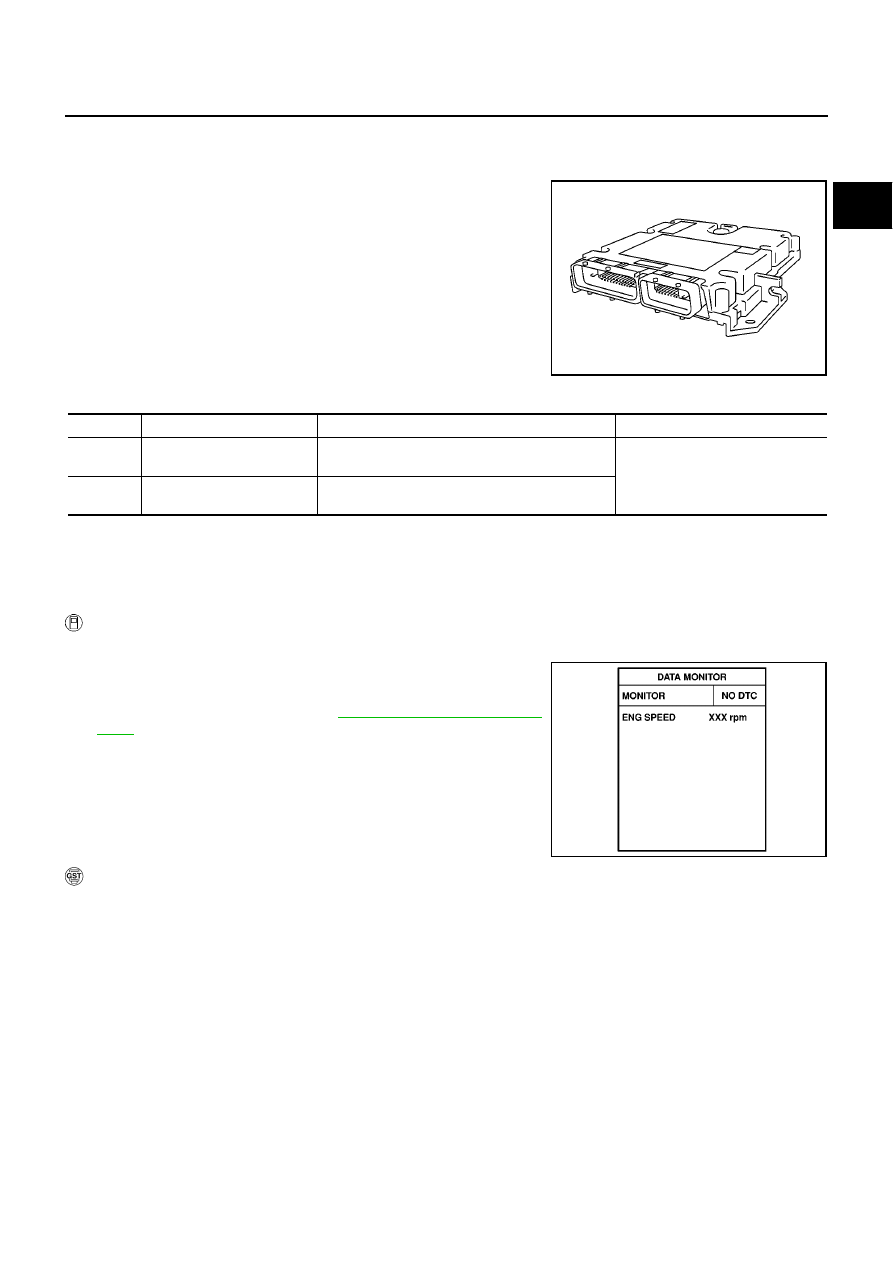

DTC P2228, P2229 BARO SENSOR

PFP:23731

Description

EBS013HL

The barometric pressure sensor is built into ECM. The sensor
detects ambient barometric pressure and sends the voltage signal to
the microcomputer.

On Board Diagnosis Logic

EBS013HM

DTC Confirmation Procedure

EBS013HN

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

WITH CONSULT-II

1.

Turn ignition switch ON.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Wait at least 5 seconds.

4.

If 1st trip DTC is detected, go to

EC-1226, "Diagnostic Proce-

dure"

.

WITH GST

Follow the procedure “WITH CONSULT-II” above.

MBIB0625E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P2228

Barometric pressure sensor
circuit low input

An excessively low voltage from the barometric
pressure sensor (built-into ECM) is sent to ECM.

●

ECM

P2229

Barometric pressure sensor
circuit high input

An excessively high voltage from the barometric
pressure sensor (built-into ECM) is sent to ECM.
