Nissan Almera Tino V10. Manual - part 594





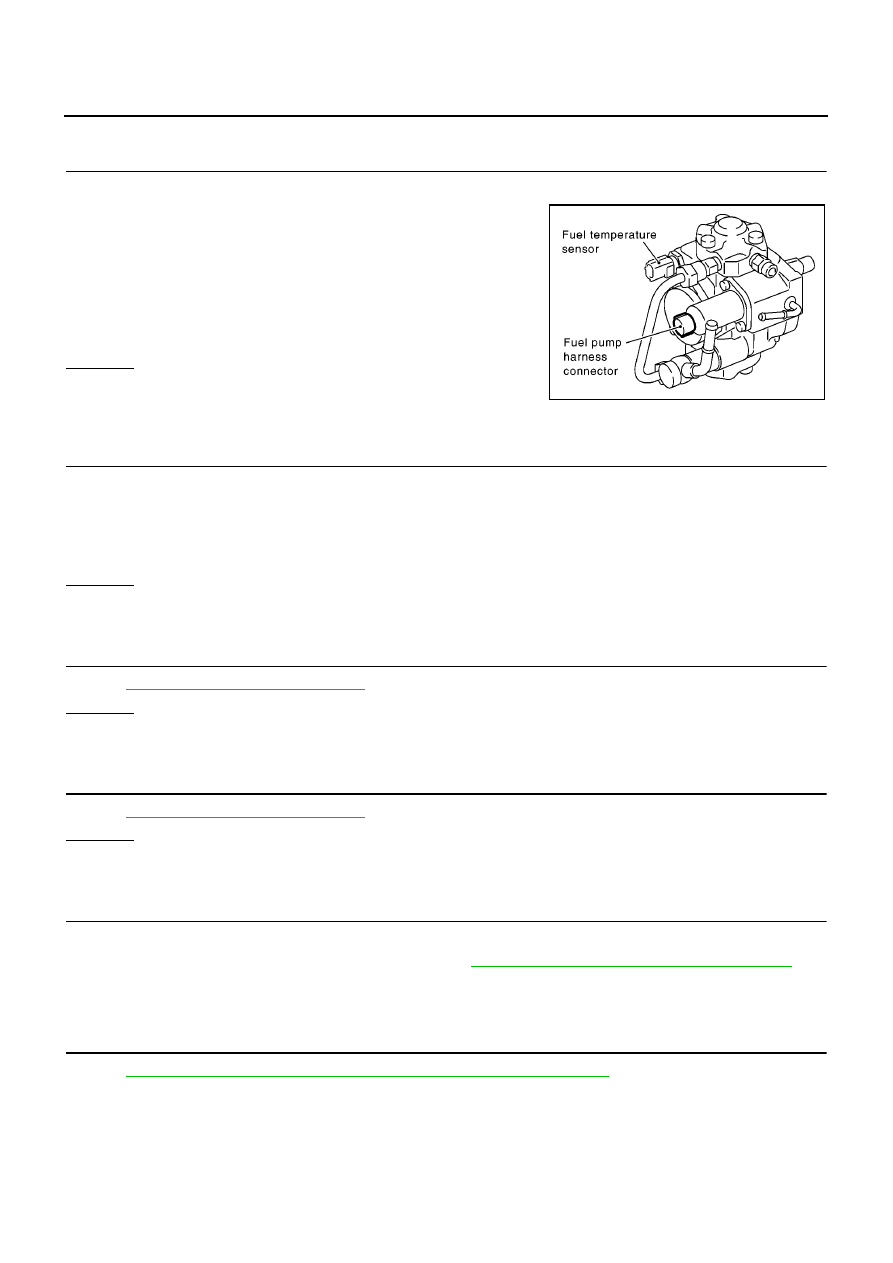

EC-1202

[YD (WITH EURO-OBD)]

DTC P1274 FUEL PUMP

Diagnostic Procedure

EBS013GK

1.

CHECK ECM OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector and fuel pump harness
connectors.

3.

Check harness continuity between ECM terminal 10 and fuel
pump terminal 1.
Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 2.

NG

>> Repair open circuit or short to ground or short to power

in harness or connectors.

2.

CHECK FUEL PUMP GROUND CIRCUIT FOR OPEN AND SHORT

1.

Check harness continuity between ECM terminal 29 and fuel pump terminal 2.
Refer to Wiring Diagram.

2.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 3.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

3.

CHECK FUEL RAIL PRESSURE SENSOR

Refer to

EC-1063, "Component Inspection"

.

OK or NG

OK

>> GO TO 4.

NG

>> Replace fuel rail.

4.

CHECK FUEL PUMP

Refer to

EC-1203, "Component Inspection"

.

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 5.

5.

REPLACE FUEL PUMP

1.

Replace fuel pump.

2.

Perform Fuel Pump Learning Valve Clearing. Refer to

EC-956, "Fuel Pump Learning Value Clearing"

.

>> INSPECTION END

6.

CHECK INTERMITTENT INCIDENT

Refer to

EC-1002, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

.

>> INSPECTION END

Continuity should exist.

PBIB1943E

Continuity should exist.

DTC P1274 FUEL PUMP

EC-1203

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Component Inspection

EBS013GL

FUEL PUMP

1.

Check continuity between fuel pump terminals 1 and 2.

2.

If NG, replace fuel pump.

Removal and Installation

EBS013GM

FUEL PUMP

Refer to

EM-150, "FUEL PUMP"

.

Continuity should exist.

MBIB0623E

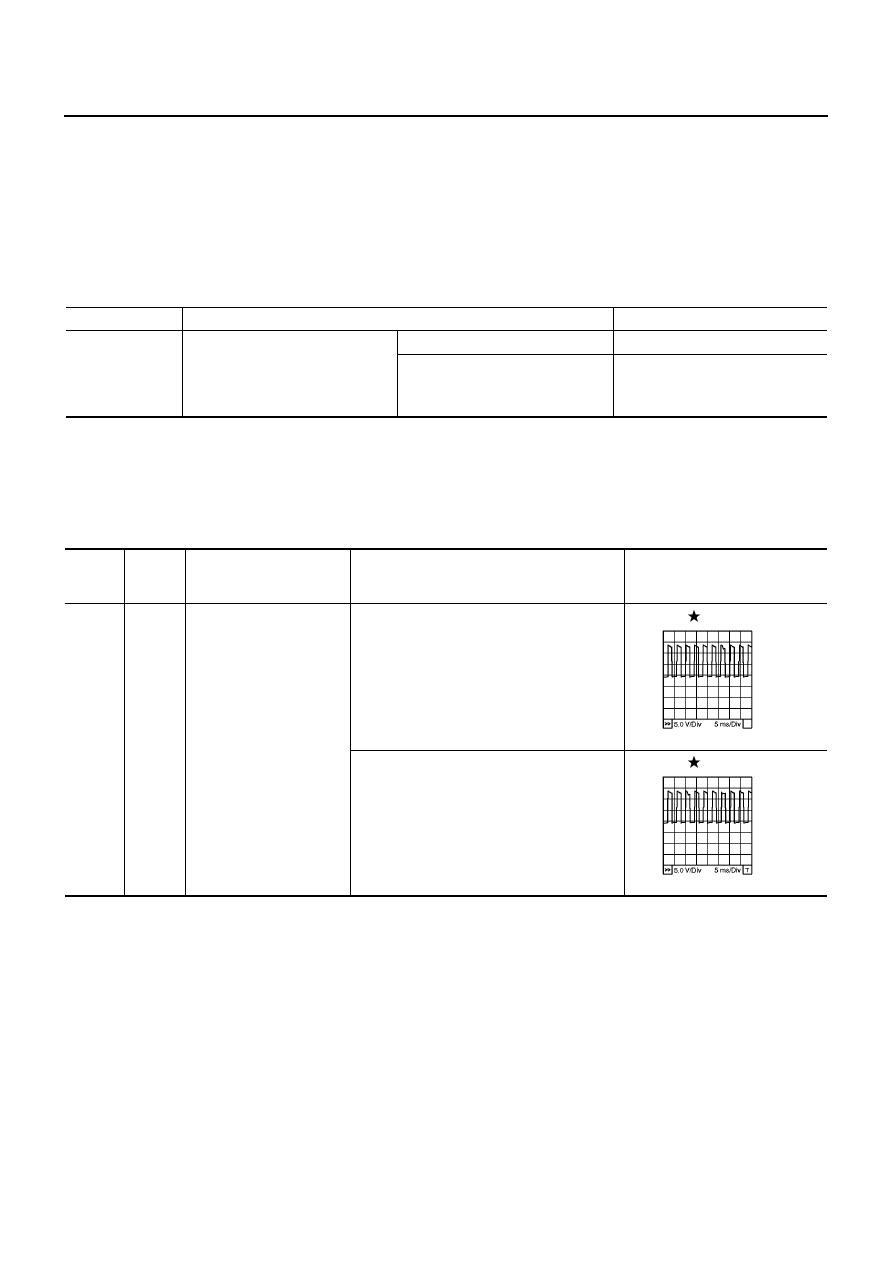

EC-1204

[YD (WITH EURO-OBD)]

DTC P1275 FUEL PUMP

DTC P1275 FUEL PUMP

PFP:16700

Description

EBS013GN

To control the amount of the fuel inhalation of the fuel pump, a plunger is built into the fuel pump. When the
amount of the fuel inhalation of fuel increases, the fuel pump raises the fuel exhalation pressure. As a result,
the fuel injection pressure is raised. When the load of the engine increases, the ECM sends a signal to fuel
pump to raise the injection pressure.

CONSULT-II Reference Value in Data Monitor Mode

EBS013GO

Specification data are reference values.

ECM Terminals and Reference Value

EBS013GP

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

MONITOR ITEM

CONDITION

SPECIFICATION

PUMP CURRENT

Engine: After warming up

Air conditioner switch: OFF

Shift lever: Neutral position

No-load

Idle

1,700 - 1,900 mA

2,000 rpm

1,600 - 1,800 mA

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC Voltage and Pulse Signal)

10

Y/L

Fuel pump power supply

[Engine is running]

Warm-up condition

Idle speed

0 - 12.5V

[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm

0 - 12.5V

MBIB0885E

MBIB0886E

DTC P1275 FUEL PUMP

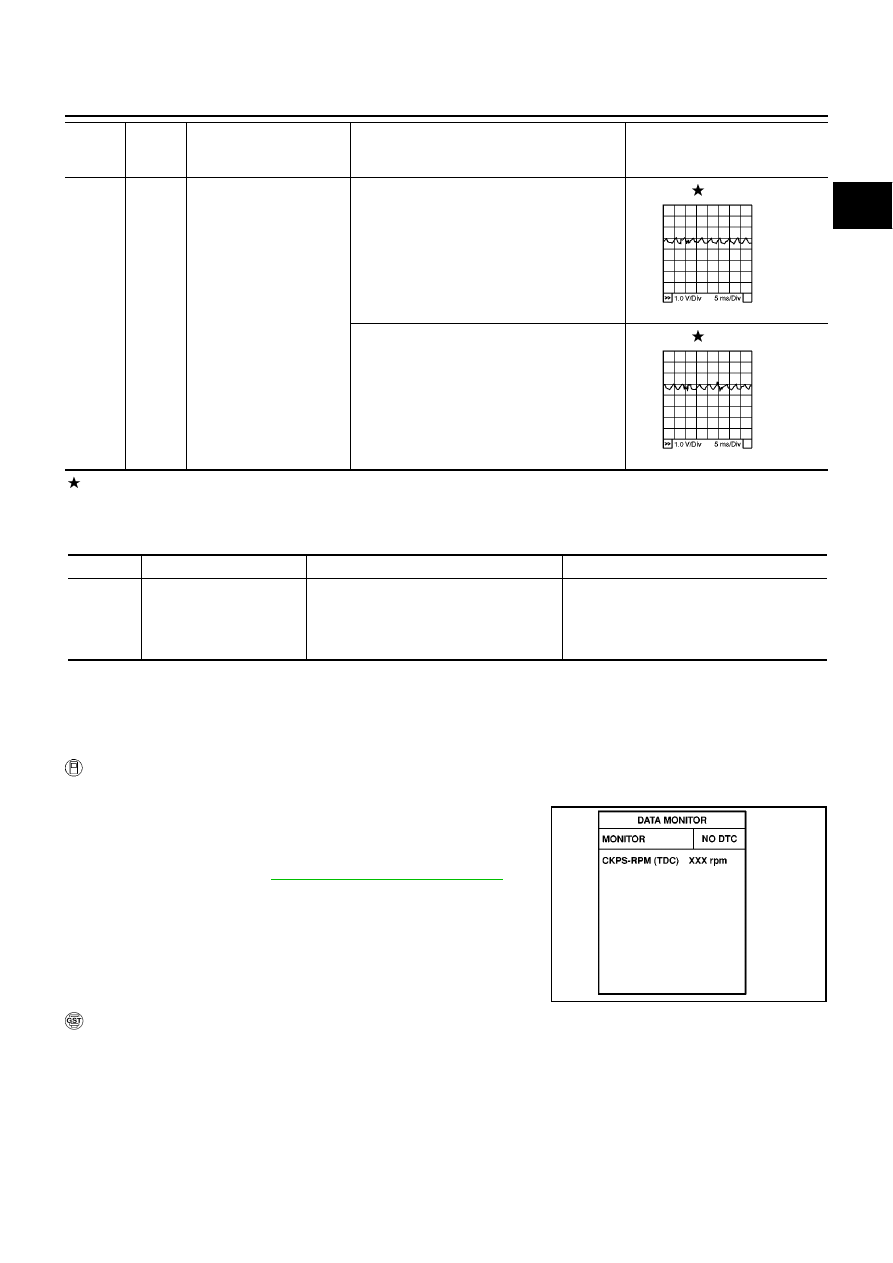

EC-1205

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

On Board Diagnosis Logic

EBS013GQ

This self-diagnosis has the one trip detection logic.

DTC Confirmation Procedure

EBS013GR

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

WITH CONSULT-II

1.

Start engine and warm it up to normal operating temperature.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Keep engine speed more than 2,000 rpm for at least 60 sec-
onds.

4.

If DTC is detected, go to

EC-1207, "Diagnostic Procedure"

.

WITH GST

Follow the procedure “WITH CONSULT-II” above.

29

L

Fuel pump

[Engine is running]

Warm-up condition

Idle speed

0.5 - 1.0V

[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm

0.5 - 1.0V

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC Voltage and Pulse Signal)

MBIB0887E

MBIB0888E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1275

Fuel pump exchange

Fuel pressure is too much higher than the
target value.

Harness or connectors
(The fuel pump circuit is open or shorted.)

Fuel pump

Fuel rail pressure sensor

SEF817Y
