DTC P0628, P0629 FUEL PUMP

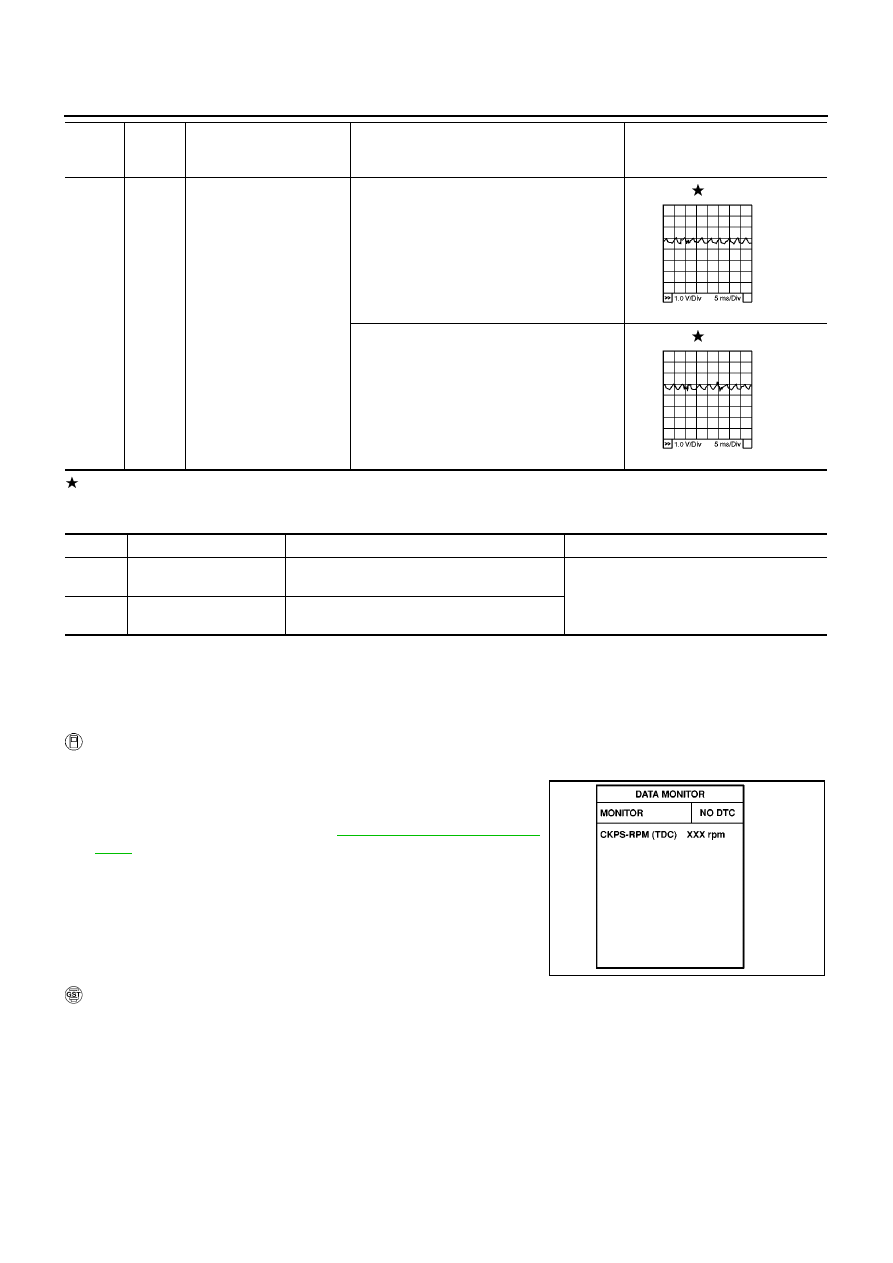

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

On Board Diagnosis Logic

EBS013ED

DTC Confirmation Procedure

EBS013EE

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

WITH CONSULT-II

1.

Start engine and warm it up to normal operating temperature.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Let engine idle for at least 5 seconds.

4.

If 1st trip DTC is detected, go to

EC-1160, "Diagnostic Proce-

dure"

.

WITH GST

Follow the procedure “WITH CONSULT-II” above.

29

L

Fuel pump

[Engine is running]

Warm-up condition

Idle speed

0.5 - 1.0V

[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm

0.5 - 1.0V

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC Voltage and Pulse Signal)

MBIB0887E

MBIB0888E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0628

Fuel pump control circuit
low input

ECM detects a control circuit for the fuel pump
is open or short to ground.

Harness or connectors
(The fuel pump circuit is open or shorted.)

Fuel pump

P0629

Fuel pump control circuit
high output

ECM detects a control circuit for the fuel pump
is short to power.

SEF817Y

DTC P0628, P0629 FUEL PUMP

EC-1159

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

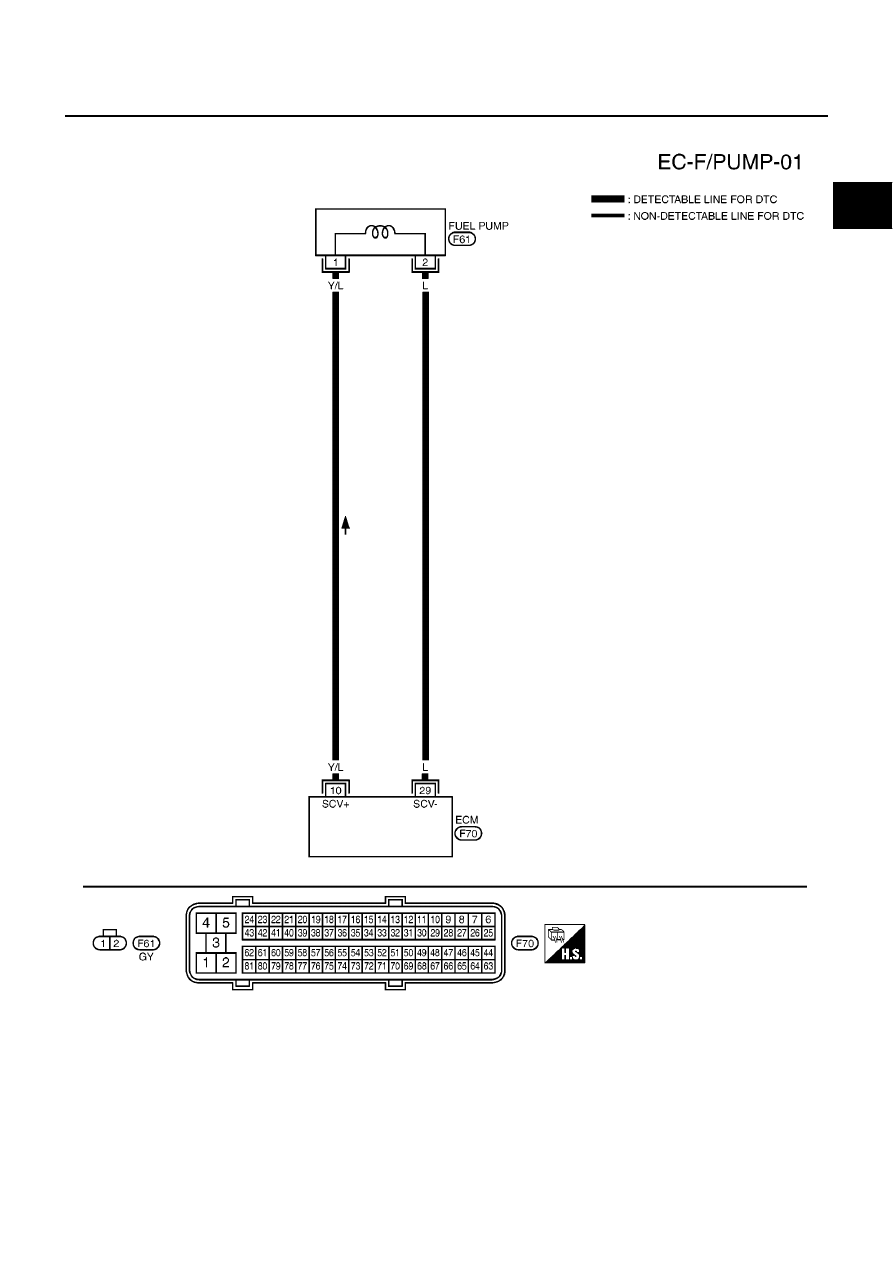

Wiring Diagram

EBS013EF

YEC509A

EC-1160

[YD (WITH EURO-OBD)]

DTC P0628, P0629 FUEL PUMP

Diagnostic Procedure

EBS013EG

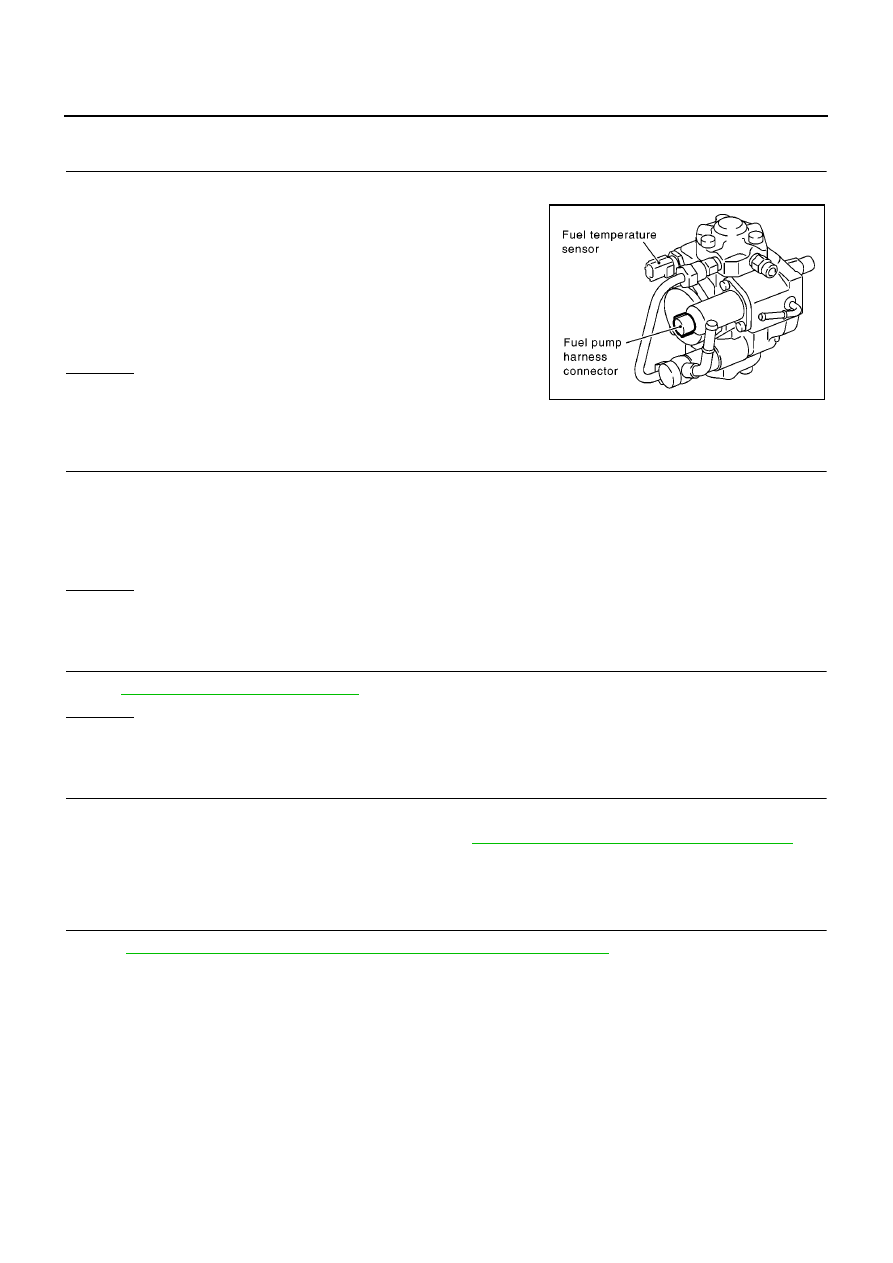

1.

CHECK ECM OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect fuel pump harness connector.

3.

Disconnect ECM harness connector.

4.

Check harness continuity between ECM terminal 10 and fuel
pump terminal 1.
Refer to Wiring Diagram.

5.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 2.

NG

>> Repair open circuit or short to ground or short to power

in harness or connectors.

2.

CHECK FUEL PUMP GROUND CIRCUIT FOR OPEN AND SHORT

1.

Check harness continuity between ECM terminal 29 and fuel pump terminal 2.
Refer to Wiring Diagram.

2.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 3.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

3.

CHECK FUEL PUMP

Refer to

EC-1161, "Component Inspection"

.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

4.

REPLACE FUEL PUMP

1.

Replace fuel pump.

2.

Perform Fuel Pump Learning Value Clearing. Refer to

EC-956, "Fuel Pump Learning Value Clearing"

.

>> INSPECTION END

5.

CHECK INTERMITTENT INCIDENT

Refer to

EC-1002, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

.

>> INSPECTION END

Continuity should exist.

PBIB1943E

Continuity should exist.

DTC P0628, P0629 FUEL PUMP

EC-1161

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Component Inspection

EBS013EH

FUEL PUMP

1.

Check continuity between fuel supply pump terminals 1 and 2.

2.

If NG, replace fuel pump.

Removal and Installation

EBS013EI

FUEL PUMP

Refer to

EM-150, "FUEL PUMP"

.

Continuity should exist.

MBIB0623E
