Nissan Almera Tino V10. Manual - part 575





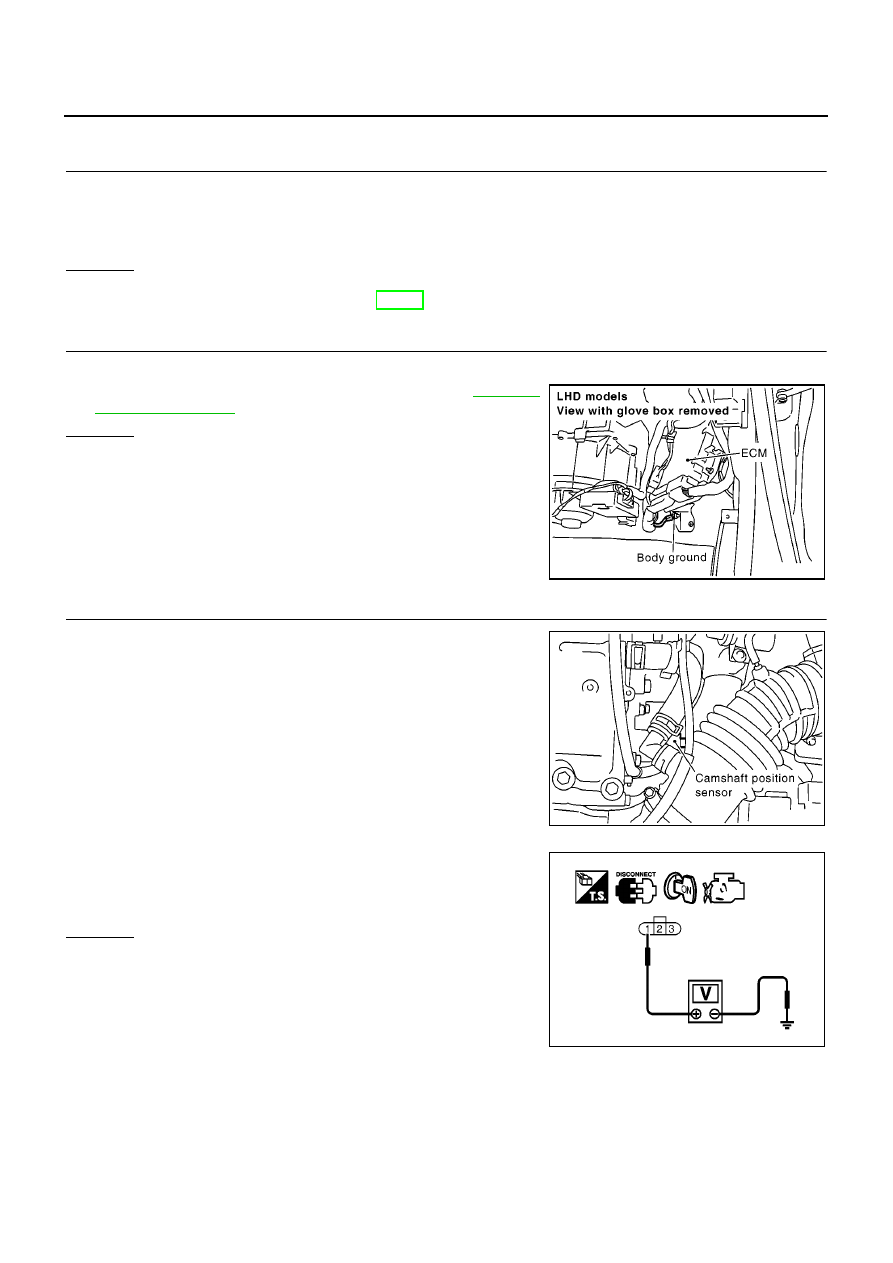

EC-1126

[YD (WITH EURO-OBD)]

DTC P0341 CMP SENSOR

Diagnostic Procedure

EBS013D9

1.

CHECK STARTING SYSTEM

Turn ignition switch to START position.

Yes or No

Yes

>> GO TO 2.

No

>> Check starting system. (Refer to SC-13, “STARTING SYSTEM”.)

2.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten body ground screw. Refer to

EC-1010,

"Ground Inspection"

.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace ground connection.

3.

CHECK CMP SENSOR POWER SUPPLY CIRCUIT

1.

Disconnect camshaft position (CMP) sensor harness connector.

2.

Turn ignition switch ON.

3.

Check voltage between CMP sensor terminal 1 and ground with
CONSULT-II or tester.

OK or NG

OK

>> GO TO 4.

NG

>> Repair open circuit or short to ground or short to power

in harness or connectors.

Does the engine turn over?

Does the starter motor operate?

MBIB0915E

MBIB0907E

Voltage: Approximately 5.3V

MBIB1095E

DTC P0341 CMP SENSOR

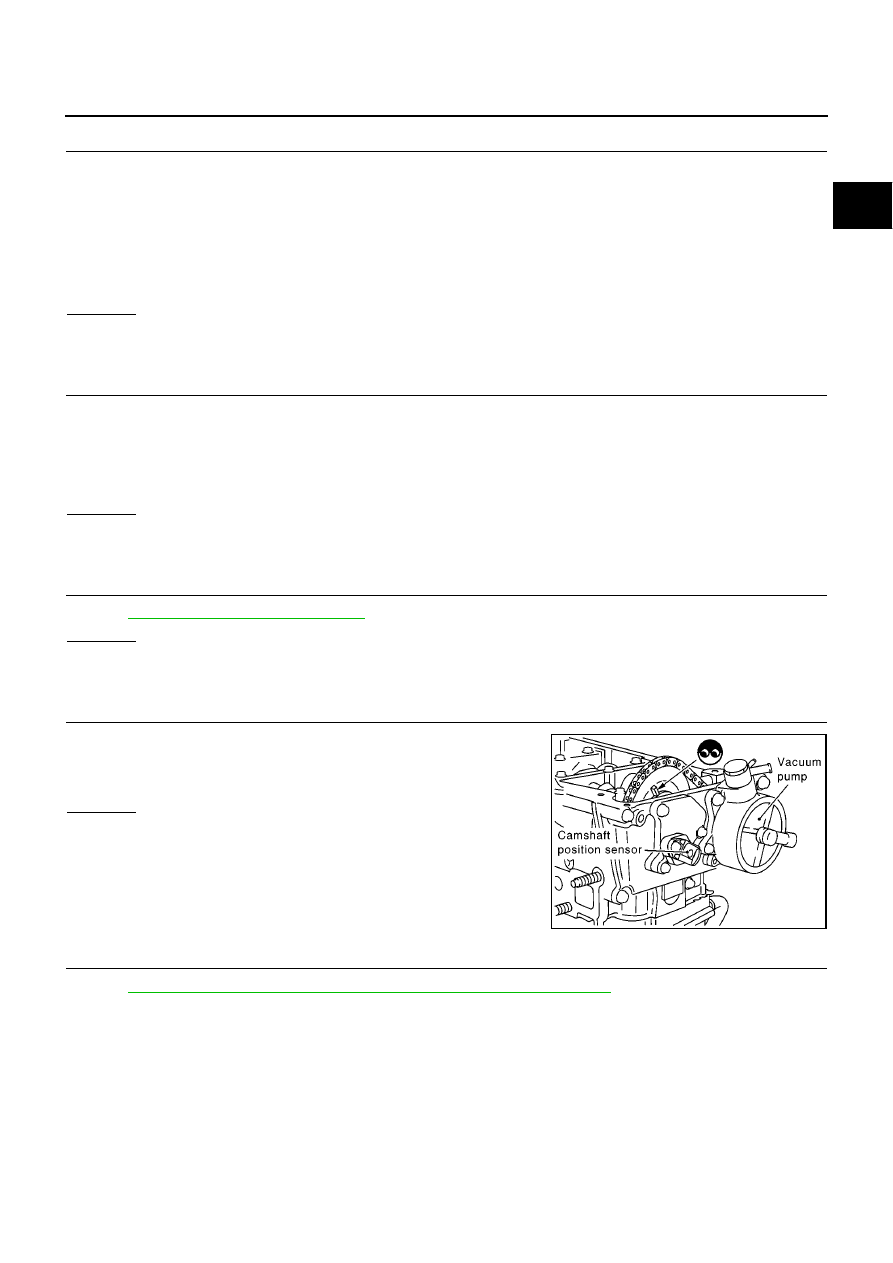

EC-1127

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

4.

CHECK CMP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between ECM terminal 66 and CMP sensor terminal 2.
Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 5.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK CMP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Check harness continuity between ECM terminal 47 and CMP sensor terminal 3.
Refer to Wiring Diagram.

2.

Also check harness for short to ground or short to power.

OK or NG

OK

>> GO TO 6.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

6.

CHECK CAMSHAFT POSITION SENSOR

Refer to

EC-1128, "Component Inspection"

.

OK or NG

OK

>> GO TO 7.

NG

>> Replace camshaft position sensor.

7.

CHECK CAMSHAFT (EXHAUST)

Check the following.

Accumulation of debris to the signal plate of camshaft rear end

Chipping signal plate of camshaft rear end

OK or NG

OK

>> GO TO 8.

NG

>> Remove debris and clean the signal plate of camshaft

rear end or replace camshaft.

8.

CHECK INTERMITTENT INCIDENT

Refer to

EC-1002, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

.

>> INSPECTION END

Continuity should exist.

Continuity should exist.

MBIB0990E

EC-1128

[YD (WITH EURO-OBD)]

DTC P0341 CMP SENSOR

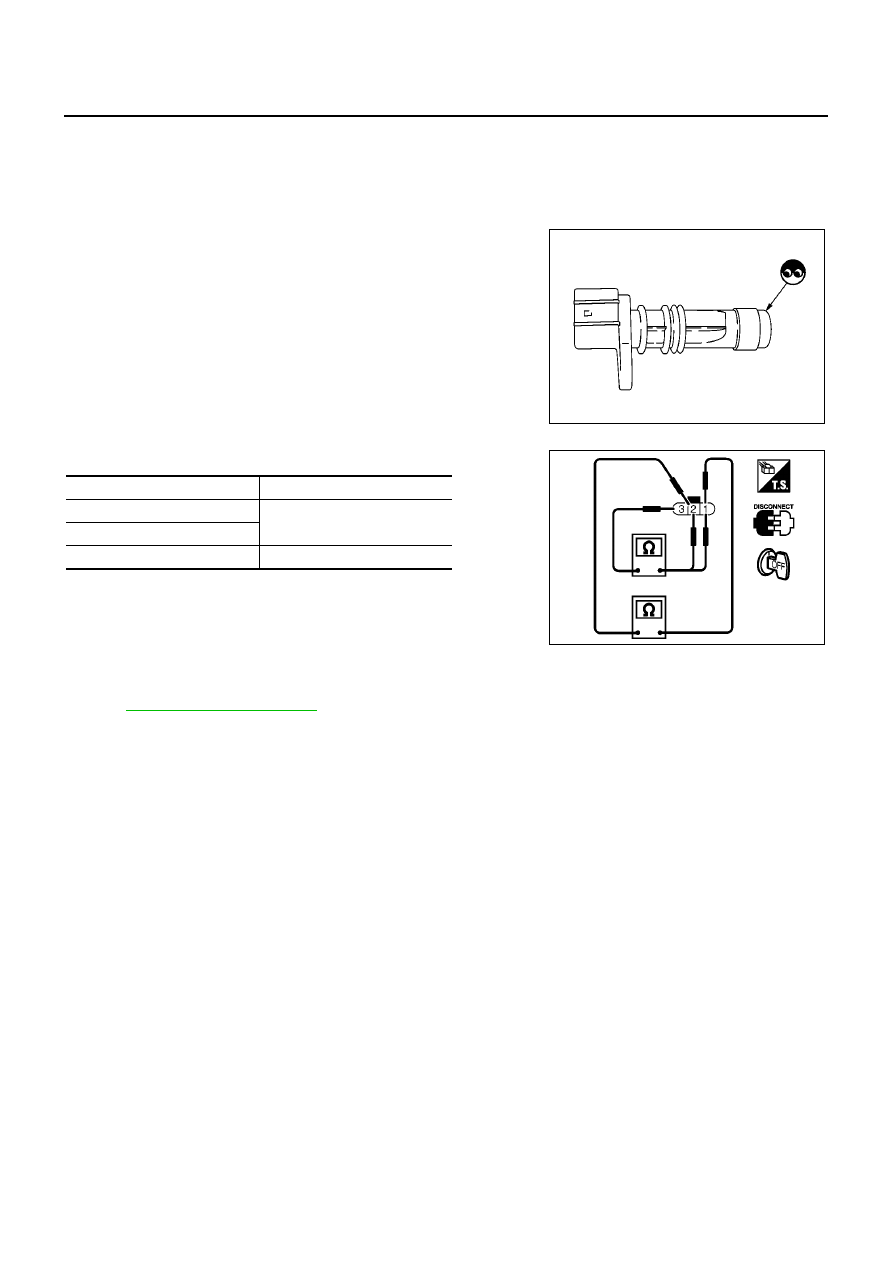

Component Inspection

EBS013DA

CAMSHAFT POSITION SENSOR

1.

Loosen the fixing bolt of the sensor.

2.

Disconnect camshaft position sensor harness connector.

3.

Remove the sensor.

4.

Visually check the sensor for chipping.

5.

Check resistance as shown in the figure.

6.

If NG, replace camshaft position sensor.

Removal and Installation

EBS013DB

CAMSHAFT POSITION SENSOR

Refer to

EM-143, "VACUUM PUMP"

.

MBIB0647E

Terminal No. (Polarity)

Resistance

[at 25

°

C (77

°

F)]

3 (+) - 1 (-)

Except 0

3 (+) - 2 (-)

2 (+) - 1 (-)

Except 0 or

MBIB0616E

DTC P0380 GLOW RELAY

EC-1129

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

DTC P0380 GLOW RELAY

PFP:25230

On Board Diagnosis Logic

EBS013DC

DTC Confirmation Procedure

EBS013DD

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

WITH CONSULT-II

1.

Turn ignition switch ON.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Wait at least 5 seconds.

4.

If 1st trip DTC is detected, go to

EC-1131, "Diagnostic Proce-

dure"

.

WITH GST

Follow the procedure “WITH CONSULT-II” above.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0380

Glow relay circuit

An excessively low voltage is sent to ECM
through glow relay.

Harness or connectors
(The glow relay circuit is open or shorted.)

Glow relay

An excessively low voltage is sent to ECM
through glow relay.

Harness or connectors
(The glow relay circuit is shorted.)

Glow relay

SEF817Y
