Nissan Almera Tino V10. Manual - part 574





EC-1122

[YD (WITH EURO-OBD)]

DTC P0340 CMP SENSOR

5.

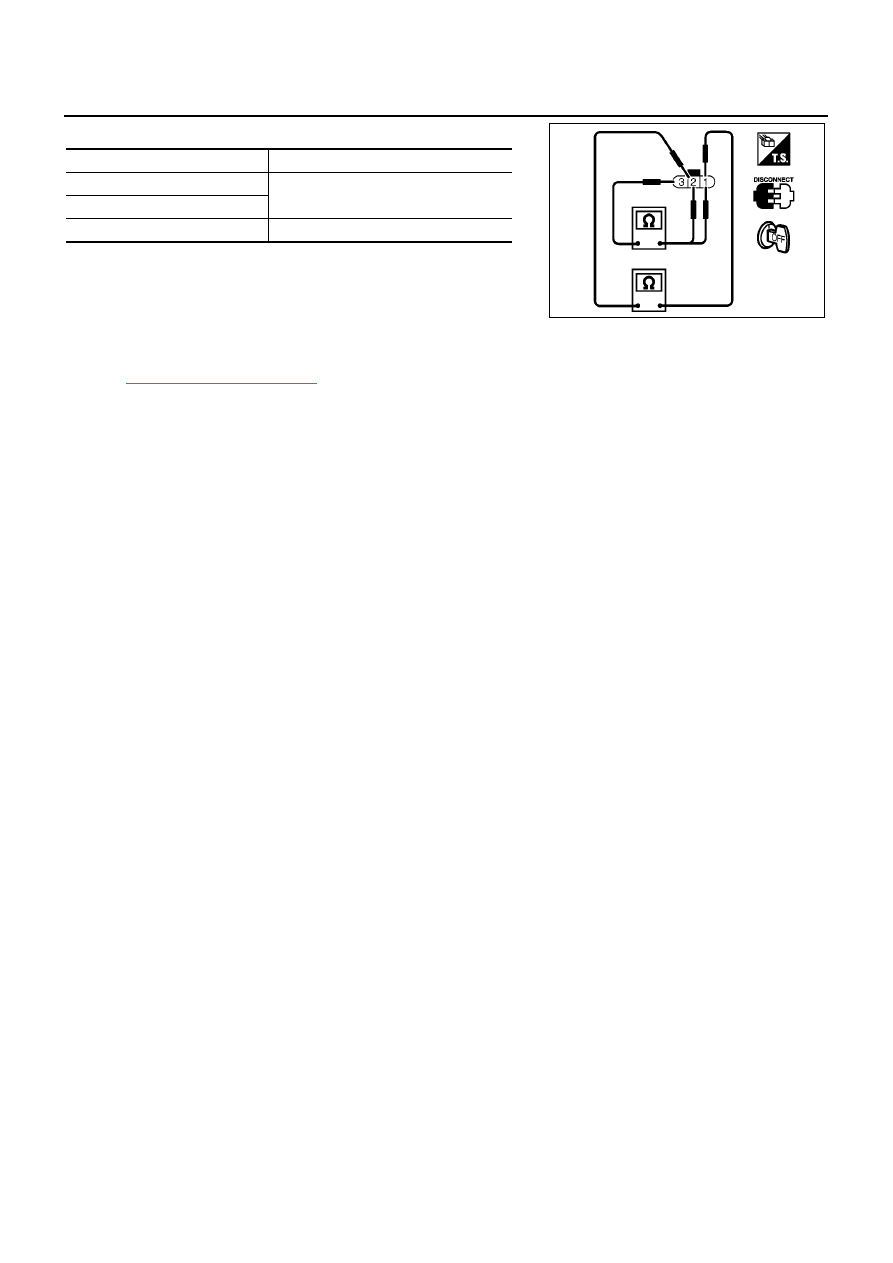

Check resistance as shown in the figure.

6.

If NG, replace camshaft position sensor.

Removal and Installation

EBS013D3

CAMSHAFT POSITION SENSOR

Refer to

EM-143, "VACUUM PUMP"

.

Terminal No. (Polarity)

Resistance

[at 25

°

C (77

°

F)]

3 (+) - 1 (-)

Except 0

3 (+) -2 (-)

2 (+) - 1 (-)

Except 0 or

MBIB0616E

DTC P0341 CMP SENSOR

EC-1123

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

DTC P0341 CMP SENSOR

PFP:23731

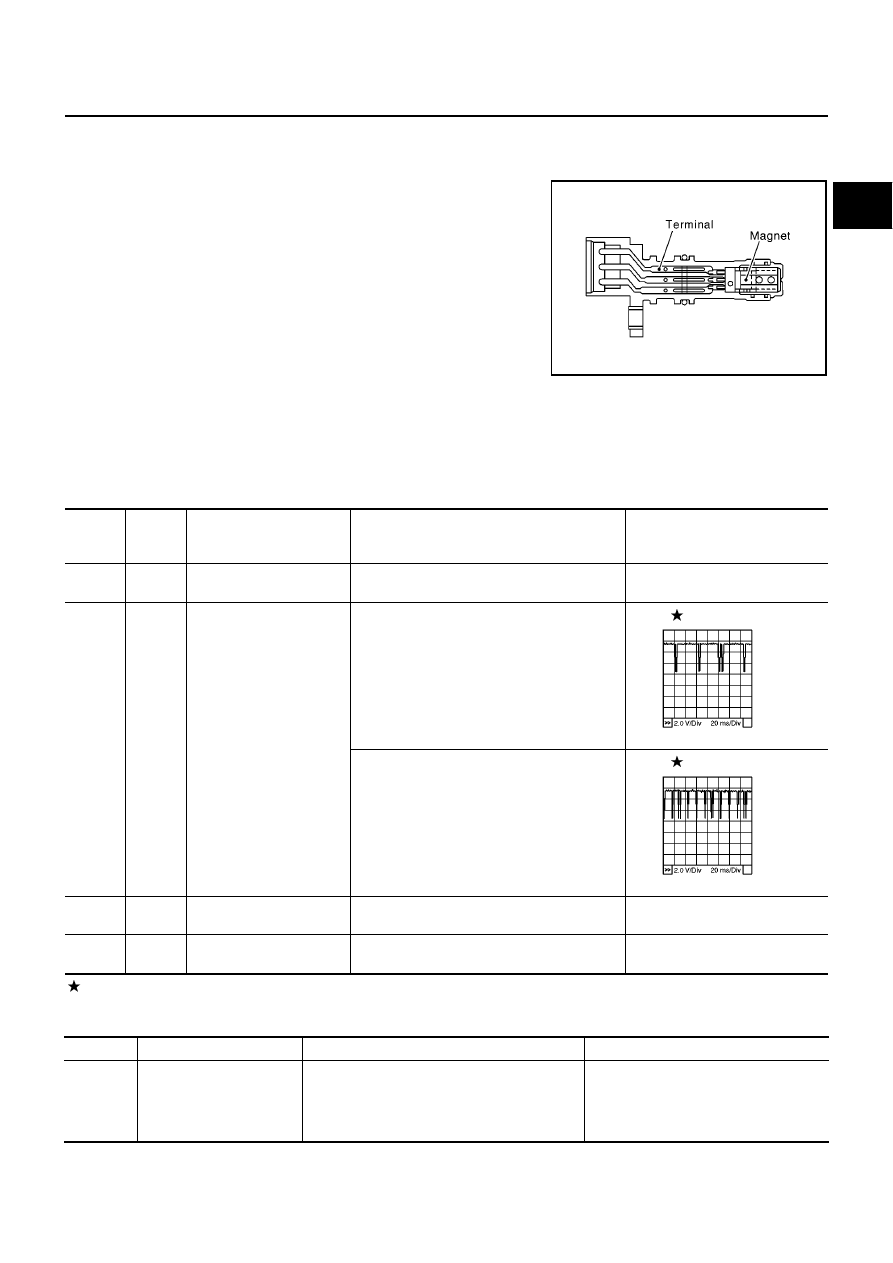

Description

EBS013D4

The camshaft position sensor identifies a particular cylinder by
means of signals from the sensing plate (with five protrusions)
installed to the camshaft. The datum signal output is detected 90

°

signal and sent to the ECM.

ECM Terminals and Reference Value

EBS013D5

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

On Board Diagnosis Logic

EBS013D6

MBIB0618E

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC Voltage and Pulse Signal)

45

R

Camshaft position sensor
power supply

[Ignition switch ON]

Approximately 5.3V

47

B

Camshaft position sensor

[Engine is running]

Warm-up condition

Idle speed

0 - 6V

[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm

0 - 6V

66

W

Camshaft position sensor
ground

[Ignition switch ON]

Approximately 0.3V

67

B

Sensor ground
(Sensors shield circuit)

[Ignition switch ON]

Approximately 0.3V

MBIB0877E

MBIB0878E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0341

Camshaft position sensor
circuit range/performance

Camshaft position sensor signal is not in the
normal pattern when engine is running.

Harness connectors
(The sensor circuit is opener shorted.)

Camshaft position sensor

Signal plate

EC-1124

[YD (WITH EURO-OBD)]

DTC P0341 CMP SENSOR

DTC Confirmation Procedure

EBS013D7

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

WITH CONSULT-II

1.

Turn ignition switch ON.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Start engine and let it idle for at least 5 seconds.
If engine could not start, keep ignition switch at START position
for 5 seconds.

4.

If 1st trip DTC is detected, go to

EC-1126, "Diagnostic Proce-

dure"

.

WITH GST

Follow the procedure “WITH CONSULT-II” above.

SEF817Y

DTC P0341 CMP SENSOR

EC-1125

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

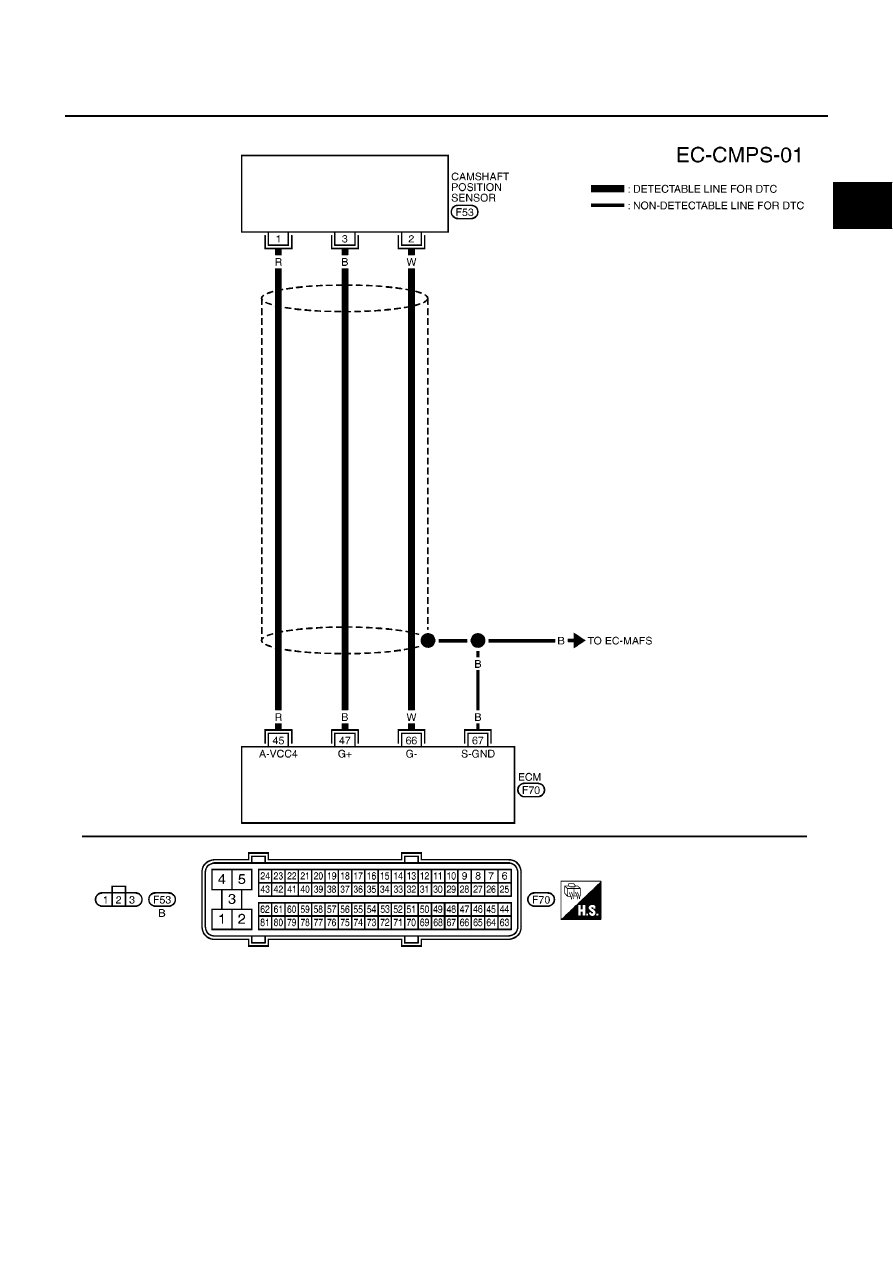

Wiring Diagram

EBS013D8

YEC505A
