Nissan Almera Tino V10. Manual - part 557





EC-1054

[YD (WITH EURO-OBD)]

DTC P0122, P0123 APP SENSOR

4.

CHECK APP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Check harness continuity between ECM terminal 83 and APP sensor terminal 3.
Refer to Wiring Diagram.

2.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 5.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK APP SENSOR

Refer to

EC-1054, "Component Inspection"

.

OK or NG

OK

>> GO TO 6.

NG

>> Replace accelerator pedal assembly.

6.

CHECK INTERMITTENT INCIDENT

Refer to

EC-1002, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

.

>> INSPECTION END

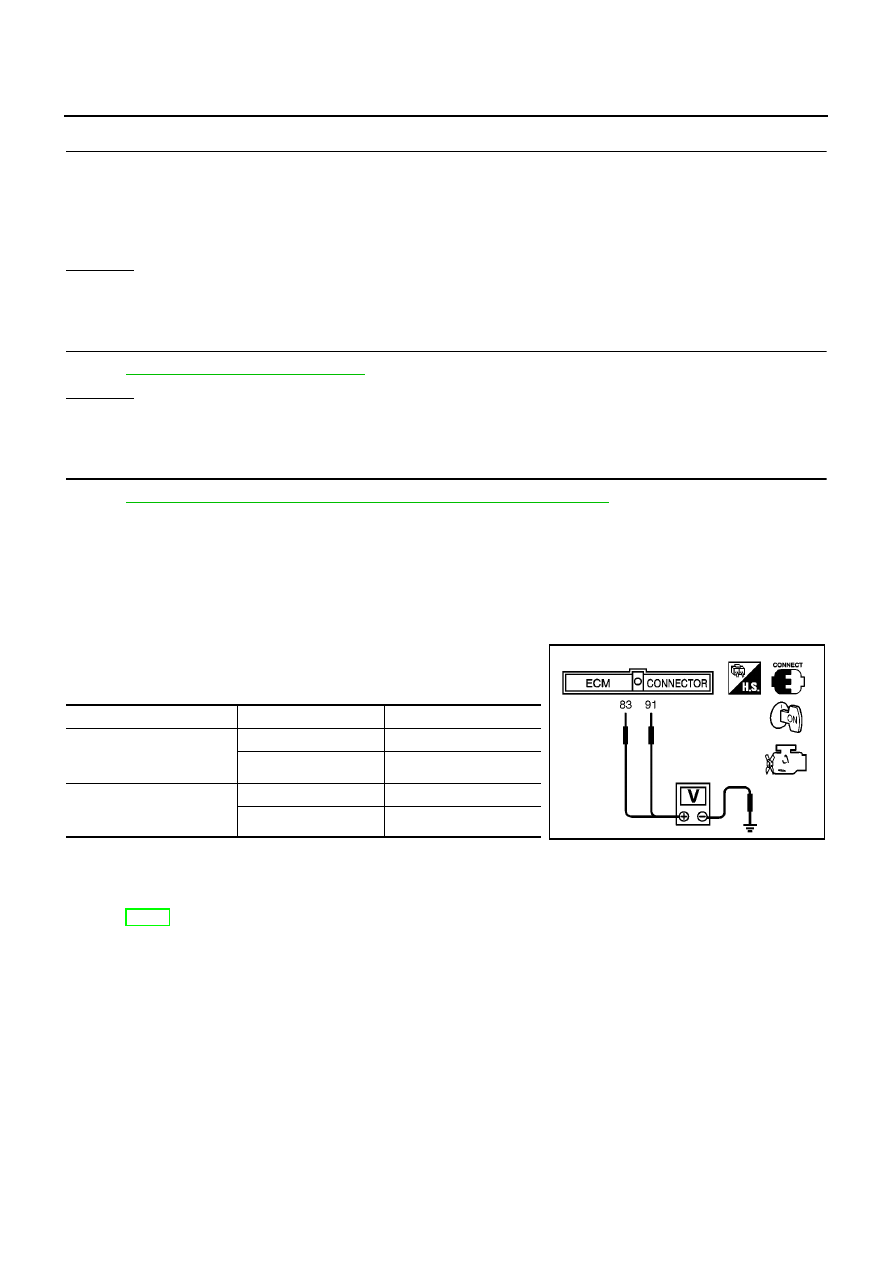

Component Inspection

EBS013AL

ACCELERATOR PEDAL POSITION SENSOR

1.

Reconnect all harness connectors disconnected.

2.

Turn ignition switch ON.

3.

Check voltage between ECM terminals 83 (APP sensor 1 sig-
nal), 91 (APP sensor 2 signal) and body ground under the fol-
lowing conditions.

4.

If NG, replace accelerator pedal assembly.

Removal and Installation

EBS013AM

ACCELERATOR PEDAL

Refer to FE-16, “ACCELERATOR CONTROL SYSTEM”.

Continuity should exist.

Terminal

Accelerator pedal

Voltage

83

(Accelerator pedal position

sensor 1)

Fully released

0.5 - 1.0V

Fully depressed

4.2 - 5.2V

91
(Accelerator pedal position
sensor 2)

Fully released

0.4 - 0.7V

Fully depressed

2.2 - 2.7V

MBIB0615E

DTC P0182, P0183 FUEL PUMP TEMPERATURE SENSOR

EC-1055

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

DTC P0182, P0183 FUEL PUMP TEMPERATURE SENSOR

PFP:16700

Description

EBS013AN

Fuel pump temperature sensor is built in the fuel pump. The sensor detects the fuel temperature in the fuel
pump and calibrates the fuel injection amount change by fuel temperature.

CONSULT-II Reference Value in Data Monitor Mode

EBS013AO

Specification data are reference values.

ECM Terminals and Reference Value

EBS013AP

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

On Board Diagnosis Logic

EBS013AQ

DTC Confirmation Procedure

EBS013AR

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

WITH CONSULT-II

1.

Turn ignition switch ON.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Wait at least 5 seconds.

4.

If 1st trip DTC is detected, go to

EC-1057, "Diagnostic Proce-

dure"

.

WITH GST

Follow the procedure “WITH CONSULT-II” above.

MONITOR ITEM

CONDITION

SPECIFICATION

FUEL TEMP SEN

Engine: After warming up

More than 40

°

C (104

°

F)

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC Voltage)

50

PU

Fuel pump temperature
sensor

[Engine is running]

Warm-up condition

Approximately 0.3 - 5.3V
Output voltage varies with fuel
pump temperature

69

B

Fuel pump temperature
sensor ground

[Ignition switch ON]

Approximately 0.3V

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0182

Fuel pump temperature
sensor circuit low input

An excessively low voltage from the sensor is
sent to ECM.

Harness or connectors
(The sensor circuit is open or shorted.)

Fuel pump temperature sensor

P0183

Fuel pump temperature
sensor circuit high input

An excessively high voltage from the sensor is
sent to ECM.

SEF817Y

EC-1056

[YD (WITH EURO-OBD)]

DTC P0182, P0183 FUEL PUMP TEMPERATURE SENSOR

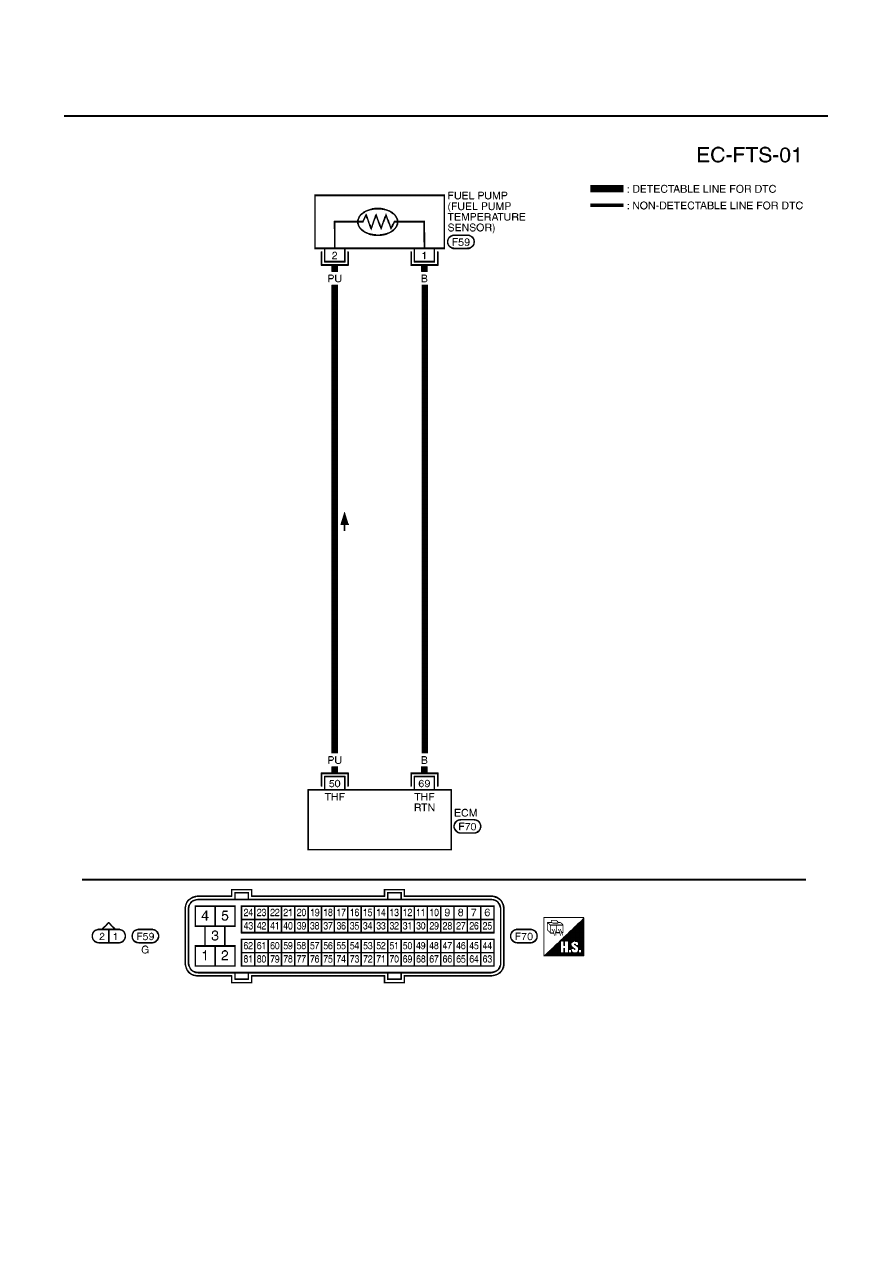

Wiring Diagram

EBS013AS

YEC506A

DTC P0182, P0183 FUEL PUMP TEMPERATURE SENSOR

EC-1057

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

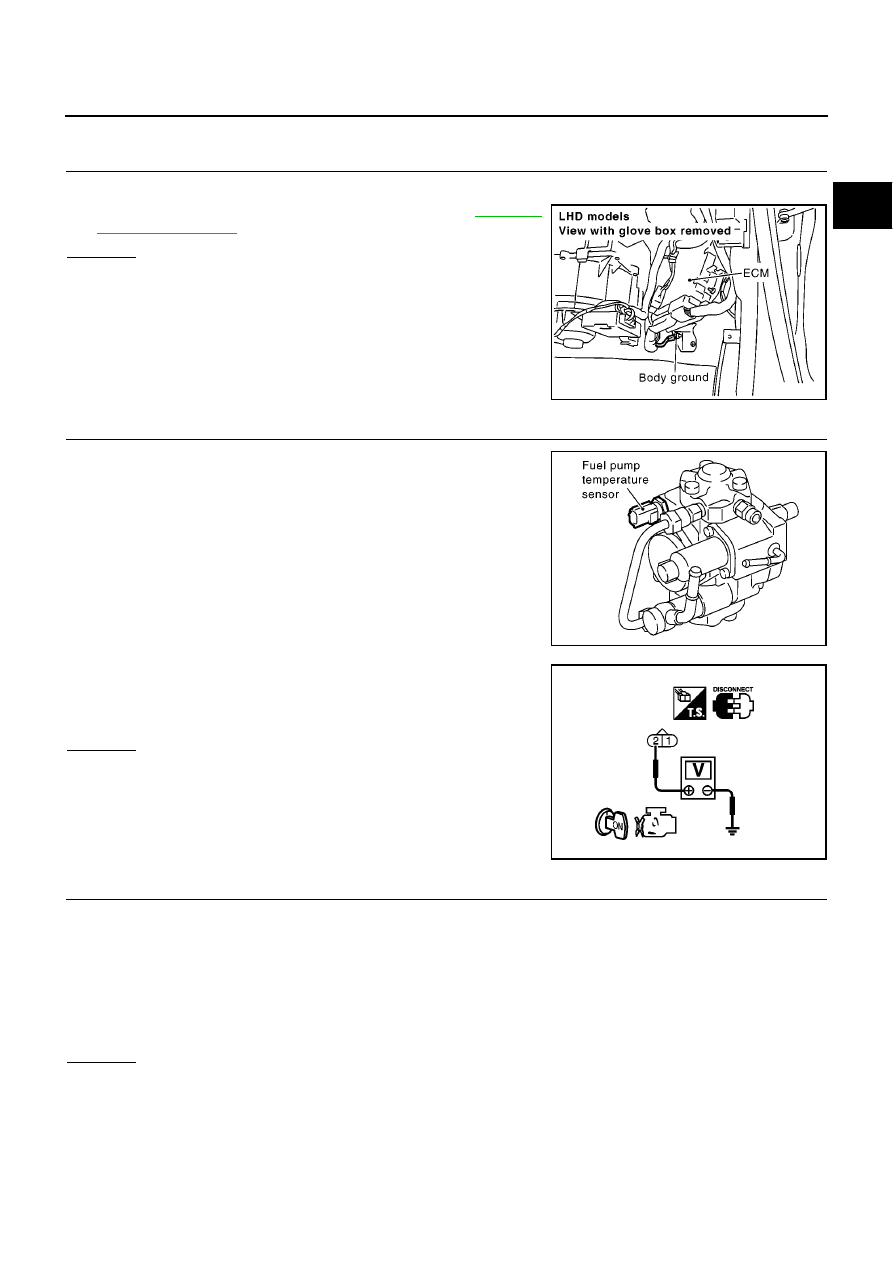

Diagnostic Procedure

EBS013AT

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten body ground screw. Refer to

EC-1010,

"Ground Inspection"

.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connection.

2.

CHECK FUEL PUMP TEMPERATURE SENSOR POWER SUPPLY CIRCUIT

1.

Disconnect fuel pump temperature sensor harness connector.

2.

Turn ignition switch ON.

3.

Check voltage between fuel pump temperature sensor terminal
2 and ground with CONSULT-II or tester.

OK or NG

OK

>> GO TO 3.

NG

>> Repair harness or connectors.

3.

CHECK FUEL PUMP TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between fuel pump temperature sensor terminal 1 and ECM terminal 69.
Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 4.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

MBIB0915E

PBIB1942E

Voltage: Approximately 5.3V

MBIB0185E

Continuity should exist.
