PREPARATION

PREPARATION

PFP:00002

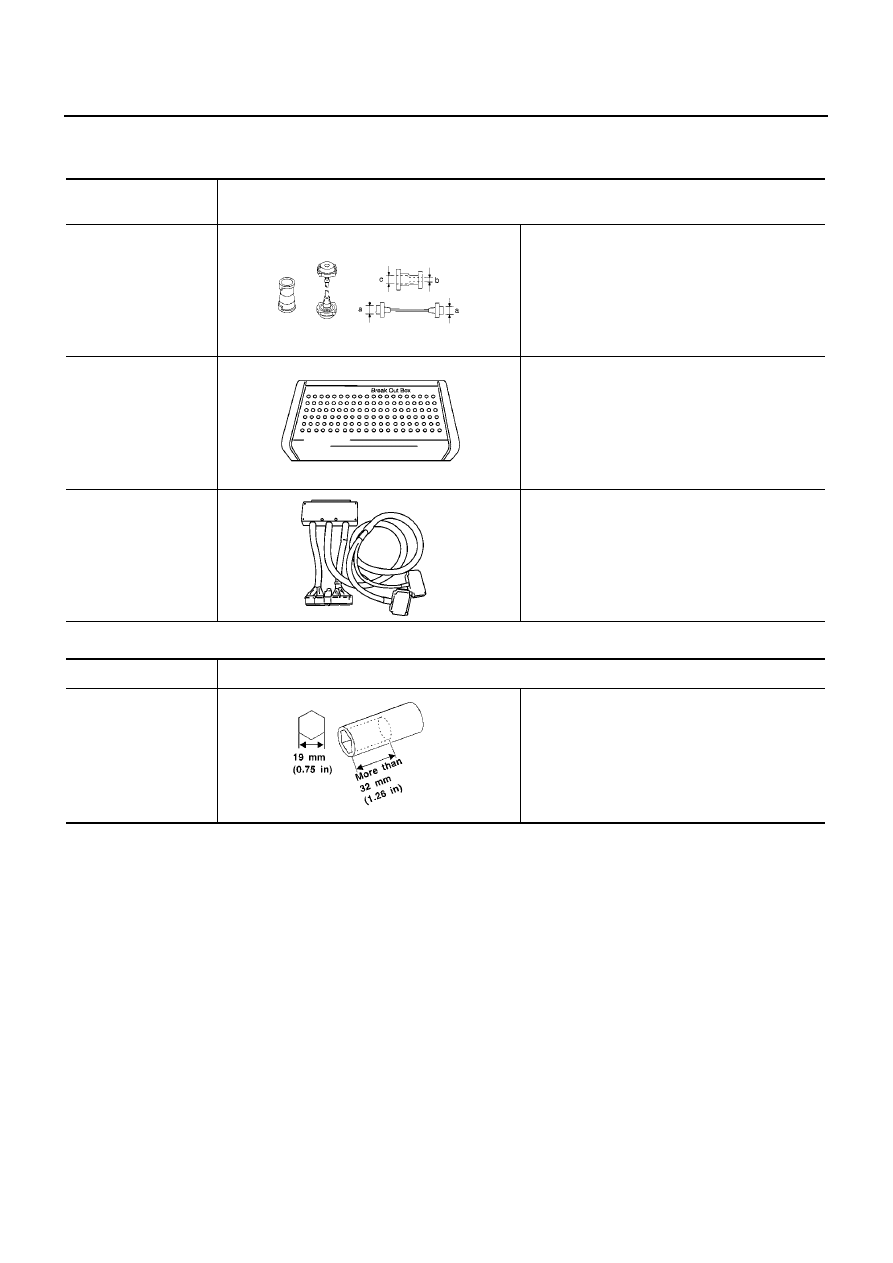

Special Service Tools

EBS0137O

Commercial Service Tools

EBS0137P

Tool number
Tool name

Description

EG17650301
Radiator cap tester
adapter

Adapting radiator cap tester to radiator cap and
radiator filler neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)

KV109E0010
Break-out box

Measuring the ECM signals with a circuit tester

KV109E0080
Y-cable adapter

Measuring the ECM signals with a circuit tester

S-NT564

S-NT825

S-NT826

Tool name

Description

Socket wrench

Removing and installing engine coolant
temperature sensor

S-NT705

ENGINE CONTROL SYSTEM

EC-947

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

ENGINE CONTROL SYSTEM

PFP:23710

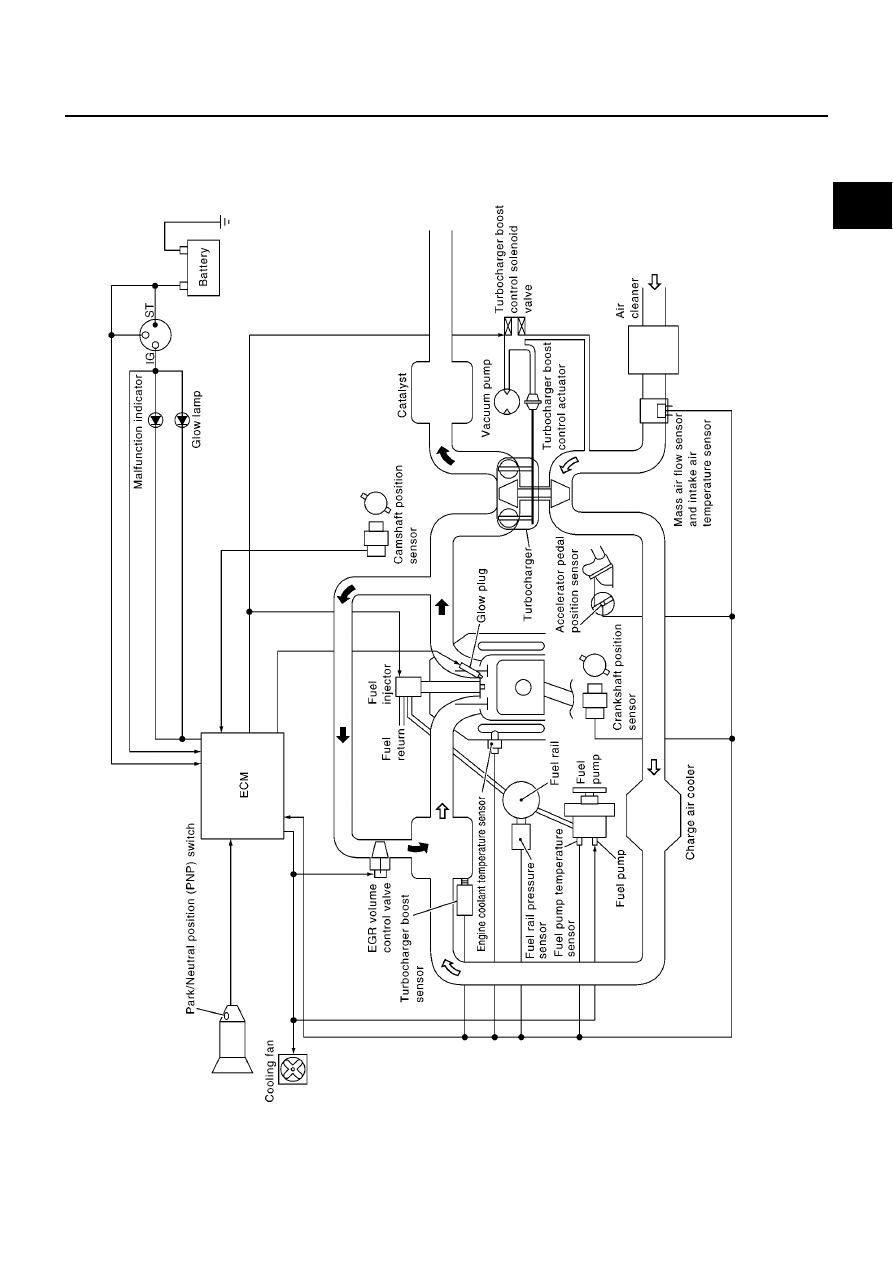

System Diagram(YD22DDTi Engine Models)

EBS0137Q

MBIB0608E

EC-948

[YD (WITH EURO-OBD)]

ENGINE CONTROL SYSTEM

System Diagram(YD22DDT Engine Models)

EBS016L9

MBIB0620E

ENGINE CONTROL SYSTEM

EC-949

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

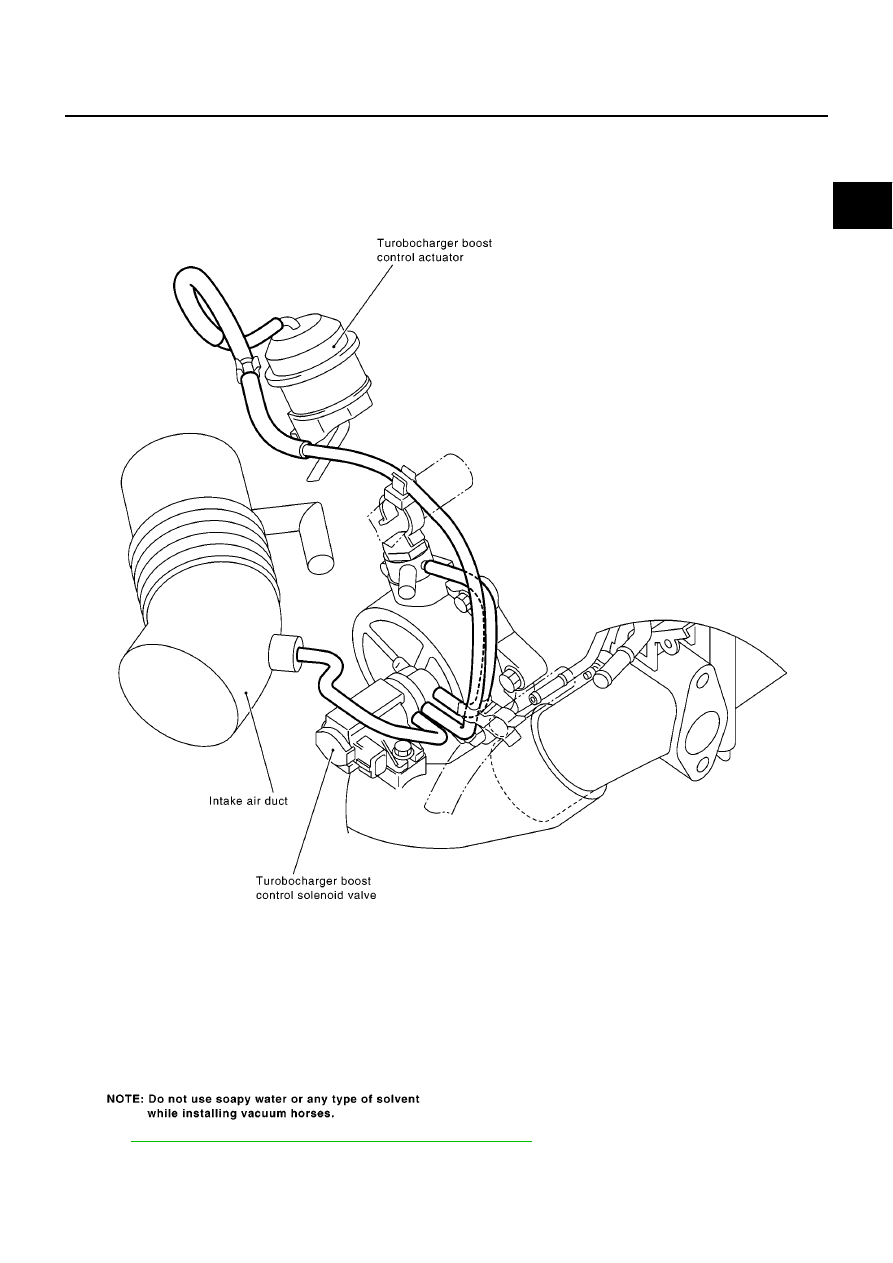

Vacuum Hose Drawing(YD22DDTi Engine Models)

EBS0137R

Refer to

EC-947, "System Diagram(YD22DDTi Engine Models)"

for Vacuum Control System.

MBIB0609E
