Nissan Almera Tino V10. Manual - part 520





EC-906

[QG (WITHOUT EURO-OBD)]

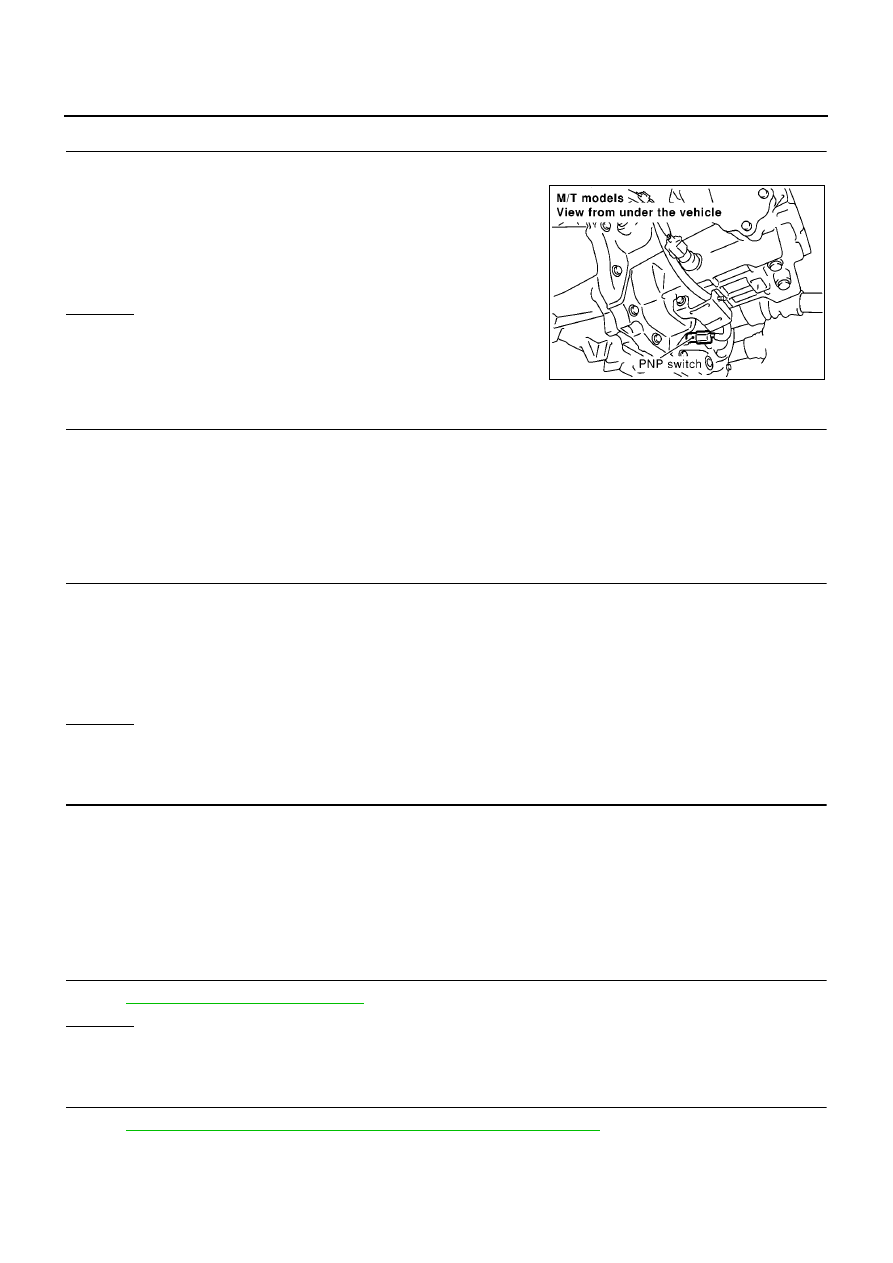

PNP SWITCH

2.

CHECK PNP SWITCH GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch “OFF”.

2.

Disconnect PNP switch harness connector.

3.

Check harness continuity between PNP switch terminal 2 and
body ground. Refer to Wiring Diagram.

4.

Also check harness for short to power.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3. (M/T models)

NG

>> Repair open circuit or short to power in harness or con-

nectors. (A/T models)

3.

DETECT MALFUNCTIONING PART

Check the following.

Harness connectors M71, F45

Harness for open or short between Park/Neutral position (PNP) switch and ground

>> Repair open circuit or short to power in harness or connectors.

4.

CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Disconnect ECM harness connector.

2.

Check harness continuity between ECM terminal 102 and PNP switch terminal 1.
Refer to Wiring Diagram.

3.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 5.

5.

Check the following.

Harness connectors M112, F73 (A/T models)

Harness connectors M71, F45 (M/T models)

Harness for open or short between Park/Neutral position (PNP) switch and ECM

>> Repair open circuit or short to ground or short to power in harness or connectors.

6.

CHECK PNP SWITCH

Refer to

AT-410, "ON-VEHICLE SERVICE"

(A/T models) or “PNP SWITCH”, MT-17 (5MT) (M/T models).

OK or NG

OK

>> GO TO 7.

NG

>> Replace PNP switch.

7.

CHECK INTERMITTENT INCIDENT

Refer to

EC-644, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

.

>> INSPECTION END

Continuity should exist.

MBIB0110E

Continuity should exist.

INJECTOR CIRCUIT

EC-907

[QG (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

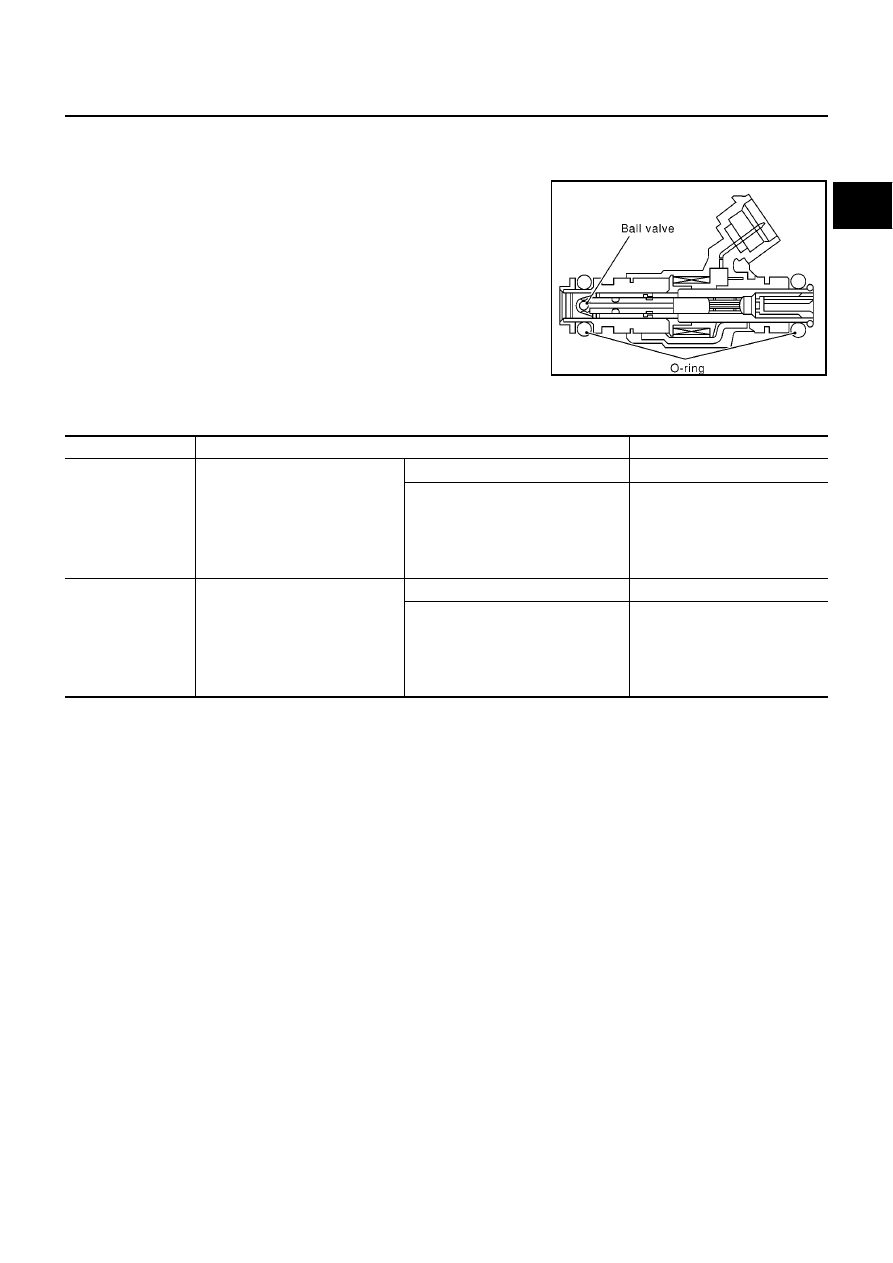

INJECTOR CIRCUIT

PFP:16600

Component Description

EBS00R3M

The fuel injector is a small, precise solenoid valve. When the ECM
supplies a ground to the injector circuit, the coil in the injector is
energized. The energized coil pulls the needle valve back and allows
fuel to flow through the injector into the intake manifold. The amount
of fuel injected depends upon the injection pulse duration. Pulse
duration is the length of time the injector remains open. The ECM
controls the injection pulse duration based on engine fuel needs.

CONSULT-II Reference Value in Data Monitor Mode

EBS00R3N

Specification data are reference values.

*: This item is displayed with A/T models.

SEF375Z

MONITOR ITEM

CONDITION

SPECIFICATION

B/FUEL SCHDL

Engine: After warming up

Shift lever:
N (A/T models)
Neutral (M/T models)

Air conditioner switch: OFF

No-load

Idle

1.5 - 3.0 msec

2,000 rpm

1.2 - 3.0 msec

INJ PULSE-B1

INJ PULSE-B2

*

Engine: After warming up

Shift lever:
N (A/T models)
Neutral (M/T models)

Air conditioner switch: OFF

No-load

Idle

2.0 - 3.5 msec

2,000 rpm

1.5 - 3.5 msec

EC-908

[QG (WITHOUT EURO-OBD)]

INJECTOR CIRCUIT

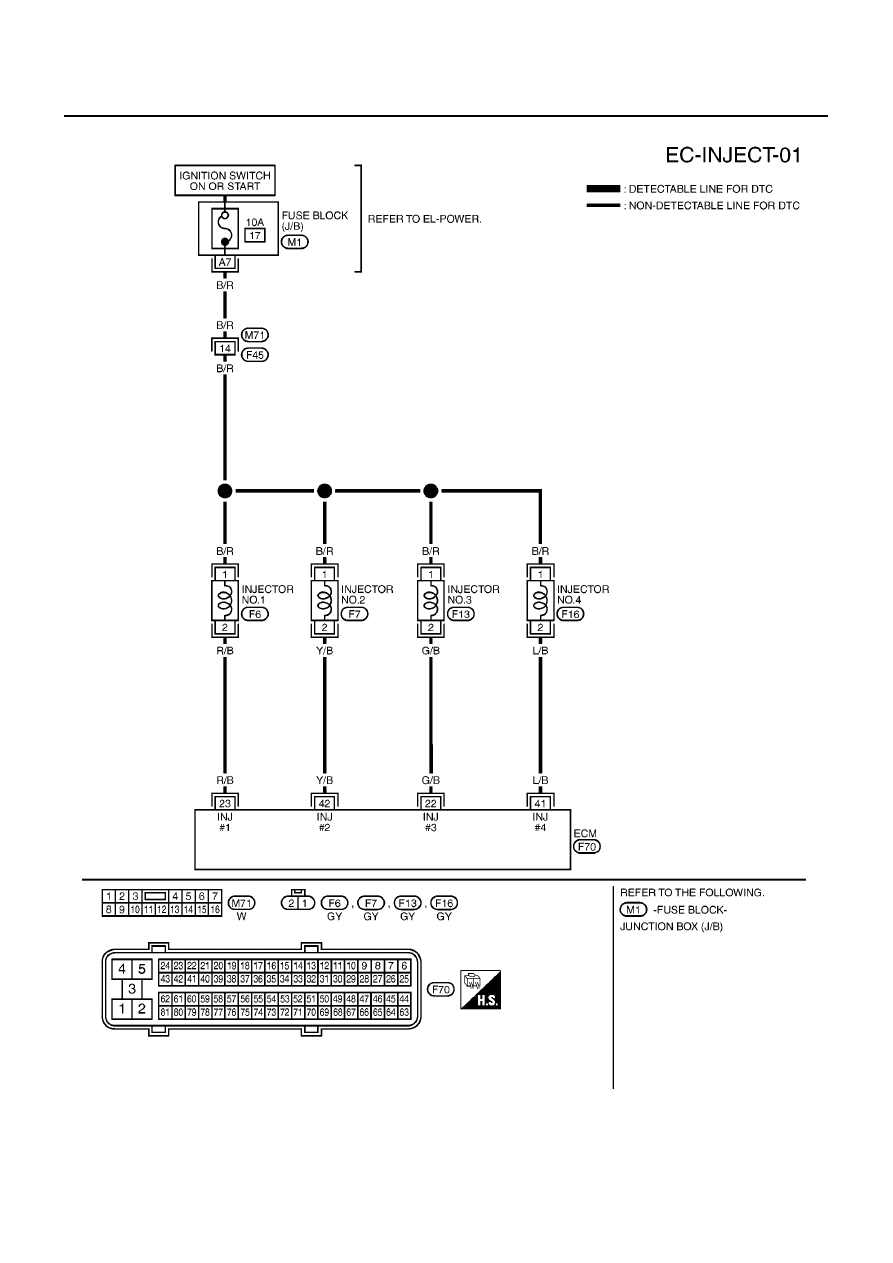

Wiring Diagram

EBS00R3O

YEC474A

INJECTOR CIRCUIT

EC-909

[QG (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

Diagnostic Procedure

EBS00R3P

1.

INSPECTION START

Turn ignition switch to “START”.
Is any cylinder ignited?

Yes or No

Yes

>> GO TO 2.

No

>> GO TO 3.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

22
23
41
42

G/B
R/B
L/B
Y/B

Injector No. 3
Injector No. 1
Injector No. 4
Injector No. 2

[Engine is running]

Warm-up condition

Idle speed

BATTERY VOLTAGE

(11 - 14V)

[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm

BATTERY VOLTAGE

(11 - 14V)

PBIB0529E

PBIB0530E
