Nissan Almera Tino V10. Manual - part 510





EC-866

[QG (WITHOUT EURO-OBD)]

HO2S2 (A/T MODELS)

HO2S2 (A/T MODELS)

PFP:226A0

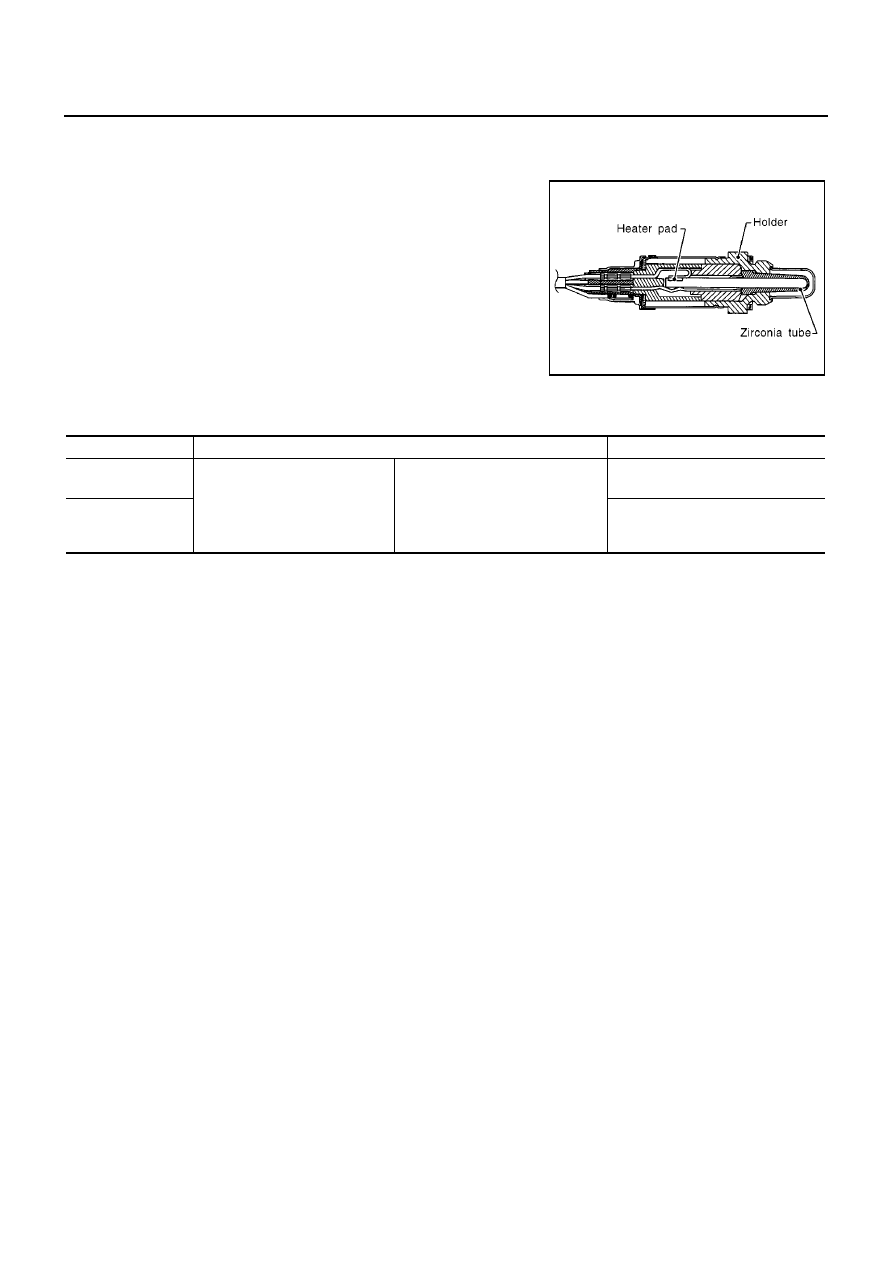

Component Description

EBS00R2O

The heated oxygen sensor 2, after three way catalyst (manifold),
monitors the oxygen level in the exhaust gas on each bank.
Even if switching characteristics of the heated oxygen sensor 1 are
shifted, the air-fuel ratio is controlled to stoichiometric, by the signal
from the heated oxygen sensor 2.
This sensor is made of ceramic zirconia. The zirconia generates volt-
age from approximately 1V in richer conditions to 0V in leaner condi-
tions.
Under normal conditions the heated oxygen sensor 2 is not used for
engine control operation.

CONSULT-II Reference Value in Data Monitor Mode

EBS00R2P

Specification data are reference values.

SEF327R

MONITOR ITEM

CONDITION

SPECIFICATION

HO2S2 (B1)
HO2S2 (B2)

Engine: After warming up

Keeping the engine speed at
between 3,500 to 4,000 rpm for
one minute and at idle for one
minute under no load

Revving engine from idle up to
2,000 rpm

0 - 0.3V

←→

Approx. 0.6 - 1.0V

HO2S2 MNTR (B1)
HO2S2 MNTR (B2)

LEAN

←→

RICH

HO2S2 (A/T MODELS)

EC-867

[QG (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

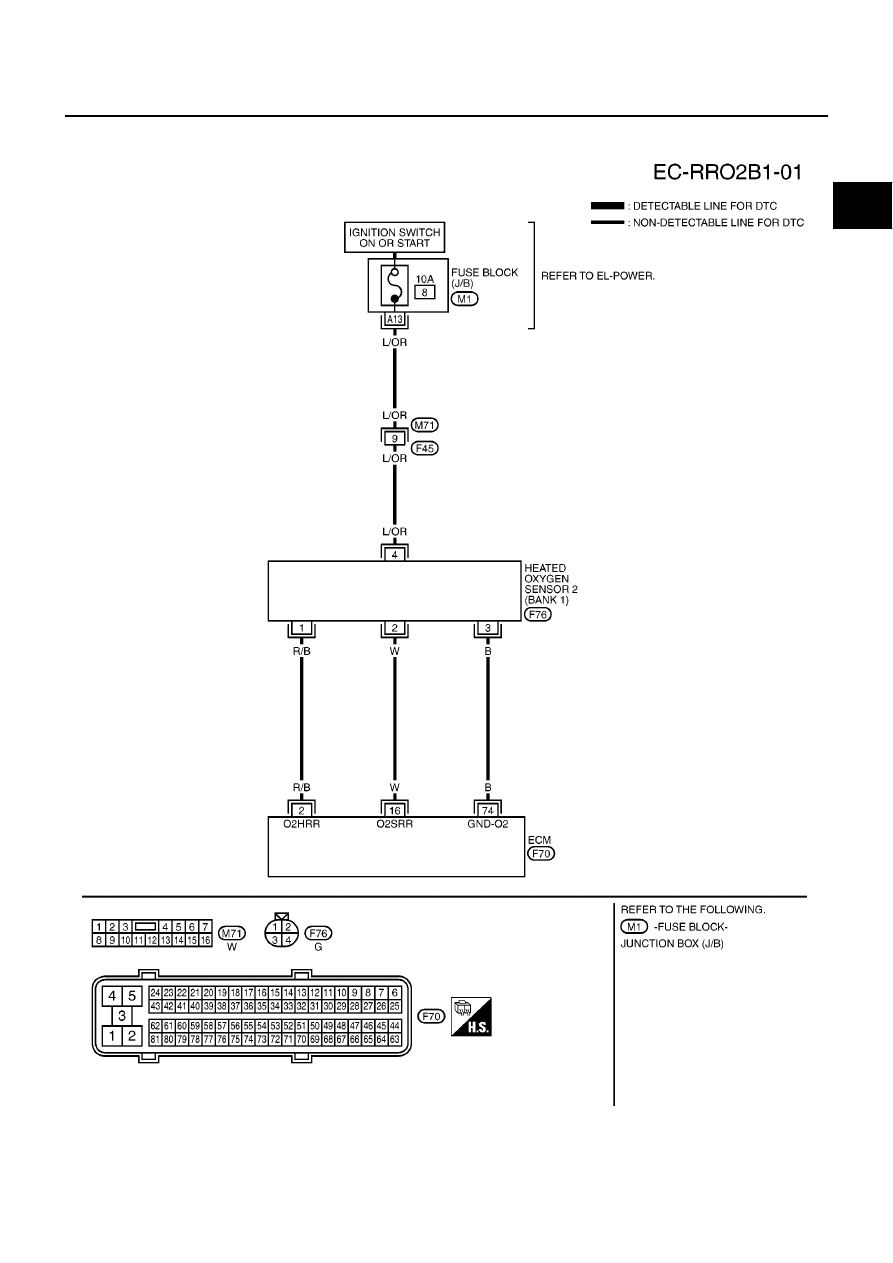

Wiring Diagram

EBS00R2Q

BANK 1

YEC486A

EC-868

[QG (WITHOUT EURO-OBD)]

HO2S2 (A/T MODELS)

Specification data are reference values and are measured between each terminal and body ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

16

W

Heated oxygen sensor 2
(bank 1)

[Engine is running]

Warm-up condition

Engine speed is 3,000 rpm quickly after the fol-
lowing conditions are met.

Keeping the engine speed between 3,500 and
4,000 rpm for one minute and at idle for one
minute under no load.

0 - Approximately 1.0V

74

B

Sensors' ground
(Heated oxygen sensor)

[Engine is running]

Idle speed

Approximately 0V

HO2S2 (A/T MODELS)

EC-869

[QG (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

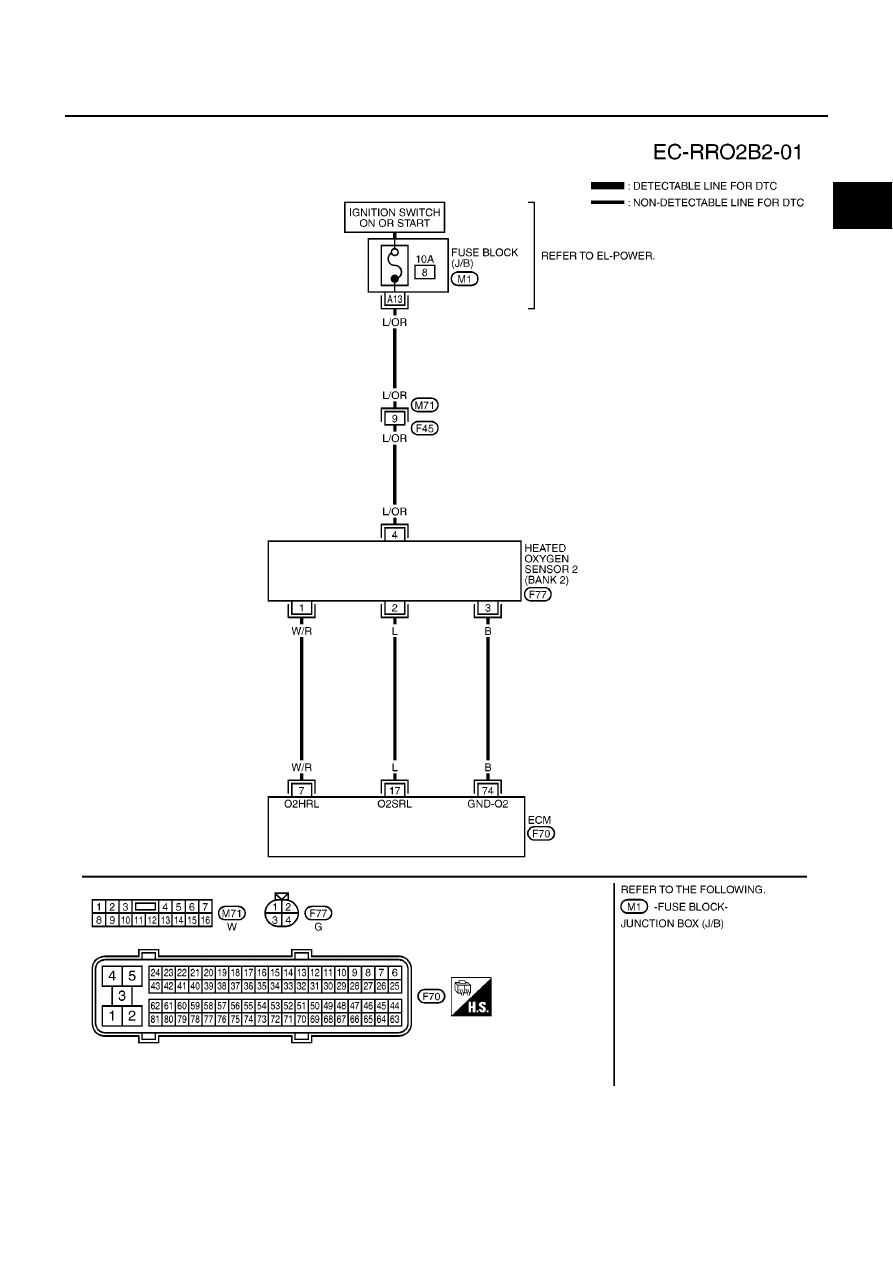

BANK 2

YEC487A
