DTC P1225 TP SENSOR

Diagnostic Procedure

EBS00R0N

1.

CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY

1.

Turn ignition switch “OFF”.

2.

Remove the intake air duct.

3.

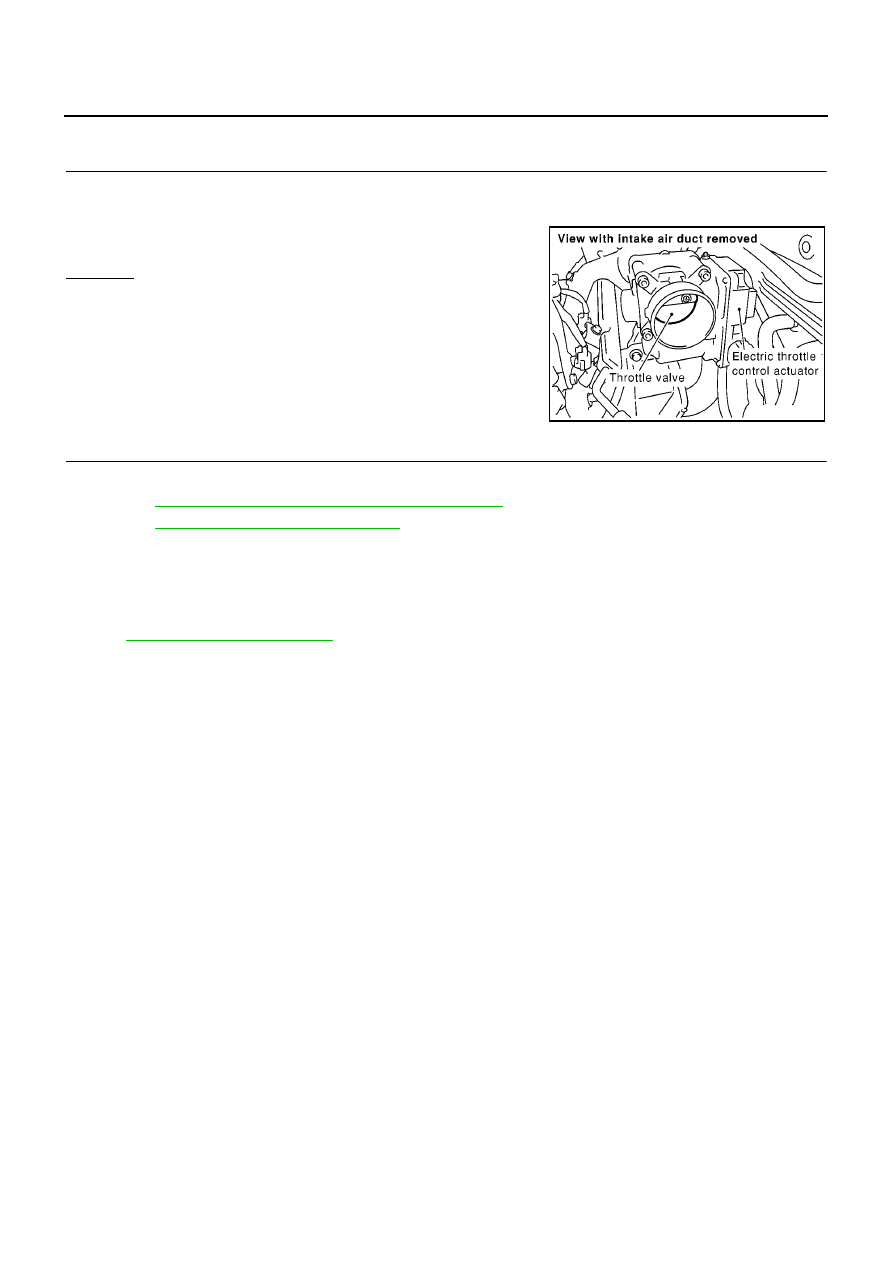

Check if foreign matter is caught between the throttle valve and
the housing.

OK or NG

OK

>> GO TO 2.

NG

>> Remove the foreign matter and clean the electric throttle

control actuator inside.

2.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1.

Replace the electric throttle control actuator.

2.

Perform

EC-576, "Throttle Valve Closed Position Learning"

.

3.

Perform

EC-576, "Idle Air Volume Learning"

.

>> INSPECTION END

Remove and Installation

EBS00R0O

ELECTRIC THROTTLE CONTROL ACTUATOR

Refer to

EM-18, "INTAKE MANIFOLD"

.

MBIB0107E

DTC P1226 TP SENSOR

EC-799

[QG (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

DTC P1226 TP SENSOR

PFP:16119

Component Description

EBS00R0P

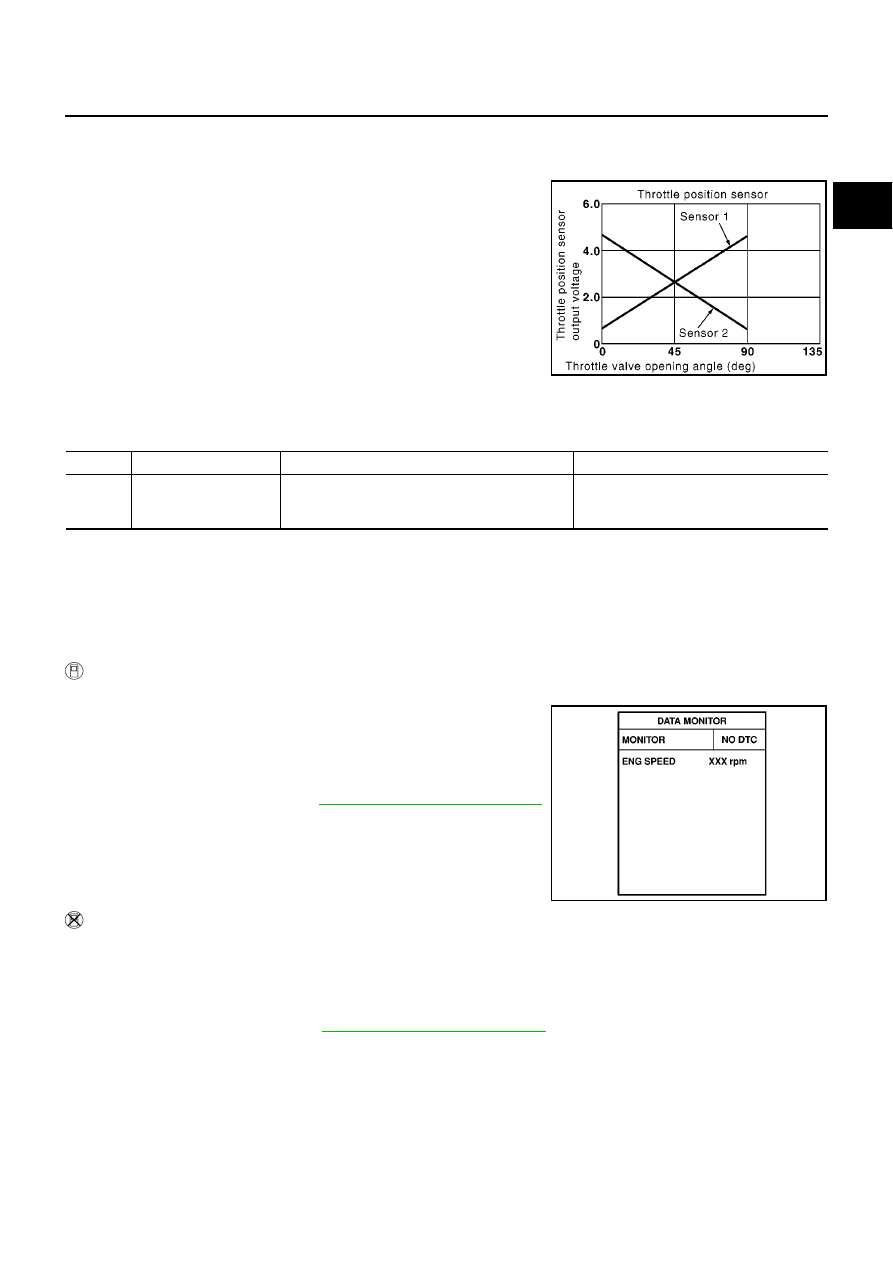

Electric Throttle Control Actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.

On Board Diagnosis Logic

EBS00R0Q

The MI will not light up for this diagnosis.

DTC Confirmation Procedure

EBS00R0R

NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.

WITH CONSULT-II

1.

Turn ignition switch “ON”.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Turn ignition switch “OFF”, wait at least 10 seconds.

4.

Turn ignition switch “ON”.

5.

Repeat steps 3 and 4 for 32 times.

6.

If 1st trip DTC is detected, go to

EC-800, "Diagnostic Procedure"

.

WITHOUT CONSULT-II

1.

Turn ignition switch “ON”.

2.

Turn ignition switch “OFF”, wait at least 10 seconds and then turn “ON”.

3.

Repeat step 2 for 32 times.

4.

Perform “Diagnostic Test Mode II (Self-diagnostic results)” with ECM.

5.

If 1st trip DTC is detected, go to

EC-800, "Diagnostic Procedure"

.

PBIB0145E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1226
1226

Closed throttle position
learning performance
problem

Closed throttle position learning is not performed
successfully, repeatedly.

Electric throttle control actuator
(TP sensor 1 and 2)

SEF058Y

EC-800

[QG (WITHOUT EURO-OBD)]

DTC P1226 TP SENSOR

Diagnostic Procedure

EBS00R0S

1.

CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY

1.

Turn ignition switch “OFF”.

2.

Remove the intake air duct.

3.

Check if foreign matter is caught between the throttle valve and
the housing.

OK or NG

OK

>> GO TO 2.

NG

>> Remove the foreign matter and clean the electric throttle

control actuator inside.

2.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1.

Replace the electric throttle control actuator.

2.

Perform

EC-576, "Throttle Valve Closed Position Learning"

.

3.

Perform

EC-576, "Idle Air Volume Learning"

.

>> INSPECTION END

Remove and Installation

EBS00R0T

ELECTRIC THROTTLE CONTROL ACTUATOR

Refer to

EM-18, "INTAKE MANIFOLD"

.

MBIB0107E

DTC P1227, P1228 APP SENSOR

EC-801

[QG (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

DTC P1227, P1228 APP SENSOR

PFP:18002

Component Description

EBS00R0U

The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.

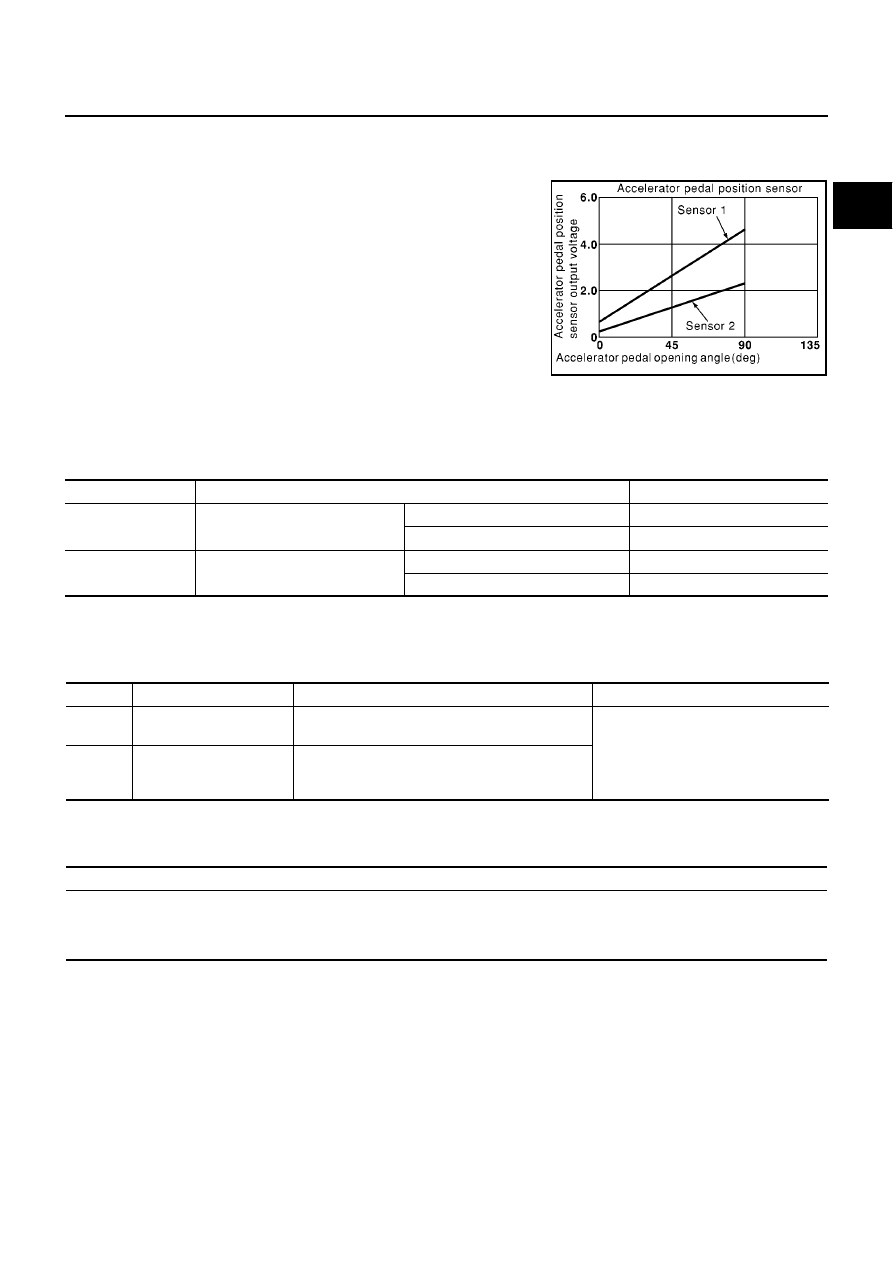

Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometers which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the accelerator pedal and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the accelerator pedal from
these signals and controls the throttle control motor based on these
signals.
Idle position of the accelerator pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The ECM uses this signal for the engine oper-
ation such as fuel cut.

CONSULT-II Reference Value in Data Monitor Mode

EBS00R0V

Specification data are reference values.

*: Accelerator pedal position sensor 2 signal is converted by ECM internally. Thus, it differ from ECM terminal voltage signal.

On Board Diagnosis Logic

EBS00R0W

These self-diagnoses have the one trip detection logic.

FAIL-SAFE MODE

When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.

DTC Confirmation Procedure

EBS00R0X

NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.

PBIB0146E

MONITOR ITEM

CONDITION

SPECIFICATION

ACCEL SEN1
ACCEL SEN2*

Ignition switch: ON
(engine stopped)

Accelerator pedal: Fully released

0.35 - 0.67V

Accelerator pedal: Fully depressed

More than 3.9V

CLSD THL POS

Ignition switch: ON

Accelerator pedal: Fully released

ON

Accelerator pedal: Slightly depressed

OFF

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1227
1227

Accelerator pedal position
sensor 2 circuit low input

An excessively low voltage from the APP sensor 2
is sent to ECM.

Harness or connectors
(The APP sensor 2 circuit is open or
shorted.)

Accelerator pedal position sensor
(Accelerator pedal position sensor 2)

P1228
1228

Accelerator pedal position
sensor 2 circuit high input

An excessively high voltage from the APP sensor 2
is sent to ECM.

Engine operating condition in fail-safe mode

The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of throttle valve to be slower than the normal condition.
So, the acceleration will be poor.
