EC-734

[QG (WITHOUT EURO-OBD)]

DTC P0327, P0328 KS

DTC P0327, P0328 KS

PFP:22060

Component Description

EBS00QYJ

The knock sensor is attached to the cylinder block. It senses engine
knocking using a piezoelectric element. A knocking vibration from
the cylinder block is sensed as vibrational pressure. This pressure is
converted into a voltage signal and sent to the ECM.

On Board Diagnosis Logic

EBS00QYK

The MI will not light up for this diagnosis.

DTC Confirmation Procedure

EBS00QYL

NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.

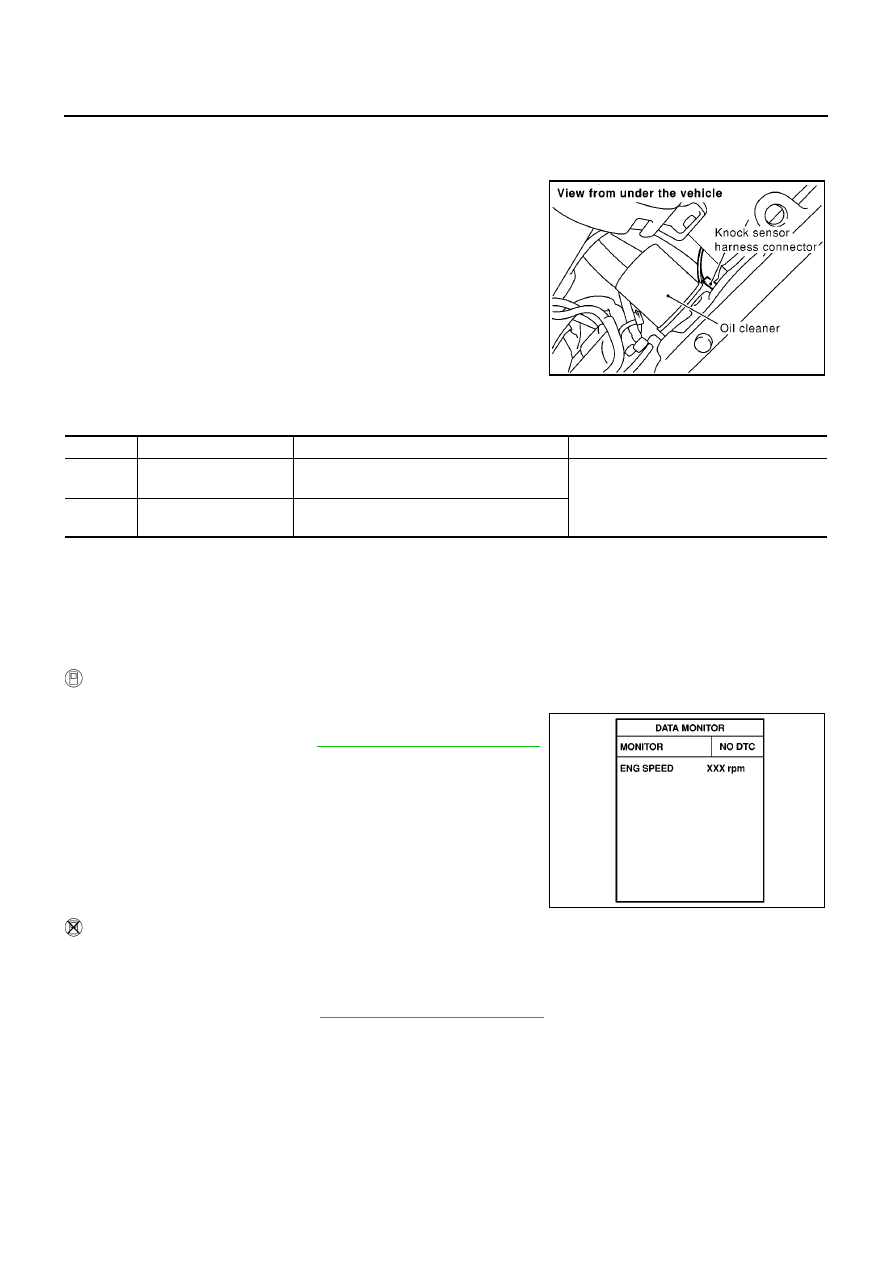

WITH CONSULT-II

1.

Turn ignition switch “ON” and select “DATA MONITOR” mode with CONSULT-II.

2.

Start engine and run it for at least 5 seconds at idle speed.

3.

If 1st trip DTC is detected, go to

EC-736, "Diagnostic Procedure"

.

WITHOUT CONSULT-II

1.

Start engine and run it for at least 5 seconds at idle speed.

2.

Turn ignition switch “OFF”, wait at least 10 seconds and then turn “ON”.

3.

Perform “Diagnostic Test Mode II (Self-diagnostic results)” with ECM.

4.

If 1st trip DTC is detected, go to

EC-736, "Diagnostic Procedure"

.

MBIB0102E

DTC No.

Trouble Diagnosis Name

DTC Detected Condition

Possible Cause

P0327
0327

Knock sensor circuit low
input

An excessively low voltage from the sensor is
sent to ECM.

Harness or connectors
(The sensor circuit is open or shorted.)

Knock sensor

P0328
0328

Knock sensor circuit high
input

An excessively high voltage from the sensor is
sent to ECM.

SEF058Y

DTC P0327, P0328 KS

EC-735

[QG (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

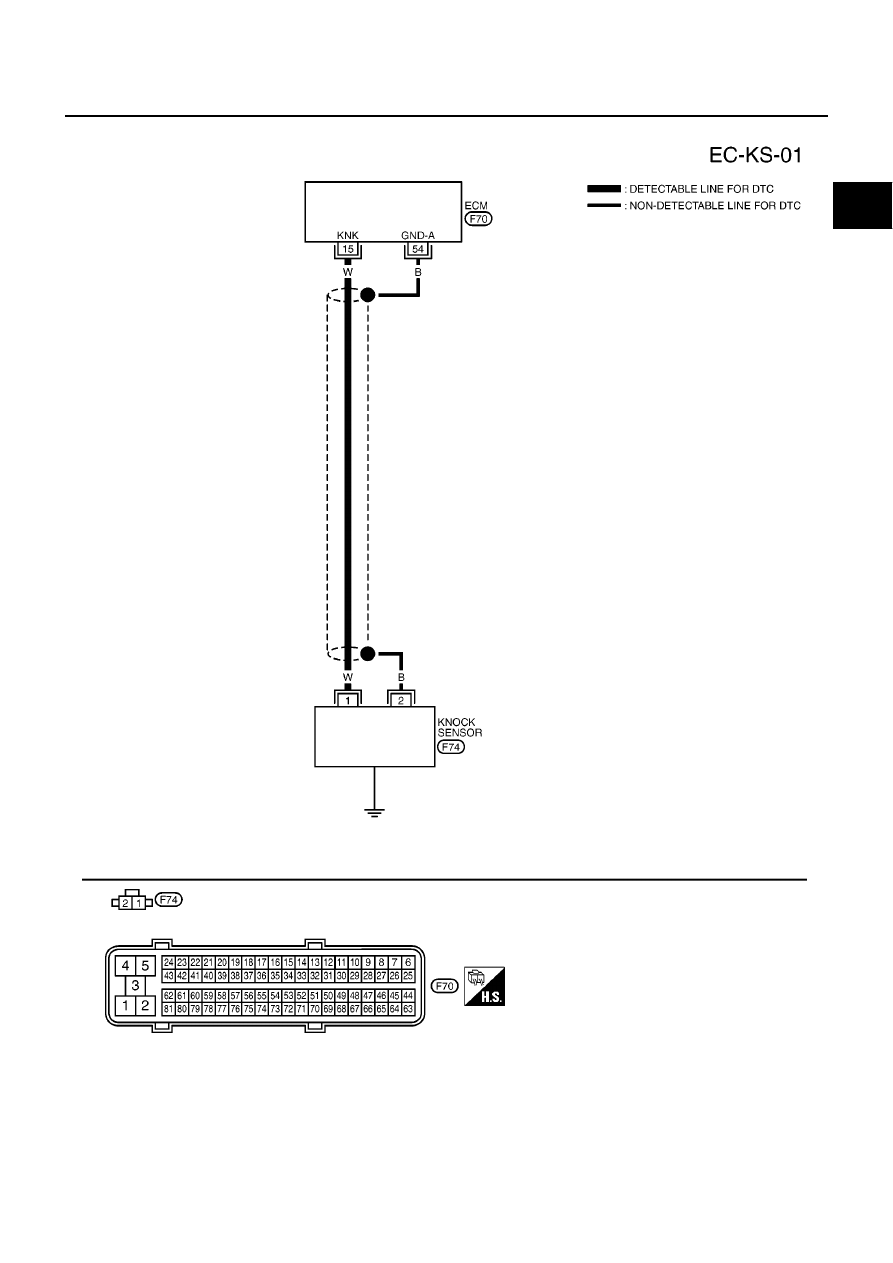

Wiring Diagram

EBS00QYM

YEC456A

EC-736

[QG (WITHOUT EURO-OBD)]

DTC P0327, P0328 KS

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

Diagnostic Procedure

EBS00QYN

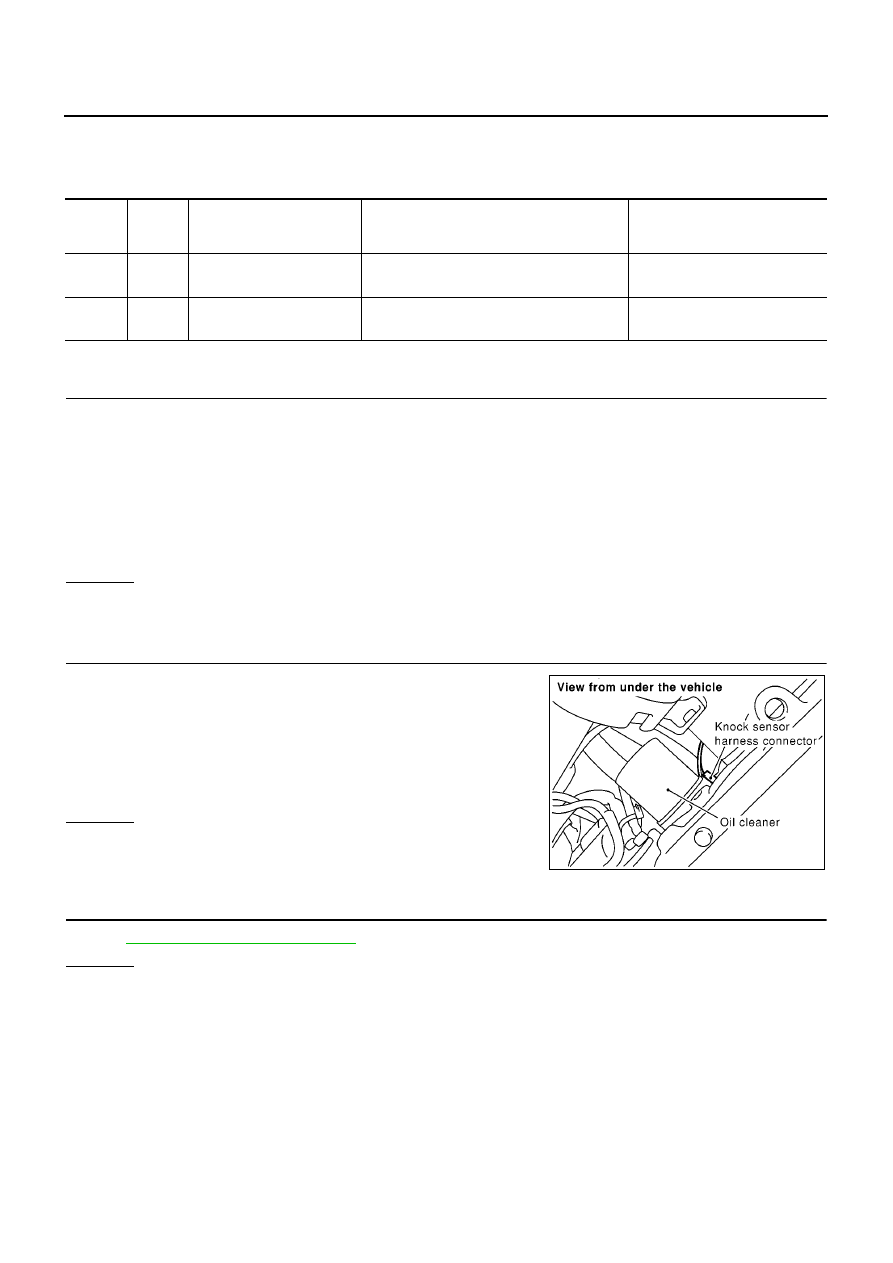

1.

CHECK KNOCK SENSOR INPUT SIGNAL CIRCUIT-I

1.

Turn ignition switch “OFF”.

2.

Disconnect ECM harness connector.

3.

Check resistance between ECM terminal 15 and engine ground. Refer to Wiring Diagram.
NOTE:
It is necessary to use an ohmmeter which can measure more than 10 M

.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 2.

2.

CHECK KNOCK SENSOR INPUT SIGNAL CIRCUIT-II

1.

Disconnect knock sensor harness connector.

2.

Check harness continuity between ECM terminal 15 and knock
sensor terminal 1.
Refer to Wiring Diagram.

3.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 3.

NG

>> Repair open circuit or short to ground or short to power

in harness or connectors.

3.

CHECK KNOCK SENSOR

Refer to

EC-737, "Component Inspection"

.

OK or NG

OK

>> GO TO 5.

NG

>> Replace knock sensor.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

15

W

Knock sensor

[Engine is running]

Idle speed

Approximately 2.5V

54

B

Knock sensor shield circuit
ground

[Engine is running]

Idle speed

Approximately 0V

Resistance: Approximately 530 - 590k

[at 20

°

C (68

°

F)]

Continuity should exist.

MBIB0102E

DTC P0327, P0328 KS

EC-737

[QG (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

4.

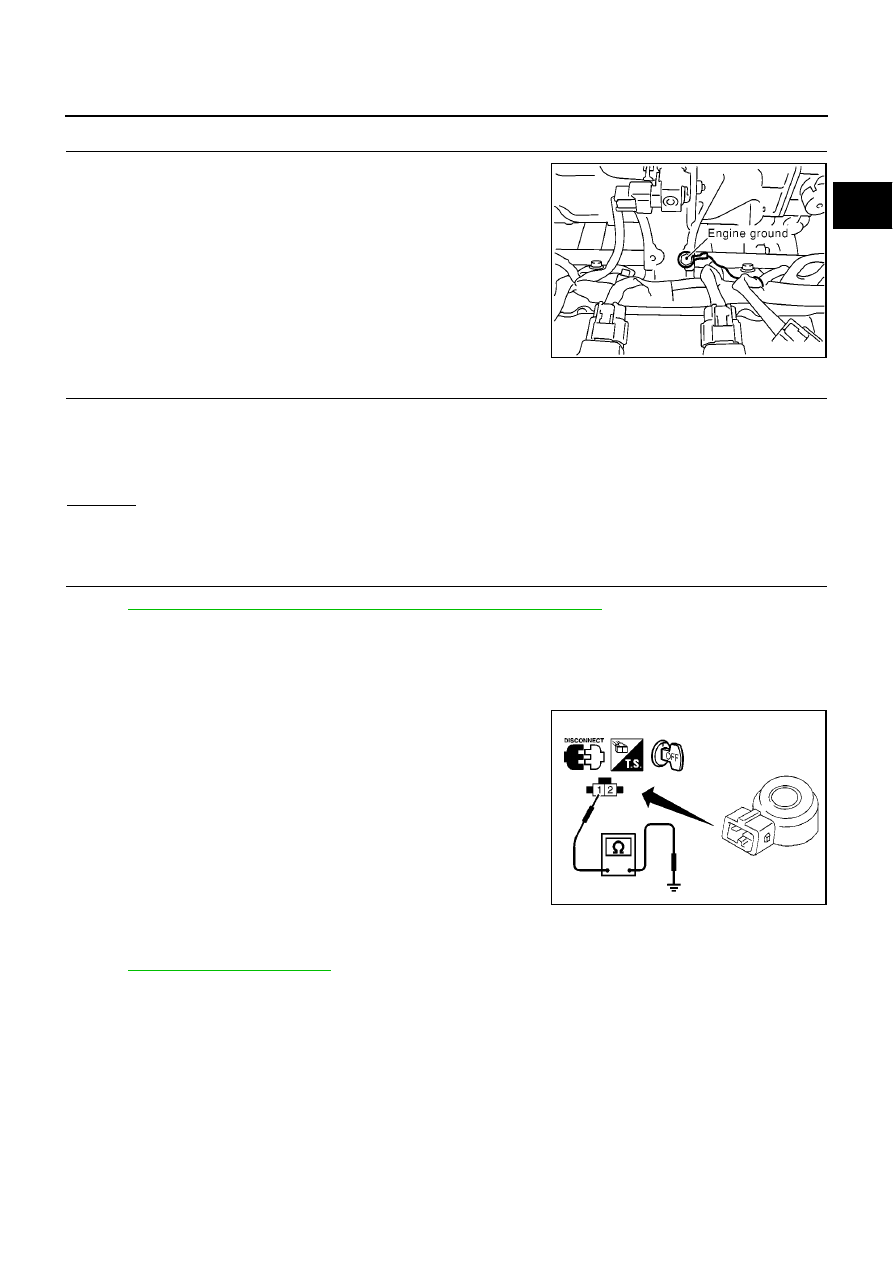

RETIGHTEN GROUND SCREWS

Loosen and retighten engine ground screws.

>> GO TO 5.

5.

CHECK KNOCK SENSOR SHIELD CIRCUIT FOR OPEN AND SHORT

1.

Reconnect knock sensor harness connector.

2.

Check harness continuity between ECM terminal 54 and engine ground.
Refer to Wiring Diagram.

3.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 6.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

6.

CHECK INTERMITTENT INCIDENT

Refer to

EC-644, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

.

>> INSPECTION END

Component Inspection

EBS00QYO

KNOCK SENSOR

Check resistance between knock sensor terminal 1 and ground.

NOTE:
It is necessary to use an ohmmeter which can measure more
than 10 M

.

CAUTION:

Do not use any knock sensors that have been dropped or phys-
ically damaged. Use only new ones.

Removal and Installation

EBS00QYP

KNOCK SENSOR

Refer to

EM-74, "CYLINDER BLOCK"

.

MBIB0095E

Resistance: Approximately 530 - 590k

[at 20

°

C (68

°

F)]

SEF227W
