Nissan Almera Tino V10. Manual - part 431





EC-550

[QG (WITH EURO-OBD)]

POSITIVE CRANKCASE VENTILATION

POSITIVE CRANKCASE VENTILATION

PFP:11810

Description

EBS00QU0

SYSTEM DESCRIPTION

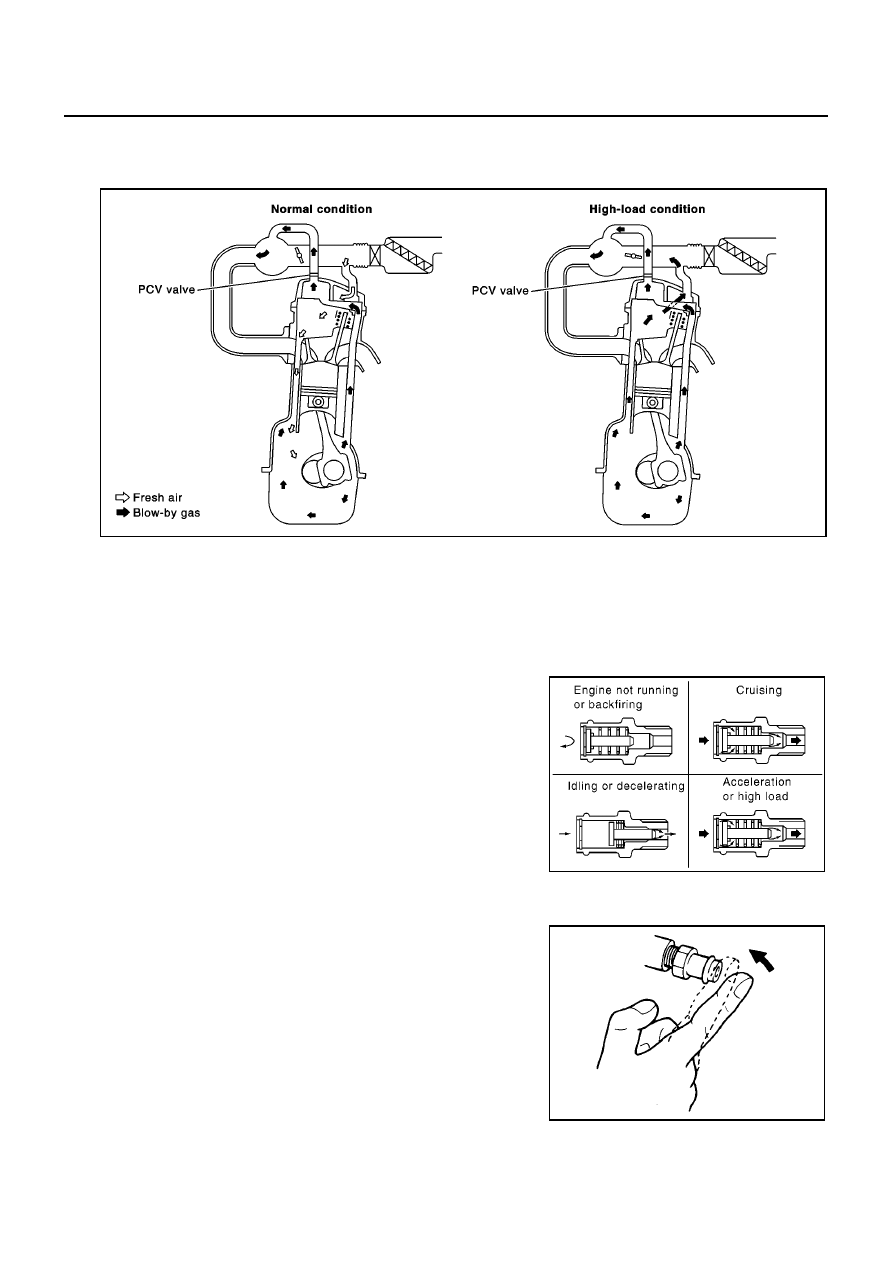

This system returns blow-by gas to the intake manifold.
The positive crankcase ventilation (PCV) valve is provided to conduct crankcase blow-by gas to the intake
manifold. During partial throttle operation of the engine, the intake manifold sucks the blow-by gas through the
PCV valve. Normally, the capacity of the valve is sufficient to handle any blow-by and a small amount of venti-
lating air. The ventilating air is then drawn from the air inlet tubes into the crankcase. In this process the air
passes through the hose connecting air inlet tubes to rocker cover. Under full-throttle condition, the manifold
vacuum is insufficient to draw the blow-by flow through the valve. The flow goes through the hose connection
in the reverse direction.
On vehicles with an excessively high blow-by, the valve does not
meet the requirement. This is because some of the flow will go
through the hose connection to the air inlet tubes under all condi-
tions.

Component Inspection

EBS00QU1

PCV (POSITIVE CRANKCASE VENTILATION) VALVE

With engine running at idle, remove PCV valve from rocker cover. A
properly working valve makes a hissing noise as air passes through
it. A strong vacuum should be felt immediately when a finger is
placed over valve inlet.

PBIB0492E

SEC481D

SEC137A

POSITIVE CRANKCASE VENTILATION

EC-551

[QG (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

PCV VALVE VENTILATION HOSE

1.

Check hoses and hose connections for leaks.

2.

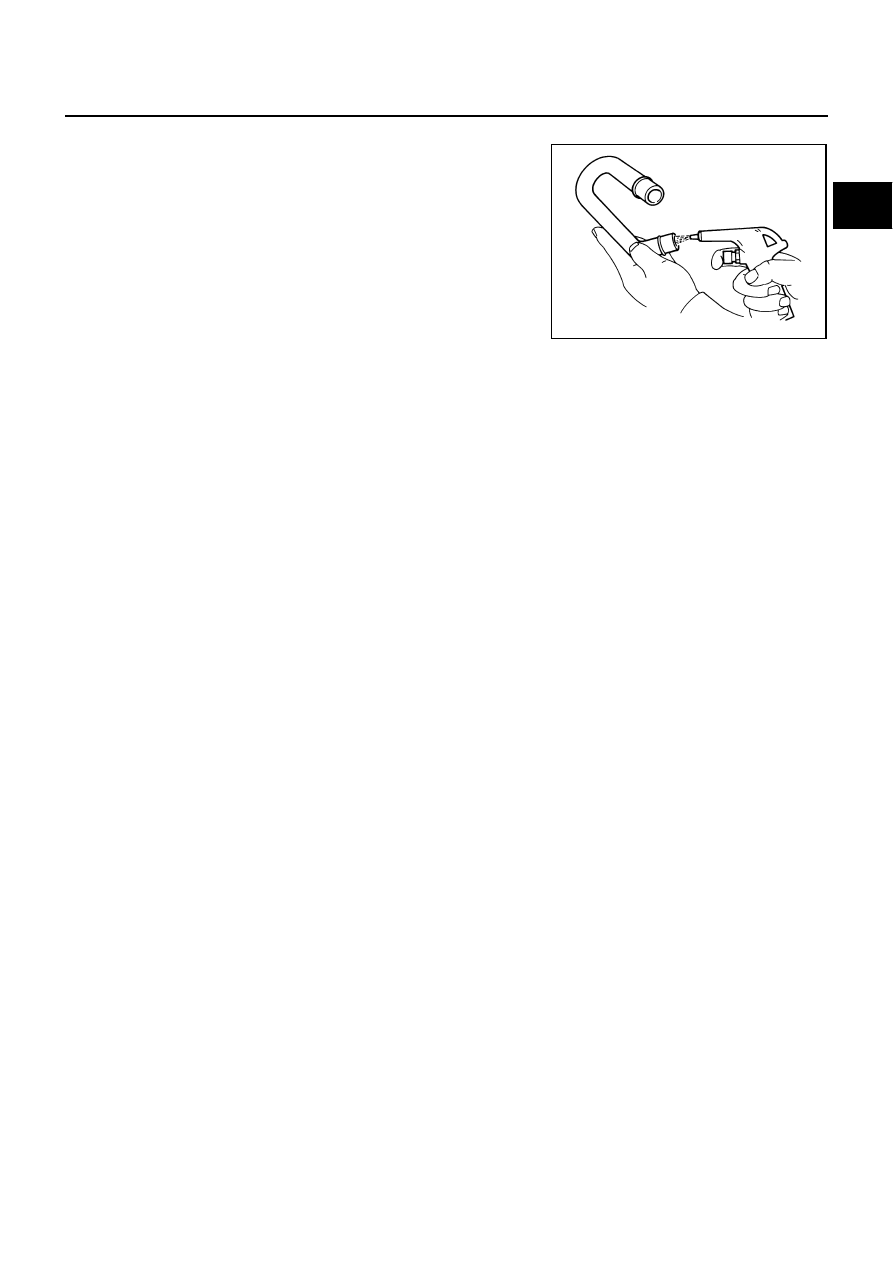

Disconnect all hoses and clean with compressed air. If any hose
cannot be freed of obstructions, replace.

S-ET277

EC-552

[QG (WITH EURO-OBD)]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

Fuel Pressure

EBS00QU2

Idle Speed and Ignition Timing

EBS00QU3

*1: Under the following conditions:

Air conditioner switch: OFF

Electric load: OFF (Lights, heater fan & rear window defogger)

Steering wheel: Kept in straight-ahead position

Calculated Load Value

EBS00QU4

Mass Air Flow Sensor

EBS00QU5

*: Engine is warmed up to normal operating temperature and running under no-load.

Intake Air Temperature Sensor

EBS00QU6

Engine Coolant Temperature Sensor

EBS00QU7

Heated Oxygen Sensor 1 Heater

EBS00QU8

Heated Oxygen sensor 2 Heater

EBS00QU9

Crankshaft Position Sensor (POS)

EBS00QUA

Refer to

EC-347, "Component Inspection"

.

Fuel pressure at idle

Approximately 350 kPa (3.5 bar, 3.57 kg/cm

2

, 51 psi)

Target idle speed

A/T

No-load

*1

(in “P” or N” position)

800

±

50 rpm

M/T

No-load

*1

(in “Neutral” position)

700

±

50 rpm

Air conditioner: ON

A/T

In “P” or N” position

900 rpm or more

M/T

In “Neutral” position

Ignition timing

A/T

In “P” or N” position

10

°±

5

°

BTDC

M/T

In “Neutral” position

8

°±

5

°

BTDC

Calculated load value % (Using CONSULT-II or GST)

At idle

10 - 35

At 2,500 rpm

10 - 35

Supply voltage

Battery voltage (11 - 14V)

Output voltage at idle

1.0 - 1.7*V

Mass air flow (Using CONSULT-II or GST)

1.0 - 4.0 g·m/sec at idle*

5.0 - 10.0 g·m/sec at 2,500 rpm*

Temperature

°

C (

°

F)

Resistance k

25 (77)

1.9 - 2.1

80 (176)

0.31 - 0.37

Temperature

°

C (

°

F)

Resistance k

20 (68)

2.1 - 2.9

50 (122)

0.68 - 1.00

90 (194)

0.236 - 0.260

Resistance [at 25

°

C (77

°

F)]

8 - 10

Resistance [at 25

°

C (77

°

F)]

5.0 - 7.0

SERVICE DATA AND SPECIFICATIONS (SDS)

EC-553

[QG (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Camshaft Position Sensor (PHASE)

EBS00QUB

Refer to

EC-353, "Component Inspection"

.

Throttle Control Motor

EBS00QUC

Injector

EBS00QUD

Fuel Pump

EBS00QUE

Resistance [at 25

°

C (77

°

F)]

Approximately 1 - 15

Resistance [at 20

°

C (68

°

F)]

13.5 - 17.5

Resistance [at 25

°

C (77

°

F)]

Approximately 1.0
