DTC P0226 APP SENSOR

DTC P0226 APP SENSOR

PFP:18002

Component Description

EBS00QMJ

The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometers which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the accelerator pedal and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the accelerator pedal from
these signals and controls the throttle control motor based on these
signals.
Idle position of the accelerator pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The ECM uses this signal for the engine oper-
ation such as fuel cut.

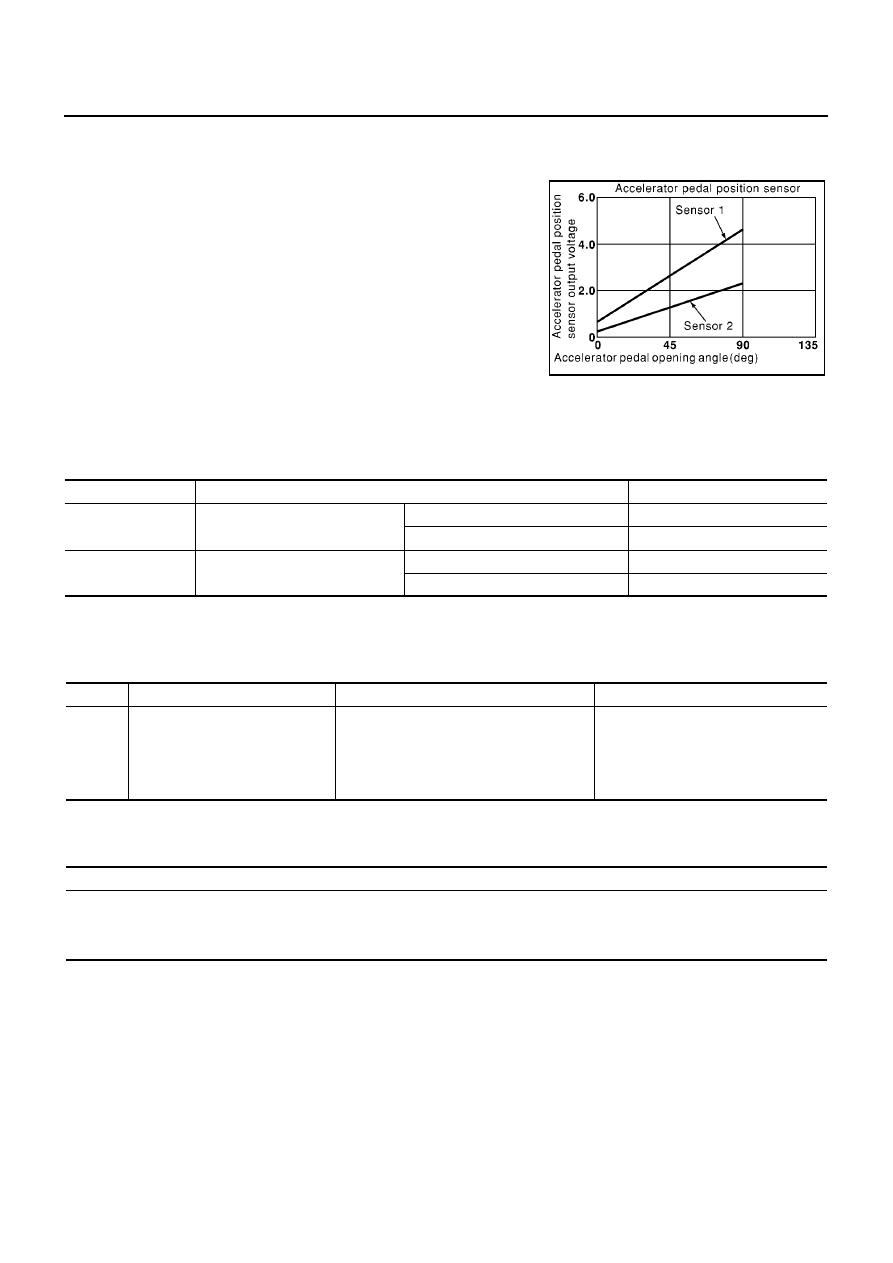

CONSULT-II Reference Value in Data Monitor Mode

EBS00QMK

Specification data are reference values.

*: Accelerator pedal position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.

On Board Diagnosis Logic

EBS00QML

This self-diagnosis has the one trip detection logic.

FAIL-SAFE MODE

When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.

DTC Confirmation Procedure

EBS00QMM

NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.

PBIB0146E

MONITOR ITEM

CONDITION

SPECIFICATION

ACCEL SEN1

ACCEL SEN2

*

Ignition switch: ON
(engine stopped)

Accelerator pedal: Fully released

0.35 - 0.67V

Accelerator pedal: Fully depressed

More than 3.9V

CLSD THL POS

Ignition switch: ON

Accelerator pedal: Fully released

ON

Accelerator pedal: Slightly depressed

OFF

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0226
0226

Accelerator pedal position sensor
circuit range/performance problem

Rationally incorrect voltage is sent to ECM
compared with the signals from APP sensor
1 and APP sensor 2.

Harness or connector
(The APP sensor 1 and 2 circuit is
open or shorted.)

Accelerator pedal position sensor 1
and 2

Engine operating condition in fail-safe mode

The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of throttle valve to be slower than the normal condition.
So, the acceleration will be poor.

DTC P0226 APP SENSOR

EC-323

[QG (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

WITH CONSULT-II

1.

Turn ignition switch “ON”.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Start engine and let it idle for 1 second.

4.

If DTC is detected, go to

EC-325, "Diagnostic Procedure"

.

WITH GST

Follow the procedure “WITH CONSULT-II” above.

SEF058Y

EC-324

[QG (WITH EURO-OBD)]

DTC P0226 APP SENSOR

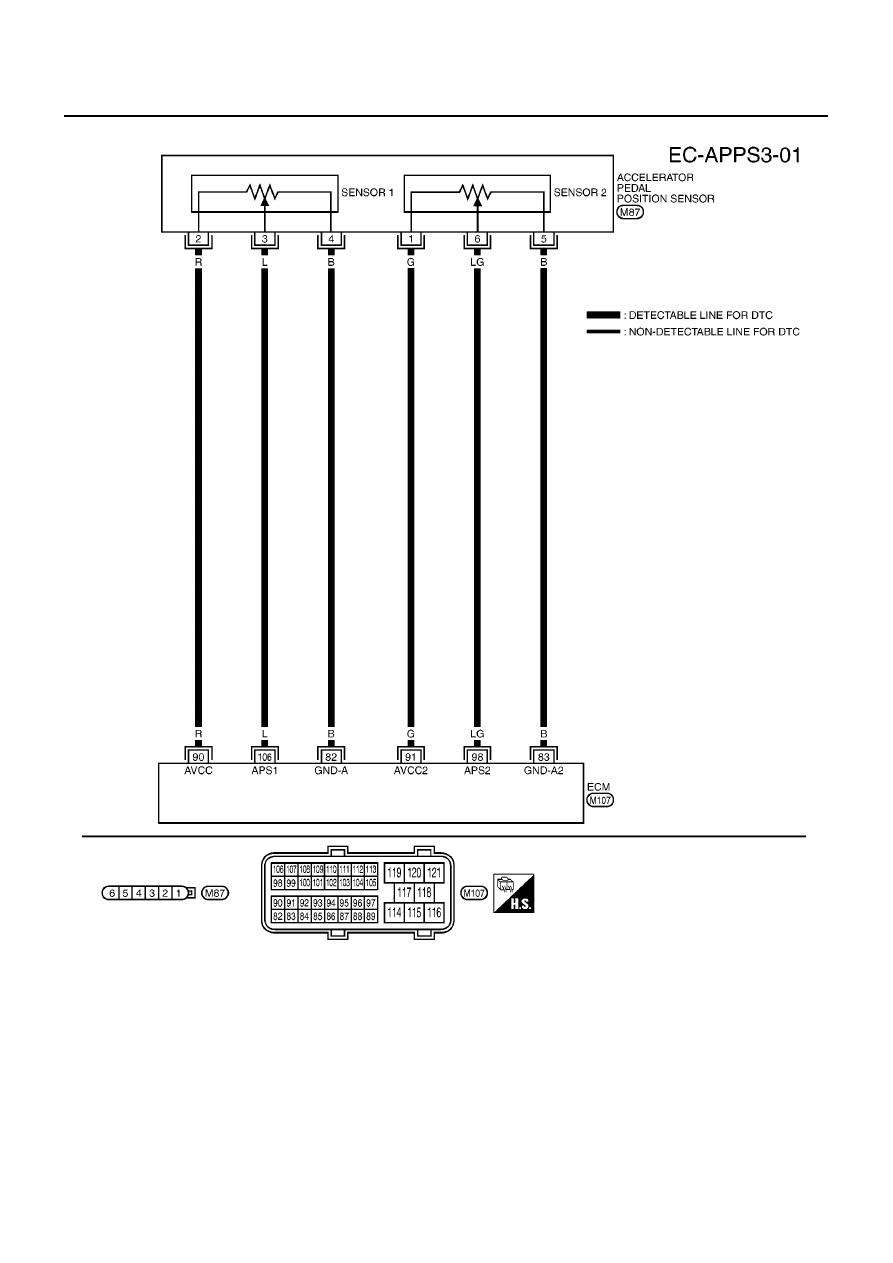

Wiring Diagram

EBS00QMN

YEC454A

DTC P0226 APP SENSOR

EC-325

[QG (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

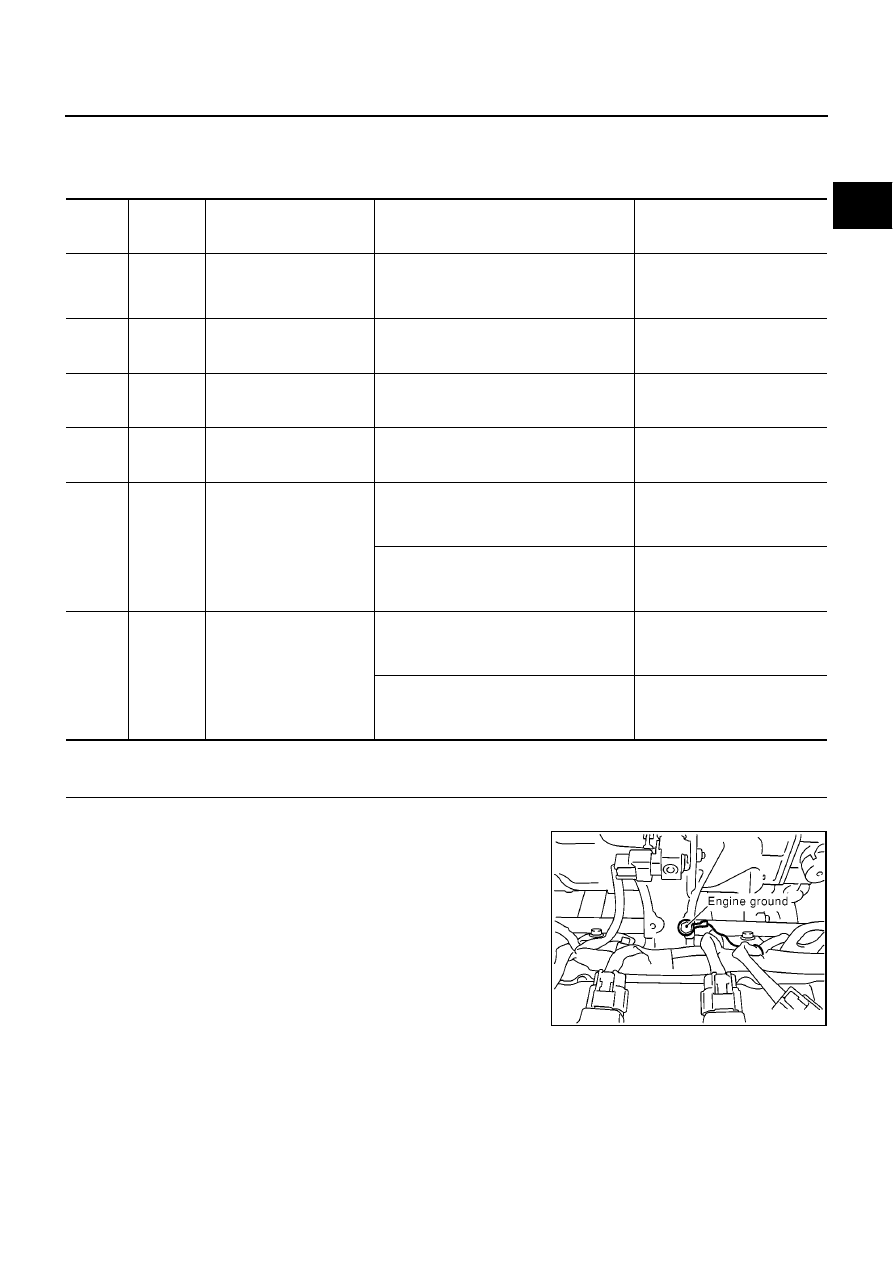

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

Diagnostic Procedure

EBS00QMO

1.

RETIGHTEN GROUND SCREWS

1.

Turn ignition switch “OFF”.

2.

Loosen and retighten engine ground screws.

>> GO TO 2.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

82

B

Sensor ground
(Accelerator pedal position
sensor 1)

[Engine is running]

Warm-up condition

Idle speed

Approximately 0V

83

B

Sensor ground
(Accelerator pedal position
sensor 2)

[Ignition switch “ON”]

Approximately 0V

90

R

Sensor power supply
(Accelerator pedal position
sensor 1)

[Ignition switch “ON”]

Approximately 5V

91

G

Sensor power supply
(Accelerator pedal position
sensor 2)

[Ignition switch “ON”]

Approximately 5V

98

LG

Accelerator pedal position
sensor 2

[Ignition switch “ON”]

Engine stopped

Accelerator pedal fully released

0.17 - 0.34V

[Ignition switch “ON”]

Engine stopped

Accelerator pedal fully depressed

More than 1.95V

106

L

Accelerator pedal position
sensor 1

[Ignition switch “ON”]

Engine stopped

Accelerator pedal fully released

0.35 - 0.67V

[Ignition switch “ON”]

Engine stopped

Accelerator pedal fully depressed

More than 3.9V

MBIB0095E
