Nissan Almera Tino V10. Manual - part 372





EC-314

[QG (WITH EURO-OBD)]

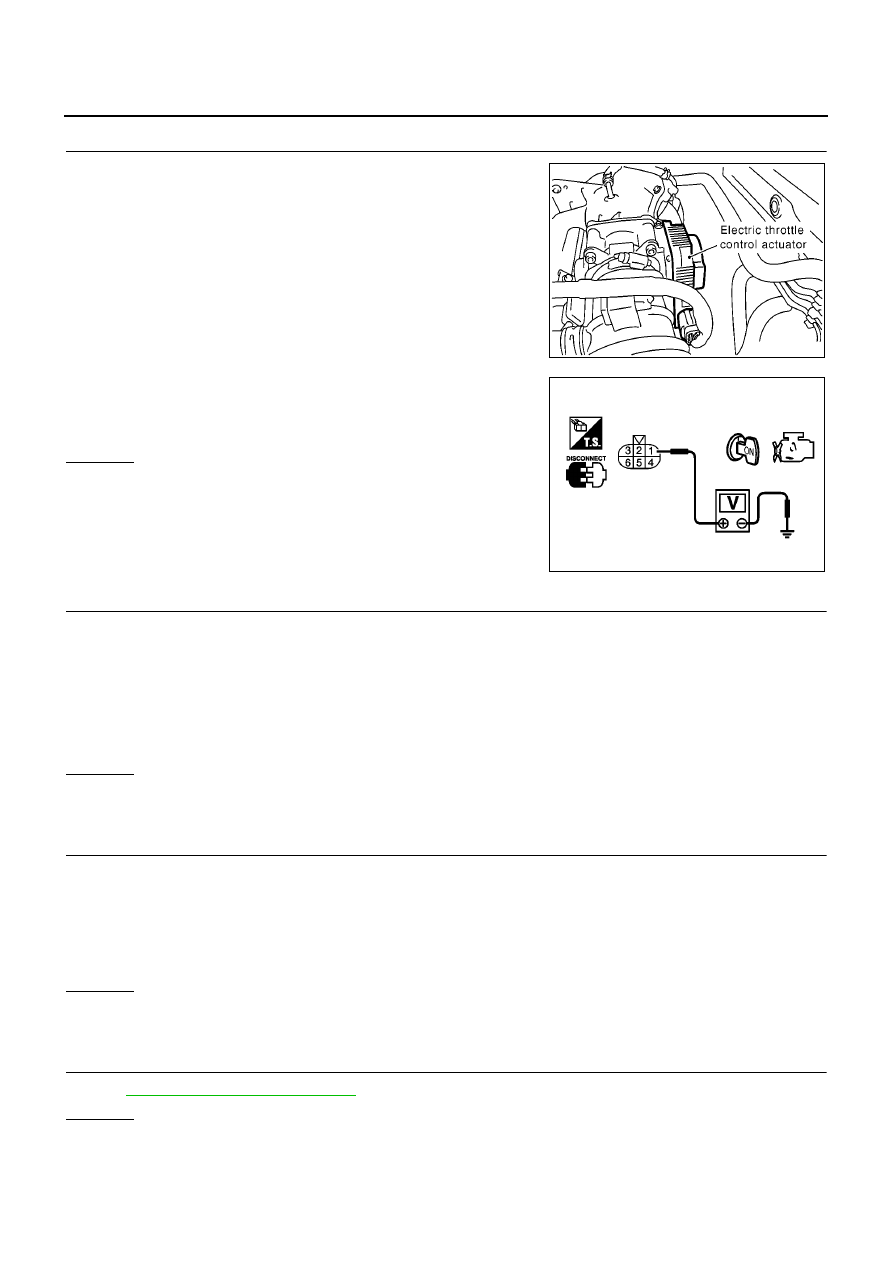

DTC P0221 TP SENSOR

2.

CHECK THROTTLE POSITION SENSOR POWER SUPPLY CIRCUIT

1.

Disconnect electric throttle control actuator harness connector.

2.

Turn ignition switch “ON”.

3.

Check voltage between electric throttle control actuator terminal
1 and ground with CONSULT-II or tester.

OK or NG

OK

>> GO TO 3.

NG

>> Repair open circuit or short to ground or short to power

in harness or connectors.

3.

CHECK THROTTLE POSITION SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch “OFF”.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between ECM terminal 66 and electric throttle control actuator terminal 5.
Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 4.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK THROTTLE POSITION SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Check harness continuity between ECM terminal 49 and electric throttle control actuator terminal 4, ECM
terminal 68 and electric throttle control actuator terminal 2.
Refer to Wiring Diagram.

2.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 5.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK THROTTLE POSITION SENSOR

Refer to

EC-315, "Component Inspection"

.

OK or NG

OK

>> GO TO 7.

NG

>> GO TO 6.

MBIB0100E

Voltage: Approximately 5V

PBIB0082E

Continuity should exist.

Continuity should exist.

DTC P0221 TP SENSOR

EC-315

[QG (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

6.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1.

Replace the electric throttle control actuator.

2.

Perform

EC-49, "Throttle Valve Closed Position Learning"

.

3.

Perform

EC-49, "Idle Air Volume Learning"

.

>> INSPECTION END

7.

CHECK INTERMITTENT INCIDENT

Refer to

EC-138, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

.

>> INSPECTION END

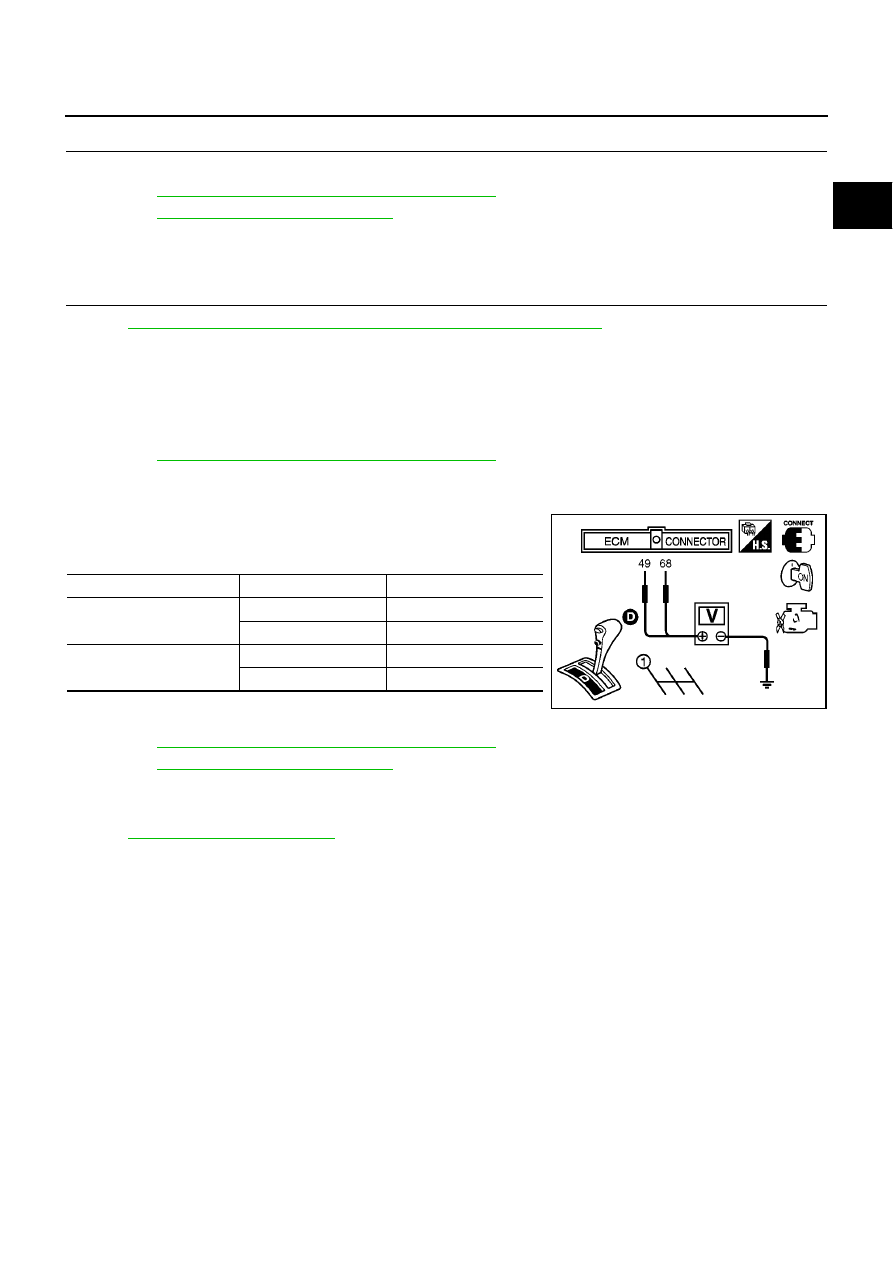

Component Inspection

EBS00QM9

THROTTLE POSITION SENSOR

1.

Reconnect all harness connectors disconnected.

2.

Perform

EC-49, "Throttle Valve Closed Position Learning"

.

3.

Turn ignition switch “ON”.

4.

Set selector lever to “D” position (A/T models) or “1st” position (M/T models).

5.

Check voltage between ECM terminals 49 (TP sensor 1 signal),
68 (TP sensor 2 signal) and engine ground under the following
conditions.

6.

If NG, replace electric throttle control actuator and go to the next
step.

7.

Perform

EC-49, "Throttle Valve Closed Position Learning"

.

8.

Perform

EC-49, "Idle Air Volume Learning"

.

Remove and Installation

EBS00QMA

ELECTRIC THROTTLE CONTROL ACTUATOR

Refer to

EM-18, "INTAKE MANIFOLD"

.

Terminal

Accelerator pedal

Voltage

49
(Throttle position sensor 1)

Fully released

More than 0.36V

Fully depressed

Less than 4.75V

68

(Throttle position sensor 2)

Fully released

Less than 4.75V

Fully depressed

More than 0.36V

MBIB0022E

EC-316

[QG (WITH EURO-OBD)]

DTC P0222, P0223 TP SENSOR

DTC P0222, P0223 TP SENSOR

PFP:16119

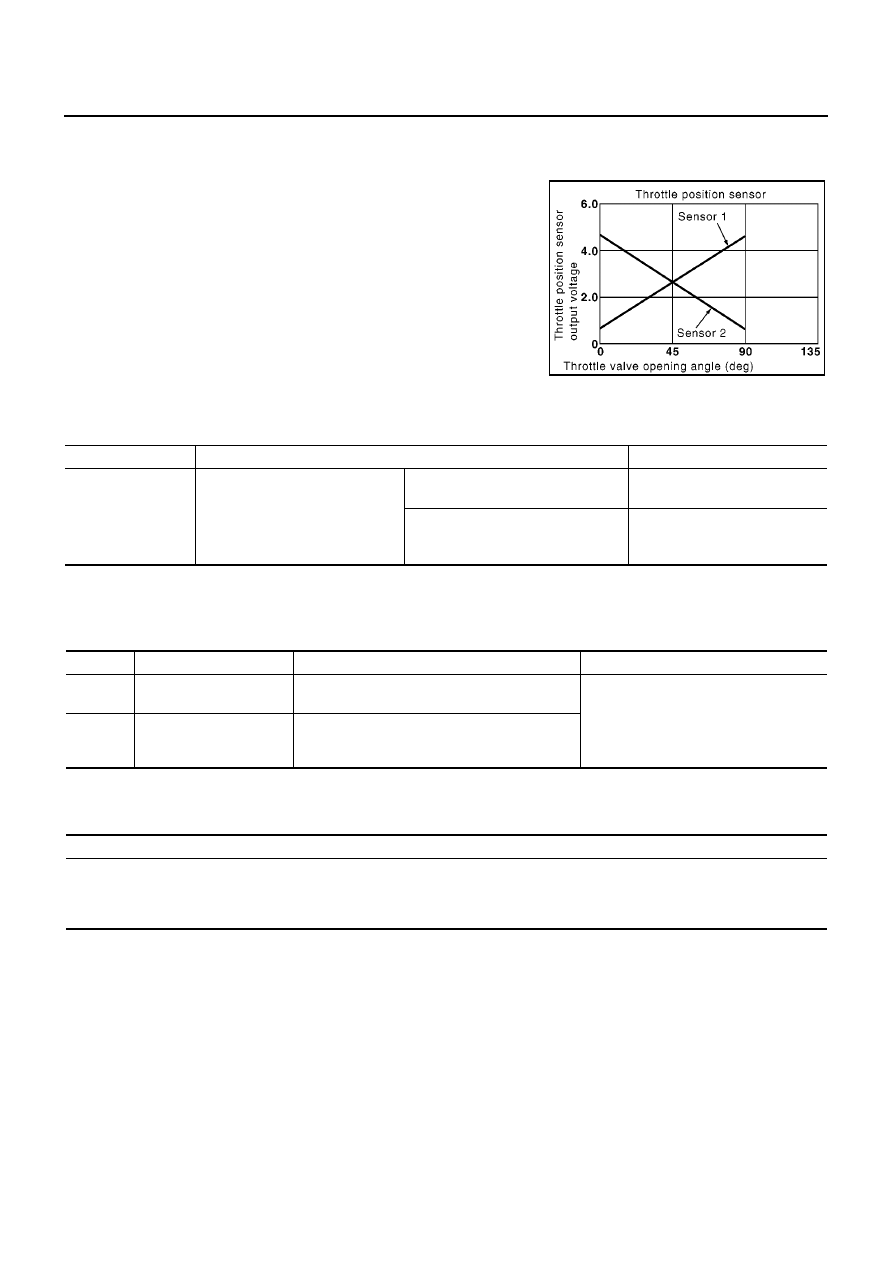

Component Description

EBS00QMB

Electric Throttle Control Actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.

CONSULT-II Reference Value in Data Monitor Mode

EBS00QMC

Specification data are reference values.

*: Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.

On Board Diagnosis Logic

EBS00QMD

These self-diagnoses have the one trip detection logic.

FAIL-SAFE MODE

When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.

DTC Confirmation Procedure

EBS00QME

NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.

PBIB0145E

MONITOR ITEM

CONDITION

SPECIFICATION

THRTL SEN1

THRTL SEN2

*

Ignition switch: ON
(Engine stopped)

Accelerator pedal: Fully released

More than 0.36V

Shift lever:
D (A/T models)
1st (M/T models)

Accelerator pedal: Fully depressed

Less than 4.75V

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0222
0222

Throttle position sensor 1
circuit low input

An excessively low voltage from the TP sensor 1
is sent to ECM.

Harness or connectors
(The TP sensor 1 circuit is open or
shorted.)

Electric throttle control actuator
(TP sensor 1)

P0223
0223

Throttle position sensor 1
circuit high input

An excessively high voltage from the TP sensor
1 is sent to ECM.

Engine operation condition in fail-safe mode

The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.

DTC P0222, P0223 TP SENSOR

EC-317

[QG (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

WITH CONSULT-II

1.

Turn ignition switch “ON”.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Start engine and let it idle for 1 second.

4.

If DTC is detected, go to

EC-319, "Diagnostic Procedure"

.

WITH GST

Follow the procedure “WITH CONSULT-II” above.

SEF058Y
