Nissan Almera Tino V10. Manual - part 359





EC-262

[QG (WITH EURO-OBD)]

DTC P0139 HO2S2 (M/T MODELS)

DTC P0139 HO2S2 (M/T MODELS)

PFP:226A0

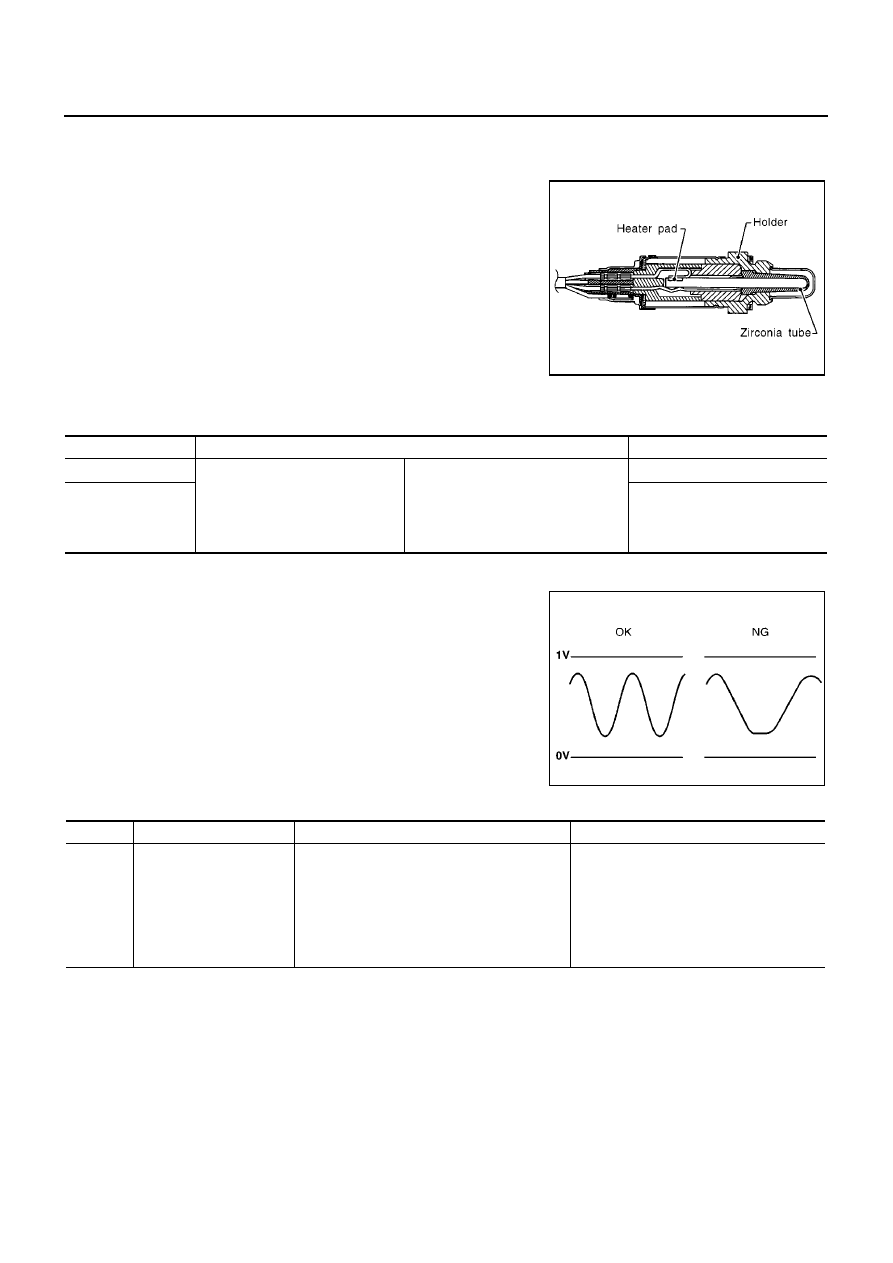

Component Description

EBS00QL5

The heated oxygen sensor 2, after three way catalyst (manifold),
monitors the oxygen level in the exhaust gas.
Even if switching characteristics of the heated oxygen sensor 1 are
shifted, the air-fuel ratio is controlled to stoichiometric, by the signal
from the heated oxygen sensor 2.
This sensor is made of ceramic zirconia. The zirconia generates volt-
age from approximately 1V in richer conditions to 0V in leaner condi-
tions.
Under normal conditions the heated oxygen sensor 2 is not used for
engine control operation.

CONSULT-II Reference Value in Data Monitor Mode

EBS00QL6

Specification data are reference values.

On Board Diagnosis Logic

EBS00QL7

The heated oxygen sensor 2 has a much longer switching time
between rich and lean than the heated oxygen sensor 1. The oxygen
storage capacity of the three way catalyst (manifold) causes the
longer switching time. To judge the malfunctions of heated oxygen
sensor 2, ECM monitors whether the switching response of the sen-
sor's voltage is faster than specified during the various driving condi-
tion such as fuel-cut.

SEF327R

MONITOR ITEM

CONDITION

SPECIFICATION

HO2S2 (B1)

Engine: After warming up

Keeping the engine speed
between 3,500 and 4,000 rpm
for one minute and at idle for
one minute under no load

Revving engine from idle to 3,000
rpm quickly.

0 - 0.3V

←→

Approx. 0.6 - 1.0V

HO2S2 MNTR (B1)

LEAN

←→

RICH

SEF302U

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0139
0139

Heated oxygen sensor 2
circuit slow response

It takes more time for the sensor to respond
between rich and lean than the specified time.

Harness or connectors
(The sensor circuit is open or shorted.)

Heated oxygen sensor 2

Fuel pressure

Injectors

Intake air leaks

DTC P0139 HO2S2 (M/T MODELS)

EC-263

[QG (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

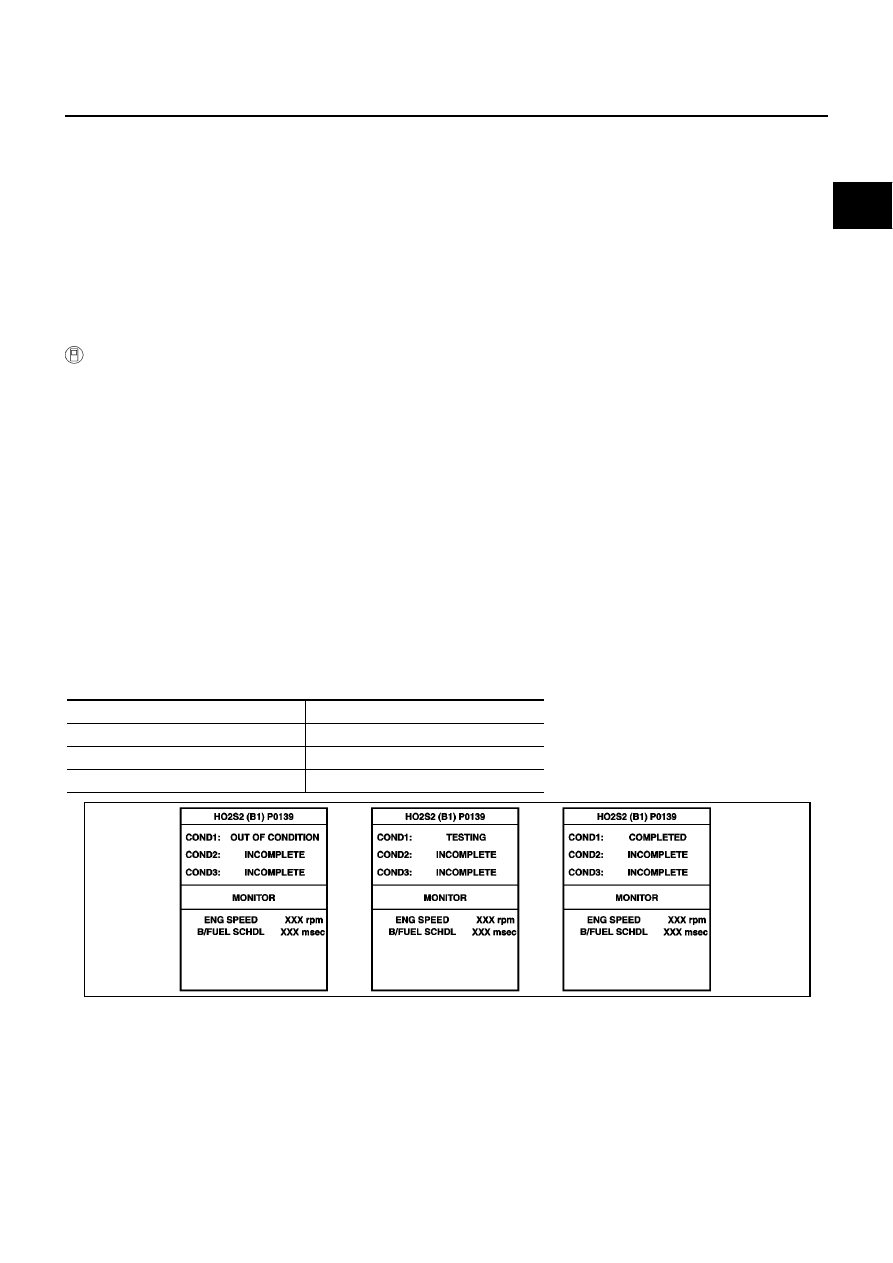

DTC Confirmation Procedure

EBS00QL8

CAUTION:

Always drive vehicle at a safe speed.
NOTE:

“COMPLETED” will appear on CONSULT-II screen when all tests “COND1”, “COND2” and
“COND3” are completed.

If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and
wait at least 10 seconds before conducting the next test.

TESTING CONDITION:
Never stop engine during this procedure. If the engine is stopped, retry this procedure from step 2 in
“Procedure for COND1”
.

WITH CONSULT-II

Procedure for COND1

For the best results, perform “DTC WORK SUPPORT” at a temperature of 0 to 30

°

C (32 to 86

°

F)

1.

Start engine and warm it up to the normal operating temperature.

2.

Turn ignition switch “OFF” and wait at least 10 seconds.

3.

Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least one minute under no
load.

4.

Let engine idle for one minute.

5.

Select “HO2S2 (B1) P0139” of “HO2S2” in “DTC WORK SUPPORT” mode with CONSULT-II.

6.

Touch “START”.

7.

Let engine idle for at least 30 seconds.

8.

Rev engine up to 2,000 rpm 2 or 3 times quickly under no load.
If “COMPLETED” appears on CONSULT-II screen, go to step 2 in “Procedure for COND3”.
If “COMPLETED” does not appear on CONSULT-II screen, go to the following step.

9.

When the following conditions are met, “TESTING” will be displayed at “COND1” on the CONSULT-II
screen. Maintain the conditions continuously until “TESTING” changes to “COMPLETED”. (It will take
approximately 60 seconds.)

NOTE:

If “TESTING” is not displayed after 5 minutes, retry from step 2 in “Procedure for COND1”.

If “COMPLETED” already appears at “COND2” on CONSULT-II screen before “Procedure for
COND2” is conducted, it is unnecessary to conduct step 1 in “Procedure for COND2”.

ENG SPEED

More than 1,000 rpm

B/FUEL SCHDL

More than 1.0 msec

COOLANT TEMP/S

70 - 105

°

C

Selector level

Suitable position

PBIB0552E

EC-264

[QG (WITH EURO-OBD)]

DTC P0139 HO2S2 (M/T MODELS)

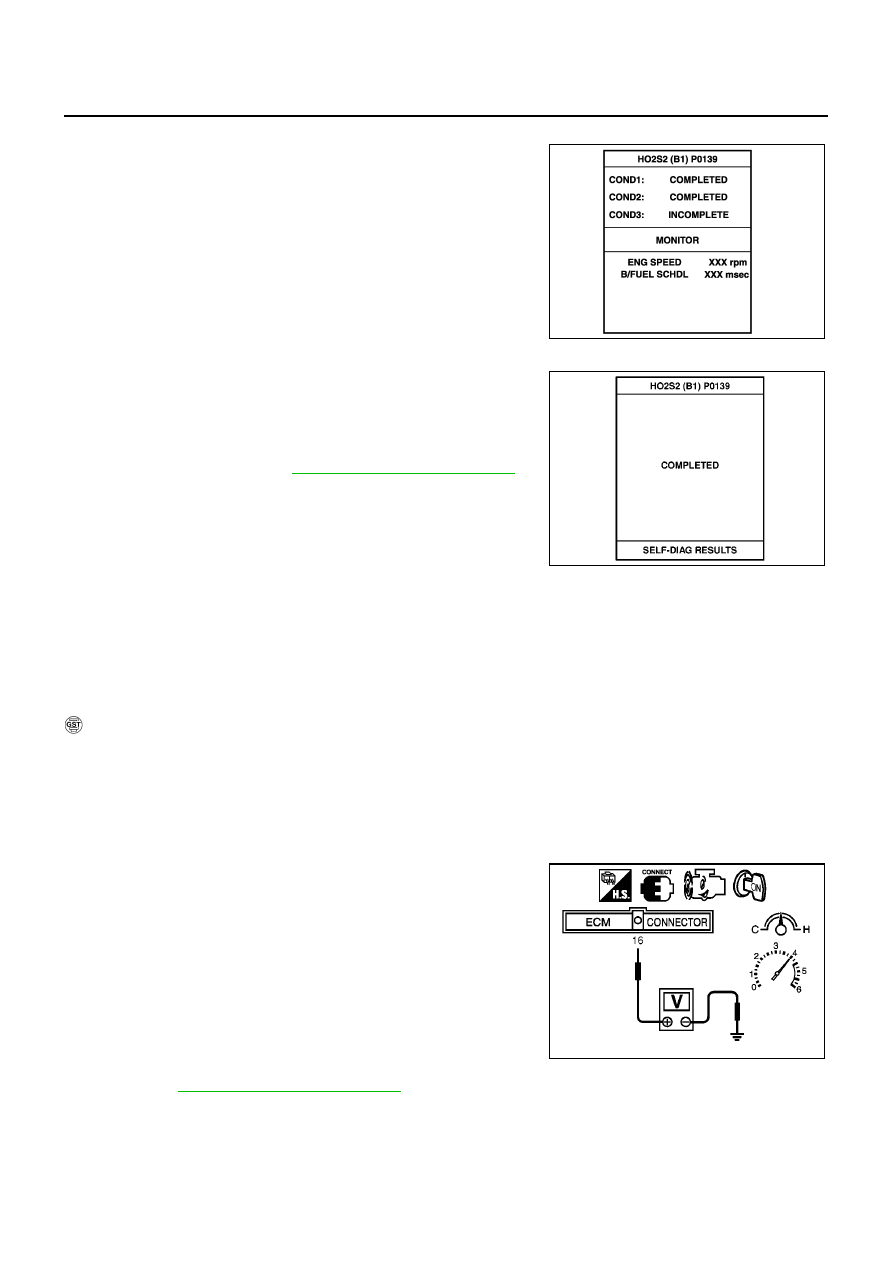

Procedure for COND2

1.

While driving, release accelerator pedal completely from the
above condition [step 9] until “INCOMPLETE” at “COND2” on
CONSULT-II screen has turned to “COMPLETED”. (It will take
approximately 4 seconds.)

NOTE:
If “COMPLETED” already appears at “COND3” on CONSULT-II
screen before “Procedure for COND3” is conducted, it is unnec-
essary to conduct step 1 in “Procedure for COND3
”.

Procedure for COND3

1.

Stop vehicle and let it idle until “INCOMPLETE” of “COND3” on
CONSULT-II screen has turned to “COMPLETED”. (It will take a
maximum of approximately 6 minutes.)

2.

Make sure that “OK” is displayed after touching “SELF-DIAG
RESULTS”.
If “NG” is displayed, refer to

EC-266, "Diagnostic Procedure"

.

If “CAN NOT BE DIAGNOSED” is displayed, perform the follow-
ing.

a.

Turn ignition switch “OFF” and leave the vehicle in a cool place
(soak the vehicle).

b.

Turn ignition switch “ON” and select “COOLANTEMP/S” in
“DATA MONITOR” mode with CONSULT-II.

c.

Start engine and warm it up while monitoring “COOLANTEMP/S” indication on CONSULT-II.

d.

When “COOLANTEMP/S” indication reaches to 70

°

C (158

°

F), go to “Procedure for COND 1” step 3.

Overall Function Check

EBS00QL9

Use this procedure to check the overall function of the heated oxygen sensor 2 circuit. During this check, a
DTC might not be confirmed.

WITH GST

1.

Start engine and warm it up to the normal operating temperature.

2.

Turn ignition switch “OFF” and wait at least 10 seconds.

3.

Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least one minute under no
load.

4.

Let engine idle for one minute.

5.

Set voltmeter probes between ECM terminal 16 (HO2S2 signal) and engine ground.

6.

Check the voltage when revving up to 4,000 rpm under no load
at least 10 times.
(Depress and release accelerator pedal as soon as possible.)
A change of voltage should be more than 0.06V for 1 sec-
ond during this procedure.
If the voltage can be confirmed in step 6, step 7 is not nec-
essary.

7.

Keep vehicle at idling for 10 minutes, then check the voltage. Or
check the voltage when coasting from 80 km/h (50 MPH) in 3rd
gear position.
A change of voltage should be more than 0.06V for 1 sec-
ond during this procedure.

8.

If NG, go to

EC-266, "Diagnostic Procedure"

.

PBIB0553E

SEF668Y

MBIB0020E

DTC P0139 HO2S2 (M/T MODELS)

EC-265

[QG (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

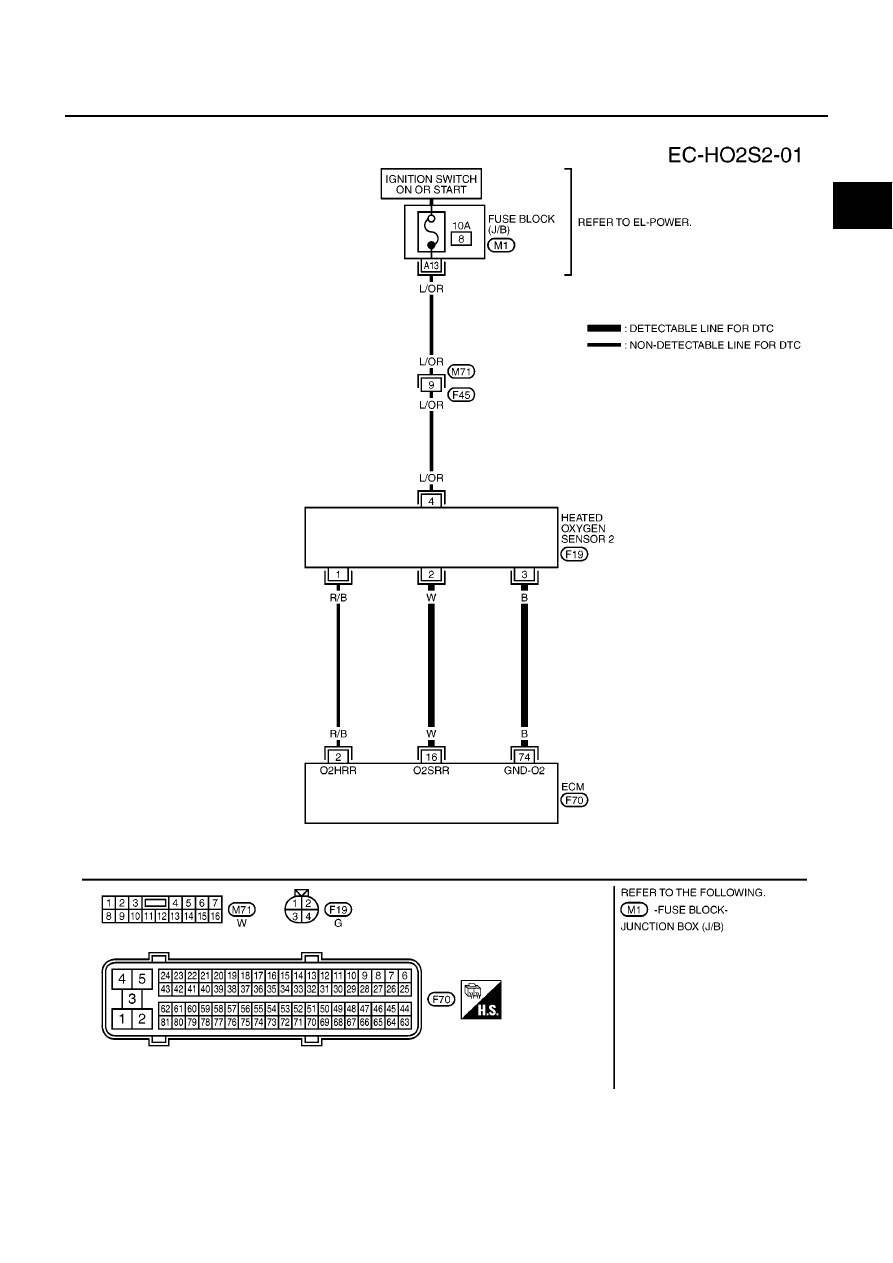

Wiring Diagram

EBS00QLA

YEC446A
