Nissan Almera Tino V10. Manual - part 353





EC-238

[QG (WITH EURO-OBD)]

DTC P0134, P0154 HO2S1 (A/T MODELS)

DTC Confirmation Procedure

EBS00QKJ

CAUTION:

Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11V at idle.

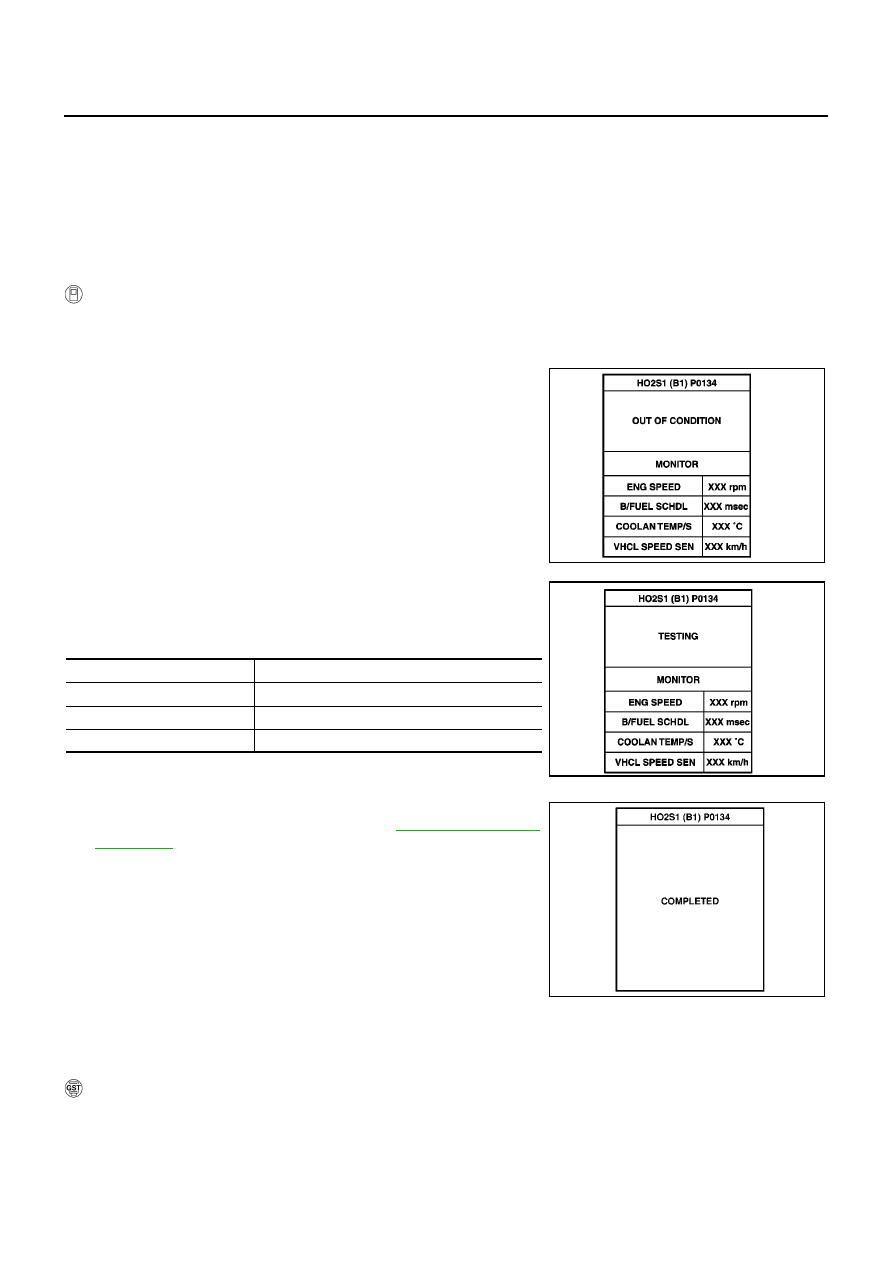

WITH CONSULT-II

1.

Start engine and warm it up to normal operating temperature.

2.

Select “HO2S1 (B1) P0134” or “HO2S1 (B2) P0154” of “HO2S1” in “DTC WORK SUPPORT” mode with
CONSULT-II.

3.

Touch “START”.

4.

Let it idle for at least 3 minutes.
NOTE:
Never raise engine speed above 3,200 rpm after this step. If
the engine speed limit is exceeded, return to step 4.

5.

When the following conditions are met, “TESTING” will be dis-
played on the CONSULT-II screen. Maintain the conditions con-
tinuously until “TESTING” changes to “COMPLETED”. (It will
take approximately 10 to 60 seconds.)

If “TESTING” is not displayed after 5 minutes, retry from
step 2.

6.

Make sure that “OK” is displayed after touching “SELF-DIAG
RESULTS”. If “NG” is displayed, refer to

EC-243, "Diagnostic

Procedure"

.

Overall Function Check

EBS00QKK

Use this procedure to check the overall function of the heated oxygen sensor 1 circuit. During this check, a
DTC might not be confirmed.

WITH GST

1.

Start engine and warm it up to normal operating temperature.

2.

Set voltmeter probes between ECM terminal 35 [HO2S1 (B1) signal] or 36 [HO2S1 (B2) signal] and
engine ground.

PBIB0544E

ENG SPEED

1,500 - 3,400 rpm

Vehicle speed

More than 64 km/h (40 MPH)

B/FUEL SCHDL

3.3 - 8.7 msec

Selector lever

Suitable position

PBIB0545E

SEC750C

DTC P0134, P0154 HO2S1 (A/T MODELS)

EC-239

[QG (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

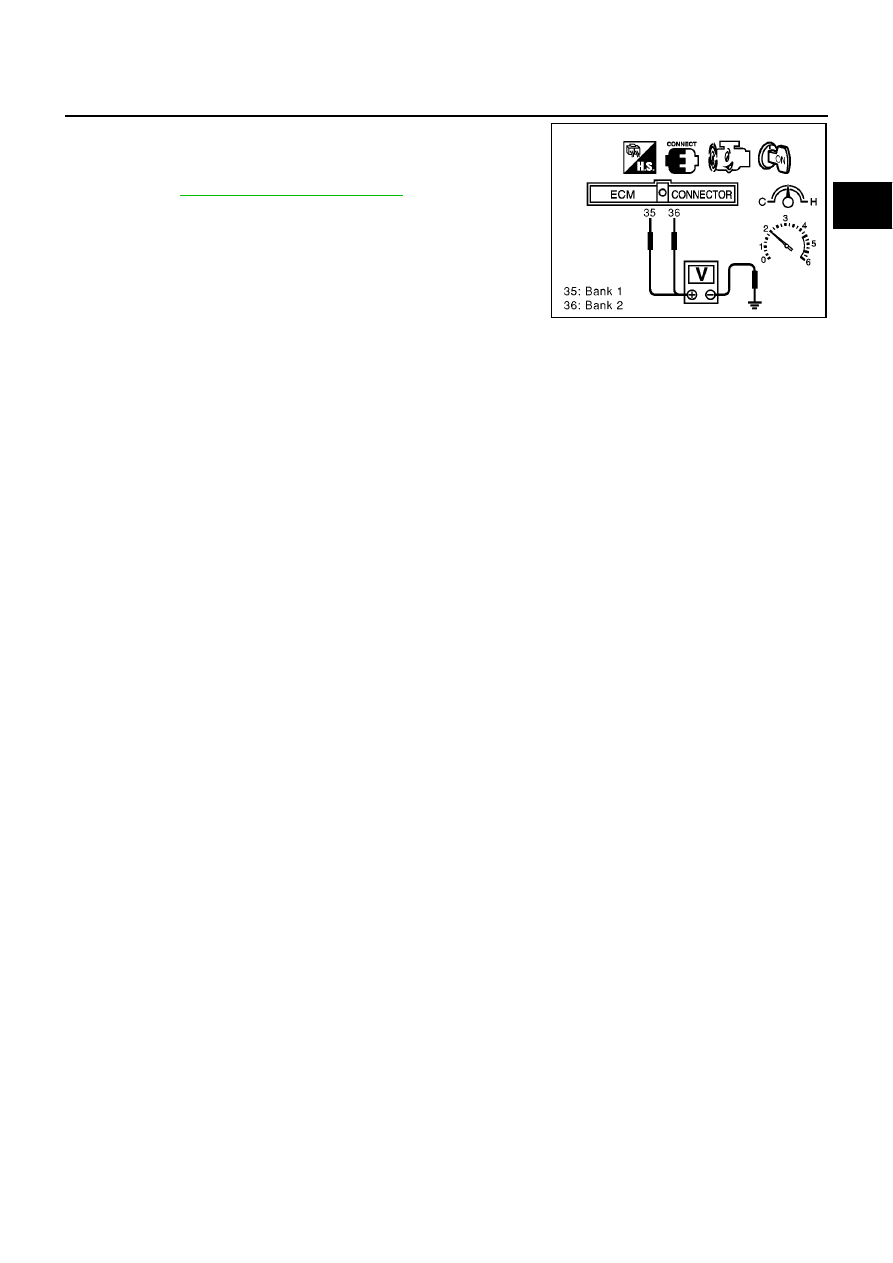

3.

Check the following with engine speed held at 2,000 rpm con-
stant under no load.

The voltage does not remain in the range of 0.2 to 0.4V.

4.

If NG, go to

EC-243, "Diagnostic Procedure"

.

MBIB0019E

EC-240

[QG (WITH EURO-OBD)]

DTC P0134, P0154 HO2S1 (A/T MODELS)

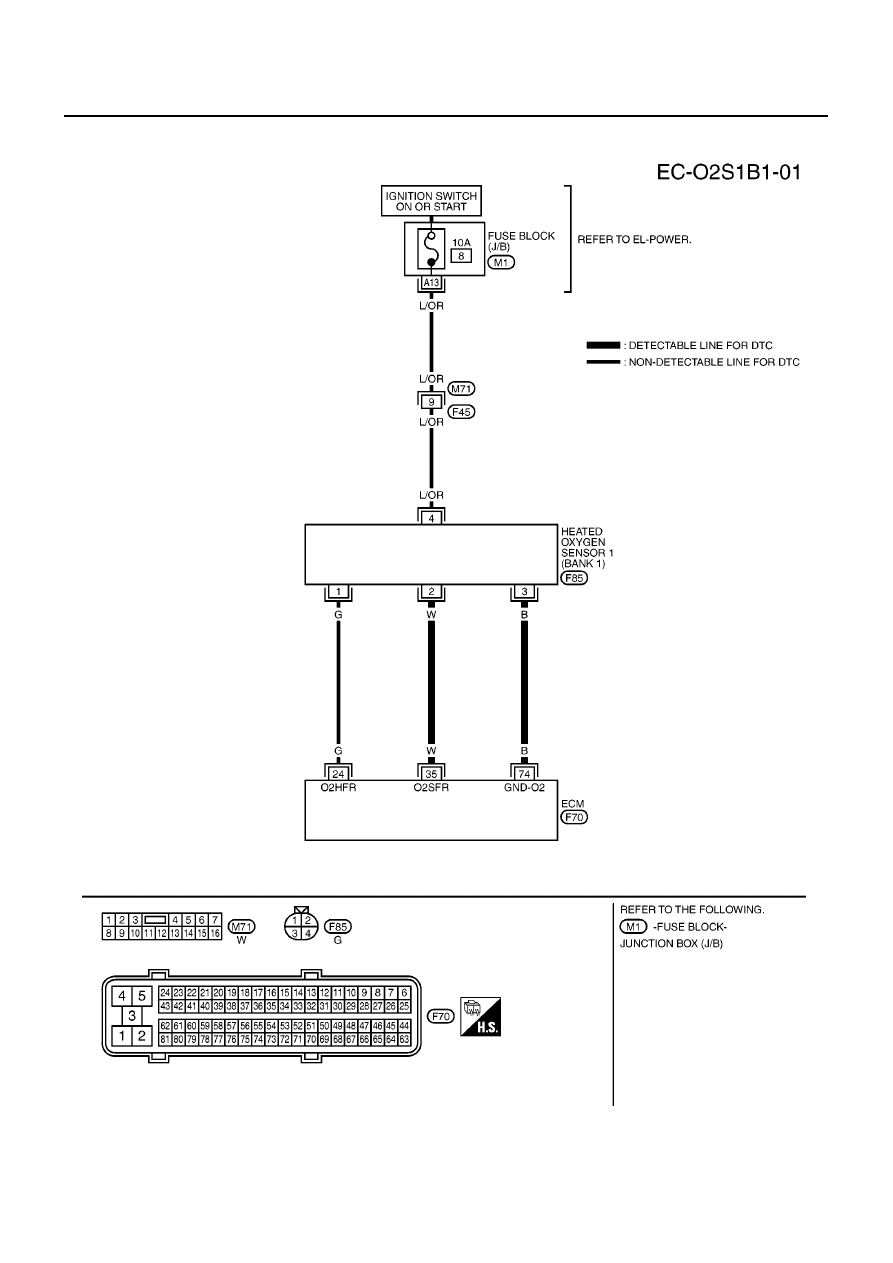

Wiring Diagram

EBS00QKL

BANK 1

YEC444A

DTC P0134, P0154 HO2S1 (A/T MODELS)

EC-241

[QG (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

35

W

Heated oxygen sensor 1
(bank 1)

[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm.

0 - Approximately 1.0V
(Periodically change)

74

B

Sensors' ground
(Heated oxygen sensor)

[Engine is running]

Idle speed

Approximately 0V
