Nissan Almera Tino V10. Manual - part 290





Trouble Diagnoses

=NLBT0022

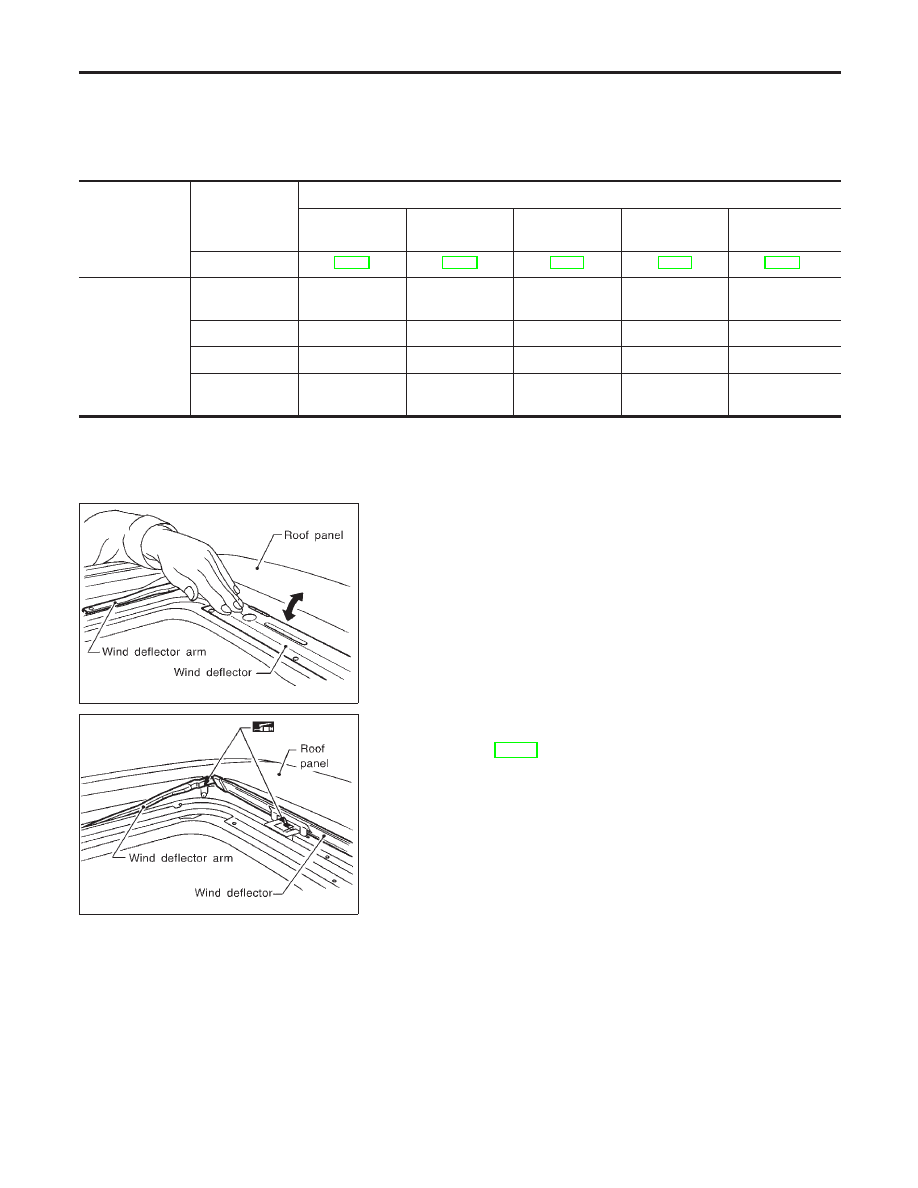

DIAGNOSTIC TABLE

NLBT0022S01

NOTE:
For diagnosing electric malfunction, refer to “ELECTRIC SUN-
ROOF” in EL section.

Check items (Components)

Wind deflector

(where fitted)

Adjustment

Drain hoses

Weatherstrip

Link and wire

assembly

Reference page

BT-54

BT-55

BT-56

BT-56

BT-57

Symptom

Excessive wind
noise

1

2

3

Water leaks

1

2

3

Sunroof rattles

1

4

2

3

Excessive opera-
tion noise

1

2

3

The numbers in this table mean checking order.

SBT331

WIND DEFLECTOR (WHERE FITTED)

NLBT0022S02

1.

Open lid.

2.

Check visually for proper installation.

3.

Check to ensure a proper amount of petroleum jelly has been
applied to wind deflector connection points; apply if necessary.

SBT332

4.

Check that wind deflector is properly retracted by hand. If it is
not, remove and visually check condition. (Refer to removal
procedures, BT-50.) If wind deflector is damaged, replace with
new one. If wind deflector is not damaged, re-install properly.

SUNROOF

Trouble Diagnoses

BT-54

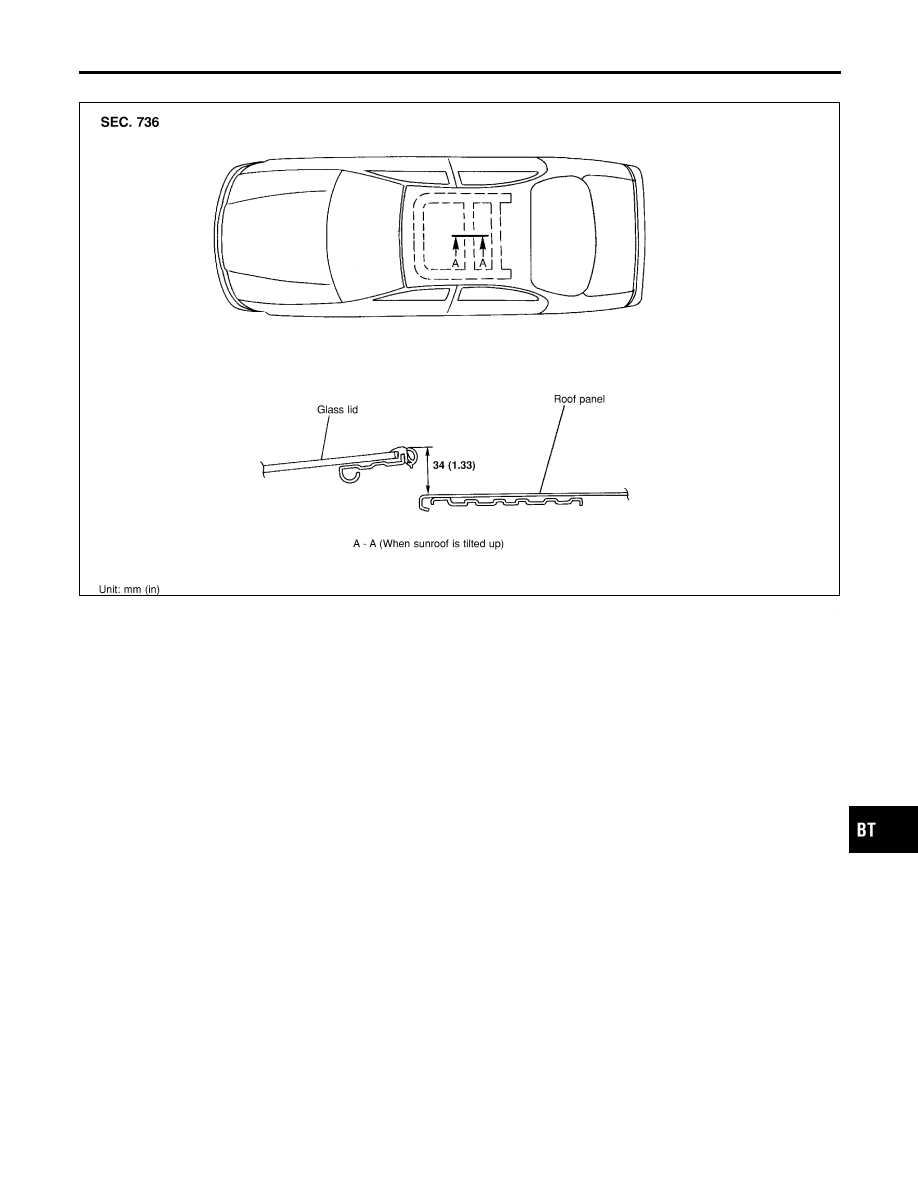

ADJUSTMENT

NLBT0022S03

NBT150

If any height difference between glass lid and roof is found, check
glass lid fit and adjust as follows:

Height Difference Adjustment

NLBT0022S0302

1.

Tilt glass lid up and down.

2.

Check height difference between roof panel and glass lid to
see if it is as “A-A” as shown in the figure above.

3.

If necessary, adjust it by using one of following procedures.

I

Adjust by adding or removing adjustment shim(s) between
glass lid and link assembly.

I

If glass lid protrudes above roof panel, add shim(s) or plain
washer(s) at sunroof mounting bracket or stud bolt locations to
adjust sunroof installation as required.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

HA

SC

EL

IDX

SUNROOF

Trouble Diagnoses (Cont’d)

BT-55

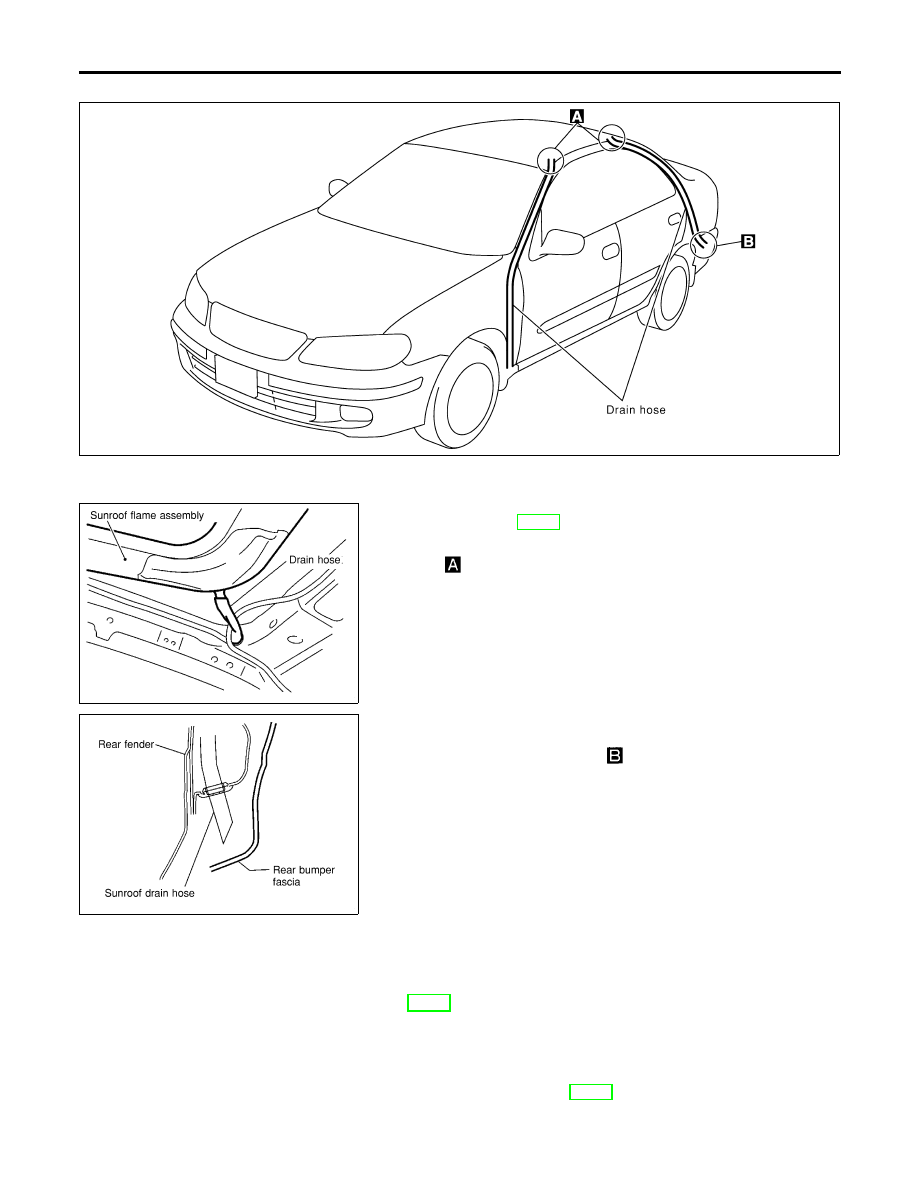

DRAIN HOSES

NLBT0022S04

SBT005A

NBT151

1.

Remove headliner to access drain hose connections. (Refer to
“ROOF TRIM”, BT-34, for detail.)

2.

Check visually for proper connections, damage or deteriora-
tion.

(The figure shows only the front side.)

NBT152

3.

If leakage occurs around luggage room, remove luggage room
side trim and check connecting area. Check for proper
connection, damage or tear.

4.

Remove drain hoses and check visually for any damage,
cracks, or deterioration.

5.

Pour water into drain hoses and find damaged portion.

I

If any damaged portion is found at each step, replace the
damaged part.

WEATHERSTRIP

NLBT0022S05

I

In the case of leakage around glass lid, close glass lid and pour
water over glass lid to find damaged or gap portion.

1.

Remove glass lid assembly. (Refer to removal procedures,
BT-50, for details.)

2.

Visually check weatherstrip for proper installation. If a gap
exists between glass lid and weatherstrip, check for sufficient
amount of butyl seal. If required, remove weatherstrip and
apply butyl seal.
Refer to “EXTERIOR”, BT-37, for details.

SUNROOF

Trouble Diagnoses (Cont’d)

BT-56

3.

Check weatherstrip visually for any damage, deterioration, or
flattening.

I

If any damage is found, replace weatherstrip.

CAUTION:

Do not remove weatherstrip except when replacing, or filling
up butyl seal.

LINK AND WIRE ASSEMBLY

NLBT0022S06

NOTE:
Before replacing a suspect part, carefully ensure it is the source of
noise being experienced.
1.

Check link to determine if coating film has peeled off to such
an extent that substrate is visible. Check also to determine if
link is the source of noise. If it is, replace it.

2.

Visually check to determine if a sufficient amount of petroleum
jelly has been applied to wire or rail groove. If not, add petro-
leum jelly as required.

3.

Check wire for any damage or deterioration. If any damage is
found, remove rear guide (refer to removal procedures, BT-50,
for details), then replace wire.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

HA

SC

EL

IDX

SUNROOF

Trouble Diagnoses (Cont’d)

BT-57
