Nissan Almera Tino V10. Manual

Heated Seat

NLBT0036

★

For Wiring Diagram, refer to EL-250, “HEATED SEAT” for details.

SBT014A

Active Head Restraint

NLBT0032

The active head restraint system is designed so that the headrest
instantaneously moves towards the front upper direction by utiliz-
ing the force at the seatback during a rear-end collision.
As a result, the occupant’s head is protected from being
overextended, reducing the chance for neck injury as much as
possible.
Seat with active head restraint have the labels shown in figures at
left.

SBT888

OPERATION OUTLINE

NLBT0032S01

When the seatback receives a sharp backward force during a rear-
end collision, the input plate moves with the link rotating center as
a pivot. The headrest will then move towards the front upper direc-
tion with the center of the sliding roller as a pivot.
As the backward force on the seat back is eliminated, spring ten-
sion returns the headrest to its original position.

IDX

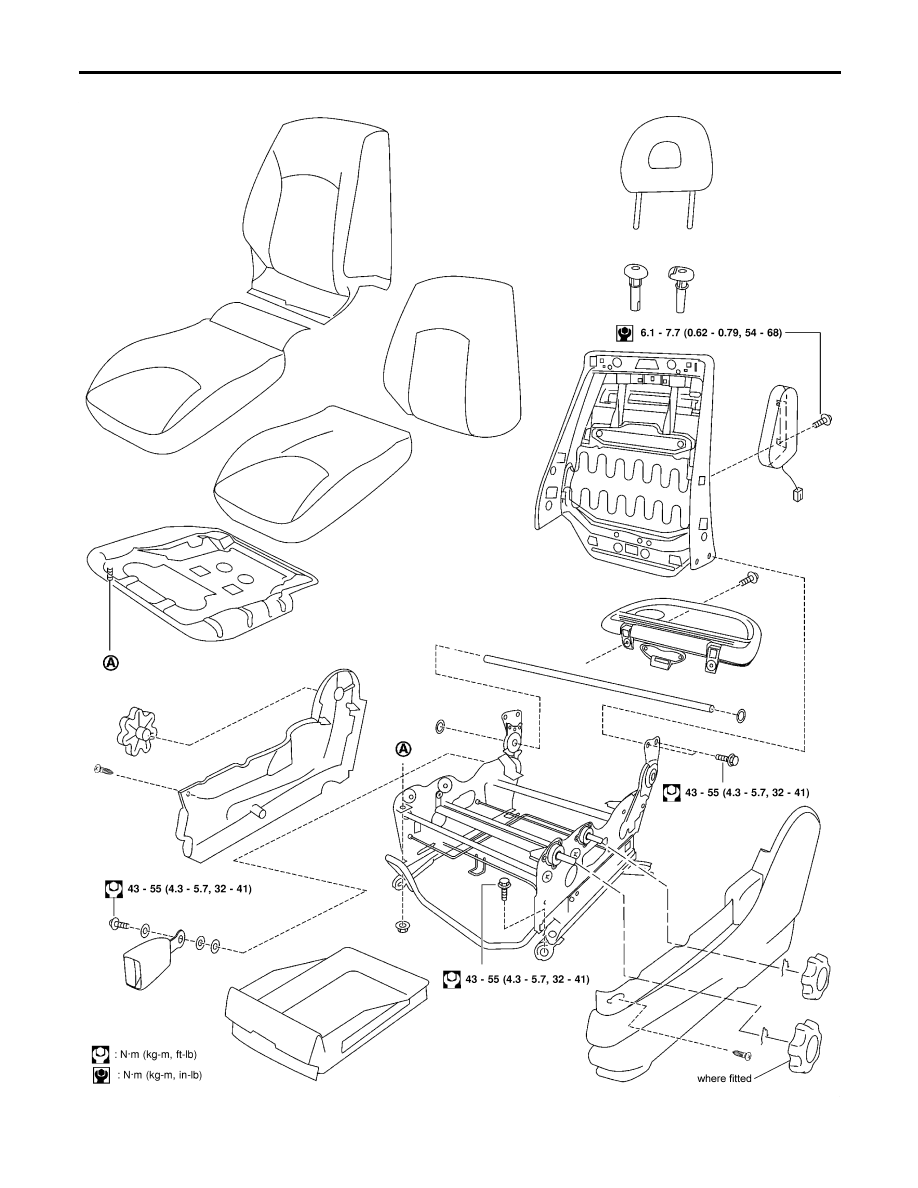

FRONT SEAT

Heated Seat

BT-47

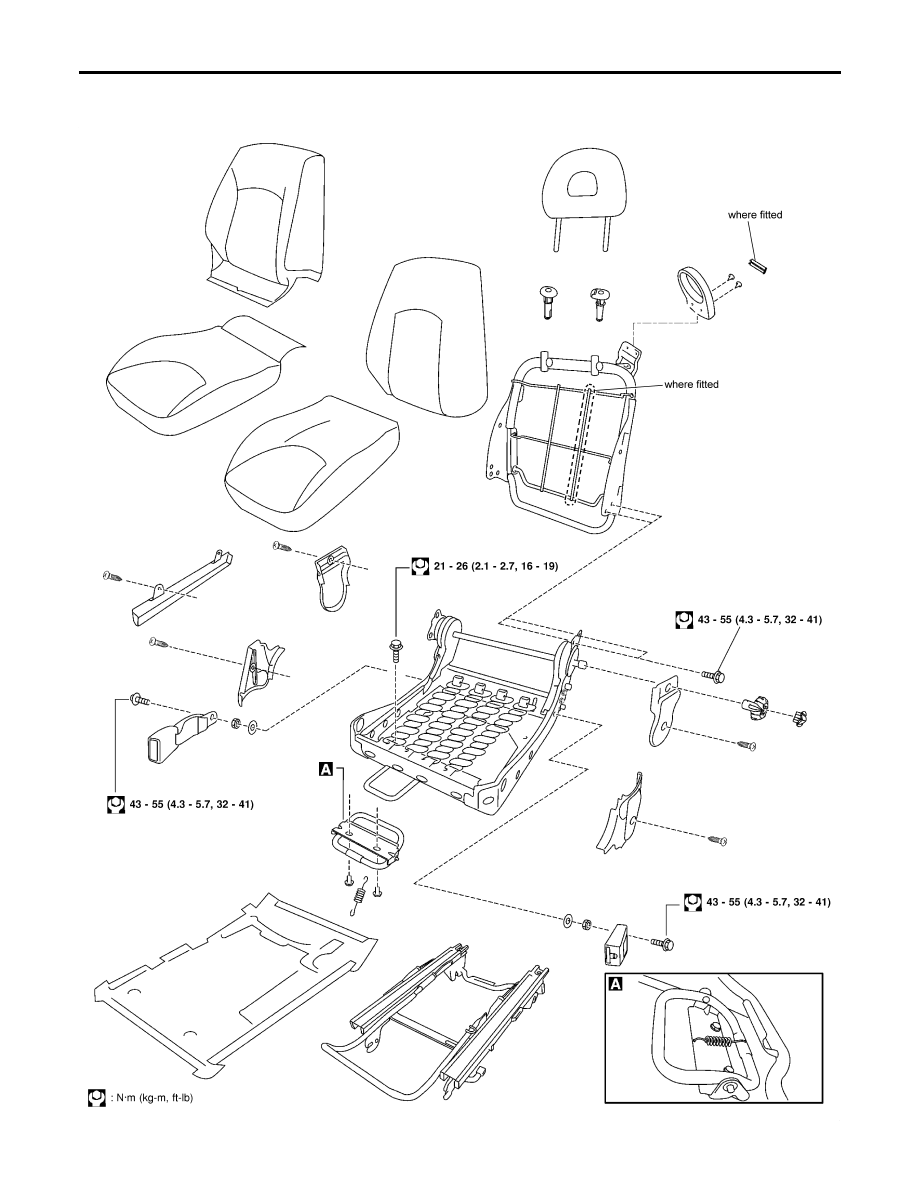

REAR CENTER SEAT

NLBT0019S03

YBT110

IDX

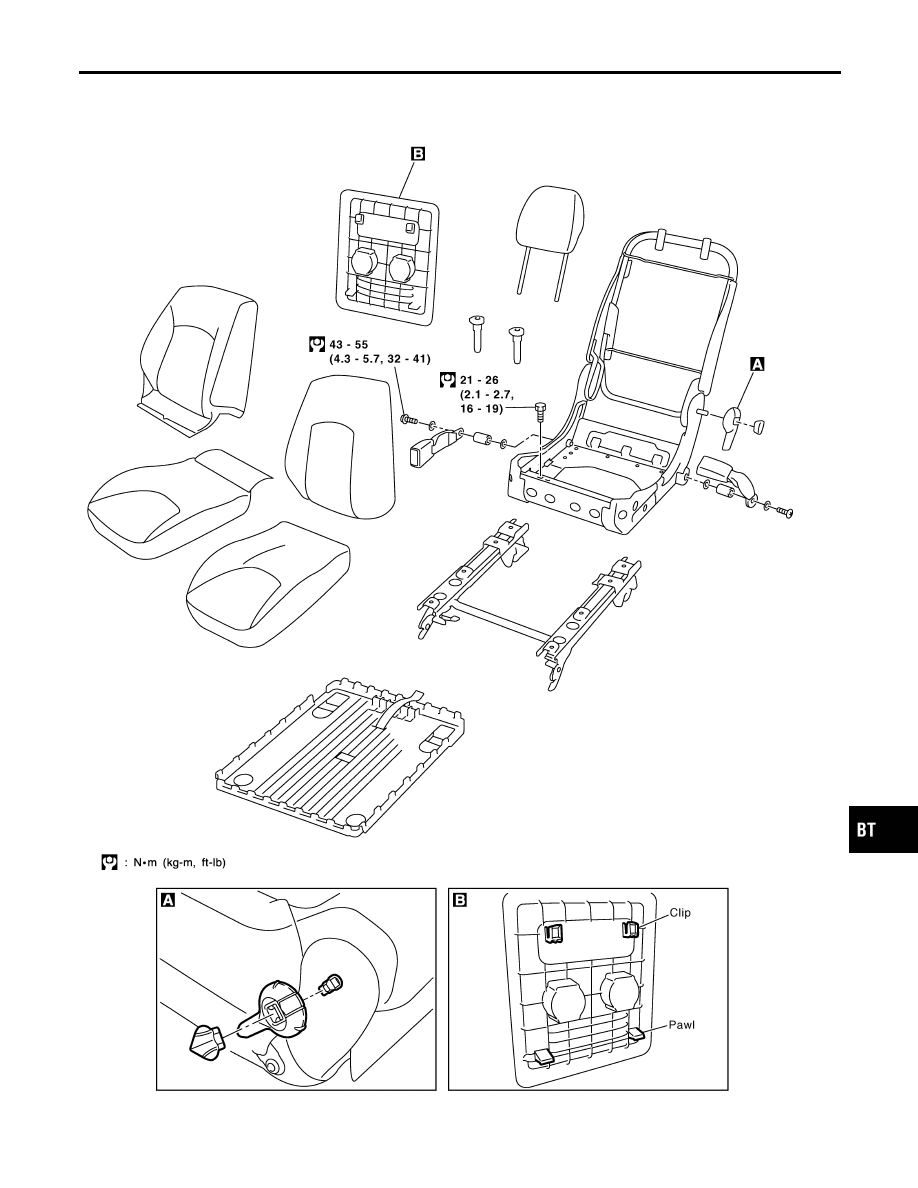

REAR SEAT

Removal and Installation (Cont’d)

BT-49
