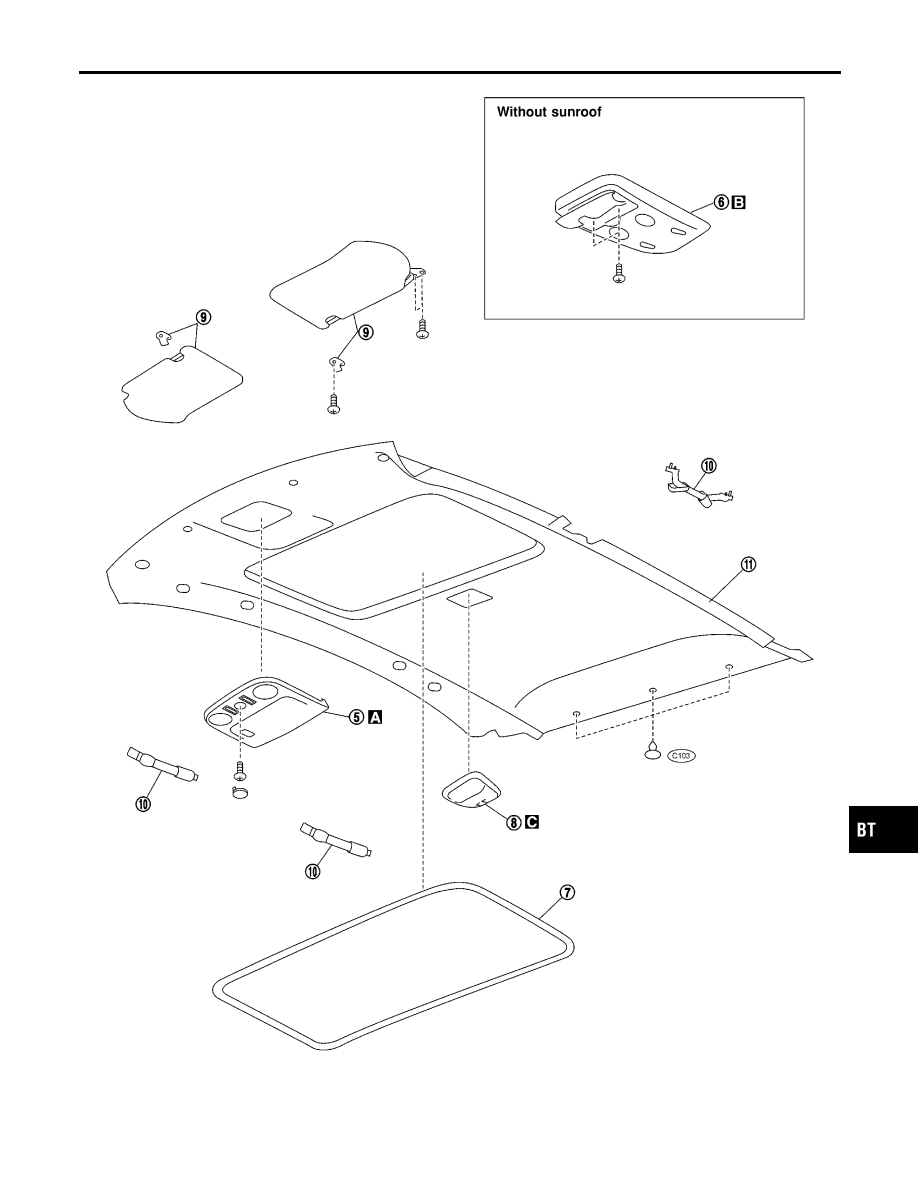

Removal and Installation
NLBT0015
1. Remove rear seat.
2. Remove shoulder anchor bolts. Refer to RS-5, “Front Seat Belt” for details.
3. Remove front pillar garnishes, center pillar upper garnishes, center pillar lower garnishes and rear pillar
garnishes. Refer to “SIDE AND FLOOR TRIM” for details, BT-27.
4. Push back the front seat back.
5. Remove sunroof switch, then disconnect connectors. (Model with sunroof)
6. Remove front personal light then disconnect connector (Model without sunroof)
7. Remove sunroof welt. (Model with sunroof)
8. Remove interior lamp assembly, then disconnect connectors.
9. Remove sun visors.
10. Remove assist grips.
11. Remove clips securing headliner, then remove headliner from vehicle through back door side.
NBT113
ROOF TRIM
Removal and Installation
BT-34
