Nissan Almera Tino V10. Manual - part 221
ATC-80
TROUBLE DIAGNOSIS
17.

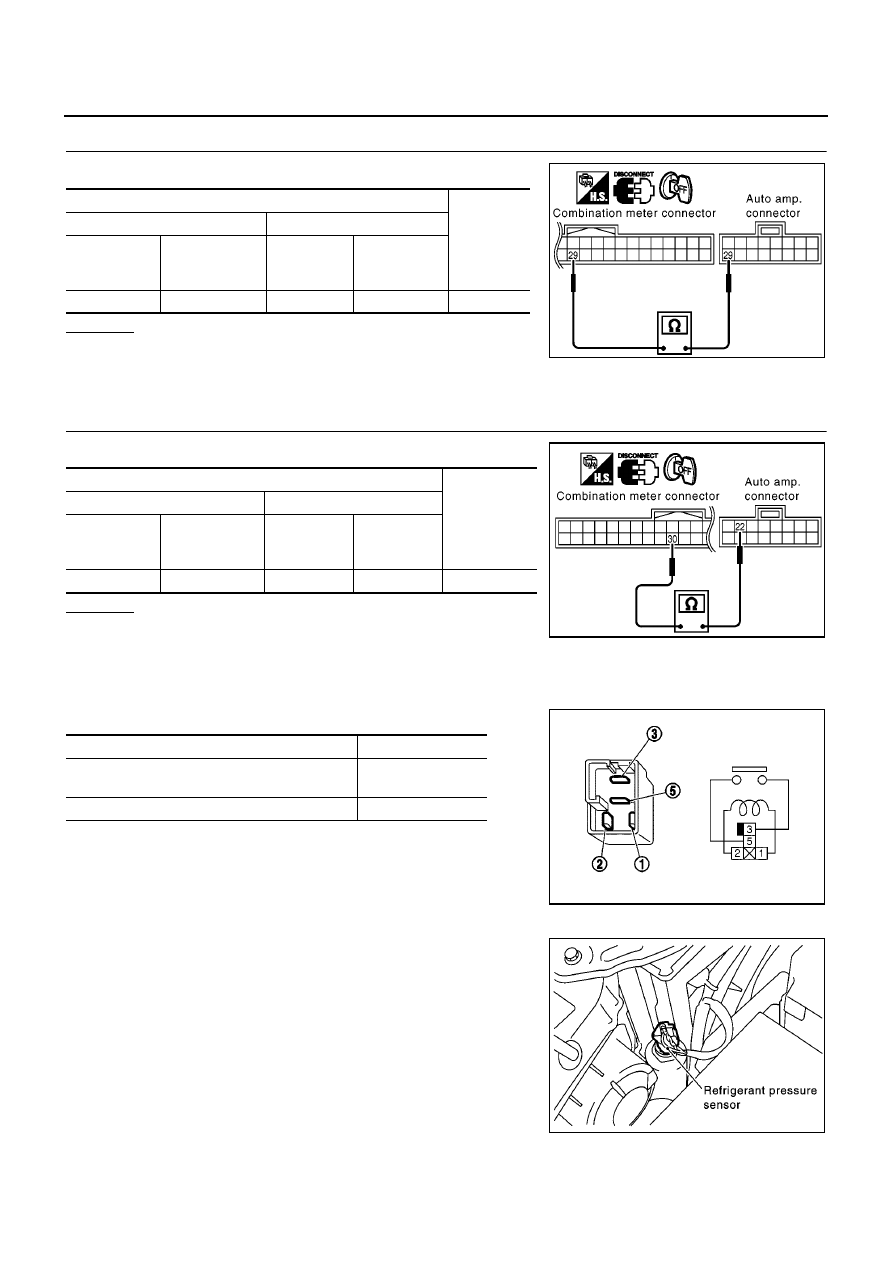

CHECK CIRCUIT CONTINUITY BETWEEN COMBINATION METER AND AUTO AMP.
Disconnect combination meter connector and auto amp. connector.
OK or NG
OK
>> GO TO 11.
NG
>> Repair harness or connector.
18.
CHECK CIRCUIT CONTINUITY BETWEEN COMBINATION METER AND AUTO AMP. (WITH QG
ENGINE)
Disconnect combination meter connector and auto amp. connector.
OK or NG
OK
>> GO TO 11.
NG
>> Repair harness or connector.
COMPONENT INSPECTION
A/C Relay
Check continuity between terminal Nos. 3 and 5.
If NG, replace relay.

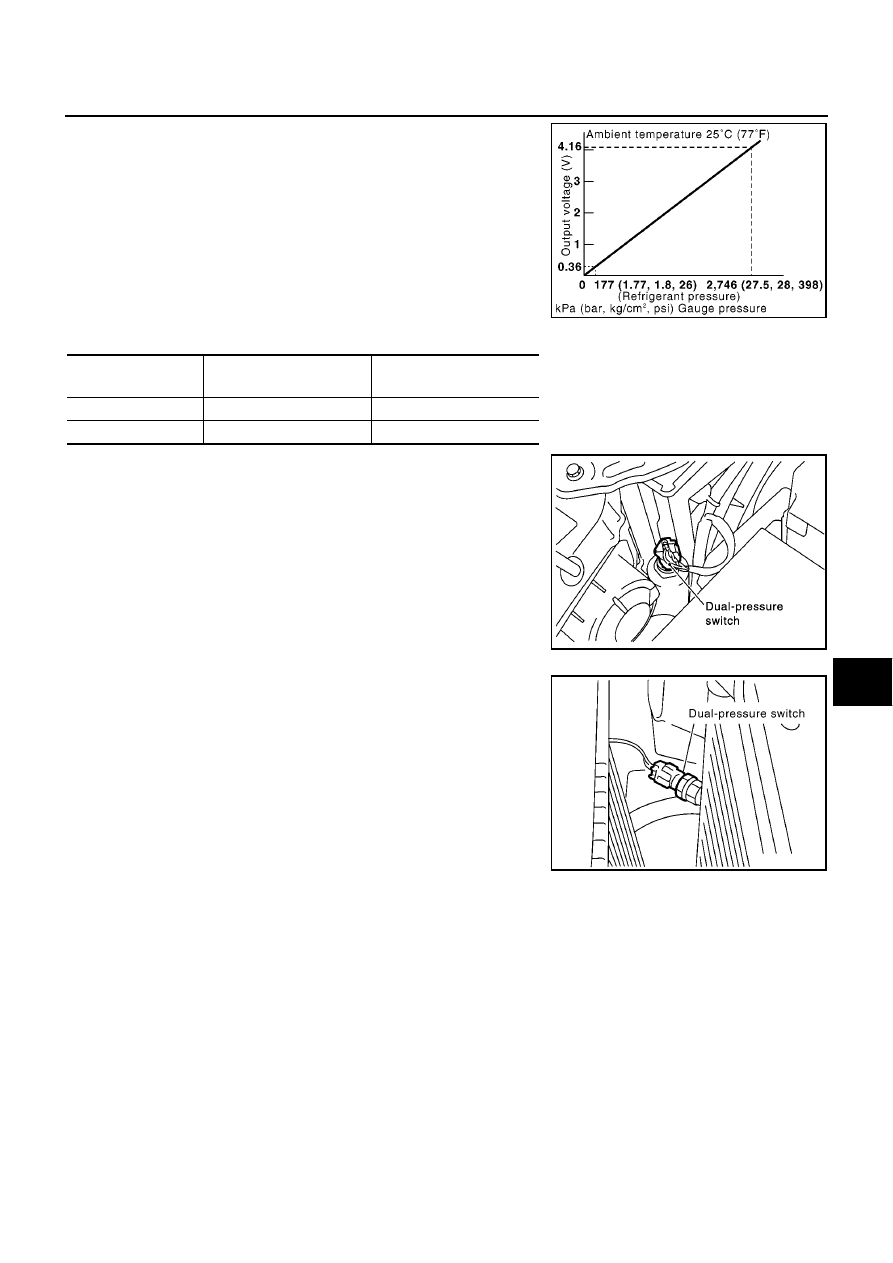

Refrigerant Pressure Sensor (With QG Engine)
The refrigerant pressure sensor is attached to the condenser.
Terminal
Continuity
(+)
(-)
Combination
meter connec-
tor
Terminal No.
(Wire color)
Auto amp.
connector
Terminal No.
(Wire color)
M84
29 (LG/B)
M111
29 (LG/B)
Yes
RJIA2350E
Terminal
Continuity
(+)
(-)
Combination
meter connec-
tor
Terminal No.
(Wire color)
Auto amp.
connector
Terminal No.
(Wire color)
M84
30 (L/R)
M111
22 (L/R)
Yes
RJIA2351E
Conditions
Continuity
12V direct current supply between terminal Nos. 1
and 2
Yes
No current supply
No
RHA638H
RHA272I
