AT-152

[EURO-OBD]

DTC P0733 A/T 3RD GEAR FUNCTION

Component Inspection

ECS00980

SHIFT SOLENOID VALVE A

For removal, refer to

AT-410, "Control Valve Assembly and Accumulators"

.

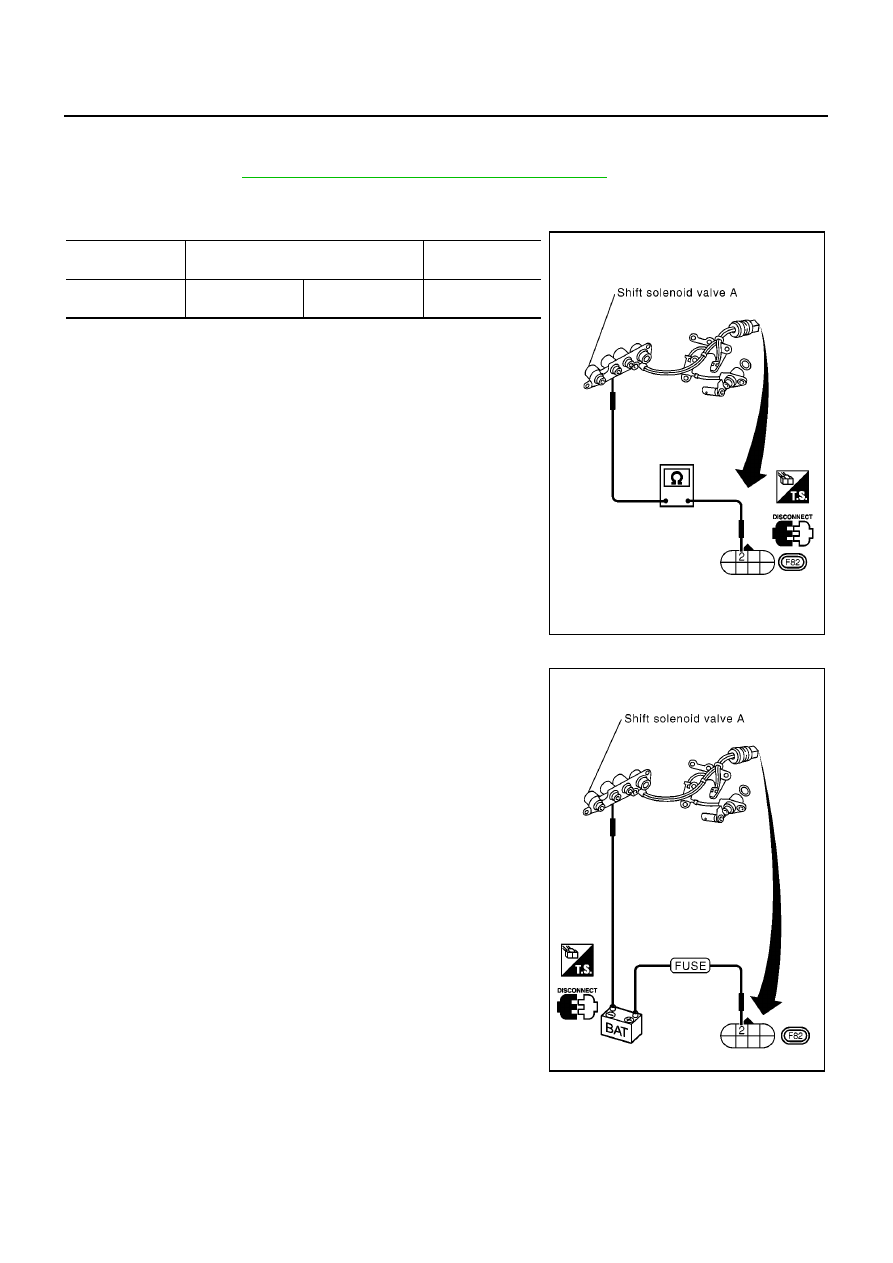

Resistance Check

Check resistance between two terminals.

Operation Check

Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.

Solenoid valve

Terminal No.

Resistance

(Approx.)

Shift solenoid
valve A

2

Ground

20 - 30

MCIA0075E

MCIA0076E

DTC P0734 A/T 4TH GEAR FUNCTION

AT-153

[EURO-OBD]

D

E

F

G

H

I

J

K

L

M

A

B

AT

DTC P0734 A/T 4TH GEAR FUNCTION

PFP:31940

Description

ECS00981

This is an OBD-II self-diagnostic item and not available in TCM self-diagnosis.

This malfunction will not be detected while the O/D OFF indicator lamp is indicating another self-diagnosis
malfunction.

This malfunction is detected when the A/T does not shift into fourth gear position or the torque converter
clutch does not lock up as instructed by the TCM. This is not caused by electrical malfunction (circuits
open or shorted) but by mechanical malfunction such as control valve sticking, improper solenoid valve
operation, malfunctioning oil pump or torque converter clutch, etc.

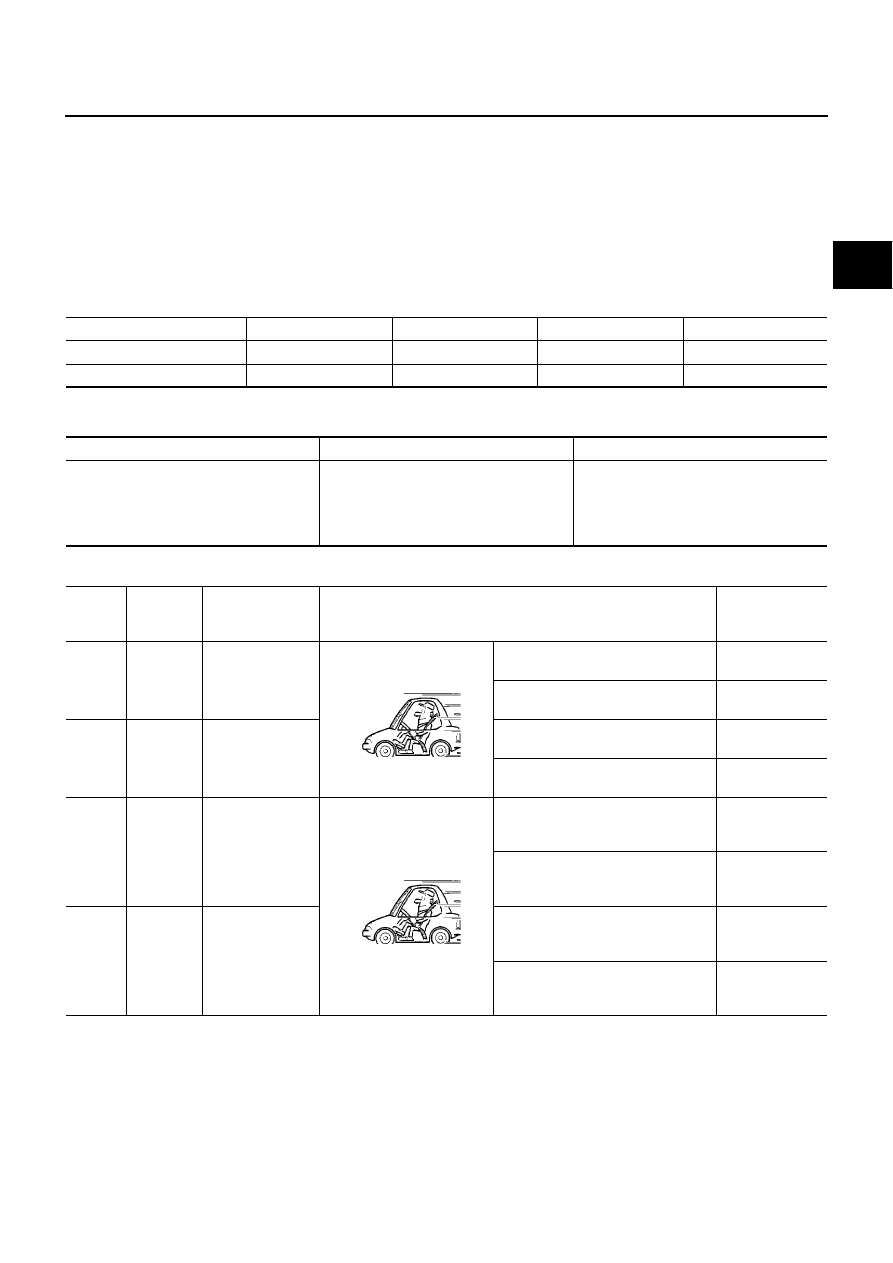

CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE

Remarks: Specification data are reference values.

TCM TERMINALS AND REFERENCE VALUE

Remarks: Specification data are reference values.

ON BOARD DIAGNOSTIC LOGIC

This diagnosis monitors actual gear position by checking the torque converter slip ratio calculated by TCM as
follows:
Torque converter slip ratio = A x C/B
A: Output shaft revolution signal from revolution sensor
B: Engine speed signal from ECM
C: Gear ratio determined as gear position which TCM supposes
If the actual gear position is much lower than the position (4th) supposed by TCM, the slip ratio will be much
less than normal. In case the ratio does not reach the specified value, TCM judges this diagnosis malfunction.

Gear position

1

2

3

4

Shift solenoid valve A

ON (Closed)

OFF (Open)

OFF (Open)

ON (Closed)

Shift solenoid valve B

ON (Closed)

ON (Closed)

OFF (Open)

OFF (Open)

Monitor item

Condition

Specification

Line pressure solenoid valve duty

Small throttle opening

(Low line pressure)

Large throttle opening

(High line pressure)

Approximately 24%

Approximately 95%

Termi-

nal No.

Wire color

Item

Condition

Judgement stan-

dard

(Approx.)

1

R/W

Line pressure
solenoid valve

When releasing accelerator pedal
after warming up engine.

1.5 - 3.0V

When depressing accelerator pedal
fully after warming up engine.

0V

2

P/B

Line pressure
solenoid valve
(with dropping
resistor)

When releasing accelerator pedal
after warming up engine.

5 - 14V

When depressing accelerator pedal
fully after warming up engine.

0V

11

L/W

Shift solenoid
valve A

When shift solenoid valve A oper-
ates.
(When driving in “D

1

” or “D

4

”.)

Battery voltage

When shift solenoid valve A does not
operate.
(When driving in “D

2

” or “D

3

”.)

0V

12

L/Y

Shift solenoid
valve B

When shift solenoid valve B oper-
ates.
(When driving in “D

1

” or “D

2

”.)

Battery voltage

When shift solenoid valve B does not
operate.
(When driving in “D

3

” or “D

4

”.)

0V

AT-154

[EURO-OBD]

DTC P0734 A/T 4TH GEAR FUNCTION

This malfunction will be caused when shift solenoid valve B is stuck closed.

*: P0734 is detected.

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE

CAUTION:

Always drive vehicle at a safe speed.

If conducting this “DTC CONFIRMATION PROCEDURE” again, always turn ignition switch “OFF”
and wait at least 5 seconds before continuing.

Be careful not to rev engine into the red zone on the tachometer.

NOTE:
If “DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE” has been previously conducted,
always turn ignition switch “OFF” and wait at least 5 seconds before conducting the next test.
TESTING CONDITION:
Always drive vehicle on a level road to improve the accuracy of test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

With CONSULT-II

1.

Start engine and select “DATA MONITOR” mode for “A/T” with
CONSULT-II.

2.

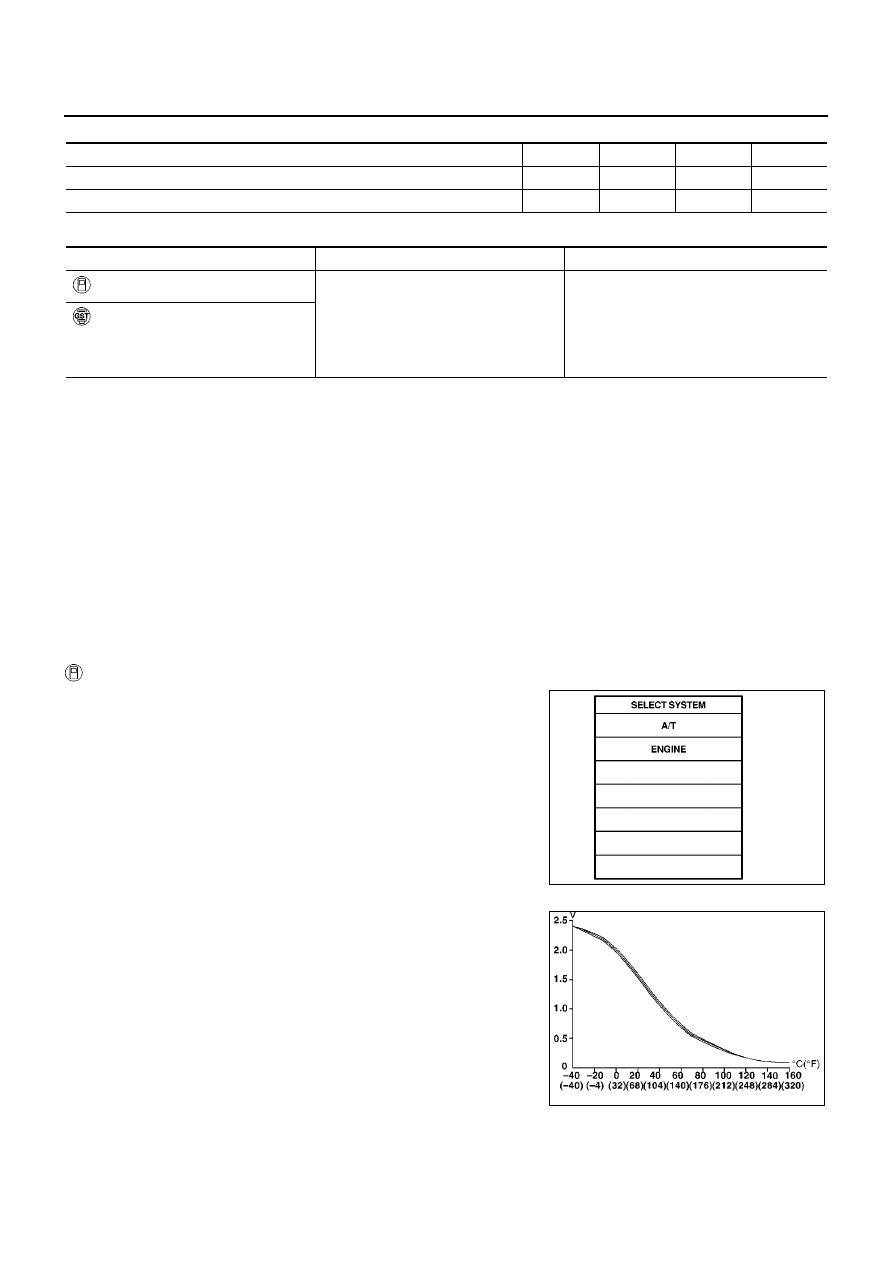

Make sure that output voltage of A/T fluid temperature sensor is
within the range below.
FLUID TEMP SEN: 0.4 - 1.5V
If out of range, drive the vehicle to decrease the voltage (warm
up the fluid) or stop engine to increase the voltage (cool down
the fluid).

Gear position supposed by TCM

1

2

3

4

In case of gear position with no malfunctions

1

2

3

4

In case of gear position with shift solenoid valve B stuck closed

1

2

2

1*

Diagnostic trouble code

Malfunction is detected when...

Check items (Possible cause)

: A/T 4TH GR FNCTN

A/T cannot be shifted to the 4th gear posi-
tion even if electrical circuit is good.

Shift solenoid valve A

Shift solenoid valve B

Line pressure solenoid valve

Each clutch

Hydraulic control circuit

: P0734

SAT014K

SAT021J

DTC P0734 A/T 4TH GEAR FUNCTION

AT-155

[EURO-OBD]

D

E

F

G

H

I

J

K

L

M

A

B

AT

3.

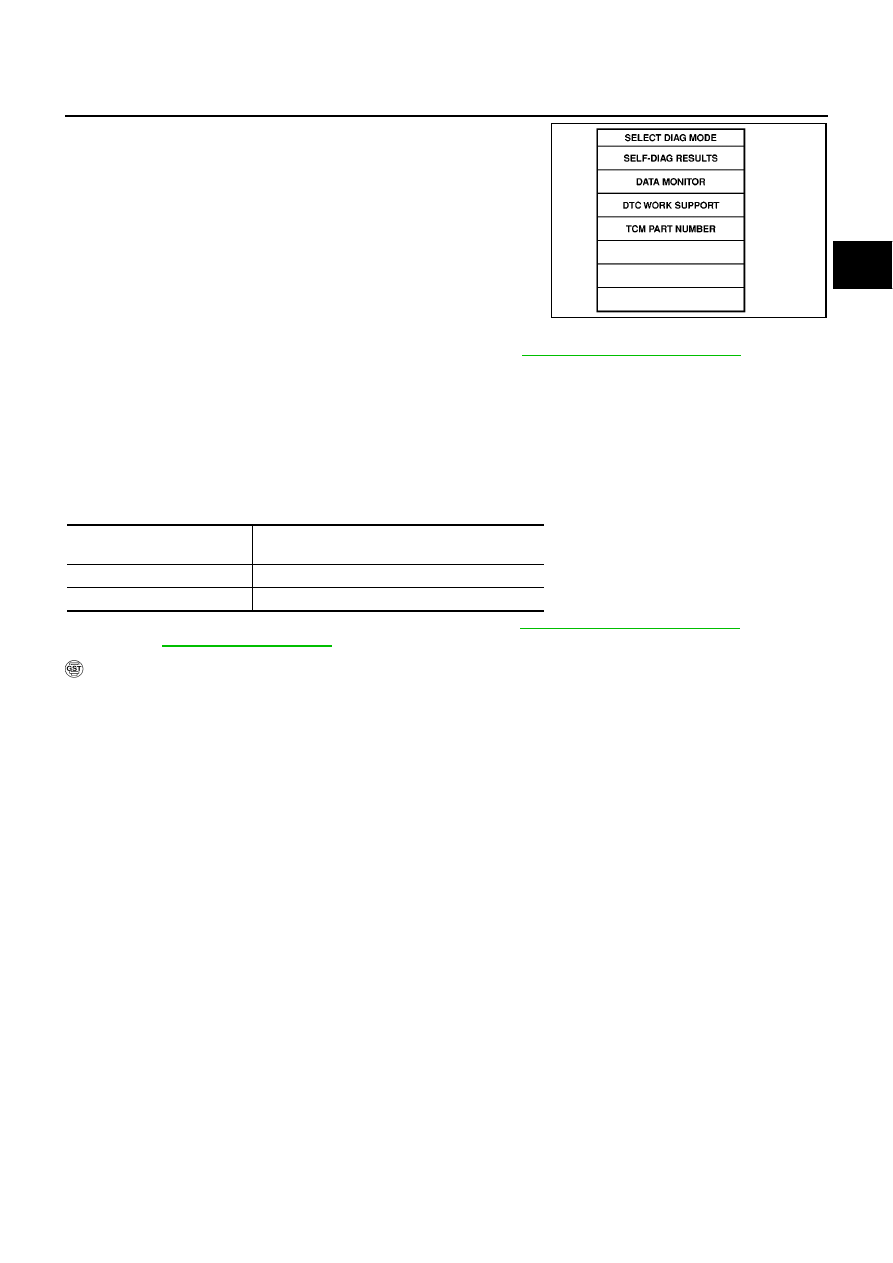

Select “4TH GR FNCTN P0734” of “DTC WORK SUPPORT”
mode for “A/T” with CONSULT-II and touch “START”.

4.

Accelerate vehicle to 55 to 65 km/h (34 to 40 MPH) under the
following condition and release the accelerator pedal com-
pletely.
THROTTLE POSI: Less than 5.5/8 (at all times during step 4)
Selector lever: D position (OD “ON”)

Check that “GEAR” shows “3” after releasing pedal.

5.

Depress accelerator pedal steadily with 1.0/8 - 2.0/8 of “THROT-
TLE POSI” from a speed of 55 to 65 km/h (34 to 40 MPH) until
“TESTING” has turned to “STOP VEHICLE” or “COMPLETED”.
(It will take approximately 3 seconds.)
If the check result NG appears on CONSULT-II screen, go to

AT-157, "Diagnostic Procedure"

.

If “STOP VEHICLE” appears on CONSULT-II screen, go to following step.

Check that “GEAR” shows “4” when depressing accelerator pedal with 1.0/8 - 2.0/8 of “THROTTLE
POSI”.

If “TESTING” does not appear on CONSULT-II for a long time, select “SELF-DIAGNOSIS” for
“ENGINE”. In case a 1st trip DTC other than P0734 is shown, refer to applicable “TROUBLE DIAG-
NOSIS FOR DTC”.

6.

Stop vehicle.

7.

Follow the instruction displayed. (Check for normal shifting referring to the table below.)

8.

Make sure that “OK” is displayed. (If “NG” is displayed, go to

AT-157, "Diagnostic Procedure"

.)

Refer to

AT-519, "Shift Schedule"

.

With GST

Follow the procedure “With CONSULT-II”.

Vehicle condition

Gear on actual transmission shift pattern when

screen is changed to 1

2

3

4

No malfunction exists

1

2

3

4

Malfunction for P0734 exists.

1

2

2

1

SAT971J
