AT-140

[EURO-OBD]

DTC P0731 A/T 1ST GEAR FUNCTION

Component Inspection

ECS0097S

SHIFT SOLENOID VALVE A AND B

For removal, refer to

AT-410, "Control Valve Assembly and Accumulators"

.

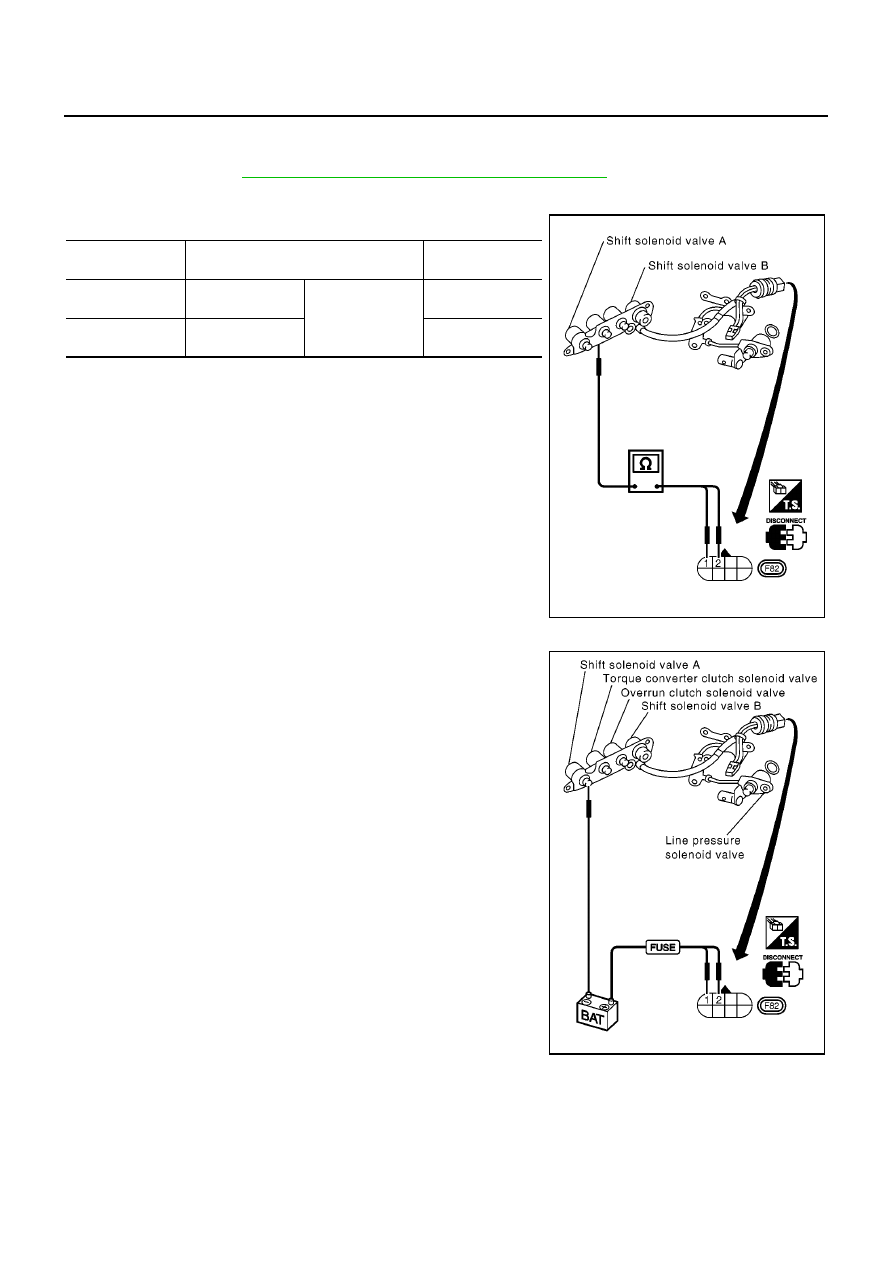

Resistance Check

Check resistance between two terminals.

Operation Check

Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.

Solenoid valve

Terminal No.

Resistance

(Approx.)

Shift solenoid
valve A

2

Ground

20 - 30

Shift solenoid
valve B

1

5 - 20

MCIA0071E

MCIA0070E

DTC P0732 A/T 2ND GEAR FUNCTION

AT-141

[EURO-OBD]

D

E

F

G

H

I

J

K

L

M

A

B

AT

DTC P0732 A/T 2ND GEAR FUNCTION

PFP:31940

Description

ECS0097T

This is an OBD-II self-diagnostic item and not available in TCM self-diagnosis.

This malfunction will not be detected while the O/D OFF indicator lamp is indicating another self-diagnosis
malfunction.

This malfunction is detected when the A/T does not shift into second gear position as instructed by the
TCM. This is not caused by electrical malfunction (circuits open or shorted) but by mechanical malfunction
such as control valve sticking, improper solenoid valve operation, etc.

TCM TERMINALS AND REFERENCE VALUE

Remarks: Specification data are reference values.

ON BOARD DIAGNOSTIC LOGIC

This diagnosis monitors actual gear position by checking the torque converter slip ratio calculated by TCM as
follows:
Torque converter slip ratio = A x C/B
A: Output shaft revolution signal from revolution sensor
B: Engine speed signal from ECM
C: Gear ratio determined as gear position which TCM supposes
If the actual gear position is higher than the position (2nd) supposed by TCM, the slip ratio will be more than
normal. In case the ratio exceeds the specified value, TCM judges this diagnosis malfunction.
This malfunction will be caused when shift solenoid valve B is stuck open.

*: P0732 is detected.

Gear position

1

2

3

4

Shift solenoid valve A

ON (Closed)

OFF (Open)

OFF (Open)

ON (Closed)

Shift solenoid valve B

ON (Closed)

ON (Closed)

OFF (Open)

OFF (Open)

Termi-

nal No.

Wire color

Item

Condition

Judgement stan-

dard

(Approx.)

12

L/Y

Shift solenoid
valve B

When shift solenoid valve B oper-
ates.
(When driving in “D

1

” or “D

2

”.)

Battery voltage

When shift solenoid valve B does not
operate.
(When driving in “D

3

” or “D

4

”.)

0V

Gear position supposed by TCM

1

2

3

4

In case of gear position with no malfunctions

1

2

3

4

In case of gear position with shift solenoid valve B stuck open

4

3*

3

4

Diagnostic trouble code

Malfunction is detected when...

Check items (Possible cause)

: A/T 2ND GR FNCTN

A/T cannot be shifted to the 2nd gear
position even if electrical circuit is good.

Shift solenoid valve B

Each clutch

Hydraulic control circuit

: P0732

AT-142

[EURO-OBD]

DTC P0732 A/T 2ND GEAR FUNCTION

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE

CAUTION:

Always drive vehicle at a safe speed.

Be careful not to rev engine into the red zone on the tachometer.

NOTE:
If “DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE” has been previously conducted,
always turn ignition switch “OFF” and wait at least 5 seconds before conducting the next test.
TESTING CONDITION:
Always drive vehicle on a level road to improve the accuracy of test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

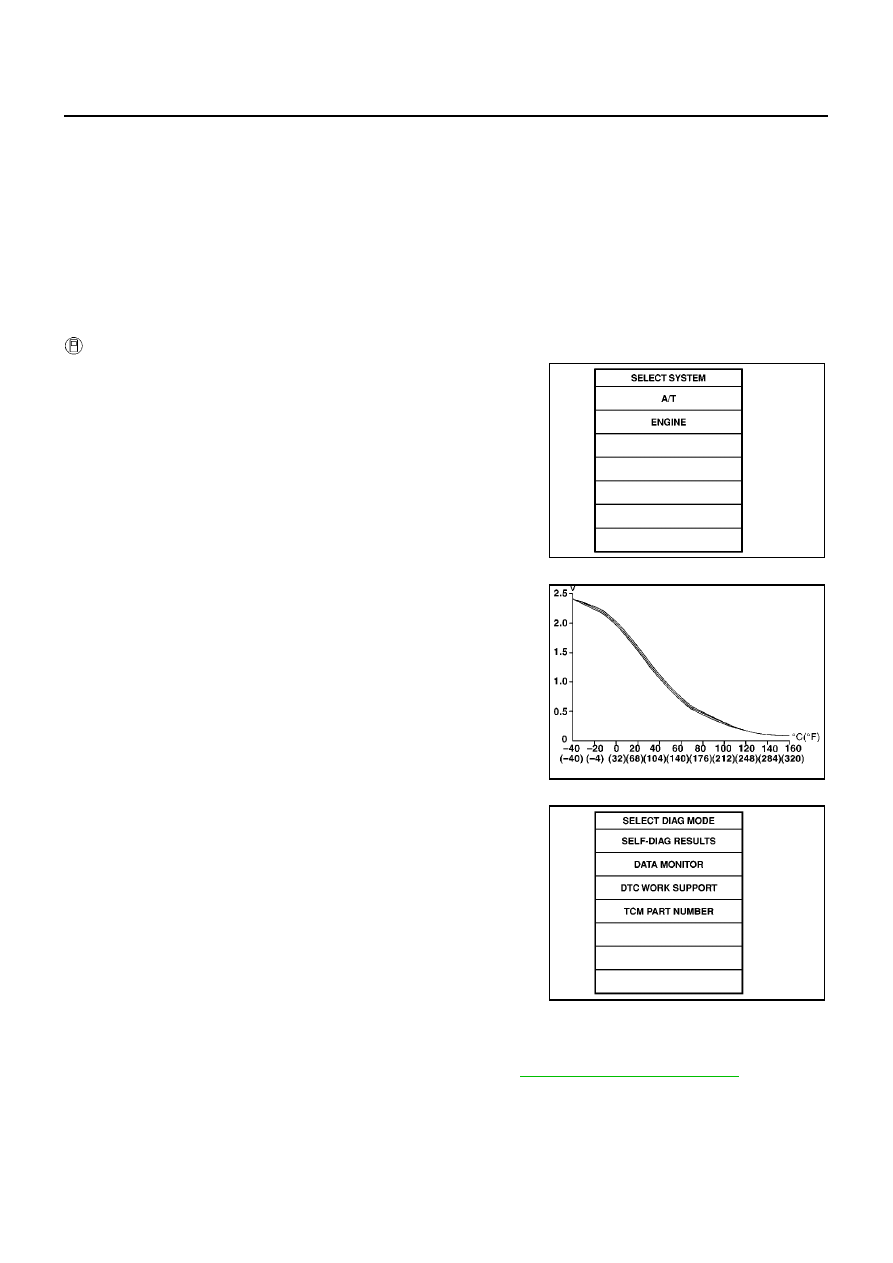

With CONSULT-II

1.

Start engine and select “DATA MONITOR” mode for “A/T” with
CONSULT-II.

2.

Make sure that output voltage of A/T fluid temperature sensor is
within the range below.
FLUID TEMP SEN: 0.4 - 1.5V

If out of range, drive the vehicle to decrease the voltage (warm
up the fluid) or stop engine to increase the voltage (cool down
the fluid).

3.

Select “2ND GR FNCTN P0732” of “DTC WORK SUPPORT”
mode for “A/T” with CONSULT-II and touch “START”.

4.

Accelerate vehicle to 35 to 40 km/h (22 to 25 MPH) under the

following condition and release the accelerator pedal com-
pletely.
THROTTLE POSI: Less than 1.0/8 (at all times during step 4)
Selector lever: D position (OD “ON”)

Check that “GEAR” shows “3” or “4” after releasing pedal.

5.

Depress accelerator pedal to WOT (more than 7.0/8 of “THROTTLE POSI”) quickly from a speed of 35 to
40 km/h (22 to 25 MPH) until “TESTING” changes to “STOP VEHICLE” or “COMPLETED”. (It will take
approximately 3 seconds.)
If the check result NG appears on CONSULT-II screen, go to

AT-145, "Diagnostic Procedure"

.

If “STOP VEHICLE” appears on CONSULT-II screen, go to following step.

Check that “GEAR” shows “2” when depressing accelerator pedal to WOT.

If “TESTING” does not appear on CONSULT-II for a long time, select “SELF-DIAGNOSIS” for
“ENGINE”. In case a 1st trip DTC other than P0732 is shown, refer to applicable “TROUBLE DIAG-
NOSIS FOR DTC”.

SAT014K

SAT021J

SAT971J

DTC P0732 A/T 2ND GEAR FUNCTION

AT-143

[EURO-OBD]

D

E

F

G

H

I

J

K

L

M

A

B

AT

6.

Stop vehicle.

7.

Follow the instruction displayed. (Check for normal shifting referring to the table below.)

8.

Make sure that “OK” is displayed. (If “NG” is displayed, go to

AT-145, "Diagnostic Procedure"

.)

Refer to

AT-519, "Shift Schedule"

.

With GST

Follow the procedure “With CONSULT-II”.

Vehicle condition

Gear on actual transmission shift pattern when

screen is changed to 1

2

3

4

No malfunction exists

1

2

3

4

Malfunction for P0732
exists.

4

3

3

4
