Nissan Almera Tino V10. Manual - part 54





MEL145L

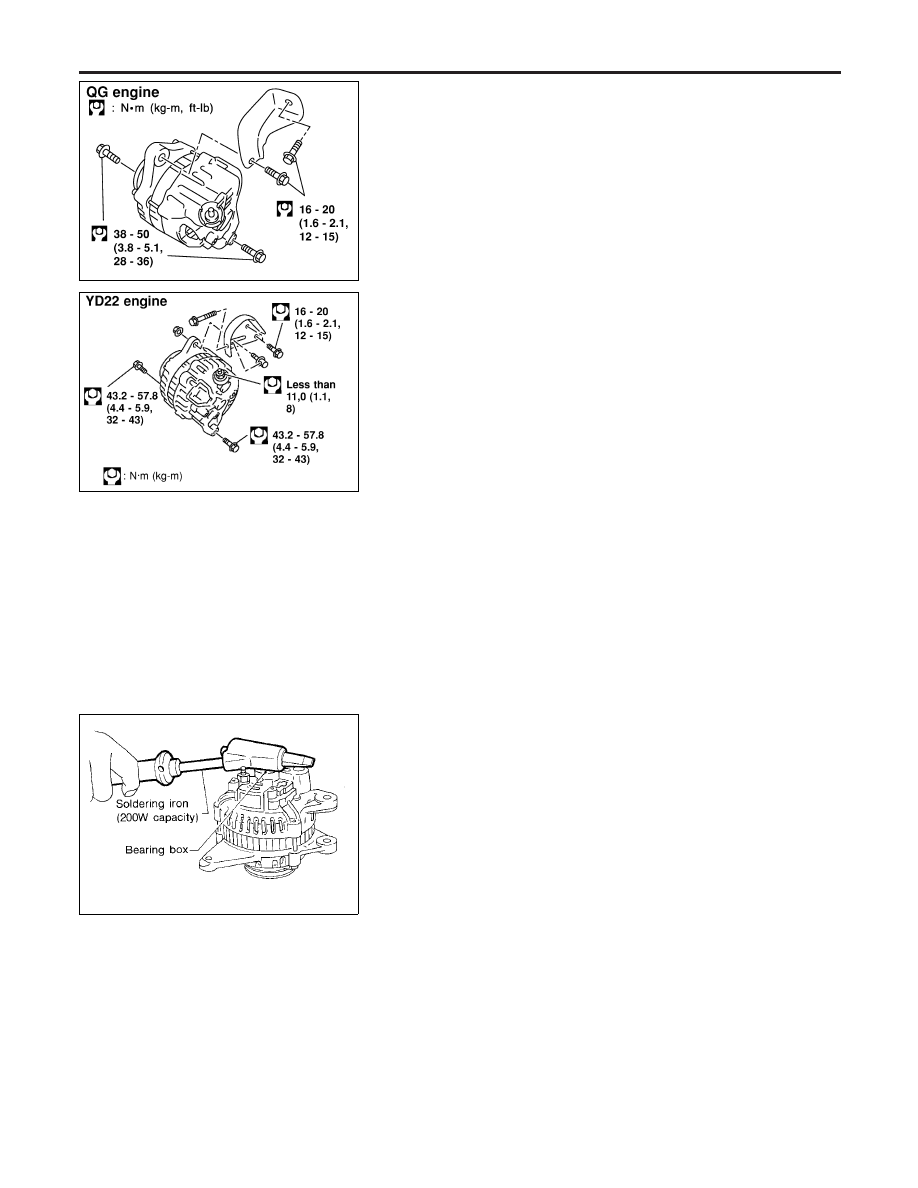

Removal and Installation

NLSC0013

REMOVAL (QG ENGINE)

NLSC0013S01

1.

Loosen drive belt idler pulley.

2.

Remove drive belt idler pulley (include tightening screw).

3.

Remove alternator harness.

4.

Remove alternator upper bolt and lower bolt.

5.

Remove alternator.

NEL645

REMOVAL (YD ENGINE)

NLSC0013S03

1.

Remove alternator harness.

2.

Loosen alternator upper nut and lower bolt.

3.

Loosen drive belt.

4.

Remove alternator bracket bolts (two).

5.

Remove alternator upper nut and lower bolt.

6.

Remove alternator.

INSTALLATION

NLSC0013S02

To install, reverse the removal procedure.

SEL032Z

Disassembly

NLSC0021

REAR COVER

NLSC0021S01

CAUTION:

Rear cover may be hard to remove because a ring is used to
lock outer race of rear bearing. To facilitate removal of rear
cover, heat just bearing box section with a 200W soldering
iron.
Do not use a heat gun, as it can damage diode assembly.

REAR BEARING

NLSC0021S02

CAUTION:

I

Do not reuse rear bearing after removal. Replace with a
new one.

I

Do not lubricate rear bearing outer race.

CHARGING SYSTEM

Removal and Installation

SC-28

SEL033Z

Inspection

NLSC0022

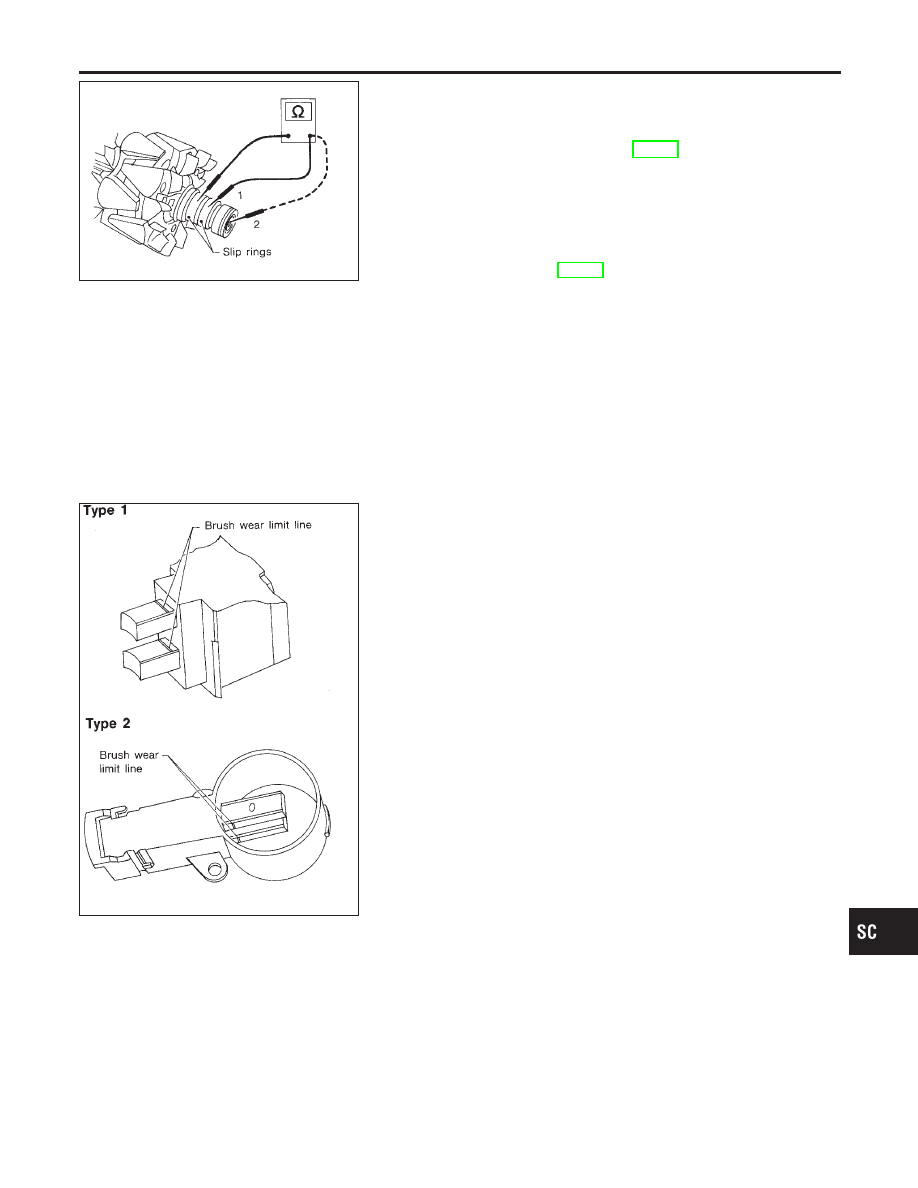

ROTOR CHECK

NLSC0022S01

1.

Resistance test

Resistance: Refer to SDS (SC-31).

I

Not within the specified values ... Replace rotor.

2.

Insulator test

I

Continuity exists ... Replace rotor.

3.

Check slip ring for wear.

Slip ring minimum outer diameter:

Refer to SDS (SC-31).

I

Not within the specified values ... Replace rotor.

SEL034Z

BRUSH CHECK

NLSC0022S02

1.

Check smooth movement of brush.

I

Not smooth ... Check brush holder and clean.

2.

Check brush for wear.

I

Replace brush if it is worn down to the limit line.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

EL

IDX

CHARGING SYSTEM

Inspection

SC-29

SEL037Z

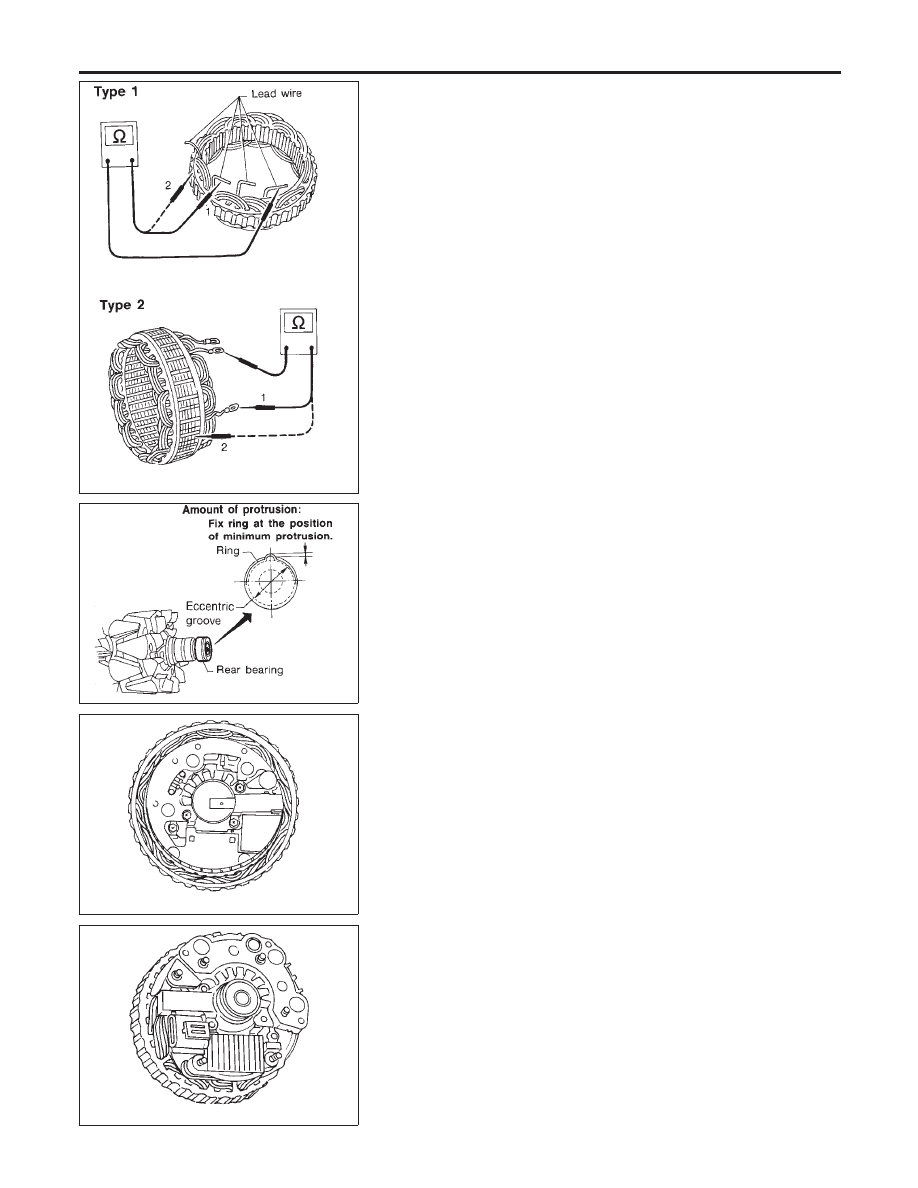

STATOR CHECK

NLSC0022S03

1.

Continuity test

I

No continuity ... Replace stator.

2.

Ground test

I

Continuity exists ... Replace stator.

SEL044Z

Assembly

NLSC0023

RING FITTING IN REAR BEARING

NLSC0023S01

I

Fix ring into groove in rear bearing so that it is as close to the
adjacent area as possible.

CAUTION:

Do not reuse rear bearing after removal.

SEL048Z

SEL049Z

REAR COVER INSTALLATION

NLSC0023S02

1.

Fit brush assembly, diode assembly, regulator assembly and
stator.

2.

Push brushes up with fingers and install them to rotor.

Take care not to damage slip ring sliding surface.

CHARGING SYSTEM

Inspection (Cont’d)

SC-30

Battery

NLSC0014

Applied model

QG engine

YD22 engine

Type

YUASA type code

YUASA type code

025

027

065

075

079

067

096

Capacity V-AH

12-52

12-55

12-50

12-42

12-60

12-64

Starter

NLSC0015

Type

D7E31

S114-800B

M8T75371

M008T71471

VALEO make

HITACHI make

MITSUBISHI make

Non-reduction

Reduction

Reduction

Applied model

QG engine

YD22 engine

System voltage V

12

No-load

Terminal voltage V

11.0

11.0

11.0

11.0

Current A

45

Less than 90

Less than 145

Less than 145

Revolution rpm

12,000

More than 2,700

More than 3,400

More than 3,300

Minimum diameter of commutator mm (in)

28.2 (1.110)

28.0 (1.102)

31.4 (1.236)

Minimum length of brush mm (in)

6.15 (0.242)

10.5 (0.413)

11.0 (0.433)

Brush spring tension N (kg, lb)

16.2 - 19.8

(1.65 - 2.02,

3.64 - 4.45)

12.7 - 17.7

(1.3 - 1.8,

2.9 - 4.0)

26.5 - 36.1

(2.7 - 3.7,

6.0 - 8.2)

Clearance between bearing metal and arma-
ture shaft mm (in)

0.05 (0.002)

Less than

0.2 (0.008)

Clearance “



” between pinion front edge and

pinion stopper mm (in)

Max. 1 (0.039)

0.3 - 2.5

(0.012 - 0.098)

Movement “



” in height of pinion assembly

mm (in)

Max. 12.2 (0.480)

0.5 - 2.0

(0.020 - 0.079)

Max. 13 (0.512)

Alternator

NLSC0016

Type

LR180-762

LR1100-724

HITACHI make

Applied model

QG engine

YD engine

Nominal rating V-A

12-80

12-100

Ground polarity

Negative

Minimum revolutions under no-load (When 13.5V is applied) rpm

Less than 1,000

Hot output current (When 13.5V is applied) A/rpm

More than 23/1,300
More than 65/2,500
More than 87/5,000

More than 34/1,300
More than 83/2,500
More than 91/5,000

Regulated output voltage V

14.1 - 14.7

Minimum length of brush mm (in)

6.0 (0.236)

Brush spring pressure N (g, oz)

1.0 - 3.43 (102 - 350, 3.60 - 12.34)

Slip ring minimum diameter mm (in)

6.0 (1.024)

Rotor coil resistance at 20°C (68°F)

2.67

2.31

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

EL

IDX

SERVICE DATA AND SPECIFICATIONS (SDS)

Battery

SC-31
