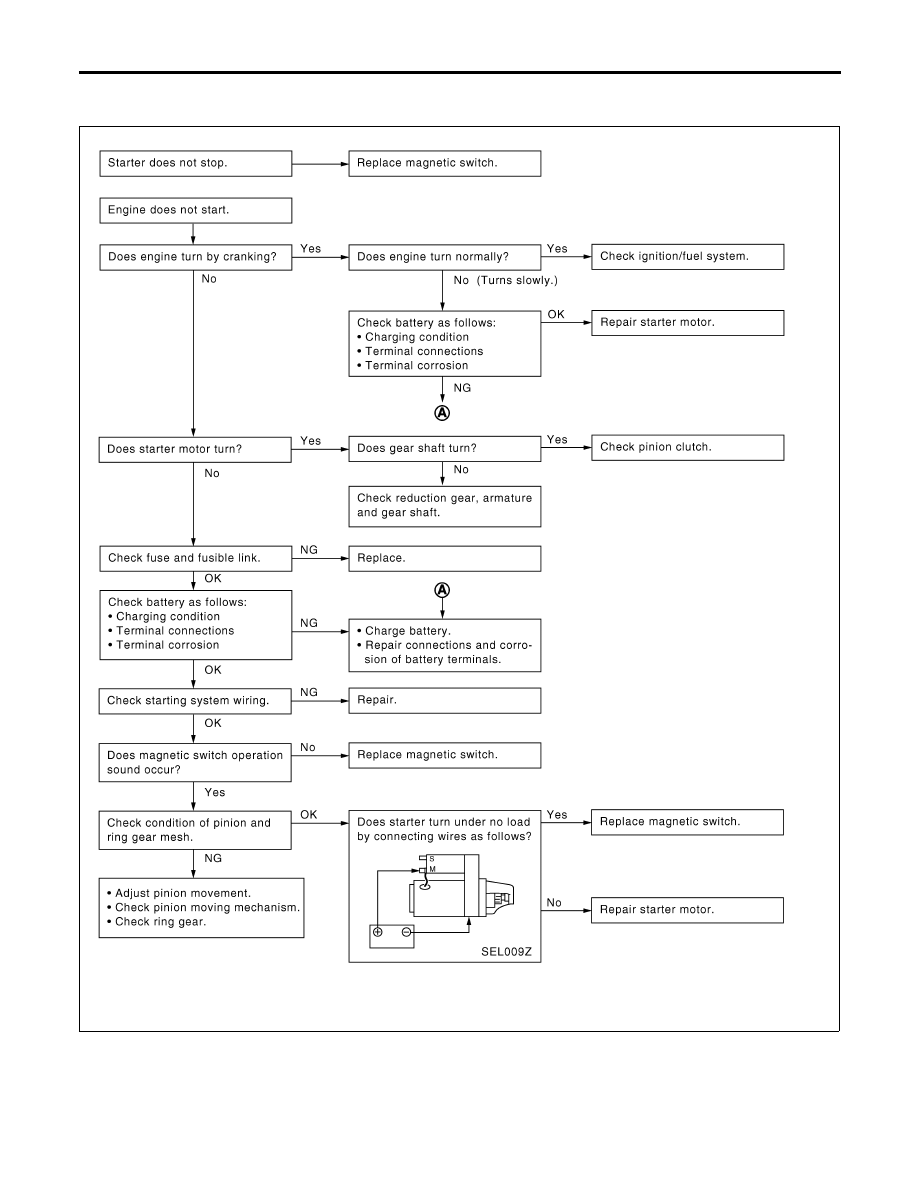

Trouble Diagnoses

NLSC0018

If any abnormality is found, immediately disconnect battery negative terminal.

SEL761W

STARTING SYSTEM

Trouble Diagnoses

SC-16

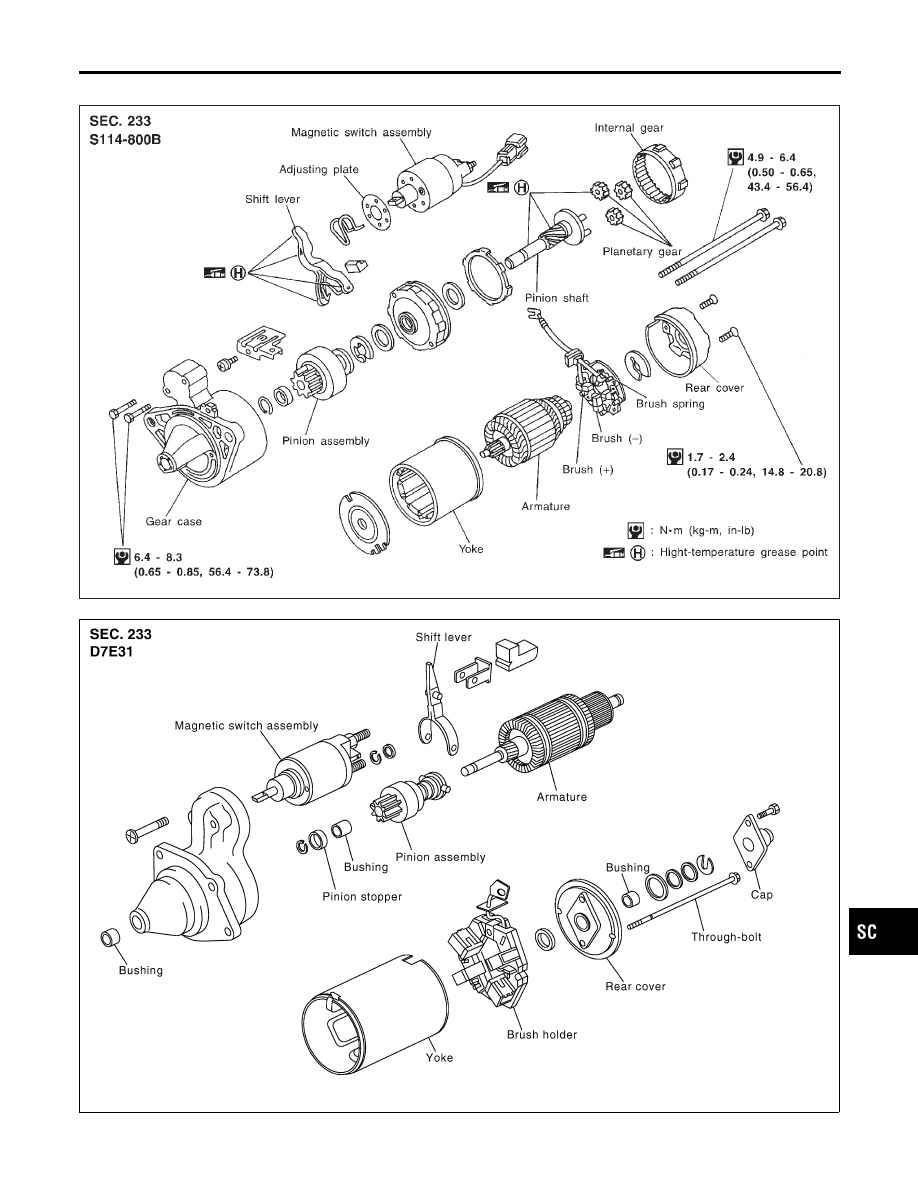

Construction

NLSC0006

SEL027UC

YEL149E

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

EL

IDX

STARTING SYSTEM

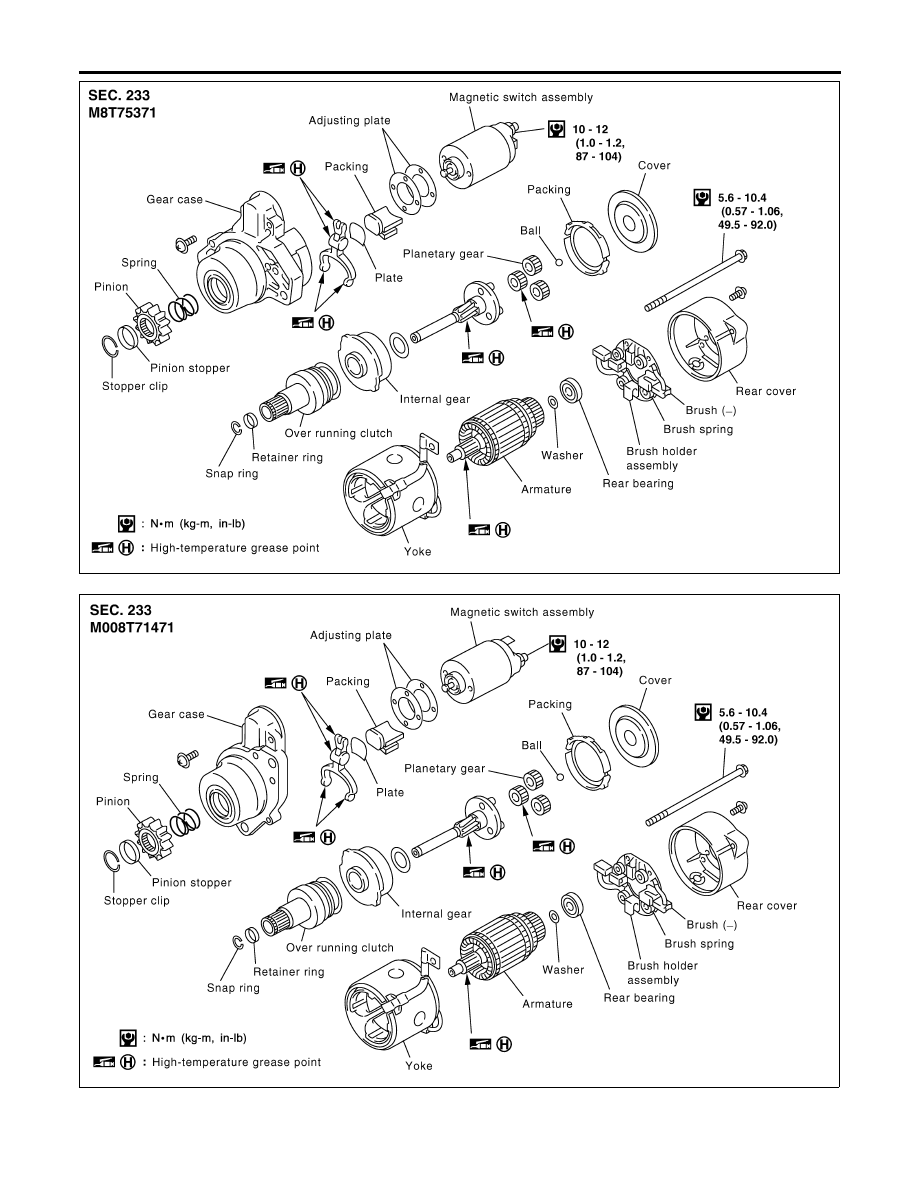

Construction

SC-17

MEL136L

YEL150E

STARTING SYSTEM

Construction (Cont’d)

SC-18

NEL642

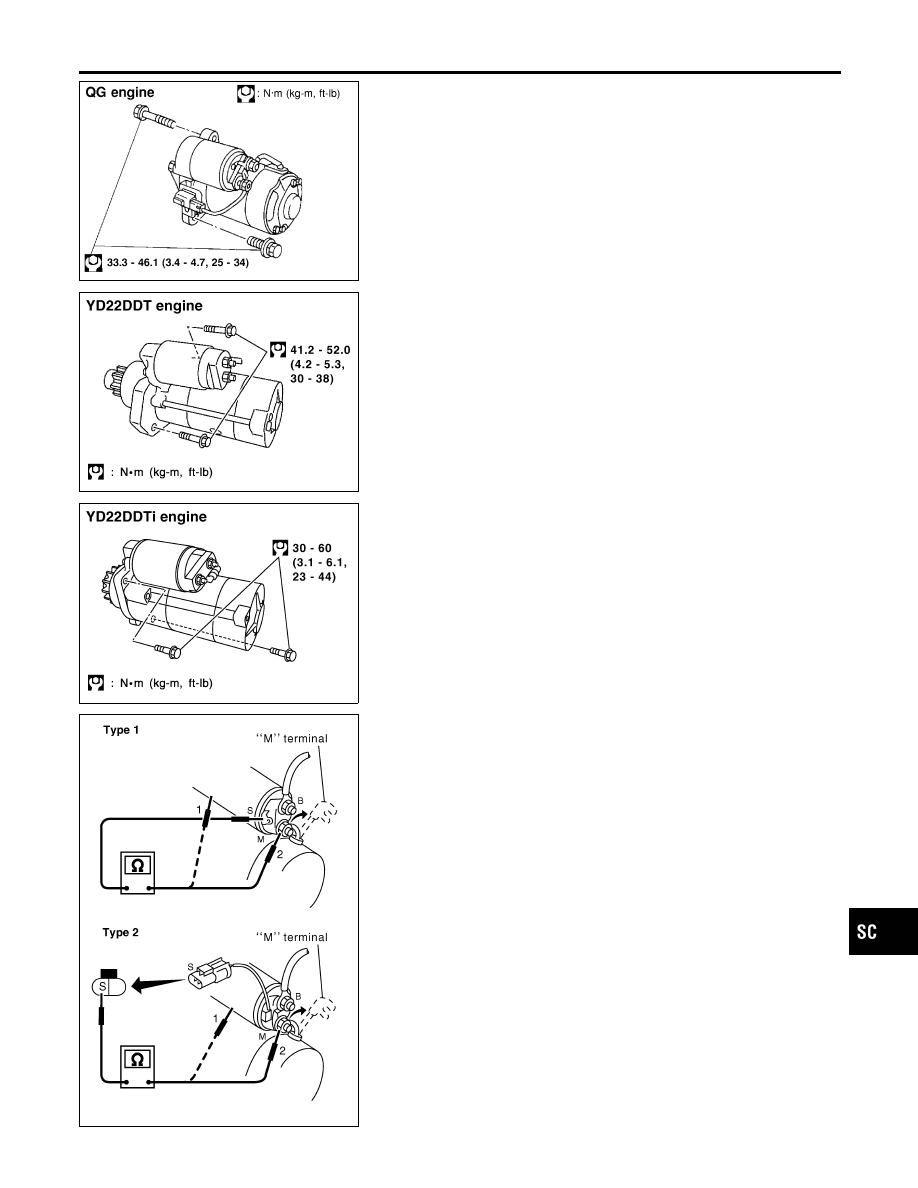

Removal and Installation

NLSC0007

YEL151E

YEL152E

REMOVAL

NLSC0007S01

1.

Remove intake air duct and air cleaner assembly.

2.

Disconnect starter harness.

3.

Remove starter bolts (two).

4.

Remove starter.

INSTALLATION

NLSC0007S02

To install, reverse the removal procedure.

MEL138L

Inspection

NLSC0019

MAGNETIC SWITCH CHECK

NLSC0019S01

I

Before starting to check, disconnect battery ground cable.

I

Disconnect “M” terminal of starter motor.

1.

Continuity test (between “S” terminal and switch body).

I

No continuity ... Replace.

2.

Continuity test (between “S” terminal and “M” terminal).

I

No continuity ... Replace.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

EL

IDX

STARTING SYSTEM

Removal and Installation

SC-19
