Nissan Almera Tino V10. Manual - part 20





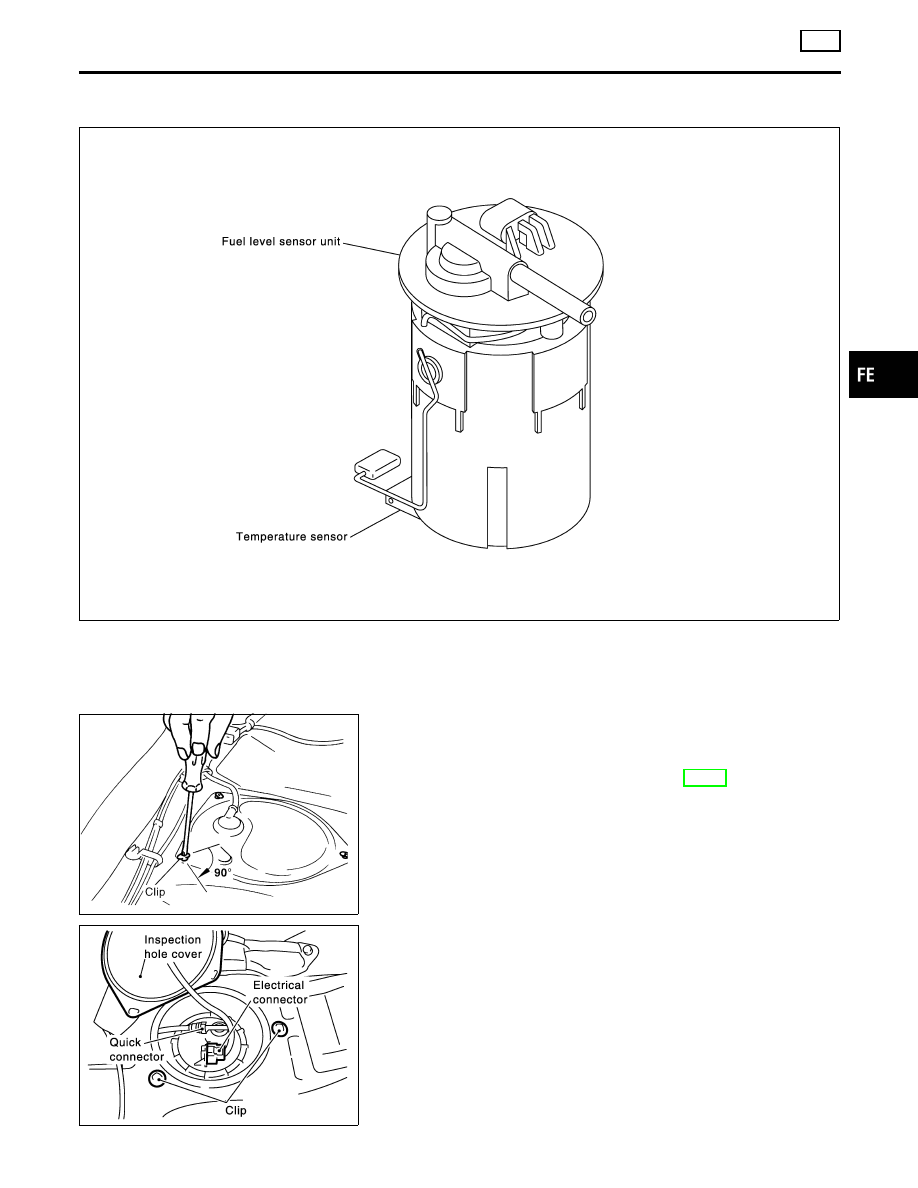

Fuel Pump, Fuel Level Sensor Unit and Fuel
Filter

NLFE0007

YFE030

JFE613A

REMOVAL

NLFE0007S01

1.

Disconnect battery ground cable.

2.

Open fuel filler lid and filler cap.

3.

Remove rear seat cushion. Refer to BT-48, “Removal and
Installation”.

4.

Remove inspection hole cover under the rear seat.

PBIC0648E

5.

Disconnect electrical connector.

6.

Disconnect the quick connectors.

I

For disconnect of quick connectors, refer to step 7. of “Fuel
Tank Removal”.

GI

MA

EM

LC

EC

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

FUEL SYSTEM

QG

Fuel Pump, Fuel Level Sensor Unit and Fuel Filter

FE-9

SFE376A

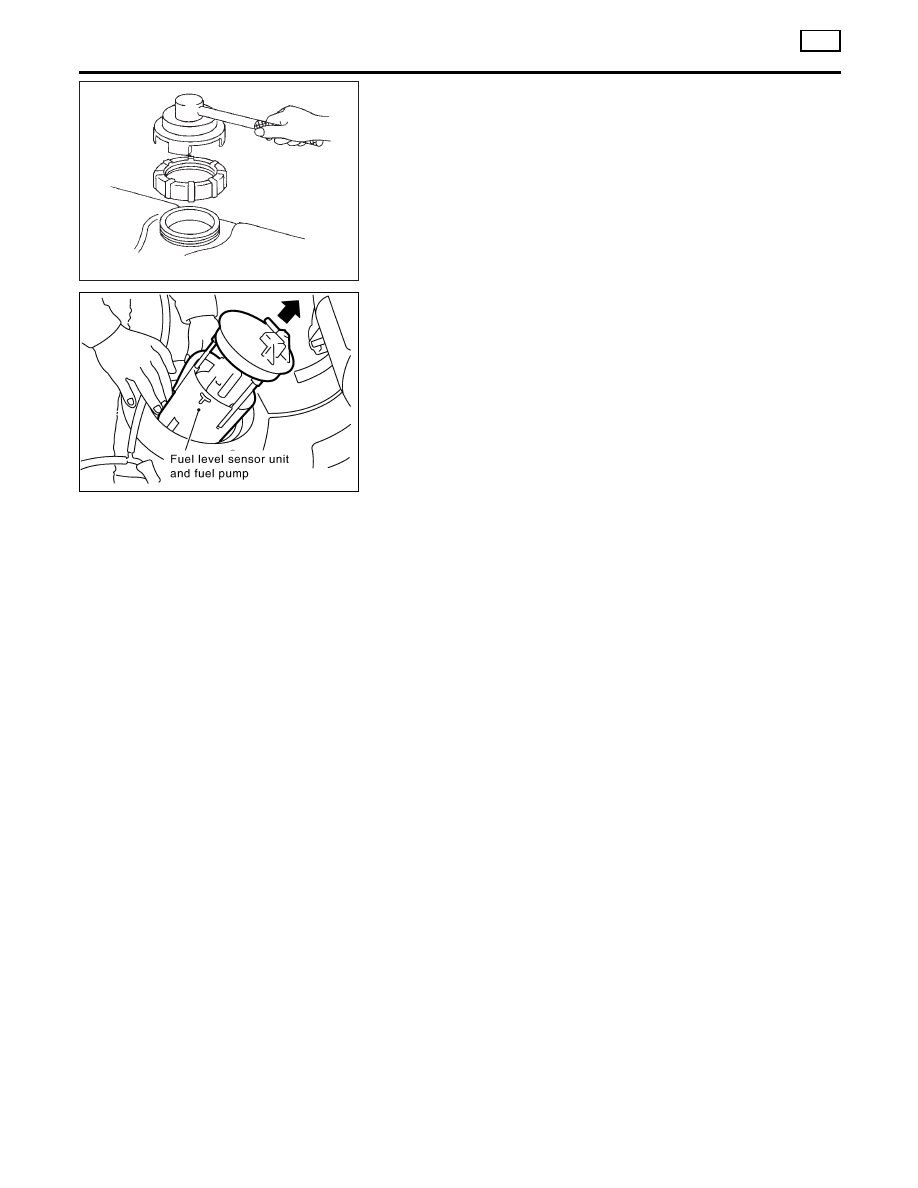

7.

Remove lock ring using a lock ring socket (SST).

YFE037

8.

Pull out the fuel level sensor unit and fuel pump.

I

Do not damage the arm of the fuel level sensor unit and
fuel tank temperature sensor.

INSTALLATION

NLFE0007S02

Installation is in reverse order of removal.

FUEL SYSTEM

QG

Fuel Pump, Fuel Level Sensor Unit and Fuel Filter (Cont’d)

FE-10

SMA211A

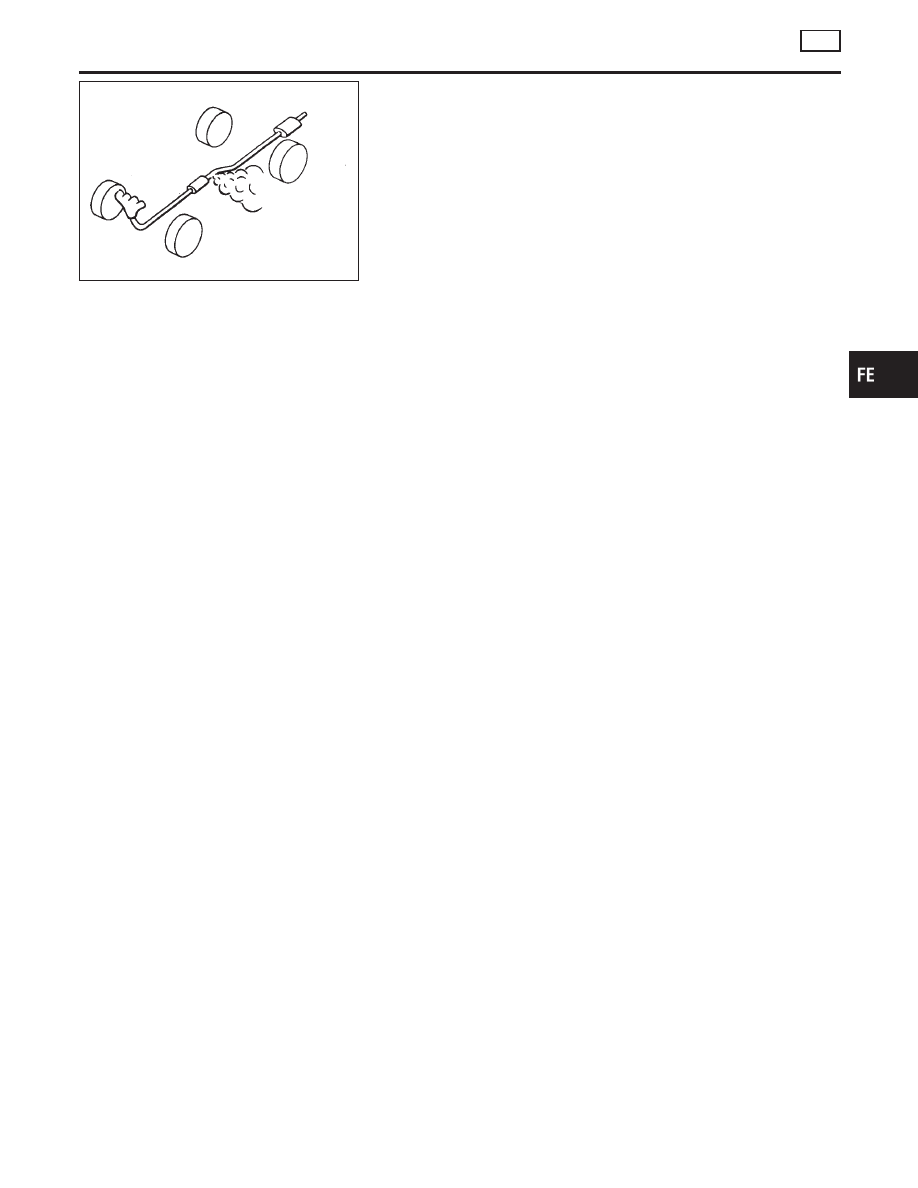

Checking Exhaust System

NLFE0010

Check

exhaust

pipes,

muffler

and

mounting

for

improper

attachment, leaks, cracks, damage, chafing or deterioration.

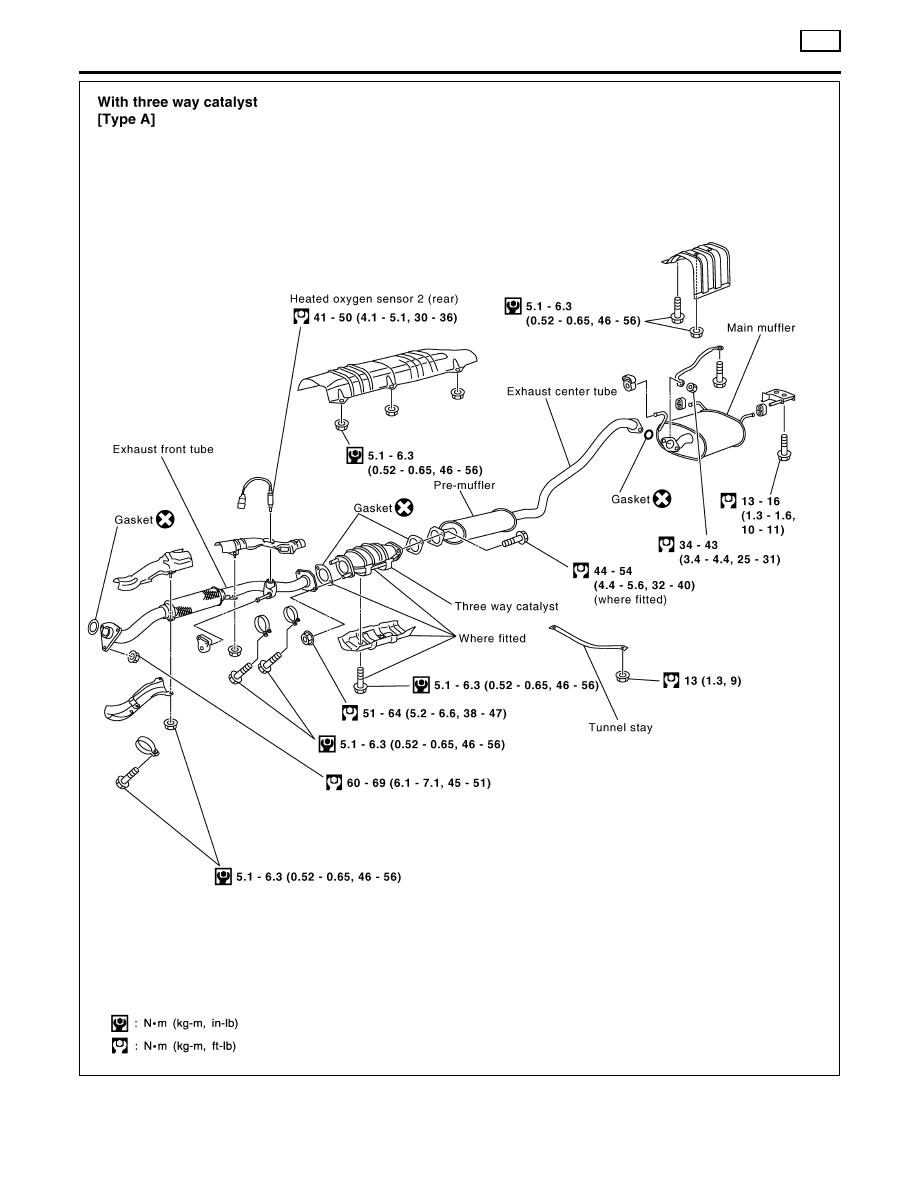

Removal and Installation

NLFE0005

CAUTION:

I

Always replace exhaust gaskets with new ones when
reassembling.

I

With engine running, check all tube connections for
exhaust gas leaks, and entire system for unusual noises.

I

Check to ensure that mounting brackets and mounting
insulators are installed properly and free from undue
stress. Improper installation could result in excessive
noise or vibration.

I

Discard any heated oxygen sensor which has been
dropped from a height of more than 0.5 m (19.7 in) onto a
hard surface such as a concrete floor; use a new one.

I

Before installing a new oxygen sensor, clean exhaust sys-
tem threads using oxygen sensor thread cleaner tool and
apply anti-seize lubricant.

I

Do not overtorque the oxygen sensor. Doing so may
cause damage to the oxygen sensor, resulting in the MI
coming on.

I

Be sure to use genuine exhaust system parts which are
designed

especially

for

heat

resistance,

corrosion

resistance, and shape.

I

Perform the operation with the exhaust system fully
cooled down because the system will be heated just after
the engine stops.

I

Be careful not to cut your hand on the insulator edge.

GI

MA

EM

LC

EC

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

EXHAUST SYSTEM

QG

Checking Exhaust System

FE-11

YFE047

EXHAUST SYSTEM

QG

Removal and Installation (Cont’d)

FE-12
