Nissan Almera Tino V10. Manual - part 7





SRA712A

I

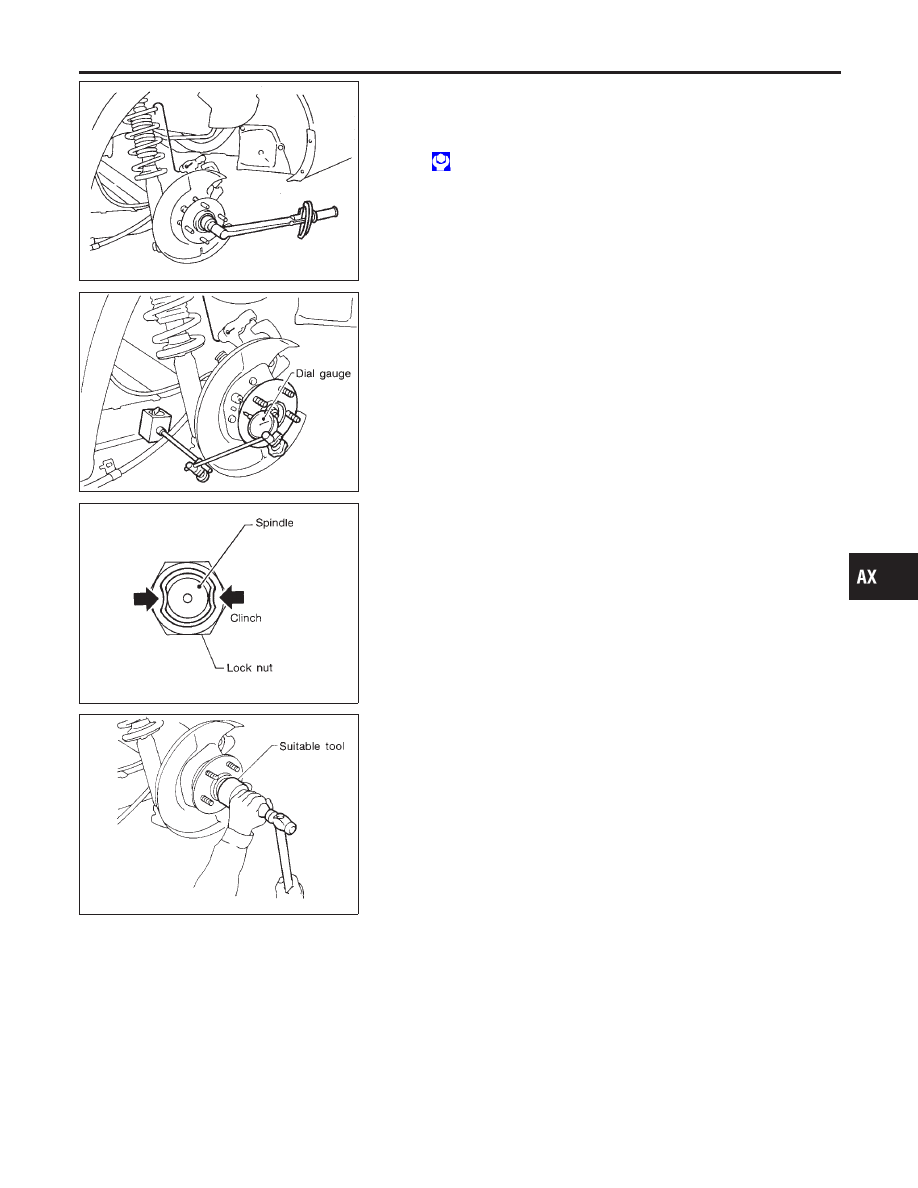

Install wheel hub bearing.

I

Tighten wheel bearing lock nut.
Before tightening, apply oil to threaded portion of rear spindle.
Do not reuse wheel bearing lock nut.

: 187 - 254 N·m (19 - 26 kg-m, 138 - 188 ft-lb)

I

Check that wheel bearings operate smoothly.

SRA737A

I

Check wheel hub bearing axial end play.

Axial end play:

0.05 mm (0.0020 in)

SFA599B

I

Clinch two places of lock nut.

SRA738A

I

Install hub cap using a suitable tool.
Do not reuse hub cap. When installing, replace it with a
new one.
