SHIFT POSITION

TM-15

< PERIODIC MAINTENANCE >

[TRANSMISSION: GR6Z30A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SHIFT POSITION

Inspection and Adjustment

INFOID:0000000009162744

INSPECTION

1.

Turn the ignition switch to ON at the shift lever P position.

2.

The shift lever can shift from the P position to the R position when the brake pedal is depressed. Alterna-
tively, the shift lever cannot shift from the P position to the R position without the brake pedal depressed.

3.

Operate the shift lever and check for excessive effort, sticking, noise or rattle.

4.

When the shift lever is operated, a click is felt, and the fixed position is correct and corresponds to the shift
position indicator in the combination meter

5.

Check that the shift lever is shifted through all the shift positions
in the manner shown in the figure.

6.

Check in the P and N positions that the knob button can be
operated without sticking when the button is pressed without the
shift lever pressed forward and backward.

7.

Check that in the R position the shift lever can be operated with-
out sticking when the shift lever is operated left and right.

8.

The back-up lamp can turn on and the reverse warning buzzer can sound with the shift lever in the R posi-
tion only.

9.

Check that the engine can be started with the shift lever in the P and N positions only.

10. The transmission is completely locked with the shift lever in the P position.

11. The shift position indicator of combination meter should change to the A range display or M range display

when the shift lever is operated to the M position.

12. The shift position indicator in the combination meter should not change when each load of 30 N (3.1 kg) is

applied (pressed) to front and rear side at the shift lever in the P position, front side at the shift lever in the
R position, front side at the shift lever in the N position and rear side at the shift lever in the A position.

ADJUSTMENT

1.

Disconnect the control cable from the A/T shift selector assembly.

2.

Shift the parking lever of transmission assembly to the P range
(A).

3.

Rotate the wheels at least a quarter turn and the Park position
mechanism is fully engaged.

4.

Shift the shift lever to the P position.

5.

Install the socket of the control cable to the A/T shift selector
assembly, and fix them with lock plate.

6.

Insert the I-end bolt into the cable lever of the A/T shift selector
assembly, and apply the load of 9.8 N (1 kg) in the cable lever P
direction (toward vehicle front) to the control cable.

7.

Release the control cable and temporarily tighten the lock nut. Then, tighten the lock nut to the specified
torque.

A

: Depress the brake pedal. Press and operate the knob button.

B

: Press and operate the knob button.

C

: Operate without condition.

D

: Automatic return.

NNDIA0020JP

B

: Other than P position

:14.7 N·m (1.5 kg-m, 11 ft-lb)

NNDIA0011ZZ

2014 GT-R

TM-16

< REMOVAL AND INSTALLATION >

[TRANSMISSION: GR6Z30A]

A/T SHIFT SELECTOR

REMOVAL AND INSTALLATION

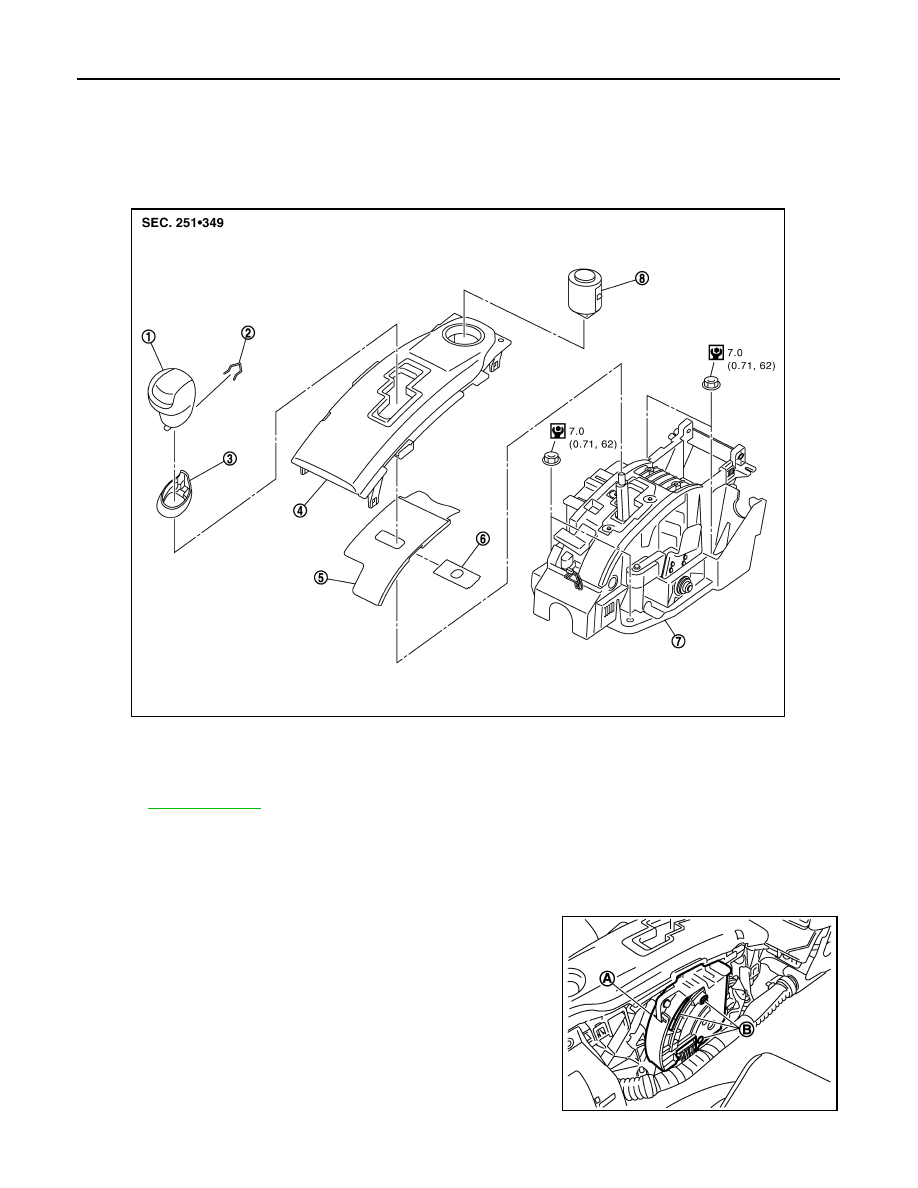

A/T SHIFT SELECTOR

Exploded View

INFOID:0000000009162748

Removal and Installation

INFOID:0000000009162749

CAUTION:

Be careful of the following items because the range sensor is an important device to detect the shift
lever position.
• Keep range sensor (A) away from magnetic cards and mag-

netic objects during work.

• For a person with an electro-medical apparatus, keep the

range sensor away from the device.

• Keep foreign objects away from the opening (B) of range sen-

sor during work.

• Never touch the range sensor and sensor mounting screw.
• Always shift the shift lever to the P position during work.

REMOVAL

1.

Shift lever knob

2.

Lock pin

3.

Knob cover

4.

Position indicator lamp

5.

Slide cover

6.

Slide plate

7.

A/T shift selector assembly

8.

Push-button ignition switch

Refer to

GI-4, "Components"

 in GI section for the symbols shown in the figure.

NNDIA0016GB

NNDIA0001ZZ

2014 GT-R

A/T SHIFT SELECTOR

TM-17

< REMOVAL AND INSTALLATION >

[TRANSMISSION: GR6Z30A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

1.

Shift the shift lever to the P position.

2.

Lower the rear side of the knob cover (1) downward.

3.

Pull out the lock pin (2) from the shift lever knob (3).

4.

Remove the shift lever knob and the knob cover.

5.

Remove the console finisher assembly, instrument side panel
LH/RH, and center console assembly. Refer to

IP-23, "Exploded

View"

.

6.

Disconnect the control cable from the A/T shift selector assem-
bly.

7.

Disconnect the push-button ignition switch connector and the
range sensor connector, and remove the harness clip.

8.

Remove the A/T shift selector assembly mounting bolt.

9.

Remove the A/T shift selector assembly from the vehicle.

CAUTION:

Never place the A/T shift selector assembly upside-down after removal. In addition, never place
the range sensor side down.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Refer to “ADJUSTMENT” in

TM-15, "Inspection and Adjustment"

 when installing the control cable to the A/T

shift selector assembly.

• Note the following items when installing the shift lever knob.
1.

Install the lock pin (1) to the shift lever knob (2).

2.

Install the knob cover (3) to the shift lever knob.

3.

Insert the shift lever knob into the shift lever until it clicks.

Disassembly and Assembly

INFOID:0000000009162750

DISASSEMBLY

CAUTION:

Always shift the shift lever in the N position when performing disassembly and assembly of A/T shift
selector assembly.

1.

Press the shift lock release button, and then shift the shift lever in the N position.

2.

Insert a flat-bladed screwdriver into tabs (A: 4 locations), and
remove the position indicator plate (1) from the A/T shift selector
assembly (2) while lifting it up.

CAUTION:

The tabs crack easily. Be careful when removing.

3.

Remove the starter switch from the position indicator plate.

4.

Remove the slide cover from the A/T shift selector assembly.

Assembly

Note the following, and assemble in the reverse order of disassembly.
• Align the convex area (A) of slide cover (1) with the convex area (B) of A/T shift selector assembly (2) as

shown in the figure, and then install the position indicator plate. Check the shift lever movement after instal-
lation. Assemble again if any malfunctioning condition is detected.

NNDIA0126ZZ

NNDIA0127ZZ

NNDIA0128ZZ

2014 GT-R

TM-18

< REMOVAL AND INSTALLATION >

[TRANSMISSION: GR6Z30A]

A/T SHIFT SELECTOR

Inspection

INFOID:0000000009162751

INSPECTION AFTER INSTALLATION

Check the shift position after installation. Adjust the shift position if any malfunctioning condition is detected.
Refer to

TM-15, "Inspection and Adjustment"

.

NNDIA0002ZZ

2014 GT-R

OIL PAN

TM-19

< REMOVAL AND INSTALLATION >

[TRANSMISSION: GR6Z30A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

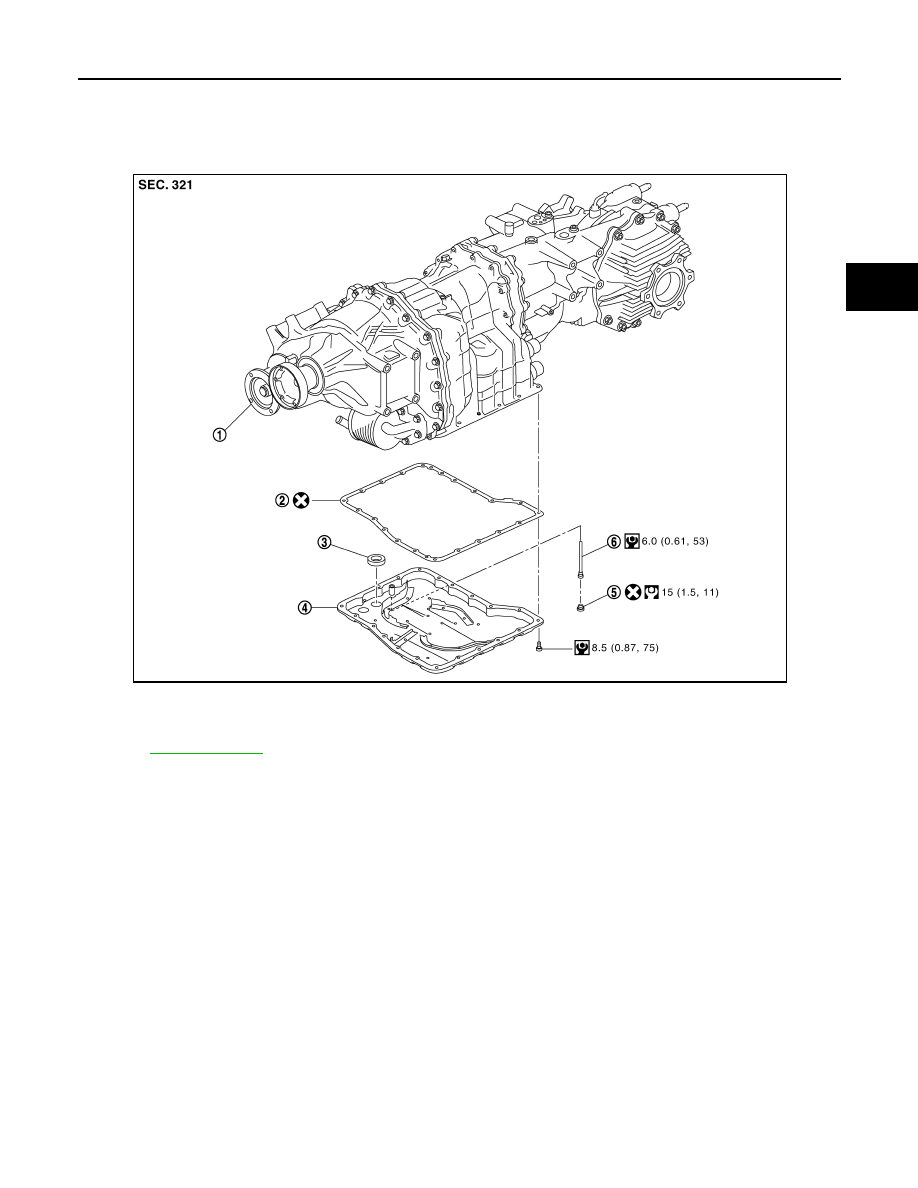

OIL PAN

Exploded View

INFOID:0000000009162757

1.

Transmission assembly

2.

Oil pan gasket

3.

Magnet

4.

Oil pan

5.

Drain plug

6.

Drain tube

Refer to

GI-4, "Components"

 in GI section for the symbols shown in the figure.

JSDIA2951GB

2014 GT-R

TM-20

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSMISSION: GR6Z30A]

TRANSMISSION ASSEMBLY

UNIT DISASSEMBLY AND ASSEMBLY

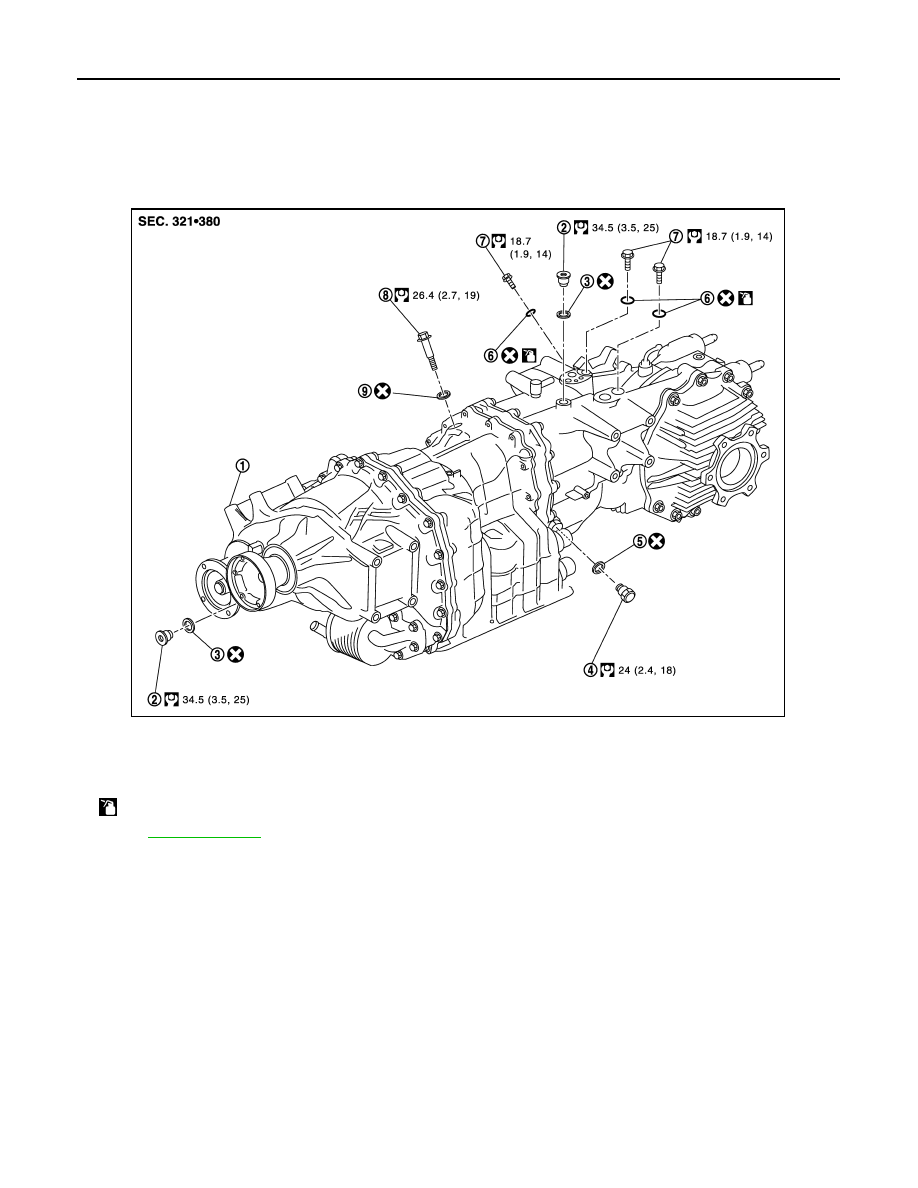

TRANSMISSION ASSEMBLY

Exploded View

INFOID:0000000009162778

1.

Transmission assembly

2.

Filler plug

3.

Filler plug gasket

4.

3rd-5th check pin

5.

Plane washer

6.

O-ring

7.

Plug

8.

Idler bolt

9.

Plane washer

: Apply Genuine NISSAN Transmission oil R35 Special.

Refer to

GI-4, "Components"

 in GI section for the symbols other than above.

NNDIA0040GB

2014 GT-R

SERVICE DATA AND SPECIFICATIONS (SDS)

TM-21

< SERVICE DATA AND SPECIFICATIONS (SDS)

[TRANSMISSION: GR6Z30A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000009162780

Applied model

VR38DETT

AWD

Transmission model

GR6Z30A

2014 GT-R

TM-22

< SERVICE DATA AND SPECIFICATIONS (SDS)

[TRANSMISSION: GR6Z30A]

SERVICE DATA AND SPECIFICATIONS (SDS)

Transmission

Transmission model code number

(*1)

KJ10A

Operating system

Remote control floor shifter and paddle shifter

Shift position

P

Fixed to output shaft (engine start is possible)

R

Reverse

N

Neutral (engine start is possible)

A

R

1

←→

2

←→

3

←→

4

←→

5

←→

6

Normal

1

←→

2

←→

3

←→

4

←→

5

←→

6

SAVE

1

←→

2

←→

3

←→

4

←→

5

←→

6

M

R

6

M

Fixed to 6GR

With the under rev protection au-
tomatic shift function
(In order to keep running function,
it shifts down automatically when
engine speed becomes low.)

5

M

Fixed to 5GR

4

M

Fixed to 4GR

3

M

Fixed to 3GR

2

M

Fixed to 2GR

1

M

Fixed to 1GR

Normal

6

M

Fixed to 6GR

With the over rev and under rev
protection automatic shift function
(In order to keep running function,
it shifts down automatically when
engine speed becomes low. In or-
der to avoid engine over-speed, it
shifts up automatically under red
zone.)

5

M

Fixed to 5GR

4

M

Fixed to 4GR

3

M

Fixed to 3GR

2

M

Fixed to 2GR

1

M

Fixed to 1GR

SAVE

6

M

Fixed to 6GR

With the over rev and under rev
protection automatic shift function
(In order to keep running function,
it shifts down automatically when
engine speed becomes low. In or-
der to avoid engine over-speed, it
shifts up automatically under red
zone.)

5

M

Fixed to 5GR

4

M

Fixed to 4GR

3

M

Fixed to 3GR

2

M

Fixed to 2GR

1

M

Fixed to 1GR

Gear ratio

1GR

4.056

2GR

2.301

3GR

1.595

4GR

1.248

5GR

1.001

6GR

0.796

Reverse

3.383

Control system

Electronic controls

Function

Self-diagnosis function

With

Fail safe function

With

Synchronizer system

Borg Warner type triple cone synchronizer

Oil pump

Type

External gear pump

Drive type

Drive with the engine

Oil

Recommended

Genuine NISSAN Transmission Oil R35 Special

Capacity

9.4 liter (9-7/8 US qt, 8-1/4 Imp qt)

(*2)

Applied model

VR38DETT

AWD

2014 GT-R

SERVICE DATA AND SPECIFICATIONS (SDS)

TM-23

< SERVICE DATA AND SPECIFICATIONS (SDS)

[TRANSMISSION: GR6Z30A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

• *1: The model No. refers to the lower five digits of the part number (32000 XXXXX).

• *2: The indicated oil level is only a guide, therefore check the oil level according to the Service Manual.
