Nissan GT-R (2007-2014 year). POWER CONTROL SYSTEM / POWER WINDOW CONTROL SYSTEM. Service Manual - part 4





PWC-18

< DTC/CIRCUIT DIAGNOSIS >

POWER WINDOW SUB-SWITCH

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace power window main switch. Refer to

PWC-46, "Removal and Installation"

.

5.

CHECK POWER WINDOW SUB-SWITCH POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect power window main switch connector and power window sub-switch connector.

3.

Check continuity between power window main switch harness connector and power window sub-switch
harness connector.

4.

Check continuity between power window sub-switch harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace harness.

6.

CHECK INTERMITTENT INCIDENT

Refer to

GI-38, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000009159925

1.

CHECK POWER WINDOW SUB-SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect power window sub-switch connector.

3.

Check continuity between power window sub-switch terminals.

(+)

(

−

)

Voltage (V)

(Approx.)

Power window main switch

Connector

Terminal

D8

16

Ground

Battery voltage

Power window sub-switch

Power window main switch

Continuity

Connector

Terminal

Connector

Terminal

D38

3

D8

16

Existed

Power window sub-switch

Ground

Continuity

Connector

Terminal

D38

3

Not existed

2014 GT-R

POWER WINDOW SUB-SWITCH

PWC-19

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace power window sub-switch. Refer to

PWC-46, "Removal and Installation"

.

Power window sub-switch

Condition

Continuity

Connector

Terminal

D38

14

3

AUTO

Existed

5

Not existed

3

Other than above

Not existed

5

Existed

15

3

UP

Existed

6

Not existed

3

Other than above

Not existed

6

Existed

16

3

DOWN

Existed

7

Not existed

3

Other than above

Not existed

7

Existed

2014 GT-R

PWC-20

< DTC/CIRCUIT DIAGNOSIS >

POWER WINDOW MOTOR

POWER WINDOW MOTOR

Description

INFOID:0000000009159926

• Operates via UP or DOWN signal from power window main switch or power window sub-switch.
• Encoder and module are built-in and controls anti-pitch function, AUTO operation, and automatic window

adjusting function.

Component Function Check

INFOID:0000000009159927

1.

 CHECK FUNCTION

Check that corresponding power window operates when power window switch (power window lock switch is
UNLOCK) is operated to the UP or DOWN position.

Is the inspection result normal?

YES

>> Power window motor function is OK.

NO

>> Refer to

PWC-20, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009159928

1.

CHECK POWER WINDOW MOTOR INPUT SIGNAL

1.

Turn ignition switch ON.

2.

Power window lock switch OFF.

3.

Check voltage between malfunctioning power window motor harness connector and ground.

*: Passenger side

Is the inspection result normal?

YES

>> Replace malfunctioning power window motor. Refer to

GW-27, "Removal and Installation (GT-R

certified NISSAN dealer)"

.

NO

>> GO TO 2.

2.

CHECK POWER WINDOW MOTOR CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect the corresponding power window motor connector and power window switch connector.

3.

Check continuity between the corresponding power window motor harness connector and power window
switch harness connector.

*: Passenger side

4.

Check continuity between the corresponding power window motor harness connector and ground.

(+)

(

−

)

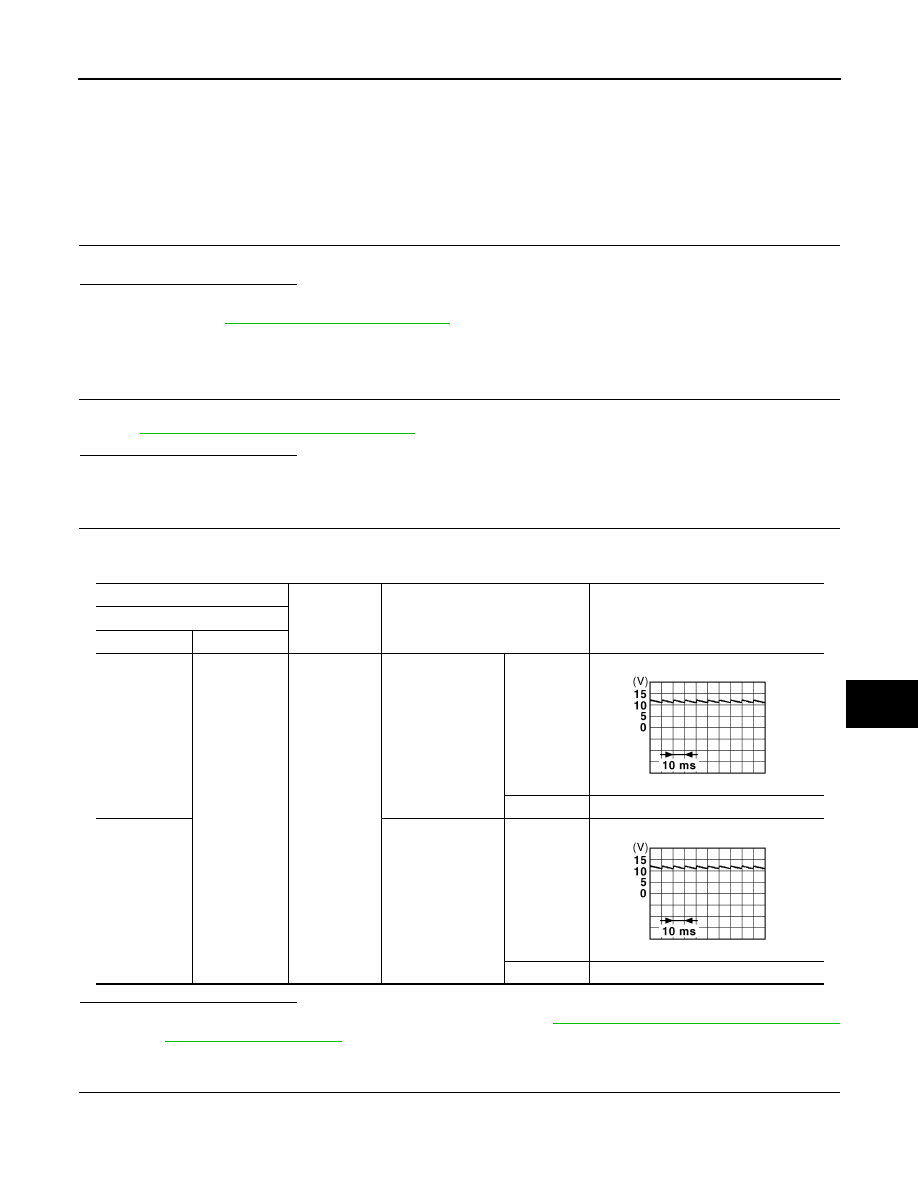

Condition

Voltage (V)

(Approx.)

Power window motor

Connector

Terminal

D10/D40*

3

Ground

When operating the corresponding power window switch upwards

Battery voltage

Other than above

0

4

When operating the corresponding power window switch downwards

Battery voltage

Other than above

0

Power window motor

Power window switch

Continuity

Connector

Terminal

Connector

Terminal

D10/D40*

3

D8/D38*

10/15*

Existed

4

11/16*

Power window motor

Ground

Continuity

Connector

Terminal

D10/D40*

3

Not existed

4

2014 GT-R

POWER WINDOW MOTOR

PWC-21

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

*: Passenger side

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK GROUND CIRCUIT

Check continuity between the corresponding power window motor harness connector and ground.

*: Passenger side

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-38, "Intermittent Incident"

.

>> INSPECTION END

Power window motor

Ground

Continuity

Connector

Terminal

D10/D40*

8

Existed

2014 GT-R

PWC-22

< DTC/CIRCUIT DIAGNOSIS >

POWER WINDOW AUTO CIRCUIT

POWER WINDOW AUTO CIRCUIT

POWER WINDOW MAIN SWITCH

POWER WINDOW MAIN SWITCH : Description

INFOID:0000000009159929

Sends AUTO signal to driver side or passenger side power window motor.

POWER WINDOW MAIN SWITCH : Component Function Check

INFOID:0000000009159930

1.

CHECK FUNCTION

Check that corresponding power window operates when driver side or passenger side switch of power window
main switch (power window lock is UNLOCK) is operated to the AUTO position.

Is the inspection result normal?

YES

>> Power window main switch AUTO function is OK.

NO

>> Refer to

PWC-22, "POWER WINDOW MAIN SWITCH : Diagnosis Procedure"

.

POWER WINDOW MAIN SWITCH : Diagnosis Procedure

INFOID:0000000009159931

1.

CHECK POWER WINDOW AUTO FUNCTION

1.

Turn ignition switch ON.

2.

Power window lock switch UNLOCK.

3.

Operate driver side and passenger side switch of power window main switch to the AUTO position.

Which side of power window AUTO operation does not operate?

Driver side>>GO TO 2.
Passenger side>>GO TO 5.

2.

CHECK DRIVER SIDE POWER WINDOW MOTOR INPUT SIGNAL

Check voltage between driver side power window motor harness connector and ground.

Is the inspection result normal?

YES

>> Replace driver side power window motor. Refer to

GW-27, "Removal and Installation (GT-R certi-

fied NISSAN dealer)"

.

NO

>> GO TO 3.

3.

CHECK POWER WINDOW AUTO SIGNAL CIRCUIT 1

1.

Turn ignition switch OFF.

2.

Disconnect driver side power window motor connector and power window main switch connector.

3.

Check continuity between driver side power window motor harness connector and power window main
switch harness connector.

4.

Check continuity between driver side power window motor harness connector and ground.

(+)

(–)

Condition

Voltage (V)

(Approx.)

Driver side power window motor

Connector

Terminal

D10

1

Ground

Power window
main switch
(driver side switch)

AUTO

Battery voltage

Other than above

0

3

UP

Battery voltage

Other than above

0

4

DOWN

Battery voltage

Other than above

0

Driver side power window motor

Power window main switch

Continuity

Connector

Terminal

Connector

Terminal

D10

1

D8

3

Existed

2014 GT-R

POWER WINDOW AUTO CIRCUIT

PWC-23

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

4.

CHECK POWER WINDOW MAIN SWITCH (DRIVER SIDE)

Check power window main switch (driver side).
Refer to

PWC-13, "DRIVER SIDE : Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 13.

NO

>> Replace power window main switch. Refer to

PWC-46, "Removal and Installation"

.

5.

CHECK PASSENGER SIDE POWER WINDOW MOTOR INPUT SIGNAL

Check voltage between passenger side power window motor harness connector and ground.

Is the inspection result normal?

YES

>> Replace passenger side power window motor. Refer to

GW-27, "Removal and Installation (GT-R

certified NISSAN dealer)"

.

NO

>> GO TO 6.

6.

CHECK POWER WINDOW SUB-SWITCH OUTPUT SIGNAL

Check voltage between power window sub-switch harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> GO TO 8.

7.

CHECK POWER WINDOW AUTO SIGNAL CIRCUIT 2

1.

Turn ignition switch OFF.

2.

Disconnect passenger side power window motor connector and power window sub-switch connector.

Driver side power window motor

Ground

Continuity

Connector

Terminal

D10

1

Not existed

(+)

(–)

Condition

Voltage (V)

(Approx.)

Passenger side power window motor

Connector

Terminal

D40

1

Ground

Power window main
switch
(passenger side
switch)

AUTO

Battery voltage

Other than above

0

3

UP

Battery voltage

Other than above

0

4

DOWN

Battery voltage

Other than above

0

(+)

(–)

Condition

Voltage (V)

(Approx.)

Power window sub-switch

Connector

Terminal

D38

14

Ground

Power window
main switch
(passenger side
switch)

AUTO

Battery voltage

Other than above

0

15

UP

Battery voltage

Other than above

0

16

DOWN

Battery voltage

Other than above

0

2014 GT-R

PWC-24

< DTC/CIRCUIT DIAGNOSIS >

POWER WINDOW AUTO CIRCUIT

3.

Check continuity between passenger side power window motor harness connector and power window
sub-switch harness connector.

4.

Check continuity between passenger side power window motor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 13.

NO

>> Repair or replace harness.

8.

CHECK POWER WINDOW SUB-SWITCH INPUT SIGNAL

Check voltage between power window sub-switch harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> GO TO 10.

9.

CHECK POWER WINDOW SUB-SWITCH

Check power window sub-switch.
Refer to

PWC-18, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 13.

NO

>> Replace power window sub-switch. Refer to

PWC-46, "Removal and Installation"

.

10.

CHECK POWER WINDOW MAIN SWITCH OUTPUT SIGNAL

Check voltage between power window main switch harness connector and ground.

Is the inspection result normal?

Passenger side power window motor

Power window sub-switch

Continuity

Connector

Terminal

Connector

Terminal

D40

1

D38

14

Existed

Passenger side power window motor

Ground

Continuity

Connector

Terminal

D40

1

Not existed

(+)

(–)

Condition

Voltage (V)

(Approx.)

Power window sub-switch

Connector

Terminal

D38

5

Ground

Power window
main switch
(passenger side
switch)

AUTO

Battery voltage

Other than above

0

6

UP

Battery voltage

Other than above

0

7

DOWN

Battery voltage

Other than above

0

(+)

(–)

Condition

Voltage (V)

(Approx.)

Power window main switch

Connector

Terminal

D8

6

Ground

Power window
main switch
(passenger side
switch)

AUTO

Battery voltage

Other than above

0

7

UP

Battery voltage

Other than above

0

15

DOWN

Battery voltage

Other than above

0

2014 GT-R

POWER WINDOW AUTO CIRCUIT

PWC-25

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

YES

>> GO TO 11.

NO

>> GO TO 12.

11.

CHECK POWER WINDOW AUTO SIGNAL CIRCUIT 3

1.

Turn ignition switch OFF.

2.

Disconnect power window main switch connector and power window sub-switch connector.

3.

Check continuity between power window main switch harness connector and power window sub-switch
harness connector.

4.

Check continuity between power window main switch harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 13.

NO

>> Repair or replace harness.

12.

CHECK POWER WINDOW MAIN SWITCH (PASSENGER SIDE)

Refer to

PWC-16, "PASSENGER SIDE : Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 13.

NO

>> Replace power window main switch. Refer to

PWC-46, "Removal and Installation"

.

13.

CHECK INTERMITTENT INCIDENT

Refer to

GI-38, "Intermittent Incident"

.

>> INSPECTION END

POWER WINDOW SUB-SWITCH

POWER WINDOW SUB-SWITCH : Description

INFOID:0000000009159932

Sends AUTO signal to passenger side power window motor.

POWER WINDOW SUB-SWITCH : Component Function Check

INFOID:0000000009159933

1.

CHECK FUNCTION

Check that passenger side power window operates when power window sub-switch (power window lock
switch is UNLOCK) is operated to the AUTO position.

Is the inspection result normal?

YES

>> Power window sub-switch AUTO function is OK.

NO

>> Refer to

PWC-25, "POWER WINDOW SUB-SWITCH : Diagnosis Procedure"

.

POWER WINDOW SUB-SWITCH : Diagnosis Procedure

INFOID:0000000009159934

1.

CHECK PASSENGER SIDE POWER WINDOW MOTOR INPUT SIGNAL

1.

Turn ignition switch ON.

2.

Power window lock switch UNLOCK.

3.

Check voltage between passenger side power window motor harness connector and ground.

Power window main switch

Power window sub-switch

Continuity

Connector

Terminal

Connector

Terminal

D8

6

D38

5

Existed

Power window main switch

Ground

Continuity

Connector

Terminal

D8

6

Not existed

2014 GT-R

PWC-26

< DTC/CIRCUIT DIAGNOSIS >

POWER WINDOW AUTO CIRCUIT

Is the inspection result normal?

YES

>> Replace passenger side power window motor. Refer to

GW-27, "Removal and Installation (GT-R

certified NISSAN dealer)"

.

NO

>> GO TO 2.

2.

CHECK POWER WINDOW AUTO SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect passenger side power window motor connector and power window sub-switch connector.

3.

Check continuity between passenger side power window motor harness connector and power window
sub-switch harness connector.

4.

Check continuity between passenger side power window motor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK POWER WINDOW SUB-SWITCH

Check power window sub-switch.
Refer to

PWC-18, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace power window sub-switch. Refer to

PWC-46, "Removal and Installation"

.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-38, "Intermittent Incident"

.

>> INSPECTION END

(+)

(

−

)

Condition

Voltage (V)

(Approx.)

Passenger side power window motor

Connector

Terminal

D40

1

Ground

Power window sub-
switch

AUTO

Battery voltage

Other than above

0

Passenger side power window motor

Power window sub-switch

Continuity

Connector

Terminal

Connector

Terminal

D40

1

D38

14

Existed

Passenger side power window motor

Ground

Continuity

Connector

Terminal

D40

1

Not existed

2014 GT-R

POWER WINDOW SWITCH ILLUMINATION CIRCUIT

PWC-27

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

POWER WINDOW SWITCH ILLUMINATION CIRCUIT

POWER WINDOW MAIN SWITCH

POWER WINDOW MAIN SWITCH : Description

INFOID:0000000009159935

When ignition switch turns ON, power window main switch illuminates.

POWER WINDOW MAIN SWITCH : Component Function Check

INFOID:0000000009159936

1.

CHECK FUNCTION

Check that power window main switch illuminates when ignition switch turns ON.

Is the inspection result normal?

YES

>> Power window main switch illumination circuit is OK.

NO

>> Refer to

PWC-27, "POWER WINDOW MAIN SWITCH : Diagnosis Procedure"

.

POWER WINDOW MAIN SWITCH : Diagnosis Procedure

INFOID:0000000009159937

1.

CHECK GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect power window main switch connector.

3.

Check continuity between power window main switch harness connector and ground.

Is the inspection result normal?

YES

>> Replace power window main switch. Refer to

PWC-46, "Removal and Installation"

.

NO

>> Repair or replace harness.

POWER WINDOW SUB-SWITCH

POWER WINDOW SUB-SWITCH : Description

INFOID:0000000009159938

When ignition switch turns ON, power window sub-switch illuminates.

POWER WINDOW SUB-SWITCH : Component Function Check

INFOID:0000000009159939

1.

CHECK FUNCTION

Check that power window sub-switch illuminates when ignition switch turns ON.

Is the inspection result normal?

YES

>> Power window sub-switch illumination circuit is OK.

NO

>> Refer to

PWC-27, "POWER WINDOW SUB-SWITCH : Diagnosis Procedure"

.

POWER WINDOW SUB-SWITCH : Diagnosis Procedure

INFOID:0000000009159940

1.

CHECK POWER WINDOW SUB-SWITCH INPUT SIGNAL

1.

Turn ignition switch ON.

2.

Check voltage between power window sub-switch harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

Power window main switch

Ground

Continuity

Connector

Terminal

D8

8

Existed

(+)

(

−

)

Voltage (V)

(Approx.)

Power window sub-switch

Connector

Terminal

D38

11

Ground

Battery voltage

2014 GT-R

PWC-28

< DTC/CIRCUIT DIAGNOSIS >

POWER WINDOW SWITCH ILLUMINATION CIRCUIT

NO

>> GO TO 2.

2.

CHECK POWER WINDOW SUB-SWITCH POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect power window sub-switch connector and passenger side power window motor connector.

3.

Check continuity between power window sub-switch harness connector and passenger side power win-
dow motor harness connector.

4.

Check continuity between power window sub-switch harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

3.

CHECK GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect power window sub-switch connector.

3.

Check continuity between power window sub-switch harness connector and ground.

Is the inspection result normal?

YES

>> Replace power window sub-switch. Refer to

PWC-46, "Removal and Installation"

.

NO

>> Repair or replace harness.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-38, "Intermittent Incident"

.

>> INSPECTION END

Power window sub-switch

Passenger side power window motor

Continuity

Connector

Terminal

Connector

Terminal

D38

11

D40

2

Existed

Power window sub-switch

Ground

Continuity

Connector

Terminal

D38

11

Not existed

Power window sub-switch

Ground

Continuity

Connector

Terminal

D38

8

Existed

2014 GT-R

DOOR SWITCH CIRCUIT

PWC-29

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

DOOR SWITCH CIRCUIT

Description

INFOID:0000000009159941

Detects driver side and passenger side doors open or closed condition.

Component Function Check

INFOID:0000000009159942

1.

CHECK FUNCTION

Check that driver side and passenger side automatic window adjustment function operates.

Is the inspection result normal?

YES

>> Door switch circuit function is OK.

NO

>> Refer to

PWC-29, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009159943

1.

CHECK DOOR SWITCH

Check door switch.
Refer to

DLK-44, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK DOOR SWITCH INPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Check voltage signal between power window motor harness connector and ground with oscilloscope.

Is the inspection result normal?

YES

>> Replace malfunctioning power window motor. Refer to

GW-27, "Removal and Installation (GT-R

certified NISSAN dealer)"

.

NO

>> GO TO 3.

3.

CHECK DOOR SWITCH CIRCUIT

1.

Disconnect BCM connector and malfunctioning power window motor connector.

2.

Check continuity between BCM harness connector and malfunctioning power window motor harness con-
nector.

(+)

(–)

Condition

Voltage (V)

(Approx.)

Power window motor

Connector

Terminal

D10

6

Ground

Door switch
(driver side)

Pressed

Released

0

D40

Door switch
(passenger side)

Pressed

Released

0

JPMIA0011GB

JPMIA0011GB

2014 GT-R

PWC-30

< DTC/CIRCUIT DIAGNOSIS >

DOOR SWITCH CIRCUIT

3.

Check continuity between malfunctioning power window motor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-38, "Intermittent Incident"

.

>> INSPECTION END

Power window motor

BCM

Continuity

Connector

Terminal

Connector

Terminal

Driver side

D10

6

M123

150

Existed

Passenger side

D40

124

Power window motor

Ground

Continuity

Connector

Terminal

Driver side

D10

6

Not existed

Passenger side

D40

2014 GT-R

POWER WINDOW MOTOR

PWC-31

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

ECU DIAGNOSIS INFORMATION

POWER WINDOW MOTOR

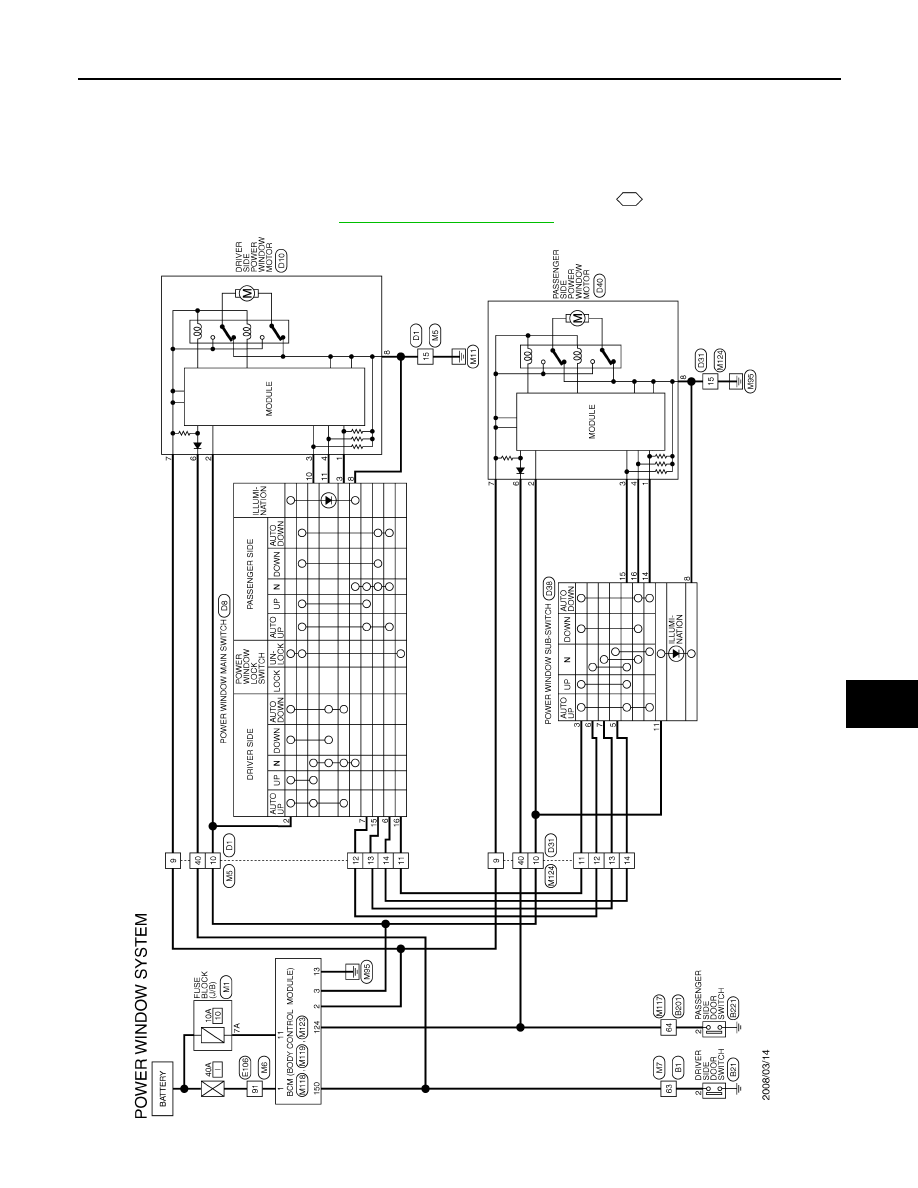

Wiring Diagram - POWER WINDOW SYSTEM -

INFOID:0000000009159949

For connector terminal arrangements, harness layouts, and alphabets in a

 (option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information"

.

JCKWA1313GB

2014 GT-R

PWC-32

< ECU DIAGNOSIS INFORMATION >

POWER WINDOW MOTOR

Fail-Safe

INFOID:0000000009159950

FAIL-SAFE CONTROL

Fail-safe control is activated when the actual glass position that is out of the specified value is detected com-
pared to the fully closed position memorized in module in power window motor, or when a malfunction is
detected in the encoder signal that indicates UP or DOWN speed and direction of door glass.

In fail-safe control, the system changes to a non-initialized condition and the following functions do not oper-
ate.
• AUTO UP operation
• Anti-pinch function
• Timer function
• Automatic window adjusting function
When fail-safe control is activated, perform initializing operation to recover. If a malfunction is detected in
power window motor, fail-safe control is activated again.

Malfunction

Malfunction condition

Pulse direction malfunc-
tion (opposite backlash
pulse detection)

When a pulse signal indicates that the window is moving in the opposite direction against the power
window motor is detected for the specified value or more, while door glass is being operated UP or
DOWN.

Pulse sensor (Hall IC)
malfunction (one side
pulse shut-off detection)

When one pulse signal that is the specified value or more is detected continuously for the specified
time or more, while door glass is being operated UP or DOWN.

Both pulse sensor mal-
function (both sides pulse
shut-off detection)

When both pulse signals are not detected continuously for the specified time or more, while door
glass is being operated UP or DOWN.

Glass recognition position
malfunction 1 (UP over-
run)

When the actual door glass position that is out of the specified value is detected compared to the
door glass fully closed position memorized in module, while door glass is being operated UP. (Actual
door glass fully closed position is detected to be higher than the memorized position in module for
the specified value or more.)

Glass recognition position
malfunction 2 (Out of
memorized area)

When the actual door glass position that is out of the specified value is detected compared to the
door glass fully closed position memorized in module, while door glass is being operated UP. (Actual
door glass fully closed position is detected to be lower than the memorized position in module for the
specified value or more.)

Glass recognition position
malfunction 3 (Full stroke
malfunction)

When pulse count that is out of the door glass full stroke value or more is detected, while door glass
is being operated UP.

Fully closed position up-
date malfunction

When door glass is continuously operated UP and DOWN for the specified value or more without
fully closing door glass.

2014 GT-R

NONE OF THE POWER WINDOWS CAN BE OPERATED USING ANY SWITCH

PWC-33

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

SYMPTOM DIAGNOSIS

NONE OF THE POWER WINDOWS CAN BE OPERATED USING ANY
SWITCH

Diagnosis Procedure

INFOID:0000000009159951

1.

CHECK BCM POWER SUPPLY AND GROUND CIRCUIT

Check BCM power supply and ground circuit.
Refer to

BCS-13, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK POWER WINDOW MOTOR POWER SUPPLY AND GROUND CIRCUIT

Check power window motor power supply and ground circuit.
Refer to

PWC-10, "POWER WINDOW MOTOR : Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning parts.

3.

CHECK POWER WINDOW MAIN SWITCH POWER SUPPLY AND GROUND CIRCUIT

Check power window main switch power supply and ground circuit.
Refer to

PWC-11, "POWER WINDOW MAIN SWITCH : Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace the malfunctioning parts.

4.

CONFIRM THE OPERATION

Confirm the operation again.
Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-38, "Intermittent Incident"

.

NO

>> GO TO 1.

2014 GT-R















Content      ..     2      3      4      5     ..
