Nissan GT-R (2007-2014 year). METER, WARNING LAMP & INDICATOR. Service Manual

MWI

METER SYSTEM

MWI-17

< SYSTEM DESCRIPTION >

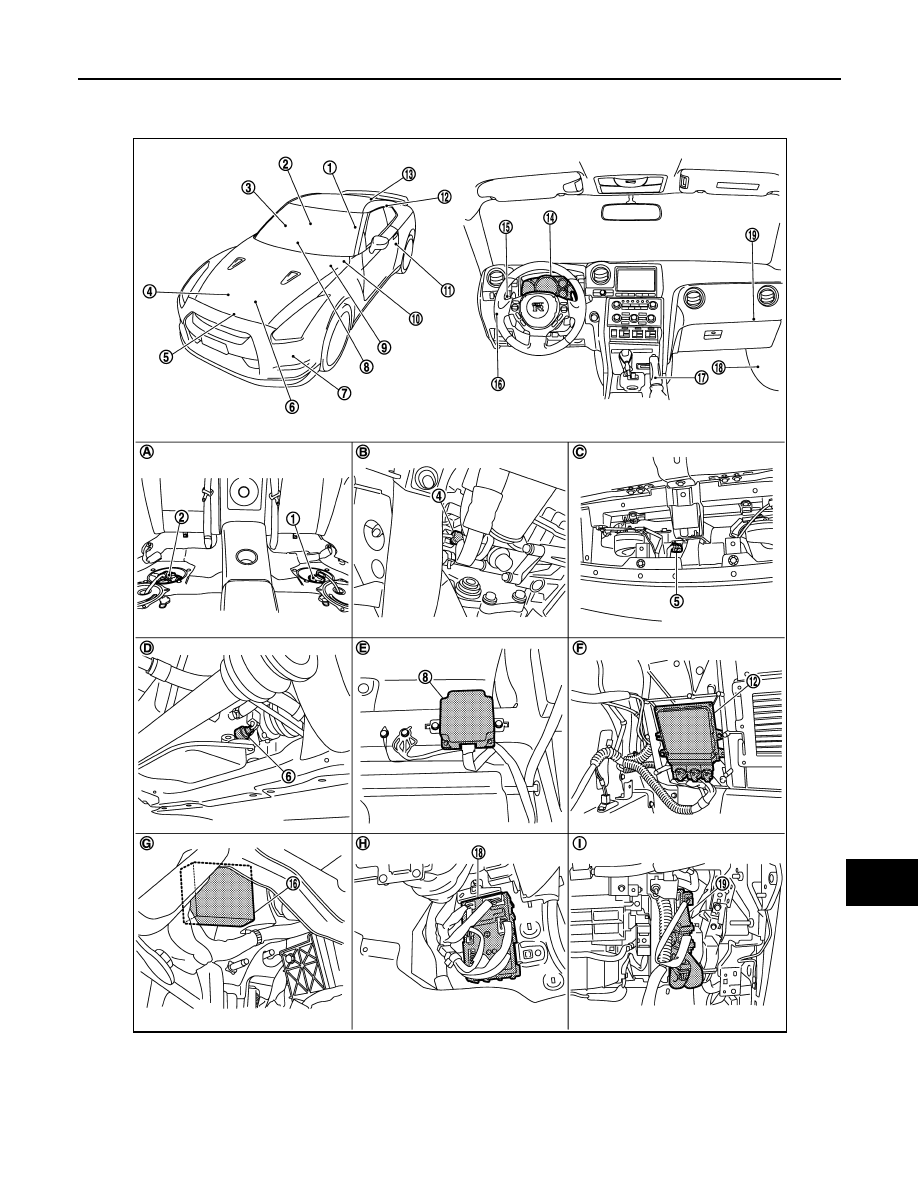

FUEL GAUGE : Component Parts Location

INFOID:0000000009189308

Fuel level sensor unit
(Sub)

Fuel level sensor unit
(Main)

Door switch (passenger side)

Oil pressure sensor

Ambient sensor

Oil level sensor

Washer level switch

AWD control unit

Brake fluid level switch

JPNIA1142ZZ

Revision: 2012 November

2014 GT-R

MWI-18

< SYSTEM DESCRIPTION >

METER SYSTEM

FUEL GAUGE : Component Description

INFOID:0000000009189309

ODO/TRIP METER

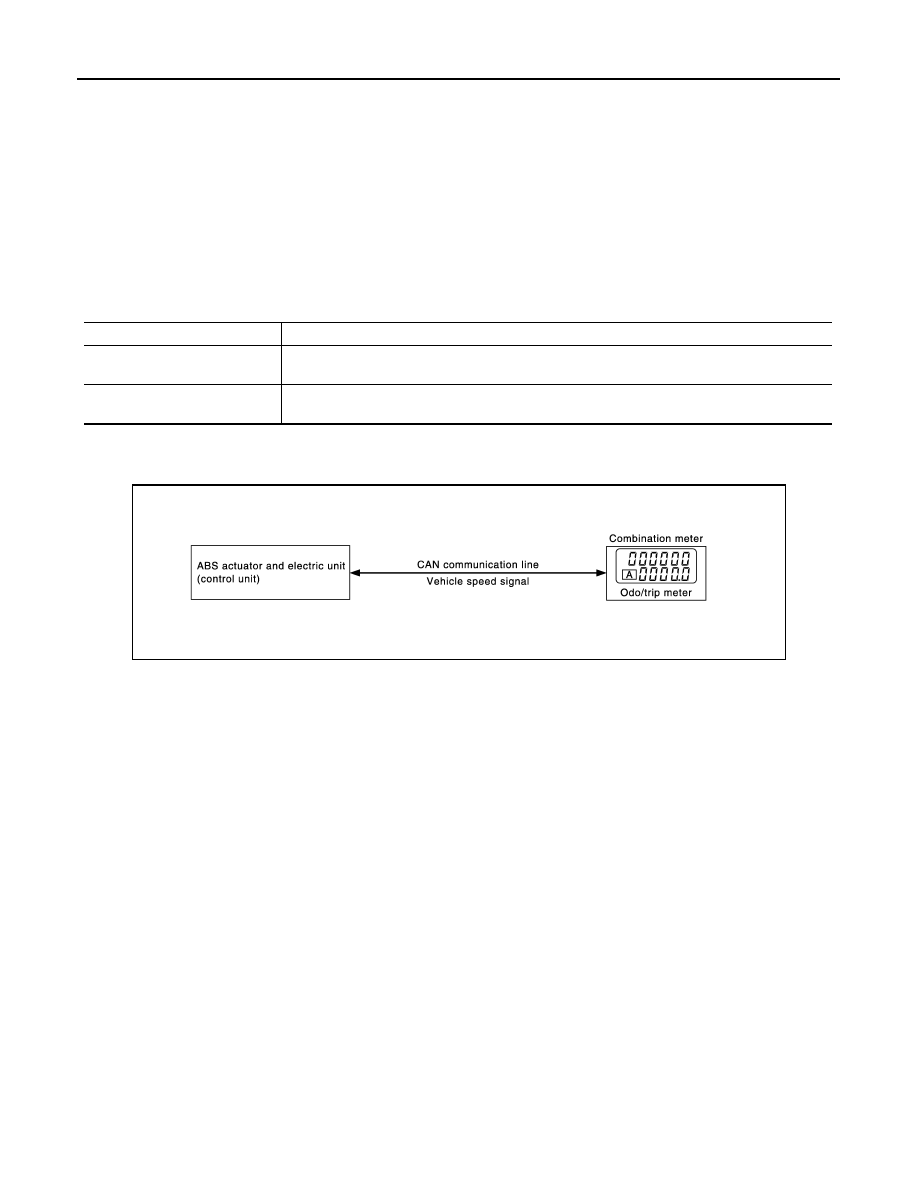

ODO/TRIP METER : System Diagram

INFOID:0000000009189310

ODO/TRIP METER : System Description

INFOID:0000000009189311

• ABS actuator control unit reads the rectangular wave signal received from wheel sensor, and transmits the

vehicle speed signal to the combination meter via CAN communication.

• The combination meter receives the vehicle speed signal from the ABS actuator and electric unit (control

unit) via CAN communication, then calculates and displays the travel distance.

10. ABS actuator and electric unit (con-

trol unit)

11. Door switch (driver side)

12. TCM

13. Trunk switch

14. Combination meter

15. Combination switch (Lighting switch)

16. Low tire pressure warning control unit 17. Parking brake

18. BCM

19. ECM

Under rear seat

Right side of engine

Radiator core support (center)

Oil pan LH upper

Front RH seat under

Trunk room left back

Lower instrument panel LH

Dashboard side lower (passenger
seat side)

Glove box assembly back

Unit

Description

Combination meter

Reads the fuel level sensor signal (resistance value) from the fuel level sensor unit, and indicates
the remaining fuel level.

Fuel level sensor unit

Detects the fuel level in fuel tank using the fuel level sensor unit, and transmits the fuel level sen-
sor signal to the combination meter.

JPNIA1015GB

Revision: 2012 November

2014 GT-R

MWI

METER SYSTEM

MWI-19

< SYSTEM DESCRIPTION >

ODO/TRIP METER : Component Parts Location

INFOID:0000000009189312

Fuel level sensor unit
(Sub)

Fuel level sensor unit
(Main)

Door switch (passenger side)

Oil pressure sensor

Ambient sensor

Oil level sensor

Washer level switch

AWD control unit

Brake fluid level switch

JPNIA1142ZZ

Revision: 2012 November

2014 GT-R

MWI-20

< SYSTEM DESCRIPTION >

METER SYSTEM

ODO/TRIP METER : Component Description

INFOID:0000000009189313

SHIFT POSITION INDICATOR

SHIFT POSITION INDICATOR : System Diagram

INFOID:0000000009189314

SHIFT POSITION INDICATOR : System Description

INFOID:0000000009189315

• The combination meter receives the shift position signal from TCM via CAN communication, and displays

the shift position to the shift position indicator.

• The combination meter receives the shift position signal from TCM via CAN communication. If the status

does not allow a shift change, it blinks the shift position indicator.

10. ABS actuator and electric unit (con-

trol unit)

11. Door switch (driver side)

12. TCM

13. Trunk switch

14. Combination meter

15. Combination switch (Lighting switch)

16. Low tire pressure warning control unit 17. Parking brake

18. BCM

19. ECM

Under rear seat

Right side of engine

Radiator core support (center)

Oil pan LH upper

Front RH seat under

Trunk room left back

Lower instrument panel LH

Dashboard side lower (passenger
seat side)

Glove box assembly back

Unit

Description

Combination meter

Converts the vehicle speed signal received from the ABS actuator and electric unit (control unit)
via CAN communication to mileage, and displays the accumulated mileage to the odometer and
tripmeter.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter via CAN communication.

JPNIA1146GB

Revision: 2012 November

2014 GT-R

MWI

METER SYSTEM

MWI-21

< SYSTEM DESCRIPTION >

SHIFT POSITION INDICATOR : Component Parts Location

INFOID:0000000009189316

Fuel level sensor unit
(Sub)

Fuel level sensor unit
(Main)

Door switch (passenger side)

Oil pressure sensor

Ambient sensor

Oil level sensor

Washer level switch

AWD control unit

Brake fluid level switch

JPNIA1142ZZ

Revision: 2012 November

2014 GT-R

MWI-22

< SYSTEM DESCRIPTION >

METER SYSTEM

SHIFT POSITION INDICATOR : Component Description

INFOID:0000000009189317

OIL PRESSURE WARNING LAMP

OIL PRESSURE WARNING LAMP : System Diagram

INFOID:0000000009189318

OIL PRESSURE WARNING LAMP : System Description

INFOID:0000000009189319

OIL PRESSURE WARNING LAMP

Control Outline

The combination meter reads the oil pressure sensor signal from oil pressure sensor, and illuminates/turns off
the oil pressure warning lamp.
NOTE:
The display of engine oil pressure warning on the information display is shown/turned off simultaneously with
the illumination/turning off of the oil pressure warning lamp.

10. ABS actuator and electric unit (con-

trol unit)

11. Door switch (driver side)

12. TCM

13. Trunk switch

14. Combination meter

15. Combination switch (Lighting switch)

16. Low tire pressure warning control unit 17. Parking brake

18. BCM

19. ECM

Under rear seat

Right side of engine

Radiator core support (center)

Oil pan LH upper

Front RH seat under

Trunk room left back

Lower instrument panel LH

Dashboard side lower (passenger
seat side)

Glove box assembly back

Unit

Description

Combination meter

• Receives the shift position signal from TCM via CAN communication, and displays the shift po-

sition to the shift position indicator.

• Receives the shift position signal from TCM via CAN communication, and if the status does not

allow a shift change, it blinks the shift position display in the shift position indicator.

TCM

Transmits the shift position signal to the combination meter via CAN communication.

JPNIA1144GB

Revision: 2012 November

2014 GT-R

MWI

METER SYSTEM

MWI-23

< SYSTEM DESCRIPTION >

OIL PRESSURE WARNING LAMP : Component Parts Location

INFOID:0000000009189320

Fuel level sensor unit
(Sub)

Fuel level sensor unit
(Main)

Door switch (passenger side)

Oil pressure sensor

Ambient sensor

Oil level sensor

Washer level switch

AWD control unit

Brake fluid level switch

JPNIA1142ZZ

Revision: 2012 November

2014 GT-R

MWI-24

< SYSTEM DESCRIPTION >

METER SYSTEM

OIL PRESSURE WARNING LAMP : Component Description

INFOID:0000000009189321

METER ILLUMINATION CONTROL

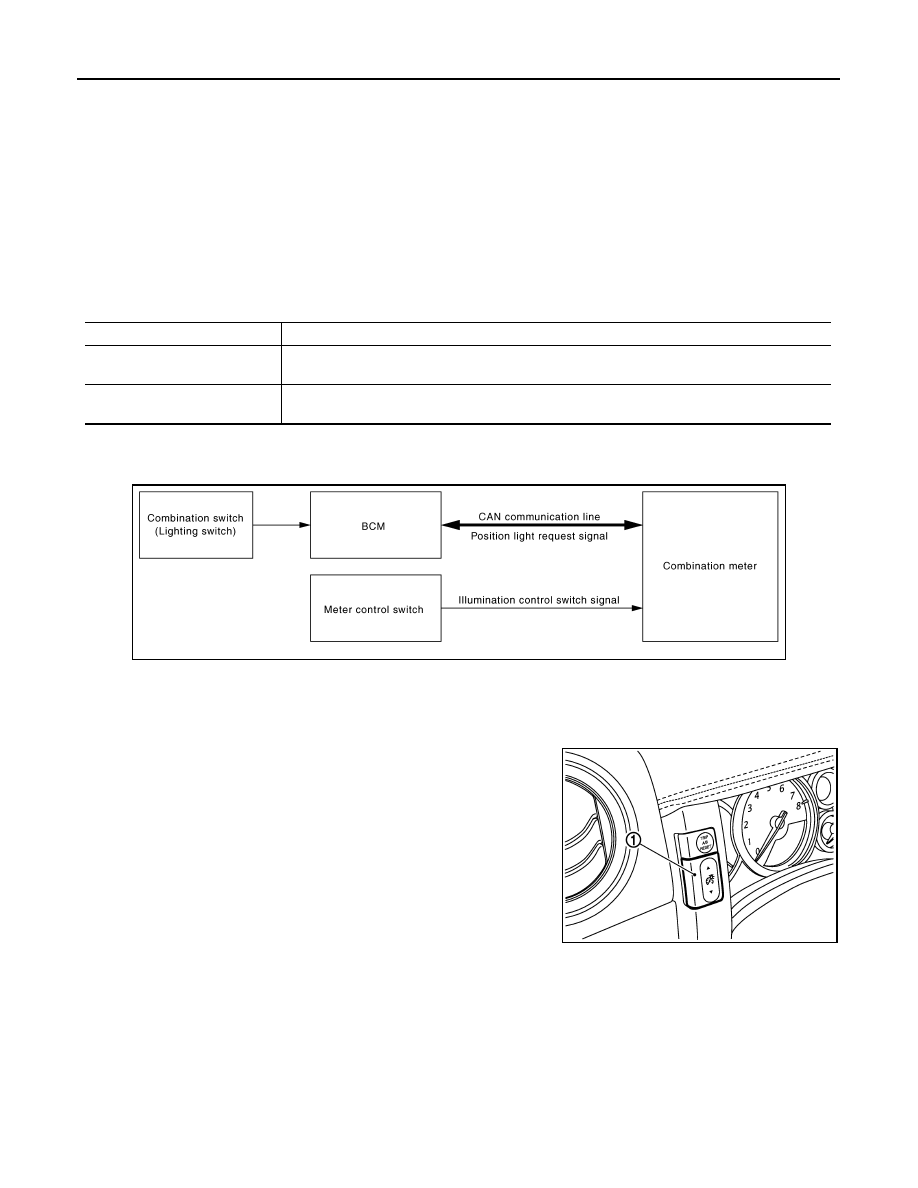

METER ILLUMINATION CONTROL : System Diagram

INFOID:0000000009189322

METER ILLUMINATION CONTROL : System Description

INFOID:0000000009189323

METER ILLUMINATION CONTROL FUNCTION

Every time when the illumination control switch (1) is pressed, the
illuminance of meter illumination can be adjusted in 22 steps. (Illumi-
nance can be adjusted both in daytime and nighttime modes.)

10. ABS actuator and electric unit (con-

trol unit)

11. Door switch (driver side)

12. TCM

13. Trunk switch

14. Combination meter

15. Combination switch (Lighting switch)

16. Low tire pressure warning control unit 17. Parking brake

18. BCM

19. ECM

Under rear seat

Right side of engine

Radiator core support (center)

Oil pan LH upper

Front RH seat under

Trunk room left back

Lower instrument panel LH

Dashboard side lower (passenger
seat side)

Glove box assembly back

Unit

Description

Combination meter

Using the oil pressure sensor signal received from oil pressure sensor, illuminates/turns off the oil
pressure warning lamp.

Oil pressure sensor

Detects the oil pressure of engine oil, and transmits the oil pressure sensor signal to the combi-
nation meter.

JPNIA1147GB

NNNIA0018ZZ

Revision: 2012 November

2014 GT-R

MWI

METER SYSTEM

MWI-25

< SYSTEM DESCRIPTION >

METER ILLUMINATION CONTROL : Component Parts Location

INFOID:0000000009189324

Fuel level sensor unit
(Sub)

Fuel level sensor unit
(Main)

Door switch (passenger side)

Oil pressure sensor

Ambient sensor

Oil level sensor

Washer level switch

AWD control unit

Brake fluid level switch

JPNIA1142ZZ

Revision: 2012 November

2014 GT-R

MWI-26

< SYSTEM DESCRIPTION >

METER SYSTEM

METER ILLUMINATION CONTROL : Component Description

INFOID:0000000009189325

INFORMATION DISPLAY

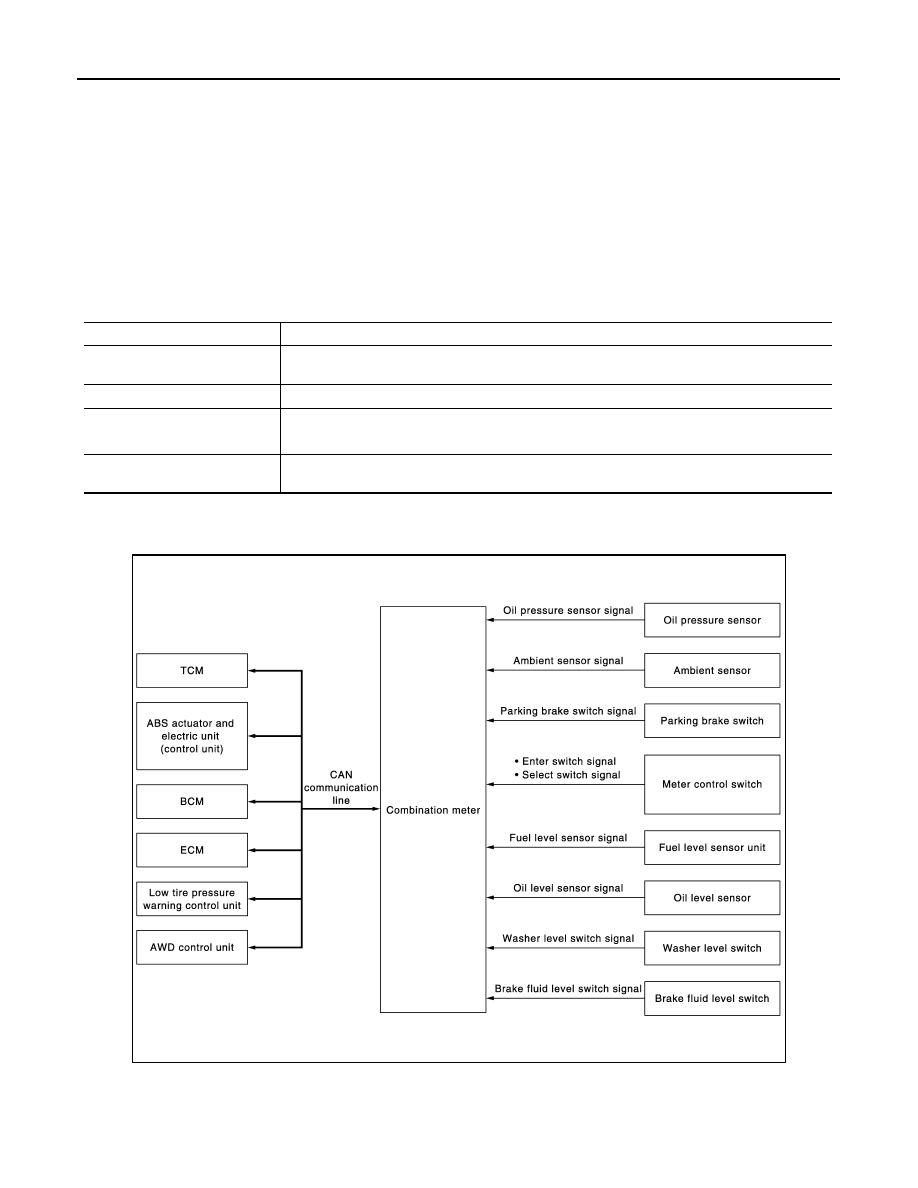

INFORMATION DISPLAY : System Diagram

INFOID:0000000009189326

INFORMATION DISPLAY : System Description

INFOID:0000000009189327

DESCRIPTION

10. ABS actuator and electric unit (con-

trol unit)

11. Door switch (driver side)

12. TCM

13. Trunk switch

14. Combination meter

15. Combination switch (Lighting switch)

16. Low tire pressure warning control unit 17. Parking brake

18. BCM

19. ECM

Under rear seat

Right side of engine

Radiator core support (center)

Oil pan LH upper

Front RH seat under

Trunk room left back

Lower instrument panel LH

Dashboard side lower (passenger
seat side)

Glove box assembly back

Unit

Description

Combination meter

Controls the meter illumination with the illumination control switch signal from the meter control
switch and the position light request signal from BCM via CAN communication.

BCM

Transmits the position light request signal to the combination meter via CAN communication.

Meter control switch

Transmits the following signals to the combination meter.

• Illumination control switch signal (+)

• Illumination control switch signal (-)

Combination switch
(Lighting switch)

Using the combination switch reading function, BCM reads the combination switch status.

JPNIA1145GB

Revision: 2012 November

2014 GT-R

MWI

METER SYSTEM

MWI-27

< SYSTEM DESCRIPTION >

• The combination meter inputs the information required to control the operation of information display by

using the communication signals and others from each unit.

• The combination meter integrates the drive computer function, and performs the warning display/information

display by using the signals received from each unit, sensor, and switch.

• When the enter switch signal or select switch signal is received, the combination meter can check, change

screens, perform setting, or reset the warning, indication, information, and setting on the information display.

INSTANTANEOUS FUEL CONSUMPTION

Control Outline

• The combination meter receives the fuel consumption monitor signal from ECM and the vehicle speed signal

from the ABS actuator control unit via CAN communication.

• Based on the fuel consumption monitor signal and vehicle speed signal that are received via CAN communi-

cation, the combination meter calculates the instantaneous fuel consumption, and displays the result.

VEHICLE SPEED

Control Outline

• The combination meter receives the vehicle speed signal from the ABS actuator and electric unit (control

unit) via CAN communication.

• Based on the vehicle speed signal received via CAN communication, the combination meter displays the

vehicle speed.

CRUISE CONTROL SYSTEM STATUS

Control Outline

• The combination meter receives the ASCD status signal from ECM via CAN communication.
• Based on the ASCD status signal received via CAN communication, the combination meter displays the

CRUISE control system setting status.
NOTE:
When the CRUISE control system is OFF, the CRUISE control system status is not displayed.

AVERAGE FUEL CONSUMPTION

Control Outline

• The combination meter receives the fuel consumption monitor signal from ECM and the vehicle speed signal

from the ABS actuator control unit via CAN communication.

• Based on the fuel consumption monitor signal and vehicle speed signal that are received via CAN communi-

cation, the combination meter calculates the average fuel consumption, and displays the result.

• The average fuel consumption displayed on the information display is updated at approximately 30-second

intervals.

NOTE:
“

−−−−

” is displayed for approximately 30 seconds just after the reset operation and after the ignition switch is

OFF

→

ON. It is displayed simultaneously until the vehicle is driven approximately 500 m (0.3 mile).

AVERAGE VEHICLE SPEED

Control Outline

• The combination meter receives the vehicle speed signal from the ABS actuator and electric unit (control

unit) via CAN communication.

• Based on the vehicle speed signal received via CAN communication and on the travel time measured in

combination meter, the combination meter calculates the average vehicle speed, and displays the result.

• The average vehicle speed displayed on the information display is updated at approximately 30-second

intervals.

NOTE:
“

−−−−

” is displayed for 30 seconds just after the reset operation and after the ignition switch is OFF

→

ON. It is

displayed simultaneously until the vehicle is driven approximately 500 m (0.3 mile).

TRAVEL TIME

Control Outline

The combination meter measures and displays travel time (ignition switch ON time).

TRAVEL DISTANCE

Control Outline

Revision: 2012 November

2014 GT-R

MWI-28

< SYSTEM DESCRIPTION >

METER SYSTEM

The combination meter receives the vehicle speed signal from the ABS actuator and electric unit (control unit)
via CAN communication, then calculates and displays the travel distance.

POSSIBLE DRIVING DISTANCE

Control Outline

• The combination meter receives the fuel consumption monitor signal from ECM and the vehicle speed signal

from the ABS actuator control unit via CAN communication.

• Based on the signal received via CAN communication and on the fuel level sensor signal received from the

fuel level sensor unit, the combination meter calculates the possible driving distance, and displays the result.

NOTE:
• “

−−−−

” is displayed for 30 seconds after the ignition switch is OFF

→

ON. It is displayed simultaneously until

the vehicle is driven approximately 500 m (0.3 mile).

• The indicated values may not match each other when refueling with the ignition switch ON. Refer to

MWI-16,

"FUEL GAUGE : System Description"

AMBIENT AIR TEMPERATURE

• Combination meter calculates outside air temperature based on the signal received from ambient sensor,

and displays the result on information display.

• Combination meter corrects the indicated temperature using ignition switch signal, ambient sensor signal

and vehicle speed signal.

Correction Process (Right after ignition switch is turned ON)

The detected temperature by ambient sensor is displayed when the vehicle enters in both of the following con-
dition.
• When the detected temperature is higher than the indicated temperature on information display.
• When the duration of ignition switch OFF to ON is long.
The last indicated temperature is displayed when the vehicle enters in either of the following conditions.
• When the detected temperature by ambient sensor is lower than the indicated temperature on information

display.

• When the duration of ignition switch OFF to ON is short.

Correction Process (When the ignition switch is ON)

The detected temperature by ambient sensor is displayed under the following condition.
• When the detected temperature is lower than the indicated temperature on information display.
The indicated temperature is not updated under the following condition.
• When the detected temperature by ambient sensor is higher than the indicated temperature on information

display [at a speed of 20 km/h (12 MPH) or less].

The indicated temperature on information display rises slowly to reach the detected temperature by ambient
sensor under the following condition.
• When the detected temperature is higher than the indicated temperature on information display [at a speed

of more than 20 km/h (12 MPH)].

The indicated temperature on information display rises to reach the detected temperature by ambient sensor
under the following condition.
• When the detected temperature is higher than the indicated temperature on information display [while driv-

ing a certain period of time at a speed of more than 20 km/h (12 MPH)].

NOTE:
• “

−−−−

” is displayed for 2.5 seconds right after ignition switch is turned ON.

• If a battery or combination meter is removed and installed, the detected temperature by ambient sensor is

displayed, right after ignition switch is turned ON.

• The indicated temperature may be higher than the actual temperature because of heat radiation from engine

or reflection of heat on road surface.

SETTING

Revision: 2012 November

2014 GT-R

MWI

METER SYSTEM

MWI-29

< SYSTEM DESCRIPTION >

Setting item list

NOTE:
Engine oil level display

Items

Setting range

Setting unit

(Press and

hold for 1

second or

more)

Description

Alert

Up shift

AUTO, OFF, 3000 rpm –
6300 rpm

100 rpm

(500 rpm)

The engine speed signal is re-
ceived from ECM via CAN commu-
nication, and the up-shift indicator
can be set to ON/blink/OFF de-
pending on the engine speed.

Timer

OFF, 0.5HOUR–
6HOUR

30 minutes

(60 minutes)

An alarm message is displayed on
the information display when the
set travel time is reached.

ICY

ON/OFF

—

When the ambient air temperature

becomes 3

C (37

F) or lower, the

ambient sensor signal is received
from the ambient sensor and a
freeze caution alarm message is
displayed on the information dis-
play.

Maintenance

Oil

Engine

Replace-

ment dis-

tance

No setting – 15000 km
No setting – 9500 miles

500 km

(1000 km)

250 miles

(500 miles)

• An engine oil replacement dis-

tance warning is displayed on the
information display.

• When the set distance is

reached, a warning is displayed
requesting replacement of the
engine oil.

Remain-

ing amount

—

• The oil level sensor signal is re-

ceived from oil level sensor, and
the engine oil level is displayed in
5 steps.

• The oil level sensor signal is re-

ceived from the oil level sensor,
and an indication is displayed
that the engine oil level is at a
normal value.

• The oil level sensor signal is re-

ceived from the oil level sensor,
and an indication is displayed
that the engine oil level is abnor-
mal.

Trans-
mission

Replace-

ment dis-

tance

No setting – 90000 km
No setting – 55500 miles

500 km

(1000 km)

250 miles

(500 miles)

When the set distance is reached, a
warning is displayed requesting re-
placement of the transmission oil.

Filter

Replace-

ment dis-

tance

No setting – 15000 km
No setting – 9500 miles

500 km

(1000 km)

250 miles

(500 miles)

When the set distance is reached, a
warning is displayed requesting re-
placement of the oil filter.

Tire

Replace-

ment dis-

tance

No setting – 30000 km
No setting – 18500 miles

500 km

(1000 km)

250 miles

(500 miles)

When the set distance is reached, a
warning is displayed requesting re-
placement of the tires.

Options

Language

ENGLISH/FRANCAIS

—

Changing the language setting can
be performed.

Unit

METRIC/US

—

Changing the unit setting can be
performed.

Revision: 2012 November

2014 GT-R

MWI-30

< SYSTEM DESCRIPTION >

METER SYSTEM

When the following conditions are satisfied, the combination meter reads the resistance value of oil level sen-
sor, and displays the oil level on the information display. The combination meter does not read the oil level
sensor resistance value within 5 minutes after the previous reading of oil level sensor resistance value by the
combination meter.
1.

Turn the ignition switch OFF.

Wait for 5 minutes or more, then open the driver door.

DOOR OPEN WARNING

Control Outline

The combination meter receives the door switch signal from BCM via CAN communication, then judges and
displays the door open warning.

TRUNK OPEN WARNING

Control Outline

The combination meter receives the trunk switch signal from BCM via CAN communication, then judges and
displays the trunk open warning.

PARKING BRAKE RELEASE WARNING

Control Outline

Based on the vehicle speed signal received from ABS actuator and electric unit (control unit) via CAN commu-
nication and on the parking brake switch signal received from parking brake switch, the combination meter
judges and displays the parking brake release warning.

Warning Operation Condition

The system judges that the parking brake is not released when the following conditions are satisfied.

• Vehicle speed is 7 km/h (4.3 MPH) or higher
• Parking brake switch ON

LOW FUEL WARNING

Control Outline

• Using the fuel gauge signal sent from the fuel level sensor unit, the combination meter judges and displays

the fuel level warning.

Warning Operation Condition

• Fuel level: Approximately 13.5 (3-5/8 US gal, 3 lmp gal) or less [1.0 (1/4 US gal, 1/4 Imp gal) fuel resi-

dues included].

LOW WASHER FLUID WARNING

Control Outline

• The combination meter receives the washer level switch signal from the washer level switch.
• Based on the received washer level switch signal, the combination meter displays the low washer fluid warn-

ing.

Warning Operation Condition

• The low washer fluid warning is displayed if the washer level switch remains ON for 180 seconds or more.
• Even when the washer level switch is turned OFF while displaying the low washer fluid warning, the warning

remains displayed if it is within 30 seconds.

ENGINE OIL LEVEL SENSOR ABNORMALITY WARNING

Control Outline

JSNIA0033GB

Revision: 2012 November

2014 GT-R

MWI

METER SYSTEM

MWI-31

< SYSTEM DESCRIPTION >

Under the following conditions, the combination meter displays the oil level sensor warning.
• Oil level sensor is open (resistance value of oil level sensor signal circuit exceeds 20

Ω

• Oil level sensor is shorted (resistance value of oil level sensor signal circuit is less than 3

Ω

SHIFT LEVER POSITION WARNING

Control Outline

• The combination meter receives the shift lever position warning display signal from TCM via CAN communi-

cation.

• Based on the shift lever position warning display signal received via CAN communication, the combination

meter displays the shift lever position warning.

SHIFT “ P ” WARNING

Control Outline

• The combination meter receives the shift lever position check display signal from TCM via CAN communica-

tion.

• Based on the shift lever position check display signal received via CAN communication, the combination

meter displays the shift “ P ” warning.

TRANSMISSION SYSTEM CHECK

Control Outline

• The combination meter receives the transmission system check display signal from TCM via CAN communi-

cation.

• Based on the transmission system check display signal received via CAN communication, the combination

meter displays the transmission system check.

RUN-FLAT TIRE WARNING

Control Outline

• The combination meter receives the run-flat tire warning display signal from the low tire pressure warning

control unit via CAN communication.

• Based on the run-flat tire warning display signal received via CAN communication, the combination meter

displays the run-flat tire warning.

TRANSMISSION CLUTCH HIGH TEMPERATURE WARNING

Control Outline

• The combination meter receives the transmission clutch high temperature warning display signal from TCM

via CAN communication.

• Based on the transmission clutch high temperature warning display signal received via CAN communication,

the combination meter displays the transmission clutch high temperature warning.

TRANSMISSION OIL HIGH TEMPERATURE WARNING

• The combination meter receives the transmission oil high temperature warning display signal from TCM via

CAN communication.

• Based on the transmission oil high temperature warning display signal received via CAN communication, the

combination meter displays the transmission oil high temperature warning.

LOW TIRE PRESSURE WARNING

Control Outline

• The combination meter receives the low tire pressure warning display signal from the low tire pressure warn-

ing control unit via CAN communication.

• Based on the low tire pressure warning display signal received via CAN communication, the combination

meter displays the low tire pressure warning.

AWD CLUTCH HIGH TEMPERATURE WARNING

Control Outline

• The combination meter receives the AWD clutch high temperature warning display signal from the AWD

control unit via CAN communication.

• Based on the AWD clutch high temperature warning display signal received via CAN communication, the

combination meter displays the AWD clutch high temperature warning.

FRONT/REAR TIRE SIZE DISCREPANCY WARNING

Revision: 2012 November

2014 GT-R

MWI-32

< SYSTEM DESCRIPTION >

METER SYSTEM

Control Outline

• The combination meter receives the front/rear tire discrepancy warning display signal from the AWD control

unit via CAN communication.

• Based on the front/rear tire discrepancy warning display signal received via CAN communication, the combi-

nation meter displays the front/rear tire discrepancy warning.

TRANSMISSION SYSTEM WARNING

Control Outline

• The combination meter receives the transmission system warning display signal from TCM via CAN commu-

nication.

• Based on the transmission system warning display signal received via CAN communication, the combination

meter displays the transmission system warning.

TIRE PRESSURE MONITORING SYSTEM WARNING

Control Outline

• The combination meter receives the tire pressure monitoring system warning display signal from the low tire

pressure warning control unit via CAN communication.

• Based on the tire pressure monitoring system warning display signal received via CAN communication, the

combination meter displays the tire pressure monitoring system warning.

AWD SYSTEM WARNING

Control Outline

• The combination meter receives the AWD system warning display signal from the AWD control unit via CAN

communication.

• Based on the AWD system warning display signal received via CAN communication, the combination meter

displays the AWD system warning.

ANTI-LOCK BRAKING SYSTEM (ABS) WARNING

Control Outline

• The combination meter receives the ABS warning display signal from the ABS control unit via CAN commu-

nication.

• Based on the ABS warning display signal received via CAN communication, the combination meter displays

the anti-lock braking system (ABS) warning.

VEHICLE DYNAMIC CONTROL (VDC) SYSTEM WARNING

Control Outline

• The combination meter receives the VDC warning display signal from the ABS control unit via CAN commu-

nication.

• Based on the VDC warning display signal received via CAN communication, the combination meter displays

the vehicle dynamic control (VDC) system warning.

ENGINE SYSTEM WARNING

Control Outline

• The combination meter receives the engine status signal from ECM via CAN communication.
• Based on the engine status signal received via CAN communication, the combination meter displays the

engine system warning.

CRUISE CONTROL SYSTEM WARNING

Control Outline

• The combination meter receives the ASCD status signal from ECM via CAN communication.
• Based on the ASCD status signal received via CAN communication, the combination meter displays the

cruise control system warning.

ENGINE OIL LOW PRESSURE WARNING

Control Outline

• The combination meter receives the oil pressure sensor signal from the oil pressure sensor.
• Based on the received oil pressure sensor signal, the combination meter displays the insufficient engine oil

low pressure warning.

Revision: 2012 November

2014 GT-R

Nissan GT-R (2007-2014 year). METER, WARNING LAMP & INDICATOR. Service Manual - part 2
