Nissan GT-R (2007-2014 year). HORN / INTERIOR LIGHTING SYSTEM / INTERIOR. Service Manual - part 3





INT-6

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

Diagnostic Worksheet

INFOID:0000000009162321

PIIB8740E

Revision: 2012 November

2014 GT-R

SQUEAK AND RATTLE TROUBLE DIAGNOSES

INT-7

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

PIIB8742E

Revision: 2012 November

2014 GT-R

INT-8

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009162322

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precautions Necessary for Steering Wheel Rotation After Battery Disconnection

INFOID:0000000009162323

CAUTION:

Comply with the following cautions to prevent any error and malfunction.
• Before removing and installing any control units, first turn the ignition switch to the LOCK position,

then disconnect both battery cables.

• After finishing work, confirm that all control unit connectors are connected properly, then re-connect

both battery cables.

• Always use CONSULT to perform self-diagnosis as a part of each function inspection after finishing

work. If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.

For vehicle with steering lock unit, if the battery is disconnected or discharged, the steering wheel will lock and
cannot be turned.
If turning the steering wheel is required with the battery disconnected or discharged, follow the operation pro-
cedure below before starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

2.

Turn the ignition switch to ACC position.
(At this time, the steering lock will be released.)

3.

Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.

Revision: 2012 November

2014 GT-R

PRECAUTIONS

INT-9

< PRECAUTION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

4.

Perform the necessary repair operation.

5.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the ignition switch from ACC position to ON position, then to LOCK position. (The steering wheel will lock
when the ignition switch is turned to LOCK position.)

6.

Perform self-diagnosis check of all control units using CONSULT.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000009162324

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc to prevent damage to
windshield.

Precaution for Work

INFOID:0000000009162325

• After removing and installing the opening/closing parts, be sure to carry out fitting adjustments to check their

operation.

• Check the lubrication level, damage, and wear of each part. If necessary, grease or replace it.

PIIB3706J

Revision: 2012 November

2014 GT-R

INT-10

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Special Service Tools

INFOID:0000000009162326

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

INFOID:0000000009162327

Tool number

(Kent-Moore No.)

Tool name

Description

(J-39570)
Chassis ear

Locates the noise

(J-43980)
NISSAN Squeak and Rattle
Kit

Repairs the cause of noise

SIIA0993E

SIIA0994E

Tool name

Description

Engine ear

Locates the noise

Remover tool

Removes clips,  pawls and metal clips

Power tool

SIIA0995E

JMKIA3050ZZ

PIIB1407E

Revision: 2012 November

2014 GT-R

CLIP LIST

INT-11

< PREPARATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

CLIP LIST

Clip List

INFOID:0000000009162328

JMJIA3734GB

Revision: 2012 November

2014 GT-R

INT-12

< REMOVAL AND INSTALLATION >

DOOR FINISHER

REMOVAL AND INSTALLATION

DOOR FINISHER

Exploded View

INFOID:0000000009162329

Removal and Installation

INFOID:0000000009162330

CAUTION:

Wrap the tip of flat-bladed screwdriver with a shop cloth before remove.

REMOVAL

1.

Fully open the door window.

1.

Bracket

2.

Door finisher

3.

Power window switch finisher

4.

Armrest

5.

Step lamp

6.

Door grip cap

7.

Door corner cover inner

8.

Door panel

9.

Power window switch

  : Clip

  : Pawl

  : Metal clip

JMJIA2155ZZ

Revision: 2012 November

2014 GT-R

DOOR FINISHER

INT-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

2.

Insert a remover tool (A) into the lower side of door grip cap (1),
then disengage and remove the pawls and metal clips.

3.

Insert a remover tool (A) between the door finisher and rear of
armrest (1), disengage the pawls and metal clips and then
remove the armrest.

4.

Remove the door finisher tightening bolts (A) shown in the fig-
ure.

5.

Remove the step lamp.
1.

Insert a remover tool (A) between the door finisher and the
step (1) to disengage the metal clips and remove the step
lamp.

2.

Remove the bolt located behind the step lamp.

6.

Remove the clip from the door finisher rear end. Refer to

INT-12, "Exploded View"

: Pawl

: Metal clip

JMJIA2156ZZ

: Pawl

: Metal clip

JMJIA2157ZZ

NNJIA0175ZZ

: metal clip

JMJIA6123ZZ

Revision: 2012 November

2014 GT-R

INT-14

< REMOVAL AND INSTALLATION >

DOOR FINISHER

7.

Disengage the clips from the door finisher (1) rear side using a
remover tool (A).

CAUTION:

Insert the remover tool between door panel and clip, and
then disengage the clip.

8.

Remove the door finisher rear side lock knob cable (2) and the inside handle cable (1) from the inside
handle (A).

9.

Lift up the door finisher and pull it out toward the passenger
room. Disconnect the connectors (A) and (B) from the door fin-
isher rear side.

10. Remove the door finisher.
11. Remove the front door squawker (BOSE AUDIO WITH NAVIGA-

TION) after removing the door finisher. Refer to

AV-172,

"Removal and Installation"

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

When installing the door finisher, check that the clips are securely fitted in panel holes, and then press
them in.

: Clip

JMJIA2159ZZ

JMJIA2160ZZ

JMJIA2161ZZ

Revision: 2012 November

2014 GT-R

BODY SIDE TRIM

INT-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

BODY SIDE TRIM

Exploded View

INFOID:0000000009162331

Removal and Installation

INFOID:0000000009162332

CAUTION:

Wrap the tools with shop cloth or tape to prevent damage when using the tools during removal.

REMOVAL

FRONT PILLAR GARNISH

1.

Remove the front body side welt of the front pillar.

1.

Front pillar garnish

2.

Kicking plate outer

3.

Dash side finisher (RH)

4.

Kicking plate inner

5.

Rear side finisher

6.

Rear pillar finisher

7.

Body side welt

8.

Dash side finisher cover

9.

Dash side finisher (LH)

: Clip

: Pawl

: Metal clip

: Always replace after every disassembly

JMJIA2162ZZ

Revision: 2012 November

2014 GT-R

INT-16

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

2.

Insert the remover tool (A) into the clearance between the front pillar garnish (1) and the vehicle body, dis-
engage the metal clips, cut the clip (2) and then remove the front pillar garnish.

KICKING PLATE INNER

1.

Disengage pawls on rear end and side of kicking plate inner
using a remover tool (A).

2.

Disengage remaining pawls while rotating the kicking plate
inner.

3.

Pull kicking plate toward vehicle rear, disengage metal clips, and
then remove kicking plate inner.

DASH SIDE FINISHER

1.

Remove the kicking plate inner.

2.

Remove the clip (A) of the dash side finisher (1).

3.

Disengage and remove the clips of the dash side finisher using
the remover tool (B).

KICKING PLATE OUTER

1.

Remove the center mud guard. Refer to

EXT-34, "Removal and Installation"

: Clip

: Metal clip

NNJIA0016ZZ

: Pawl

JMJIA5244ZZ

: Pawl

: Metal clip

JMJIA5245ZZ

: Metal clip

JMJIA2165ZZ

Revision: 2012 November

2014 GT-R

BODY SIDE TRIM

INT-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

2.

Disengage and remove the pawls using a remover tool (A) after
removing the clip of kicking plate outer.

BODY SIDE WELT

1.

Remove the kicking plate inner.

2.

Remove the body side welt from the panel flange.

REAR SIDE FINISHER

1.

Remove the kicking plate inner.

2.

Remove the body side welt from the rear side finisher.

3.

Remove the rear seat cushion and the rear seatback. Refer to

SE-56, "Removal and Installation"

4.

Remove rear side finisher fixing clip (2).

5.

Disengage rear side finisher (1) fixing clips and pawls with a
remover tool (A), and then remove rear side finisher.

REAR PILLAR FINISHER

1.

Remove the rear seat cushion and the rear seatback. Refer to

SE-56, "Removal and Installation"

2.

Remove the kicking plate inner.

3.

Remove the rear side finisher and the body side welt of rear pillar finisher.

4.

Remove the rear side finisher.

5.

Remove the front seat belt shoulder anchor. Refer to

SB-6, "SEAT BELT RETRACTOR : Removal and

Installation"

6.

Remove the mounting screw from rear pillar finisher (1) using a screwdriver (A).

7.

Disengage the clips and the metal clips from the rear pillar finisher using the remover tool (A).

INSTALLATION

: Pawl

NNJIA0018ZZ

: Clip

: Pawl

JMJIA5241ZZ

: Clip

: Pawl

: Metal clip

JMJIA5349ZZ

Revision: 2012 November

2014 GT-R

INT-18

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

Note the following, and install in the reverse order of removal.

CAUTION:

When installing body side trim, check that clips are securely fitted in panel holes on the body, and then
press them in.

Revision: 2012 November

2014 GT-R

REAR PARCEL SHELF FINISHER

INT-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

REAR PARCEL SHELF FINISHER

Exploded View

INFOID:0000000009162333

Removal and Installation

INFOID:0000000009162334

REMOVAL

1.

Remove the rear seat cushion and the rear seatback. Refer to

SE-56, "Removal and Installation"

2.

Remove the kicking plate inner (LH/RH) and body side welt (LH/RH). Refer to

INT-15, "Removal and

Installation"

3.

Remove the rear side finisher (LH/RH). Refer to

INT-15, "Removal and Installation"

4.

Remove the rear pillar finisher (LH/RH). Refer to

INT-15, "Removal and Installation"

5.

Remove the rear console assembly. Refer to

IP-23, "Removal and Installation"

1.

Child anchor cover

2.

Rear parcel shelf finisher

3.

Rear seat center finisher

: Clip

: Pawl

JMJIA2166ZZ

Revision: 2012 November

2014 GT-R

INT-20

< REMOVAL AND INSTALLATION >

REAR PARCEL SHELF FINISHER

6.

Remove the rear seat center finisher mounting bolts (B) using
socket wrench (A).

7.

Insert the remover tool (A) into the clearance between the rear
seat center finisher (1) and the vehicle body, and then disen-
gage the clips.

8.

Remove the rear parcel shelf finisher mounting clips (A).

9.

Remove the rear seat belt escutcheon.

10. Remove the rear seat belt inner anchor. Refer to

SB-11, "SEAT BELT RETRACTOR : Removal and Instal-

lation"

.

11. Disengage the child anchor cover (1) fixing pawls, with a

remover tool (A) and then remove the child anchor cover (LH/
RH).

NNJIA0106ZZ

: Clip

NNJIA0107ZZ

NNJIA0022ZZ

NNJIA0181ZZ

Revision: 2012 November

2014 GT-R

REAR PARCEL SHELF FINISHER

INT-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

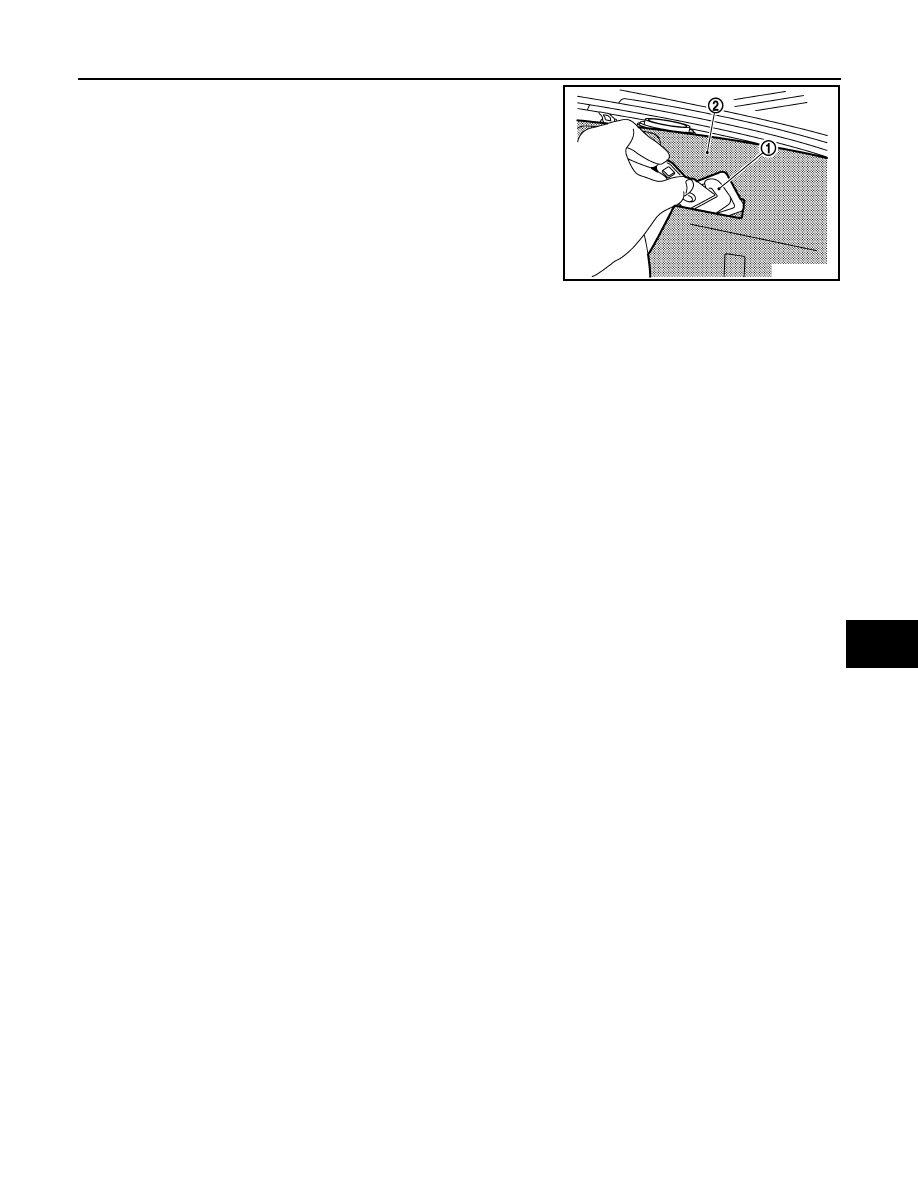

12. Remove the rear seat belt (1) through the hole of rear parcel

shelf finisher (2) as shown in the figure.

13. Pull and remove the rear parcel shelf finisher after disengaging the clip from the back side of rear parcel

shelf finisher.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

Check that clips are securely fitted in panel holes on body when installing the rear parcel shelf finisher
and then press in.

NNJIA0109ZZ

Revision: 2012 November

2014 GT-R















Content      ..     1      2      3      4      ..
